2011 TOYOTA URBAN CRUISER Owners Manual

385 4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_EE (OM52C21E)

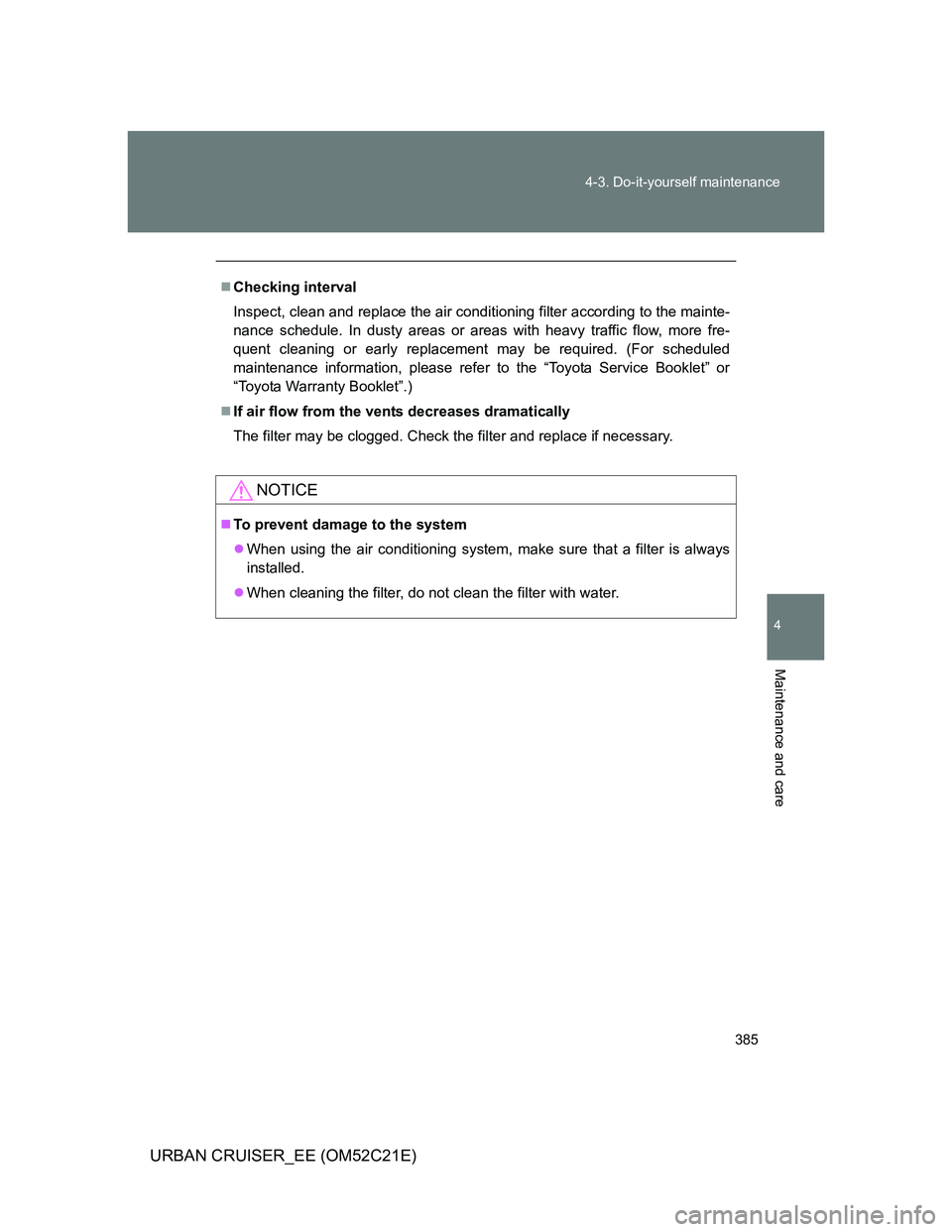

Checking interval
Inspect, clean and replace the air conditioning filter according to the mainte-
nance schedule. In dusty areas or areas with heavy traffic flow, more fre-
quent cleaning or early replacement may be required. (For scheduled
maintenance information, please refer to the “Toyota Service Booklet” or
“Toyota Warranty Booklet”.)
If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
To prevent damage to the system
When using the air conditioning system, make sure that a filter is always
installed.
When cleaning the filter, do not clean the filter with water.

386
4-3. Do-it-yourself maintenance
URBAN CRUISER_EE (OM52C21E)

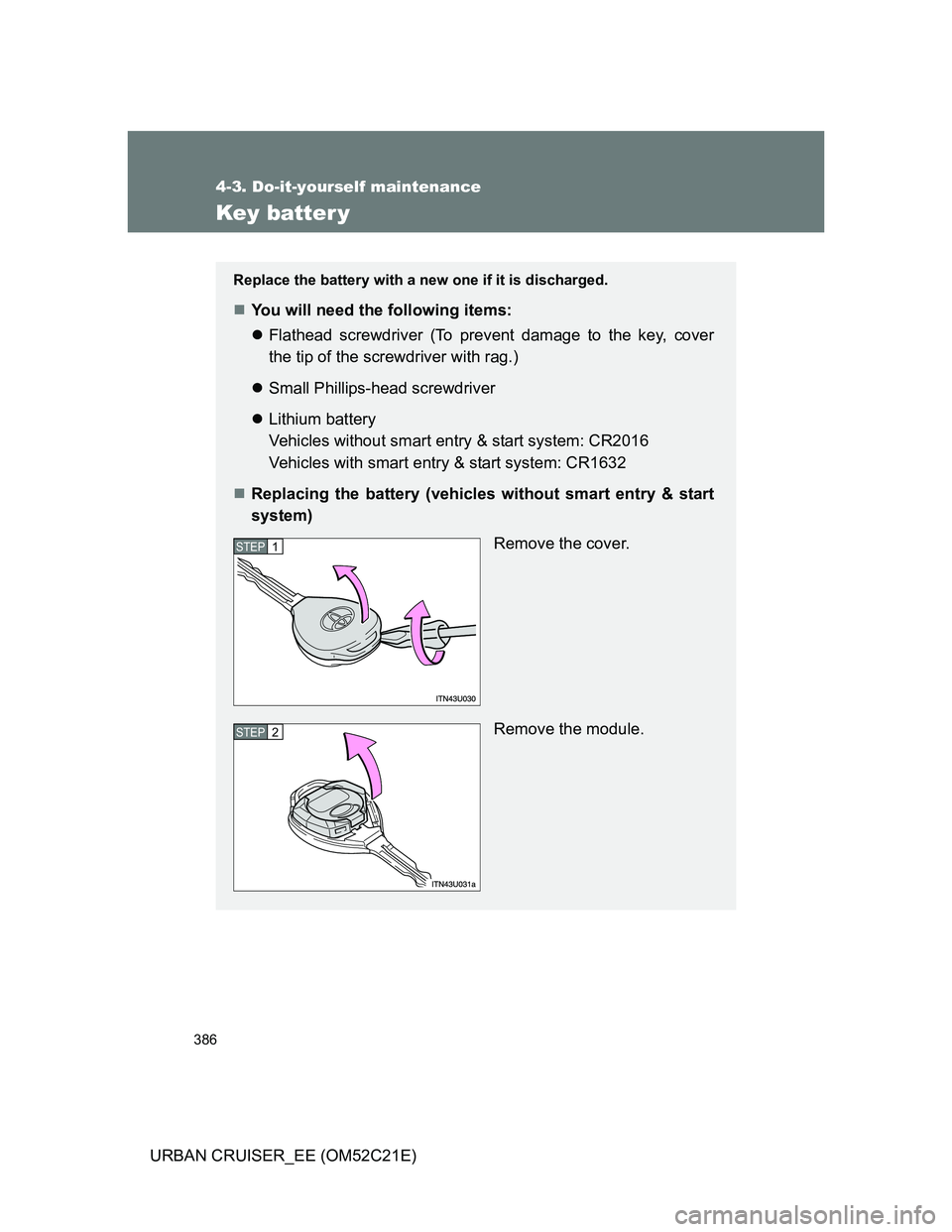

Key batter y
Replace the battery with a new one if it is discharged.
You will need the following items:
Flathead screwdriver (To prevent damage to the key, cover
the tip of the screwdriver with rag.)
Small Phillips-head screwdriver
Lithium battery
Vehicles without smart entry & start system: CR2016
Vehicles with smart entry & start system: CR1632
Replacing the battery (vehicles without smart entry & start
system)
Remove the cover.
Remove the module.
STEP1
STEP2

387 4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_EE (OM52C21E)

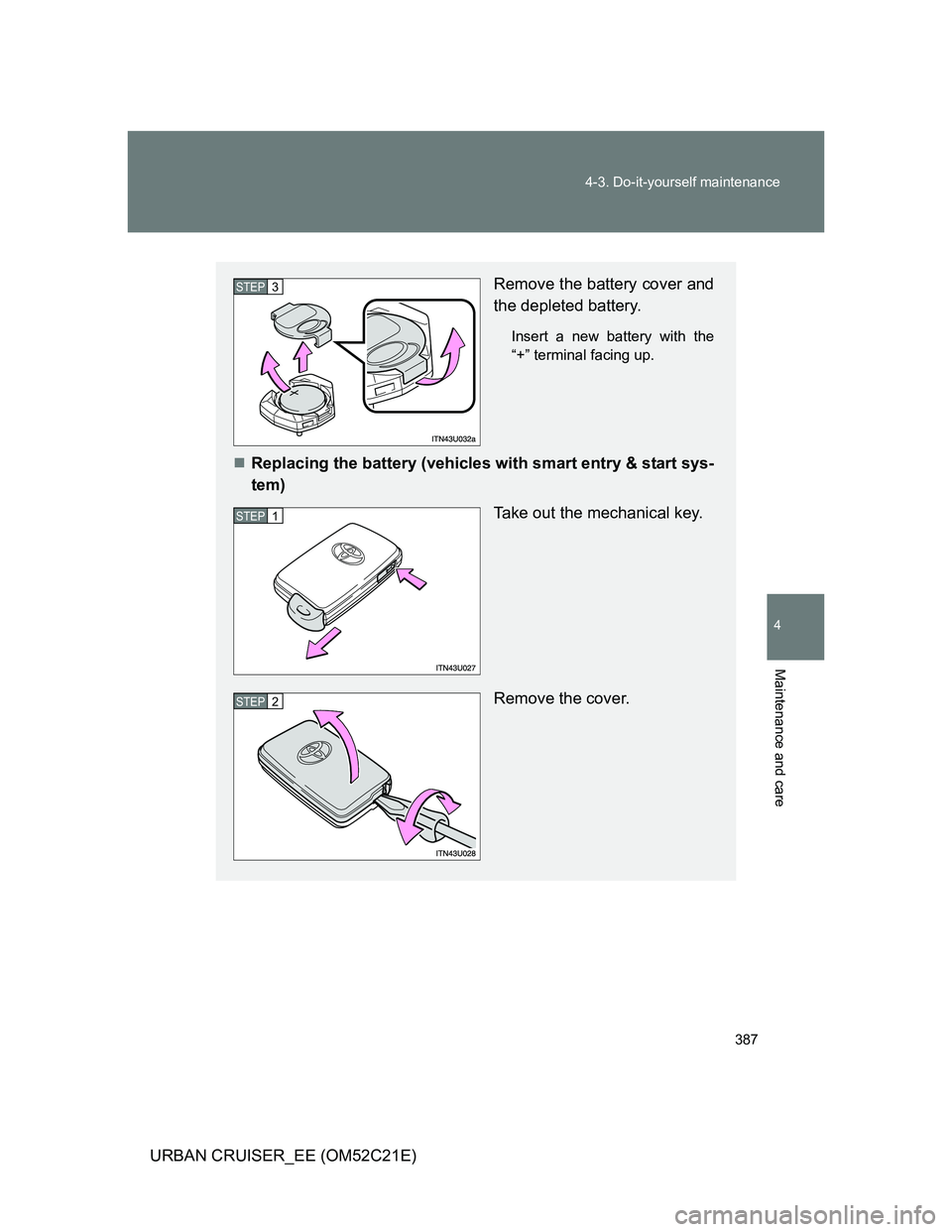

Remove the battery cover and
the depleted battery.
Insert a new battery with the
“+” terminal facing up.
Replacing the battery (vehicles with smart entry & start sys-
tem)
Take out the mechanical key.
Remove the cover.
STEP3
STEP1
STEP2

388 4-3. Do-it-yourself maintenance
URBAN CRUISER_EE (OM52C21E)

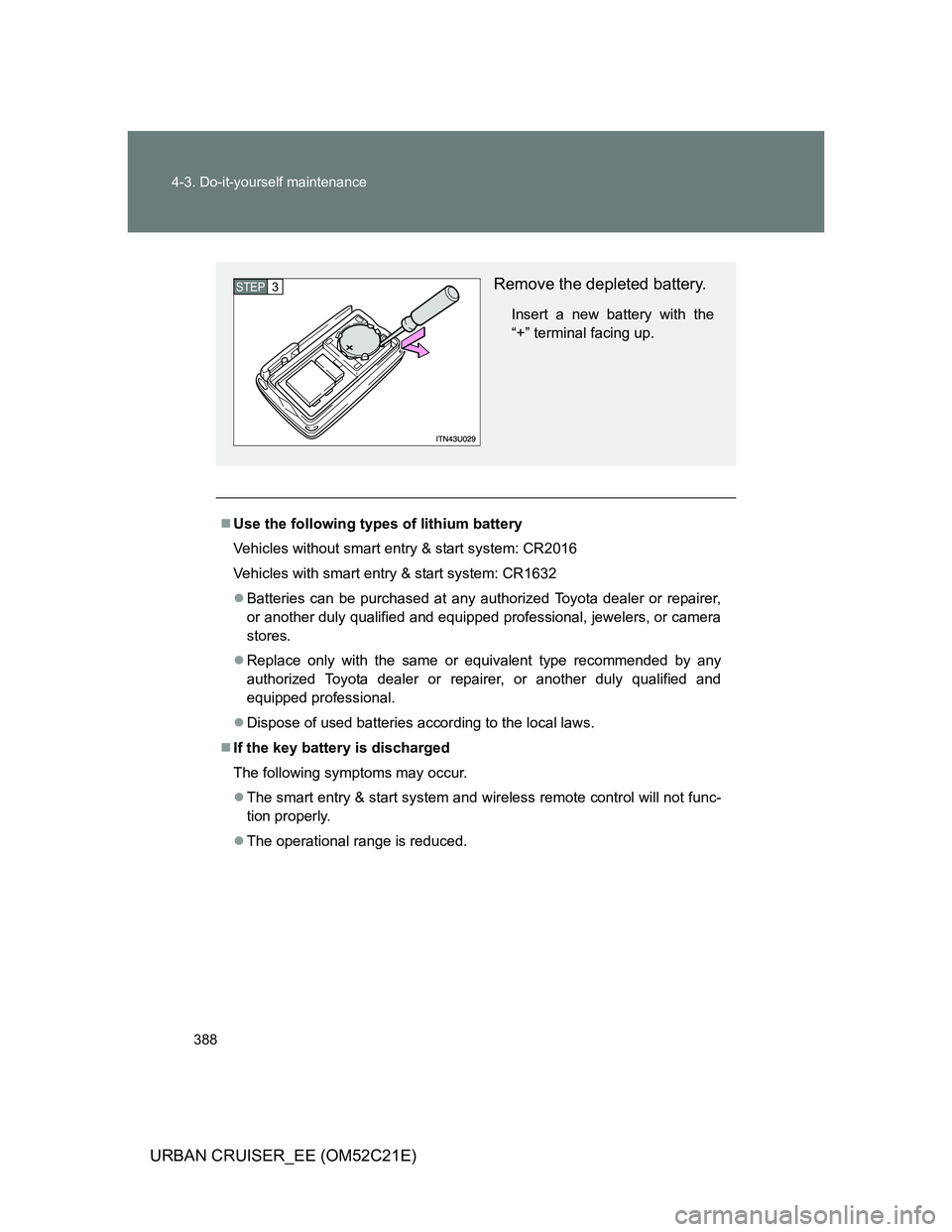

Use the following types of lithium battery
Vehicles without smart entry & start system: CR2016
Vehicles with smart entry & start system: CR1632
Batteries can be purchased at any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional, jewelers, or camera
stores.
Replace only with the same or equivalent type recommended by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Dispose of used batteries according to the local laws.
If the key battery is discharged
The following symptoms may occur.
The smart entry & start system and wireless remote control will not func-
tion properly.
The operational range is reduced.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP3

389 4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_EE (OM52C21E)

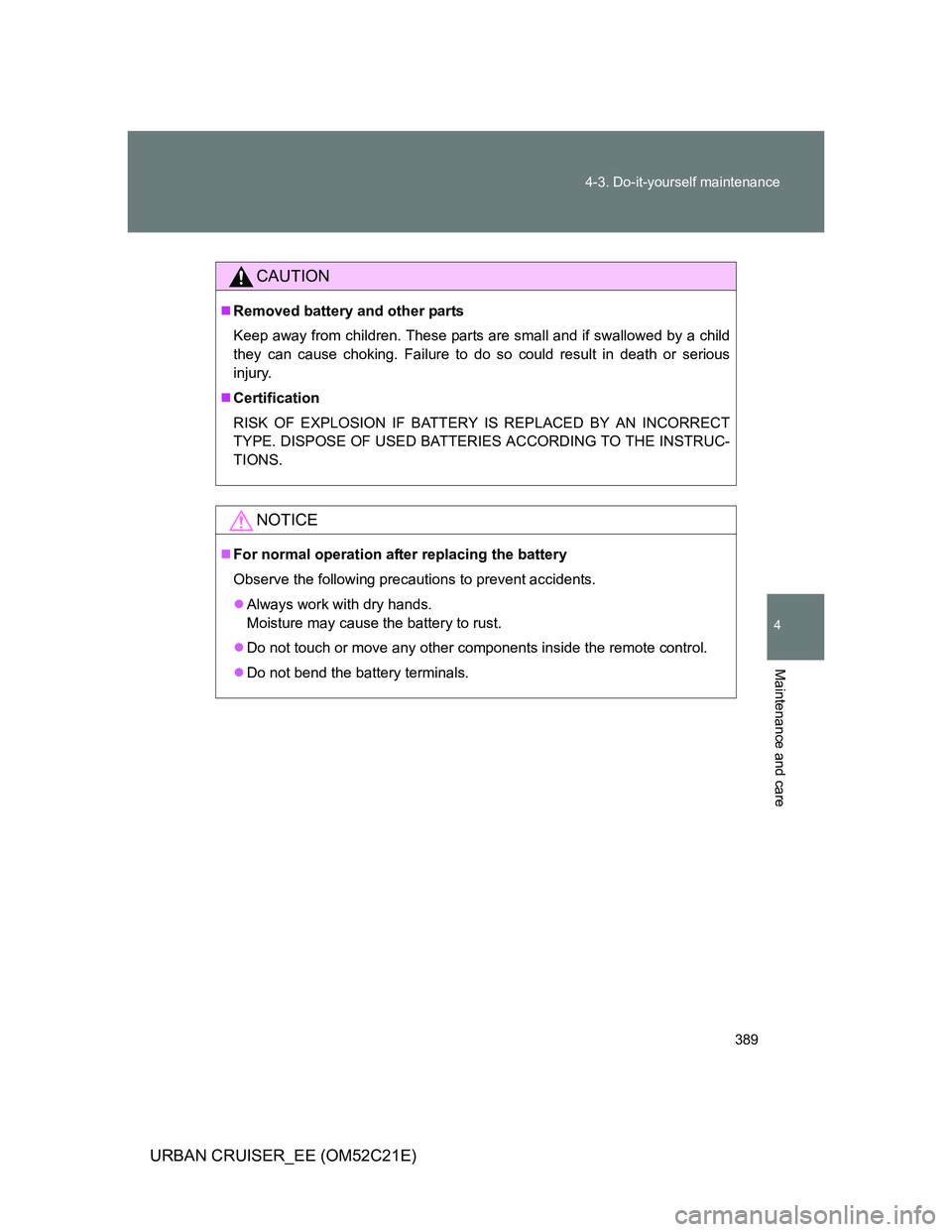

CAUTION
Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child
they can cause choking. Failure to do so could result in death or serious
injury.
Certification
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUC-
TIONS.
NOTICE
For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
Always work with dry hands.
Moisture may cause the battery to rust.
Do not touch or move any other components inside the remote control.
Do not bend the battery terminals.

390
4-3. Do-it-yourself maintenance
URBAN CRUISER_EE (OM52C21E)
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without smart entry & start system
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system
Turn the “ENGINE START STOP” switch OFF.
The fuses are located in the following places. To check the
fuses, follow the instructions below.
Engine compartment
Ty p e A
Push the tab in and lift the lid
off.
Type B (if equipped)
Push the tab in and lift the lid
off.
STEP1
STEP2

391 4-3. Do-it-yourself maintenance
4
Maintenance and care
URBAN CRUISER_EE (OM52C21E)

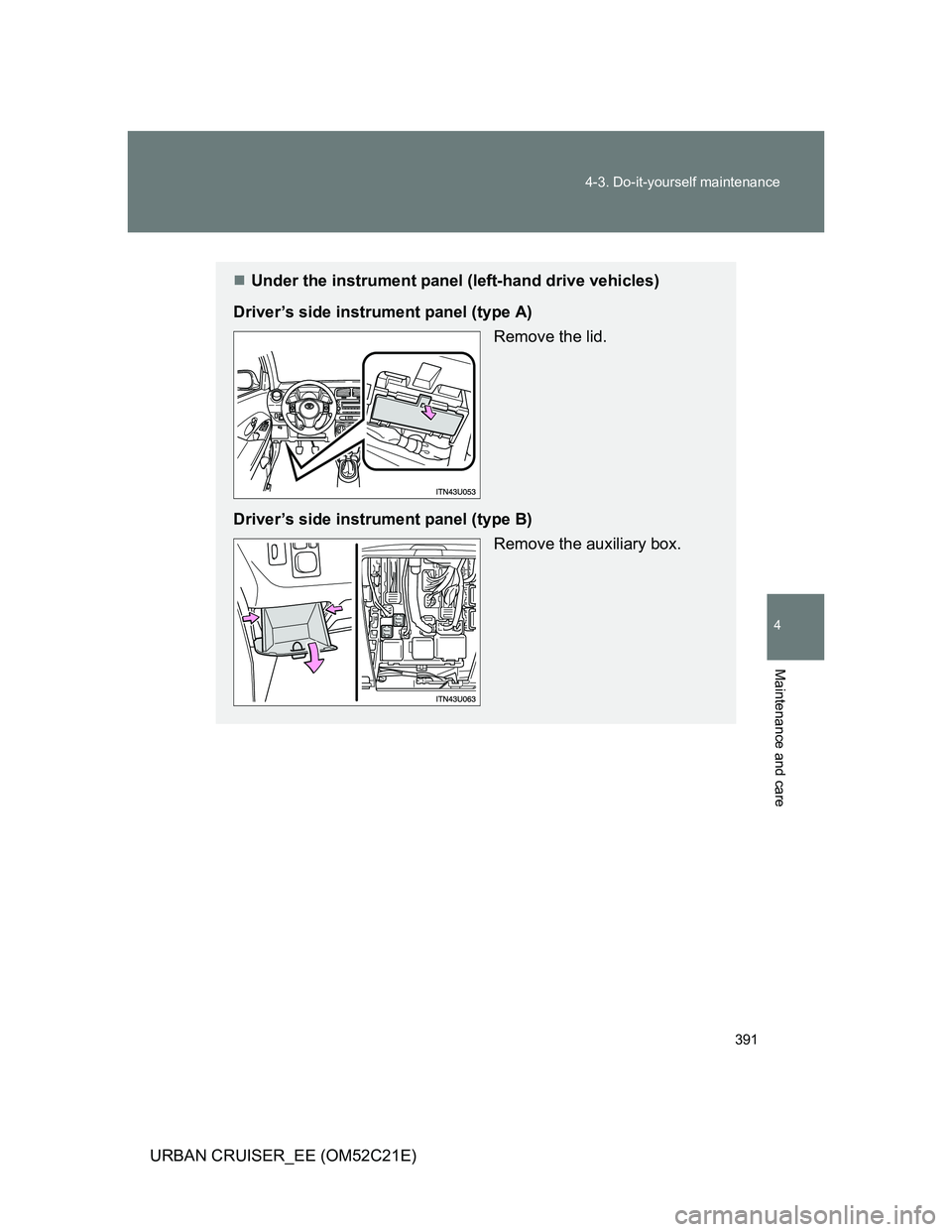

Under the instrument panel (left-hand drive vehicles)
Driver’s side instrument panel (type A)
Remove the lid.
Driver’s side instrument panel (type B)
Remove the auxiliary box.

392 4-3. Do-it-yourself maintenance
URBAN CRUISER_EE (OM52C21E)

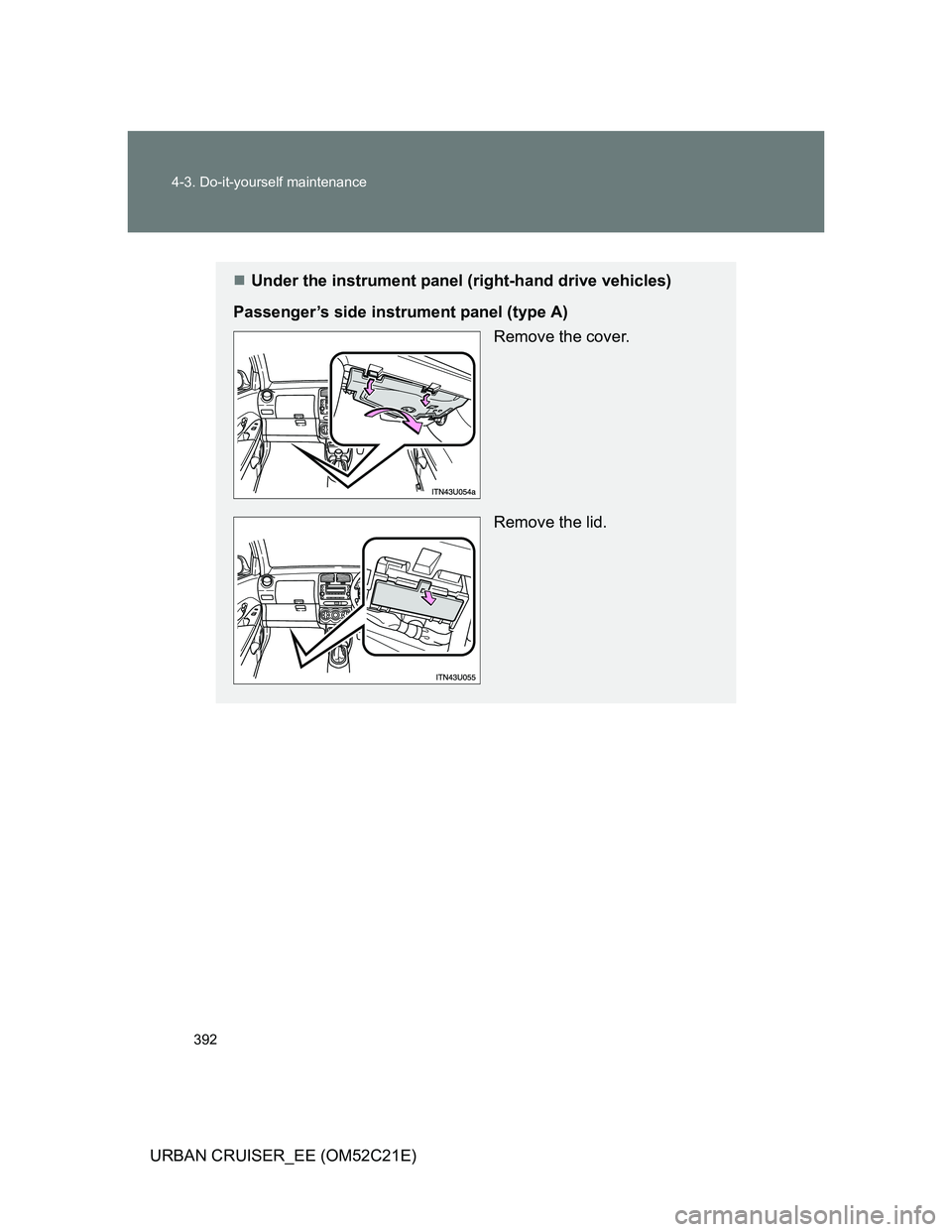

Under the instrument panel (right-hand drive vehicles)
Passenger’s side instrument panel (type A)
Remove the cover.
Remove the lid.
