2011 TOYOTA URBAN CRUISER Owners Manual

297 3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_EE (OM52C21E)
CAUTION
While driving
Do not use a cellular phone, or connect the Bluetooth
® phone.
NOTICE
To prevent damage to a cellular phone
Do not leave a cellular phone in the vehicle. The temperature inside may
become high resulting in damage to the phone.

298
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)
Using the hands-free system
Audio unit
Displays such items as
message, name, and phone
number
Lower-case characters and
special characters, such as
an umlaut, cannot be dis-
played.
Push and hold: Displays
information that is too long
to be displayed at one time
on the display
Selects speed dials
Selects items such as menu
or number
Turn: Selects an item
Press: Inputs the selected
item
Displays Bluetooth
® con-
nection condition
If “BT” is not displayed, the
hands-free system cannot
be used.
Displays the reception level

299 3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_EE (OM52C21E)

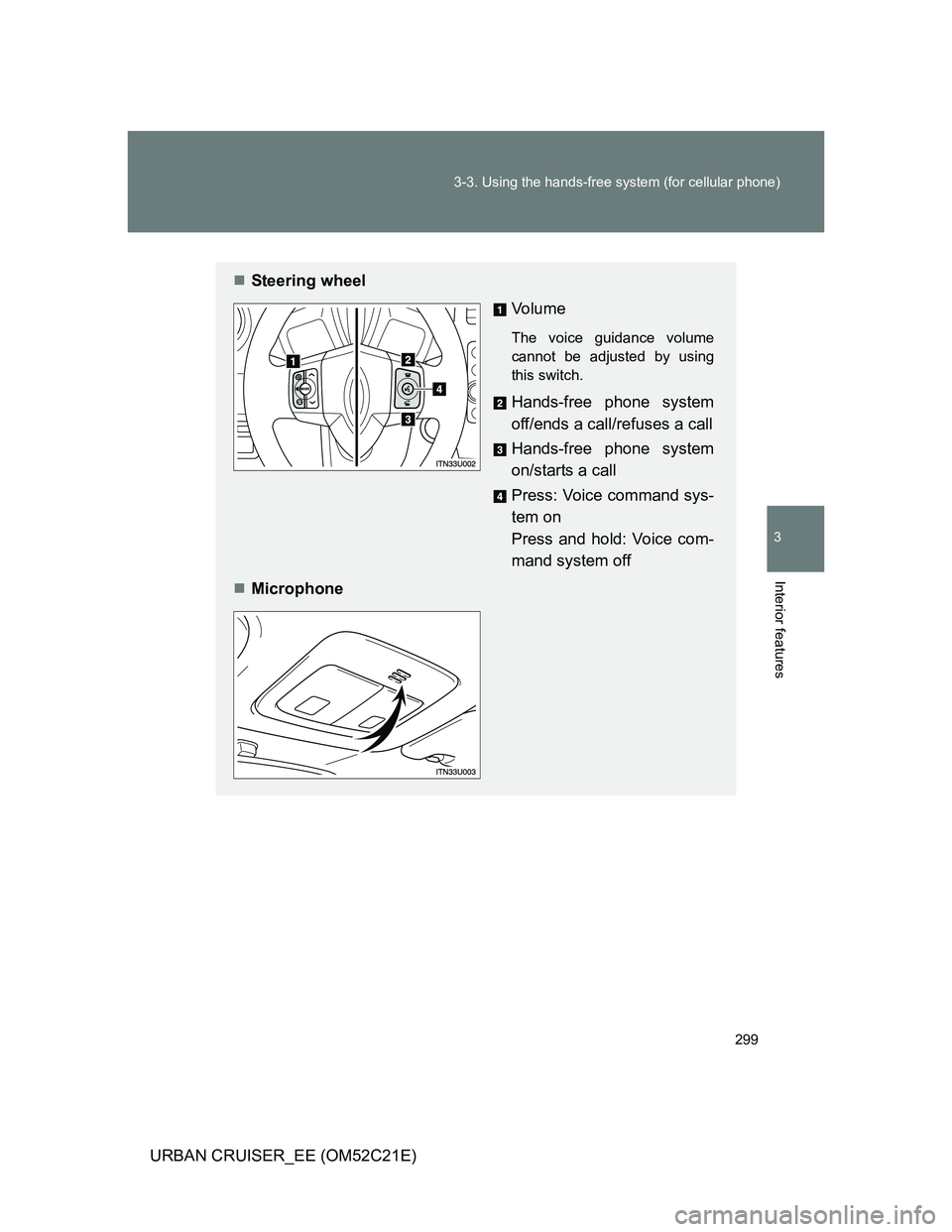

Steering wheel
Vo l u m e
The voice guidance volume
cannot be adjusted by using
this switch.
Hands-free phone system
off/ends a call/refuses a call
Hands-free phone system
on/starts a call
Press: Voice command sys-
tem on
Press and hold: Voice com-
mand system off
Microphone

300 3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)

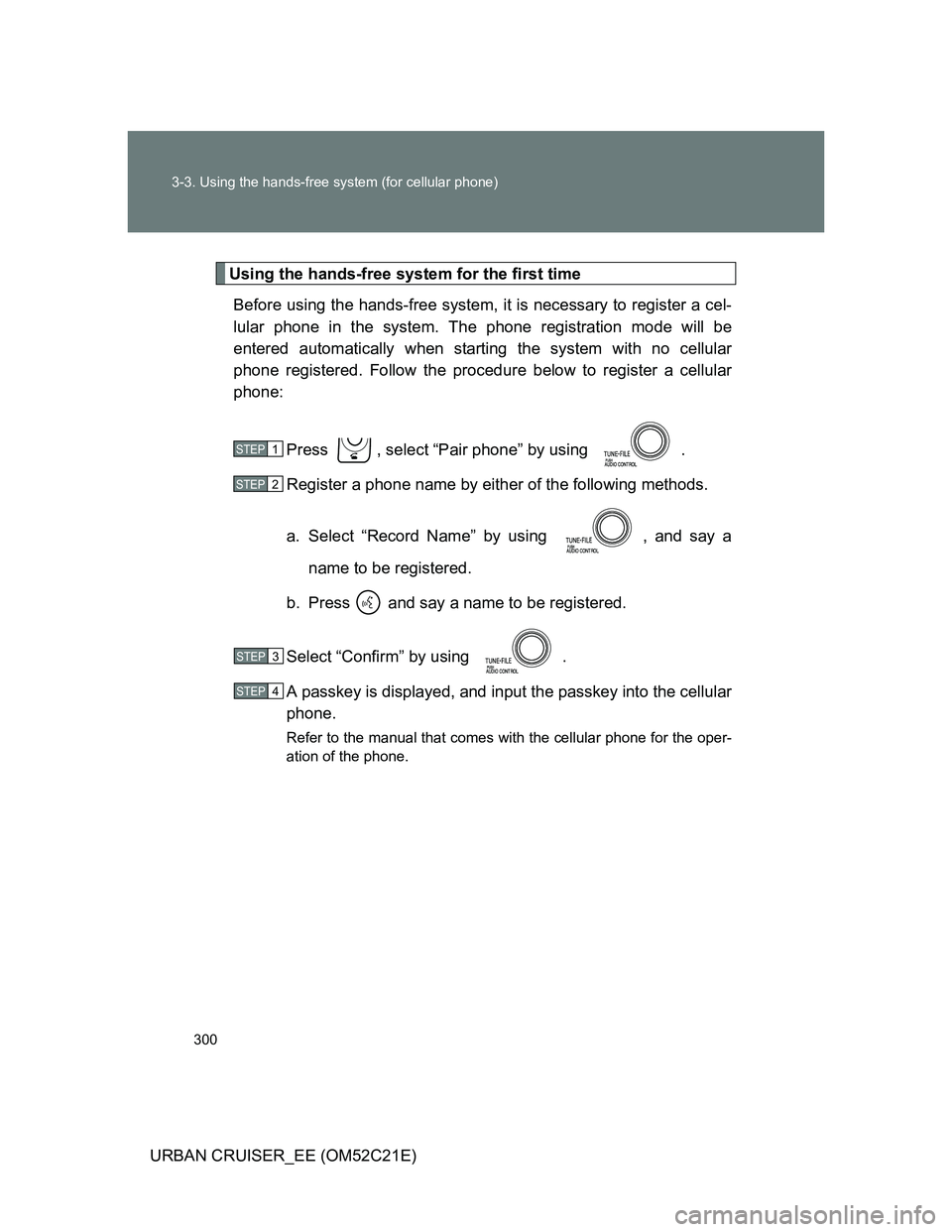

Using the hands-free system for the first time
Before using the hands-free system, it is necessary to register a cel-
lular phone in the system. The phone registration mode will be
entered automatically when starting the system with no cellular
phone registered. Follow the procedure below to register a cellular
phone:
Press , select “Pair phone” by using .
Register a phone name by either of the following methods.
a. Select “Record Name” by using , and say a
name to be registered.
b. Press and say a name to be registered.
Select “Confirm” by using .
A passkey is displayed, and input the passkey into the cellular
phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
STEP1
STEP2
STEP3
STEP4

301 3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_EE (OM52C21E)

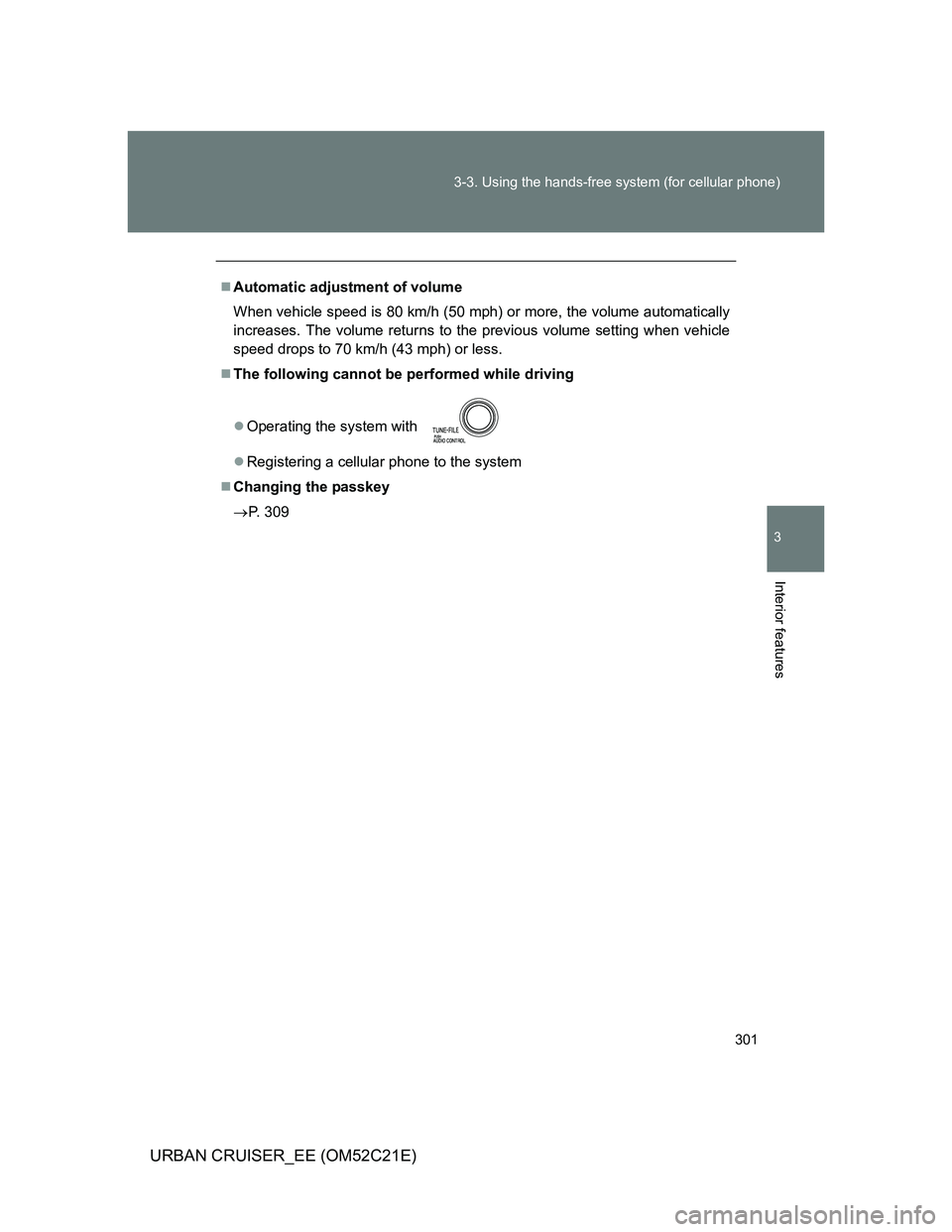

Automatic adjustment of volume
When vehicle speed is 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 70 km/h (43 mph) or less.
The following cannot be performed while driving
Operating the system with
Registering a cellular phone to the system
Changing the passkey
P. 309

302
3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)

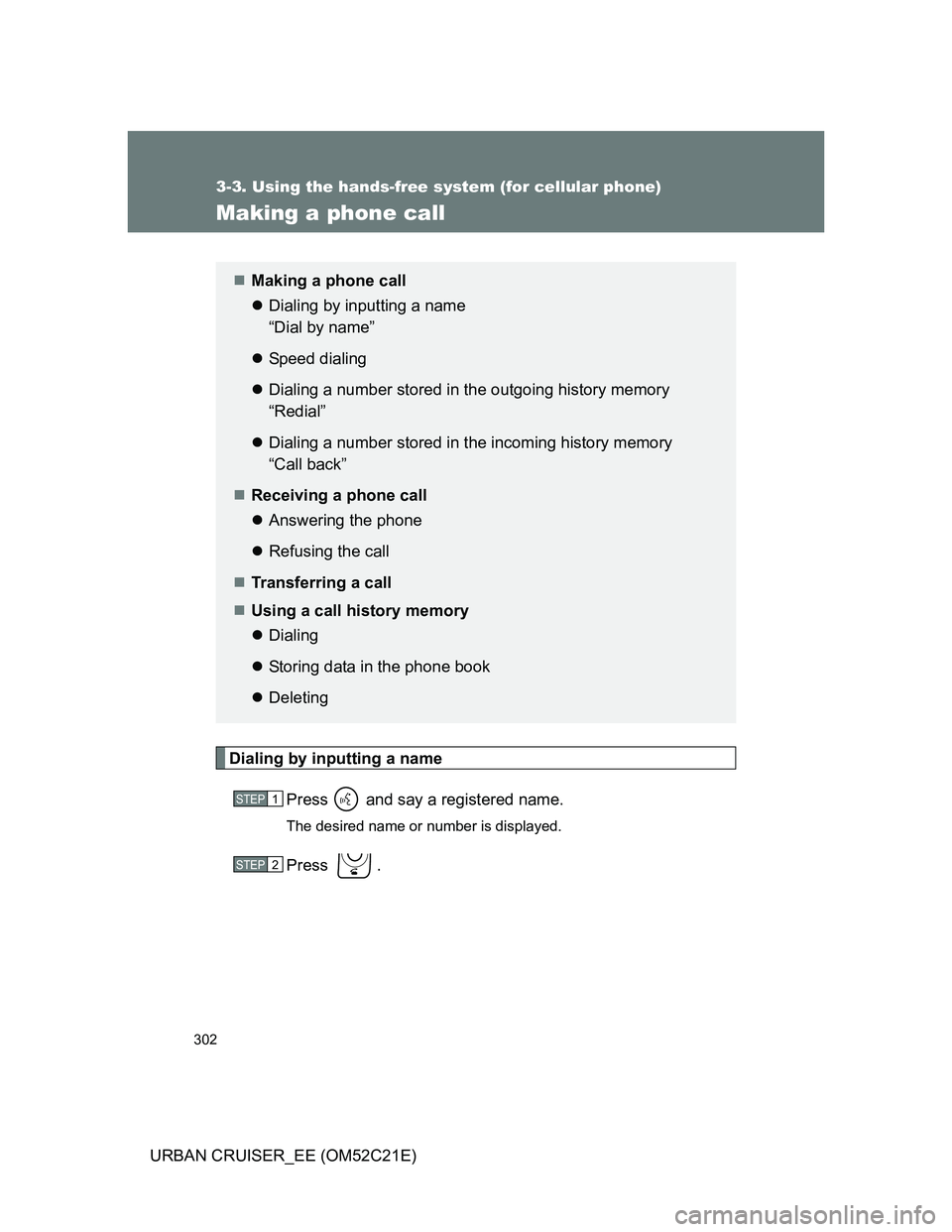

Making a phone call
Dialing by inputting a name
Press and say a registered name.
The desired name or number is displayed.
Press .
Making a phone call
Dialing by inputting a name
“Dial by name”
Speed dialing
Dialing a number stored in the outgoing history memory
“Redial”
Dialing a number stored in the incoming history memory
“Call back”
Receiving a phone call
Answering the phone
Refusing the call
Transferring a call
Using a call history memory
Dialing
Storing data in the phone book
Deleting
STEP1
STEP2

303 3-3. Using the hands-free system (for cellular phone)
3
Interior features
URBAN CRUISER_EE (OM52C21E)

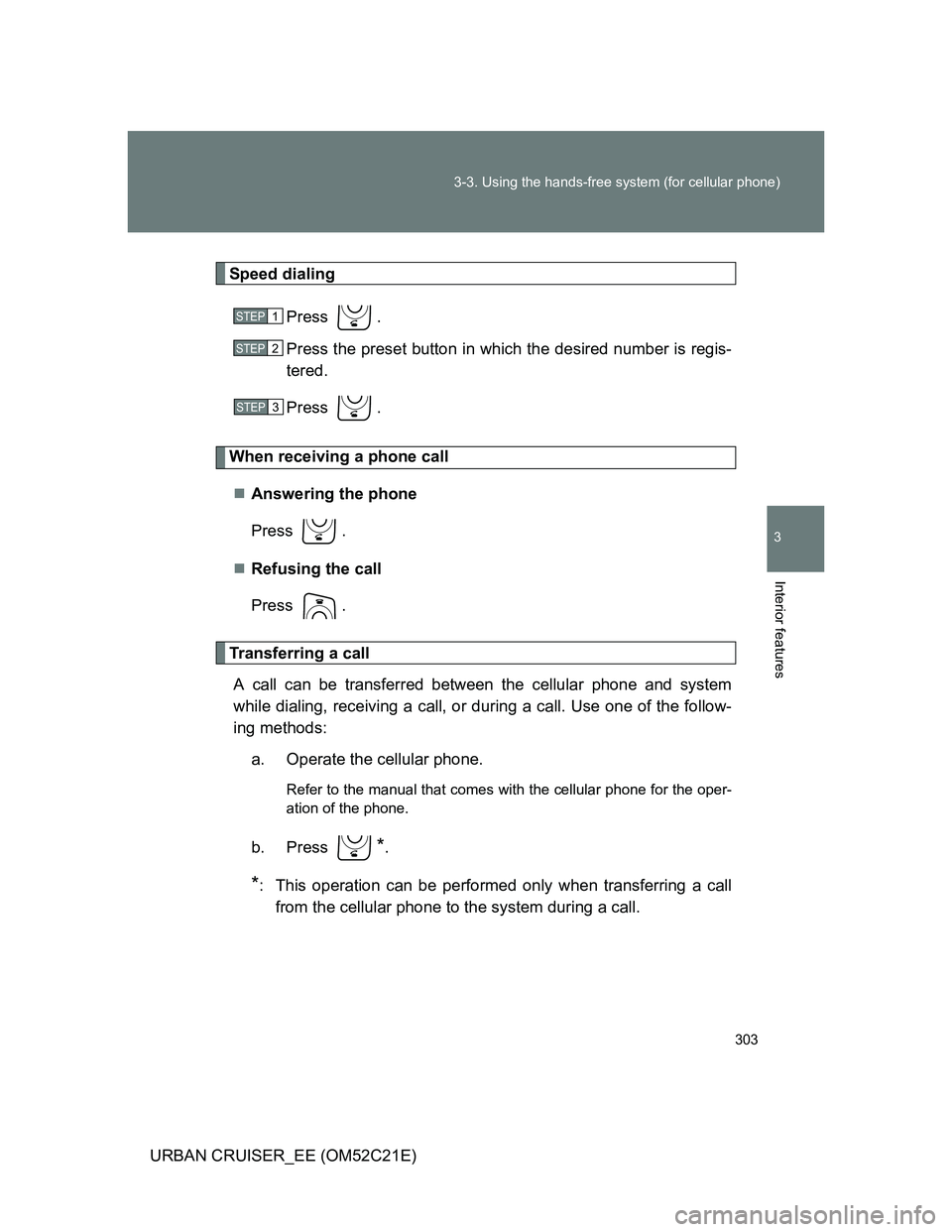

Speed dialing
Press .
Press the preset button in which the desired number is regis-
tered.
Press .
When receiving a phone call
Answering the phone
Press .
Refusing the call
Press .
Transferring a call
A call can be transferred between the cellular phone and system
while dialing, receiving a call, or during a call. Use one of the follow-
ing methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
b. Press *.
*: This operation can be performed only when transferring a call
from the cellular phone to the system during a call.
STEP1
STEP2
STEP3

304 3-3. Using the hands-free system (for cellular phone)
URBAN CRUISER_EE (OM52C21E)

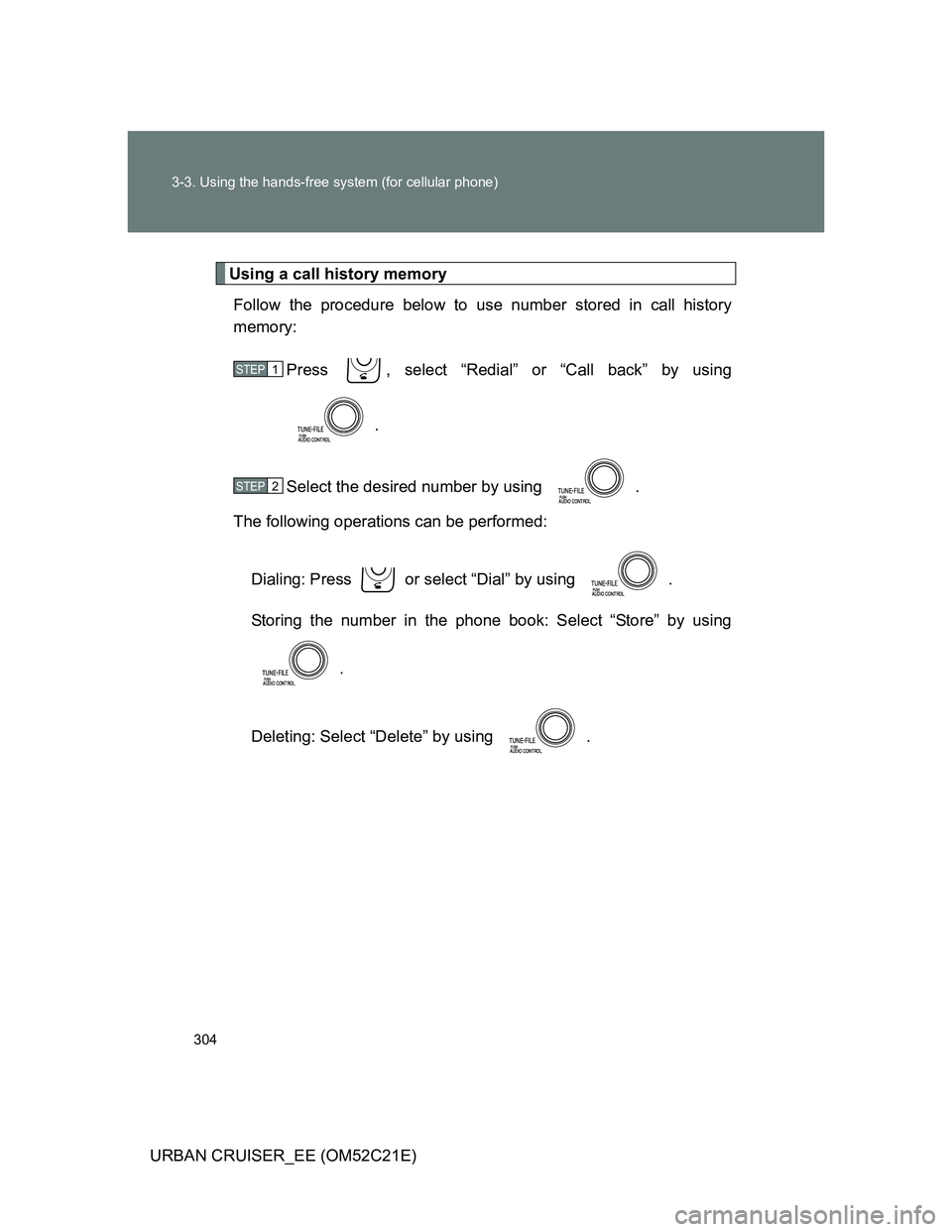

Using a call history memory
Follow the procedure below to use number stored in call history
memory:
Press , select “Redial” or “Call back” by using
.
Select the desired number by using .
The following operations can be performed:
Dialing: Press or select “Dial” by using .
Storing the number in the phone book: Select “Store” by using
.
Deleting: Select “Delete” by using .
STEP1
STEP2
