Vehicle specifications
URBAN CRUISER_EE (OM52C21E)

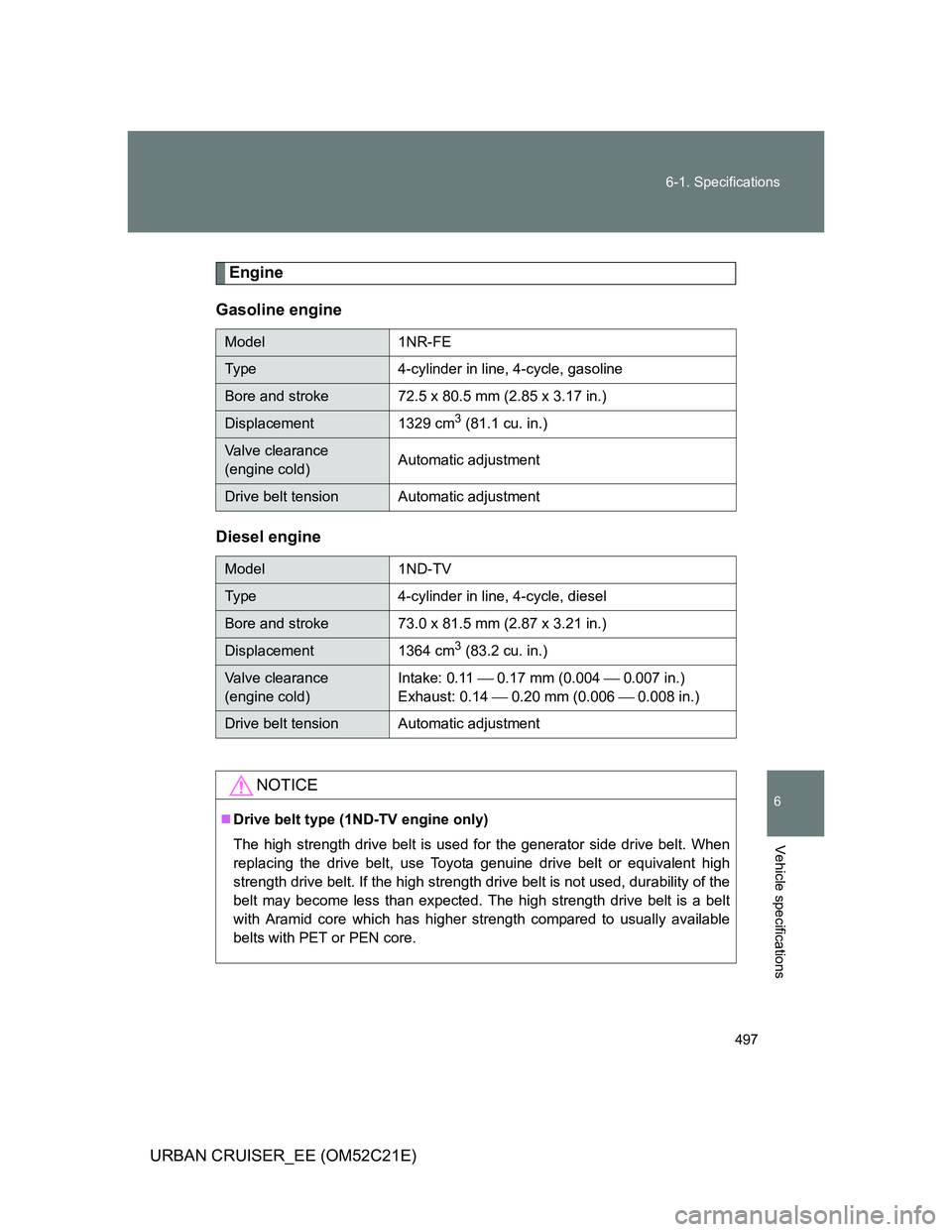

Engine
Gasoline engine
Diesel engine
Model 1NR-FE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 72.5 x 80.5 mm (2.85 x 3.17 in.)
Displacement 1329 cm3 (81.1 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension Automatic adjustment
Model 1ND-TV
Type 4-cylinder in line, 4-cycle, diesel
Bore and stroke 73.0 x 81.5 mm (2.87 x 3.21 in.)
Displacement 1364 cm3 (83.2 cu. in.)
Valve clearance
(engine cold)Intake: 0.11  0.17 mm (0.004  0.007 in.)
Exhaust: 0.14  0.20 mm (0.006  0.008 in.)
Drive belt tension Automatic adjustment
NOTICE
Drive belt type (1ND-TV engine only)
The high strength drive belt is used for the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength drive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher strength compared to usually available
belts with PET or PEN core.

498 6-1. Specifications
URBAN CRUISER_EE (OM52C21E)

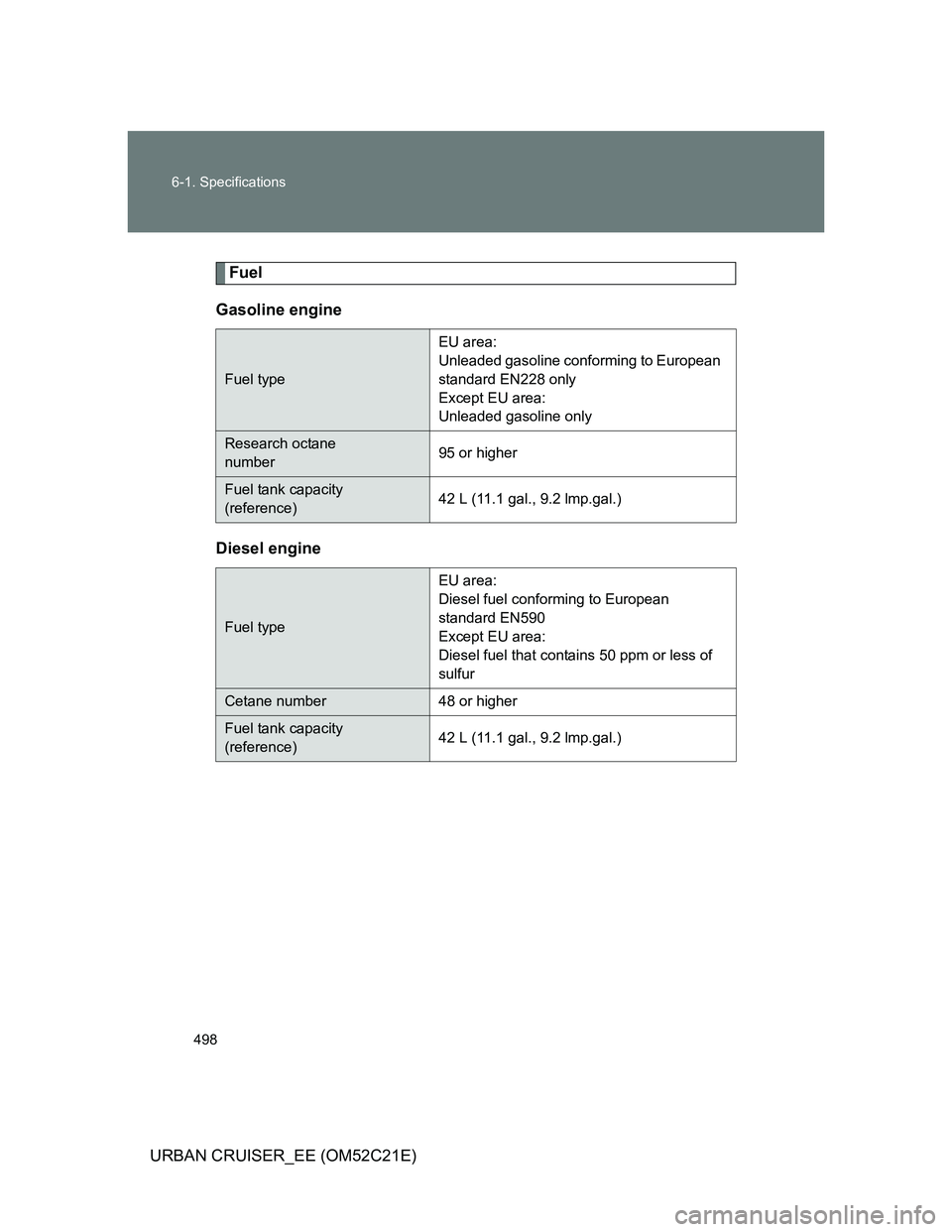

Fuel
Gasoline engine
Diesel engine
Fuel typeEU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research octane
number95 or higher
Fuel tank capacity
(reference)42 L (11.1 gal., 9.2 lmp.gal.)
Fuel typeEU area:
Diesel fuel conforming to European
standard EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of
sulfur
Cetane number 48 or higher
Fuel tank capacity
(reference)42 L (11.1 gal., 9.2 lmp.gal.)

499 6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_EE (OM52C21E)

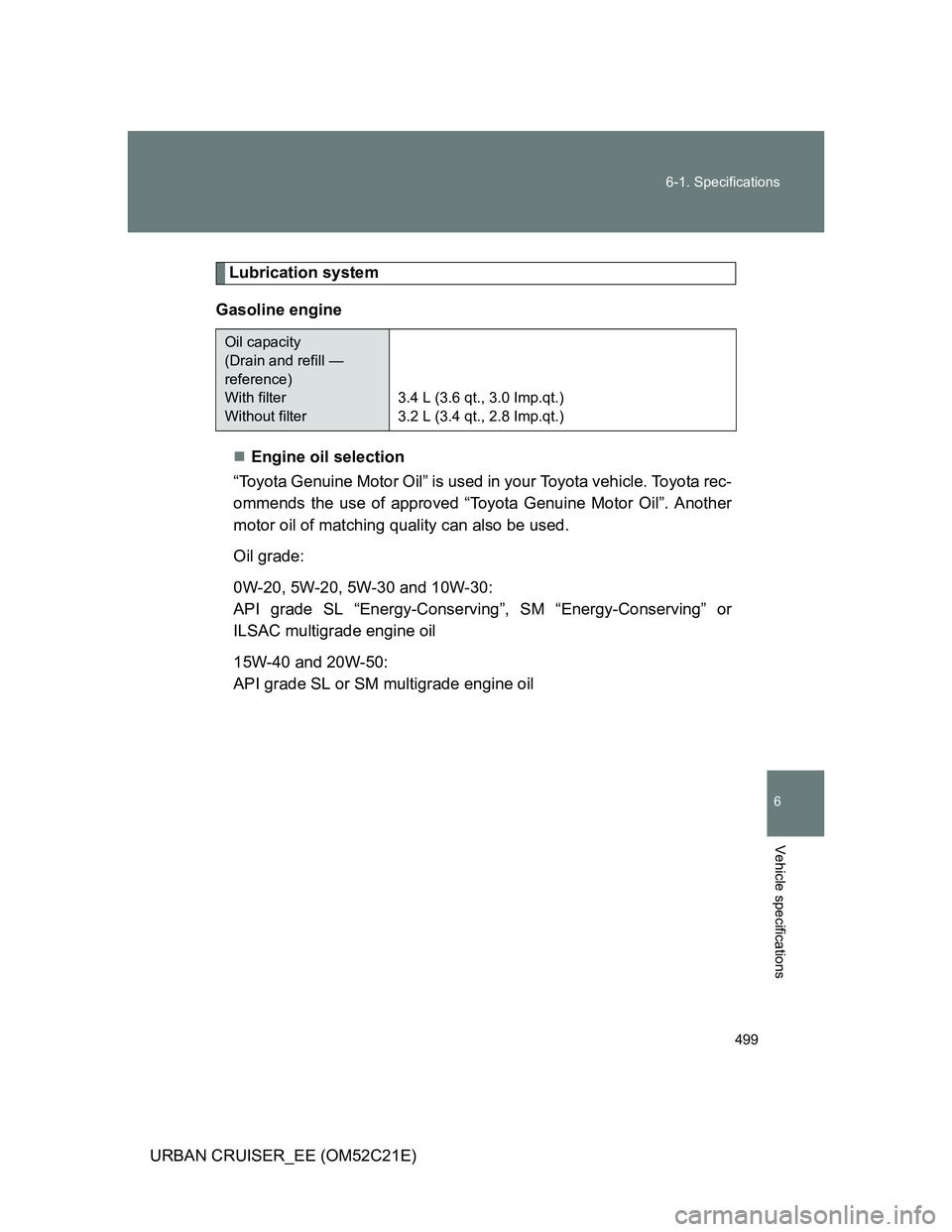

Lubrication system
Gasoline engine
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or
ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL or SM multigrade engine oil
Oil capacity
(Drain and refill —
reference)
With filter
Without filter3.4 L (3.6 qt., 3.0 Imp.qt.)
3.2 L (3.4 qt., 2.8 Imp.qt.)

500 6-1. Specifications

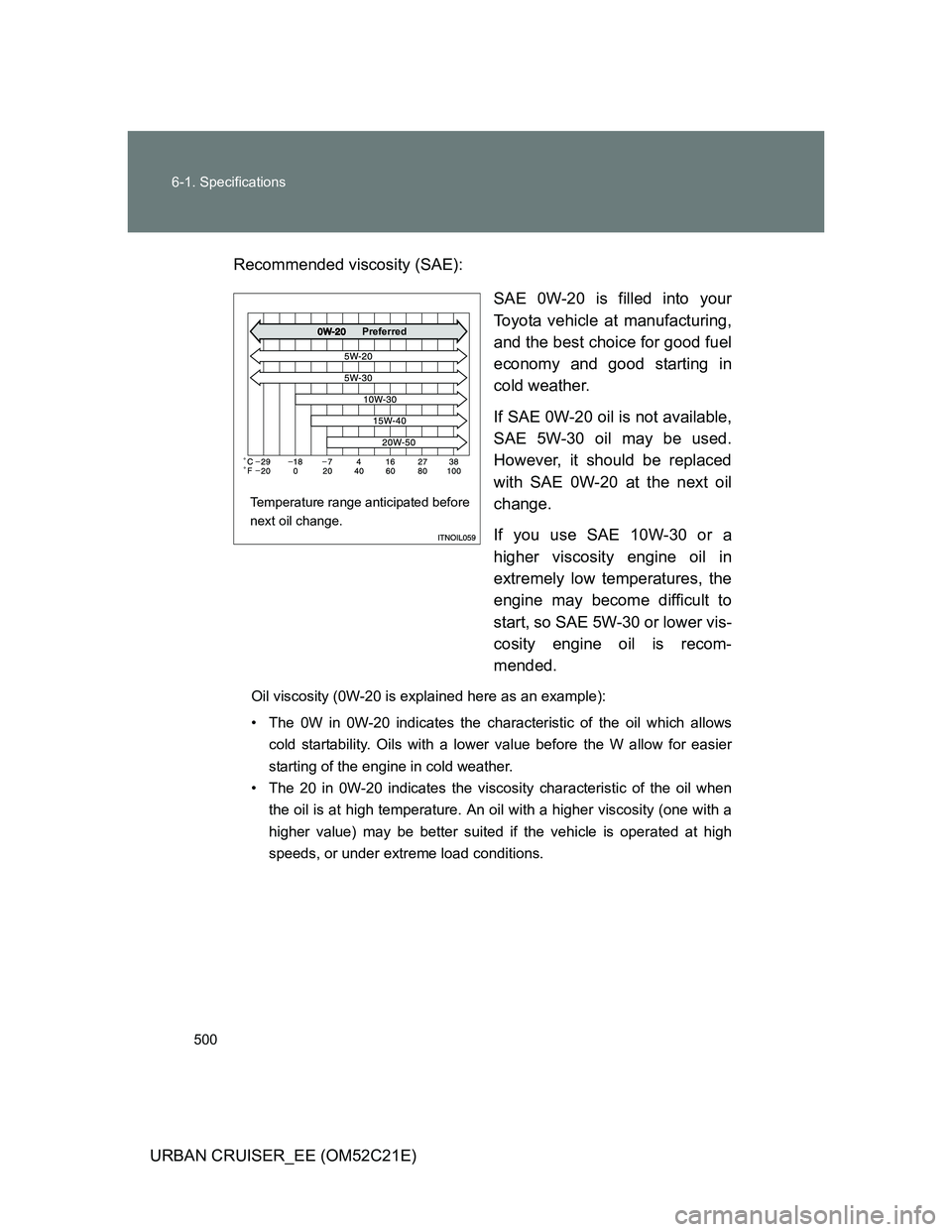

URBAN CRUISER_EE (OM52C21E)Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or lower vis-
cosity engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred

501 6-1. Specifications
6
Vehicle specifications

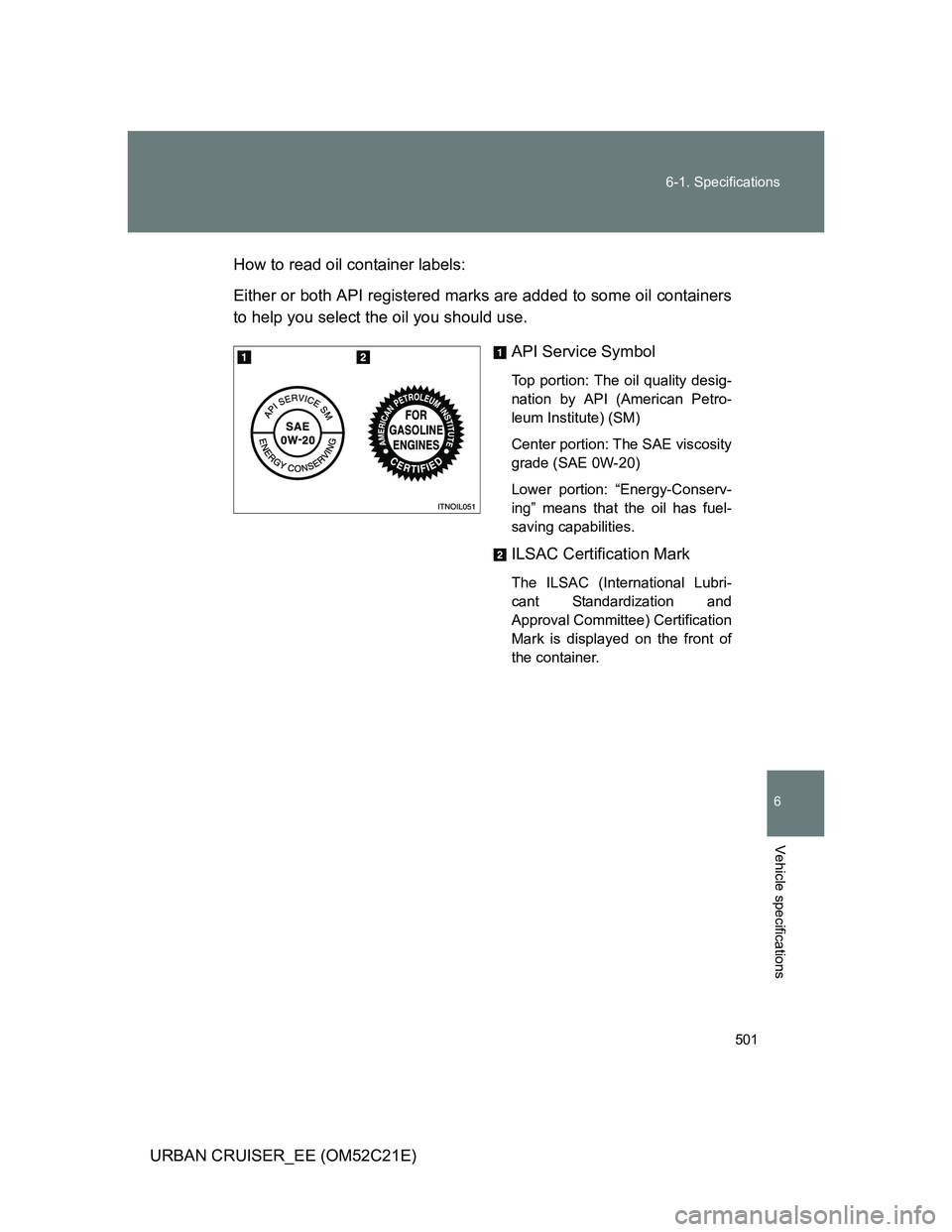

URBAN CRUISER_EE (OM52C21E)How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality desig-
nation by API (American Petro-
leum Institute) (SM)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “Energy-Conserv-
ing” means that the oil has fuel-
saving capabilities.
ILSAC Certification Mark
The ILSAC (International Lubri-
cant Standardization and
Approval Committee) Certification
Mark is displayed on the front of
the container.

502 6-1. Specifications

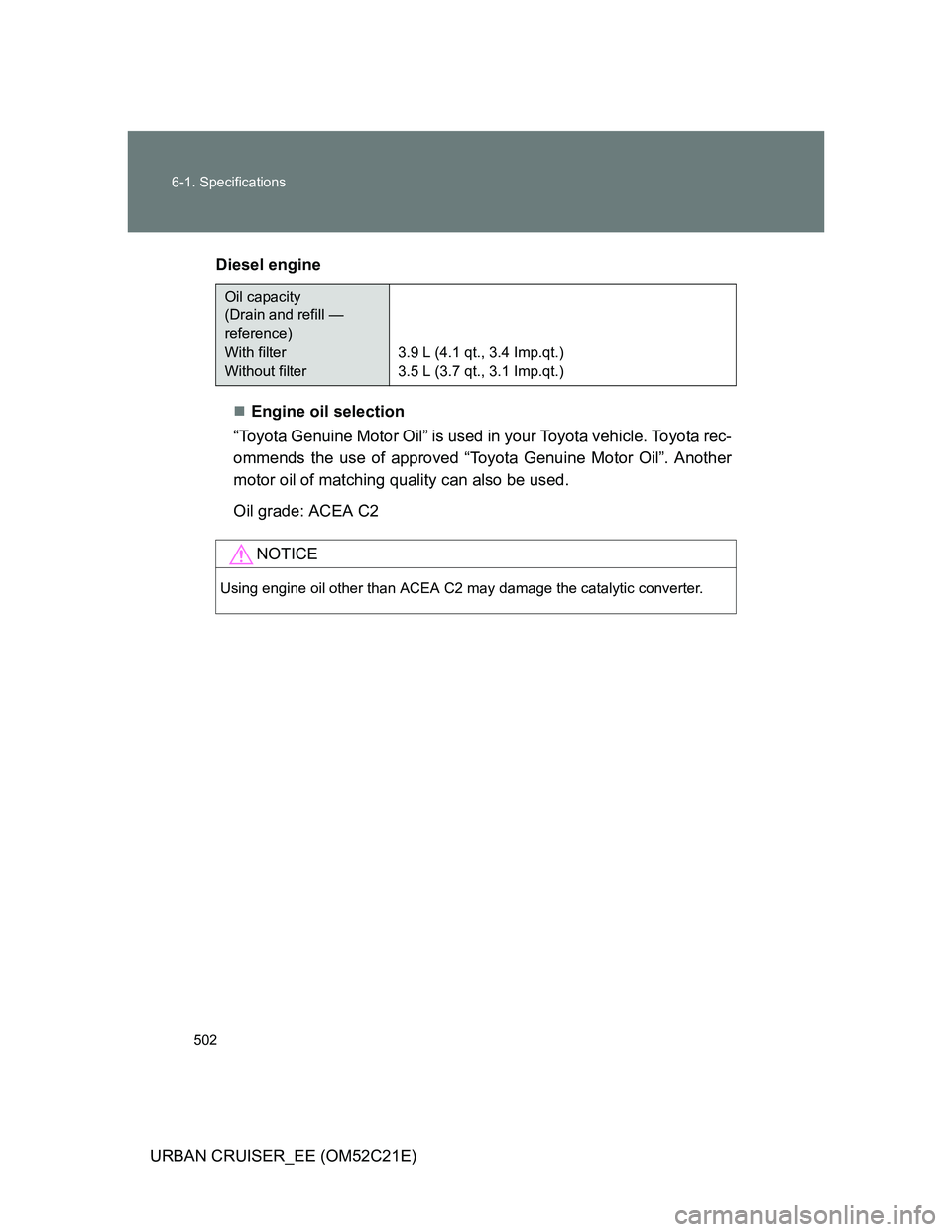

URBAN CRUISER_EE (OM52C21E)Diesel engine
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade: ACEA C2
Oil capacity
(Drain and refill —
reference)
With filter
Without filter3.9 L (4.1 qt., 3.4 Imp.qt.)
3.5 L (3.7 qt., 3.1 Imp.qt.)
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.

503 6-1. Specifications
6
Vehicle specifications

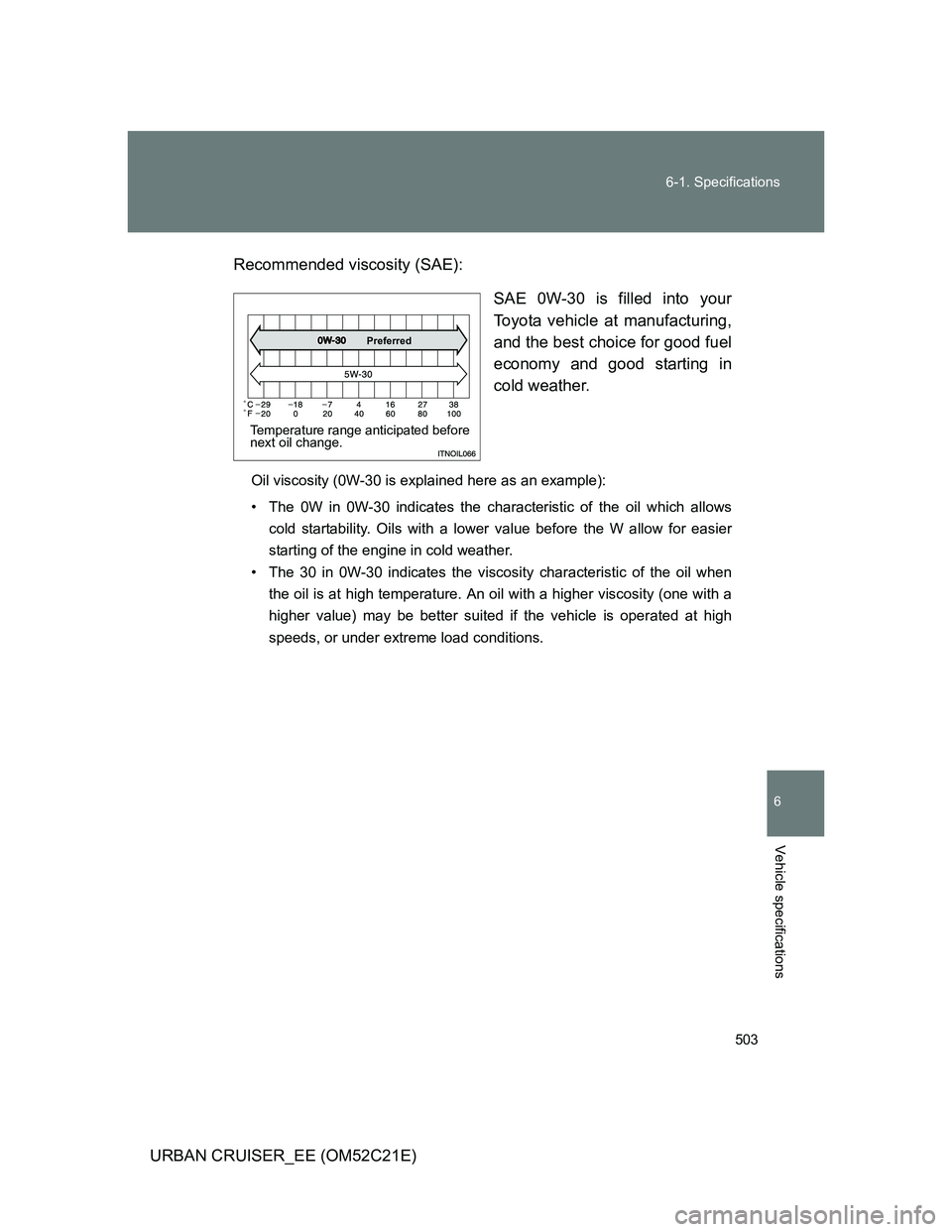

URBAN CRUISER_EE (OM52C21E)Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred

504 6-1. Specifications
URBAN CRUISER_EE (OM52C21E)

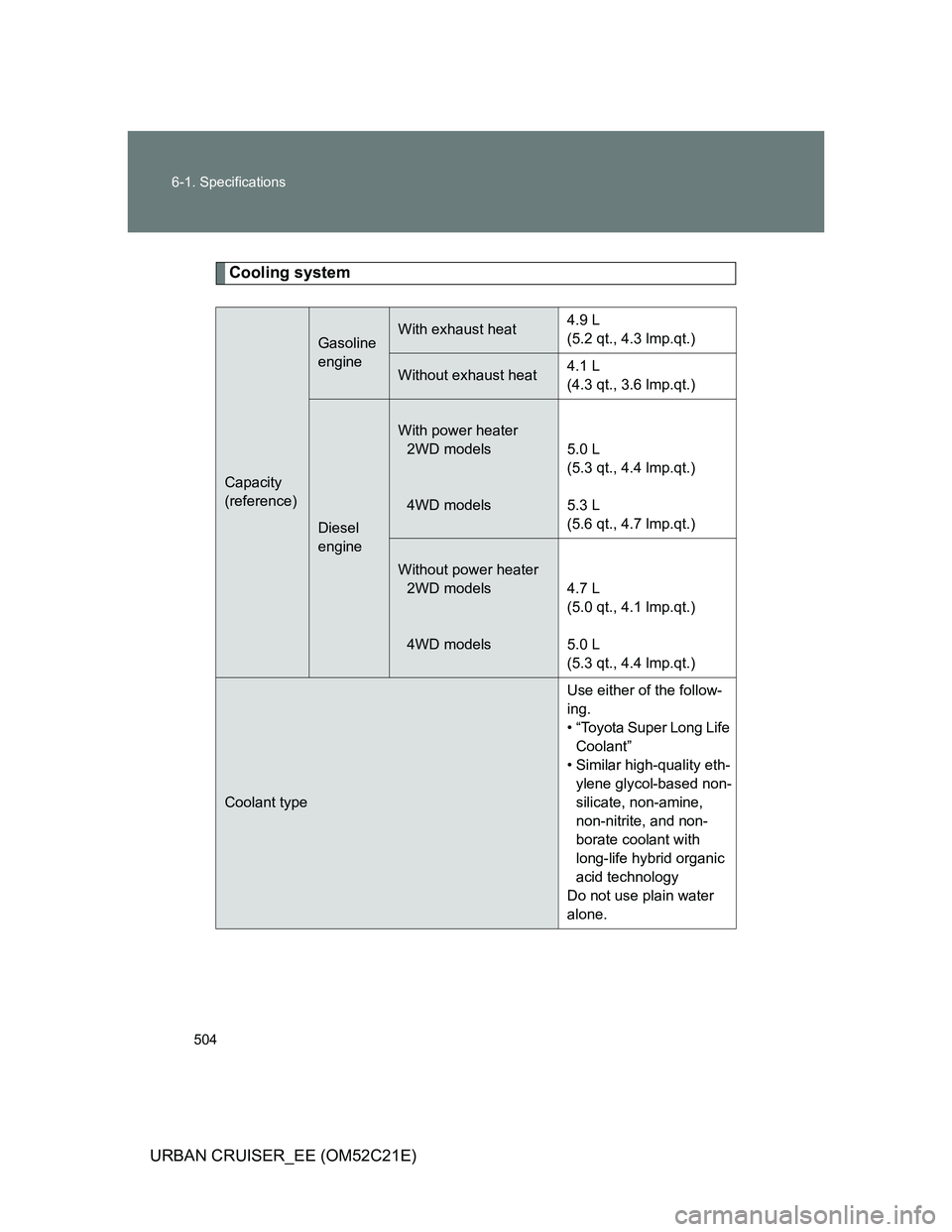

Cooling system
Capacity
(reference)
Gasoline
engineWith exhaust heat4.9 L
(5.2 qt., 4.3 lmp.qt.)
Without exhaust heat4.1 L
(4.3 qt., 3.6 lmp.qt.)
Diesel
engine
With power heater
2WD models
4WD models5.0 L
(5.3 qt., 4.4 lmp.qt.)
5.3 L
(5.6 qt., 4.7 lmp.qt.)
Without power heater
2WD models
4WD models4.7 L
(5.0 qt., 4.1 lmp.qt.)
5.0 L
(5.3 qt., 4.4 lmp.qt.)
Coolant typeUse either of the follow-
ing.
• “Toyota Super Long Life
Coolant”
• Similar high-quality eth-
ylene glycol-based non-
silicate, non-amine,
non-nitrite, and non-
borate coolant with
long-life hybrid organic
acid technology
Do not use plain water
alone.
