5-1. Essential information
When trouble arises
URBAN CRUISER_EE (OM52C21E)

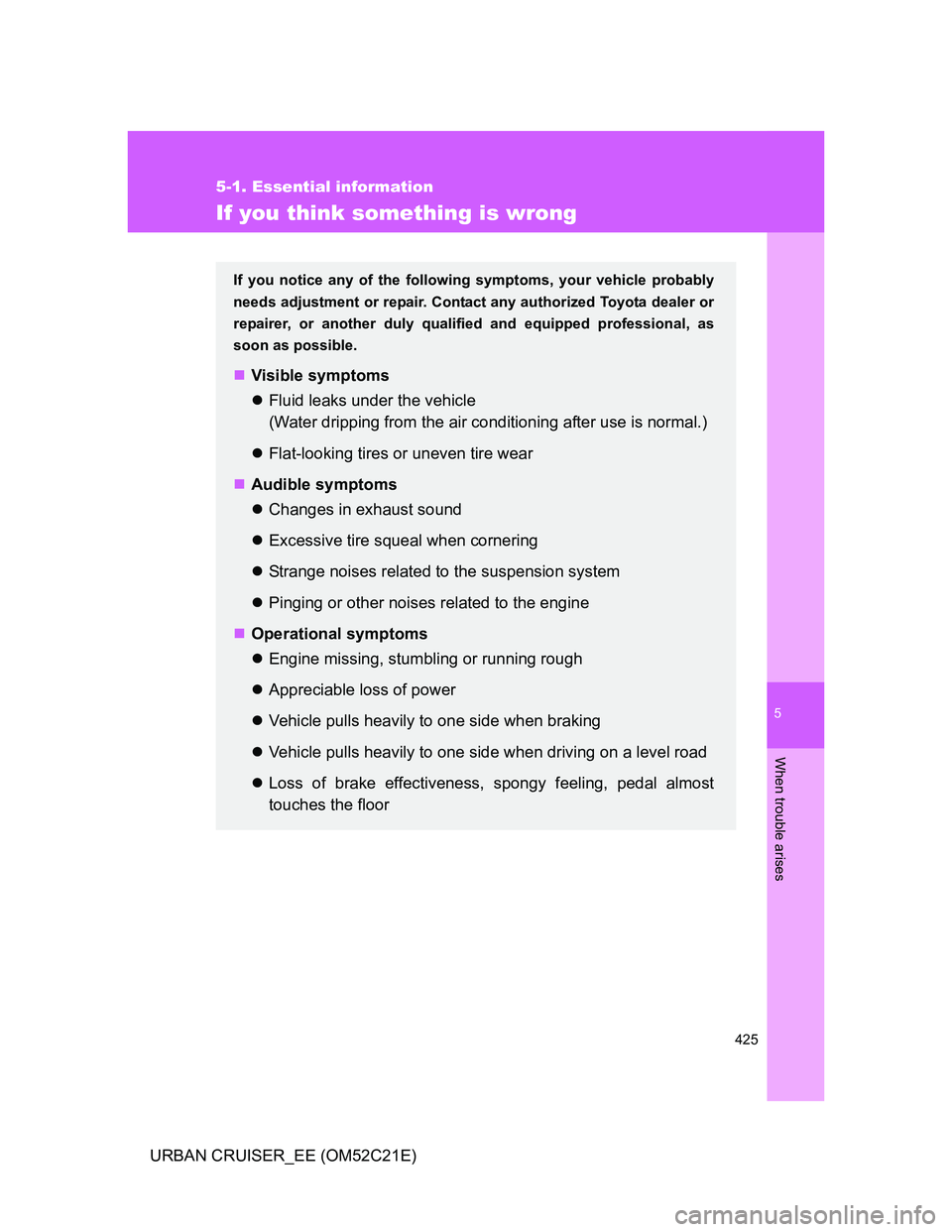

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, as
soon as possible.
Visible symptoms
Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
Flat-looking tires or uneven tire wear
Audible symptoms
Changes in exhaust sound
Excessive tire squeal when cornering
Strange noises related to the suspension system
Pinging or other noises related to the engine
Operational symptoms
Engine missing, stumbling or running rough
Appreciable loss of power
Vehicle pulls heavily to one side when braking
Vehicle pulls heavily to one side when driving on a level road
Loss of brake effectiveness, spongy feeling, pedal almost
touches the floor

426
5-1. Essential information
URBAN CRUISER_EE (OM52C21E)
Fuel pump shut off system (gasoline engine)
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without smart entry & start system:
Turn the engine switch to the “ACC” or “LOCK” position.
Vehicles with smart entry & start system:
Turn the “ENGINE START STOP” switch to the ACCESSORY
mode or OFF.
Restart the engine.
NOTICE
Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an air-
bag inflates upon collision, the fuel pump shut off system stops sup-
plying fuel to the engine.
STEP1
STEP2

5
427
When trouble arises
URBAN CRUISER_EE (OM52C21E)
5-2. Steps to take in an emergency

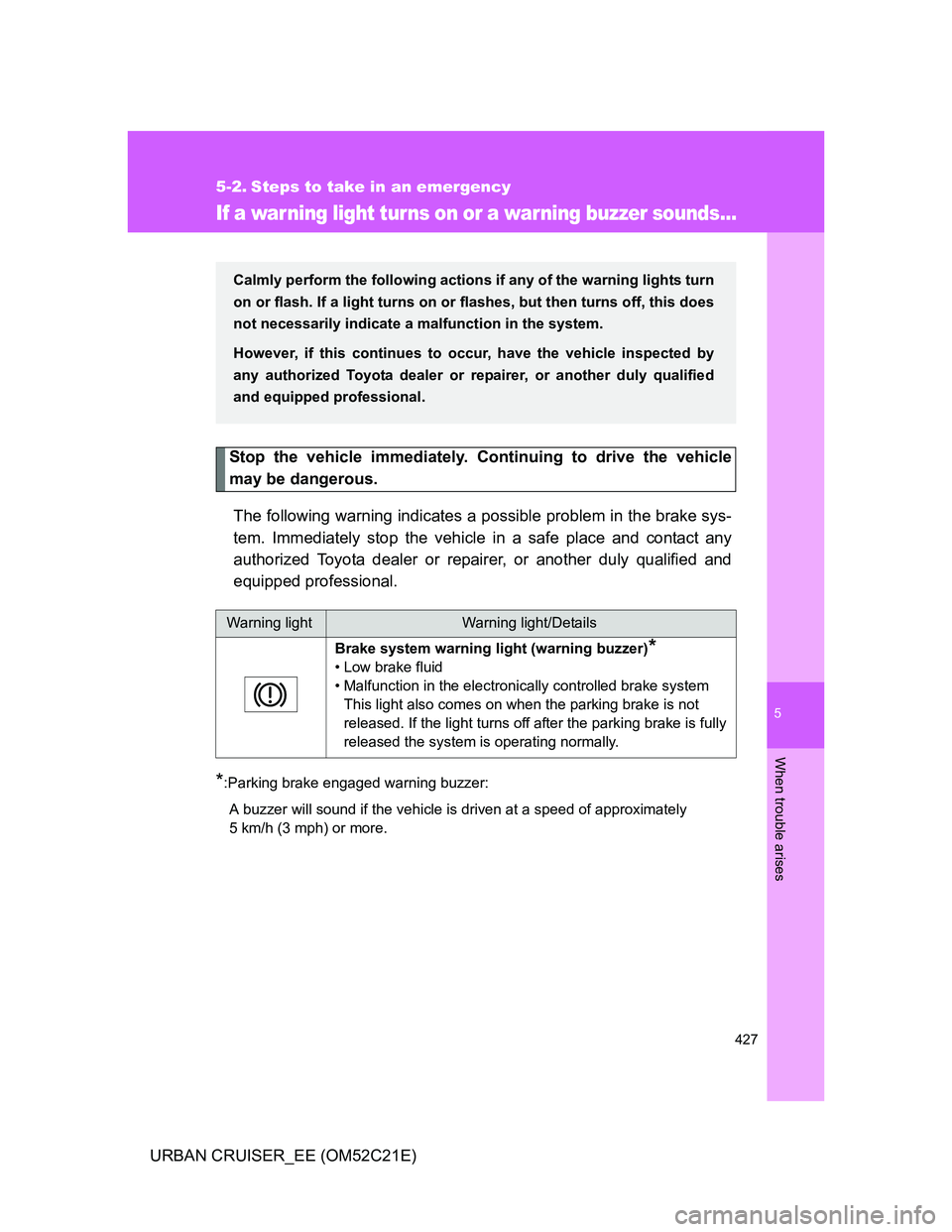

If a war ning light tur ns on or a war ning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.
The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*:Parking brake engaged warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approximately
5 km/h (3 mph) or more.
Warning lightWarning light/Details
Brake system warning light (warning buzzer)
*
• Low brake fluid
• Malfunction in the electronically controlled brake system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released the system is operating normally.
Calmly perform the following actions if any of the warning lights turn
on or flash. If a light turns on or flashes, but then turns off, this does
not necessarily indicate a malfunction in the system.
However, if this continues to occur, have the vehicle inspected by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.

428 5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)
Stop the vehicle immediately.
The following warnings indicate the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, immedi-
ately.

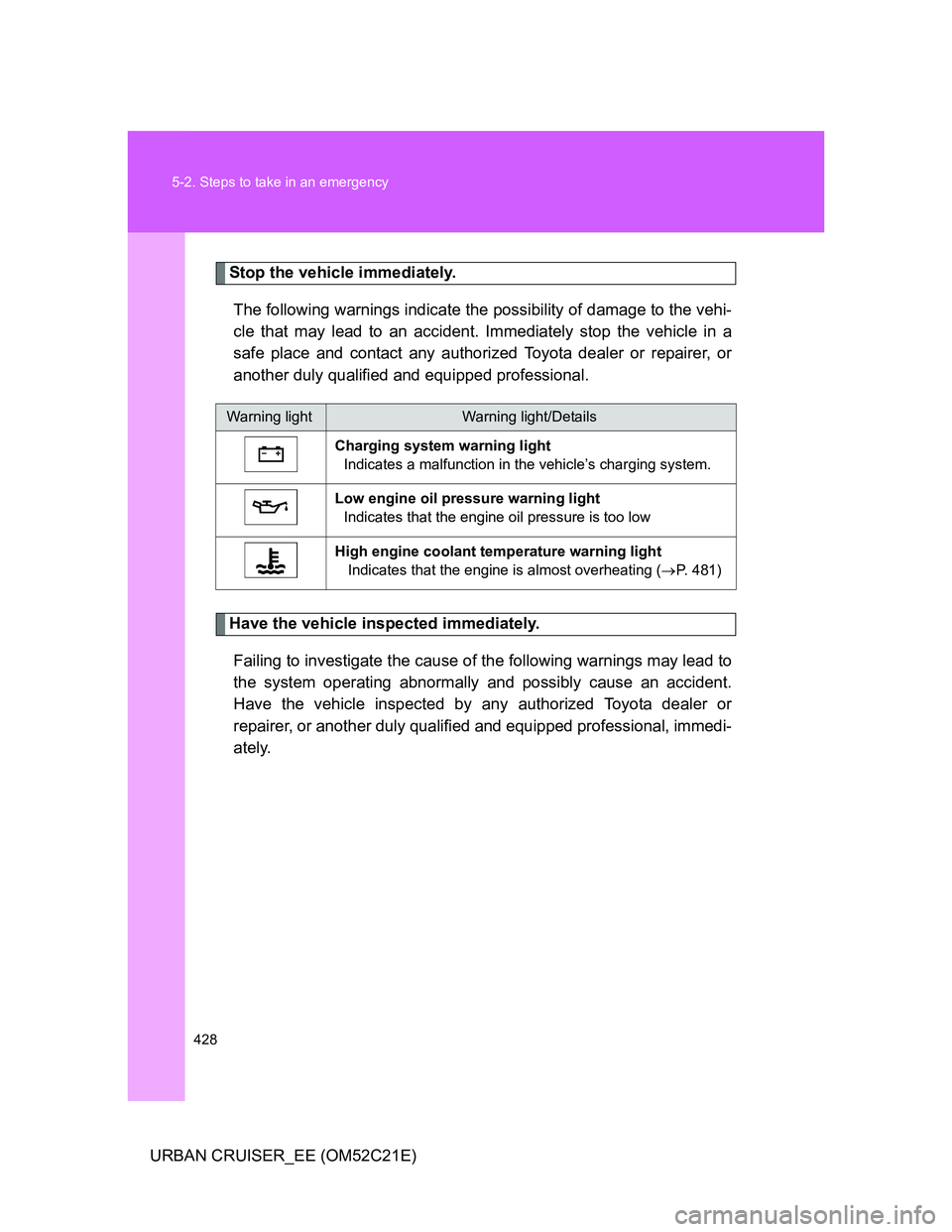

Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system.
Low engine oil pressure warning light
Indicates that the engine oil pressure is too low
High engine coolant temperature warning light
Indicates that the engine is almost overheating (P. 481)

5
429 5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)

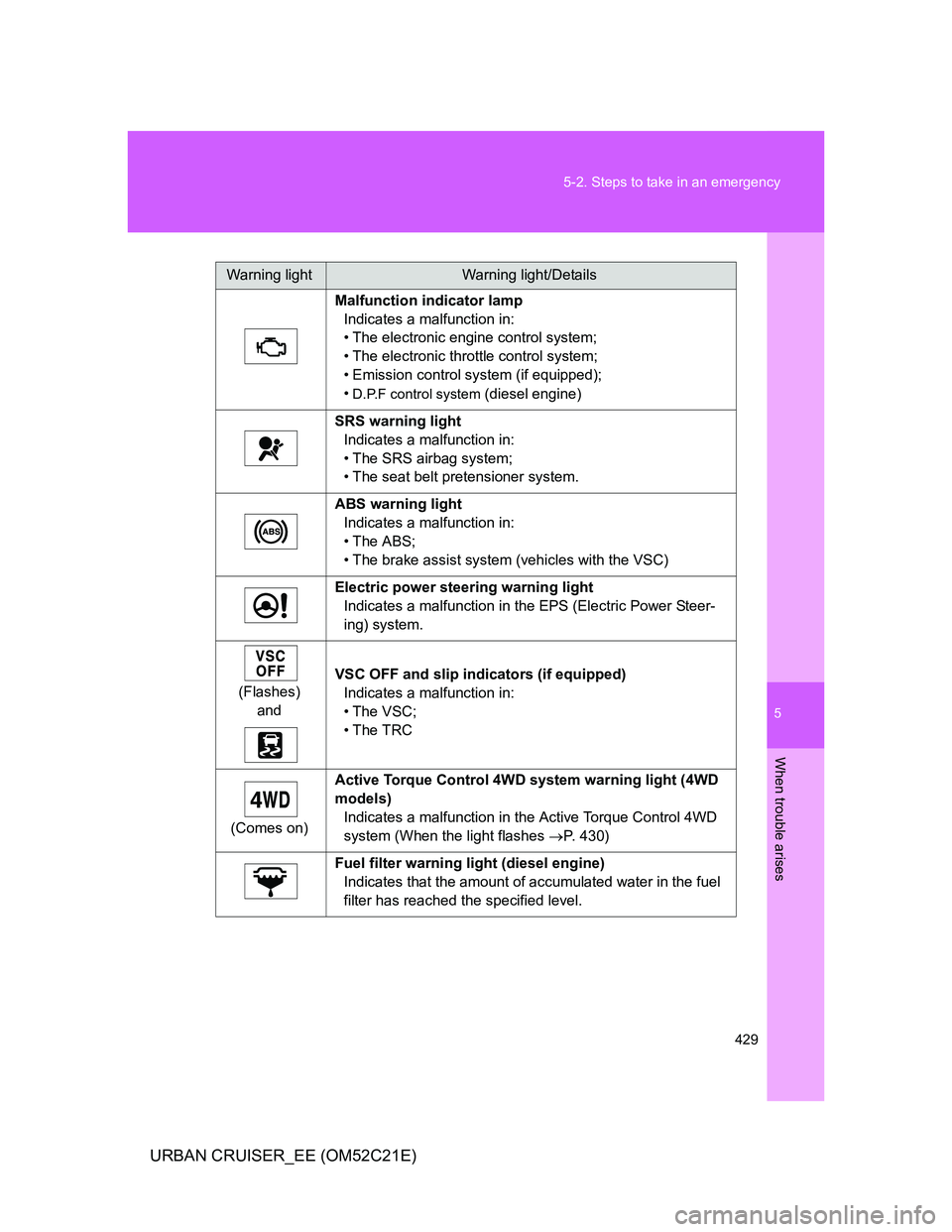

Warning lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system;
• Emission control system (if equipped);
•
D.P.F control system (diesel engine)
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The seat belt pretensioner system.
ABS warning light
Indicates a malfunction in:
• The ABS;
• The brake assist system (vehicles with the VSC)
Electric power steering warning light
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system.
(Flashes)
andVSC OFF and slip indicators (if equipped)
Indicates a malfunction in:
• The VSC;
• The TRC
(Comes on)Active Torque Control 4WD system warning light (4WD
models)
Indicates a malfunction in the Active Torque Control 4WD
system (When the light flashes P. 430)
Fuel filter warning light (diesel engine)
Indicates that the amount of accumulated water in the fuel
filter has reached the specified level.

430 5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)
Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.

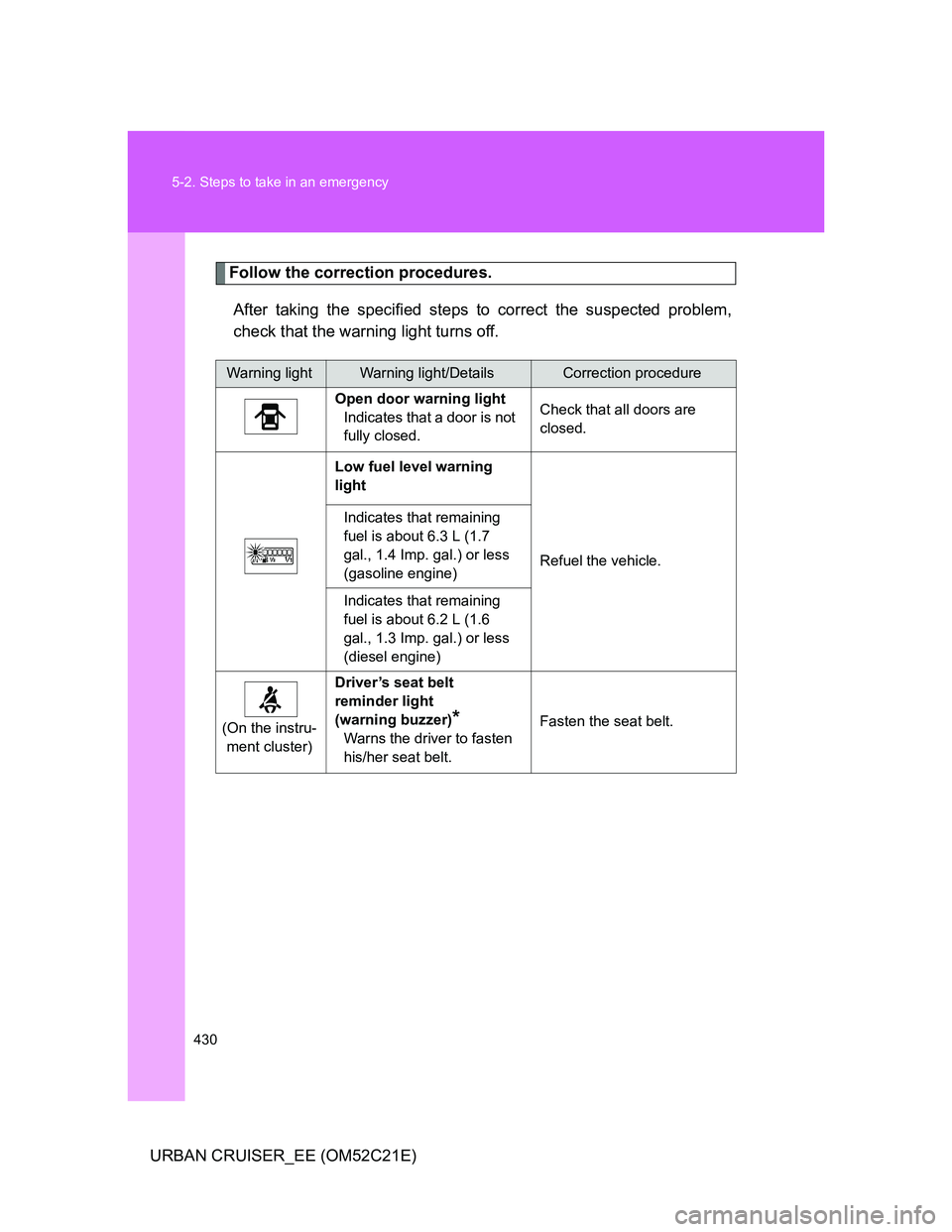

Warning lightWarning light/DetailsCorrection procedure
Open door warning light
Indicates that a door is not
fully closed.Check that all doors are
closed.
Low fuel level warning
light
Refuel the vehicle. Indicates that remaining
fuel is about 6.3 L (1.7
gal., 1.4 Imp. gal.) or less
(gasoline engine)
Indicates that remaining
fuel is about 6.2 L (1.6
gal., 1.3 Imp. gal.) or less
(diesel engine)
(On the instru-
ment cluster)Driver’s seat belt
reminder light
(warning buzzer)
*
Warns the driver to fasten
his/her seat belt.Fasten the seat belt.

5
431 5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)

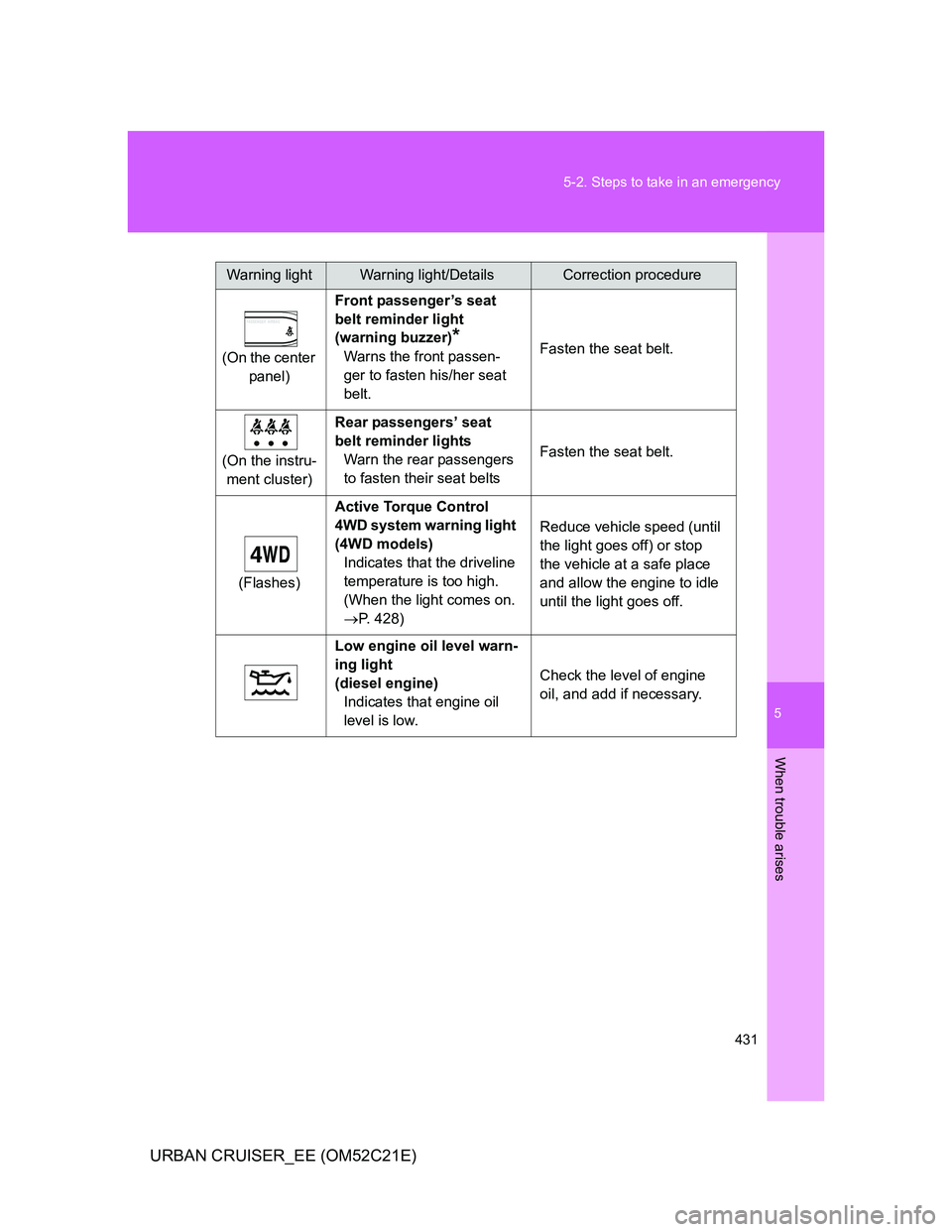

Warning lightWarning light/DetailsCorrection procedure
(On the center
panel)Front passenger’s seat
belt reminder light
(warning buzzer)
*
Warns the front passen-
ger to fasten his/her seat
belt.Fasten the seat belt.
(On the instru-
ment cluster)Rear passengers’ seat
belt reminder lights
Warn the rear passengers
to fasten their seat beltsFasten the seat belt.
(Flashes)Active Torque Control
4WD system warning light
(4WD models)
Indicates that the driveline
temperature is too high.
(When the light comes on.
P. 428)Reduce vehicle speed (until
the light goes off) or stop
the vehicle at a safe place
and allow the engine to idle
until the light goes off.
Low engine oil level warn-
ing light
(diesel engine)
Indicates that engine oil
level is low.Check the level of engine
oil, and add if necessary.

432 5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)

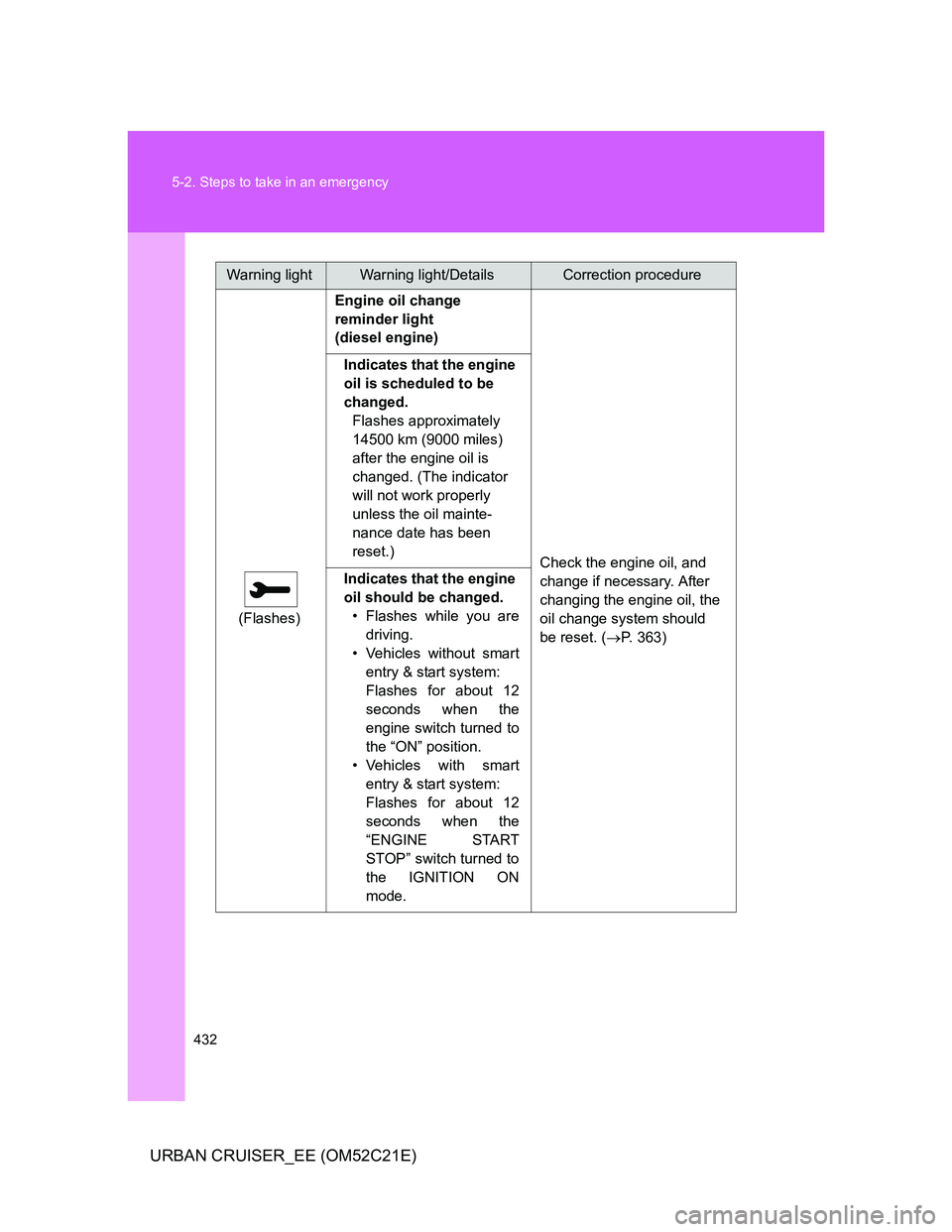

Warning lightWarning light/DetailsCorrection procedure
(Flashes)Engine oil change
reminder light
(diesel engine)
Check the engine oil, and
change if necessary. After
changing the engine oil, the
oil change system should
be reset. (P. 363) Indicates that the engine
oil is scheduled to be
changed.
Flashes approximately
14500 km (9000 miles)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance date has been
reset.)
Indicates that the engine
oil should be changed.
• Flashes while you are
driving.
• Vehicles without smart
entry & start system:
Flashes for about 12
seconds when the
engine switch turned to
the “ON” position.
• Vehicles with smart
entry & start system:
Flashes for about 12
seconds when the
“ENGINE START
STOP” switch turned to
the IGNITION ON
mode.
