81 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
URBAN CRUISER_EE (OM52C21E)

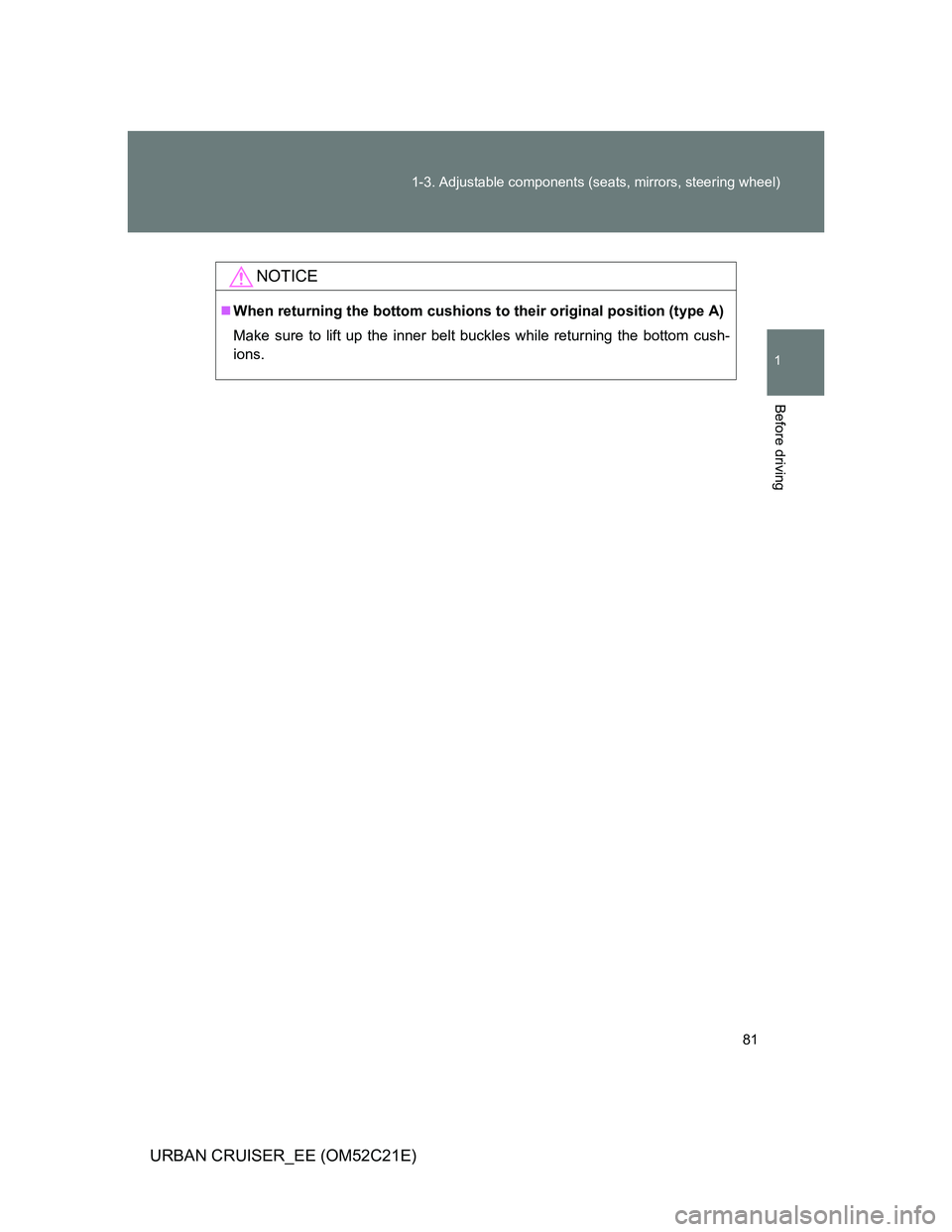

NOTICE
When returning the bottom cushions to their original position (type A)
Make sure to lift up the inner belt buckles while returning the bottom cush-
ions.

82
1-3. Adjustable components (seats, mirrors, steering wheel)
URBAN CRUISER_EE (OM52C21E)

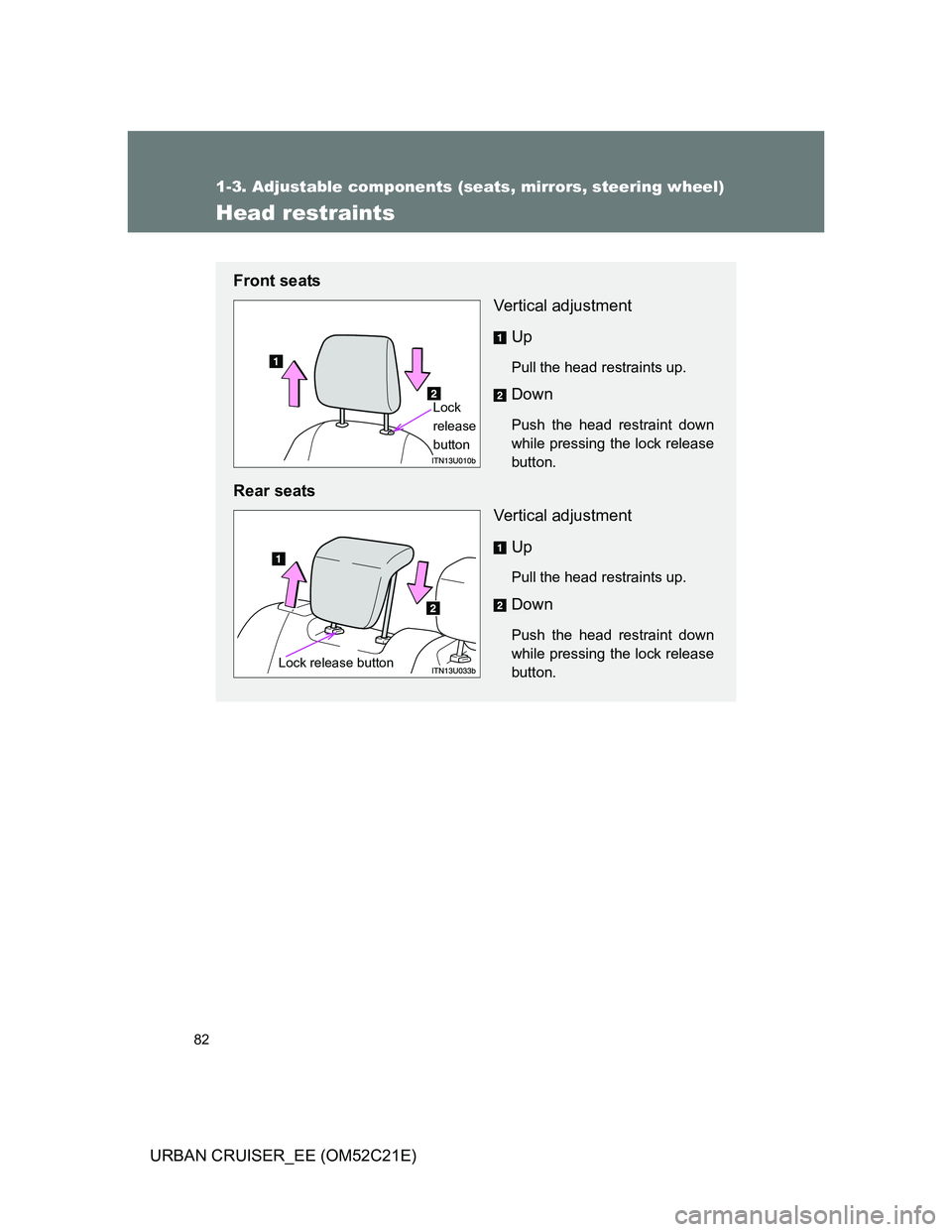

Head restraints
Front seats
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down
while pressing the lock release
button.
Rear seats
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down
while pressing the lock release
button.
Lock
release
button
Lock release button

83 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
URBAN CRUISER_EE (OM52C21E)

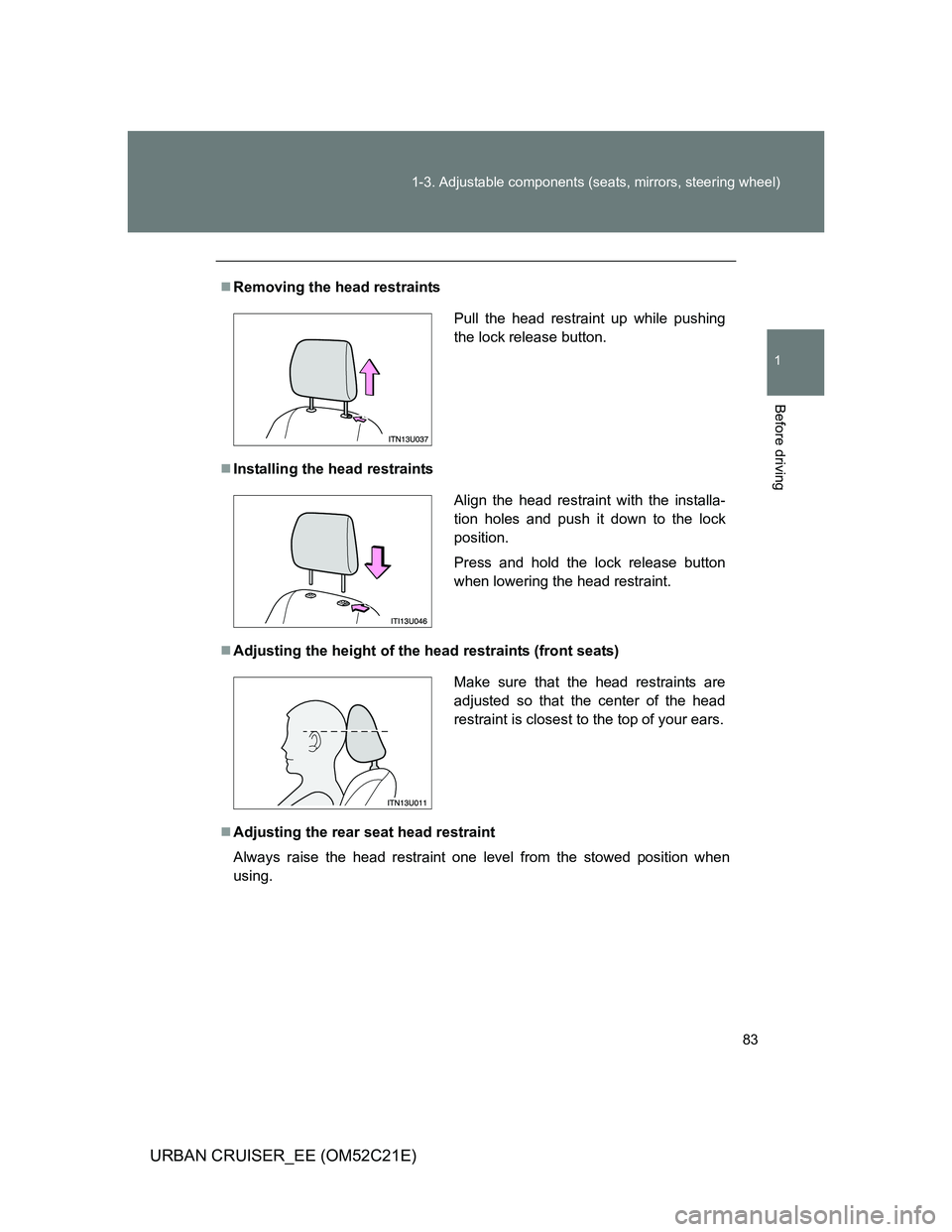

Removing the head restraints
Installing the head restraints
Adjusting the height of the head restraints (front seats)
Adjusting the rear seat head restraint
Always raise the head restraint one level from the stowed position when
using.
Pull the head restraint up while pushing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

84 1-3. Adjustable components (seats, mirrors, steering wheel)
URBAN CRUISER_EE (OM52C21E)

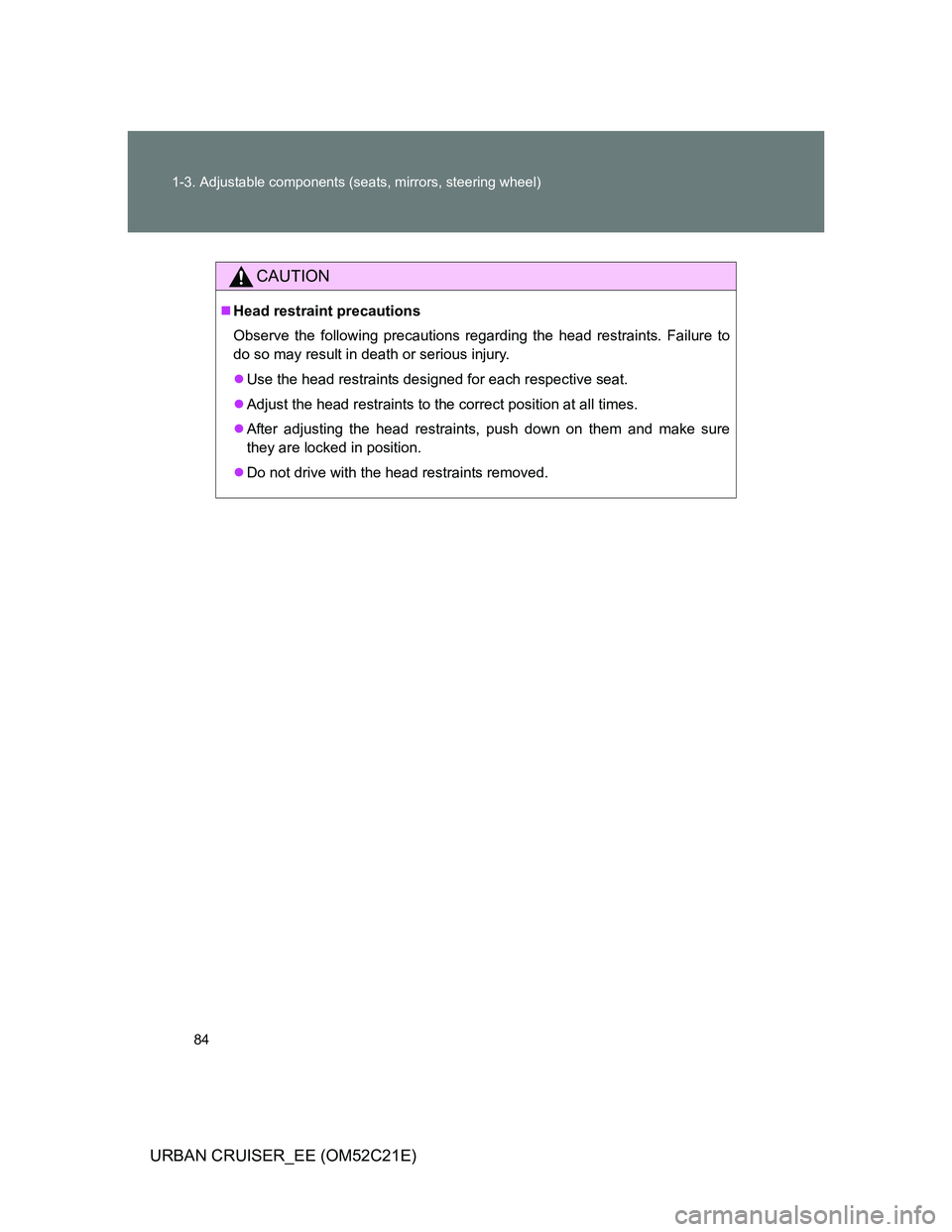

CAUTION
Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
Use the head restraints designed for each respective seat.
Adjust the head restraints to the correct position at all times.
After adjusting the head restraints, push down on them and make sure
they are locked in position.
Do not drive with the head restraints removed.

85
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
URBAN CRUISER_EE (OM52C21E)

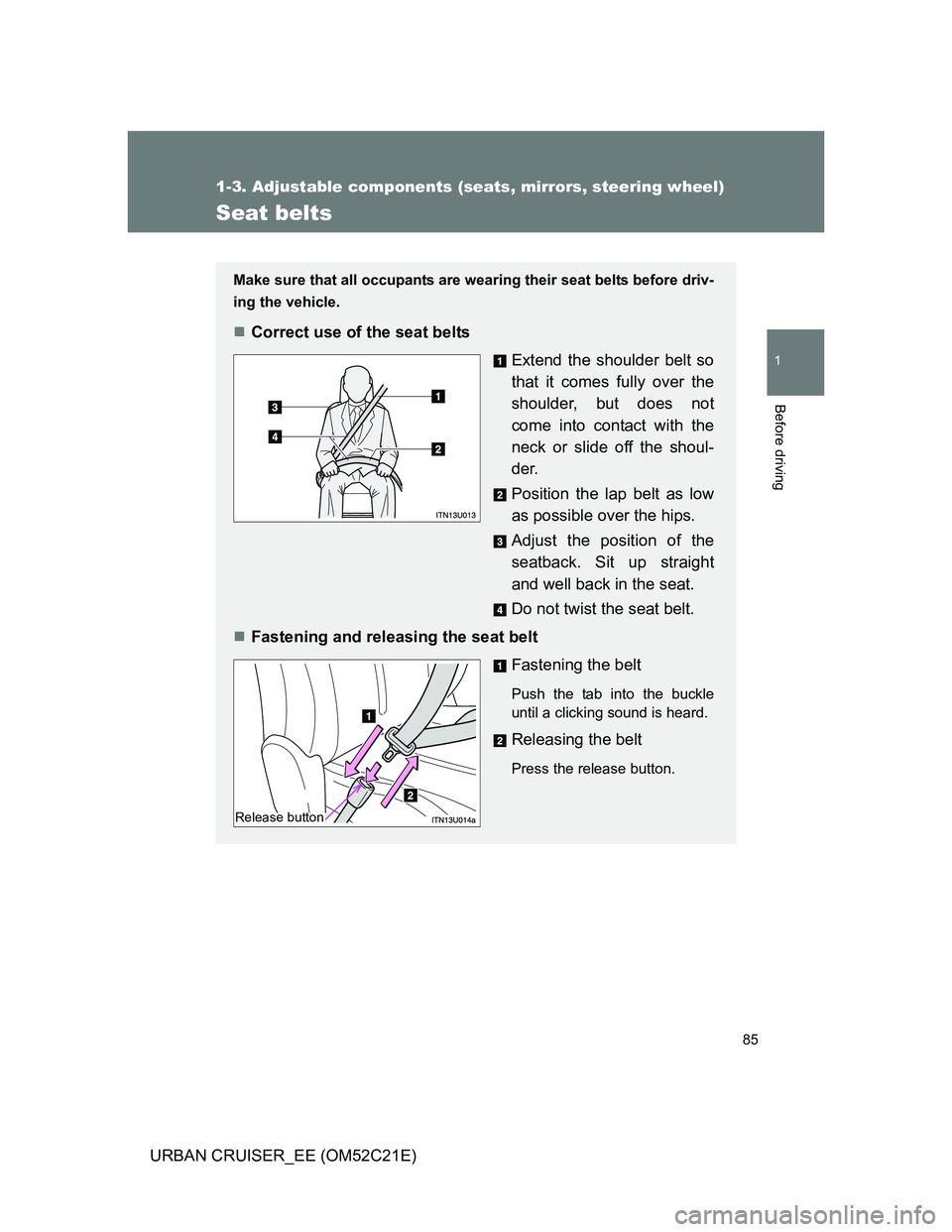

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
Correct use of the seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt.
Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle
until a clicking sound is heard.
Releasing the belt
Press the release button.
Release button

86 1-3. Adjustable components (seats, mirrors, steering wheel)
URBAN CRUISER_EE (OM52C21E)

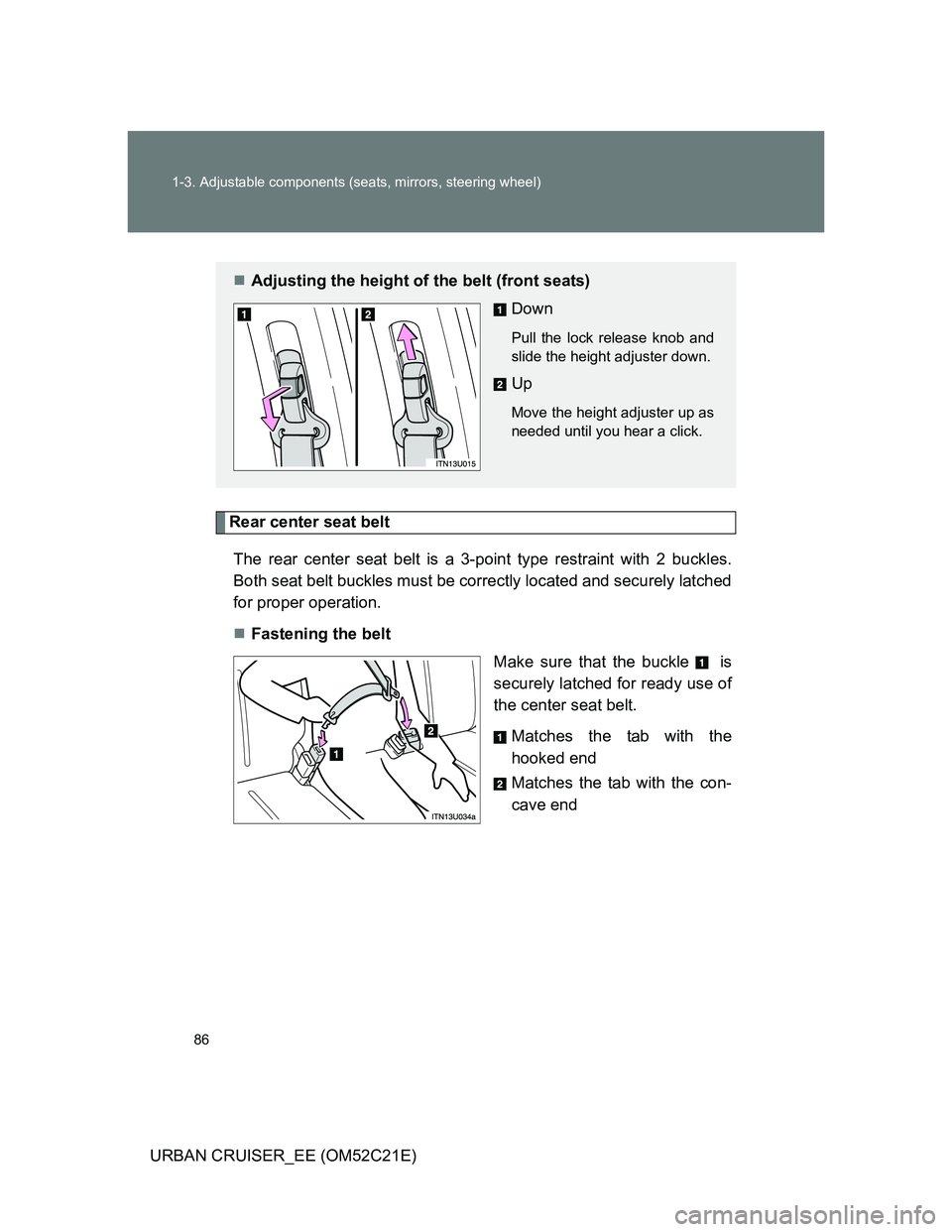

Rear center seat belt
The rear center seat belt is a 3-point type restraint with 2 buckles.
Both seat belt buckles must be correctly located and securely latched
for proper operation.
Fastening the belt
Make sure that the buckle is
securely latched for ready use of
the center seat belt.
Matches the tab with the
hooked end
Matches the tab with the con-
cave end
Adjusting the height of the belt (front seats)
Down
Pull the lock release knob and
slide the height adjuster down.
Up
Move the height adjuster up as
needed until you hear a click.

87 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving

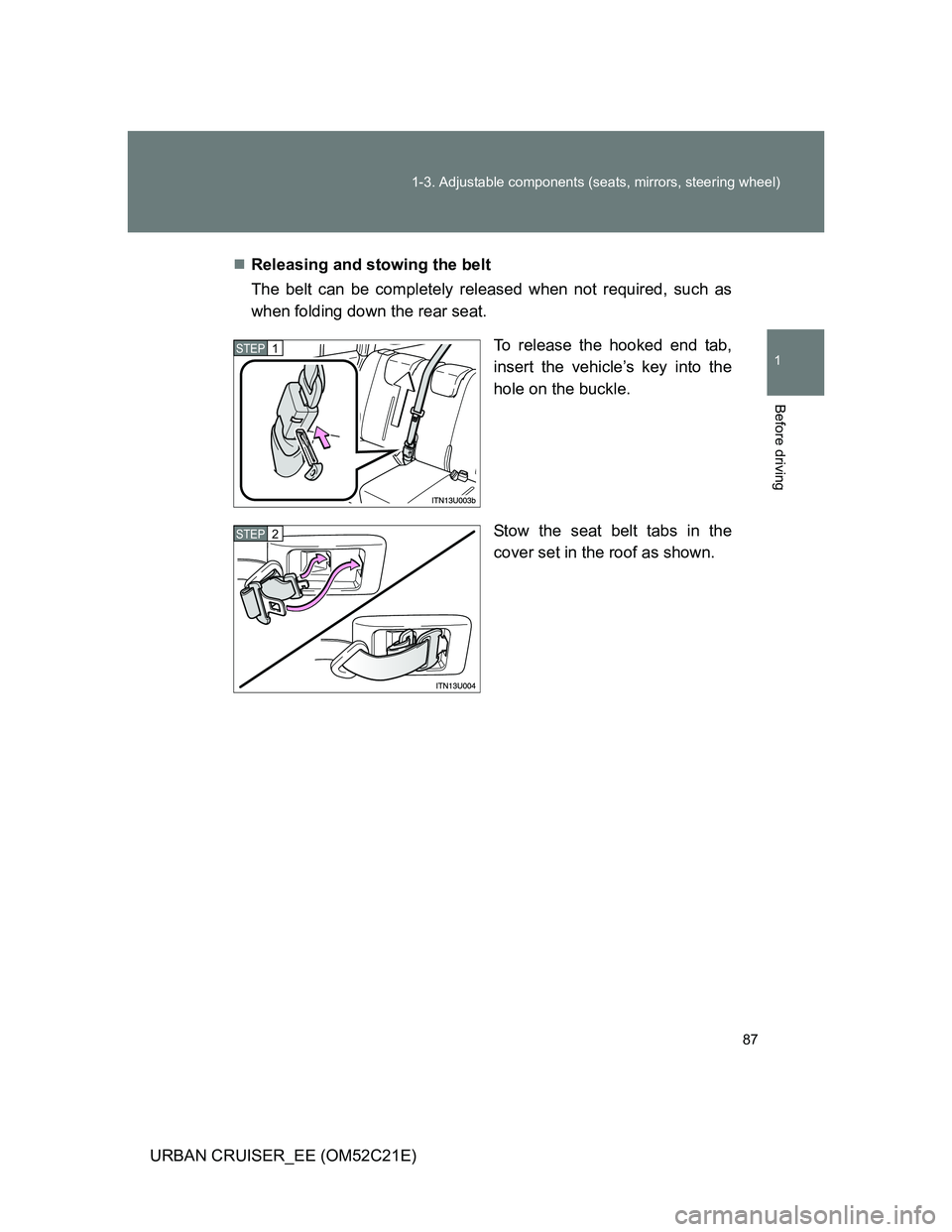

URBAN CRUISER_EE (OM52C21E)Releasing and stowing the belt
The belt can be completely released when not required, such as
when folding down the rear seat.
To release the hooked end tab,
insert the vehicle’s key into the
hole on the buckle.
Stow the seat belt tabs in the
cover set in the roof as shown.
STEP1
STEP2

88 1-3. Adjustable components (seats, mirrors, steering wheel)

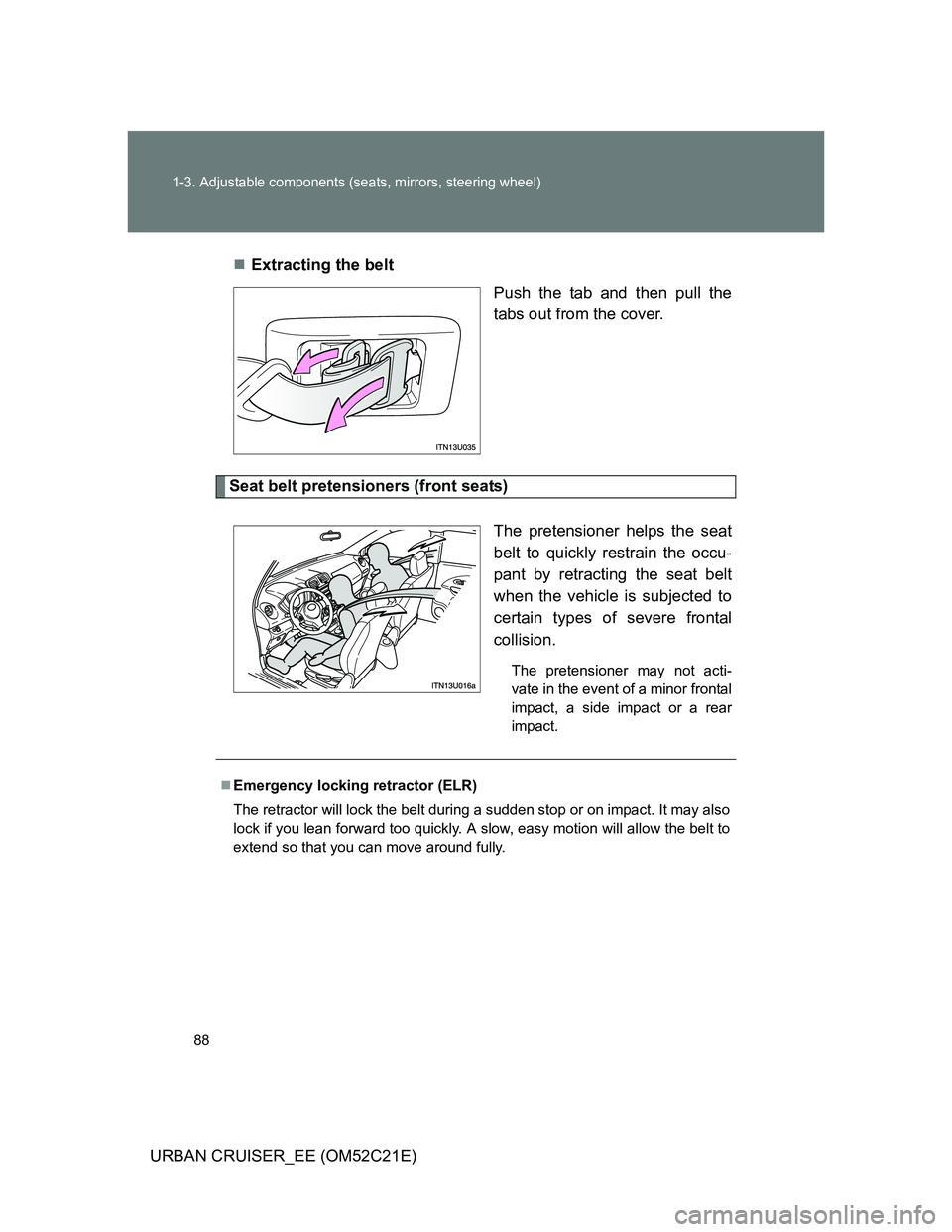

URBAN CRUISER_EE (OM52C21E)Extracting the belt
Push the tab and then pull the
tabs out from the cover.
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner may not acti-
vate in the event of a minor frontal
impact, a side impact or a rear
impact.
Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
