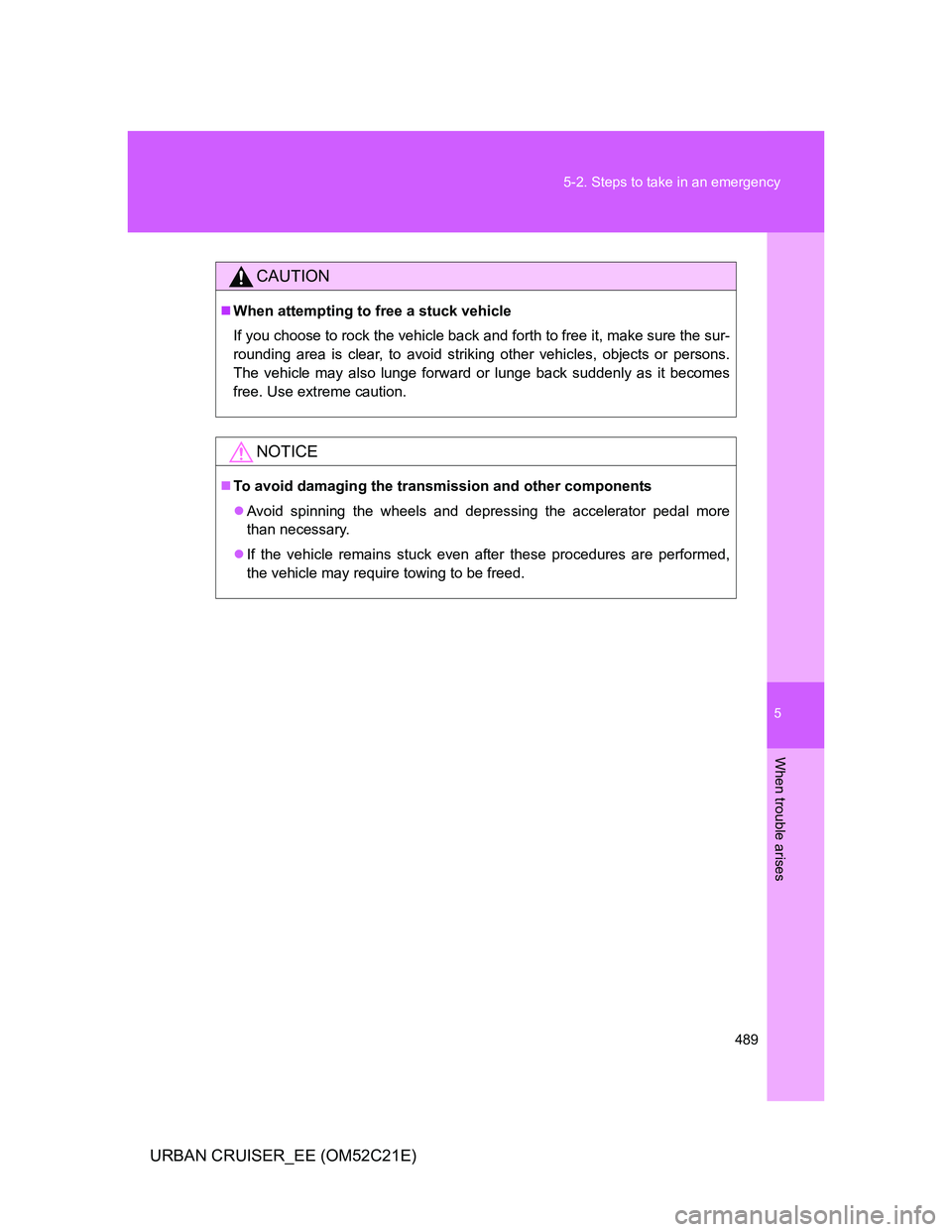

489 5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)
CAUTION
When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
NOTICE
To avoid damaging the transmission and other components
Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

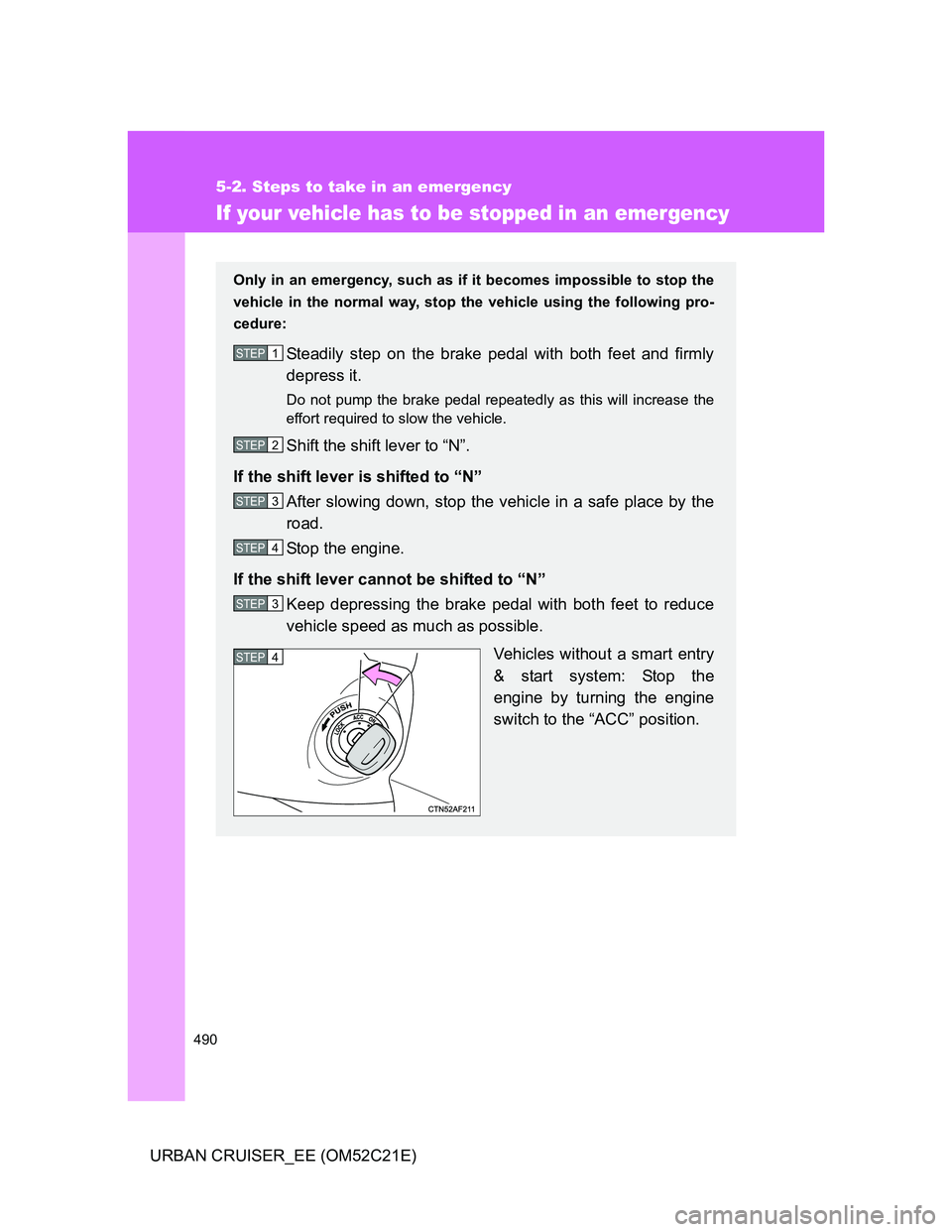

490
5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)
If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to “N”.
If the shift lever is shifted to “N”
After slowing down, stop the vehicle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to “N”
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Vehicles without a smart entry
& start system: Stop the
engine by turning the engine
switch to the “ACC” position.
STEP1
STEP2
STEP3
STEP4
STEP3
STEP4

5

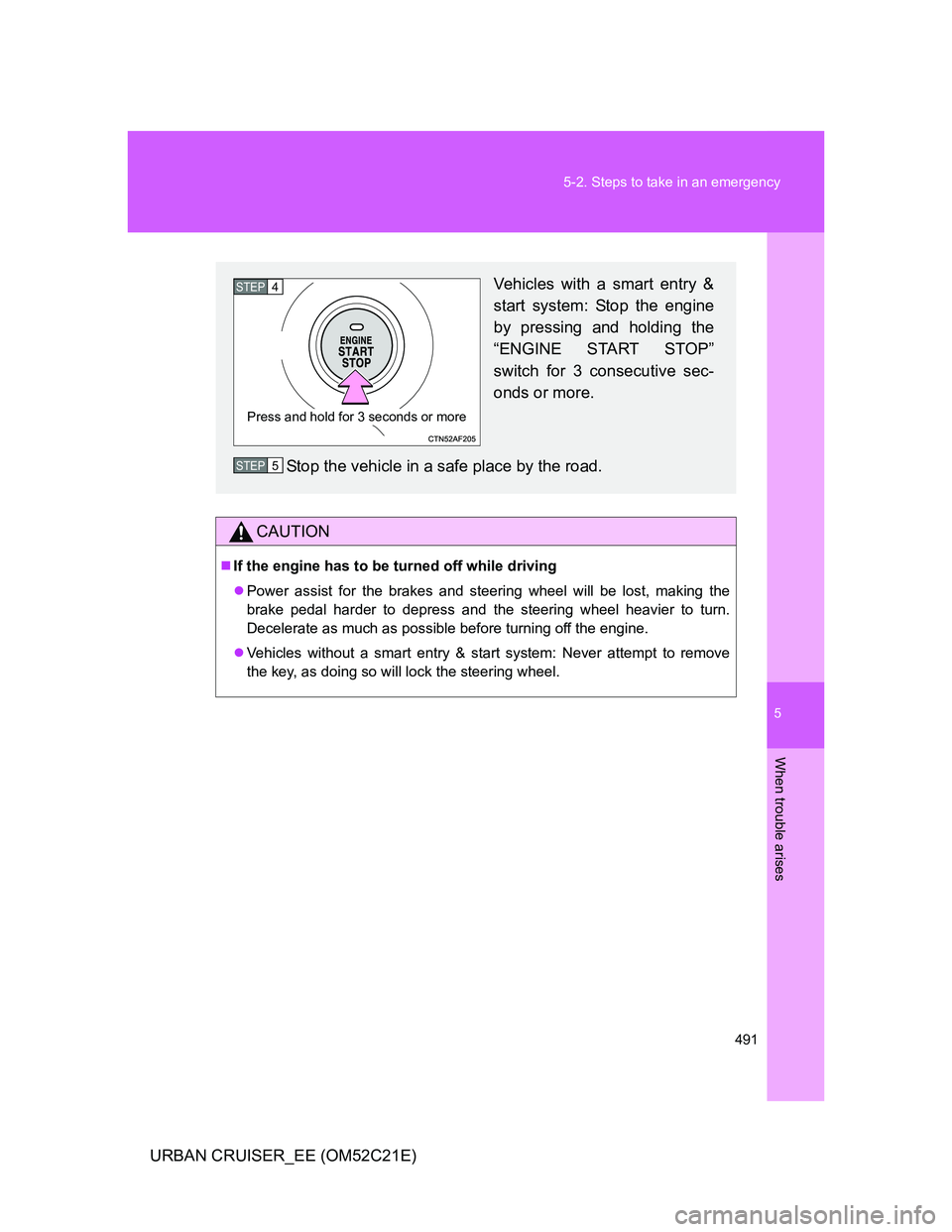

491 5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)
CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Vehicles without a smart entry & start system: Never attempt to remove
the key, as doing so will lock the steering wheel.
Vehicles with a smart entry &
start system: Stop the engine
by pressing and holding the
“ENGINE START STOP”
switch for 3 consecutive sec-
onds or more.
Stop the vehicle in a safe place by the road.STEP4
Press and hold for 3 seconds or more
STEP5

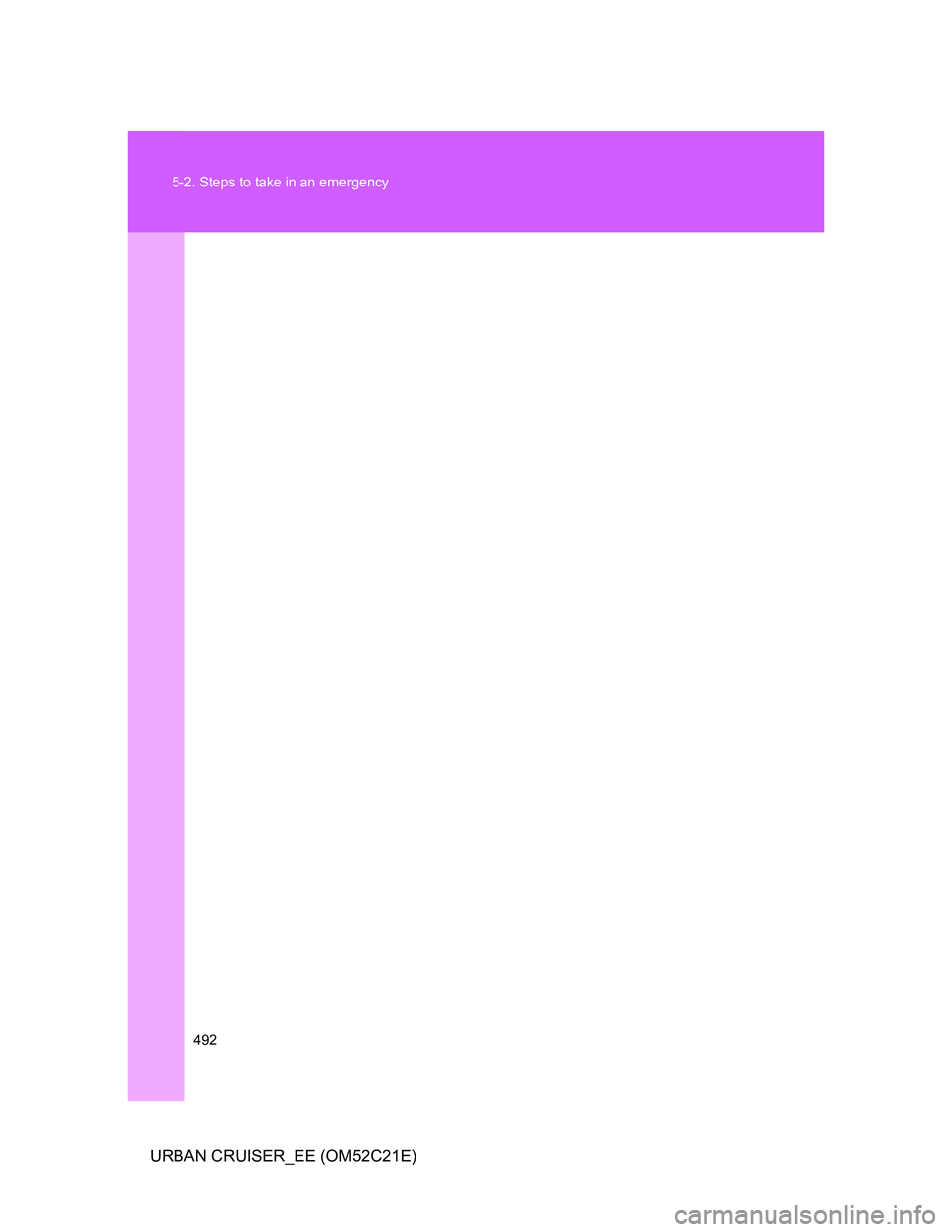

492 5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)

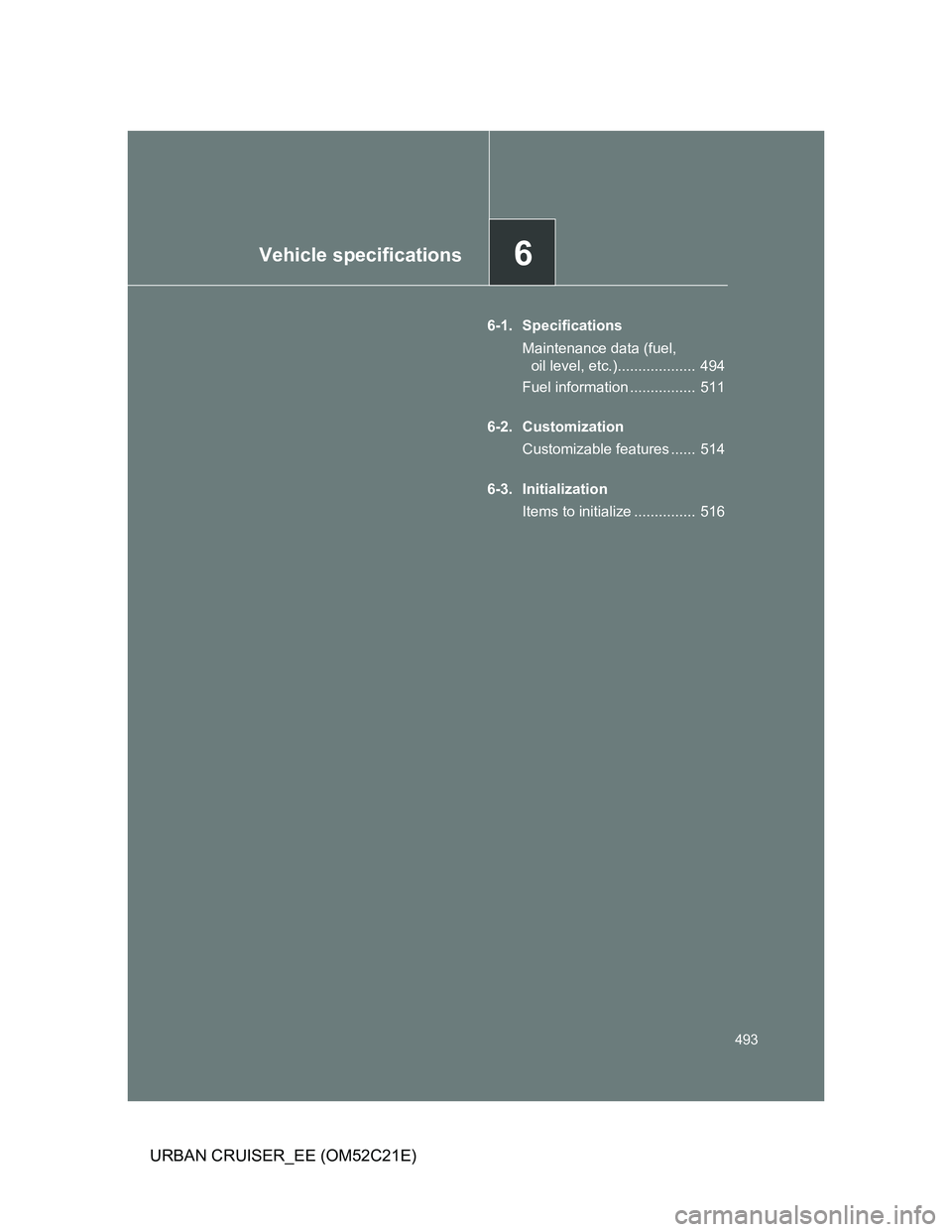

6Vehicle specifications
493
URBAN CRUISER_EE (OM52C21E)
6-1. Specifications
Maintenance data (fuel,
oil level, etc.)................... 494
Fuel information ................ 511
6-2. Customization
Customizable features ...... 514
6-3. Initialization
Items to initialize ............... 516

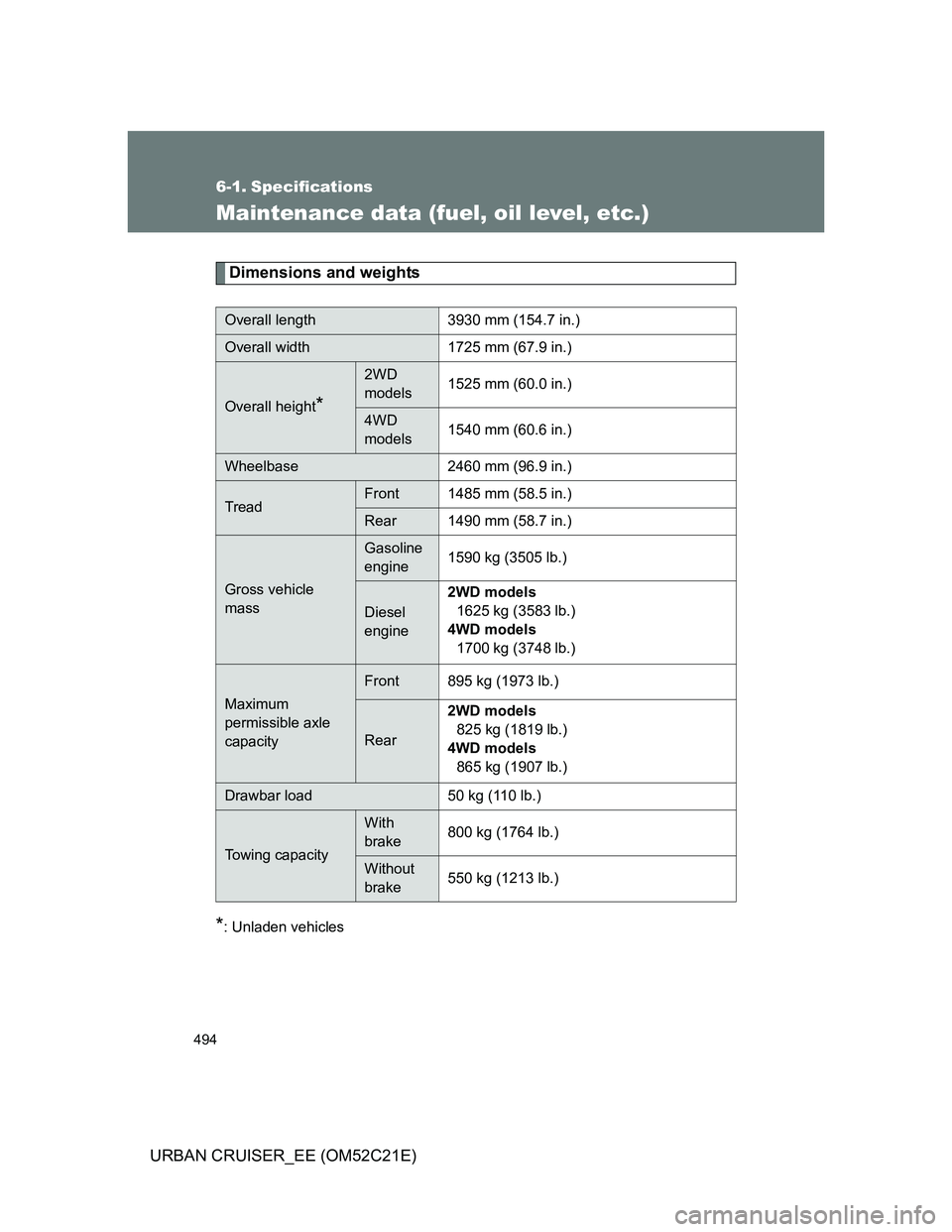

494
URBAN CRUISER_EE (OM52C21E)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*: Unladen vehicles
Overall length 3930 mm (154.7 in.)
Overall width 1725 mm (67.9 in.)
Overall height*
2WD
models1525 mm (60.0 in.)
4WD
models1540 mm (60.6 in.)
Wheelbase 2460 mm (96.9 in.)
TreadFront 1485 mm (58.5 in.)
Rear 1490 mm (58.7 in.)
Gross vehicle
mass
Gasoline
engine1590 kg (3505 lb.)
Diesel
engine2WD models
1625 kg (3583 lb.)
4WD models
1700 kg (3748 lb.)
Maximum
permissible axle
capacity
Front 895 kg (1973 lb.)
Rear2WD models
825 kg (1819 lb.)
4WD models
865 kg (1907 lb.)
Drawbar load 50 kg (110 lb.)
Towing capacity
With
brake800 kg (1764 lb.)
Without
brake550 kg (1213 lb.)

495 6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_EE (OM52C21E)
Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is also on the man-
ufacturer’s label.

496 6-1. Specifications

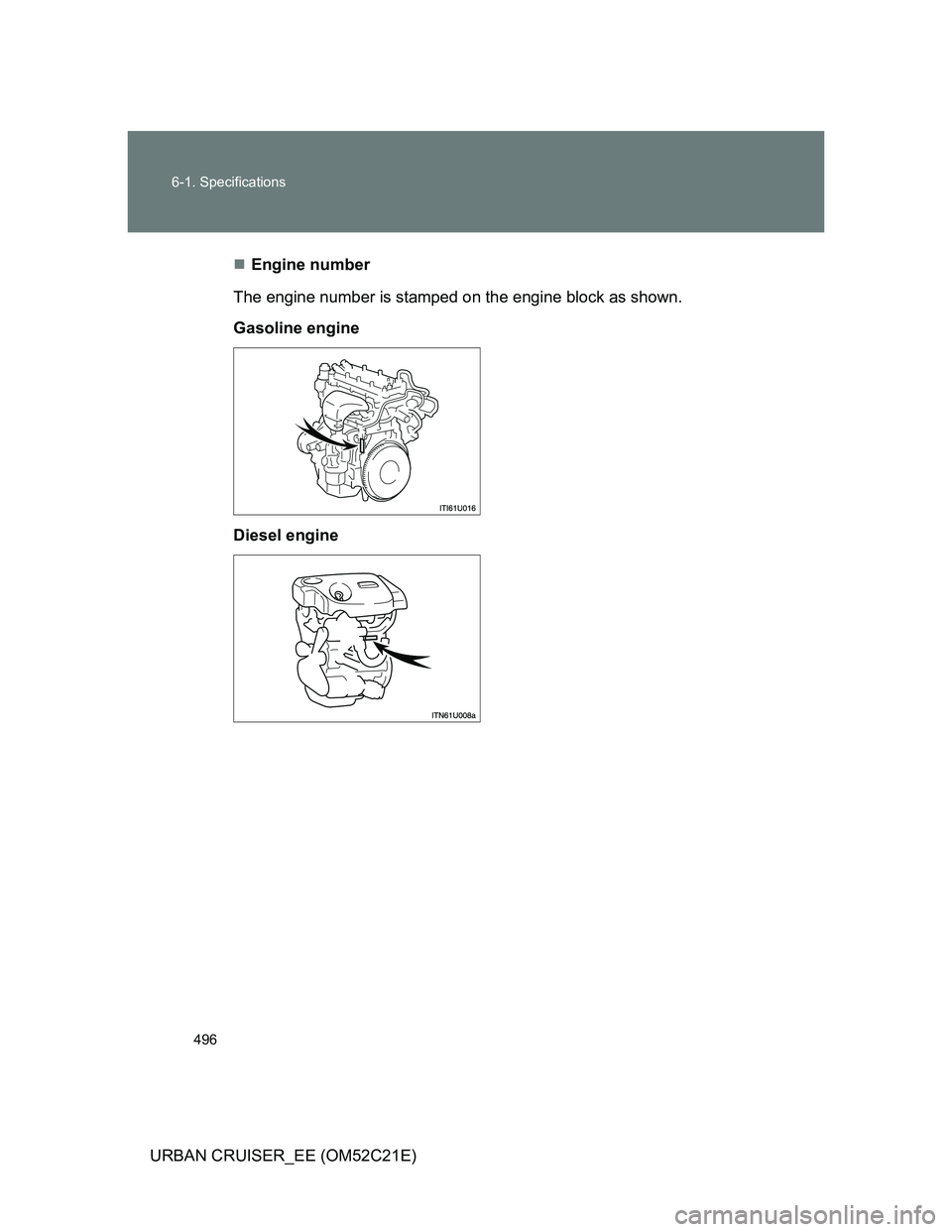

URBAN CRUISER_EE (OM52C21E)Engine number
The engine number is stamped on the engine block as shown.
Gasoline engine
Diesel engine
