505 6-1. Specifications
6

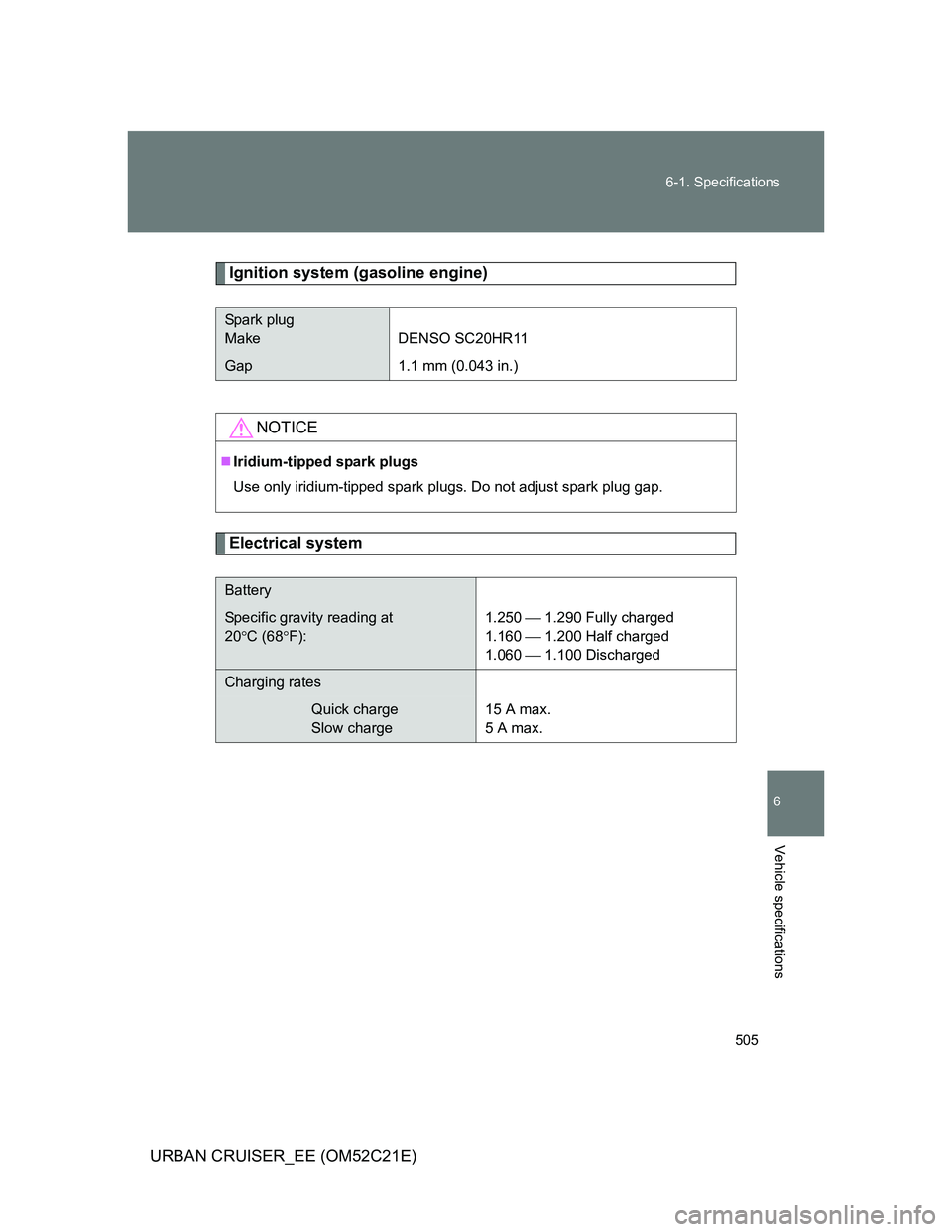

Vehicle specifications
URBAN CRUISER_EE (OM52C21E)
Ignition system (gasoline engine)
Electrical system
Spark plug
Make DENSO SC20HR11
Gap 1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.
Battery
Specific gravity reading at
20C (68F):1.250  1.290 Fully charged
1.160  1.200 Half charged
1.060  1.100 Discharged
Charging rates
Quick charge
Slow charge15 A max.
5 A max.

506 6-1. Specifications
URBAN CRUISER_EE (OM52C21E)

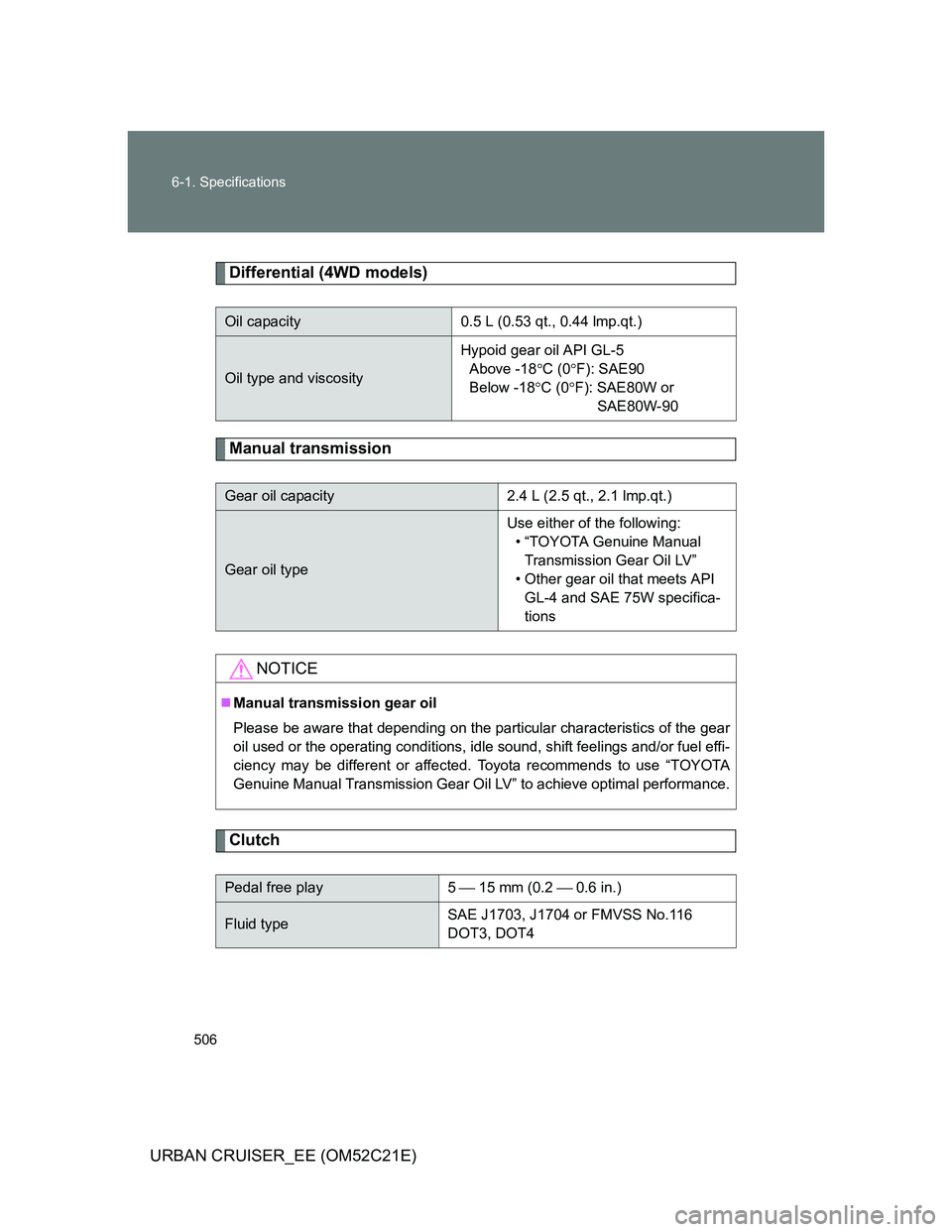

Differential (4WD models)
Manual transmission
Clutch
Oil capacity 0.5 L (0.53 qt., 0.44 lmp.qt.)
Oil type and viscosityHypoid gear oil API GL-5
Above -18C (0F): SAE90
Below -18C (0F): SAE80W or
SAE80W-90
Gear oil capacity2.4 L (2.5 qt., 2.1 lmp.qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual
Transmission Gear Oil LV”
• Other gear oil that meets API
GL-4 and SAE 75W specifica-
tions
NOTICE
Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feelings and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
Pedal free play5 15 mm (0.2  0.6 in.)
Fluid typeSAE J1703, J1704 or FMVSS No.116
DOT3, DOT4

507 6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_EE (OM52C21E)

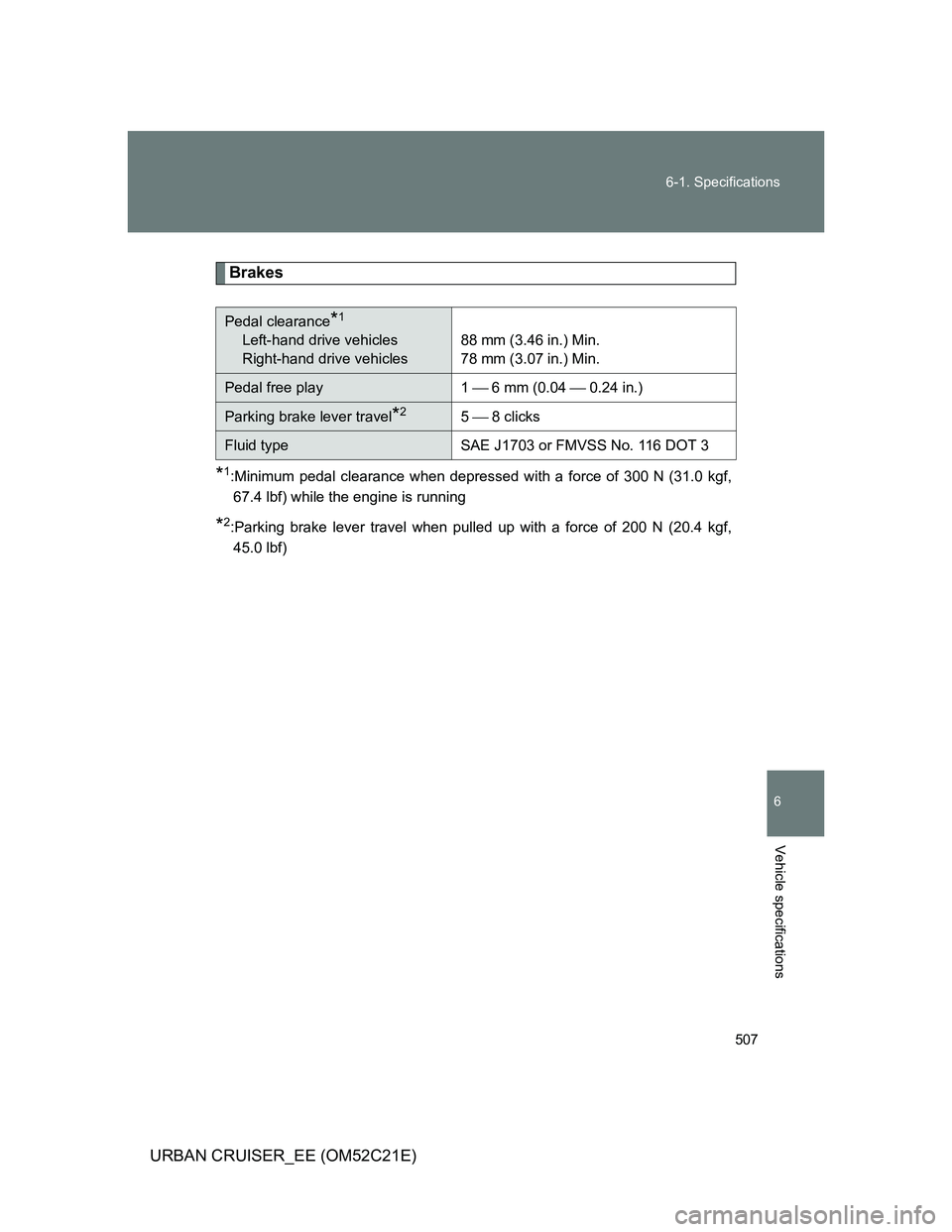

Brakes
*1:Minimum pedal clearance when depressed with a force of 300 N (31.0 kgf,
67.4 lbf) while the engine is running
*2:Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
Pedal clearance*1
Left-hand drive vehicles
Right-hand drive vehicles88 mm (3.46 in.) Min.
78 mm (3.07 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel*25  8 clicks
Fluid type SAE J1703 or FMVSS No. 116 DOT 3

508 6-1. Specifications
URBAN CRUISER_EE (OM52C21E)

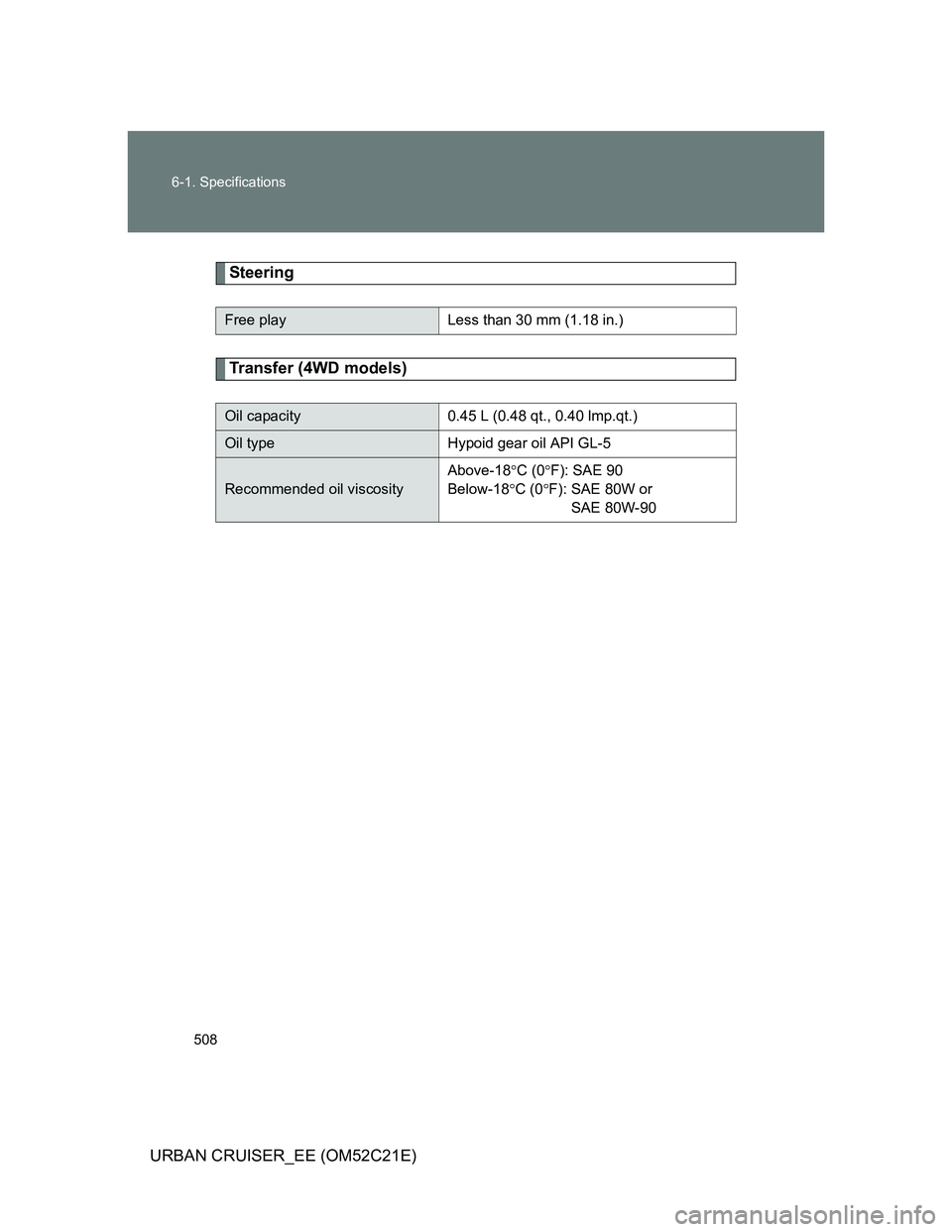

Steering
Transfer (4WD models)
Free playLess than 30 mm (1.18 in.)
Oil capacity0.45 L (0.48 qt., 0.40 lmp.qt.)
Oil typeHypoid gear oil API GL-5
Recommended oil viscosity
Above-18C (0F): SAE 90
Below-18C (0F): SAE 80W or
SAE 80W-90

509 6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_EE (OM52C21E)

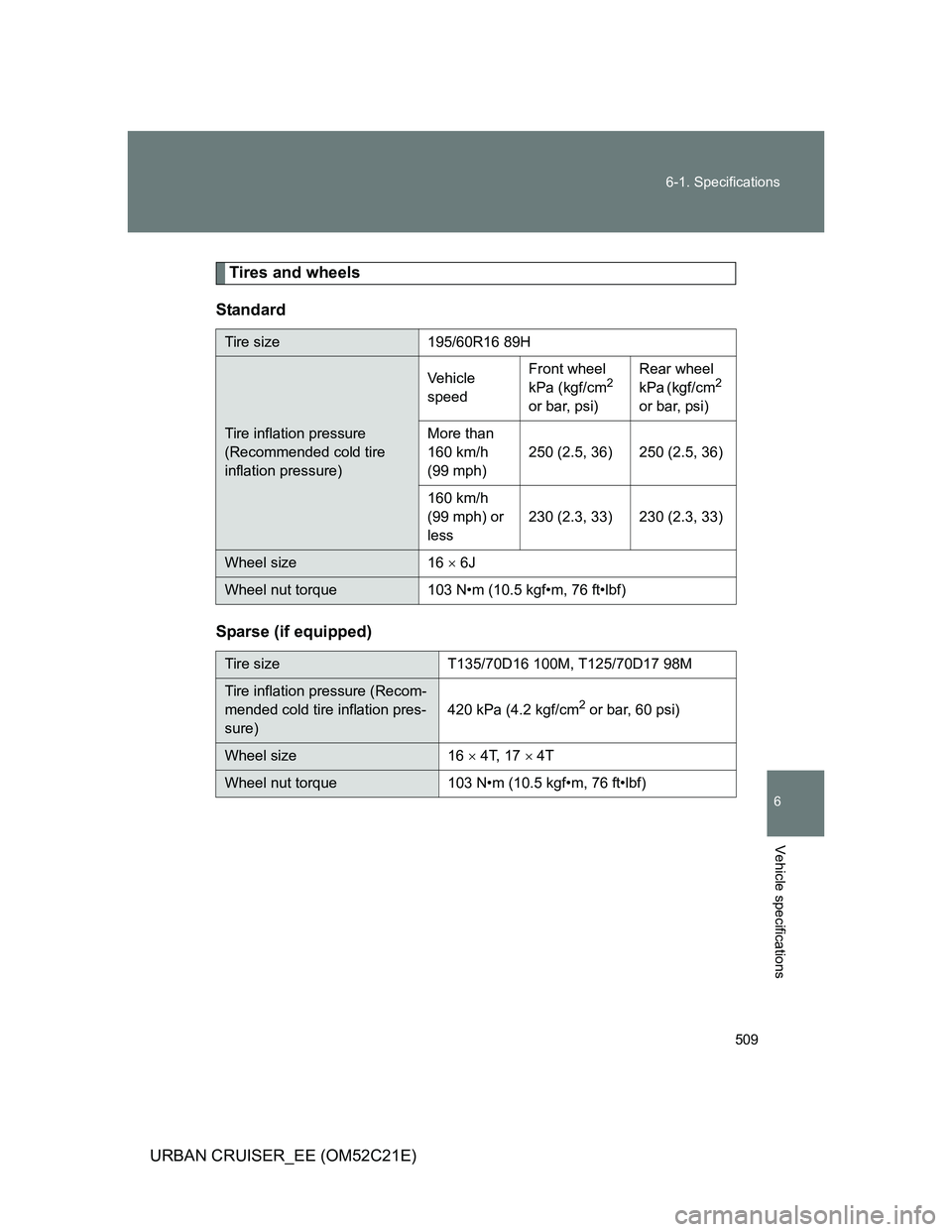

Tires and wheels
Standard
Sparse (if equipped)
Tire size 195/60R16 89H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)250 (2.5, 36) 250 (2.5, 36)
160 km/h
(99 mph) or
less230 (2.3, 33) 230 (2.3, 33)
Wheel size 16  6J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT135/70D16 100M, T125/70D17 98M
Tire inflation pressure (Recom-
mended cold tire inflation pres-
sure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16  4T, 17  4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

510 6-1. Specifications
URBAN CRUISER_EE (OM52C21E)

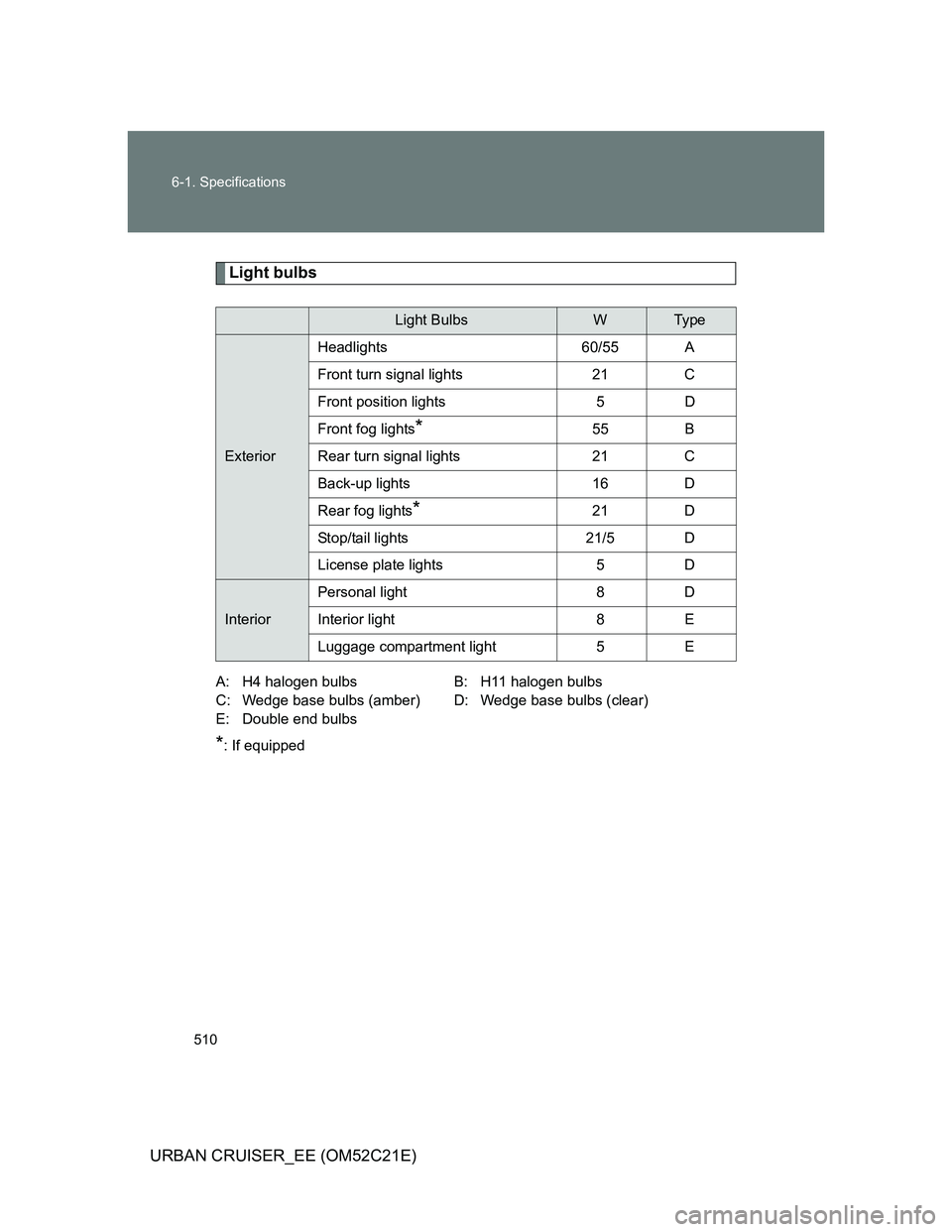

Light bulbs
A: H4 halogen bulbs B: H11 halogen bulbs
C: Wedge base bulbs (amber) D: Wedge base bulbs (clear)
E: Double end bulbs
*: If equipped
Light BulbsWTy p e
ExteriorHeadlights 60/55 A
Front turn signal lights 21 C
Front position lights 5 D
Front fog lights
*55 B
Rear turn signal lights 21 C
Back-up lights 16 D
Rear fog lights
*21 D
Stop/tail lights 21/5 D
License plate lights 5 D
InteriorPersonal light 8 D
Interior light 8 E
Luggage compartment light 5 E

511
6-1. Specifications
6
Vehicle specifications
URBAN CRUISER_EE (OM52C21E)

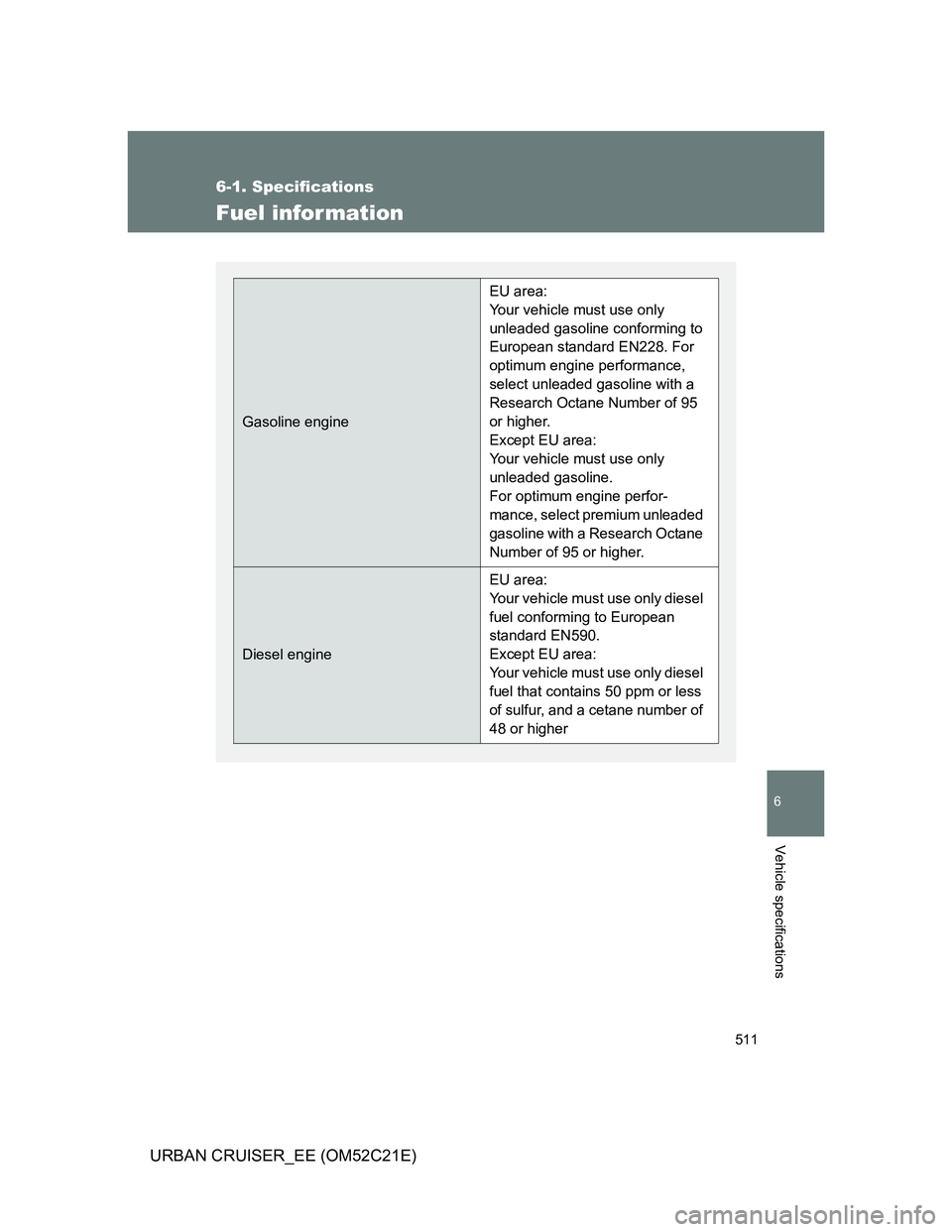

Fuel infor mation
Gasoline engine
EU area:
Your vehicle must use only
unleaded gasoline conforming to
European standard EN228. For
optimum engine performance,
select unleaded gasoline with a
Research Octane Number of 95
or higher.
Except EU area:
Your vehicle must use only
unleaded gasoline.
For optimum engine perfor-
mance, select premium unleaded
gasoline with a Research Octane
Number of 95 or higher.
Diesel engine
EU area:
Your vehicle must use only diesel
fuel conforming to European
standard EN590.
Except EU area:
Your vehicle must use only diesel
fuel that contains 50 ppm or less
of sulfur, and a cetane number of
48 or higher

512 6-1. Specifications
URBAN CRUISER_EE (OM52C21E)
Fuel tank opening for unleaded gasoline (gasoline engine)
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be available, so please confirm the availability
with your distributor.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
NOTICE
Notice on fuel quality
Do not use improper fuels. If improper fuels are used the engine will be
damaged.
Gasoline engine: Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
Diesel engine: Do not use a fuel that contains more than 50 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.
