2011 TOYOTA URBAN CRUISER Owners Manual

185 2-1. Driving procedures
2
When driving
URBAN CRUISER_EE (OM52C21E)

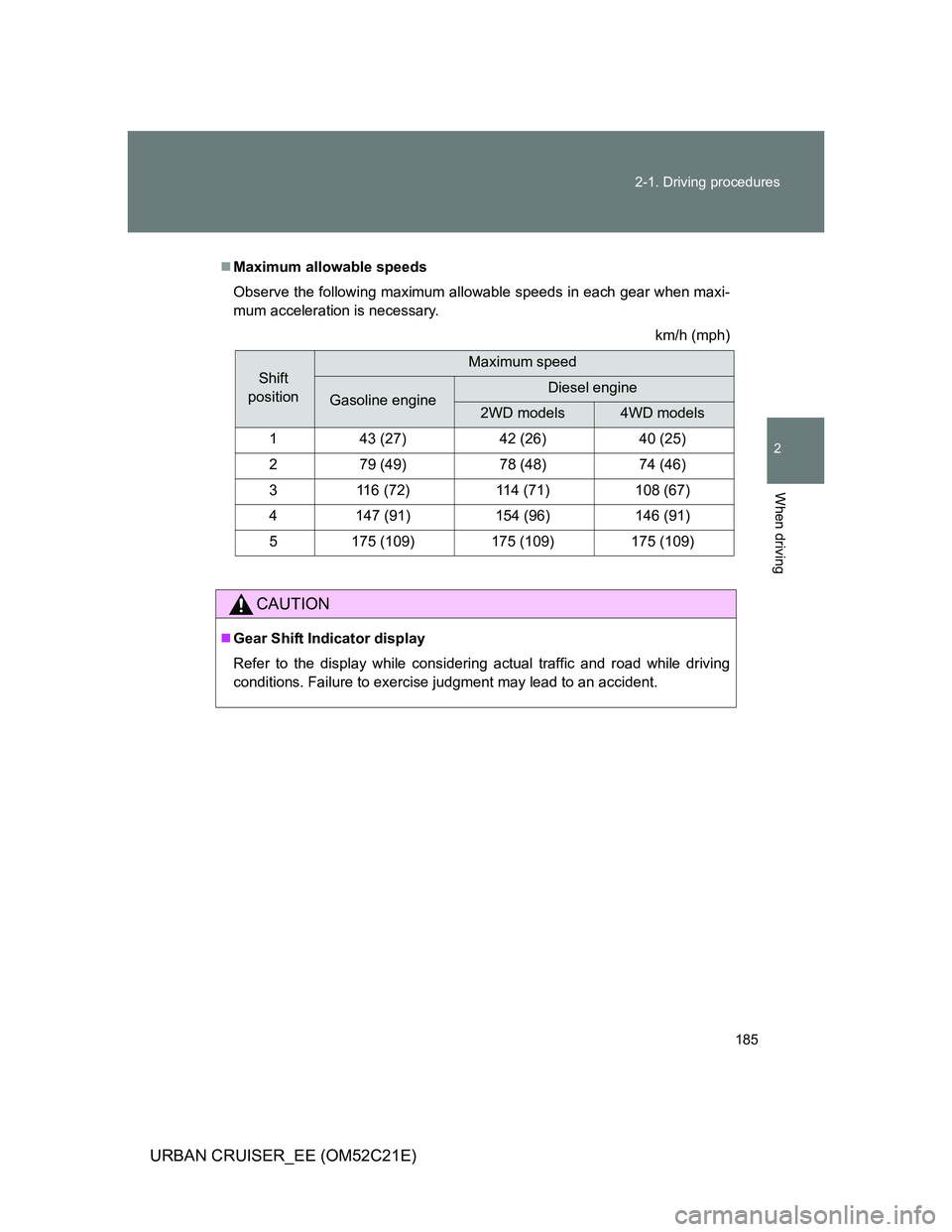

Maximum allowable speeds
Observe the following maximum allowable speeds in each gear when maxi-
mum acceleration is necessary.
km/h (mph)
CAUTION
Gear Shift Indicator display
Refer to the display while considering actual traffic and road while driving
conditions. Failure to exercise judgment may lead to an accident.
Shift
position
Maximum speed
Gasoline engineDiesel engine
2WD models4WD models
143 (27)42 (26)40 (25)
279 (49)78 (48)74 (46)
3116 (72)114 (71)108 (67)
4147 (91)154 (96)146 (91)
5175 (109)175 (109)175 (109)

186 2-1. Driving procedures
URBAN CRUISER_EE (OM52C21E)

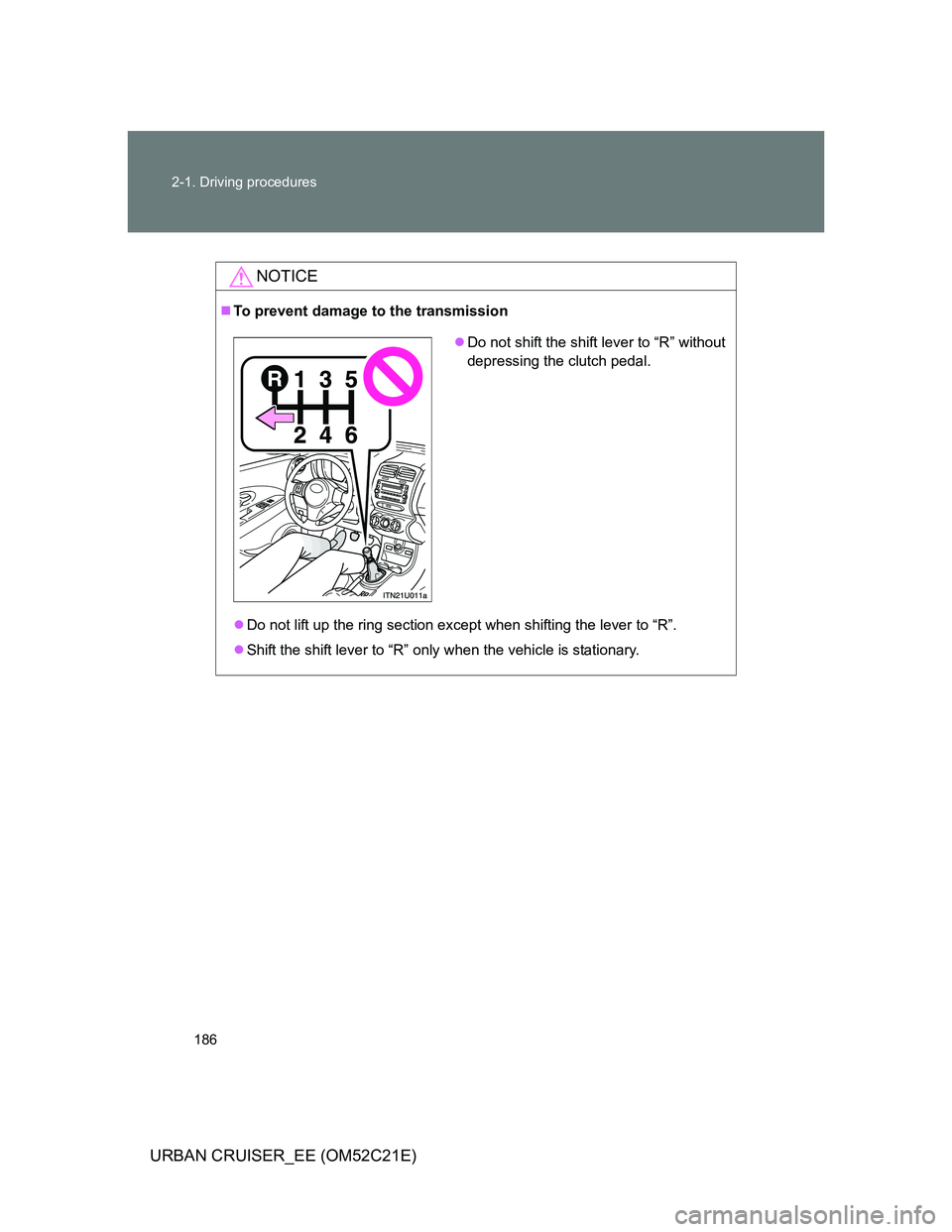

NOTICE
To prevent damage to the transmission
Do not lift up the ring section except when shifting the lever to “R”.
Shift the shift lever to “R” only when the vehicle is stationary.
Do not shift the shift lever to “R” without
depressing the clutch pedal.

187
2-1. Driving procedures
2
When driving
URBAN CRUISER_EE (OM52C21E)

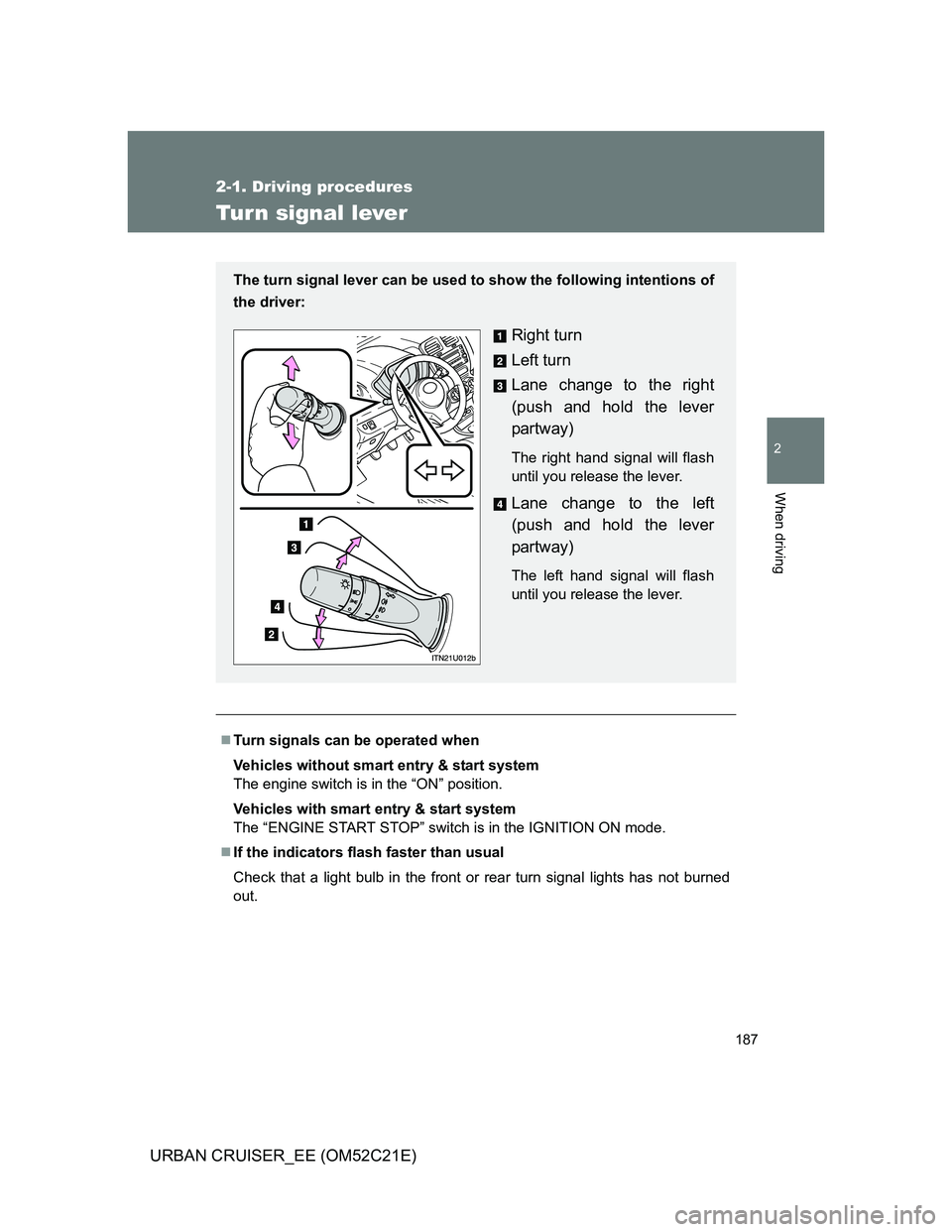

Turn signal lever
Turn signals can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the IGNITION ON mode.
If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
The turn signal lever can be used to show the following intentions of
the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signal will flash
until you release the lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signal will flash
until you release the lever.

188
2-1. Driving procedures
URBAN CRUISER_EE (OM52C21E)

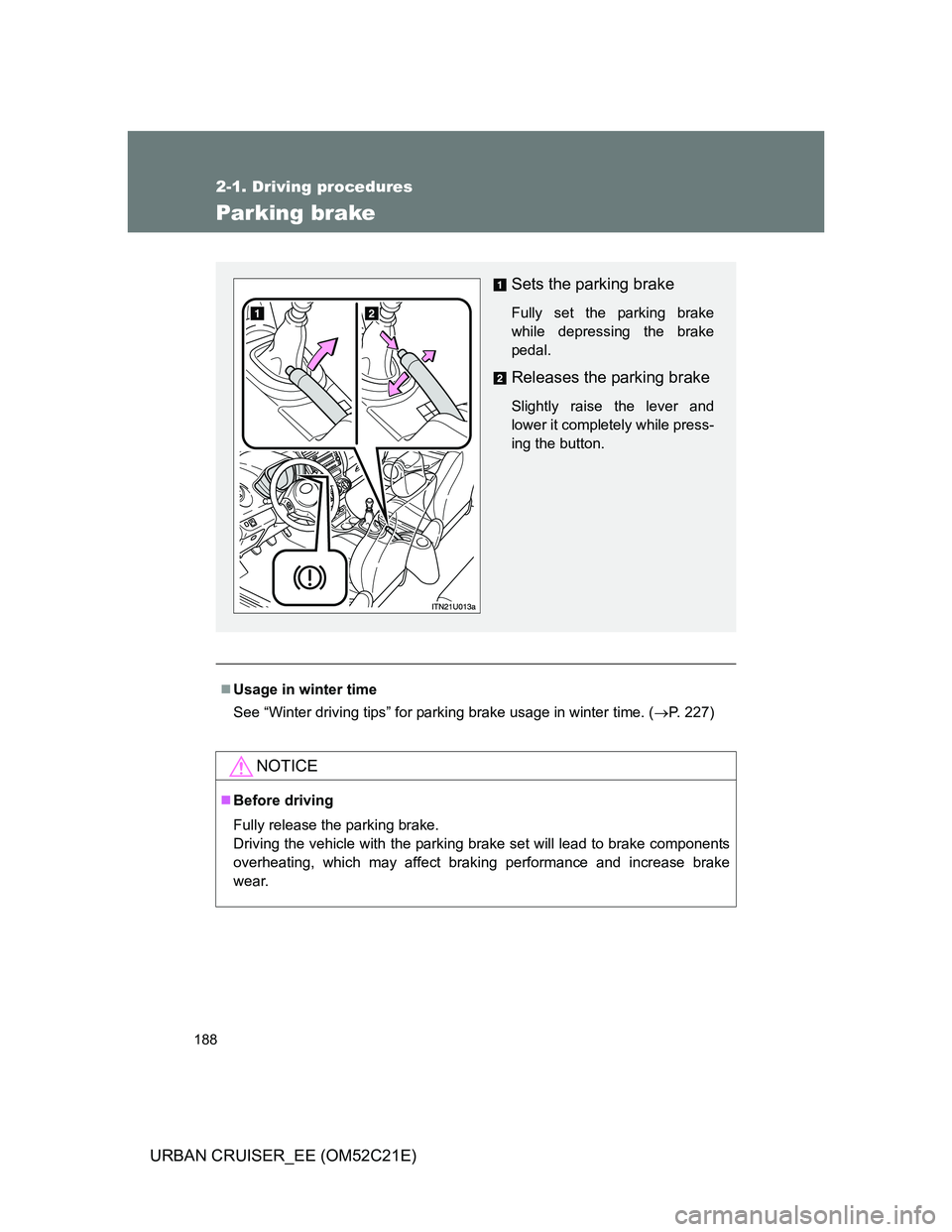

Parking brake
Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. (P. 227)
NOTICE
Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
Sets the parking brake
Fully set the parking brake
while depressing the brake
pedal.
Releases the parking brake
Slightly raise the lever and
lower it completely while press-
ing the button.

189
2-1. Driving procedures
2
When driving
URBAN CRUISER_EE (OM52C21E)

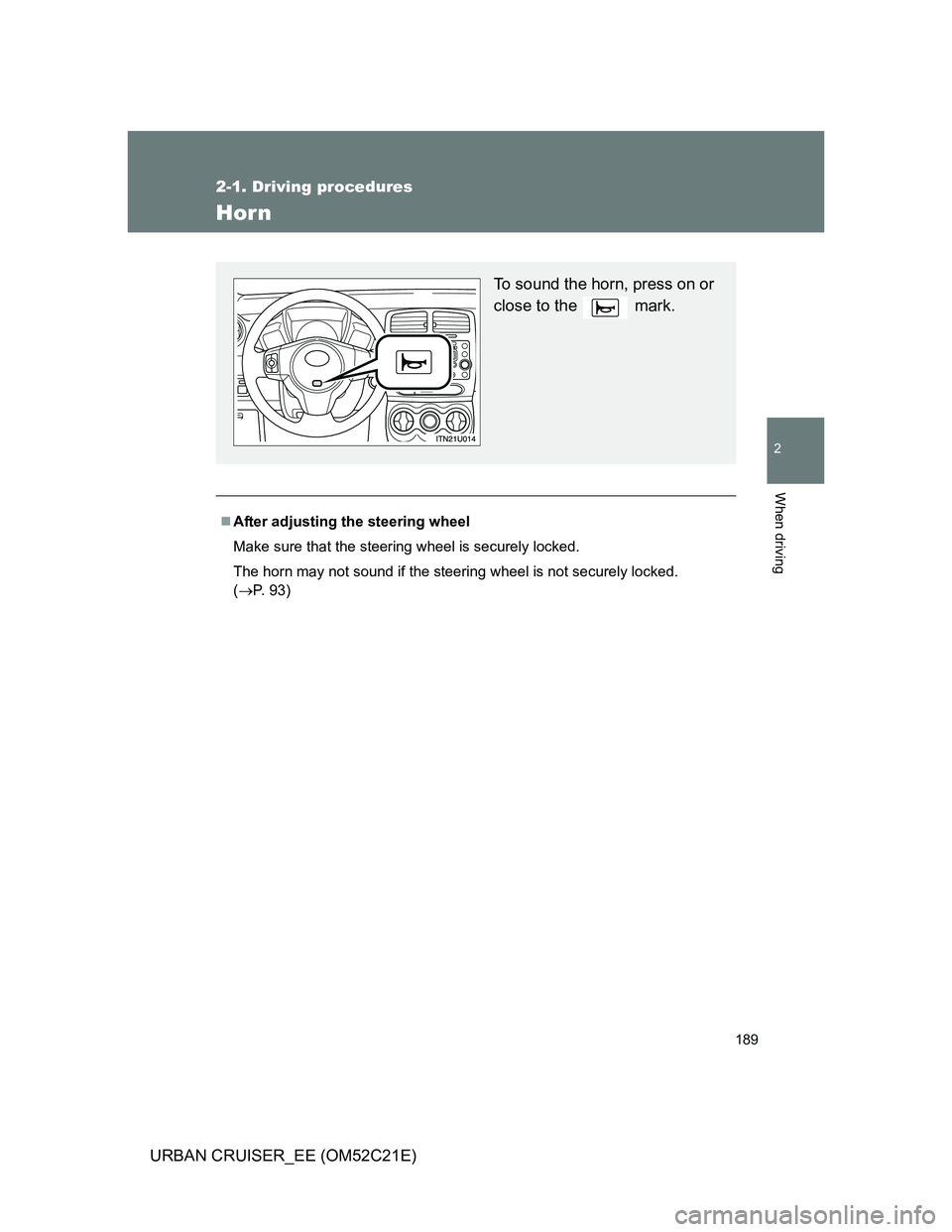

Horn
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 93)
To sound the horn, press on or
close to the mark.

190
URBAN CRUISER_EE (OM52C21E)
2-2. Instrument cluster

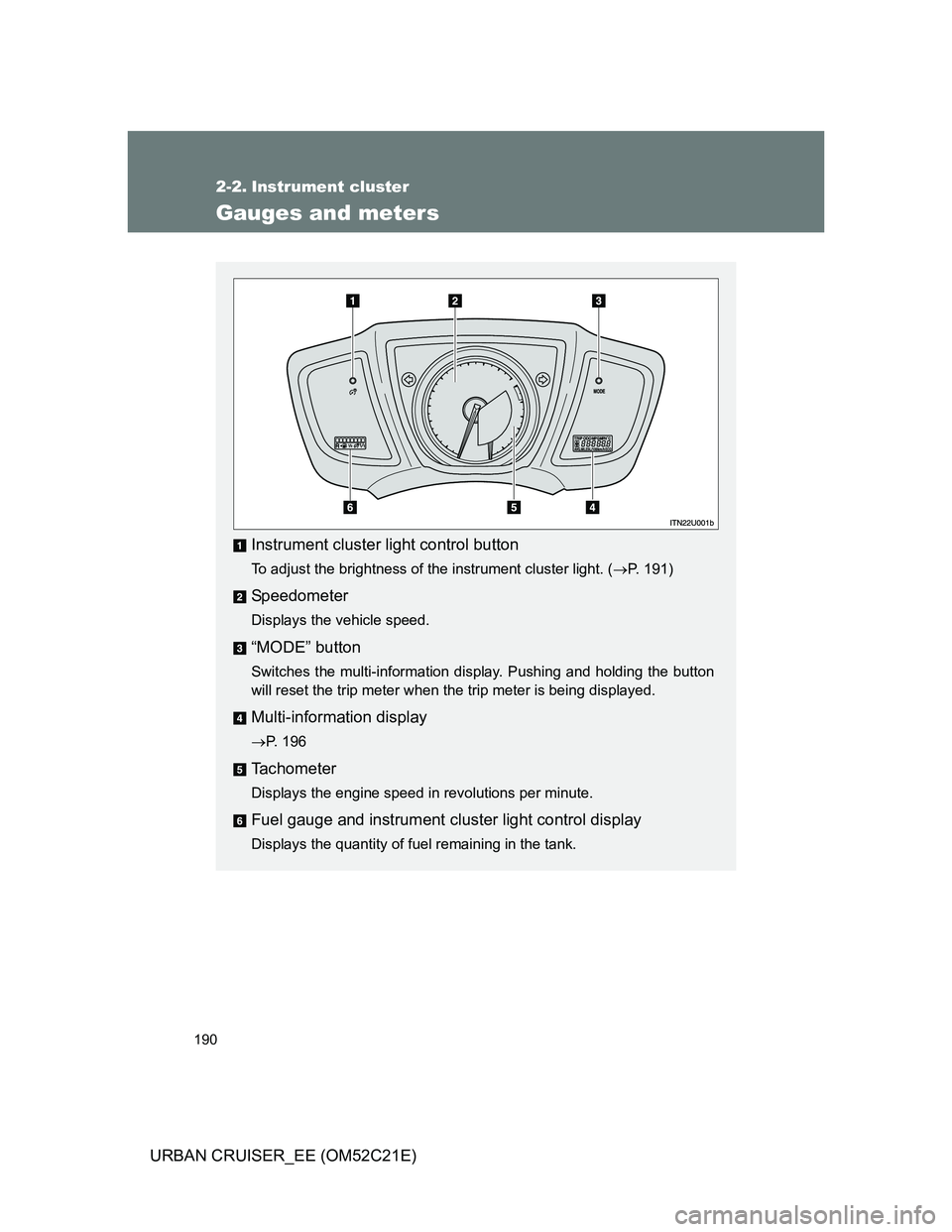

Gauges and meters
Instrument cluster light control button
To adjust the brightness of the instrument cluster light. (P. 191)
Speedometer
Displays the vehicle speed.
“MODE” button
Switches the multi-information display. Pushing and holding the button
will reset the trip meter when the trip meter is being displayed.
Multi-information display
P. 196
Tachometer
Displays the engine speed in revolutions per minute.
Fuel gauge and instrument cluster light control display
Displays the quantity of fuel remaining in the tank.

191 2-2. Instrument cluster
2
When driving
URBAN CRUISER_EE (OM52C21E)

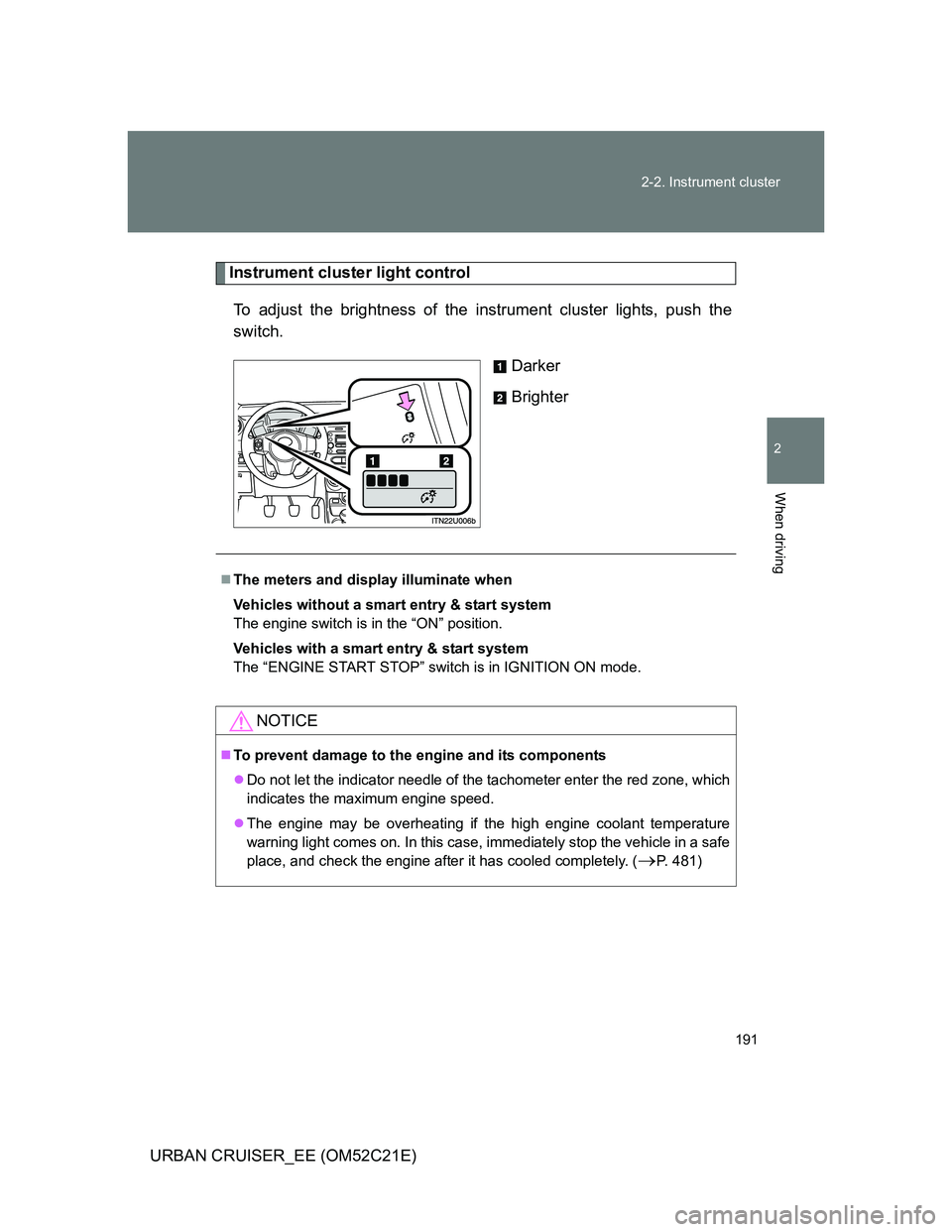

Instrument cluster light control
To adjust the brightness of the instrument cluster lights, push the
switch.
Darker
Brighter
The meters and display illuminate when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the high engine coolant temperature
warning light comes on. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (
P. 481)

192
2-2. Instrument cluster
URBAN CRUISER_EE (OM52C21E)

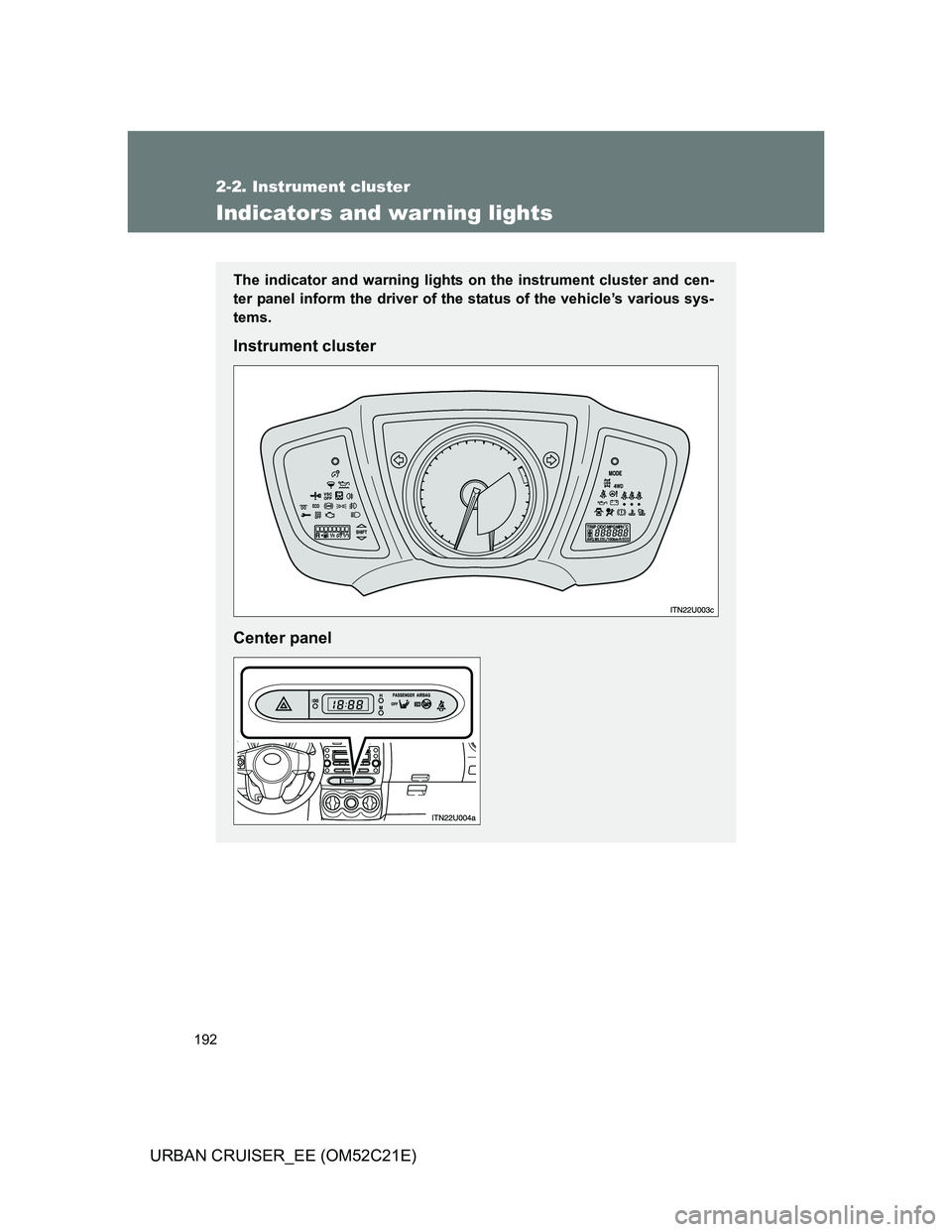

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster
Center panel
