2011 TOYOTA URBAN CRUISER Owners Manual

529 What to do if...
URBAN CRUISER_EE (OM52C21E)

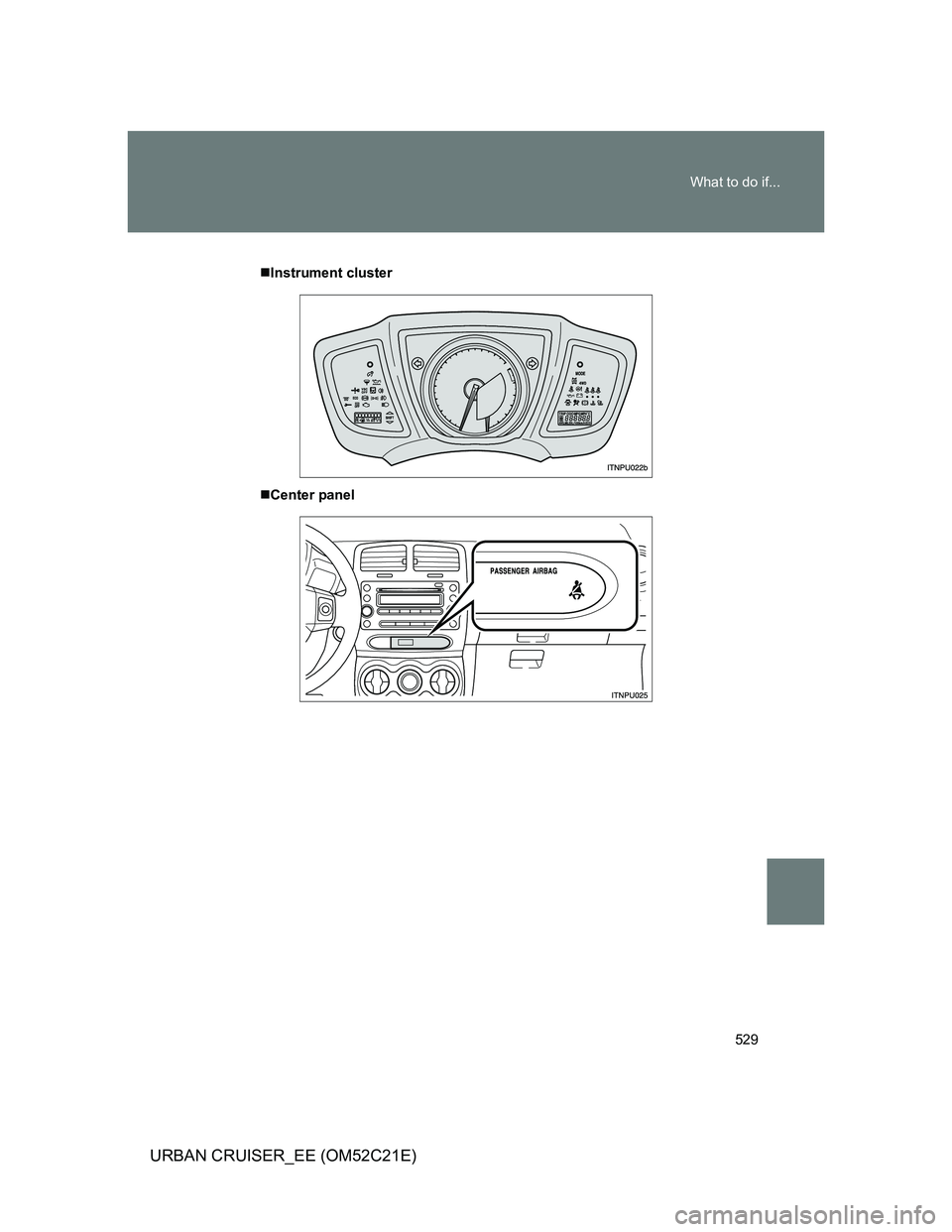

Instrument cluster
Center panel

530 What to do if...
URBAN CRUISER_EE (OM52C21E)

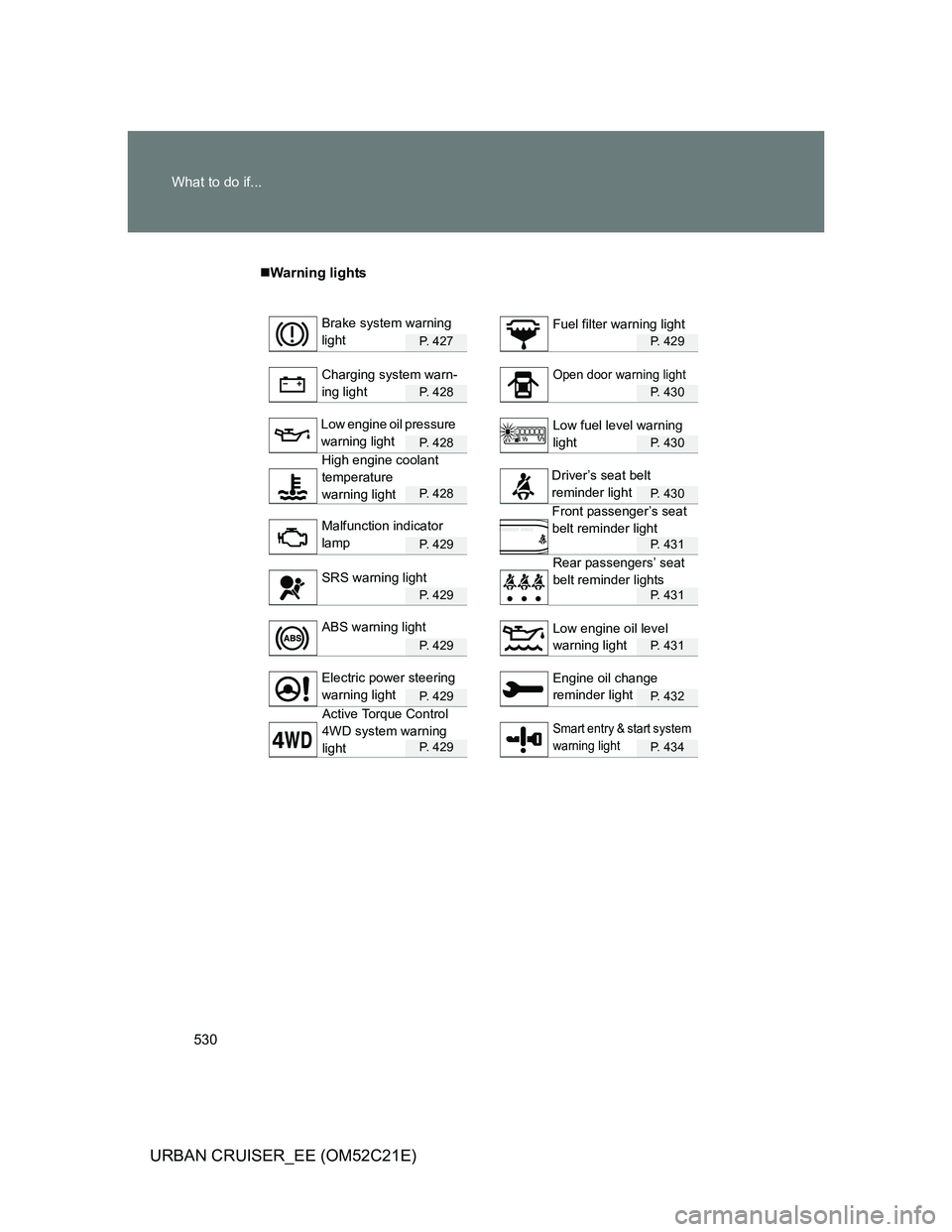

Warning lights
P. 4 2 7P. 429
P. 4 2 8P. 430
P. 4 2 8P. 430
P. 4 2 8P. 430
P. 4 2 9P. 431
P. 4 2 9P. 431
P. 4 2 9P. 431
P. 4 2 9P. 432
P. 4 2 9P. 434
Brake system warning
lightFuel filter warning light
Charging system warn-
ing lightOpen door warning light
Low engine oil pressure
warning light Low fuel level warning
light
High engine coolant
temperature
warning lightDriver’s seat belt
reminder light
Malfunction indicator
lamp
Rear passengers’ seat
belt reminder lightsSRS warning light
ABS warning lightLow engine oil level
warning light
Electric power steering
warning lightEngine oil change
reminder light
Smart entry & start system
warning lightActive Torque Control
4WD system warning
light Front passenger’s seat
belt reminder light

531 What to do if...
URBAN CRUISER_EE (OM52C21E)

532
URBAN CRUISER_EE (OM52C21E)

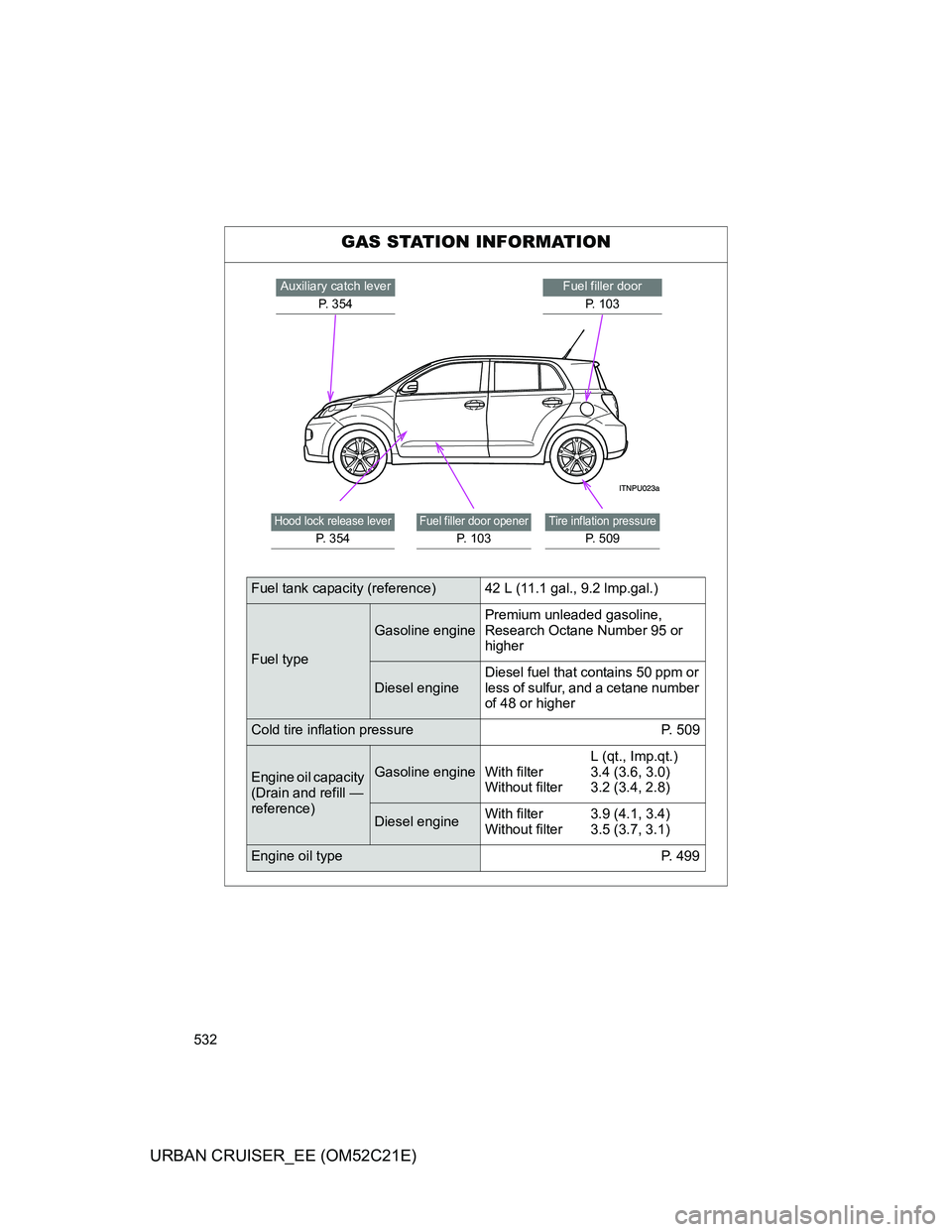

GAS STATION INFORMATION
Fuel filler door
P. 103Auxiliary catch lever
P. 3 5 4
Tire inflation pressure
P. 509
Fuel filler door opener
P. 1 0 3
Hood lock release lever
P. 354
Fuel tank capacity (reference)42 L (11.1 gal., 9.2 lmp.gal.)
Fuel type
Gasoline enginePremium unleaded gasoline,
Research Octane Number 95 or
higher
Diesel engineDiesel fuel that contains 50 ppm or
less of sulfur, and a cetane number
of 48 or higher
Cold tire inflation pressure P. 509
Engine oil capacity
(Drain and refill —
reference)Gasoline engineL (qt., Imp.qt.)
With filter 3.4 (3.6, 3.0)
Without filter 3.2 (3.4, 2.8)
Diesel engineWith filter 3.9 (4.1, 3.4)
Without filter 3.5 (3.7, 3.1)
Engine oil type P. 499
