57 1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_EE (OM52C21E)

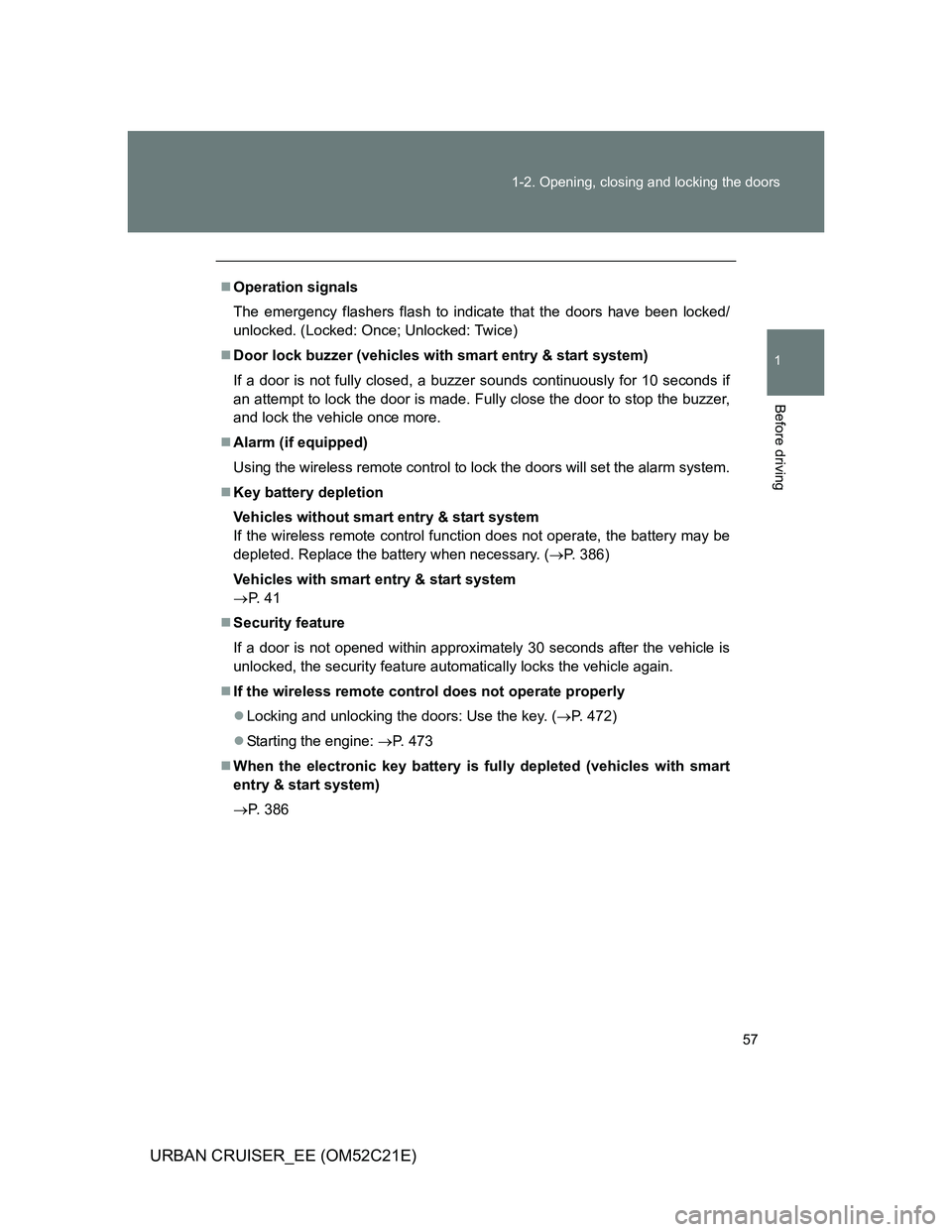

Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
Door lock buzzer (vehicles with smart entry & start system)
If a door is not fully closed, a buzzer sounds continuously for 10 seconds if
an attempt to lock the door is made. Fully close the door to stop the buzzer,
and lock the vehicle once more.
Alarm (if equipped)
Using the wireless remote control to lock the doors will set the alarm system.
Key battery depletion
Vehicles without smart entry & start system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 386)
Vehicles with smart entry & start system
P. 4 1
Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
If the wireless remote control does not operate properly
Locking and unlocking the doors: Use the key. (P. 472)
Starting the engine: P. 473
When the electronic key battery is fully depleted (vehicles with smart
entry & start system)
P. 386

58 1-2. Opening, closing and locking the doors
URBAN CRUISER_EE (OM52C21E)

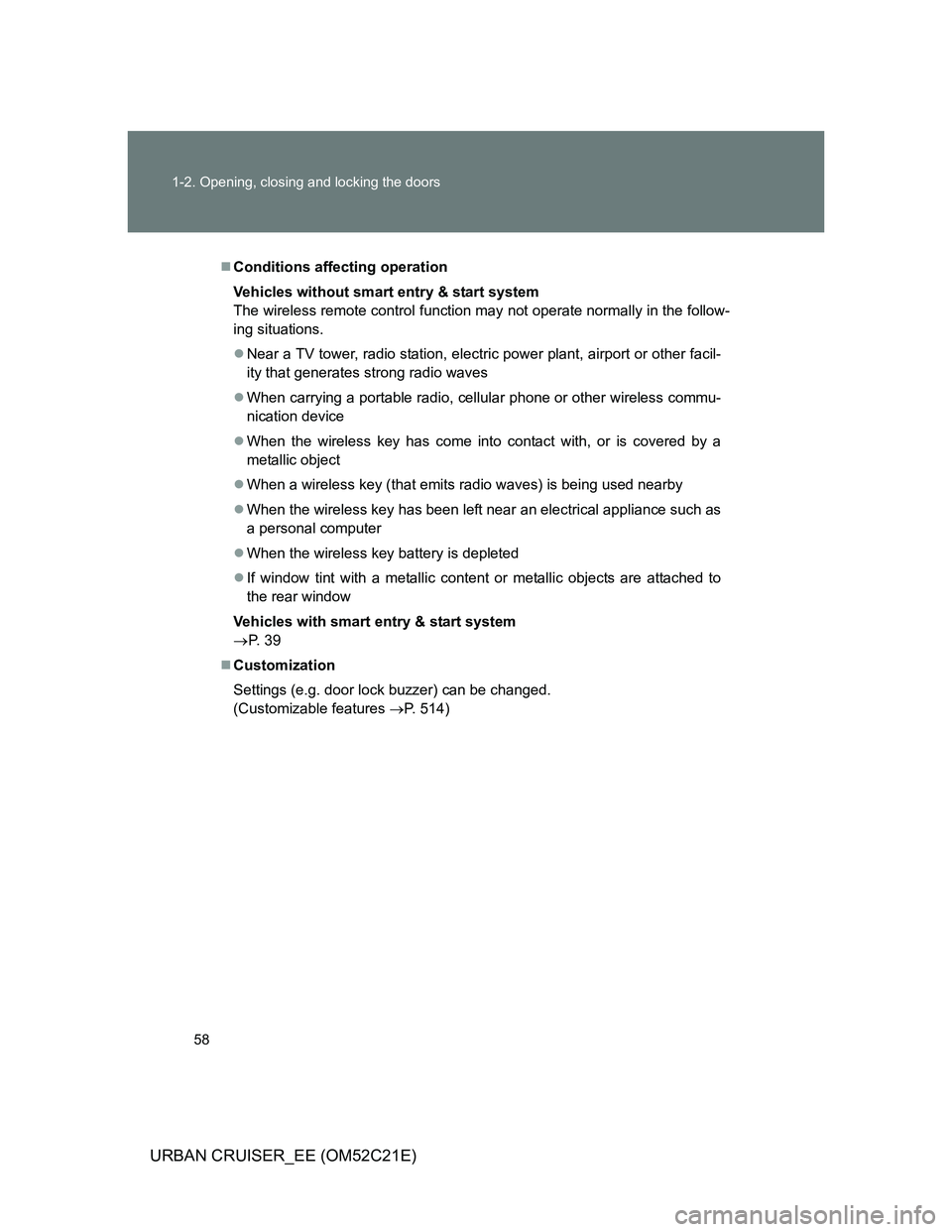

Conditions affecting operation
Vehicles without smart entry & start system
The wireless remote control function may not operate normally in the follow-
ing situations.
Near a TV tower, radio station, electric power plant, airport or other facil-
ity that generates strong radio waves
When carrying a portable radio, cellular phone or other wireless commu-
nication device
When the wireless key has come into contact with, or is covered by a
metallic object
When a wireless key (that emits radio waves) is being used nearby
When the wireless key has been left near an electrical appliance such as
a personal computer
When the wireless key battery is depleted
If window tint with a metallic content or metallic objects are attached to
the rear window
Vehicles with smart entry & start system
P. 3 9
Customization
Settings (e.g. door lock buzzer) can be changed.
(Customizable features P. 514)

59 1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_EE (OM52C21E)

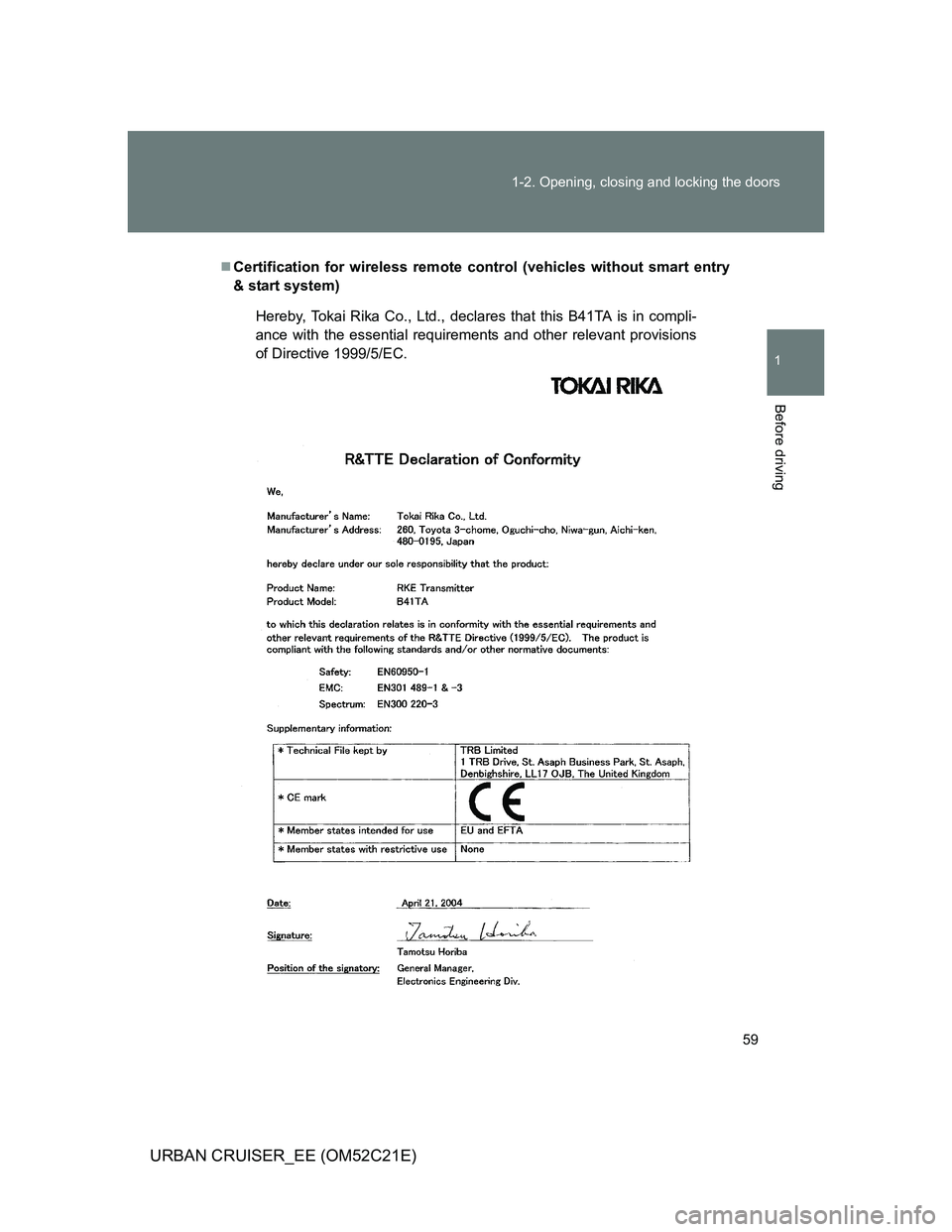

Certification for wireless remote control (vehicles without smart entry
& start system)
Hereby, Tokai Rika Co., Ltd., declares that this B41TA is in compli-
ance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.

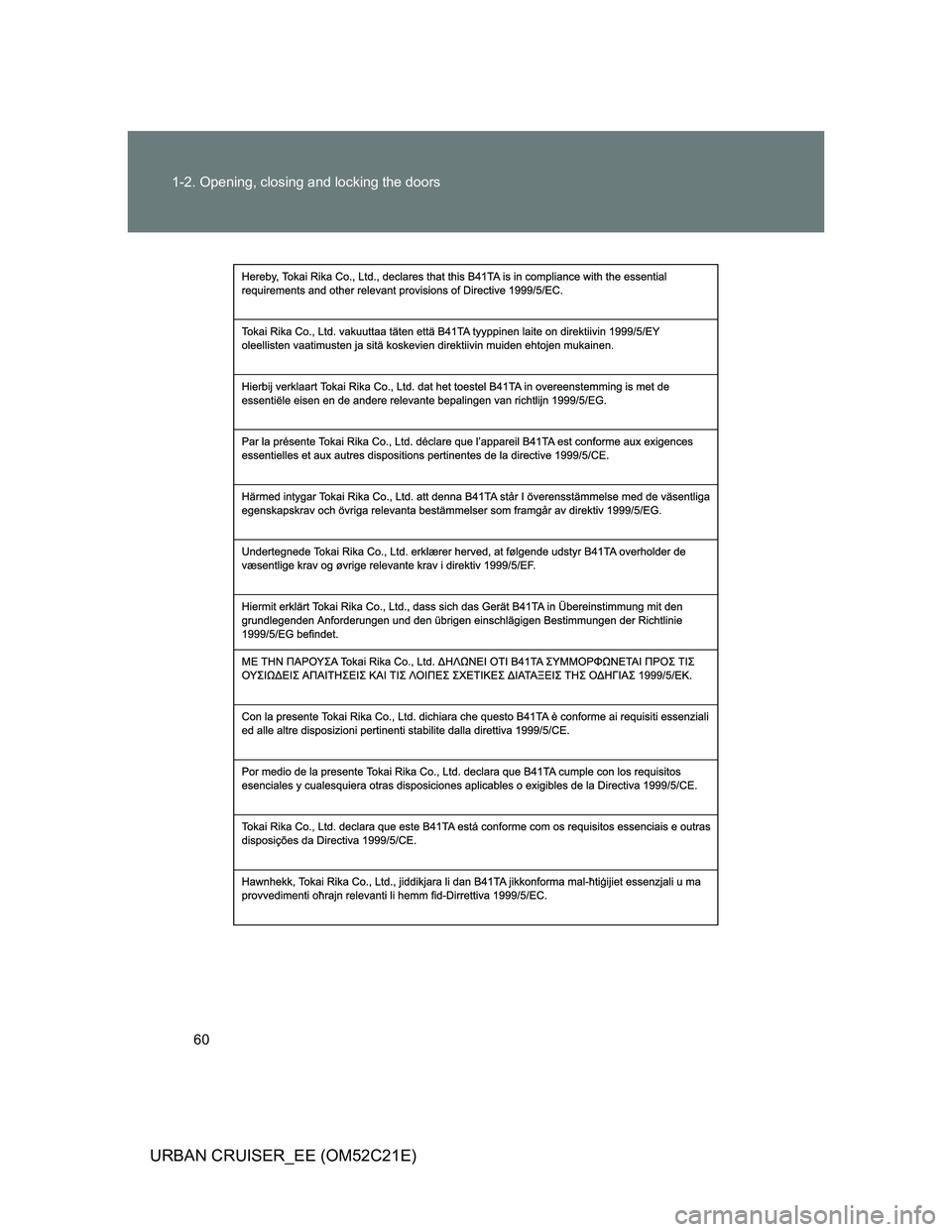

60 1-2. Opening, closing and locking the doors
URBAN CRUISER_EE (OM52C21E)

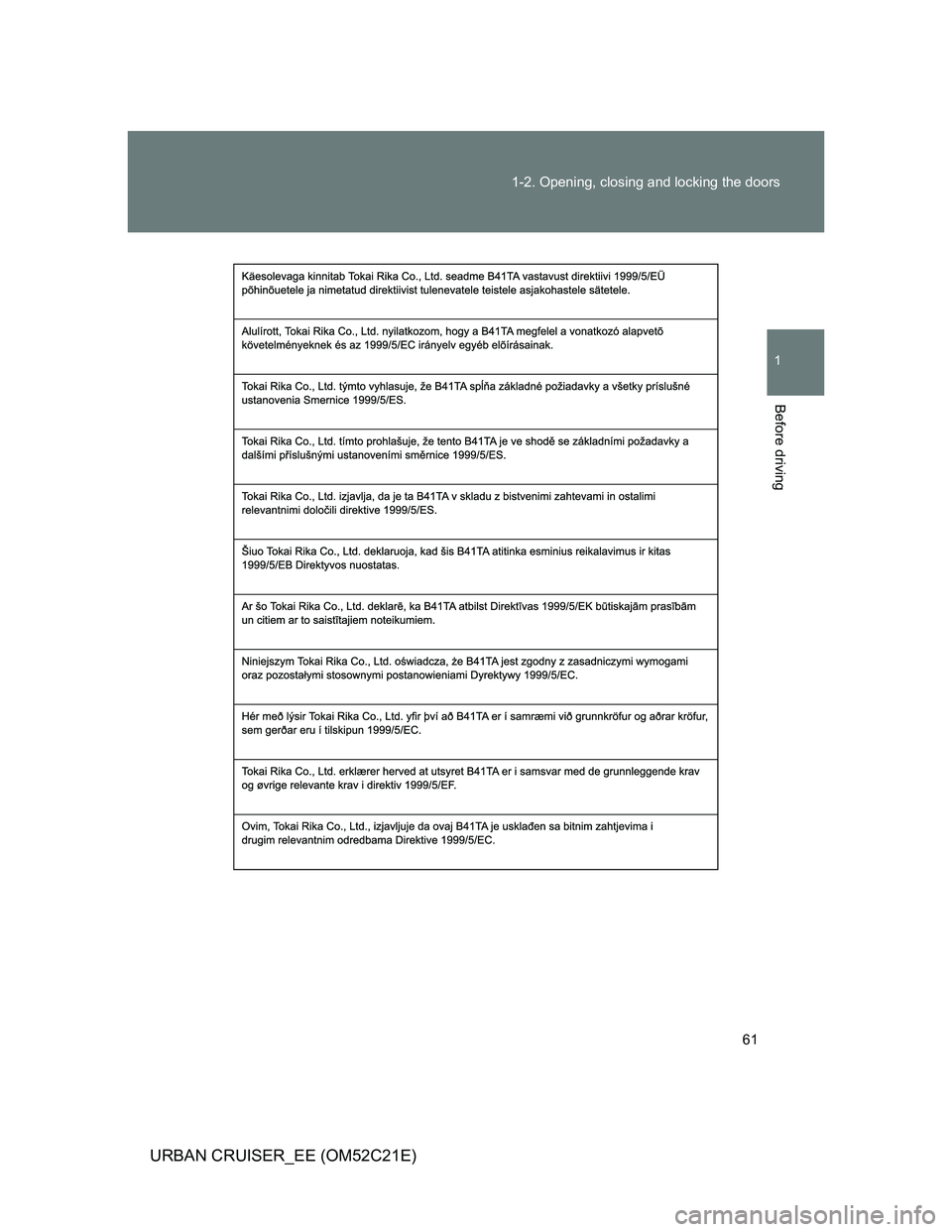

61 1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_EE (OM52C21E)

62 1-2. Opening, closing and locking the doors
URBAN CRUISER_EE (OM52C21E)

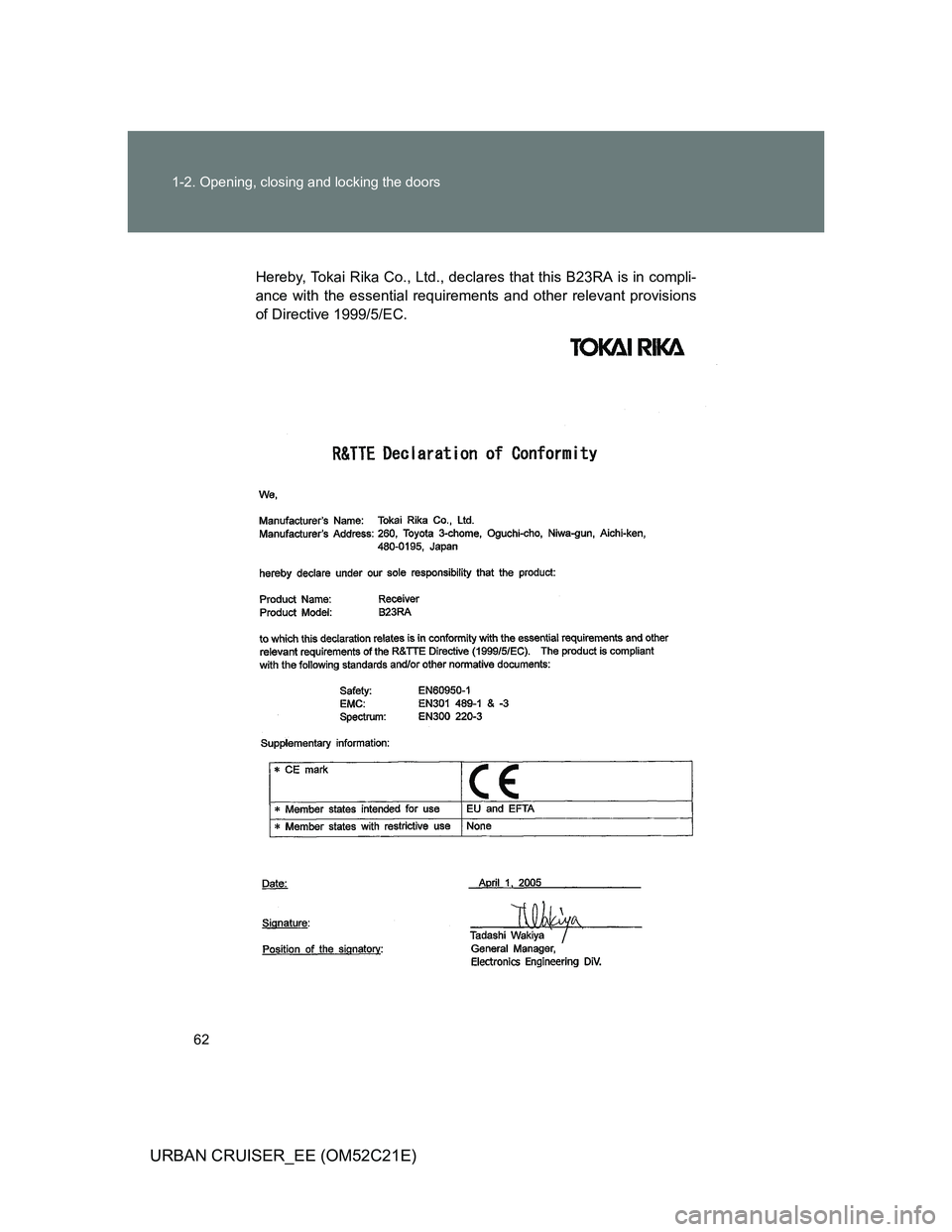

Hereby, Tokai Rika Co., Ltd., declares that this B23RA is in compli-
ance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.

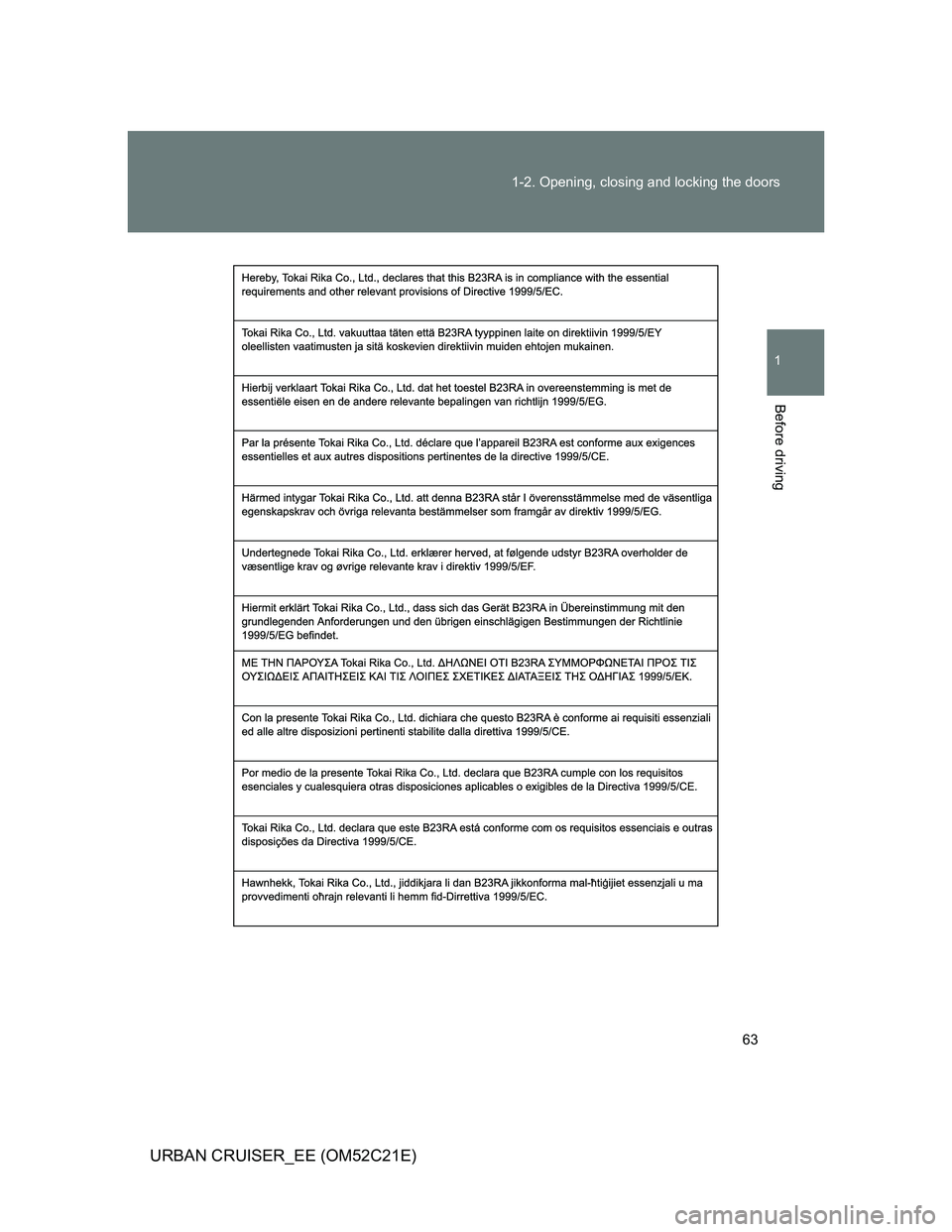

63 1-2. Opening, closing and locking the doors
1
Before driving
URBAN CRUISER_EE (OM52C21E)

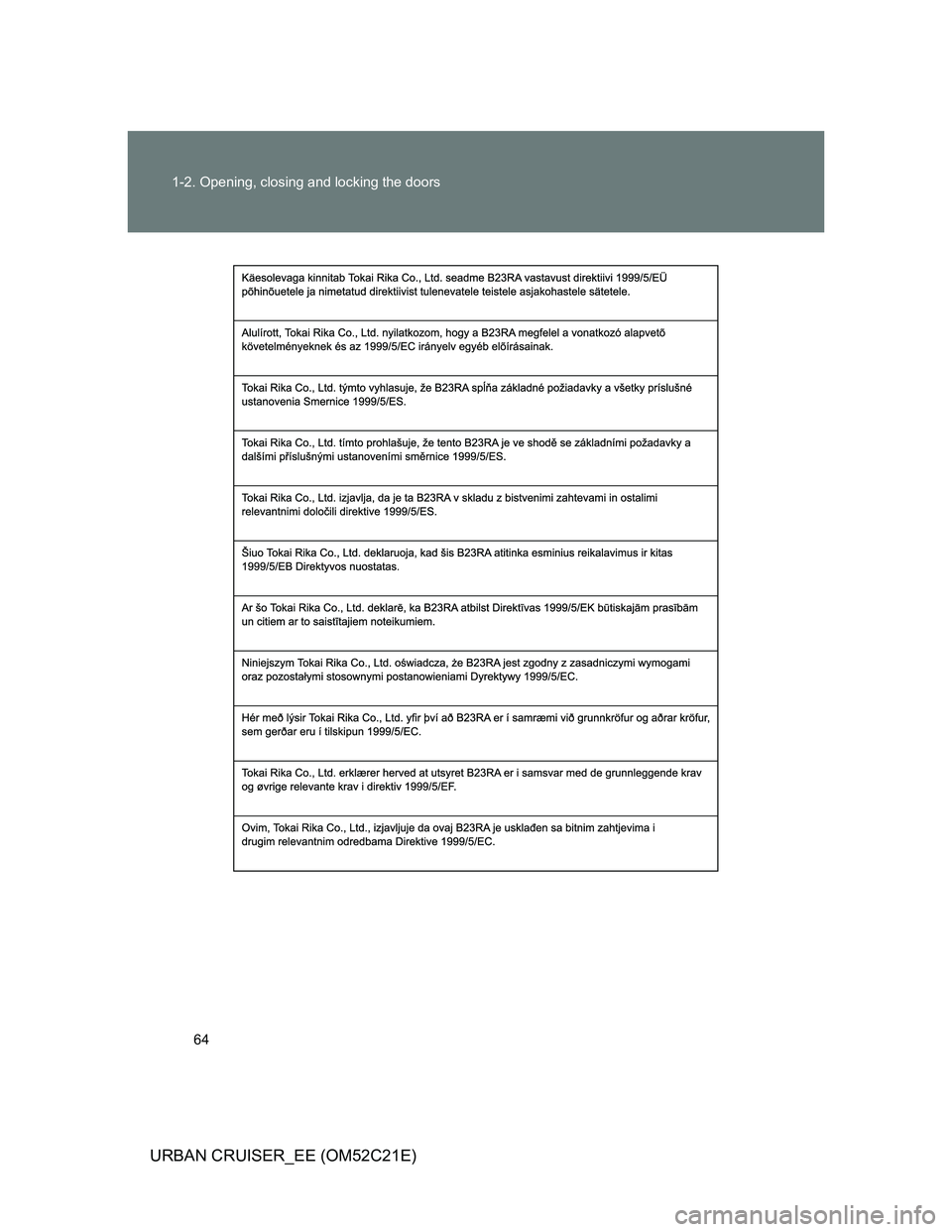

64 1-2. Opening, closing and locking the doors
URBAN CRUISER_EE (OM52C21E)
