2011 TOYOTA URBAN CRUISER Owners Manual

105 1-5. Refueling
1
Before driving
URBAN CRUISER_EE (OM52C21E)

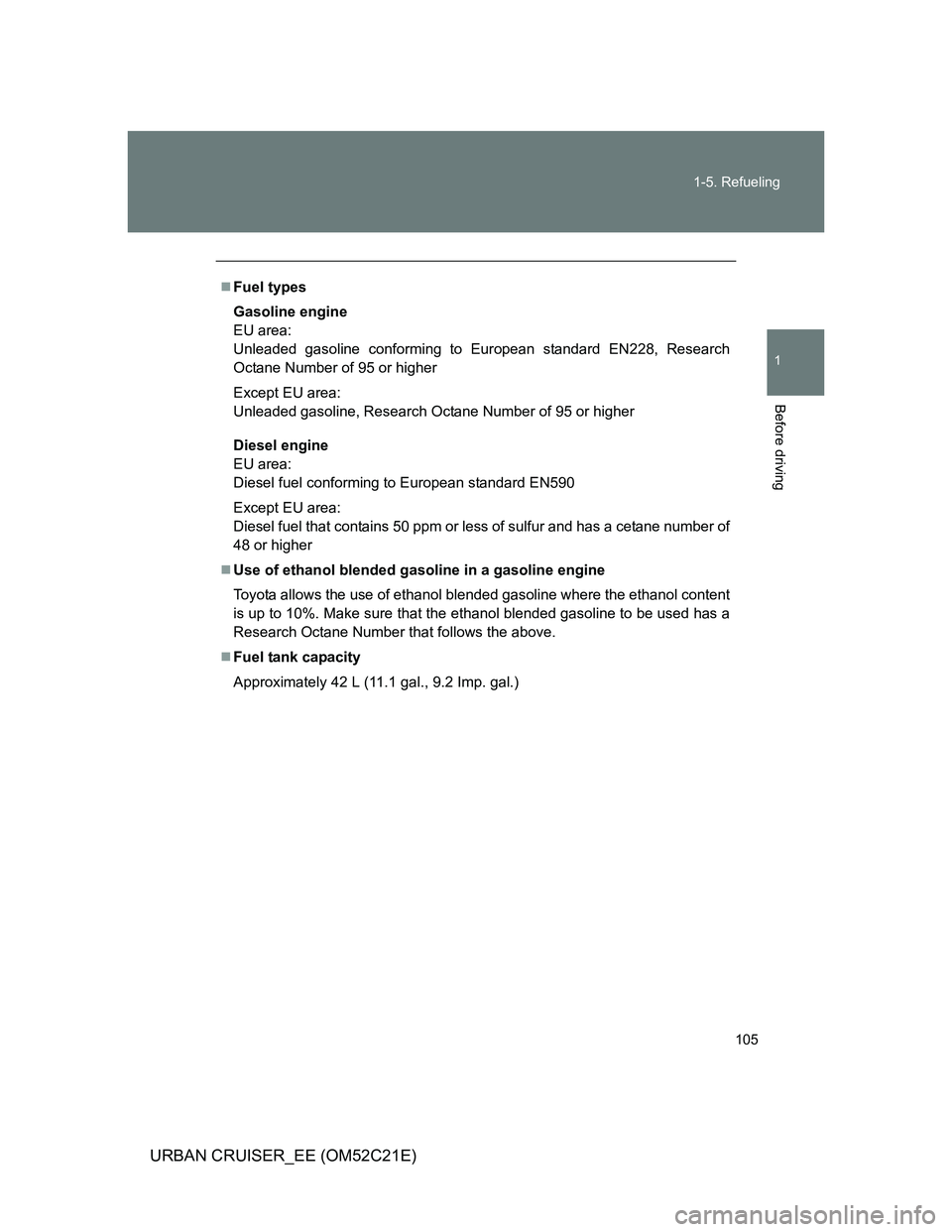

Fuel types
Gasoline engine
EU area:
Unleaded gasoline conforming to European standard EN228, Research
Octane Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher
Diesel engine
EU area:
Diesel fuel conforming to European standard EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur and has a cetane number of
48 or higher
Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
Fuel tank capacity
Approximately 42 L (11.1 gal., 9.2 Imp. gal.)

106 1-5. Refueling
URBAN CRUISER_EE (OM52C21E)

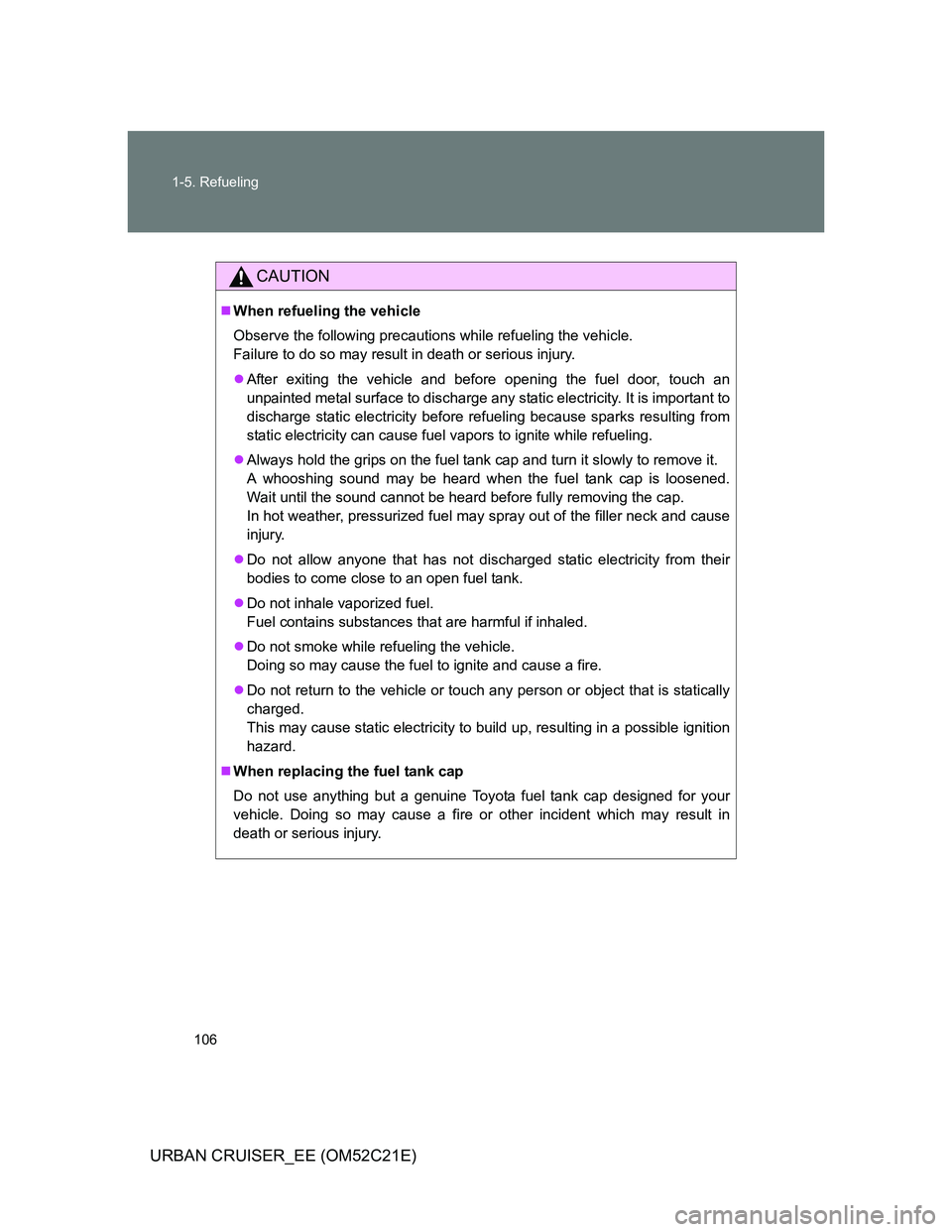

CAUTION
When refueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so may result in death or serious injury.
After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out of the filler neck and cause
injury.
Do not allow anyone that has not discharged static electricity from their
bodies to come close to an open fuel tank.
Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.

107 1-5. Refueling
1
Before driving
URBAN CRUISER_EE (OM52C21E)

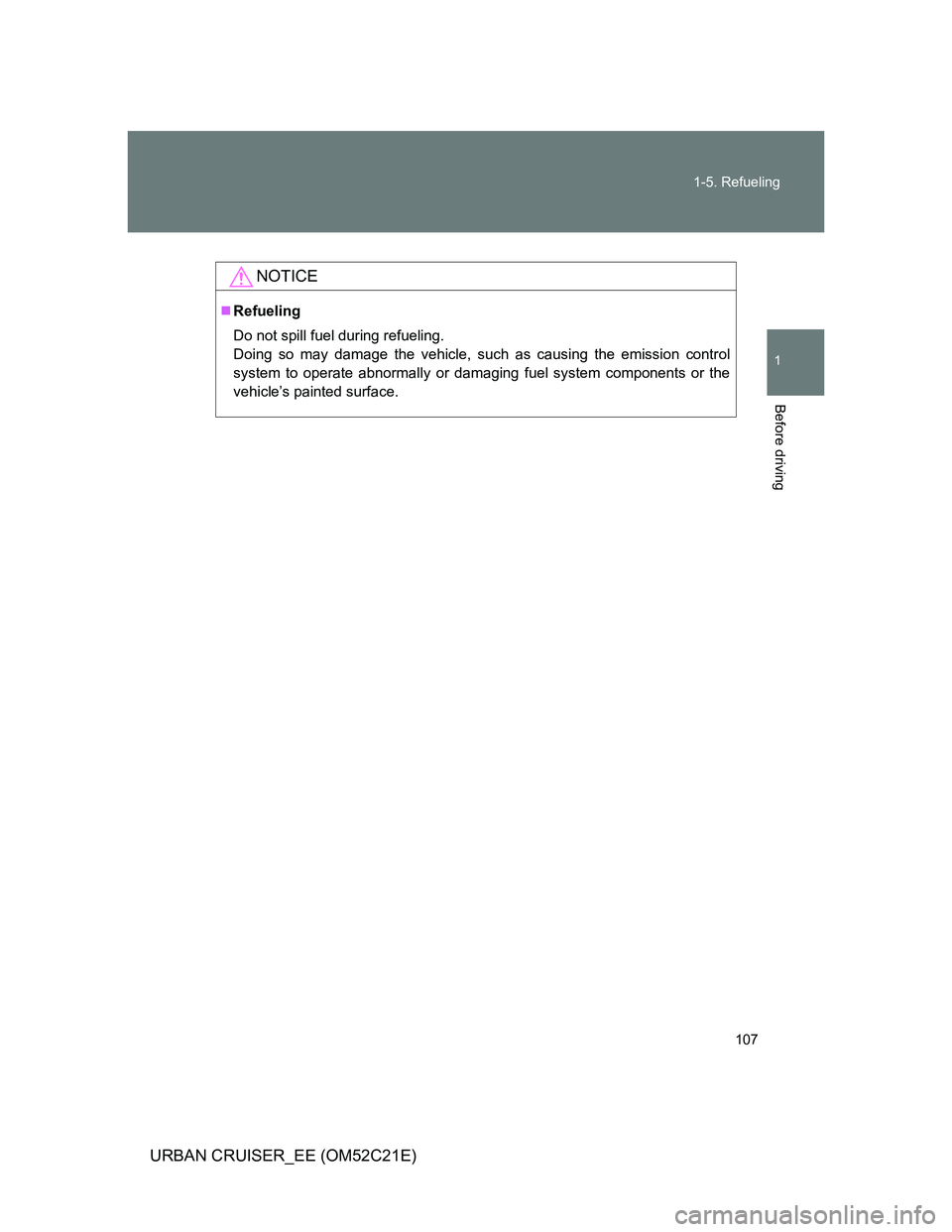

NOTICE
Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.

108
URBAN CRUISER_EE (OM52C21E)

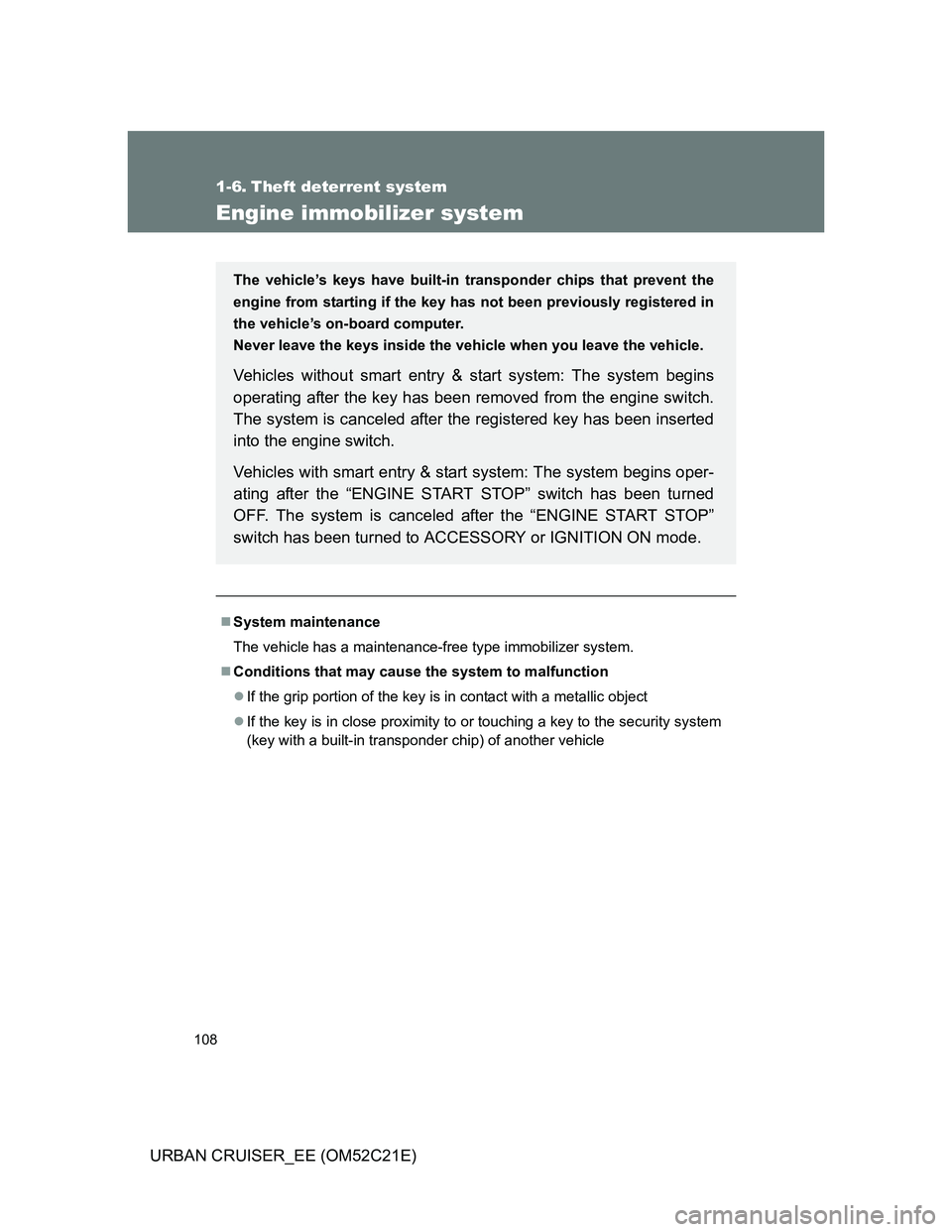

1-6. Theft deterrent system
Engine immobilizer system
System maintenance
The vehicle has a maintenance-free type immobilizer system.
Conditions that may cause the system to malfunction
If the grip portion of the key is in contact with a metallic object
If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent the
engine from starting if the key has not been previously registered in
the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
Vehicles without smart entry & start system: The system begins
operating after the key has been removed from the engine switch.
The system is canceled after the registered key has been inserted
into the engine switch.
Vehicles with smart entry & start system: The system begins oper-
ating after the “ENGINE START STOP” switch has been turned
OFF. The system is canceled after the “ENGINE START STOP”
switch has been turned to ACCESSORY or IGNITION ON mode.

109 1-6. Theft deterrent system
1
Before driving
URBAN CRUISER_EE (OM52C21E)

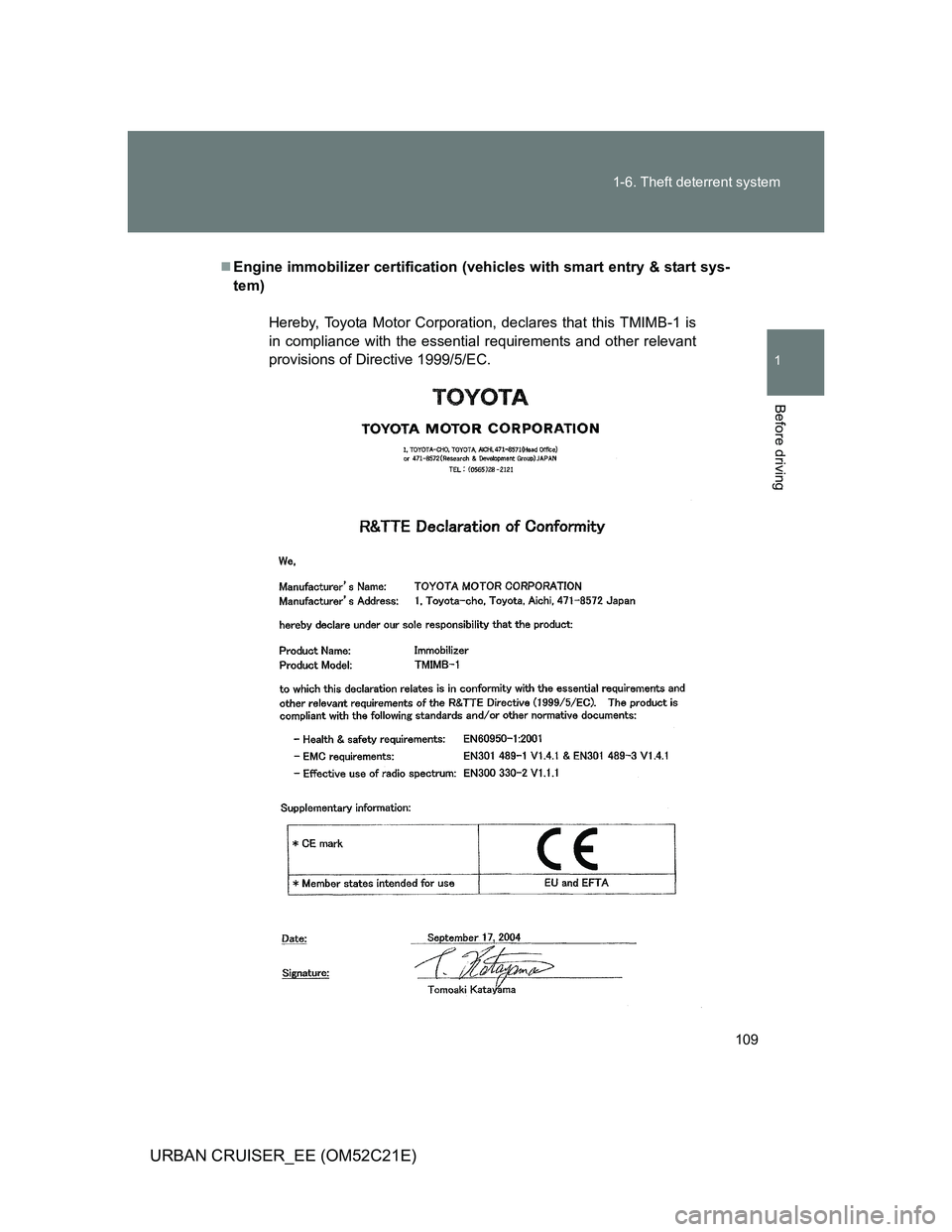

Engine immobilizer certification (vehicles with smart entry & start sys-
tem)
Hereby, Toyota Motor Corporation, declares that this TMIMB-1 is
in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.

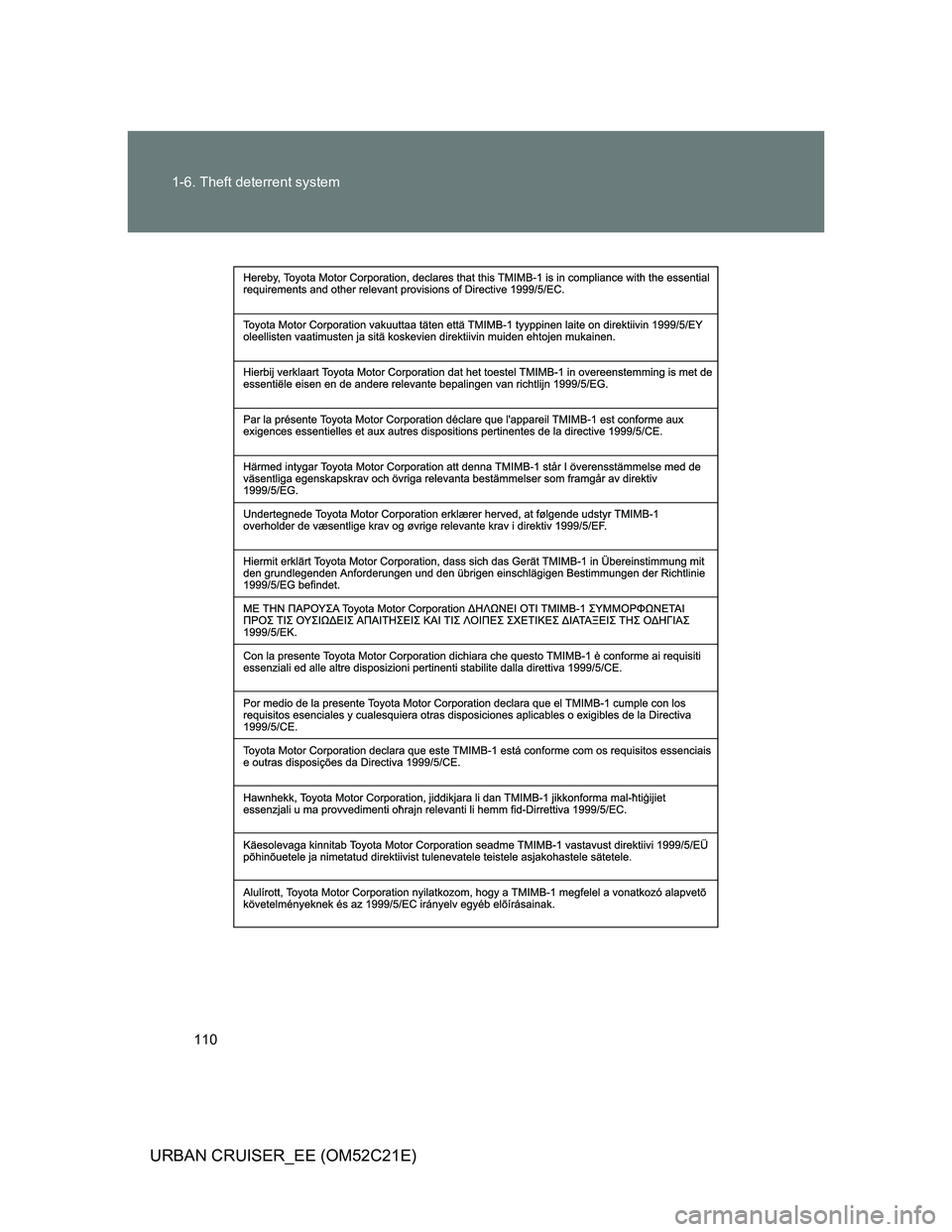

110 1-6. Theft deterrent system
URBAN CRUISER_EE (OM52C21E)

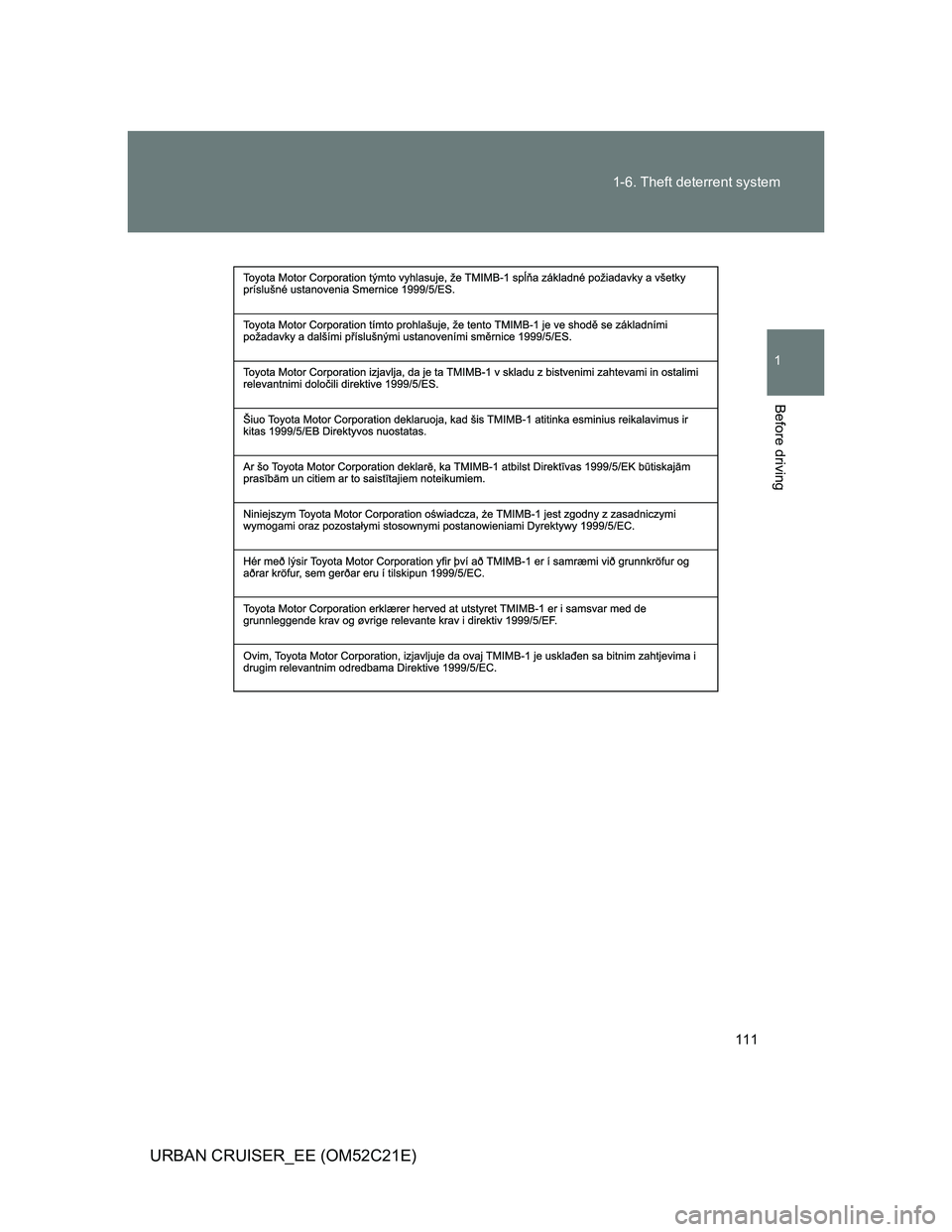

111 1-6. Theft deterrent system
1
Before driving
URBAN CRUISER_EE (OM52C21E)

112 1-6. Theft deterrent system
URBAN CRUISER_EE (OM52C21E)

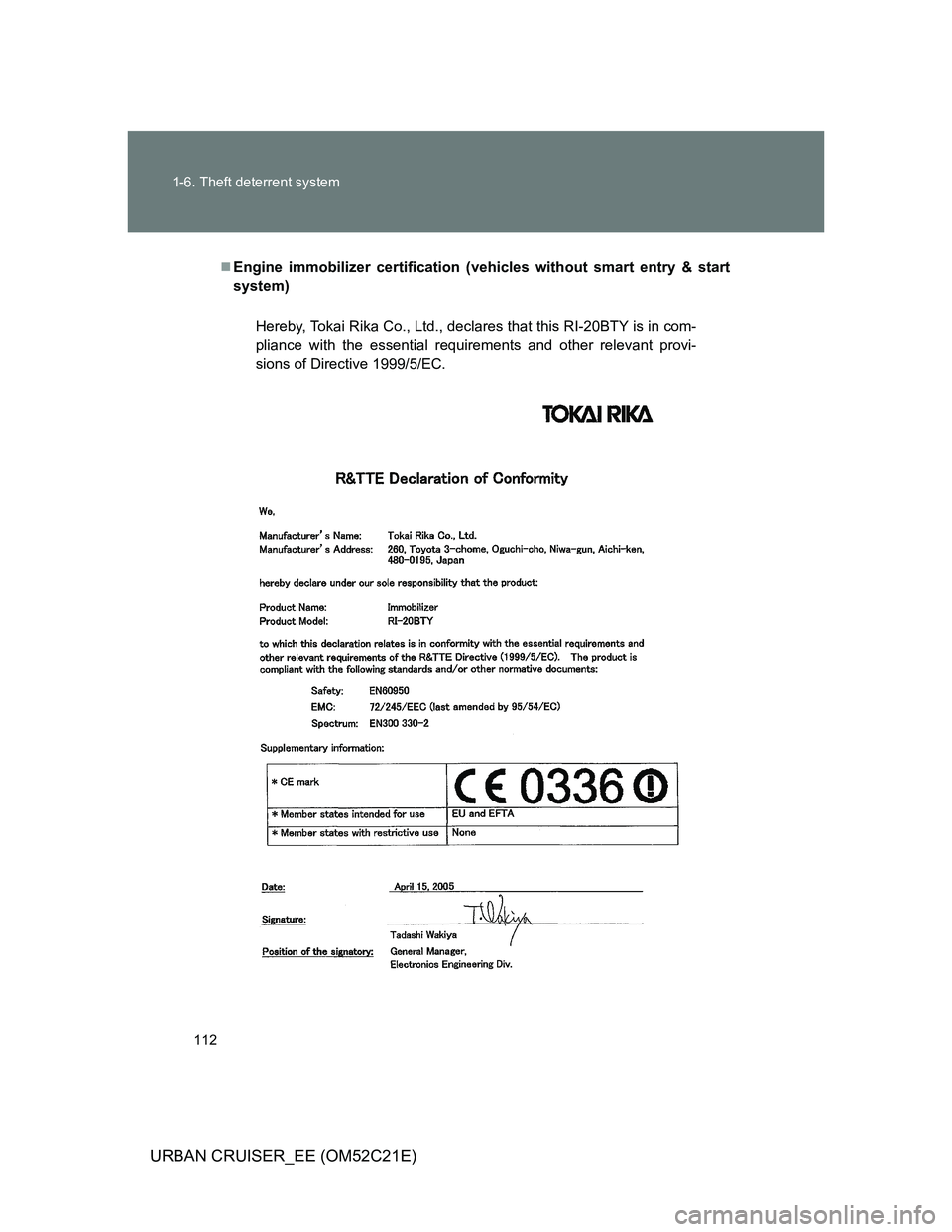

Engine immobilizer certification (vehicles without smart entry & start
system)
Hereby, Tokai Rika Co., Ltd., declares that this RI-20BTY is in com-
pliance with the essential requirements and other relevant provi-
sions of Directive 1999/5/EC.
