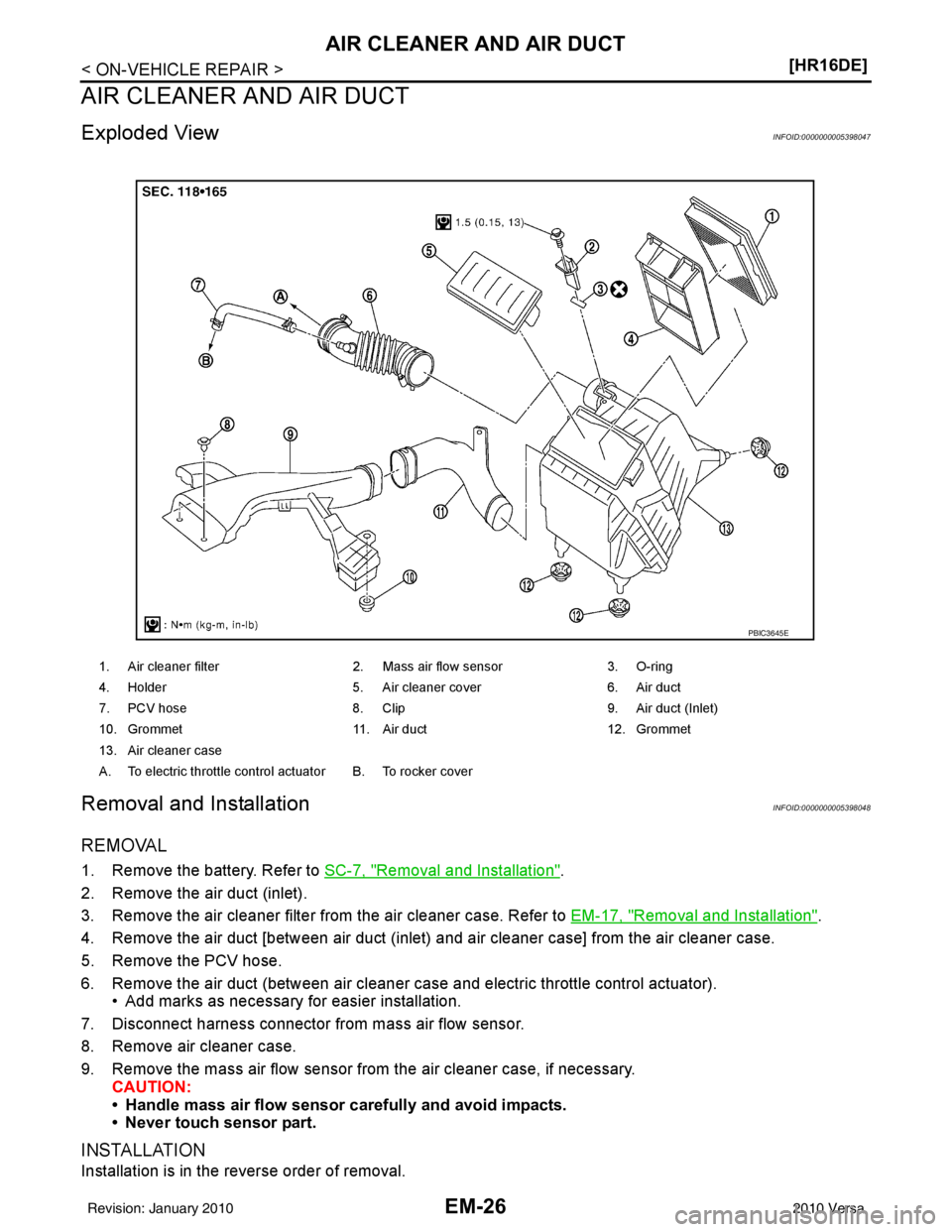

NISSAN TIIDA 2010 Service Repair Manual EM-26 < ON-VEHICLE REPAIR >[HR16DE] AIR CLEANER AND AIR DUCT AIR CLEANER AND AIR DUCT Exploded ViewINFOID:0000000005398047 Removal and InstallationINFOID:0000000005398048 REMOVAL 1. Remove the battery

Page 2386 of 3745

NISSAN TIIDA 2010 Service Repair Manual AIR CLEANER AND AIR DUCTEM-27 < ON-VEHICLE REPAIR > [HR16DE] C D E F G H I J K L M A EM NP O • Align marks. Attach each joint. Screw clamps firmly. InspectionINFOID:0000000005398049 INSPECTION AFTER

Page 2387 of 3745

NISSAN TIIDA 2010 Service Repair Manual EM-28 < ON-VEHICLE REPAIR >[HR16DE] INTAKE MANIFOLD INTAKE MANIFOLD Exploded ViewINFOID:0000000005398050 Removal and InstallationINFOID:0000000005398051 REMOVAL 1. Remove the air duct (inlet) and air

Page 2388 of 3745

NISSAN TIIDA 2010 Service Repair Manual INTAKE MANIFOLDEM-29 < ON-VEHICLE REPAIR > [HR16DE] C D E F G H I J K L M A EM NP O 7. Remove intake manifold support front (1) and bolt from rear (2). • Bracket (2) is not removed. Remove bolt from

Page 2389 of 3745

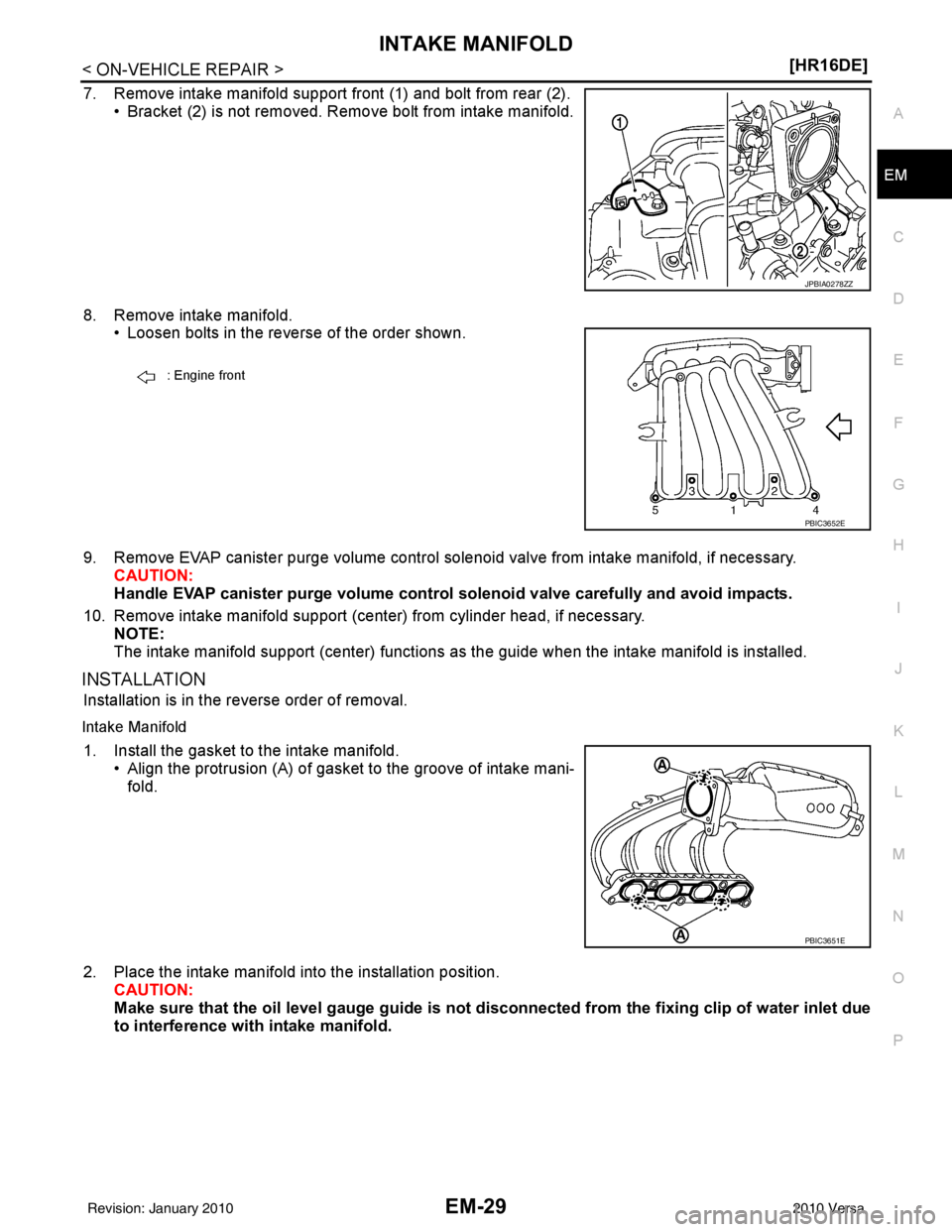

NISSAN TIIDA 2010 Service Repair Manual EM-30 < ON-VEHICLE REPAIR >[HR16DE] INTAKE MANIFOLD 3. Tighten bolts in the numerical order shown. 4. Install intake manifold support (front and rear). Electric Throttle Control Actuator • Tighten b

Page 2390 of 3745

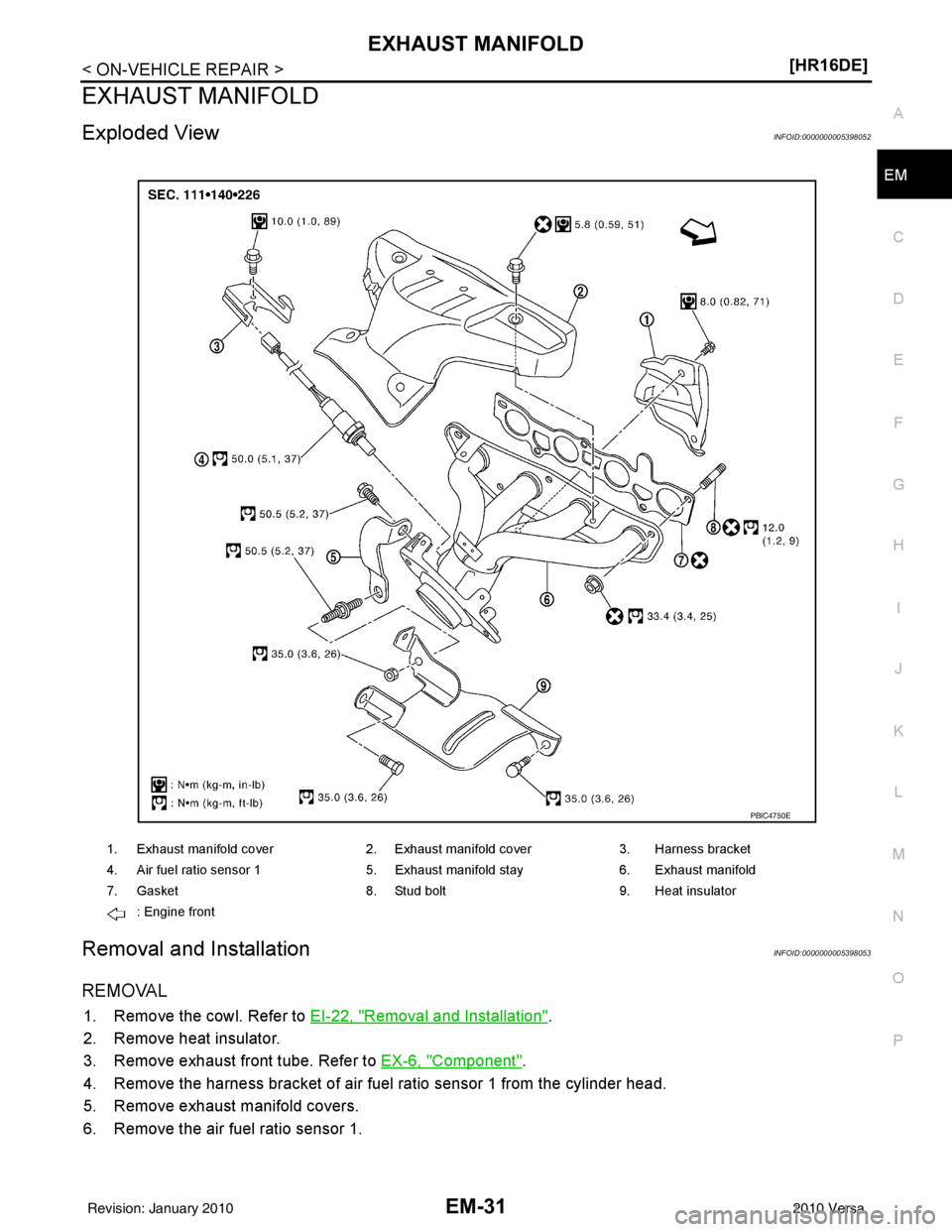

NISSAN TIIDA 2010 Service Repair Manual EXHAUST MANIFOLDEM-31 < ON-VEHICLE REPAIR > [HR16DE] C D E F G H I J K L M A EM NP O EXHAUST MANIFOLD Exploded ViewINFOID:0000000005398052 Removal and InstallationINFOID:0000000005398053 REMOVAL 1. Re

Page 2391 of 3745

NISSAN TIIDA 2010 Service Repair Manual EM-32 < ON-VEHICLE REPAIR >[HR16DE] EXHAUST MANIFOLD • Use Tool (A) to remove air fuel ratio sensor 1. CAUTION: Handle air fuel ratio sensor 1 carefully and avoid impacts. NOTE: The exhaust manifold

Page 2392 of 3745

NISSAN TIIDA 2010 Service Repair Manual EXHAUST MANIFOLDEM-33 < ON-VEHICLE REPAIR > [HR16DE] C D E F G H I J K L M A EM NP O 1. Tighten exhaust manifold nuts to specification in two stages in the numerical order shown. 2. Use Tool (A) to in
