NISSAN TIIDA 2010 Service Repair Manual EC-712
< SERVICE INFORMATION >[MR18DE]
DTC P0131 A/F SENSOR 1
Wiring Diagram
INFOID:0000000005532553
Specification data are reference values and are measured between each terminal and ground.
Pulse si

Page 1978 of 3745

NISSAN TIIDA 2010 Service Repair Manual DTC P0131 A/F SENSOR 1EC-713
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Do not use ECM ground terminals wh
en measuring input/output voltage. Doing so may result in dam-
age to t

Page 1979 of 3745

NISSAN TIIDA 2010 Service Repair Manual EC-714
< SERVICE INFORMATION >[MR18DE]
DTC P0131 A/F SENSOR 1
3. Check voltage between A/F sensor 1 terminal 4 and ground with
CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MA

Page 1980 of 3745

NISSAN TIIDA 2010 Service Repair Manual DTC P0131 A/F SENSOR 1EC-715
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Removal and InstallationINFOID:0000000005532555
AIR FUEL RATIO SENSOR HEATER
Refer to
EM-140, "Removal an

Page 1981 of 3745

NISSAN TIIDA 2010 Service Repair Manual EC-716
< SERVICE INFORMATION >[MR18DE]
DTC P0132 A/F SENSOR 1
DTC P0132 A/F SENSOR 1
Component DescriptionINFOID:0000000005532556
The air fuel ratio (A/F) sensor 1 is a planar one-cell limit current s

EC-716
< SERVICE INFORMATION >[MR18DE]
DTC P0132 A/F SENSOR 1
DTC P0132 A/F SENSOR 1
Component DescriptionINFOID:0000000005532556
The air fuel ratio (A/F) sensor 1 is a planar one-cell limit current sen-
sor. The sensor element of the
A/F sensor 1 is composed an elec-
trode layer, which transports ions. It has a heater in the element.
The sensor is capable of precise measurement = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide range.
The exhaust gas components diffuse through the diffusion layer at
the sensor cell. An electrode layer is applied voltage, and this current
relative oxygen density in lean. Also this current relative hydrocar-
bon density in rich.
Therefore, the A/F sensor 1 is able to indicate air fuel ratio by this
electrode layer of current. In addition, a heater is integrated in the
sensor to ensure the required operating temperature of about 800° C
(1,472° F).
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000005532557
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000005532558
To judge the malfunction, the diagnosis c hecks that the A/F signal computed by ECM from the air fuel ratio (A/
F) sensor 1 signal is not inordinately high.
DTC Confirmation ProcedureINFOID:0000000005532559
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.
WITH CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Select “A/F SEN1 (B1)” in “DATA MONITOR” mode with CONSULT-III.
3. Check “A/F SEN1 (B1)” indication.
If the indication is constantly approx. 5 V, go to EC-719, "
Diagnosis Procedure".
PBIB3353E
PBIB3354E
Monitor item ConditionSpecification
A/F SEN1 (B1) • Engine: After warming upMaintaining engine speed at
2,000 rpm Fluctuates around 2.2 V
DTC No.Trouble diagnosis
name DTC detecting condition
Possible Cause
P0132
0132 Air fuel ratio (A/F) sen-
sor 1 circuit high volt-
age The A/F signal computed by ECM from the A/F
sensor 1 signal is constantly approx. 5 V. • Harness or connectors
[Air fuel ratio (A/F) sensor circuit is open
or shorted.]
• Air fuel ratio (A/F) sensor 1
Revision: January 20102010 Versa

Page 1982 of 3745

NISSAN TIIDA 2010 Service Repair Manual DTC P0132 A/F SENSOR 1EC-717
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
If the indication is not constantly approx. 5 V, go to next step.
4. Turn ignition switch OFF, wait at lea

Page 1983 of 3745

NISSAN TIIDA 2010 Service Repair Manual EC-718
< SERVICE INFORMATION >[MR18DE]
DTC P0132 A/F SENSOR 1

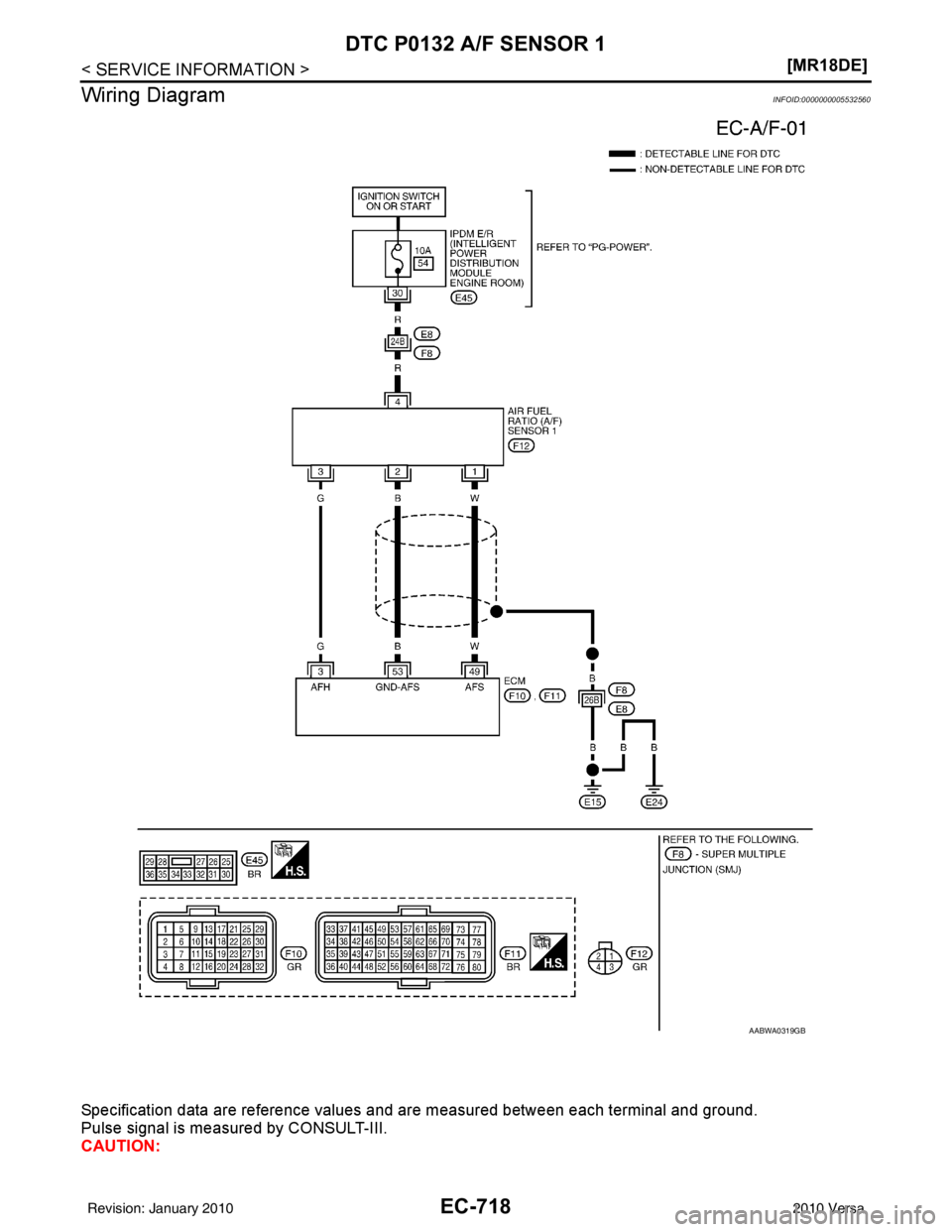

Wiring Diagram
INFOID:0000000005532560
Specification data are reference values and are measured between each terminal and ground.
Pulse si

Page 1984 of 3745

NISSAN TIIDA 2010 Service Repair Manual DTC P0132 A/F SENSOR 1EC-719
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Do not use ECM ground terminals wh
en measuring input/output voltage. Doing so may result in dam-
age to t
