< COMPONENT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
IGNITION SIGNAL
DescriptionINFOID:0000000005398614
The ignition signal from the ECM is sent to and amplified by the power transistor. The power t NISSAN TIIDA 2010 Service Repair Manual EC-432
< COMPONENT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
IGNITION SIGNAL
DescriptionINFOID:0000000005398614
The ignition signal from the ECM is sent to and amplified by the power transistor. The power t](/manual-img/5/57397/w960_57397-1696.png)
EC-432
< COMPONENT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
IGNITION SIGNAL
DescriptionINFOID:0000000005398614
The ignition signal from the ECM is sent to and amplified by the power transistor. The power transistor turns
ON and OFF the ignition coil primary circuit. This ON/O
FF operation induces the proper high voltage in the coil
secondary circuit.
Component Function CheckINFOID:0000000005398615
1.INSPECTION START
Turn ignition switch OFF, and restart engine.
Does the engine start?
YES-1 >> With CONSULT-III: GO TO 2.
YES-2 >> Without CONSULT-III: GO TO 3.
NO >> Go to EC-434, "
Diagnosis Procedure".
2.IGNITION SIGNAL FUNCTION
With CONSULT-III
1. Perform “POWER BALANCE” in “A CTIVE TEST” mode with CONSULT-III.
2. Make sure that each circuit produces a momentary engine speed drop.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-434, "
Diagnosis Procedure".
3.IGNITION SIGNAL FUNCTION
Without CONSULT-III
1. Let engine idle.
2. Read the voltage signal between ECM harness connector and
ground.
NOTE:
The pulse cycle changes depending on rpm at idle.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-434, "
Diagnosis Procedure".
ECM Ground Voltage signal
Connector Terminal
F10 17
Ground
18
21
22
PBIA9567J
PBIA9265J
Revision: January 20102010 Versa
Page 1698 of 3745
IGNITION SIGNALEC-433
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

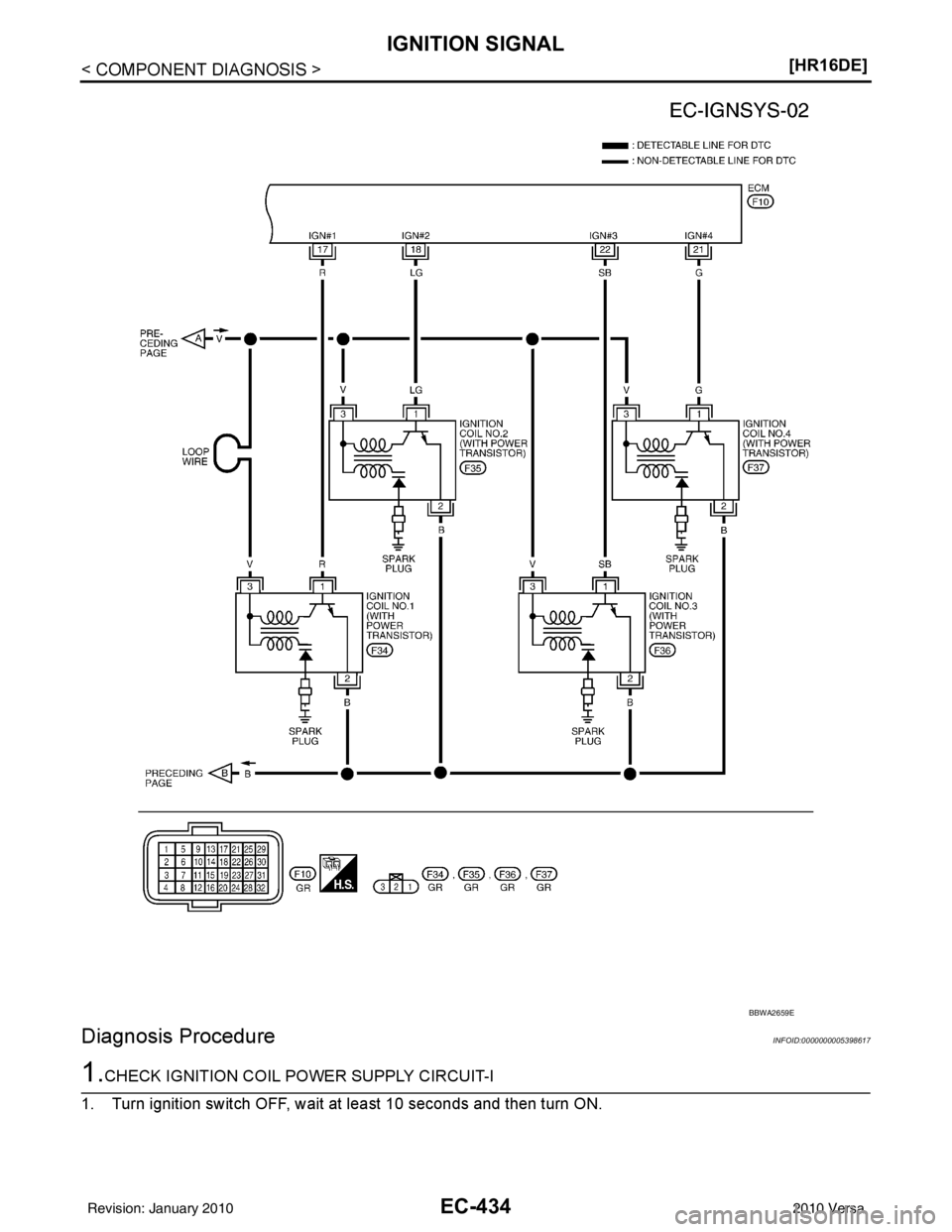

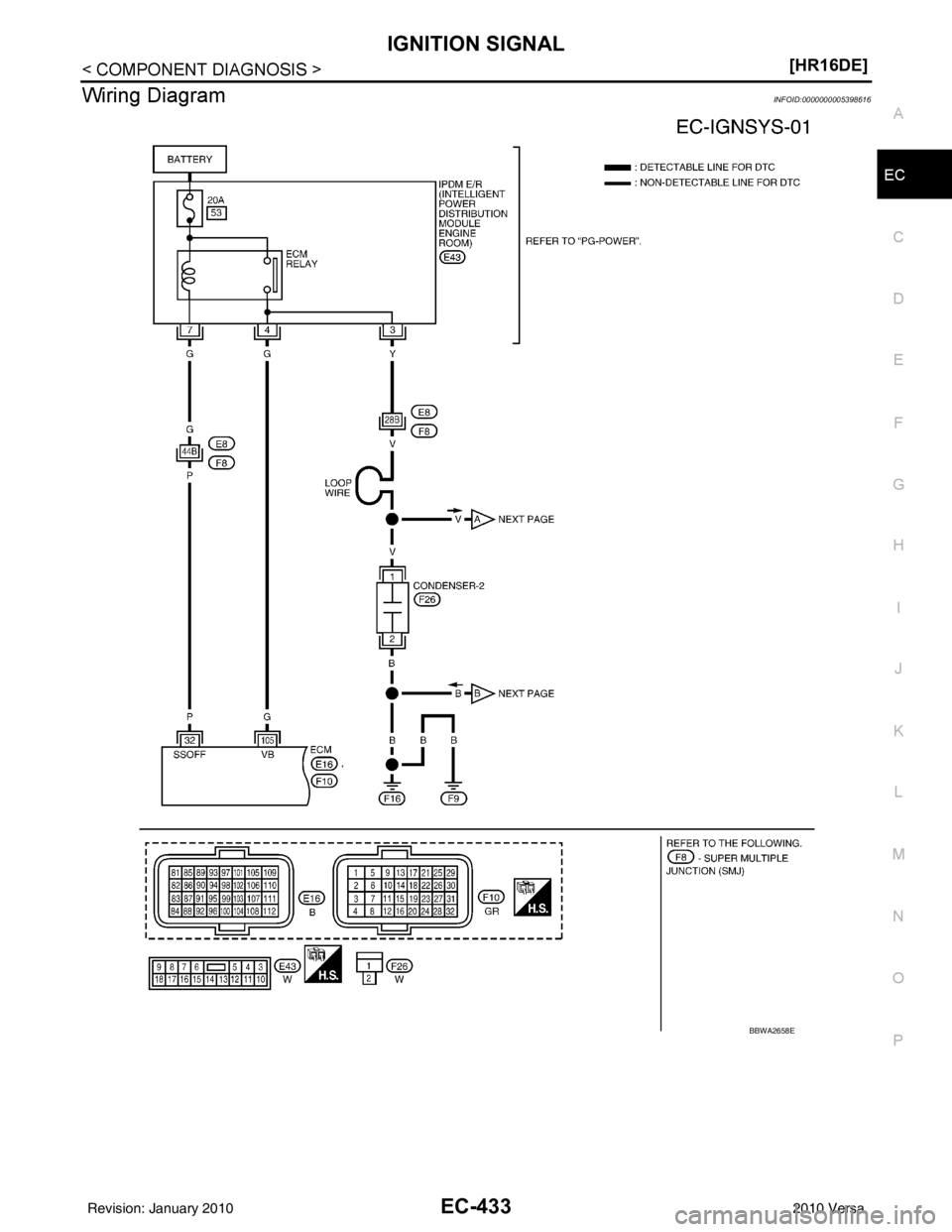

Wiring DiagramINFOID:0000000005398616
BBWA2658E
Revision: January 20102010 Versa
Page 1699 of 3745
EC-434
< COMPONENT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
Diagnosis Procedure
INFOID:0000000005398617
1.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
BBWA2659E
Revision: January 20102010 Versa
Page 1700 of 3745
![NISSAN TIIDA 2010 Service Repair Manual IGNITION SIGNALEC-435
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Check the voltage between ECM harness connector and
ground.
Is the inspection result normal?
YES >> GO TO 2.
N NISSAN TIIDA 2010 Service Repair Manual IGNITION SIGNALEC-435
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Check the voltage between ECM harness connector and
ground.
Is the inspection result normal?
YES >> GO TO 2.
N](/manual-img/5/57397/w960_57397-1699.png)
IGNITION SIGNALEC-435
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
2. Check the voltage between ECM harness connector and
ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Go to EC-115, "
Diagnosis Procedure".
2.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect condenser-2 harness connector.
3. Turn ignition switch ON.
4. Check the voltage between condenser-2 harness connector and ground.
Is the inspection result normal?
YES >> GO TO 5.
NO >> GO TO 3.
3.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector E43.
3. Check the continuity between IPDM E/R harness connector and condenser-2 harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> Go to EC-115, "Diagnosis Procedure".
NO >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• IPDM E/R harness connector E43
• Harness for open or short between IPDM E/R and condenser-2
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK CONDENSER-2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check the continuity between condenser-2 harness connector and ground.
ECM Ground Voltage
Connector Terminal
E16 105 Ground Battery voltage
PBIA9575J
Condenser-2
Ground Voltage
Connector Terminal
F26 1 Ground Battery voltage
PBIB0624E
IPDM E/R Condenser-2
Continuity
Connector Terminal Connector Terminal
E43 3F26 1 Existed
Condenser-2
Ground Continuity
Connector Terminal
F26 2Ground Existed
Revision: January 20102010 Versa
Page 1701 of 3745
![NISSAN TIIDA 2010 Service Repair Manual EC-436
< COMPONENT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
3. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair open circuit or short to ground or short NISSAN TIIDA 2010 Service Repair Manual EC-436
< COMPONENT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
3. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair open circuit or short to ground or short](/manual-img/5/57397/w960_57397-1700.png)
EC-436
< COMPONENT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
3. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK CONDENSER
Refer to EC-438, "
Component Inspection (Condenser-2)".
Is the inspection result normal?
YES >> GO TO 7.
NO >> Replace condenser.
7.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V
1. Reconnect all harness connectors disconnected.
2. Disconnect ignition coil harness connector.
3. Turn ignition switch ON.
4. Check the voltage between ignition coil harness connector and ground.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK IGNITION COIL GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check the continuity between ignition coil harness connector and ground.
3. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 9.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK IGNITION COIL OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check the continuity between ECM harness connector and ignition coil harness connector.
Ignition coil
Ground Voltage
Cylinder Connector Terminal
1F34 3
Ground Battery voltage
2F35 3
3F36 3
4F37 3
PBIB0138E
Ignition coil
Ground Continuity
Cylinder Connector Terminal
1F34 2
Ground Existed
2F
35 2
3F 36 2
4F 37 2
Revision: January 20102010 Versa
Page 1702 of 3745
![NISSAN TIIDA 2010 Service Repair Manual IGNITION SIGNALEC-437
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 10.
N NISSAN TIIDA 2010 Service Repair Manual IGNITION SIGNALEC-437
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 10.
N](/manual-img/5/57397/w960_57397-1701.png)
IGNITION SIGNALEC-437
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
10.CHECK IGNITION COIL WITH POWER TRANSISTOR
Refer to EC-437, "
Component Inspection (Ignition Coil with Power Transistor)".
Is the inspection result normal?
YES >> GO TO 11.
NO >> Replace malfunctioning ignition coil with power transistor.
11 .CHECK INTERMITTENT INCIDENT
Refer to EC-114, "
Diagnosis Procedure".
>> INSPECTION END
Component Inspection (Ignition Coil with Power Transistor)INFOID:0000000005398618
1.CHECK IGNITION COIL WITH POWER TRANSISTOR-I
1. Turn ignition switch OFF.
2. Disconnect ignition coil harness connector.
3. Check resistance between ignition coil terminals as per the fol- lowing.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace malfunctioning ignition coil with power transis- tor.
2.CHECK IGNITION COIL WITH POWER TRANSISTOR-II
CAUTION:
Do the following procedure in the place where ventilation is good without the combustible.
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Remove fuel pump fuse in IPDM E/R to release fuel pressure. NOTE:
Do not use CONSULT-III to release fuel pressure, or fuel pressure applies again during the following pro-
cedure.
4. Start engine.
5. After engine stalls, crank it two or three times to release all fuel pressure.
6. Turn ignition switch OFF.
7. Remove all ignition coil harness connectors to avoid the electrical discharge from the ignition coils.
8. Remove ignition coil and spark plug of the cylinder to be checked.
9. Crank engine for 5 seconds or more to remove combustion gas in the cylinder.
Ignition coil ECM
Continuity
Cylinder Connector Terminal Connector Terminal
1F34 1
F1417
Existed
2F35 1
18
3F36 1 22
4F37 1 21
Terminals Resistance [Ω at 25° C (77°F)]
1 and 2 Except 0 or ∞
1 and 3 Except 0
2 and 3
PBIB0847E
Revision: January 20102010 Versa
Page 1703 of 3745
![NISSAN TIIDA 2010 Service Repair Manual EC-438
< COMPONENT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
10. Connect spark plug and harness connector to ignition coil.
11. Fix ignition coil using a rope etc. with gap of 13 - 17 mm (0.52 -
0.66 in) be NISSAN TIIDA 2010 Service Repair Manual EC-438
< COMPONENT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
10. Connect spark plug and harness connector to ignition coil.
11. Fix ignition coil using a rope etc. with gap of 13 - 17 mm (0.52 -
0.66 in) be](/manual-img/5/57397/w960_57397-1702.png)
EC-438
< COMPONENT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
10. Connect spark plug and harness connector to ignition coil.
11. Fix ignition coil using a rope etc. with gap of 13 - 17 mm (0.52 -
0.66 in) between the edge of the spark plug and grounded metal
portion as shown in the figure.
12. Crank engine for about three seconds, and check whether spark is generated between the spark plug and the grounded metal
portion.
CAUTION:
• During the operation, alw ays stay 0.5 cm (19.7 in) away
from the spark plug and the ignition coil. Be careful not to
get an electrical shock wh ile checking, because the elec-
trical discharge voltage becomes 20 kV or more.
• It might cause to damage the igni tion coil if the gap of more than 17 mm (0.66 in) is taken.
NOTE:
When the gap is less than 13 mm (0.52 in), the sp ark might be generated even if the coil is mal-
functioning.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace malfunctioning ignition coil with power transistor.
Component Inspection (Condenser-2)INFOID:0000000005398619
1.CHECK CONDENSER-2
1. Turn ignition switch OFF.
2. Disconnect condenser-2 harness connector.
3. Check resistance between condenser-2 terminals as per the fol- lowing.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace condenser-2. Spark should be generated.
JMBIA0066GB
Terminals
Resistance
1 and 2 Above 1 M Ω [at 25 °C (77 °F)]
PBIB0794E
Revision: January 20102010 Versa
Page 1704 of 3745
MALFUNCTION INDICATOR LAMPEC-439
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
MALFUNCTION INDICATOR LAMP
DescriptionINFOID:0000000005398620
The Malfunction Indicator Lamp (MIL) is located on the combination
meter.
The MIL will light up when the ignition switch is turned ON without
the engine running. This is a bulb check.
When the engine is started, the MIL should go off. If the MIL remains
on, the on board diagnostic syste
m has detected an engine system
malfunction.
For details, refer to EC-84, "
Diagnosis Description".
Component Function CheckINFOID:0000000005398621
1.CHECK MIL FUNCTION
1. Turn ignition switch ON.
2. Make sure that MIL lights up.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-441, "
Diagnosis Procedure".
SEF217U
Revision: January 20102010 Versa
