2010 NISSAN TIIDA Service Repair Manual

steering water pump phone traction control fold seats audio

Load previous 8 pages

Page 3097 of 3745

NISSAN TIIDA 2010 Service Repair Manual LT-102
< SERVICE INFORMATION >
INTERIOR ROOM LAMP

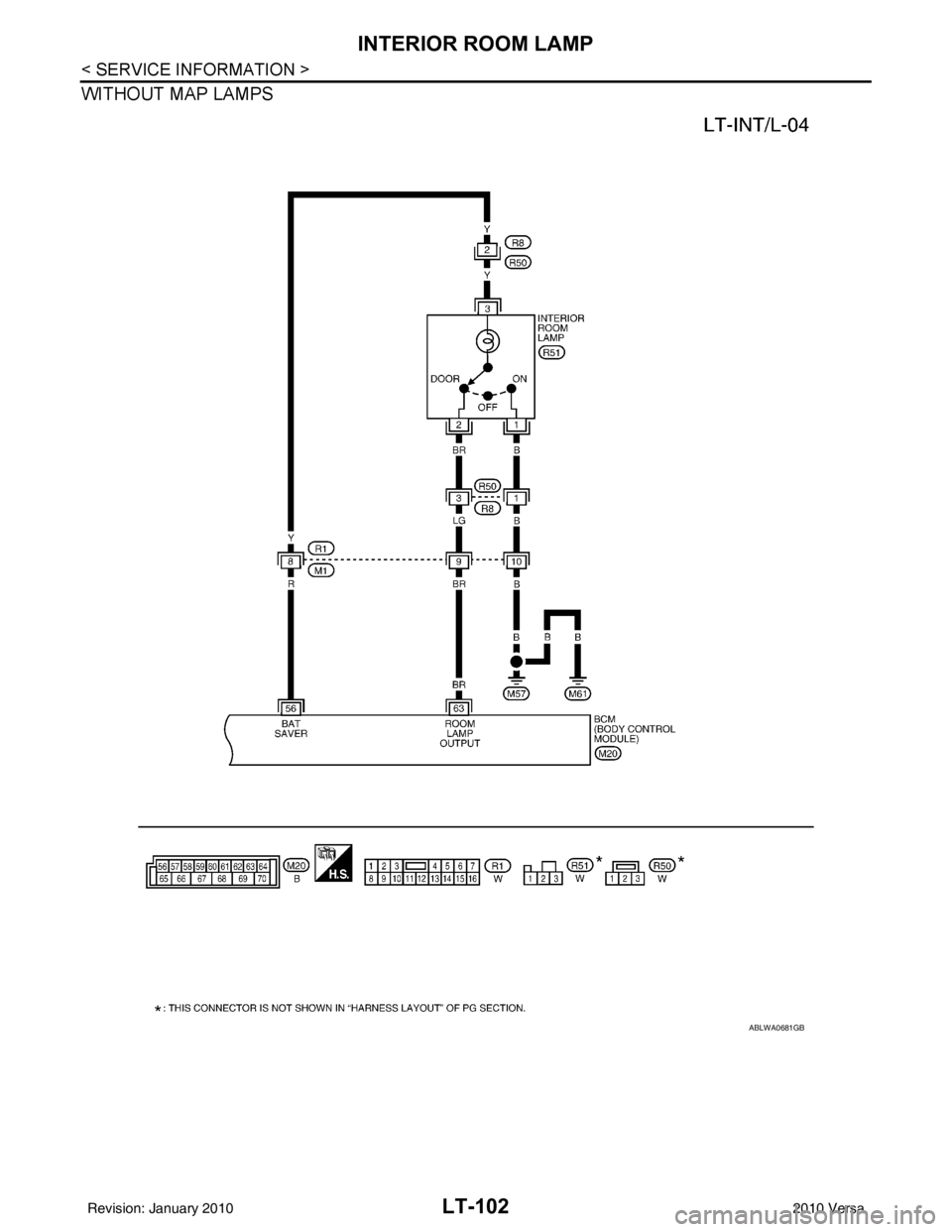

WITHOUT MAP LAMPS
ABLWA0681GB
Revision: January 20102010 Versa

Page 3098 of 3745

NISSAN TIIDA 2010 Service Repair Manual INTERIOR ROOM LAMPLT-103
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P

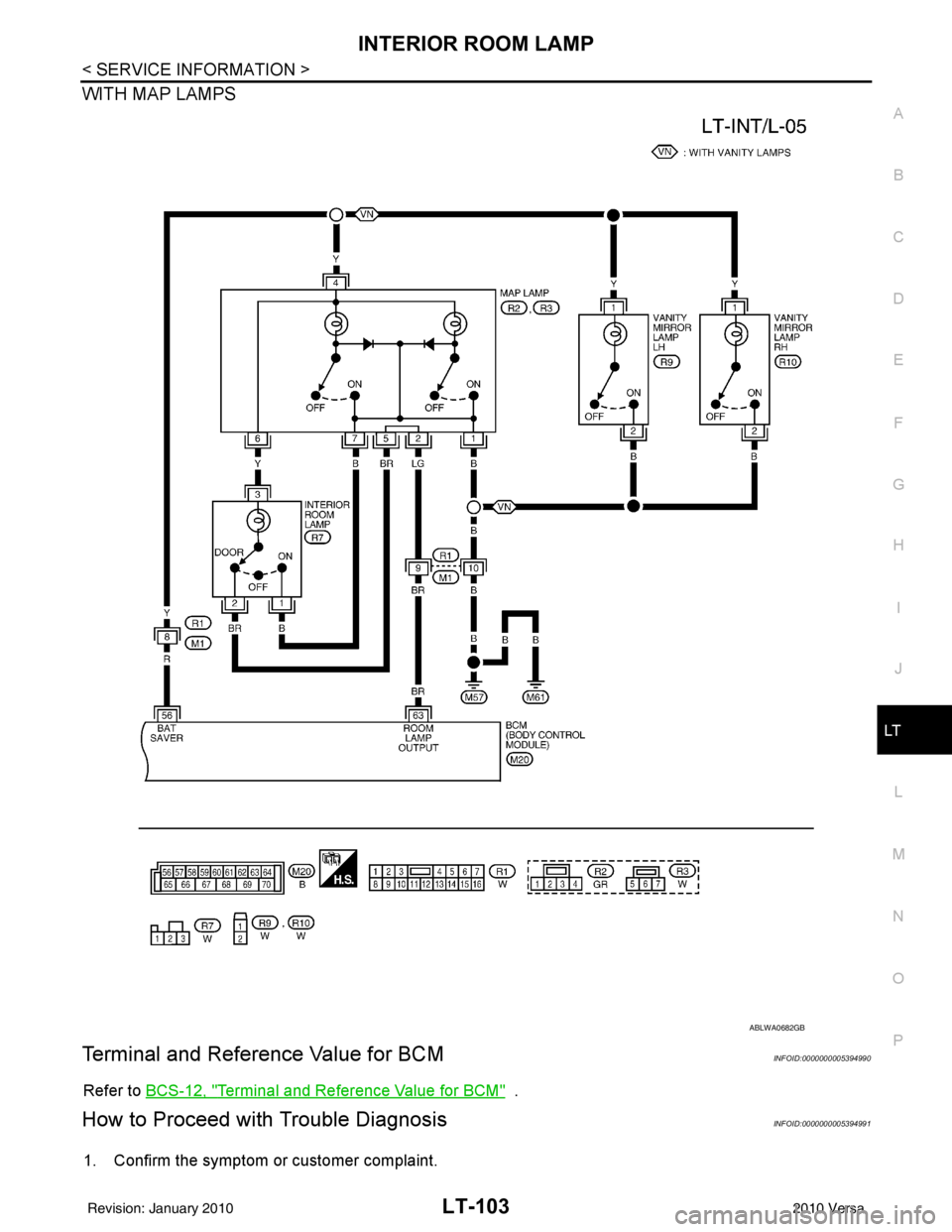

WITH MAP LAMPS
Terminal and Reference Value for BCMINFOID:0000000005394990
Refer to BCS-12, "Terminal and Reference Va

Page 3099 of 3745

NISSAN TIIDA 2010 Service Repair Manual LT-104
< SERVICE INFORMATION >
INTERIOR ROOM LAMP
2. Understand operation description and function description. Refer to LT-94, "System Description" .
3. Perform the preliminary check. Refer to LT-1

LT-104
< SERVICE INFORMATION >
INTERIOR ROOM LAMP
2. Understand operation description and function description. Refer to LT-94, "System Description" .
3. Perform the preliminary check. Refer to LT-104, "
Preliminary Check" .
4. Check symptom and repair or replace the cause of the malfunction.
5. Does the interior room lamp operate norma lly? If YES, GO TO 6. If NO, GO TO 4.
6. Inspection End
Preliminary CheckINFOID:0000000005394992
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR BCM
Refer to BCS-16, "BCM Power Supply and Ground Circuit Inspection" .
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR IPDM E/R
Refer to PG-27, "IPDM E/R Power/Ground Circuit Inspection" .
CONSULT-III Function (BCM)INFOID:0000000005613053
CONSULT-III can display each diagnostic item us ing the diagnostic test modes shown following.
ITEMS OF EACH PART
NOTE:
CONSULT-III will only display systems the vehicle possesses.
BCM diagnostic
test item Diagnostic mode
Content
Inspection by part WORK SUPPORT
Supports inspections and adjustments. Commands are transmitted to the BCM for
setting the status suitable for required operation, input/output signals are received
from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time. ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF DIAGNOSTIC RE- SULT Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The results of transmit/receive diagnosis of CAN communication can be read.
ECU IDENTIFICATION BCM part number can be read. CONFIGURATION Performs BCM configuration read/write functions.
System and item CONSULT-III dis-
play Diagnostic test mode (Inspection by part)
WORK
SUPPORT SELF
−
DIAG RE- SULTS CAN DIAG
SUPPORT MNTR DATA
MONITOR ECU
PA R T
NUMBER AC-
TIVE
TEST CON-
FIGU-
RATION
BCM BCM×× × × ×
Power door lock sys-
tem DOOR LOCK
×× ×
Rear defogger REAR DEFOG-
GER
××
Warning chime BUZZER ××
Room lamp timer INT LAMP ×× ×
Remote keyless entry
system MULTI REMOTE
ENT
××
×
Headlamp HEAD LAMP×× ×
Wiper WIPER×× ×
Turn signal lamp
Hazard lamp FLASHER
××
Revision: January 20102010 Versa

Page 3100 of 3745

NISSAN TIIDA 2010 Service Repair Manual INTERIOR ROOM LAMPLT-105
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
WORK SUPPORT
Display Item List
Interior Room Lamp Control D oes Not Operate (With Map Lamp)INFOID:0000000005394994
1.CH

Page 3101 of 3745

NISSAN TIIDA 2010 Service Repair Manual LT-106
< SERVICE INFORMATION >
INTERIOR ROOM LAMP
1. Turn ignition switch OFF.
2. Check voltage between interior room lamp harness connectorR7 terminal 3 and ground.
OK or NG
OK >> GO TO 6.
NG >> GO T

Page 3102 of 3745

NISSAN TIIDA 2010 Service Repair Manual INTERIOR ROOM LAMPLT-107
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
1. Disconnect map lamp connectors.
2. Check continuity between map lamp terminals.
OK or NG
OK >> GO TO 8.
NG >> Replac

Page 3103 of 3745

NISSAN TIIDA 2010 Service Repair Manual LT-108
< SERVICE INFORMATION >
INTERIOR ROOM LAMP
1. Turn ignition switch OFF.
2. Check voltage between interior room lamp harness connectorR7 terminal 3 and ground.
OK or NG
OK >> GO TO 4.
NG >> GO T

Page 3104 of 3745

NISSAN TIIDA 2010 Service Repair Manual INTERIOR ROOM LAMPLT-109
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
1. Remove lens (1) by inserting suitable tool and releasing LH (switch side first).
2. Remove bulb (2).
3. Installation
