Page 1569 of 3745

NISSAN TIIDA 2010 Service Repair Manual EC-304 < COMPONENT DIAGNOSIS >[HR16DE] P0448 EVAP CANISTER VENT CONTROL VALVE >> INSPECTION END Component InspectionINFOID:0000000005398464 1.CHECK EVAP CANISTER VENT CONTROL VALVE-I 1. Turn ignition

Page 1570 of 3745

NISSAN TIIDA 2010 Service Repair Manual P0448 EVAP CANISTER VENT CONTROL VALVEEC-305 < COMPONENT DIAGNOSIS > [HR16DE] C D E F G H I J K L M A EC NP O 3. Check air passage continuity and operation delay time. Make sure new O-ring is installe

Page 1571 of 3745

NISSAN TIIDA 2010 Service Repair Manual EC-306 < COMPONENT DIAGNOSIS >[HR16DE] P0451 EVAP CONTROL SYSTEM PRESSURE SENSOR P0451 EVAP CONTROL SYSTEM PRESSURE SENSOR DescriptionINFOID:0000000005398465 The EVAP control system pressure s ensor d

Page 1572 of 3745

NISSAN TIIDA 2010 Service Repair Manual P0451 EVAP CONTROL SYSTEM PRESSURE SENSOREC-307 < COMPONENT DIAGNOSIS > [HR16DE] C D E F G H I J K L M A EC NP O YES >> GO TO 2. NO >> Repair or replace ground connection. 2.CHECK EVAP CONTROL SYS TEM

Page 1573 of 3745

NISSAN TIIDA 2010 Service Repair Manual EC-308 < COMPONENT DIAGNOSIS >[HR16DE] P0451 EVAP CONTROL SYSTEM PRESSURE SENSOR >> INSPECTION END 8.CHECK EVAP CONTROL SY STEM PRESSURE SENSOR Refer to EC-308, " Component Inspection". Is the inspec

Page 1574 of 3745

NISSAN TIIDA 2010 Service Repair Manual P0452 EVAP CONTROL SYSTEM PRESSURE SENSOREC-309 < COMPONENT DIAGNOSIS > [HR16DE] C D E F G H I J K L M A EC NP O P0452 EVAP CONTROL SYST EM PRESSURE SENSOR DescriptionINFOID:0000000005398469 The EVAP

Page 1575 of 3745

NISSAN TIIDA 2010 Service Repair Manual EC-310 < COMPONENT DIAGNOSIS >[HR16DE] P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR 2. Set voltmeter probes to ECM harness connector and ground as per the following. 3. Make sure that the voltage is less

Page 1576 of 3745

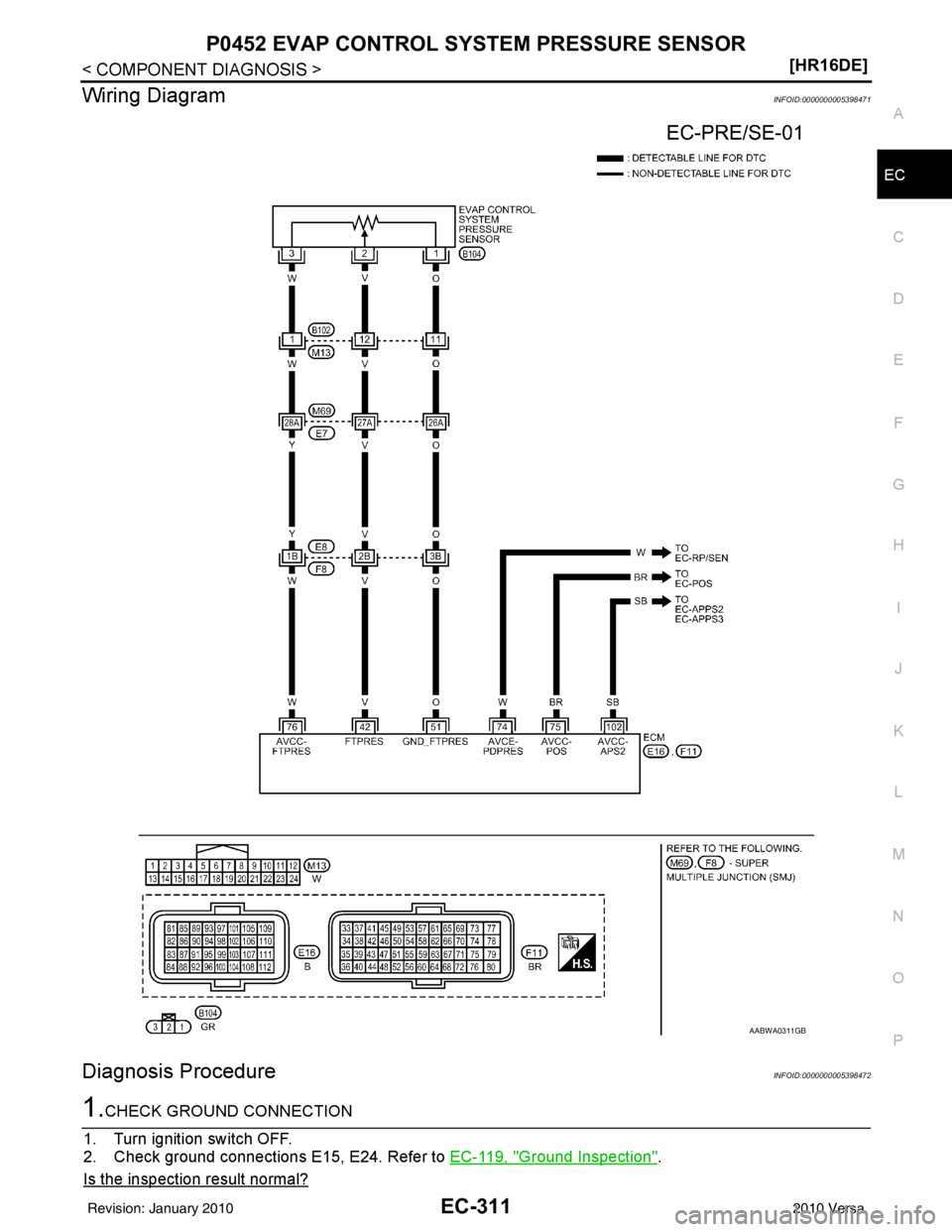

NISSAN TIIDA 2010 Service Repair Manual P0452 EVAP CONTROL SYSTEM PRESSURE SENSOREC-311 < COMPONENT DIAGNOSIS > [HR16DE] C D E F G H I J K L M A EC NP O Wiring DiagramINFOID:0000000005398471 Diagnosis ProcedureINFOID:0000000005398472 1.CHEC
