Page 3601 of 3745

NISSAN TIIDA 2010 Service Repair Manual SRS-8 < SYMPTOM DIAGNOSIS > TROUBLE DIAGNOSIS TROUBLE DIAGNOSIS Trouble Diagnosis IntroductionINFOID:0000000005396903 CAUTION: • Do not use electrical test equipment on any circuit related to the SR

Page 3602 of 3745

NISSAN TIIDA 2010 Service Repair Manual TROUBLE DIAGNOSISSRS-9 < SYMPTOM DIAGNOSIS > C DE F G I J K L M A B SRS N O P *1: "PRELIMINARY CHECK" *2:SRS-19*3: SRS-20 *4:SRS-28 WHIA0348E Revision: January 20102010 Versa

Page 3603 of 3745

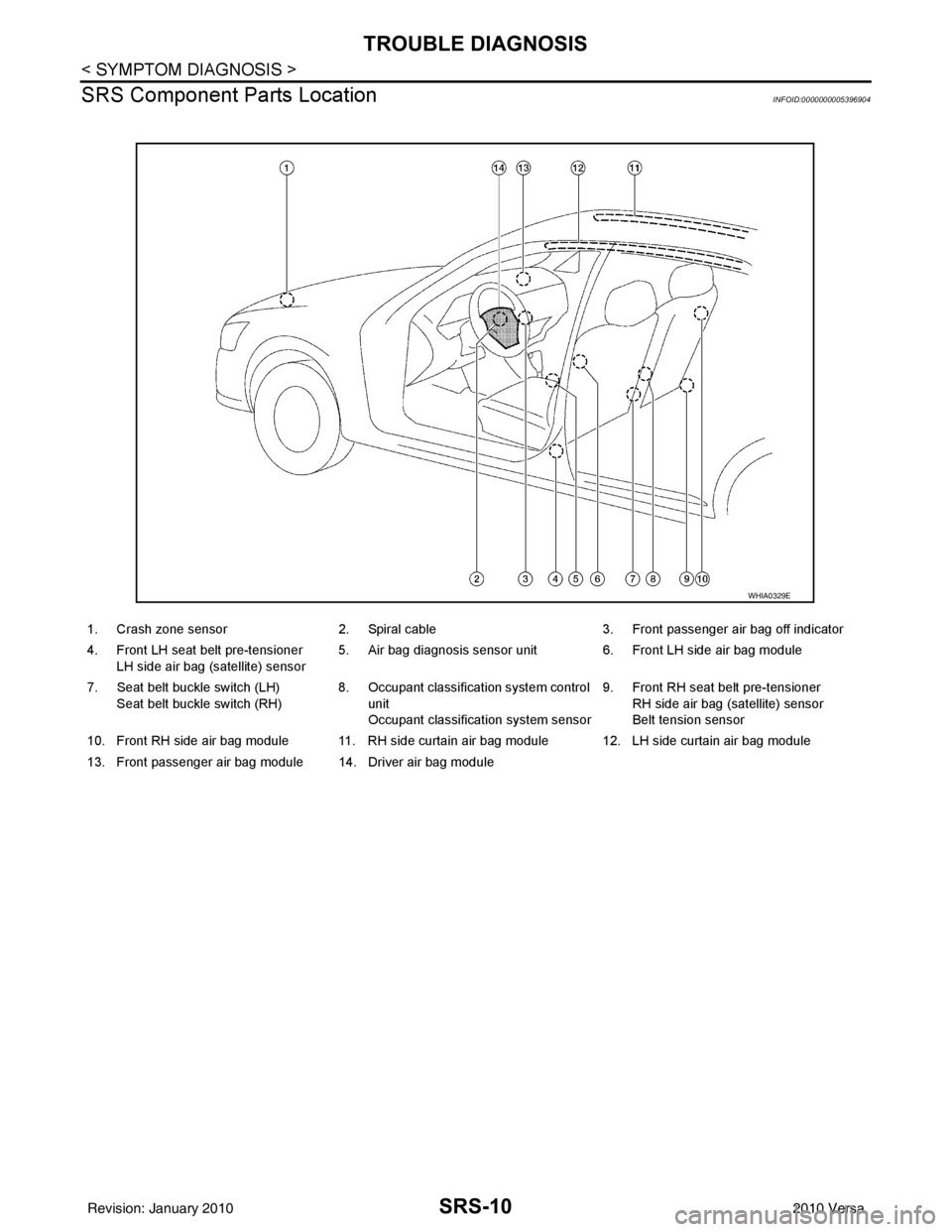

NISSAN TIIDA 2010 Service Repair Manual SRS-10 < SYMPTOM DIAGNOSIS > TROUBLE DIAGNOSIS SRS Component Parts Location INFOID:0000000005396904 1. Crash zone sensor 2. Spiral cable 3. Front passenger air bag off indicator 4. Front LH seat belt

Page 3604 of 3745

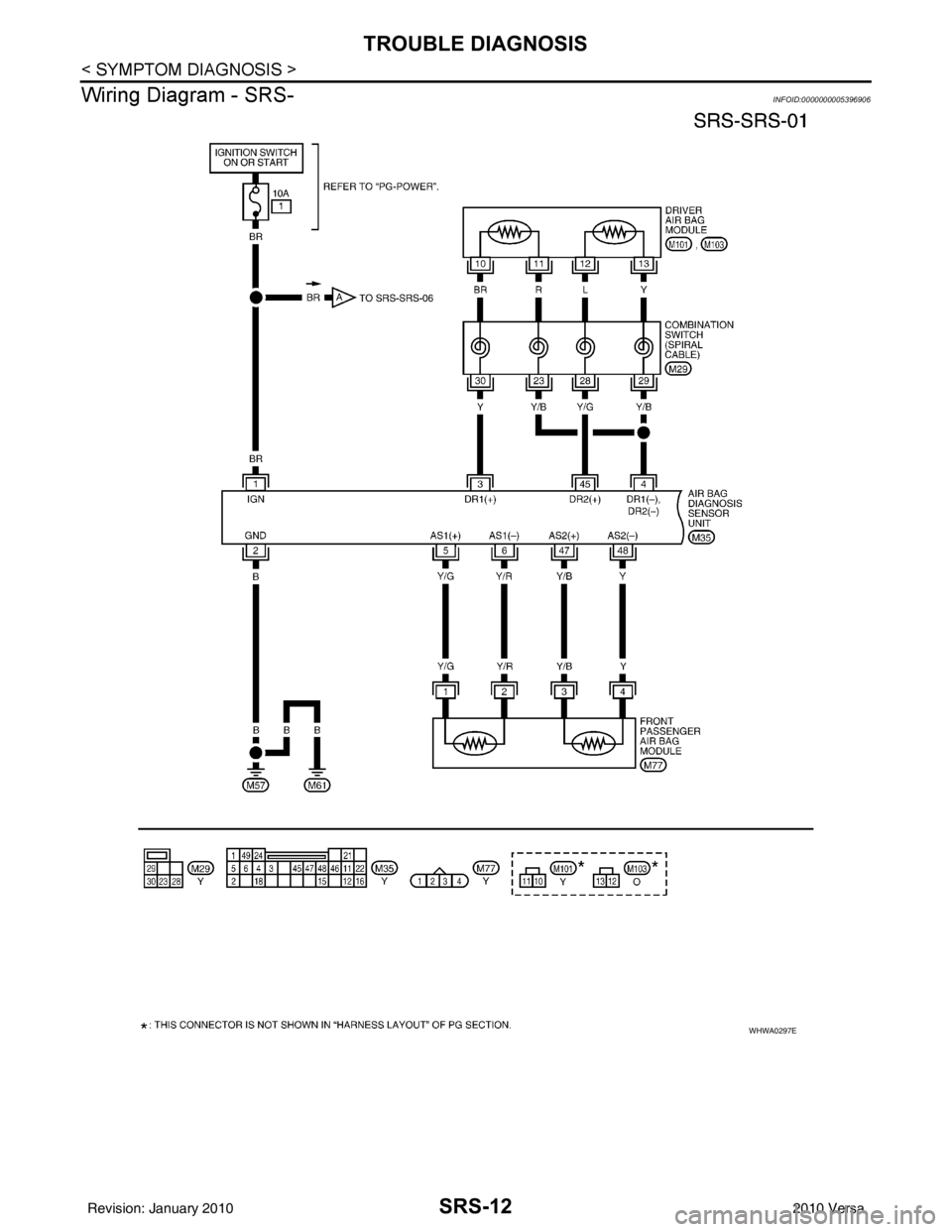

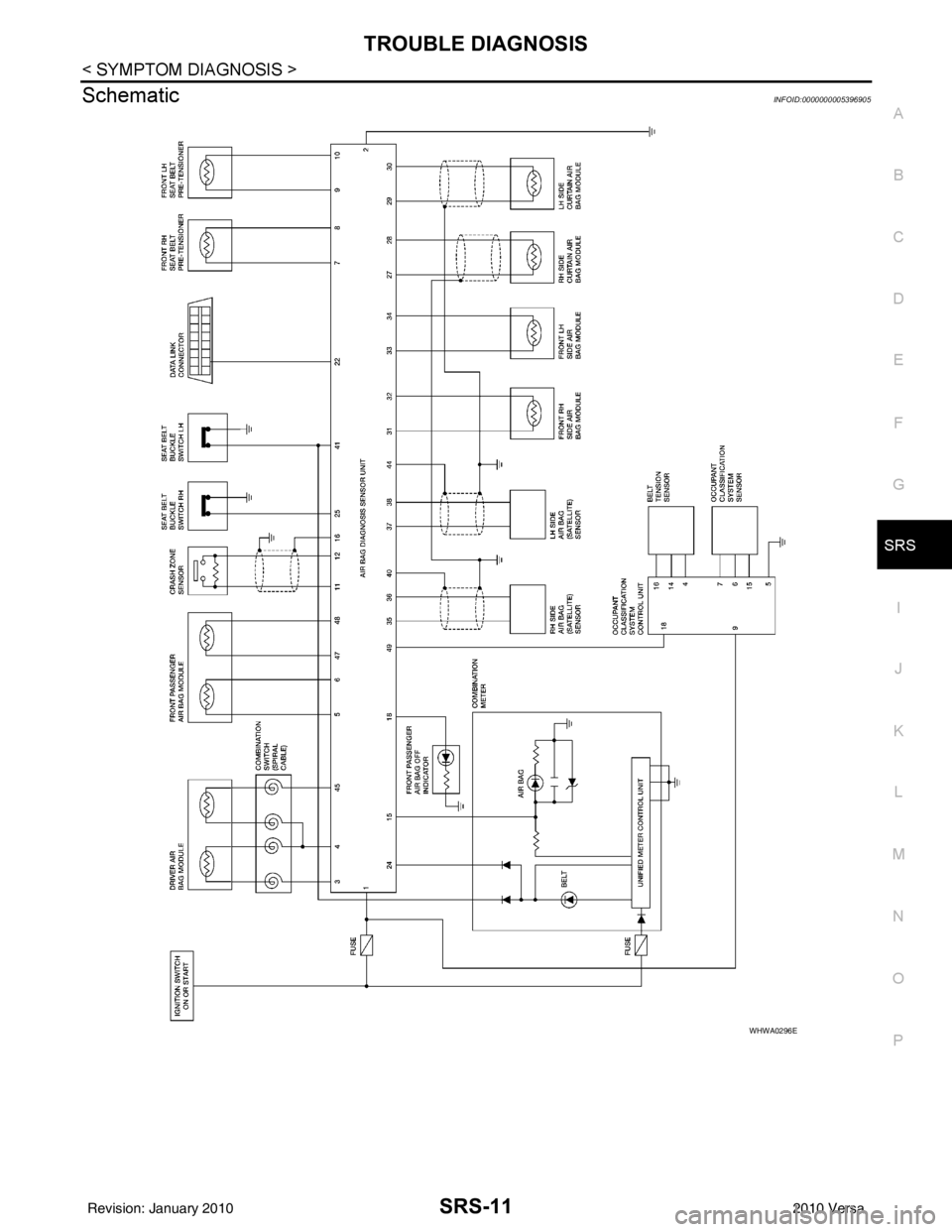

NISSAN TIIDA 2010 Service Repair Manual TROUBLE DIAGNOSISSRS-11 < SYMPTOM DIAGNOSIS > C DE F G I J K L M A B SRS N O P SchematicINFOID:0000000005396905 WHWA0296E Revision: January 20102010 Versa

Page 3605 of 3745

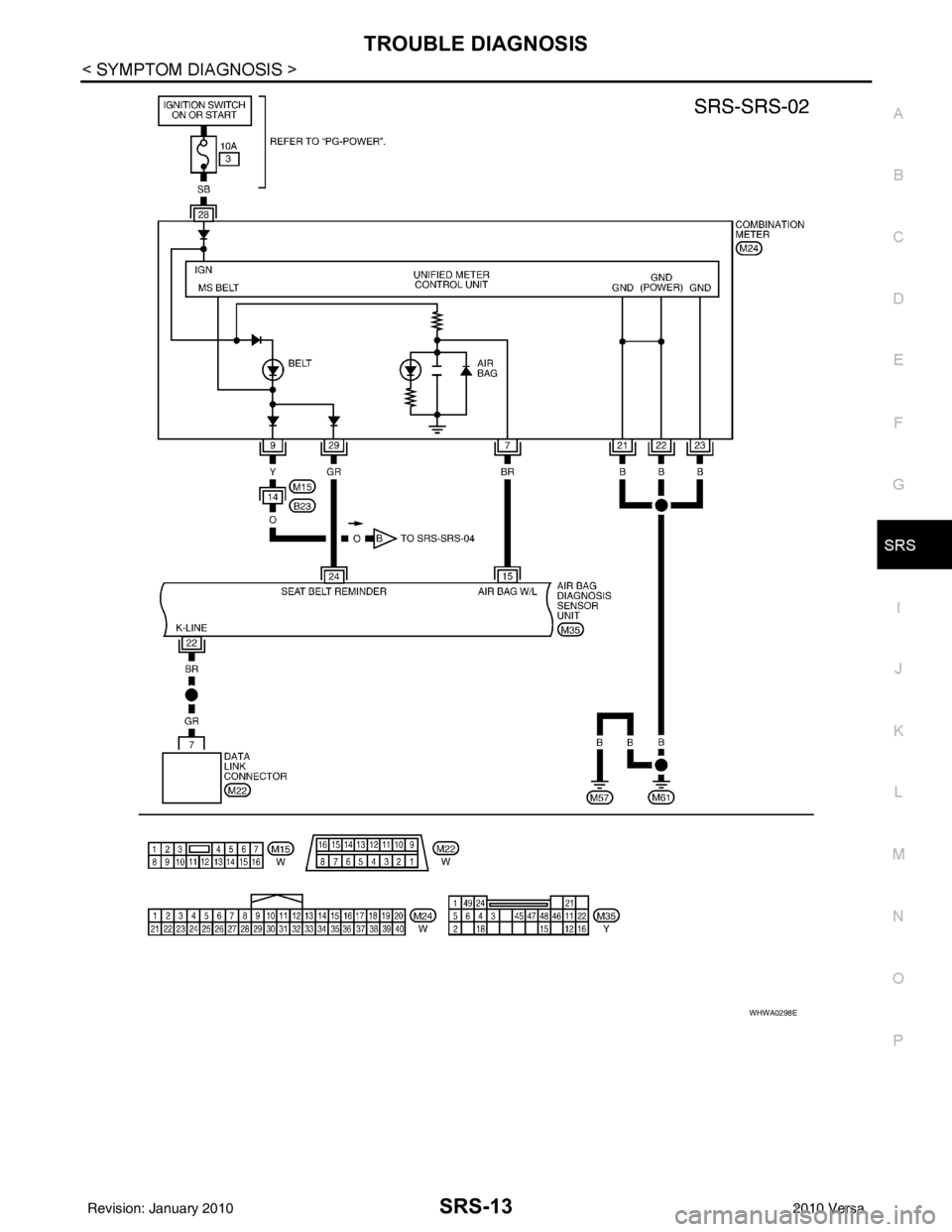

NISSAN TIIDA 2010 Service Repair Manual SRS-12 < SYMPTOM DIAGNOSIS > TROUBLE DIAGNOSIS Wiring Diagram - SRS- INFOID:0000000005396906 WHWA0297E Revision: January 20102010 Versa

Page 3606 of 3745

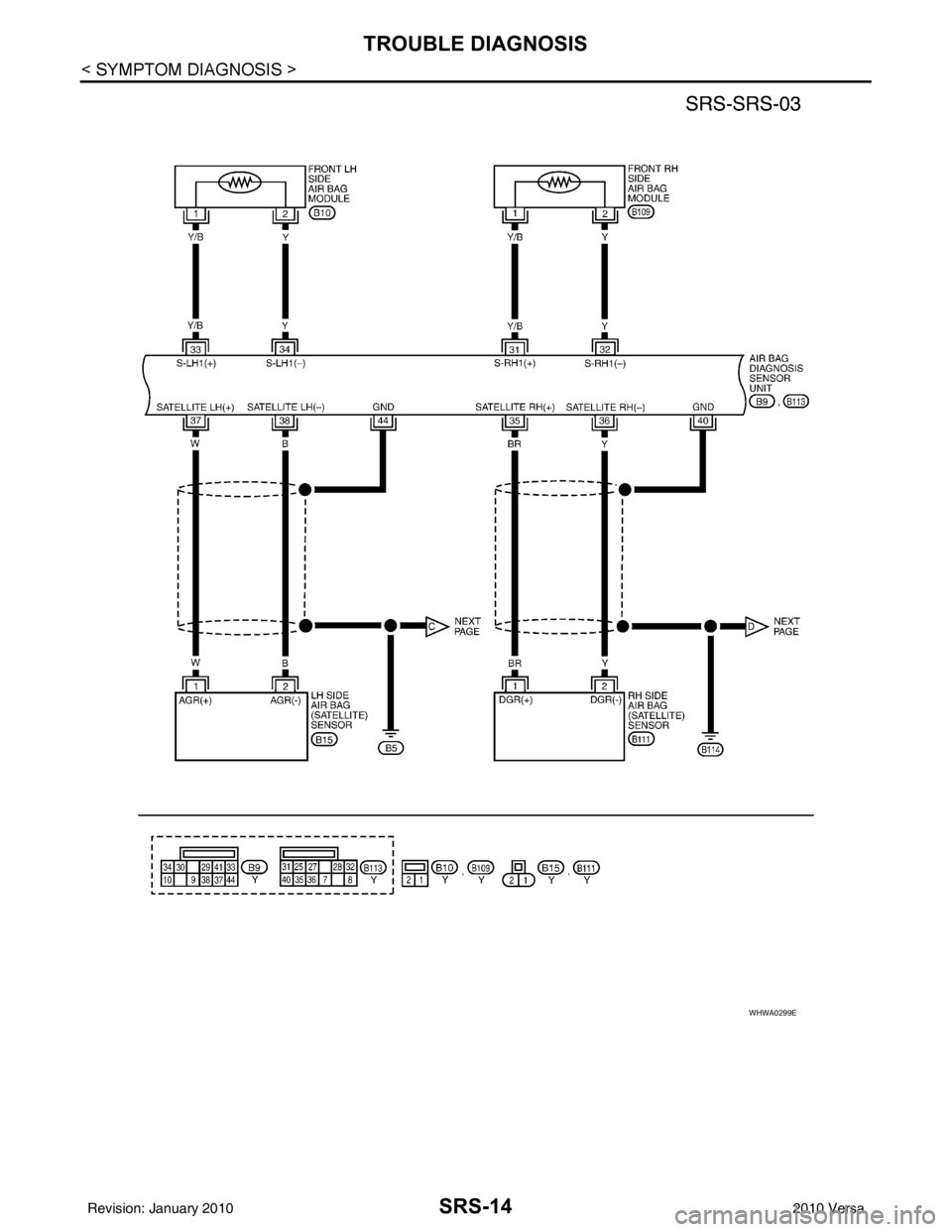

NISSAN TIIDA 2010 Service Repair Manual TROUBLE DIAGNOSISSRS-13 < SYMPTOM DIAGNOSIS > C DE F G I J K L M A B SRS N O P WHWA0298E Revision: January 20102010 Versa

Page 3607 of 3745

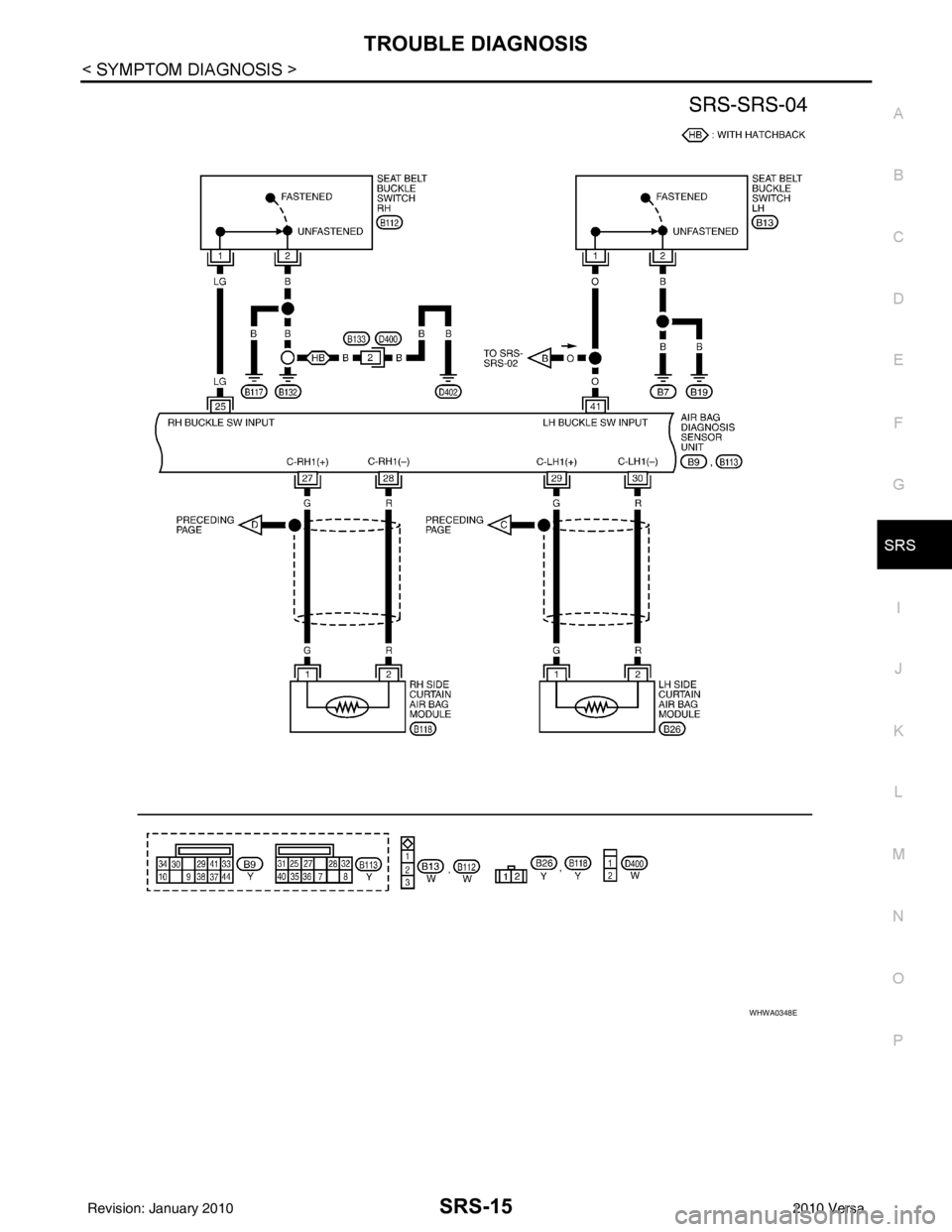

NISSAN TIIDA 2010 Service Repair Manual SRS-14 < SYMPTOM DIAGNOSIS > TROUBLE DIAGNOSIS WHWA0299E Revision: January 20102010 Versa

Page 3608 of 3745

NISSAN TIIDA 2010 Service Repair Manual TROUBLE DIAGNOSISSRS-15 < SYMPTOM DIAGNOSIS > C DE F G I J K L M A B SRS N O P WHWA0348E Revision: January 20102010 Versa
