Page 1065 of 3745

NISSAN TIIDA 2010 Service Repair Manual CVT-32 < SERVICE INFORMATION >[RE0F08B] TROUBLE DIAGNOSIS DIAGNOSTIC WORKSHEET Information From Customer KEY POINTS• WHAT ..... Vehicle & CVT model • WHEN ..... Date, Frequencies • WHERE ..... R

Page 1066 of 3745

NISSAN TIIDA 2010 Service Repair Manual TROUBLE DIAGNOSISCVT-33 < SERVICE INFORMATION > [RE0F08B] D E F G H I J K L M A B CVT N O P Diagnostic Worksheet Chart Customer name MR/MS Model & Year VIN Trans. Model EngineMileage malfunction Date

Page 1067 of 3745

NISSAN TIIDA 2010 Service Repair Manual CVT-34 < SERVICE INFORMATION >[RE0F08B] TROUBLE DIAGNOSIS 4�† Perform road test. CVT-41 4-1.Check before engine is started CVT-42 �†CVT-143, "O/D OFF Indicator Lamp Does Not Come On" �† Perfor

Page 1068 of 3745

NISSAN TIIDA 2010 Service Repair Manual TROUBLE DIAGNOSISCVT-35 < SERVICE INFORMATION > [RE0F08B] D E F G H I J K L M A B CVT N O P 44-3. Cruise test CVT-43 �†CVT-149, "Vehicle Speed Does Not Change in "L" Position" �†CVT-150, "Vehicle

Page 1069 of 3745

NISSAN TIIDA 2010 Service Repair Manual CVT-36 < SERVICE INFORMATION >[RE0F08B] TROUBLE DIAGNOSIS CVT Electrical Parts Location INFOID:0000000005397788 1. O/D OFF indicator lamp 2. Shift position indicator3. Accelerator pedal position senso

Page 1070 of 3745

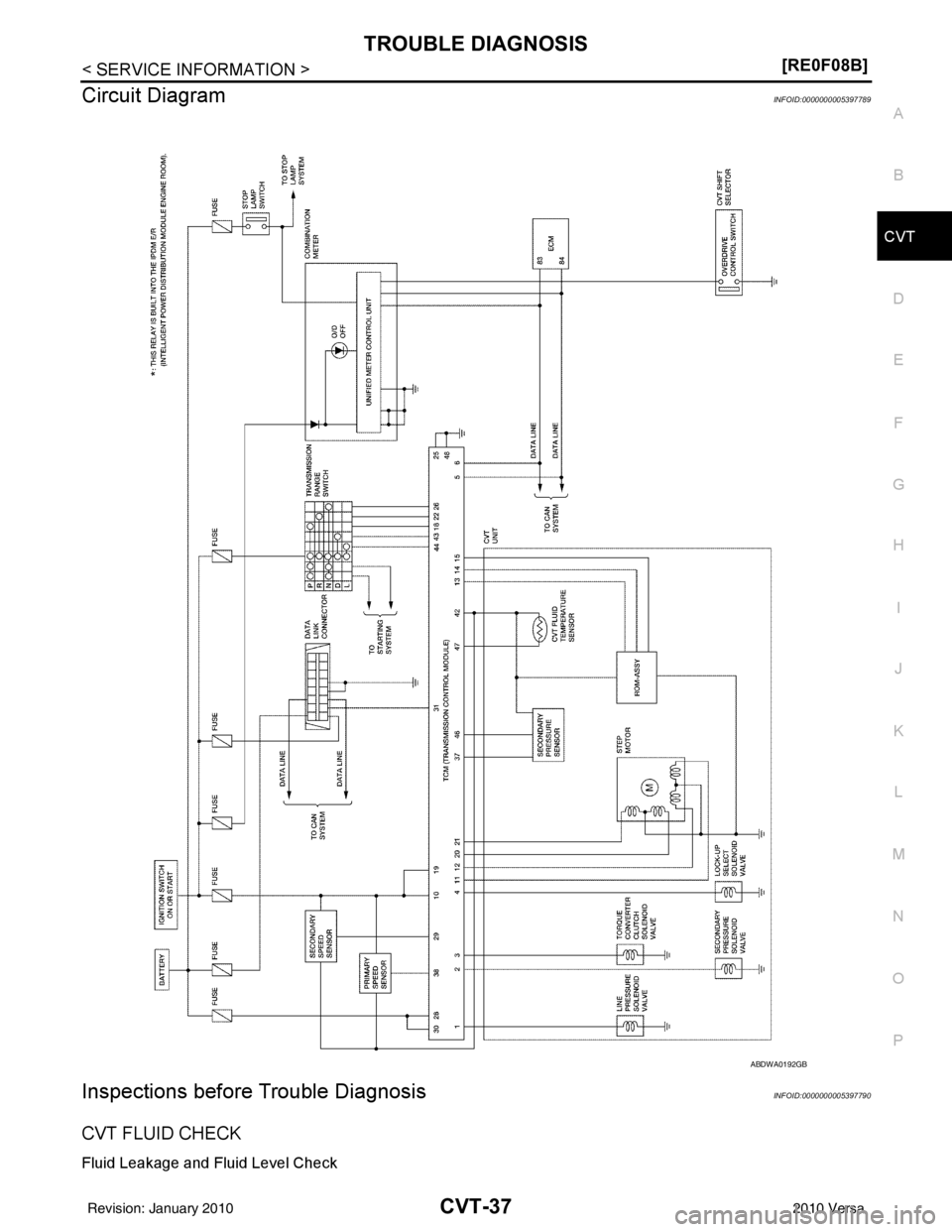

NISSAN TIIDA 2010 Service Repair Manual TROUBLE DIAGNOSISCVT-37 < SERVICE INFORMATION > [RE0F08B] D E F G H I J K L M A B CVT N O P Circuit DiagramINFOID:0000000005397789 Inspections before Trouble DiagnosisINFOID:0000000005397790 CVT FLUID

Page 1071 of 3745

NISSAN TIIDA 2010 Service Repair Manual CVT-38 < SERVICE INFORMATION >[RE0F08B] TROUBLE DIAGNOSIS • Inspect for fluid leakage and check the fluid level. Refer to CVT-14, "Checking CVT Fluid" . Fluid Condition Check Inspect the fluid cond

Page 1072 of 3745

NISSAN TIIDA 2010 Service Repair Manual TROUBLE DIAGNOSISCVT-39 < SERVICE INFORMATION > [RE0F08B] D E F G H I J K L M A B CVT N O P 6. While holding down the foot brake, gradually press down the accelerator pedal. 7. Quickly read off the st
