2008 TOYOTA TUNDRA Owners Manual

7
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Accessory meter control switches
4. Intuitive parking assist switch
5. Emergency flasher switch
6. Audio system or navigation system in- cluding audio system (For the naviga-
tion system, see the separate “Naviga-
tion System Owner ’s Manual”.)
7. Air conditioning controls
8. Outside rear view mirror defogger and/ or front windshield wiper de −icer
switch/Back window and outside rear
view mirror defogger and/or front wind-
shield wiper de −icer switch
9. Front passenger ’s seat belt reminder light
10. Passenger airbag on −off indicator light
11. Passenger airbag off switch (Regular cab models)
12. Power outlet
13. AUX adapter
14. Cigarette lighter
15. “TOW/HAUL” switch
16. Front drive control switch knob (four −wheel drive models)

Separate seat with manual air conditioning system (view B)
XS11032

8
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
17. Power back window switch
(Crew Max models)
18. Tire pressure warning reset switch
19. “VSC OFF” switch
20. Power outlet main switch (with rear seat entertainment system)
21. Cruise control switch
22. Engine switch
23. Accessory meter
24. Engine immobilizer/theft deterrent system indicator light
25. Intuitive parking assist indicator lights

9
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Multi −information display/accessory me-
ter control switches
4. Intuitive parking assist switch
5. Emergency flasher switch
6. Audio system or navigation system in- cluding audio system (For the naviga-
tion system, see the separate “Naviga-
tion System Owner ’s Manual”.)
7. Outside rear view mirror defogger and/ or front windshield wiper de −icer
switch/Back window and outside rear
view mirror defogger and/or front wind-
shield wiper de −icer switch
8. Front passenger ’s seat belt reminder light
9. Passenger airbag on −off indicator light
10. Seat heater dials 11. Air conditioning controls
12. Power outlet
13. AUX adapter
14. Cigarette lighter
15. “TOW/HAUL” switch
16. Front drive control switch knob (four −wheel drive models)

Separate seat with automatic air conditioning system (view B)
XS11033a

10
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
17. Power back window switch
(Crew Max models)
18. Tire pressure warning reset switch
19. “VSC OFF” switch
20. Power outlet main switch (with rear seat entertainment system)
21. Cruise control switch
22. Engine switch
23. Accessory meter
24. Engine immobilizer/theft deterrent sys- tem indicator light
25. Intuitive parking assist indicator lights
XS10010a
1. Audio remote control switches
2. Telephone switches
3. Talk switch
XS11007a
Ty p e A
XS11024
Ty p e B
Steering switches and
overhead console overview
 Steering switches
Overhead console

11
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS11009e
Ty p e C
1. Card holder
2. Interior light switch
3. Interior light
4. Sunglass holder
5. Microphone
6. Personal lights
7. Auxiliary boxes
8. Moon roof switches
(on some Crew Max models)

12
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS11036a
1. Service reminder indicators and
indicator lights
2. Speedometer
3. Fuel gauge 4. Engine coolant temperature gauge
5. Trip meter reset knob
6. Odometer and two trip meters
7. Automatic transmission shift position
indicator lights
8. Automatic transmission shift range display
Instrument cluster overview
Ty p e A

13
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS11002c
1. Tachometer
2. Service reminder indicators and
indicator lights
3. Speedometer
4. Fuel gauge 5. Voltmeter
6. Oil pressure gauge
7. Engine coolant temperature gauge
8. Trip meter reset knob
9. Odometer and two trip meters10. Automatic transmission shift position
indicator lights
11. Automatic transmission shift range display
12. Automatic transmission fluid temperature gauge

Ty p e B

14
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

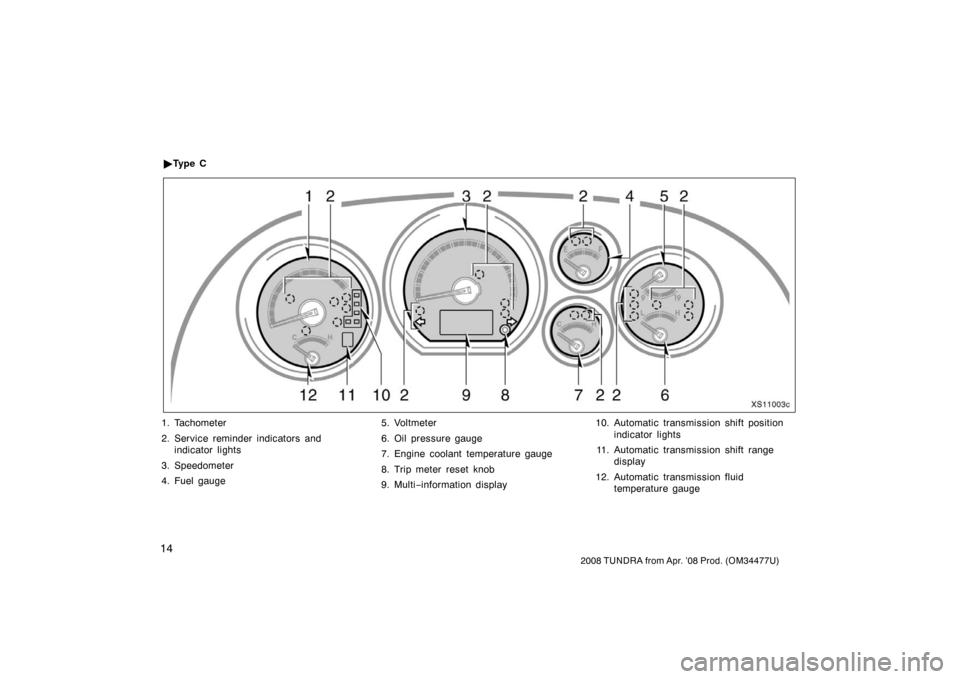

XS11003c
1. Tachometer
2. Service reminder indicators and
indicator lights
3. Speedometer
4. Fuel gauge 5. Voltmeter
6. Oil pressure gauge
7. Engine coolant temperature gauge
8. Trip meter reset knob
9. Multi
−information display 10. Automatic transmission shift position
indicator lights
11. Automatic transmission shift range display
12. Automatic transmission fluid temperature gauge

Ty p e C
