2008 TOYOTA TUNDRA Owners Manual

31
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS12054
Regular cab models
XS12053
Double cab and Crew Max models

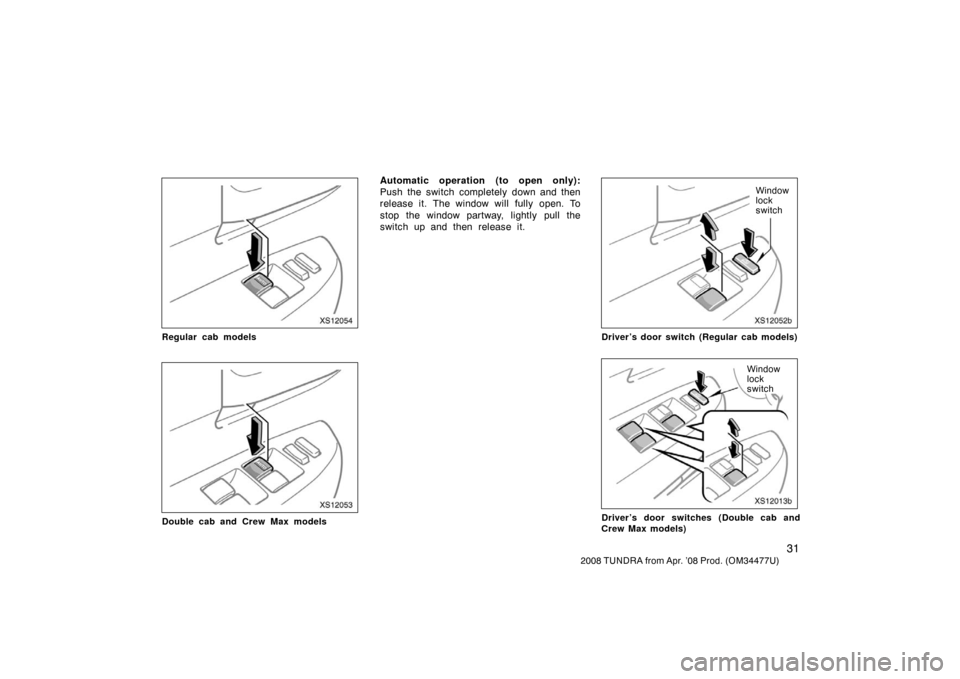

Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
XS12052b
Window
lock
switch
Driver’s door switch (Regular cab models)
XS12013b
Window
lock
switch
Driver’s door switches (Double cab and
Crew Max models)

32
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS12023a
Passenger’s door switch
(Regular cab models)
XS12024a
Passenger’s door switches (Double cab
and Crew Max models)
OPERATING THE PASSENGERS’
WINDOWS

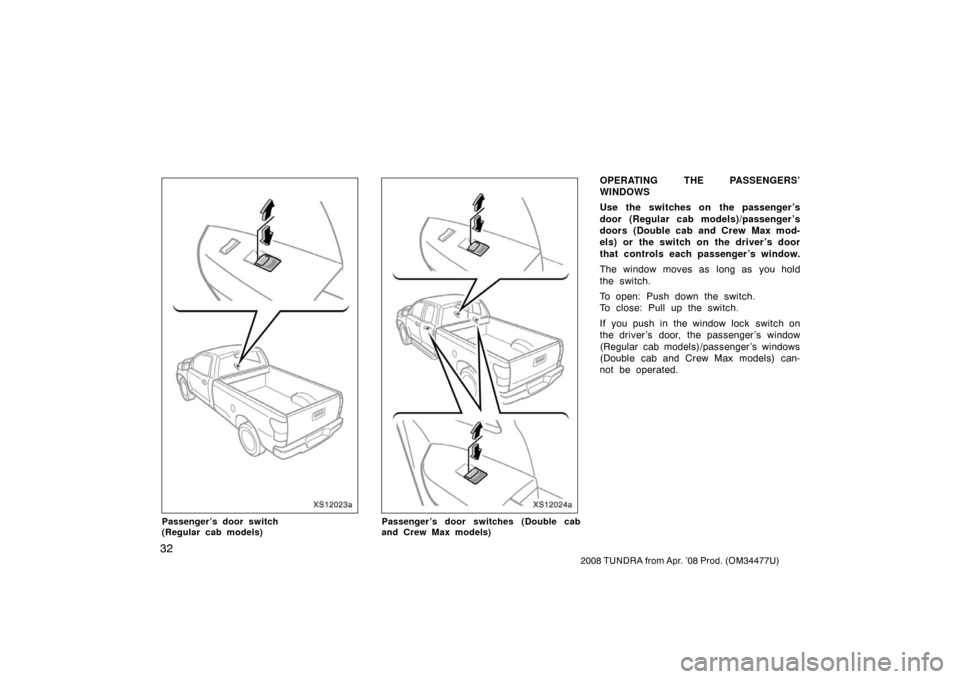

Use the switches on the passenger ’s
door (Regular cab models)/passenger ’s
doors (Double cab and Crew Max mod-
els) or the switch on the driver’s door
that controls each passenger ’s window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s window
(Regular cab models)/passenger ’s windows
(Double cab and Crew Max models) can-
not be operated.

33
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
CAUTION
To avoid death or serious personal
injury, you must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the key when
you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the key still in-
serted. Otherwise, he/she could use
the power window switches and get
trapped in a window. Unattended
person (particularly a small child)
can be involved in a serious acci-
dent.
XS12043a

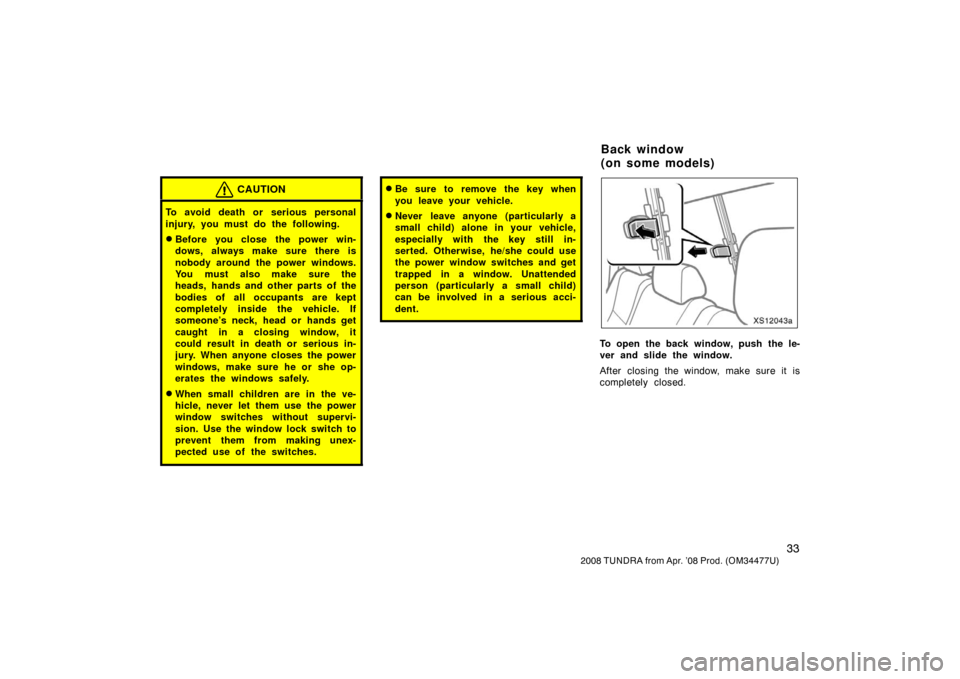

To open the back window, push the le-
ver and slide the window.
After closing the window, make sure it is
completely closed.
Back window
(on some models)

34
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS12063

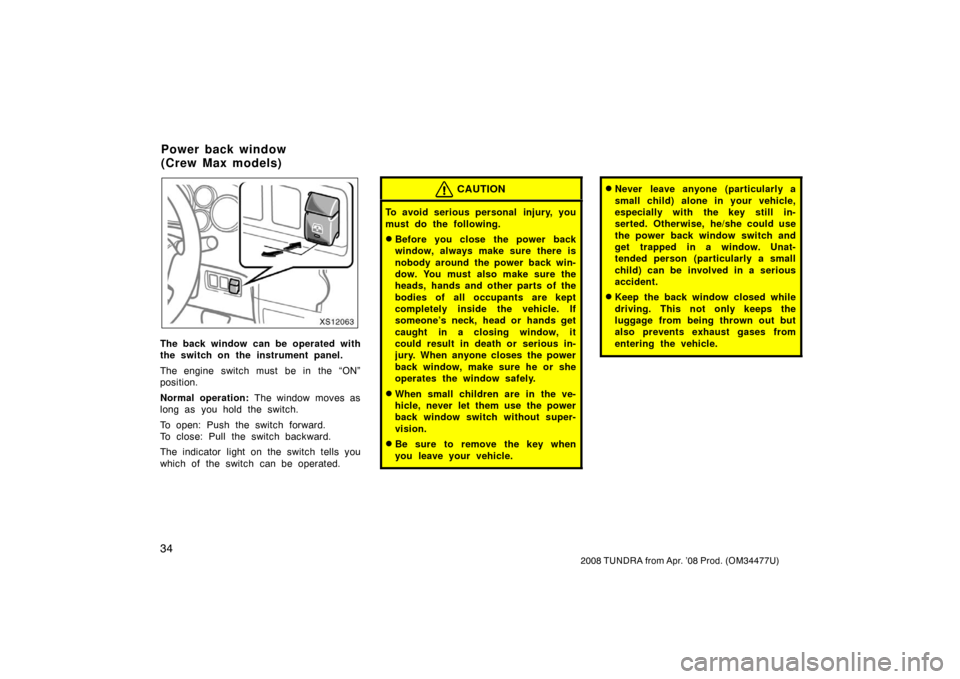

The back window can be operated with
the switch on the instrument panel.
The engine switch must be in the “ON”
position.
Normal operation: The window moves as
long as you hold the switch.
To open: Push the switch forward.
To close: Pull the switch backward.
The indicator light on the switch tells you
which of the switch can be operated.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power back
window, always make sure there is
nobody around the power back win-
dow. You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
back window, make sure he or she
operates the window safely.
When small children are in the ve-
hicle, never let them use the power
back window switch without super-
vision.
Be sure to remove the key when
you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the key still in-
serted. Otherwise, he/she could use
the power back window switch and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Keep the back window closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
Power back window
( C rew Max mo d els)

35
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS12014

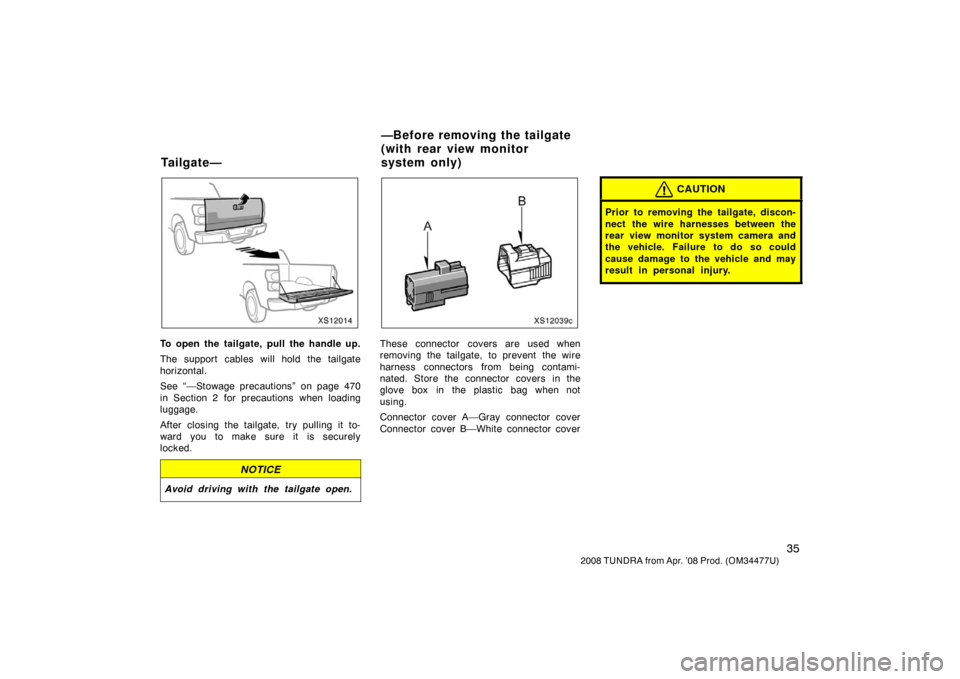

To open the tailgate, pull the handle up.
The support cables will hold the tailgate
horizontal.
See “—Stowage precautions” on page 470
in Section 2 for precautions when loading
luggage.
After closing the tailgate, try pulling it to-
ward you to make sure it is securely
locked.
NOTICE
Avoid driving with the tailgate open.
XS12039c
These connector covers are used when
removing the tailgate, to prevent the wire
harness connectors from being contami-
nated. Store the connector covers in the
glove box in the plastic bag when not
using.
Connector cover A—Gray connector cover
Connector cover B—White connector cover
CAUTION
Prior to removing the tailgate, discon-
nect the wire harnesses between the
rear view monitor system camera and
the vehicle. Failure to do so could
cause damage to the vehicle and may
result in personal injury.
Tailgate— —Before removing the tailgate
(with rear view monitor
system only)

36
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS12031b

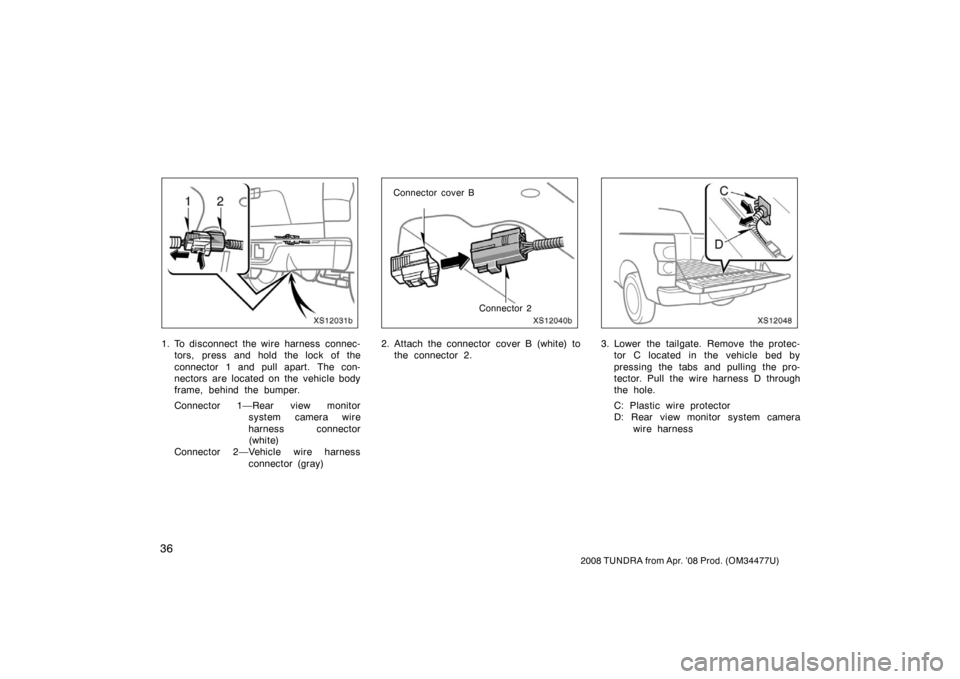

1. To disconnect the wire harness connec-
tors, press and hold the lock of the
connector 1 and pull apart. The con-
nectors are located on the vehicle body
frame, behind the bumper.
Connector 1—Rear view monitor system camera wire
harness connector
(white)
Connector 2—Vehicle wire harness
connector (gray)
XS12040b
Connector cover B
Connector 2
2. Attach the connector cover B (white) tothe connector 2.
XS12048
3. Lower the tailgate. Remove the protec-tor C located in the vehicle bed by
pressing the tabs and pulling the pro-
tector. Pull the wire harness D through
the hole.
C: Plastic wire protector
D: Rear view monitor system camera
wire harness

37
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS12042a
Connector cover A
Connector 1

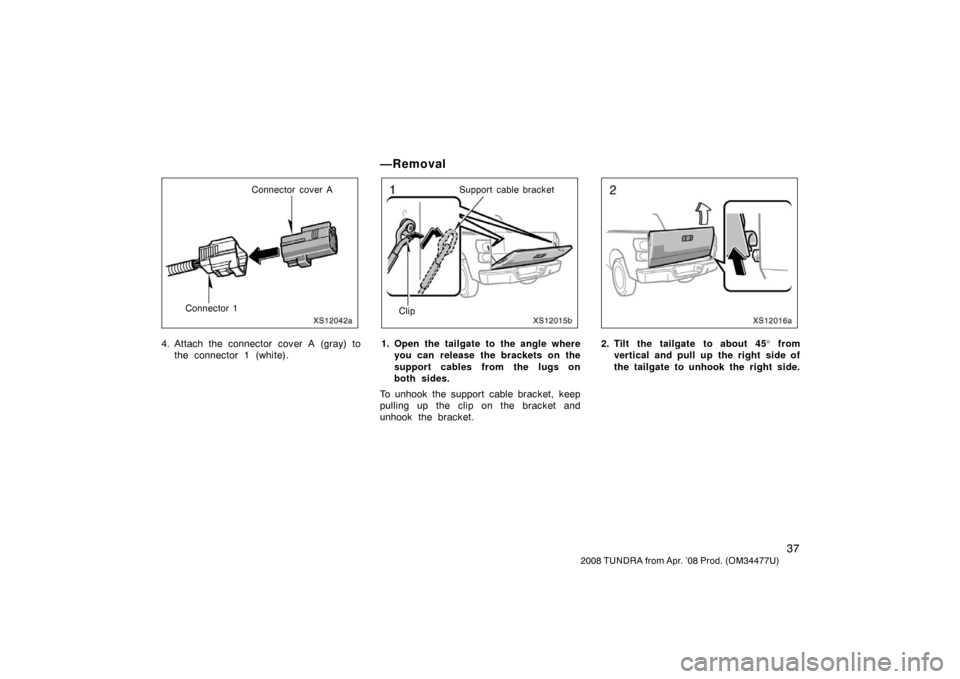

4. Attach the connector cover A (gray) to
the connector 1 (white).
—Removal
XS12015b
Support cable bracket
Clip
1. Open the tailgate to the angle where you can release the brackets on the
support cables from the lugs on
both sides.
To unhook the support cable bracket, keep
pulling up the clip on the bracket and
unhook the bracket.
XS12016a
2. Tilt the tailgate to about 45 ° from
vertical and pull up the right side of
the tailgate to unhook the right side.

38
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS12017a

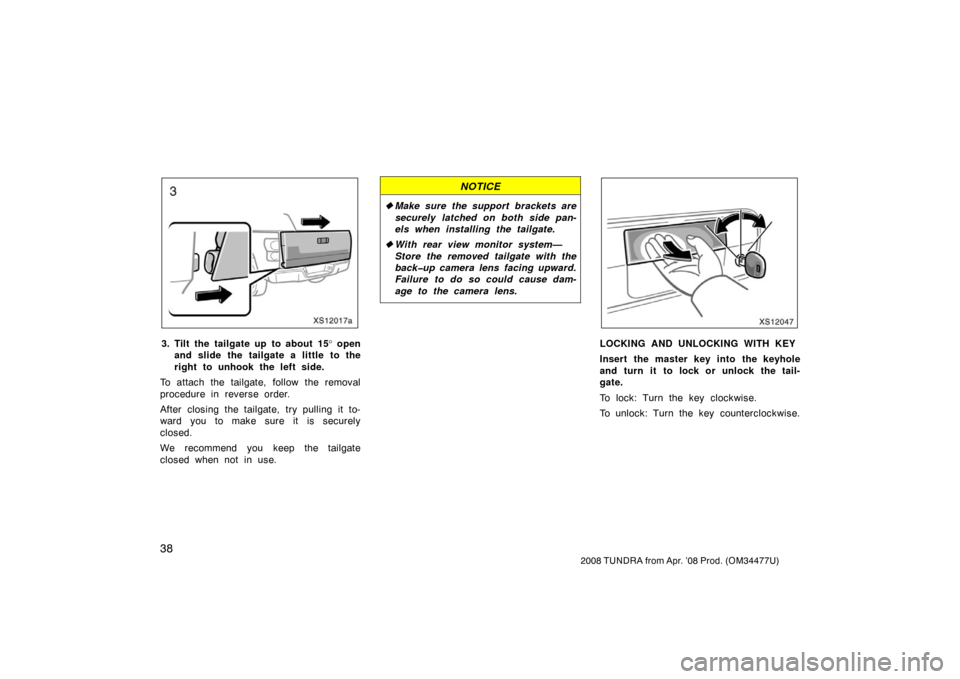

3. Tilt the tailgate up to about 15 ° open
and slide the tailgate a little to the
right to unhook the left side.
To attach the tailgate, follow the removal
procedure in reverse order.
After closing the tailgate, try pulling it to-
ward you to make sure it is securely
closed.
We recommend you keep the tailgate
closed when not in use.
NOTICE
 Make sure the support brackets are
securely latched on both side pan-
els when installing the tailgate.
 With rear view monitor system—
Store the removed tailgate with the
backup camera lens facing upward.
Failure to do so could cause dam-
age to the camera lens.
XS12047
LOCKING AND UNLOCKING WITH KEY
Insert the master key into the keyhole
and turn it to lock or unlock the tail-
gate.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
