2008 TOYOTA TUNDRA Owners Manual

39
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

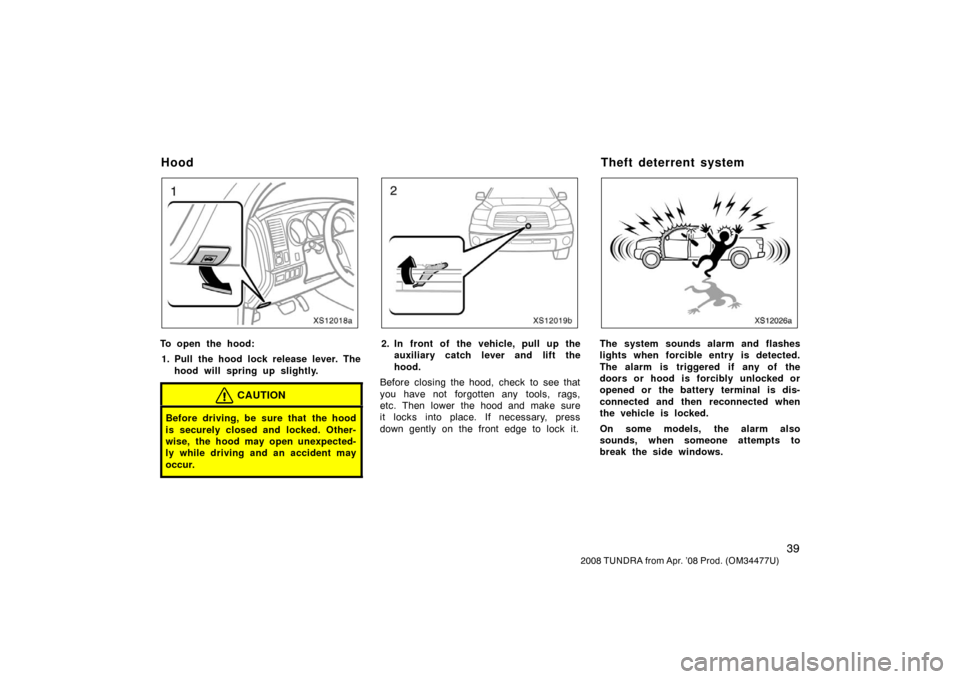

XS12018a
To open the hood:
1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is securely closed and locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
XS12019b
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.
XS12026a
The system sounds alarm and flashes
lights when forcible entry is detected.
The alarm is triggered if any of the
doors or hood is forcibly unlocked or
opened or the battery terminal is dis-
connected and then reconnected when
the vehicle is locked.
On some models, the alarm also
sounds, when someone attempts to
break the side windows.
Hood Theft deterrent system

40
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

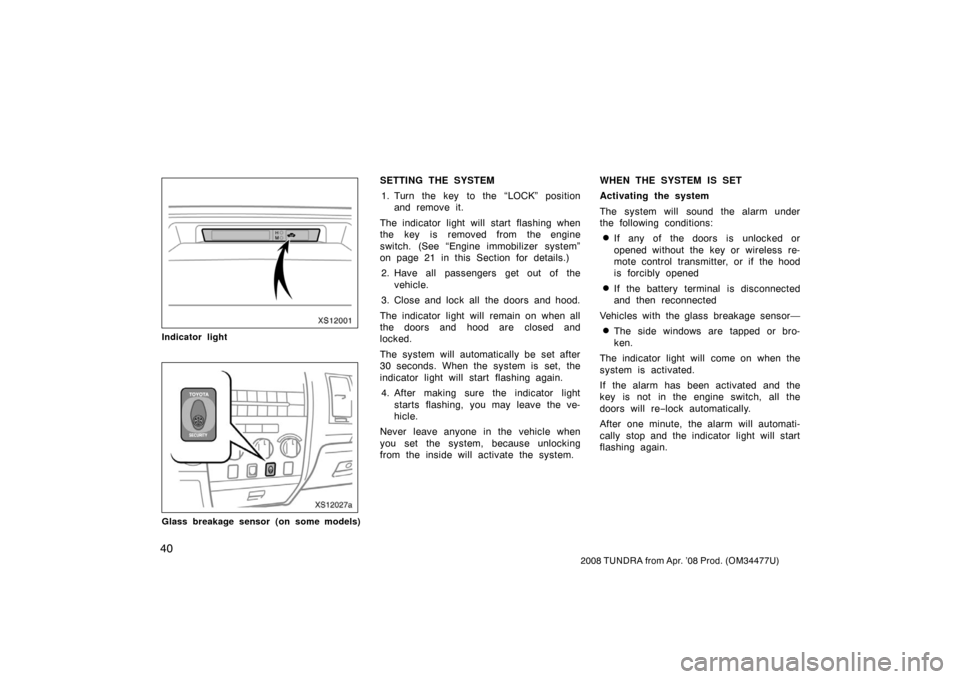

XS12001
Indicator light
XS12027a
Glass breakage sensor (on some models)
SETTING THE SYSTEM
1. Turn the key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the engine
switch. (See “Engine immobilizer system”
on page 21 in this Section for details.) 2. Have all passengers get out of the vehicle.
3. Close and lock all the doors and hood.
The indicator light will remain on when all
the doors and hood are closed and
locked.
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again. 4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system. WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the doors is unlocked or
opened without the key or wireless re-
mote control transmitter, or if the hood
is forcibly opened
If the battery terminal is disconnected
and then reconnected
Vehicles with the glass breakage sensor—
The side windows are tapped or bro-
ken.
The indicator light will come on when the
system is activated.
If the alarm has been activated and the
key is not in the engine switch, all the
doors will re −lock automatically.
After one minute, the alarm will automati-
cally stop and the indicator light will start
flashing again.

41
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
two ways:
Turn the engine switch from the
“LOCK” to “ON” position.
Unlock any of the doors with the key
or wireless remote control transmitter.
These ways cancel the system at the
same time. TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The side doors should be locked with
the key or wireless remote control
transmitter. Be sure to wait until the
indicator light goes off or starts flash-
ing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
XS12038c
This indicates that the fuel filler door
is on the left side of your vehicle.
Fuel tank cap

42
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

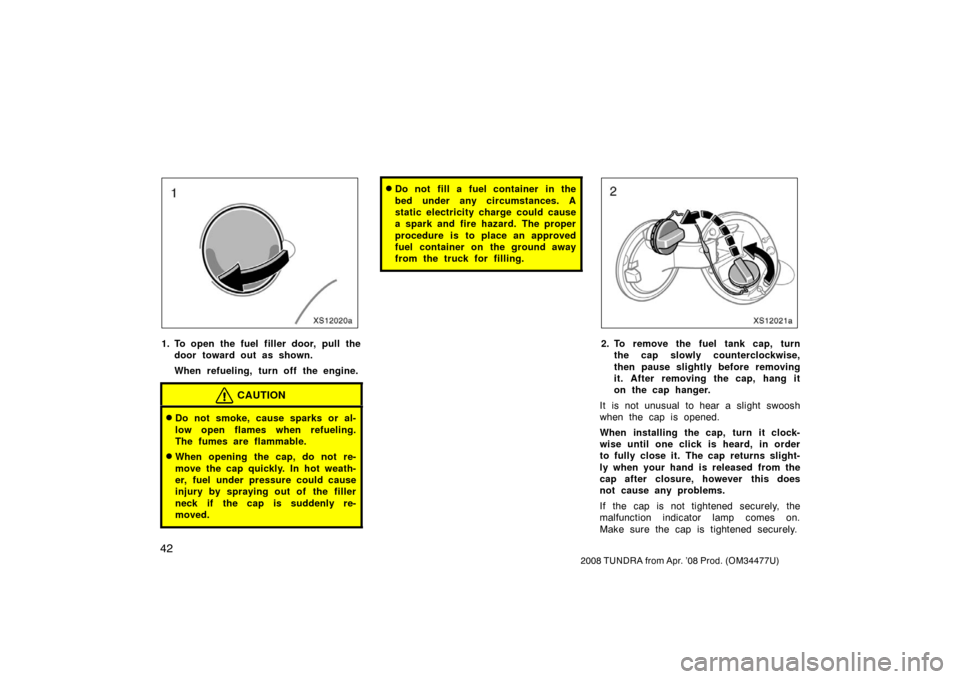

XS12020a
1. To open the fuel filler door, pull the
door toward out as shown.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
Do not fill a fuel container in the
bed under any circumstances. A
static electricity charge could cause
a spark and fire hazard. The proper
procedure is to place an approved
fuel container on the ground away
from the truck for filling.
XS12021a
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened.
When installing the cap, turn it clock-
wise until one click is heard, in order
to fully close it. The cap returns slight-
ly when your hand is released from the
cap after closure, however this does
not cause any problems.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.

43
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel spillage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.

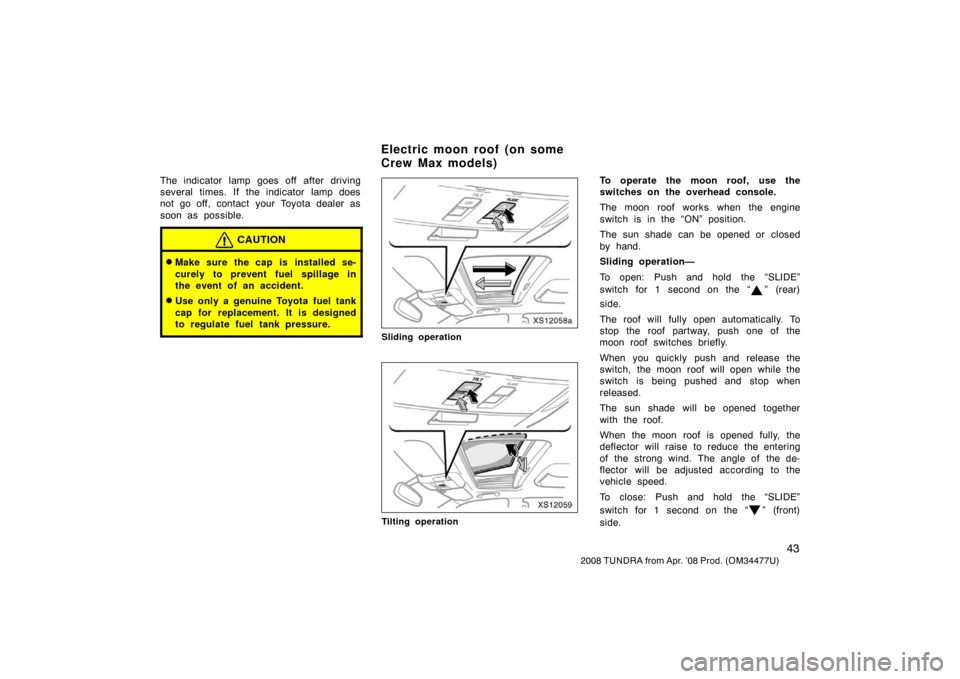

XS12058a
Sliding operation
XS12059
Tilting operation
To operate the moon roof, use the
switches on the overhead console.
The moon roof works when the engine
switch is in the “ON” position.
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push and hold the “SLIDE”
switch for 1 second on the “
” (rear)
side.
The roof will fully open automatically. To
stop the roof partway, push one of the
moon roof switches briefly.
When you quickly push and release the
switch, the moon roof will open while the
switch is being pushed and stop when
released.
The sun shade will be opened together
with the roof.
When the moon roof is opened fully, the
deflector will raise to reduce the entering
of the strong wind. The angle of the de-
flector will be adjusted according to the
vehicle speed.
To close: Push and hold the “SLIDE”
switch for 1 second on the “
” (front)
side.
Electric moon roof (on some
Crew Max models)

44
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
The roof will fully close automatically. To
stop the roof partway, push one of the
moon roof switches briefly.
When you quickly push and release the
switch, the moon roof will close while the
switch is being pushed and stop when
released.
Tilting operation—
To tilt up: Push and hold the “TILT” switch
for 1 second on the “UP” side.
The roof will fully tilt up automatically. To
stop the roof partway, push one of the
moon roof switches briefly.
When you quickly push and release the
switch, the moon roof will tilt up while the
switch is being pushed and stop when
released.
To tilt down: Push and hold the “TILT”
switch for 1 second on the indented
(front) side.
The roof will fully tilt down automatically.
To stop the roof partway, push one of the
moon roof switches briefly.
When you quickly push and release the
switch, the moon roof will tilt down while
the switch is being pushed and stop when
released. Key off operation:
If both front doors are
closed, the moon roof works for about 43
seconds even after the engine switch is
turned off. It stops working when either
door is opened.
Jam protection function:
If something gets caught between the
moon roof and frame during slide clos-
ing operation, the moon roof stops and
opens, and the deflector stops and
raises fully.
If something gets caught between the
moon roof and frame during tilting
down operation, the moon roof stops
and opens fully.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.
If the moon roof does not operate auto-
matically or the jam protection function
does not operate correctly, you should
normalize the moon roof.
To normalize the moon roof, push and
hold the switch toward the “UP” (tilt up)
side or “
” (sliding close) side. The
moon roof will tilt up and down, then re-
lease the switch. Make sure that the moon roof opens and
closes automatically. If the moon roof can-
not be operated properly, have it checked
by your Toyota dealer.

45
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

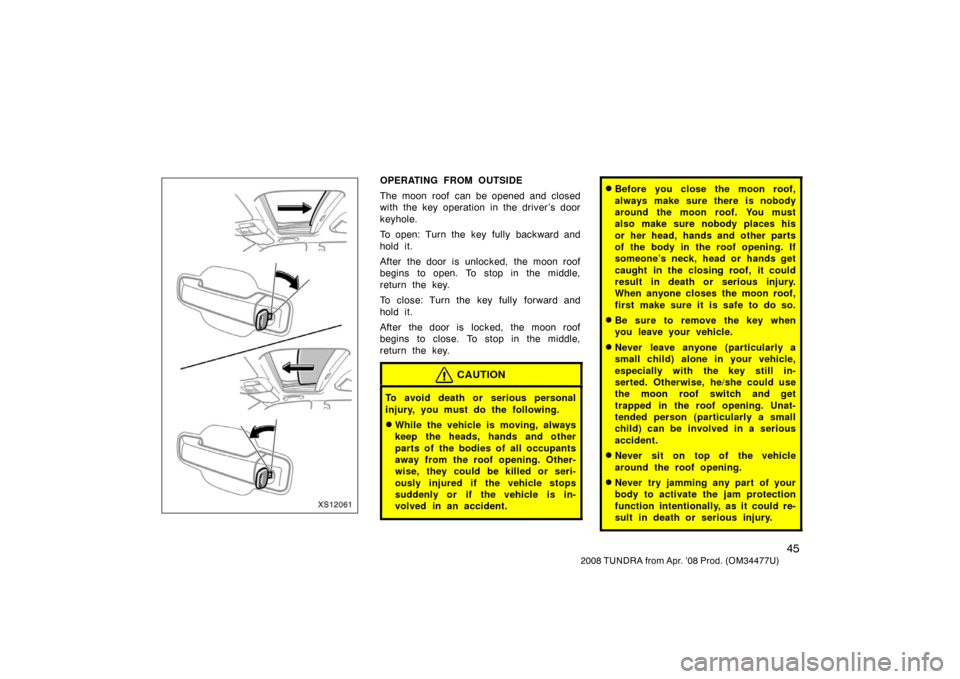

XS12061
OPERATING FROM OUTSIDE
The moon roof can be opened and closed
with the key operation in the driver’s door
keyhole.
To open: Turn the key fully backward and
hold it.
After the door is unlocked, the moon roof
begins to open. To stop in the middle,
return the key.
To close: Turn the key fully forward and
hold it.
After the door is locked, the moon roof
begins to close. To stop in the middle,
return the key.
CAUTION
To avoid death or serious personal
injury, you must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be killed or seri-
ously injured if the vehicle stops
suddenly or if the vehicle is in-
volved in an accident.
Before you close the moon roof,
always make sure there is nobody
around the moon roof. You must
also make sure nobody places his
or her head, hands and other parts
of the body in the roof opening. If
someone’s neck, head or hands get
caught in the closing roof, it could
result in death or serious injury.
When anyone closes the moon roof,
first make sure it is safe to do so.
Be sure to remove the key when
you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the key still in-
serted. Otherwise, he/she could use
the moon roof switch and get
trapped in the roof opening. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in death or serious injury.

46
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
The jam protection function may
not work if something gets caught
just before the moon roof is fully
closed.
