Page 9 of 621

ix
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your
Toyota contain explosive chemicals. If the vehicle is
scrapped with the airbags and pretensioners left as they
are, this may cause an accident such as fire. Be sure to
have the systems of the SRS airbag and seat belt preten-
sioner removed and disposed of by a qualified service
shop or by your Toyota dealer before you dispose of your
vehicle.
On pavement and off road
driving tips
This vehicle will handle and maneuver differently from an
ordinary passenger car because it is also designed for
off−road use. It has a significantly higher rollover rate than
other types of vehicles. In addition, this vehicle has a
higher ground clearance and center of gravity than that of
an ordinary passenger car. This vehicle design feature
causes this type of vehicle to be more likely to rollover.
Failure to operate this vehicle correctly may result in loss
of control, accidents or vehicle rollover causing death or
serious injury. Be sure to read “Off −road vehicle
precautions” on page 442 in Section 2 and “Off −road
driving precautions” on page 478 in Section 3.
Page 10 of 621
x
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Leak detection pump
This pump performs fuel evaporation leakage check. This
check is done approximately five hours after the engine is
turned off. So you may hear sound coming from under-
neath the deck for several minutes. It does not indicate a
malfunction.
Perchlorate Material
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate.
These components may include airbag, seat belt preten-
sioners, and wireless remote control batteries.
Page 11 of 621
1
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
Steering switches and overhead console overview 10
. . . . . . . . . . . . . .
Instrument cluster overview 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 15
. . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1
Page 12 of 621
2
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
1. Side defroster outlet
2. Instrument panel vents (side vents)
3. Instrument cluster
4. Automatic transmission selector lever
5. Instrument panel vents (center vents)
6. Glove boxes
7. Power door lock switches
8. Power window switches
9. Auxiliary boxes
10. Bottle holders
11. Instrument panel light control dial
12. Interior light/personal light main switch
13. Roll sensing of curtain shield airbags off switch (“RSCA OFF” switch)
14. Cargo lamp switch
15. Hood lock release lever
16. Parking brake pedal
17. Power rear view mirror control switch
18. Window lock switch

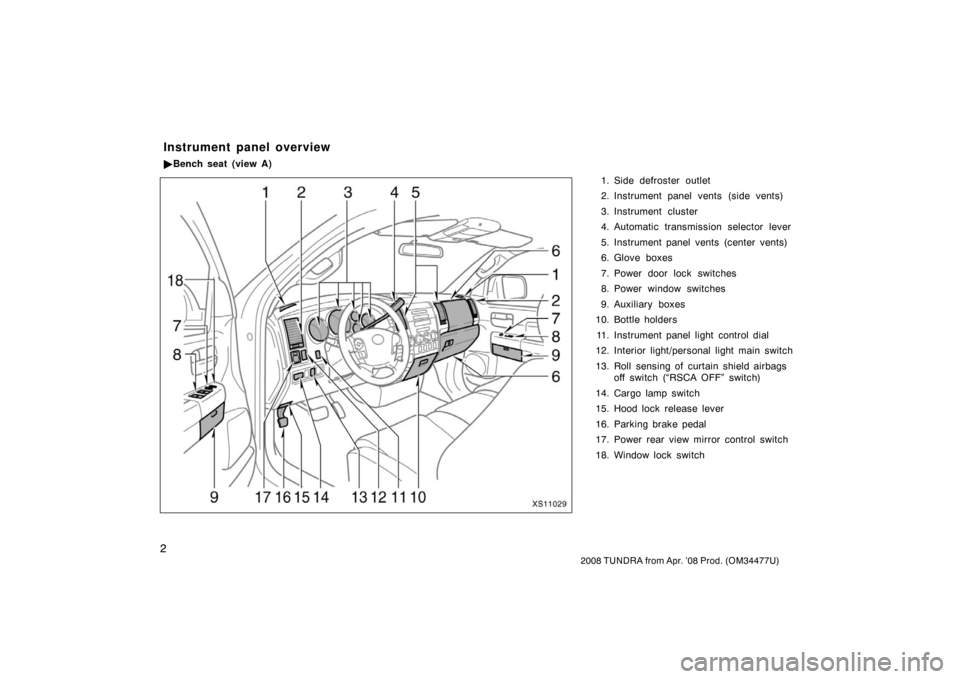

Instrument panel overview
Bench seat (view A)
XS11029
Page 13 of 621
3
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
1. Side defroster outlet
2. Instrument panel vents (side vents)
3. Instrument cluster
4. Instrument panel vents (center vents)
5. Glove boxes
6. Power door lock switches
7. Power window switches
8. Auxiliary boxes
9. A/V input adapter
(with rear seat entertainment system)
10. Power outlet
11. Rear vents (Crew Max models)
12. Center console box
13. Ashtray
14. Cup holders
15. Automatic transmission selector lever
16. Instrument panel light control dial
17. Interior light/personal light main switch
18. Roll sensing of curtain shield airbags off switch (“RSCA OFF” switch)
19. Cargo lamp switch
20. Hood lock release lever
21. Parking brake pedal
22. Power rear view mirror control switch

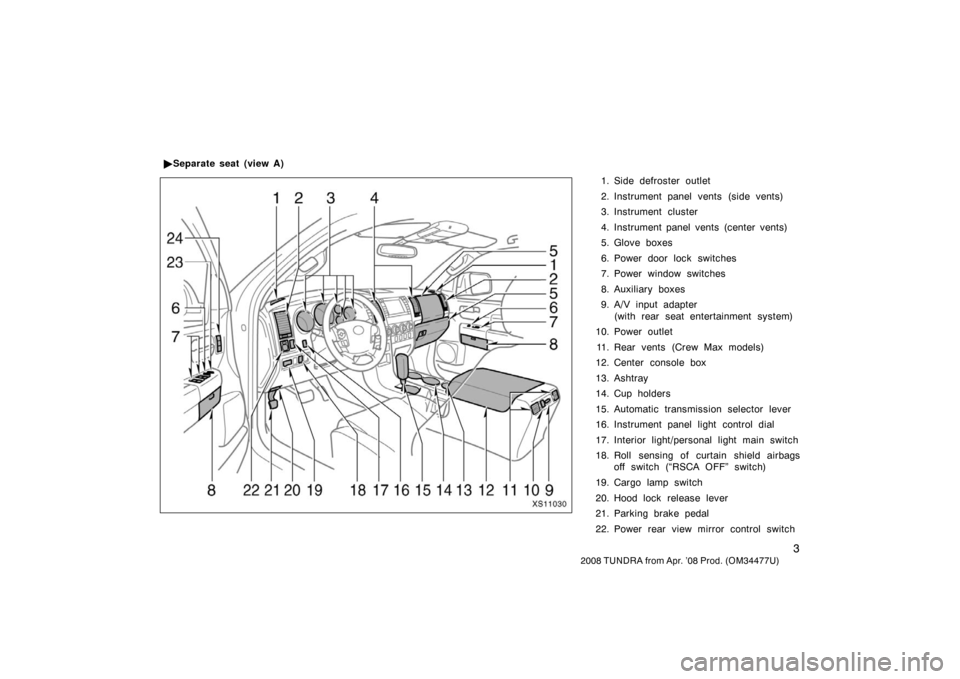

Separate seat (view A)
XS11030
Page 14 of 621
4
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
23. Window lock switch
24. Driving position memory switch
Page 15 of 621
5
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Accessory meter control switch
4. Intuitive parking assist switch
5. Emergency flasher switch
6. Audio system or navigation system in- cluding audio system (For the naviga-
tion system, see the separate “Naviga-
tion System Owner ’s Manual”.)
7. Air conditioning controls
8. Outside rear view mirror defogger and/ or front windshield wiper de −icer
switch/Back window and outside rear
view mirror defogger and/or front wind-
shield wiper de −icer switch
9. Front passenger ’s seat belt reminder light
10. Passenger airbag on −off indicator light
11. Passenger airbag off switch (Regular cab models)
12. AUX adapter
13. Ashtray
14. Power outlet
15. Cigarette lighter
16. Front drive control switch knob (four −wheel drive models)
Bench seat (view B)
XS11031
Page 16 of 621
6
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
17. Power back window switch
(Crew Max models)
18. Tire pressure warning reset switch
19. “VSC OFF” switch
20. Power outlet main switch (with rear seat entertainment system)
21. Cruise control switch
22. Engine switch
23. Accessory meter
24. Engine immobilizer/theft deterrent system indicator light
25. Intuitive parking assist indicator lights
