Type A fuses can be pulled out by the
pull−out tool. The location of the pull −out
tool is shown in the illustration.
Type B fuses—When any of the fuses are
blown, contact your Toyota dealer.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “A/C”
fuse, which may be dispensable for nor-
mal driving, and use it if its amperage
rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies. If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
You should normalize the moon roof if it
does not operate automatically or the jam
protection function does not operate cor-
rectly after replacing blown fuses. To
normalize the moon roof, see “Electric
moon roof” on page 43 in Section 1
−2.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
Make sure that the fuse box lid has been
closed securely after closing it. If any washer does not work or the low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Adding washer fluid

568
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the engine switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
The side turn signal lights consist of a
number of LEDs. If any of the LEDs burn
out, take your vehicle to your Toyota deal-
er to have the light replaced.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer. Light bulbsBulb
No.WTy p e
Headlights
(high beam)900565A
Headlights
(low beam)—55B
Front fog lights914545C
Par k i ng and fr ont
side marker lights1685D
Front turn
signal/parking
lights4157NAK27/8E
Rear turn signal
lights3157A27/8E
Stop/tail and rear
side marker lights315727/8D
Back −up lights92118D
License plate
lights1684.9D
High mounted
stoplight and
cargo lamps92118D
Interior lights—5D
Replacing light bulbs—

569
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Light bulbsBulb
No.WTy p e
Front personal
lights—5D
Rear personal
lights—5D
Glove box light741.2D
Foot light—1.4D
Door courtesy
light1685D
A: HB3 halogen bulbs
B: H11 halogen bulbs
C: H10 halogen bulbs
D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber)
XS73007

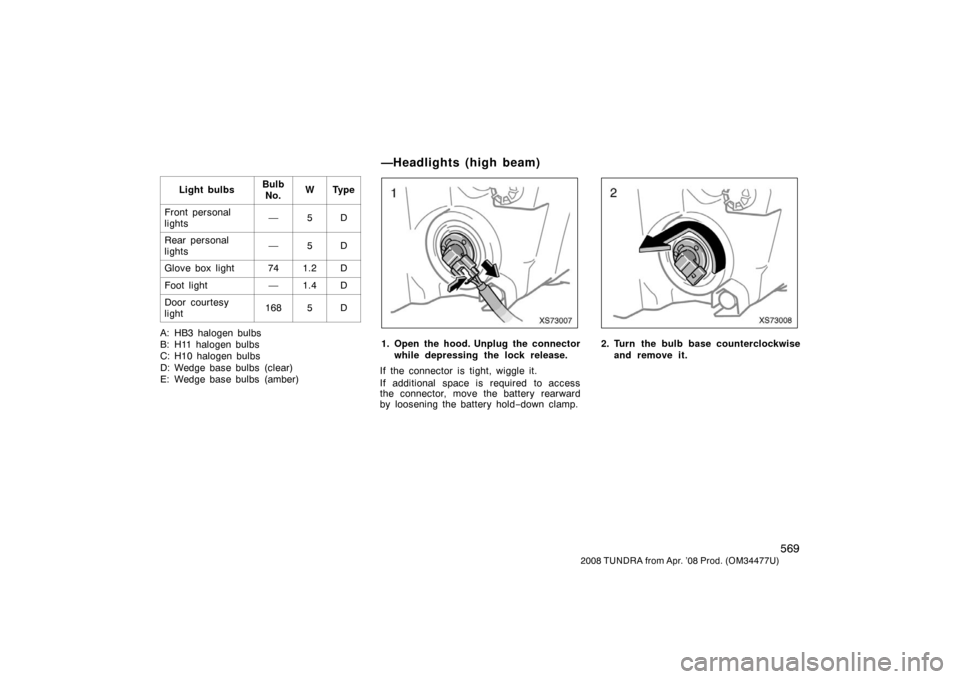

1. Open the hood. Unplug the connector
while depressing the lock release.
If the connector is tight, wiggle it.
If additional space is required to access
the connector, move the battery rearward
by loosening the battery hold −down clamp.
XS73008
2. Turn the bulb base counterclockwise
and remove it.
—H ead lig h t s (h ig h beam)

570
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

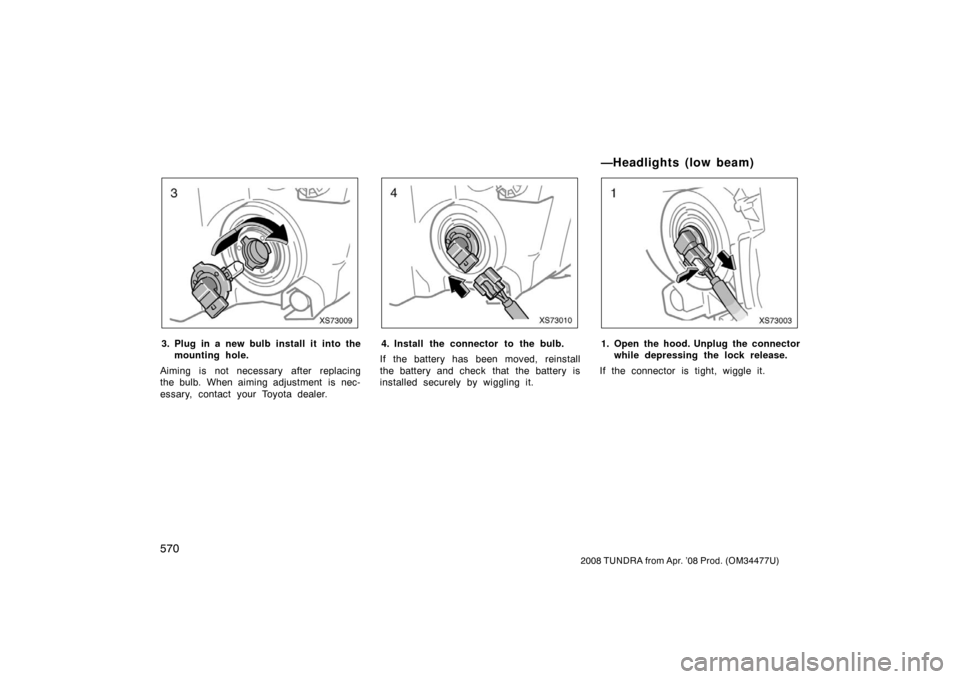

XS73009
3. Plug in a new bulb install it into the
mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
XS73010
4. Install the connector to the bulb.
If the battery has been moved, reinstall
the battery and check that the battery is
installed securely by wiggling it.
XS73003
1. Open the hood. Unplug the connector while depressing the lock release.
If the connector is tight, wiggle it.
—Headlights (low beam)

571
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

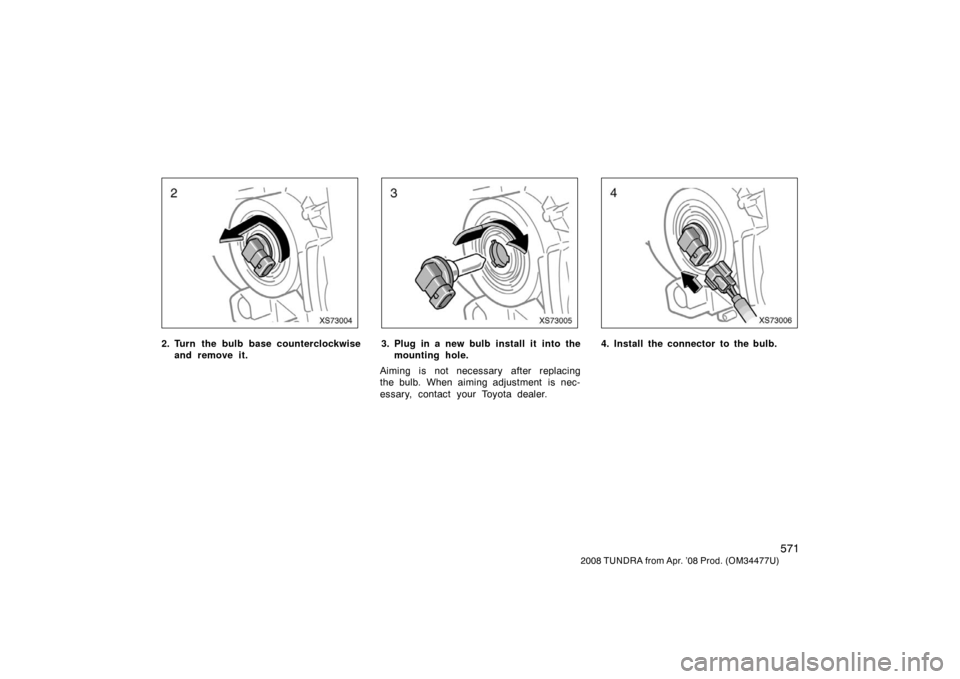

XS73004
2. Turn the bulb base counterclockwise
and remove it.
XS73005
3. Plug in a new bulb install it into themounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
XS73006
4. Install the connector to the bulb.

572
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS73011a
1. Remove the bolts and cover.
XS73030
2. Turn the bulb base counterclockwise
and remove it.
If the connector is tight, wiggle it.
XS73031
3. Pull the bulb out of the base. Install a new bulb.
—Front fog lights

573
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

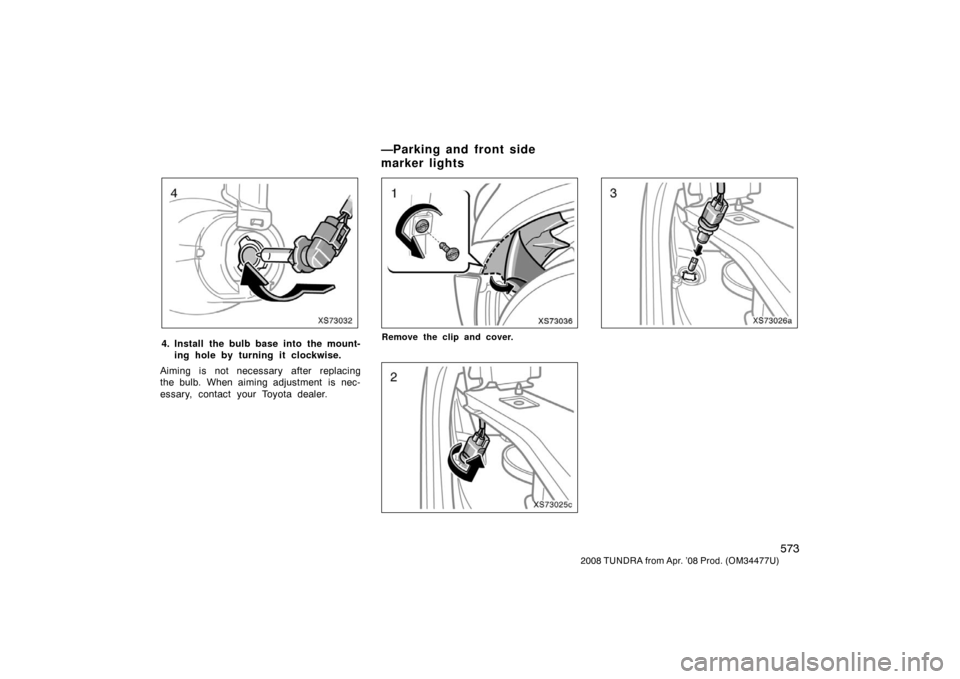

XS73032
4. Install the bulb base into the mount-
ing hole by turning it clockwise.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
XS73036
Remove the clip and cover.
XS73025c
XS73026a
—Parking and front side
marker lights

574
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

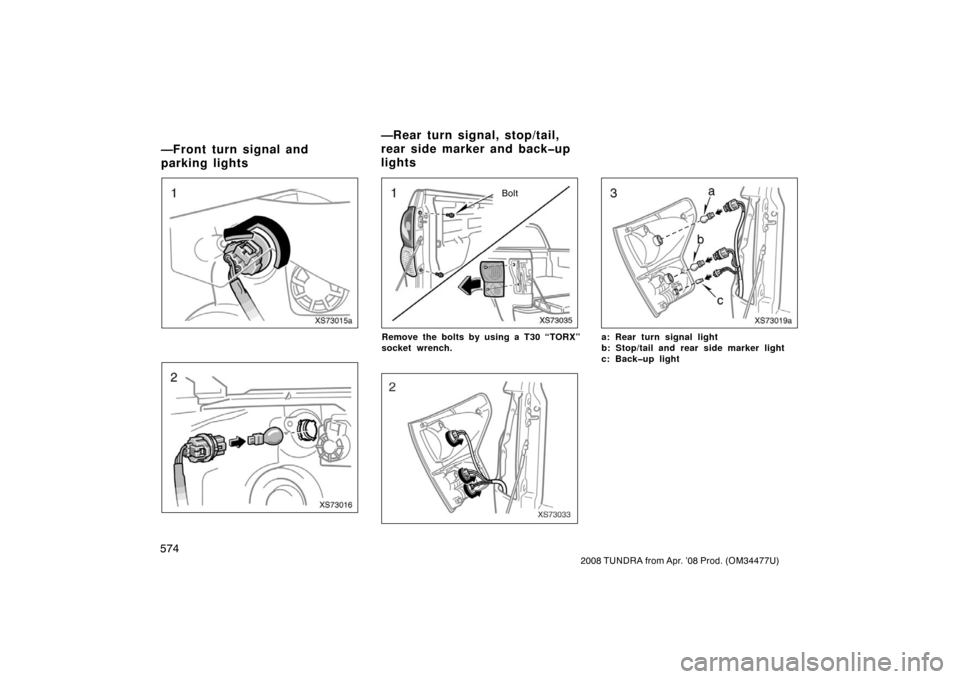

XS73015a
XS73016
XS73035
Bolt
Remove the bolts by using a T30 “TORX”
socket wrench.
XS73033
XS73019a
a: Rear turn signal light
b: Stop/tail and rear side marker light
c: Backup light
—Front turn signal and
parking lights —Rear turn signal, stop/tail,
rear side marker and backup
lights
