2008 TOYOTA TUNDRA Owners Manual

183
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
The gauge indicates the engine coolant
temperature when the engine switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop−and− go traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your
vehicle overheats” in Section 4.
XS16005
Normal
driving
Idling
Ty p e A
XS16006
Normal
driving
Idling
Ty p e B
Oil pressure gauge

184
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
The oil pressure gauge indicates engine
oil pressure when the engine switch is
on. Check it while driving to make sure
that the needle is in the proper range.
If the oil pressure should stay below the
normal range, pull off the road to a safe
place and stop the engine immediately.
Call a Toyota dealer or qualified repair
shop for assistance.
Oil pressure may not build up when the
oil level is too low. The oil pressure
gauge is not designed to indicate oil level,
and the oil level must be checked using
the level dipstick.
NOTICE
Do not drive the vehicle with the oil
pressure below the normal range until
the cause is fixed—it may ruin the
engine.
XS16015c
High range
Ty p e A
XS16016c
High range
Ty p e B
Automatic transmission fluid tempera-
ture gauge indicates automatic trans-
mission fluid temperature when the en-
gine switch is on. Check it while
driving to make sure that the needle is
in the proper range.
The gauge displays the current tempera-
ture of the automatic transmission fluid.
The gauge informs the driver of changes
in the automatic transmission fluid temper-
ature especially if it becomes too high
while towing a heavy trailer or hauling a
heavy load.
If the needle reads high range while you
are driving, slow down and pull off the
road. Stop the vehicle at a safe place and
put the selector lever in “P”. With the
engine idling, wait until the needle reads
below the high range. If the needle reads
below the high range, you may start the
vehicle again. If the needle reads the high
range, call a Toyota dealer or qualified
repair shop for assistance.
NOTICE
Continued driving with reading in the
high range may damage the automatic
transmission.
Automatic transmission fluid
temperature gauge (with
towing package)

185
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS16007b
Normal range
Ty p e A
XS16008b
Normal range
Ty p e B
The voltmeter tells whether the battery
is charged or discharged. Check it
while the engine is running—the needle
should always indicate as shown above.
If the needle reads below or above the
normal range while the engine is running,
it indicates the charging system needs im-
mediate repair.
However, it is normal for the needle to
drop below the normal range during en-
gine starting.
XS16009
Ty p e A
XS16010
Ty p e B
Voltmeter Tachometer

186
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
XS16011b
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected. 3. Trip meter reset knob—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
Odometer and two trip meters
(without multiinformation
display)

187
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
The following information is displayed
on the multiinformation display when
the engine switch is turned to the “ON”
position.
Cruise information
Odometer and two trip meters
Warning messages
Feature customization
During ordinary driving, cruise information
is displayed. However, in case the vehicle
has a system malfunction or if there is
some information that the driver should be
informed of, a warning message appears
on the display. See “—Warning messages”
on page 193 for details.
If the electrical power source has been
disconnected from the cruise information
display, the display will automatically be
set to the initial mode.
When the instrument panel lights are
turned on, the brightness of the display
will be reduced.
At extremely low temperatures, the multi −
information display may respond slowly,
and the display changes may be delayed.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
SELECTING UNIT
You can select the unit between En-
glish/U.S. customary system and metric
unit.
To select unit A (English/U.S. customary
system) or unit B (metric unit), push the
“SETUP US/M” button to display “UNITS”
screen on the multi −information display,
and push the “SELECT RESET” button
while the screen is displayed. Then push
the “INFO” or “SETUP US/M” button to
change the display screen and complete
the unit change. (At this time, the outside
temperature display on the accessory
meter also changes.) The unit variations are as follows;
Information
Unit AUnit B
Average fuel
consumption and
Instantaneous fuel
consumption
MPGL/100km
Driving rangeMILESkm
Average vehicle
speedMPHkm/h
Multiinformation display—

188
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

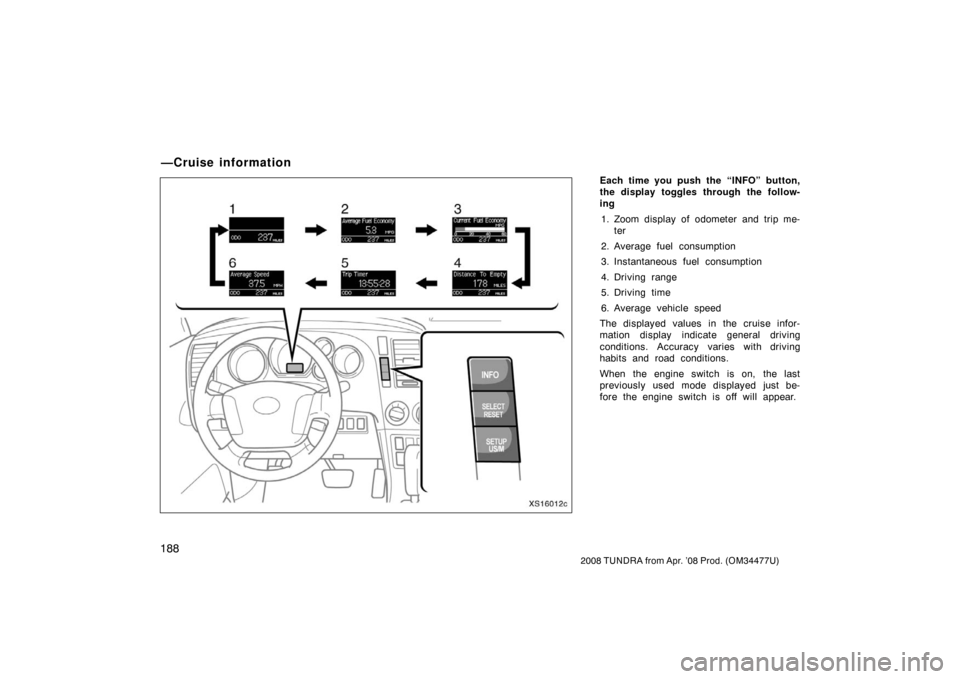

Each time you push the “INFO” button,
the display toggles through the follow-
ing
1. Zoom display of odometer and trip me- ter
2. Average fuel consumption
3. Instantaneous fuel consumption
4. Driving range
5. Driving time
6. Average vehicle speed
The displayed values in the cruise infor-
mation display indicate general driving
conditions. Accuracy varies with driving
habits and road conditions.
When the engine switch is on, the last
previously used mode displayed just be-
fore the engine switch is off will appear.
—Cruise information
XS16012C

189
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
1. Zoom display of odometer and trip
meter
The odometer and one of the trip meters
are displayed simultaneously. See
“—Odometer and two trip meters”.
2. Average fuel consumption (“Average Fuel Economy”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
The displayed value is updated every 10
seconds.
To reset the calculations, push and hold
the “SELECT RESET” button for more
than 2 seconds.
3. Instantaneous fuel consumption (“Current Fuel Economy”)
The instantaneous fuel consumption is
calculated and displayed based on dis-
tance and fuel consumption at 20 revo-
lutions of the engine.
The displayed value is updated for a short
time.
An accurate figure may not be shown if
the vehicle is driving down a long slope,
and engine brake is applied. (The display
will indicate the extremely low fuel con-
sumption.) The display indicates 0 when the vehicle
is stopped with the engine running.
The calculation is reset when the engine
switch is turned off.
4. Driving range (“Distance To Empty”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The driving range display indicates the
approximate distance that you can drive
until the fuel gauge reaches “E”. It is
different from the actual distance traveled.
The displayed value is updated every time
the fuel equivalent for 1 mile or 1 km is
consumed.
Every time you refuel the vehicle, the cal-
culation is reset. However, when only a
small amount of fuel is added to the tank,
the display may not be reset.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer than indicated. If fuel consumption
is poor, the driving range will be shorter
than indicated. If the low fuel level warning light comes
on, refuel the vehicle even if the display
indicates that the vehicle can be driven
further.
5. Driving time (“Trip Timer”)
To calculate the driving time, display
the “Trip Timer” after the engine has
been started. Then press the “SELECT
RESET” button. To stop the calculation,
press the “SELECT RESET” button
again.
Driving time is counted from 0:00:00. Up
to 99:59:59 (99 hours, 59 minutes and 59
seconds) can be displayed. When the driv-
ing time exceeds 99:59:59, the counter
returns to 0:00:00.
If the engine switch is turned off while the
driving time is being calculated, the cal-
culation will cease. When the engine is
next started, it will automatically resume
from the previous value.
If the “SELECT RESET” button is pressed
to cease the calculation and then the en-
gine switch is turned off, the calculation
will not resume when the engine is next
started. In this case, press the “SELECT
RESET” button to start the calculation.
To reset the calculation, push and hold
the “SELECT RESET” button for more
than 2 seconds.

190
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
6. Average vehicle speed
(“Average Speed”)
Average vehicle speed is calculated and
displayed based on total driving dis-
tance and total driving time with the
engine running.
The displayed value is updated every 10
seconds.
To rest the calculations, push and hold the
“SELECT RESET” button for more than 2
seconds. Your vehicle includes a variety of electron-
ic features that can be customized to your
preferences. The vehicle can be custom-
ized while the vehicle is stopped.
“KEYLESS ENTRY” is used for some cus-
tomization item names in the screen dis-
play. It means “Wireless door lock” in this
owner ’s manual.
1. Select the item you want to customize with the “SETUP US/M” button.
KEYLESS ENTRY FEEDBACK
KEYLESS ENTRY
ALL DOORS UNLOCK KEYLESS ENTRY RELOCK TIMER
DOOR AUTO LOCKING
DOOR AUTO UNLOCKING
HEADLAMPS AUTO OFF TIMER
COURTESY LAMPS OFF TIMER
DEFAULT SETTING UNITS
2. Customize the item with the “SELECTRESET” button.
Door lock and unlock warning function
Screen text: KEYLESS ENTRY
FEEDBACK
“LAMPS + TONE”
∗
“TONE” “LAMPS”“OFF”
Time for automatic door lock function
Screen text: KEYLESS ENTRY
RELOCK TIMER
“60 SECONDS”
∗“120 SECONDS”
“OFF”“30 SECONDS”
Double switch operation to unlock all
the doors
Screen text: KEYLESS ENTRY ALL
DOORS UNLOCK
“2 PRESSES”
∗ ⇔ “1 PRESS”
—Feature customization
