2008 TOYOTA TUNDRA Owners Manual

415
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS10076a
Type A (separate seats)
XS10016
Type B (bench seats)
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the engine
switch must be in the “ACC” or “ON” posi-
tion to use the lighter.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement. ASHTRAY
Ty p e A —
To use the ashtray, open the lid. The
ashtray can be removed and used out-
side the vehicle.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
To remove the ashtray, pull it out from the
front cup holder as shown in the illustra-
tion.
Ty p e B —
To use the ashtray, pull it out.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
completely.
To remove the ashtray, press down on the
lock spring plate and pull out.
Cigarette lighter and ashtray

416
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.
XS10033a
Type A (instrument panel)
XS10032a
Type B (instrument panel)
XS10038c
Type C (under the seat cushion of the
front center seat)
XS10039c
Type D (back of the front center seatback)
Power outlets (12 VDC)

417
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS10034
Type E (inside of the center console box)
XS10035a
Type F (back of the center console box)
XS10093
Type G (back of the front center seatback)
XS10095
Type H (back of the center console box)
The power outlets (12 VDC) are de-
signed for power supply for car acces-
sories.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
 Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.

418
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
INFORMATION
Depending on operating time and cur-
rent consumption, the power outlets
may not be used due to the electrical
component protection function. Please
start engine and use the power out-
lets again after turn off the engine
switch in this case.
XS10092
Type A (back of the front center seatback)
XS10094
Type B (back of the center console box)
This power outlet (115 VAC) is designed
for use as a power supply for electric
appliances in the vehicle.
The engine switch must be in the “ON”
position for the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.
Power outlet (115 VAC)

419
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

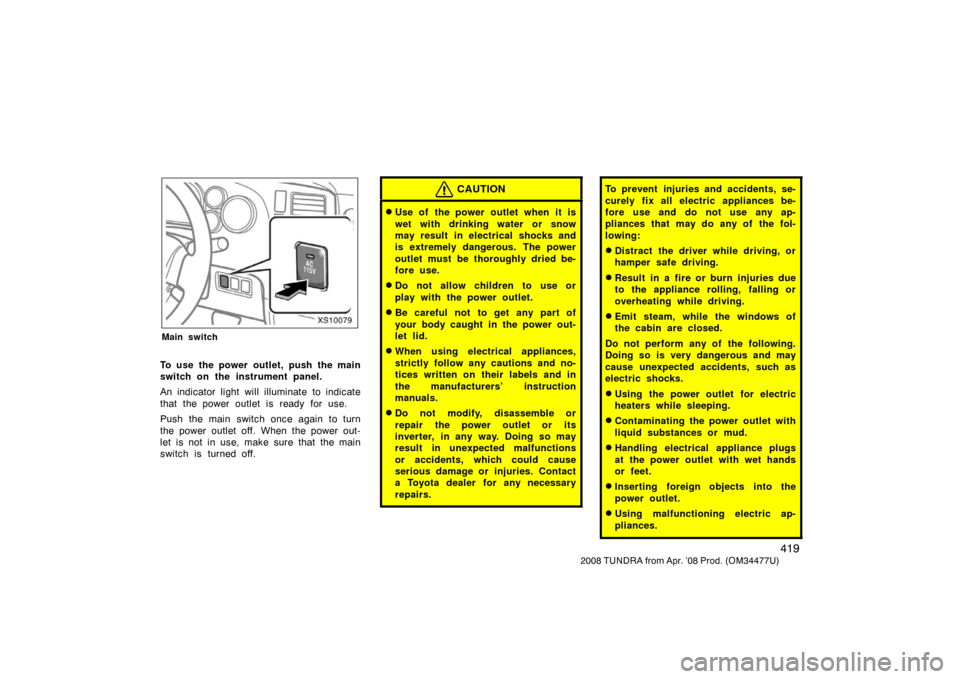

XS10079
Main switch
To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.
CAUTION
Use of the power outlet when it is
wet with drinking water or snow
may result in electrical shocks and
is extremely dangerous. The power
outlet must be thoroughly dried be-
fore use.
Do not allow children to use or
play with the power outlet.
Be careful not to get any part of
your body caught in the power out-
let lid.
When using electrical appliances,
strictly follow any cautions and no-
tices written on their labels and in
the manufacturers’ instruction
manuals.
Do not modify, disassemble or
repair the power outlet or its
inverter, in any way. Doing so may
result in unexpected malfunctions
or accidents, which could cause
serious damage or injuries. Contact
a Toyota dealer for any necessary
repairs.
To prevent injuries and accidents, se-
curely fix all electric appliances be-
fore use and do not use any ap-
pliances that may do any of the fol-
lowing:
Distract the driver while driving, or
hamper safe driving.
Result in a fire or burn injuries due
to the appliance rolling, falling or
overheating while driving.
Emit steam, while the windows of
the cabin are closed.
Do not perform any of the following.
Doing so is very dangerous and may
cause unexpected accidents, such as
electric shocks.
Using the power outlet for electric
heaters while sleeping.
Contaminating the power outlet with
liquid substances or mud.
Handling electrical appliance plugs
at the power outlet with wet hands
or feet.
Inserting foreign objects into the
power outlet.
Using malfunctioning electric ap-
pliances.

420
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Inserting inappropriate or badly fit-
ting plugs into the power outlet.
NOTICE
To prevent the battery from being
discharged, turn off all the vehicle’s
electronic equipment and accesso-
ries, such as the headlights, fog
lights and air conditioning, when
electrical appliances that consume
in excess of 100W are used contin-
uously for long periods of time.
 To prevent any damage caused by
heat, do not use any electrical ap-
pliances that give off intense heat
such as toasters, in any locations
including the internal or external
trim, seats and deck.
 Do not use any electrical ap-
pliances, which are easily affected
by vibration or heat, inside the ve-
hicle. Vibration while driving, or the
heat of the sun while parking, may
result in damage to those electrical
appliances.
Keep the lid closed when the power
outlet is not in use. Do not insert
any items other than appropriate
plugs, as this may cause electrical
failure or short circuits.
 After inserting a plug, gently close
the power outlet lid. Failure to do
so may cause damage to the plug.
 If any electrical appliances are to
be used while driving, securely fas-
ten both the appliances and their
cables to prevent them from falling
or getting caught any of the power-
train components.
 Do not use plug adaptors to con-
nect too many plugs to the power
outlet.
 If the power outlet is loose when an
electrical appliance plug is con-
nected, replace the outlet. Contact
a Toyota dealer for any necessary
replacements.If the power outlet gets dirty, turn
the main switch off and use a soft,
clean, drywet cloth to wipe it gent-
ly. Do not use any cleansing materi-
als, such as organic solvents, wax,
or compound cleaners, as these
may damage the power outlet or
cause it to malfunction.
 Keep the power outlet free from
dust and foreign materials and
clean it regularly.
The power outlet is not designed for
the following electric appliances even
though their power consumption is un-
der 115 VAC/100W. These appliances
may not operate properly.
Appliances with high initial peak watt-
age: cathode− ray tube type televisions,
compressor −driven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer −
controlled electric blankets, touch sen-
sor lamps, etc.

421
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Certain electrical appliances may cause
radio noise.
XS10020a
Upper glove box
XS10019a
Lower glove box
Upper glove box—
To open the glove box, push the button.
Lower glove box— Open by pulling the lever.
Lock by inserting the master key and turn-
ing it clockwise.
Unlock by inserting the master key and
turning it counterclockwise.
On some models—When the tail lights are
on, glove box light will come on when the
glove box is open.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
NOTICE
Upper glove box: During hot weather,
the interior of the vehicle becomes
very hot. Do not leave anything flam-
mable or deformable such as a light-
er, glasses, etc. inside.
Glove boxes

422
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Garage door opener
XS10011
Indicator light
Buttons
The garage door opener (\b
Universal Transceiver) is manufactured
under license from HomeLink\b and can
be programmed to operate garage
doors, gates, entry doors, door locks,
home lighting systems, and security
systems, etc. (a) Programming the HomeLink
\b
The HomeLink\b in your vehicle has 3
buttons and you can store one program
for each button.
To ensure correct programming into the
HomeLink
\b, install a new battery in the
hand− held transmitter prior to program-
ming.
The battery side of the hand −held trans-
mitter must be pointed away from the
HomeLink
\b during the programming pro-
cess.
For Canadian users, follow the procedure
in “Programming an entrance
gate/Programming all devices in the
Canadian market”.
1. Decide which of 3 HomeLink
\b buttons
you want to program.
XS10012
HomeLink\b
25 to
75 mm
(1 to 3 in.)
Hand −held
garage
transmitter
2. Place your hand −held garage transmit-
ter 25 to 75 mm (1 to 3 in.) away from
the surface of the HomeLink
\b.
Keep the indicator light on the HomeLink
\b
in view while programming.
