2008 TOYOTA TUNDRA Owners Manual

575
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS73020

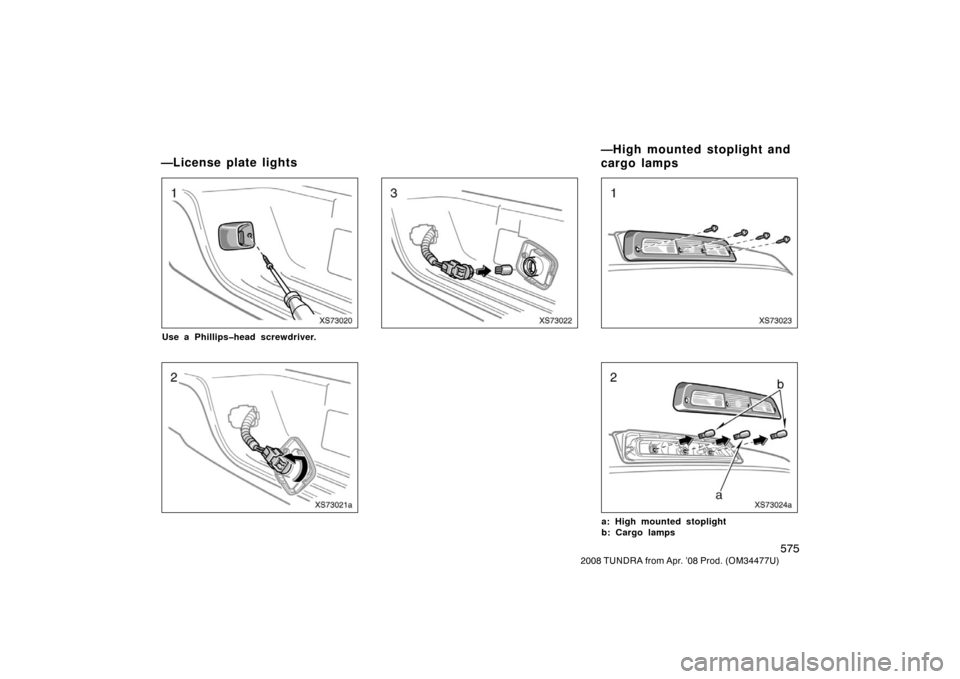

Use a Phillipshead screwdriver.
XS73021a
XS73022XS73023
XS73024
a: High mounted stoplight
b: Cargo lamps
—License plate lights —High mounted stoplight and
cargo lamps

576
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

577
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
SPECIFICATIONS
Specifications
Dimensions 578
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Vehicle capacity weight 580
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Towing capacity 586
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Engine 589
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 589
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 589
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 594
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 595
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

578
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Tw o−wheel drive models
mm (in.)
Cabin type
Regular cab modelsDouble cab modelsCrew Max models
Bed typeStandard bedLong bedStandard bedLong bedShort bed
Overall length5330 (209.8)5810 (228.7)5810 (228.7)6290 (247.6)5810 (228.7)
Overall width2030 (79.9)2030 (79.9)2030 (79.9)2030 (79.9)2030 (79.9)
Overall height1930 (75.9)∗ 11925 (75.7)∗11930 (75.9)∗11925 (75.7)∗11925 (75.7)∗1
1925 (75.7)∗2, ∗
31920 (75.5)∗21925 (75.7)∗2, ∗
31920 (75.5)∗21920 (75.5)∗2, ∗
3
Wheelbase3220 (126.7)3700 (145.6)3700 (145.6)4180 (164.5)3700 (145.6)
Front tread1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)
Rear tread1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)
∗1: With P255/70R18 tires
∗ 2: With P275/65R18 tires
∗3: With P275/55R20 tires
Dimensions

579
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Four−wheel drive models
mm (in.)
Cabin type
Regular cab modelsDouble cab modelsCrew Max models
Bed typeStandard bedLong bedStandard bedLong bedShort bed
Overall length5330 (209.8)5810 (228.7)5810 (228.7)6290 (247.6)5810 (228.7)
Overall width2030 (79.9)2030 (79.9)2030 (79.9)2030 (79.9)2030 (79.9)
Overall height1940 (76.3)∗ 11935 (76.1)∗11940 (76.3)∗11935 (76.1)∗11935 (76.1)∗1
1935 (76.1)∗2, ∗
31930 (75.9)∗21935 (76.1)∗2, ∗
31930 (75.9)∗21930 (75.9)∗2, ∗
3
Wheelbase3220 (126.7)3700 (145.6)3700 (145.6)4180 (164.5)3700 (145.6)
Front tread1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)
Rear tread1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)1725 (67.9)
∗1: With P255/70R18 tires
∗ 2: With P275/65R18 tires
∗3: With P275/55R20 tires

580
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Vehicle capacity weight
kg (lb.)
Cab type
EngineDriving systemBed typeModel code∗ 2Vehicle capacity weight
Regular
4.0 L V6 (1GR −FE)Tw o −wheel drive models
StandardGSK50L− TRADKA675 (1495)
LongGSK51L−THADKA710 (1575)
4.7 L V8 (2UZ −FE)
Tw o −wheel drive models
StandardUCK50L− TRADKA
780 (1730)
750 (1655)∗
1
LongUCK51L− THADKA
830 (1830)
795 (1755)∗
1
Four −wheel drive models
StandardUCK55L− TRADKA
755 (1670)
720 (1595)∗
1
LongUCK56L− THADKA
800 (1765)
765 (1690)∗
1
∗1: With towing package∗ 2: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.

581
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
kg (lb.)
Cab type
EngineDriving systemBed typeModel code∗ 3Vehicle capacity weight
Regular5.7 L V8 (3UR −FE)
Tw o −wheel drive models
StandardUSK50L− TRTDKA
750 (1660)
715 (1585)∗
1
LongUSK51L− THTDKA
895 (1975)
860 (1900)∗
1
925 (2045)∗ 2
Four −wheel drive models
StandardUSK55L− TRTDKA
725 (1605)
690 (1530)∗
1
LongUSK56L− THTDKA
865 (1910)
830 (1835)∗
1
∗1: With towing package∗ 2: Without option∗3: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.

582
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
kg (lb.)
Cab type
EngineDriving systemBed typeModel code∗ 2Vehicle capacity weight
Double
4.0 L V6 (1GR −FE)Tw o −wheel drive modelsStandardGSK51L− CRASKA585 (1300)
4.7 L V8 (2UZ −FE)
Tw o −wheel drive models
Standard
UCK51L− CRASKA
640 (1415)
605 (1340)∗1
UCK51L−CRALKA
655 (1450)
620 (1375)∗1
LongUCK52L−CHASKA590 (1305)∗1
Four−wheel drive models
Standard
UCK56L− CRASKA
600 (1330)
565 (1255)∗1
UCK56L−CRALKA
615 (1360)
580 (1285)∗1
LongUCK57L−CHASKA550 (1220)∗1
∗
1: With towing package∗ 2: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.
