2008 TOYOTA TUNDRA Owners Manual

63
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

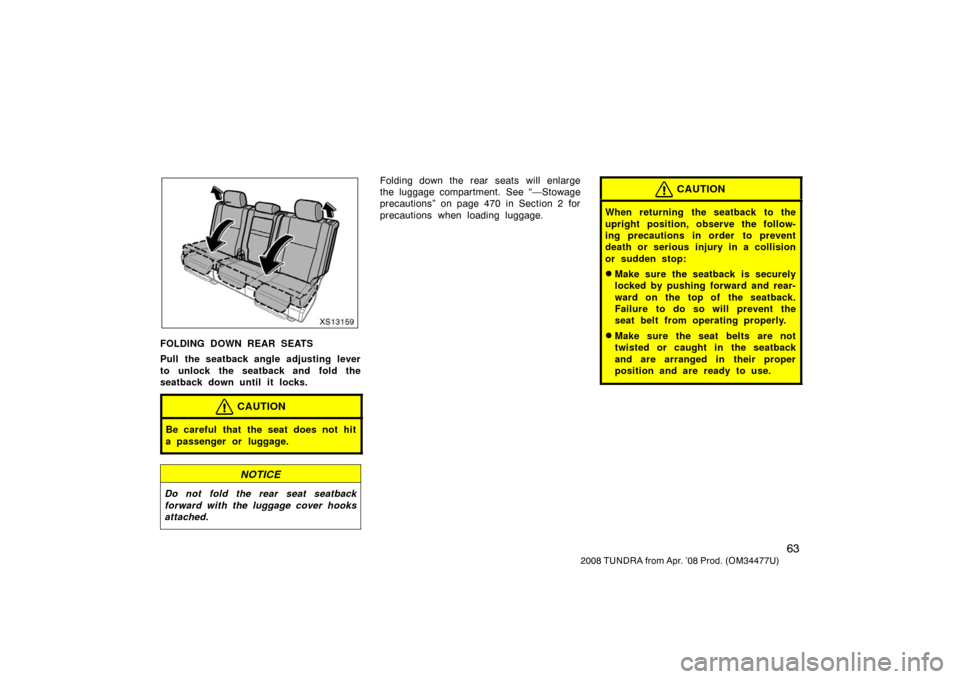

XS13159
FOLDING DOWN REAR SEATS
Pull the seatback angle adjusting lever
to unlock the seatback and fold the
seatback down until it locks.
CAUTION
Be careful that the seat does not hit
a passenger or luggage.
NOTICE
Do not fold the rear seat seatback
forward with the luggage cover hooks
attached.
Folding down the rear seats will enlarge
the luggage compartment. See “—Stowage
precautions” on page 470 in Section 2 for
precautions when loading luggage.CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
death or serious injury in a collision
or sudden stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.

64
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

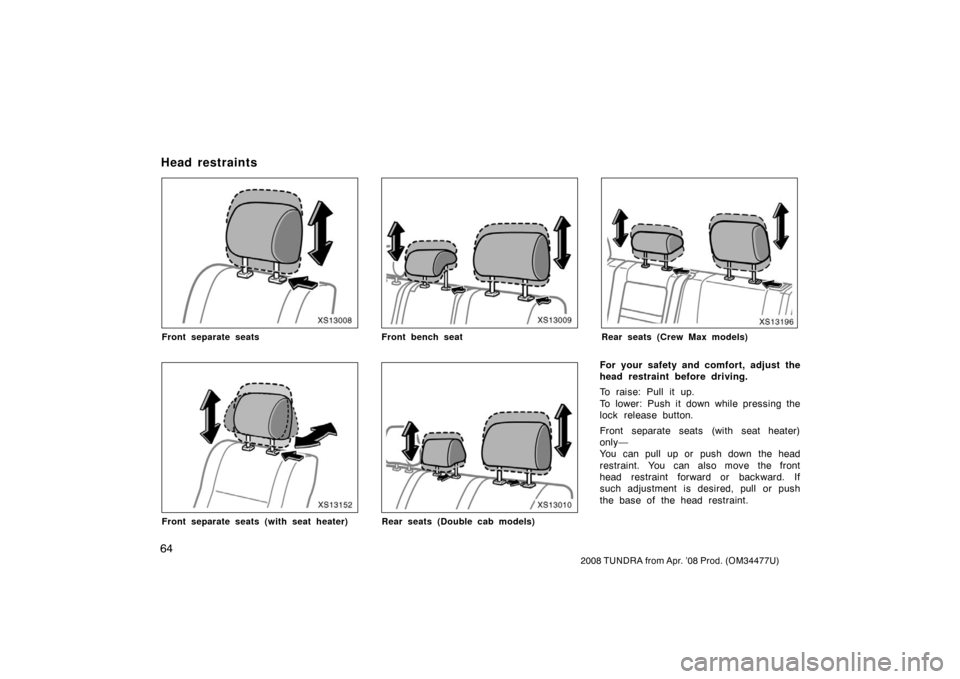

XS13008
Front separate seats
XS13152
Front separate seats (with seat heater)
XS13009
Front bench seat
XS13010
Rear seats (Double cab models)
XS13196
Rear seats (Crew Max models)
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Front separate seats (with seat heater)
only—
You can pull up or push down the head
restraint. You can also move the front
head restraint forward or backward. If
such adjustment is desired, pull or push
the base of the head restraint.
Head restraints

65
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Rear center head restraint and front cen-
ter head restraint (bench seats)—When an
occupant sits on the center position of the
rear seats (Double cab and Crew Max
models) or the front seats (bench seats),
always pull up the center head restraint to
the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.

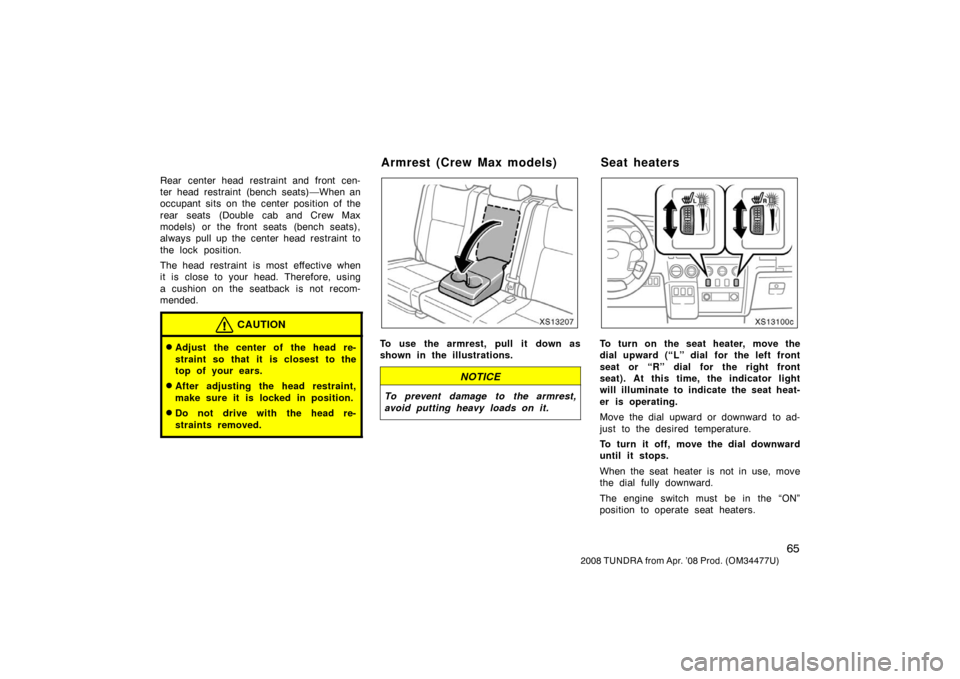

CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
XS13207
To use the armrest, pull it down as
shown in the illustrations.
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.
XS13100c
To turn on the seat heater, move the
dial upward (“L” dial for the left front
seat or “R” dial for the right front
seat). At this time, the indicator light
will illuminate to indicate the seat heat-
er is operating.
Move the dial upward or downward to ad-
just to the desired temperature.
To turn it off, move the dial downward
until it stops.
When the seat heater is not in use, move
the dial fully downward.
The engine switch must be in the “ON”
position to operate seat heaters.
Armrest (Crew Max models) Seat heaters

66
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

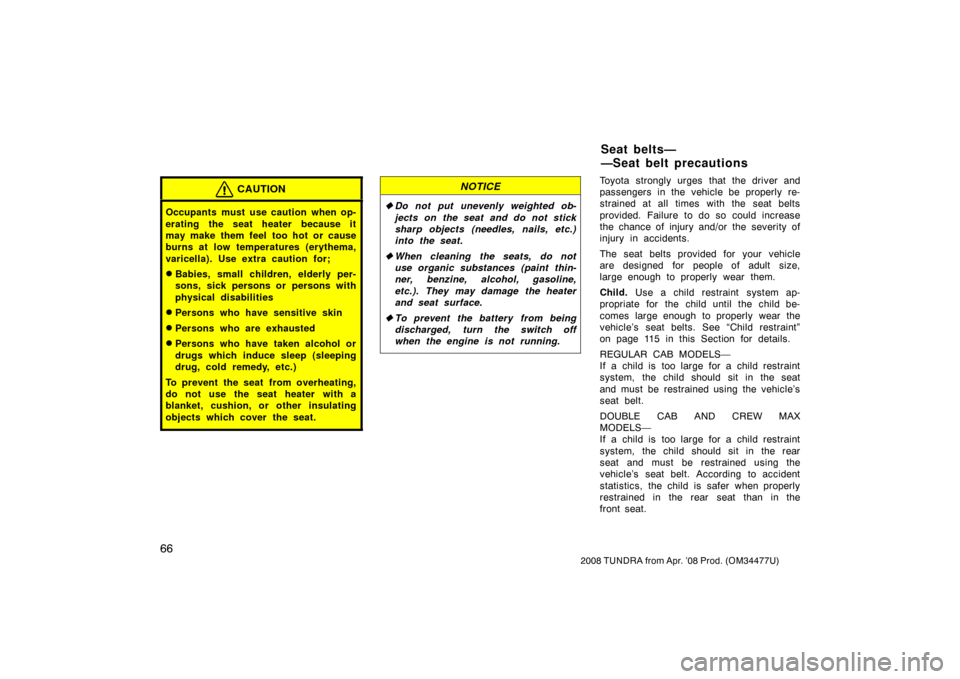

CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have sensitive skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat from overheating,
do not use the seat heater with a
blanket, cushion, or other insulating
objects which cover the seat.
NOTICE
 Do not put unevenly weighted ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 To prevent the battery from being
discharged, turn the switch off
when the engine is not running.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
on page 115 in this Section for details.
REGULAR CAB MODELS—
If a child is too large for a child restraint
system, the child s hould sit in the seat
and must be restrained using the vehicle’s
seat belt.
DOUBLE CAB AND CREW MAX
MODELS—
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
Seat belts—
—Seat belt precautions

67
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific

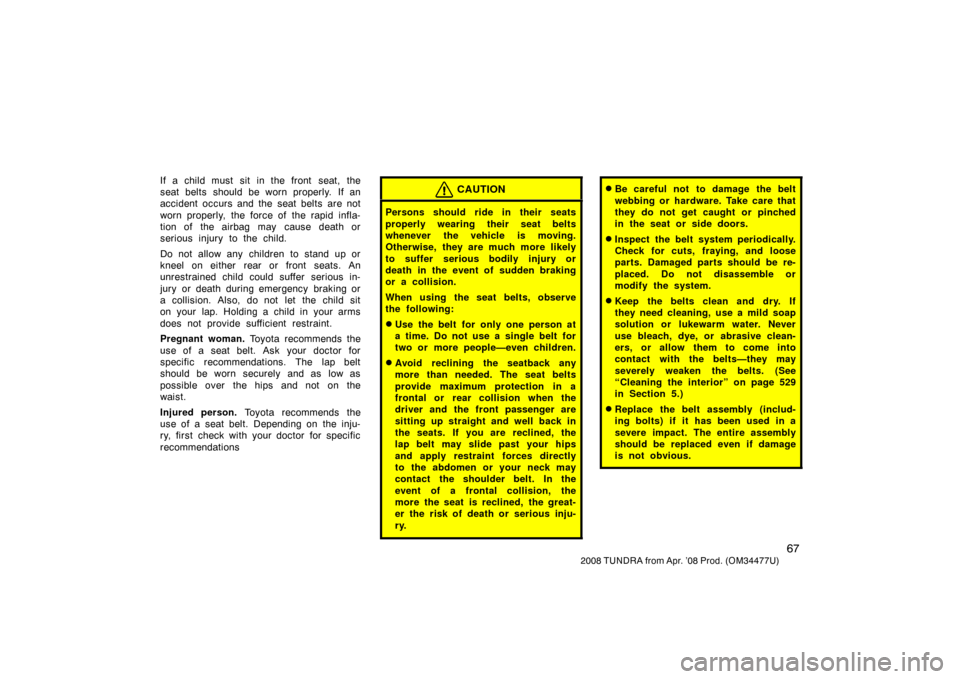

recommendationsCAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal co llision, the
more the seat is reclined, the great-
er the risk of death or serious inju-
ry.
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belts—they may
severely weaken the belts. (See
“Cleaning the interior” on page 529
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.

68
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

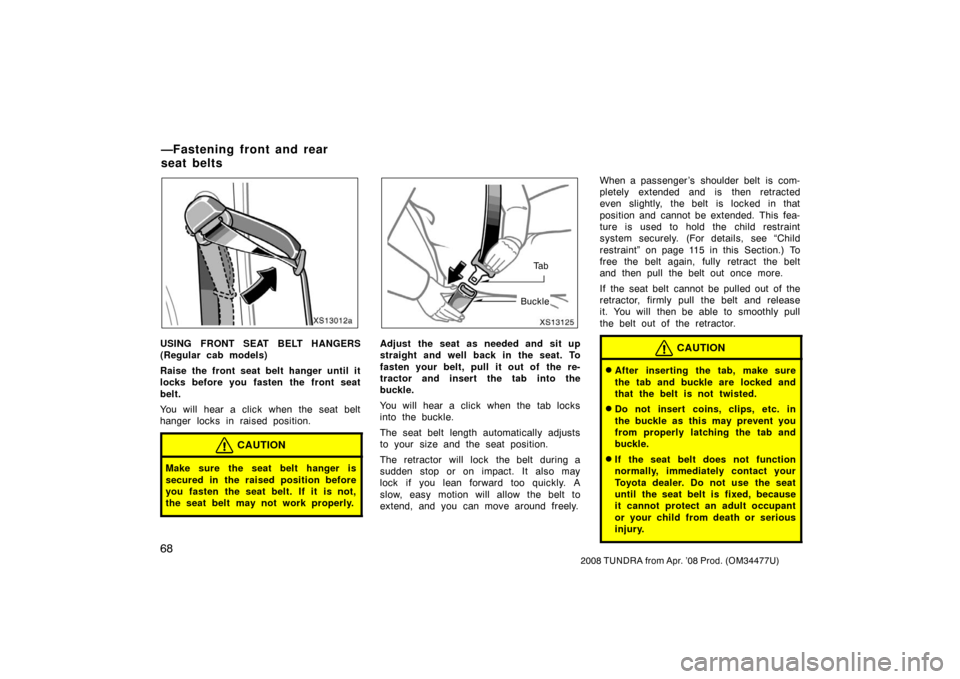

XS13012a
USING FRONT SEAT BELT HANGERS
(Regular cab models)
Raise the front seat belt hanger until it
locks before you fasten the front seat
belt.
You will hear a click when the seat belt
hanger locks in raised position.
CAUTION
Make sure the seat belt hanger is
secured in the raised position before
you fasten the seat belt. If it is not,
the seat belt may not work properly.
XS13125Ta b
Buckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely. When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint” on page 115 in this Section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from death or serious
injury.
—Fastening front and rear
seat belts

69
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

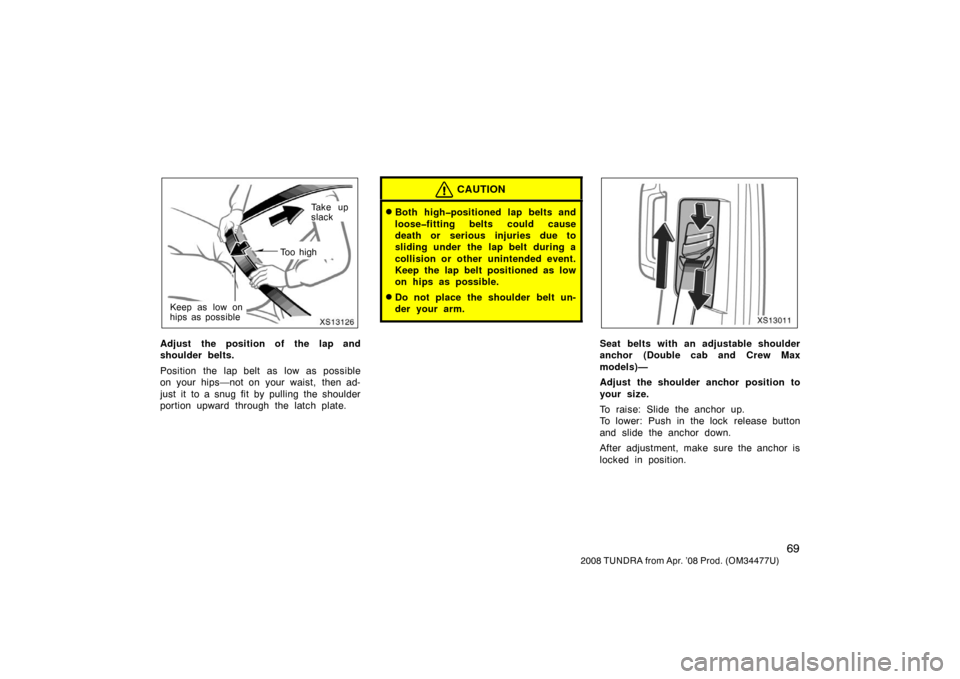

XS13126
Ta k e u p
slack
Keep as low on
hips as possible
To o h i g h
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit by pulling the s houlder
portion upward through the latch plate.
CAUTION
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on hips as possible.
Do not place the shoulder belt un-
der your arm.
XS13011
Seat belts with an adjustable shoulder
anchor (Double cab and Crew Max
models)—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment, make sure the anchor is
locked in position.

70
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

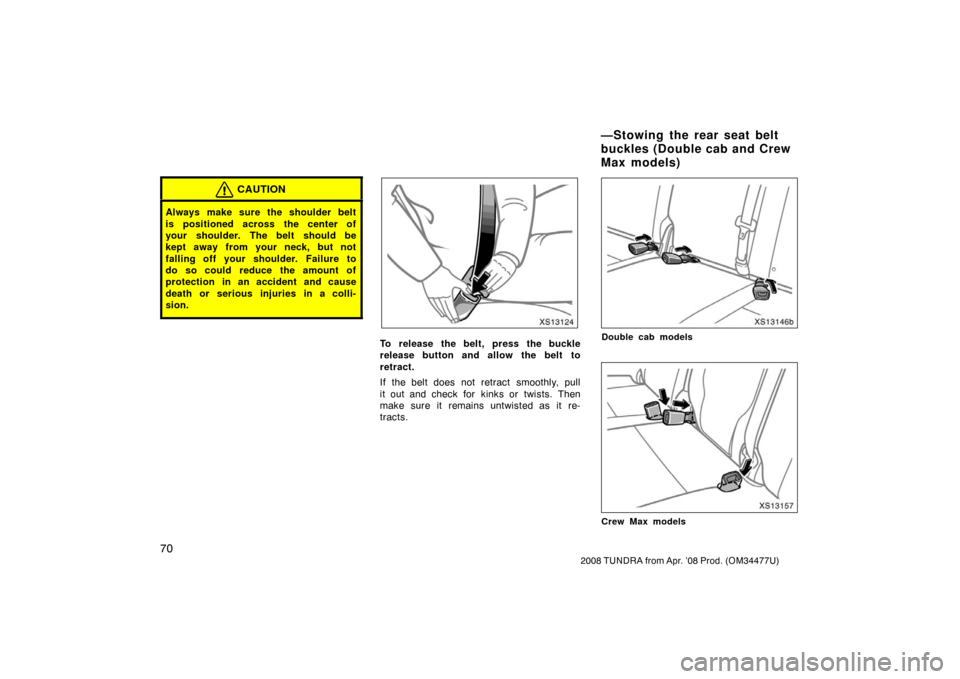

CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
death or serious injuries in a colli-
sion.
XS13124
To release the belt, press the buckle
release button and allow the belt to
retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.
XS13146b
Double cab models
XS13157
Crew Max models
—Stowing the rear seat belt
buckles (Double cab and Crew
Max models)
