2008 TOYOTA TUNDRA Owners Manual

335
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
MP3 only—
Folder and file names will appear on the
screen when the “DVD” button is pushed.
The details of the specific switches, con-
trols, and features are described below.
1. “RPT” switch When the “RPT” switch is pushed while
a track is played, the track file will be
played repeatedly until the switch is
pushed again. When the switch is
pushed for at least 0.8 seconds, all the
files in a folder will be played repeat-
edly. To turn off repeat play mode,
push the switch again.
2. “RAND” switch
When the “RAND” switch is pushed,
the files in a current folder will be
played in random order. When the
switch is pushed for at least 0.8 sec-
onds, all the files in the disk will be
played in random. To turn off random
play mode, push the switch again. 3. “SCAN” switch
When the “SCAN” switch is pushed, all
the files in a current folder will be
scanned. Only the first 10 seconds of
each file are played sequentially until
all the files are scanned. When the
switch is pushed for at least 0.8 sec-
onds, the first 10 seconds of each ini-
tial file of all the folders in the disk will
be played sequentially until the entire
initial files are scanned. To stop scan-
ning, push the switch again.
4. “FLD
” switch
When the switch is pushed, the initial
file of the next folder will be played.
5. “
FLD” switch
When the switch is pushed, the initial
file of the previous folder will be
played.
6. “DETAIL” switch
When the switch is pushed while a
track is played, the detailed file infor-
mation of the track will be displayed. You can adjust the color, contrast, tone
and brightness of the screen.
Push the “DISPLAY” button on the control-
ler and the “Display” screen will appear.
The screen may turn purple to deflect the
sunlight. This is not a malfunction.
—Screen adjustment

336
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Z18030
Operate the joystick up and down to se-
lect Brightness, Contrast, Tone, or Color
and left and right to make adjustments.
− or “RED”+ or
“GREEN”
BrightnessDarkensBrightens
ContrastWeakens
the contrastStrengthens
the contrast
ToneWeakens
the toneStrengthens
the tone
Color
Strengthens
the red
colorStrengthens
the green
color
After adjusting the screen, push the “ENT”
button or “DISPLAY” button to return to
the previous screen.
—Selecting the video mode
Z17478
The audio machine connected to the input
terminal adapter can be played in the vid-
eo mode.
To select the video mode, push the
“VIDEO” button on the controller.

337
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
DVD PLAYER AND DVD VIDEO DISCS
This DVD player conforms to NTSC col-
or TV formats. DVD video discs con-
forming to other formats such as PAL
or SECAM cannot be used.
Region codes: Some DVD video discs
have a region code indicating where the
disc can be used. If the DVD video disc
is not labeled “ALL” or “1”, you cannot
use it in this DVD player. If you attempt
to play an inappropriate DVD video disc
in this player, “REGION CODE ERROR”
appears on the screen. Even if the DVD
video disc does not have a region code,

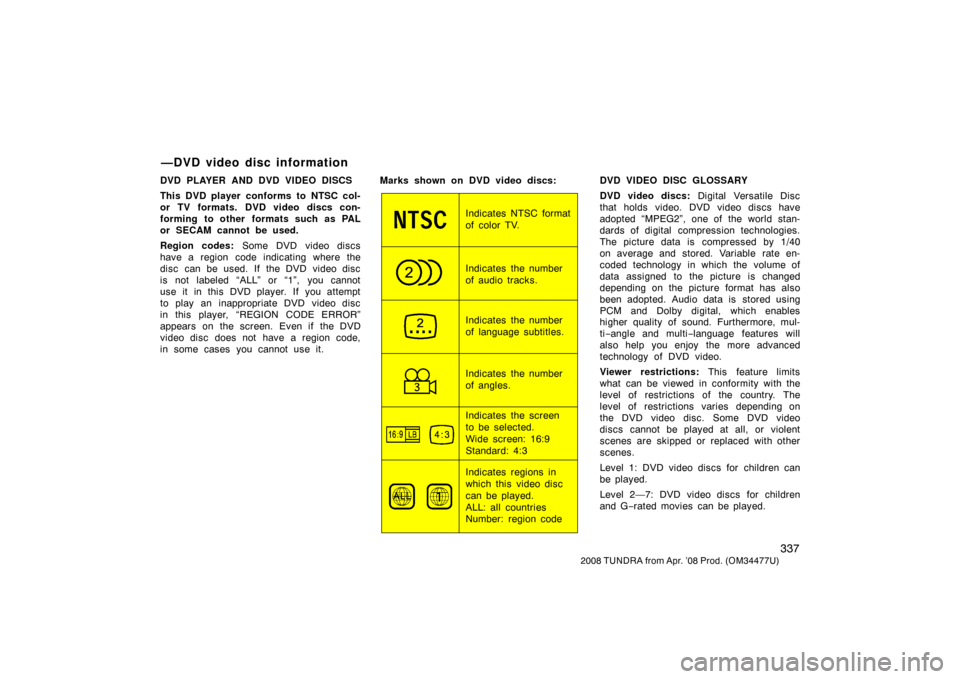

in some cases you cannot use it. Marks shown on DVD video discs:
Indicates NTSC format
of color TV.
Indicates the number
of audio tracks.
Indicates the number
of language subtitles.
Indicates the number
of angles.
Indicates the screen
to be selected.
Wide screen: 16:9
Standard: 4:3
Indicates regions in
which this video disc
can be played.
ALL: all countries
Number: region codeDVD VIDEO DISC GLOSSARY
DVD video discs:
Digital Versatile Disc
that holds video. DVD video discs have
adopted “MPEG2”, one of the world stan-
dards of digital compression technologies.
The picture data is compressed by 1/40
on average and stored. Variable rate en-
coded technology in which the volume of
data assigned to the picture is changed
depending on the picture format has also
been adopted. Audio data is stored using
PCM and Dolby digital, which enables
higher quality of sound. Furthermore, mul-
ti −angle and multi −language features will
also help you enjoy the more advanced
technology of DVD video.
Viewer restrictions: This feature limits
what can be viewed in conformity with the
level of restrictions of the country. The
level of restrictions varies depending on
the DVD video disc. Some DVD video
discs cannot be played at all, or violent
scenes are skipped or replaced with other
scenes.
Level 1: DVD video discs for children can
be played.
Level 2—7: DVD video discs for children
and G −rated movies can be played.
—DVD video disc information

338
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Level 8: All types of DVD video discs can
be played.
Multiangle feature: You can enjoy the
same scene at different angles.
Multilanguage feature: You can select
the language of the subtitles and audio.
Region codes: Region codes are provided
on DVD players and DVD discs. If the
DVD video disc does not have the same
region code as the DVD player, you
cannot play the disc on the DVD player.
For region codes, see page 337.
Audio: This DVD player can play liner
PCM, Dolby digital, dts and MPEG audio
format DVD. Other decoded type cannot
be played.
Title and chapter: Video and audio pro-
grams stored on DVD video discs are di-
vided in parts by title and chapter.
Title: The largest unit of the video and
audio programs stored on DVD video
discs. Usually, one piece of a movie, one
album, or one audio program is assigned
as a title.
Chapter: A unit smaller than a title. A title
comprises plural chapters. Manufactured under license from Dolby
Laboratories. “Dolby”, “Dolby Digital”,
“Pro Logic”, and the doubleD symbol
are trademarks of Dolby Laboratories.
Confidential unpublished works.

19921997 Dolby Laboratories. All
rights reserved.
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. pat-
ents and other intellectual property
rights owned by Macrovision Corpora-
tion and other rights owners. Use of
this copyright protection technology
must be authorized by Macrovision Cor-
poration, and is intended for home and
other limited viewing uses only unless
otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
“dts” is a trademark of Digital Theater
Systems, Inc.
—A/V input adapter
The rear entertainment system plays vid-
eos and sound when an audio −video
equipment is connected to the A/V input
adapter. For details, refer to the manufac-
turer’s instructions.

339
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS18032
Separate seats type
XS18033
Bench seat type
To use the adapter, open the cover.
The A/V input adapter is composed of 3
input adapters.
Yellow: Image input adapter
Red: Audio input adapter
White: Audio input adapter
NOTICE
Close the cover when the A/V input
adapter is not in use. Inserting a for-
eign object other than the appropriate
plug may cause electrical failure or
short circuit.
—Power outlet
XS10094
Separate seats type
XS10092
Bench seat type

340
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
This power outlet is designed for use as
a power supply for the audio device con-
nected to the input terminal adapter.
The engine switch must be in the “ON”
position for the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.
XS18029
To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.
CAUTION
Use of the power outlet when it is
wet with drinking water or snow
may result in electrical shocks and
is extremely dangerous. The power
outlet must be thoroughly dried be-
fore use.
Do not allow children to use or
play with the power outlet.
Be careful not to get any part of
your body caught in the power out-
let lid.
When using electrical appliances,
strictly follow any cautions and no-
tices written on their labels and in
the manufacturers’ instruction
manuals.
Do not modify, disassemble or
repair the power outlet or its
inverter, in any way. Doing so may
result in unexpected malfunctions
or accidents, which could cause
serious damage or injuries. Contact
a Toyota dealer for any necessary
repairs.

341
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
To prevent injuries and accidents, se-
curely fix all electric appliances be-
fore use and do not use any ap-
pliances that may do any of the fol-
lowing:
Distract the driver while driving, or
hamper safe driving.
Result in a fire or burn injuries due
to the appliance rolling, falling or
overheating while driving.
Emit steam, while the windows of
the cabin are closed.
Do not perform any of the following.
Doing so is very dangerous and may
cause unexpected accidents, such as
electric shocks.
Using the power outlet for electric
heaters while sleeping.
Contaminating the power outlet with
liquid substances or mud.
Handling electrical appliance plugs
at the power outlet with wet hands
or feet.
Inserting foreign objects into the
power outlet.
Using malfunctioning electric ap-
pliances.
Inserting inappropriate or badly fit-
ting plugs into the power outlet.
NOTICE
 To prevent the battery from being
discharged, turn off all the vehicle’s
electronic equipment and accesso-
ries, such as the headlights, fog
lights and air conditioning, when
electrical appliances that consume
in excess of 100W are used contin-
uously for long periods of time.
 To prevent any damage caused by
heat, do not use any electrical ap-
pliances that give off intense heat
such as toasters, in any locations
including the internal or external
trim, seats and deck.
 Do not use any electrical ap-
pliances, which are easily affected
by vibration or heat, inside the ve-
hicle. Vibration while driving, or the
heat of the sun while parking, may
result in damage to those electrical
appliances.
Keep the lid closed when the power
outlet is not in use. Do not insert
any items other than appropriate
plugs, as this may cause electrical
failure or short circuits.
 After inserting a plug, gently close
the power outlet lid. Failure to do
so may cause damage to the plug.
 If any electrical appliances are to
be used while driving, securely fas-
ten both the appliances and their
cables to prevent them from falling
or getting caught any of the power-
train components.
 Do not use plug adaptors to con-
nect too many plugs to the power
outlet.
 If the power outlet is loose when an
electrical appliance plug is con-
nected, replace the outlet. Contact
a Toyota dealer for any necessary
replacements.

342
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
If the power outlet gets dirty, turn
the main switch off and use a soft,
clean, drywet cloth to wipe it gent-
ly. Do not use any cleansing materi-
als, such as organic solvents, wax,
or compound cleaners, as these
may damage the power outlet or
cause it to malfunction.
 Keep the power outlet free from
dust and foreign materials and
clean it regularly.
The power outlet is not designed for
the following electric appliances even if
their power consumption is under 115
VAC/100W. These appliances may not
operate properly.
Appliances with high initial peak watt-
age: cathode− ray tube type televisions,
compressor −driven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer −
controlled electric blankets, touch sen-
sor lamps, etc. Certain electrical appliances may cause
radio noise.
NOTICE
To ensure correct audio system op-
eration:

Be careful not to spill beverages
over the system.
 Do not put anything other than a
compact disc into the slot.
 Do not put anything other than a
DVD video, DVD audio, video CD,
dtsCD or audio CD into the DVD
player.
 The use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the sys-
tem which you are listening to.
However, this does not indicate a
malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
Audio/video system operating
hints
