2008 TOYOTA TUNDRA Owners Manual

399
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS19008
1. Open the glove box, and slide off
the damper as shown.
XS19009c
2. Push in each side of the glove boxto disconnect the claws.
XS19010a
3. Remove the filter cover while push-ing in both ends of the cover.

400
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS19011a
4. Pull the filter out of the filter outlet.
Inspect the filter on the surface.
If it is dirty, it should be replaced.
XS19012
When installing the filter in the filter
outlet, keep the arrow pointing up.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.

401
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Accessory meter 402
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Intuitive parking assist 406
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Compass 411
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Cigarette lighter and ashtray 415
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets (12 VDC) 416
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Power outlet (115 VAC) 418
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Glove boxes 421
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Garage door opener 422
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Auxiliary boxes 425
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Sunglass holder 427
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Card holder 427
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Map holder 429
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Pen holder 430
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Tissue pocket 431
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Center console box 432
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Front cup holders 433
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Rear cup holders 434
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Bottle holders 435
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Storage box 436
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Seatback table 437
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Deck hooks 438
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Grocery bag/cargo net hooks 438
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 439
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

402
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

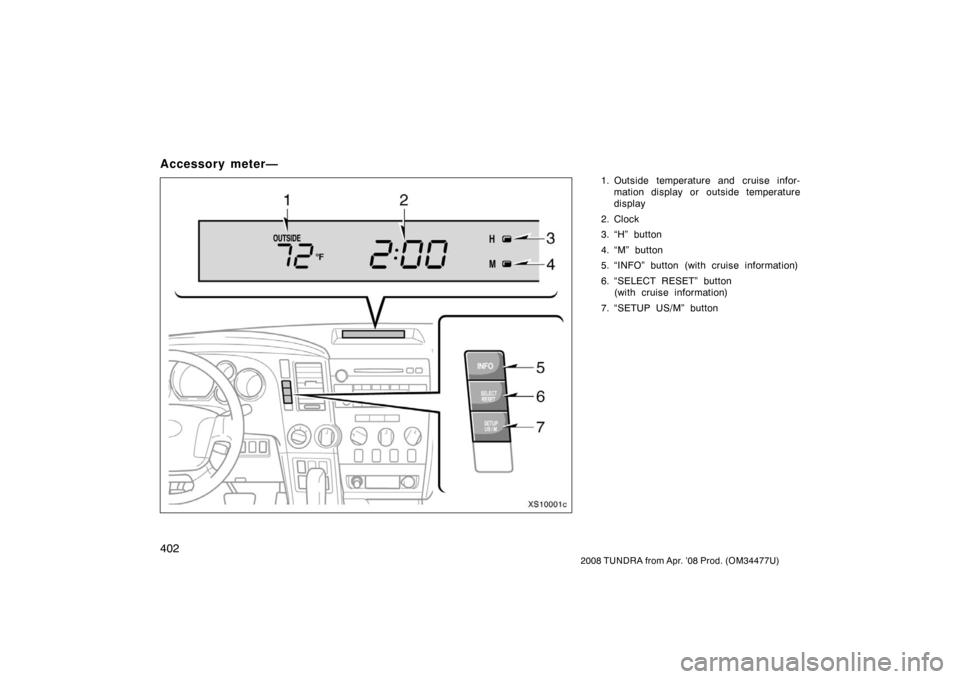

Accessory meter—
1. Outside temperature and cruise infor-
mation display or outside temperature
display
2. Clock
3. “H” button
4. “M” button
5. “INFO” button (with cruise information)
6. “SELECT RESET” button (with cruise information)
7. “SETUP US/M” button
XS10001c

403
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Operate the accessory meter with the
engine switch on.
When the engine switch is turned to “ON”,
the last previously used mode displayed
just before the engine switch is turned off
will appear.
When the instrument panel lights are
turned on, the brightness of the display
will be reduced.

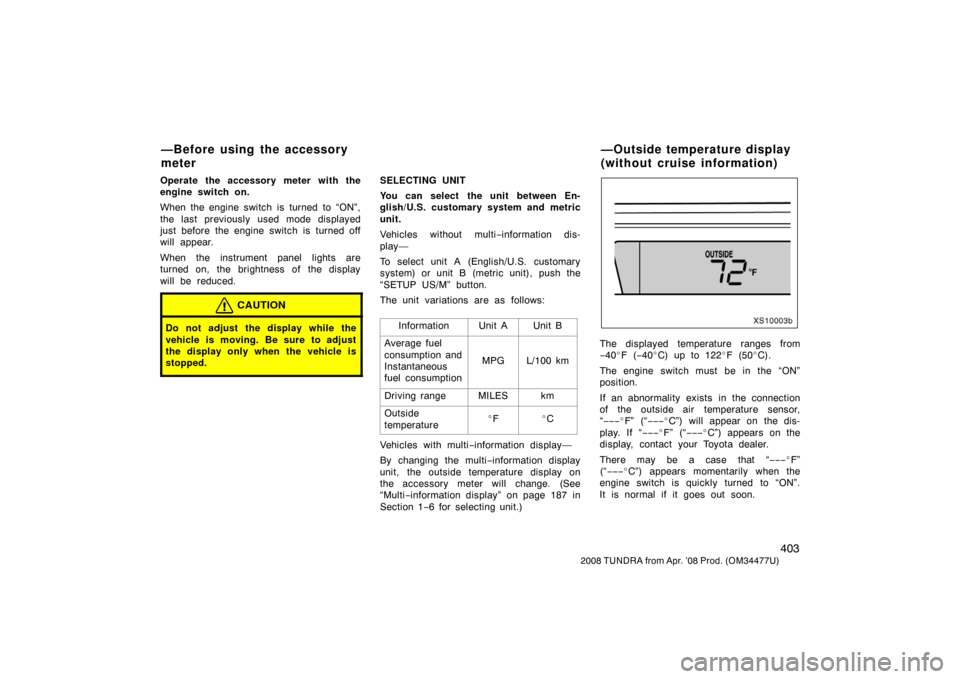

CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
SELECTING UNIT
You can select the unit between En-
glish/U.S. customary system and metric
unit.
Vehicles without multi−information dis-
play—
To select unit A (English/U.S. customary
system) or unit B (metric unit), push the
“SETUP US/M” button.
The unit variations are as follows:
Information
Unit AUnit B
Average fuel
consumption and
Instantaneous
fuel consumption
MPGL/100 km
Driving rangeMILESkm
Outside
temperatureFC
Vehicles with multi −information display—
By changing the multi −information display
unit, the outside temperature display on
the accessory meter will change. (See
“Multi −information display” on page 187 in
Section 1 −6 for selecting unit.)
XS10003b
The displayed temperature ranges from
−40 F ( −40 C) up to 122 F (50 C).
The engine switch must be in the “ON”
position.
If an abnormality exists in the connection
of the outside air temperature sensor,
“ −−− F” (“ −−−C”) will appear on the dis-
play. If “ −−−F” (“ −−−C”) appears on the
display, contact your Toyota dealer.
There may be a case that “−−− F”
(“−−− C”) appears momentarily when the
engine switch is quickly turned to “ON”.
It is normal if it goes out soon.
—Before using the accessory
meter —Outside temperature display
(without cruise information)

404
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS10004e

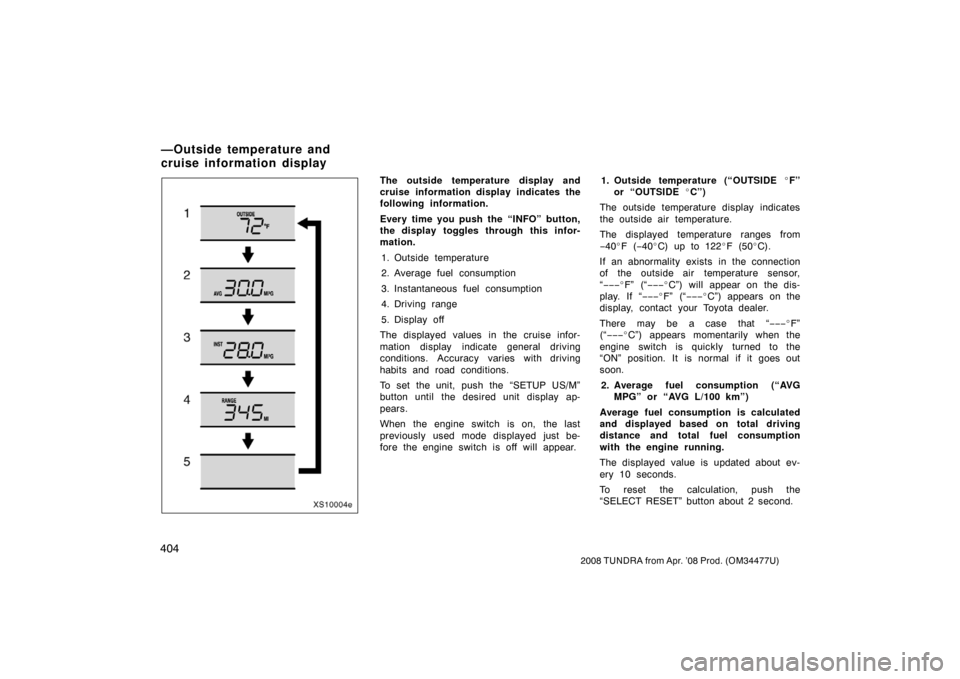

The outside temperature display and
cruise information display indicates the
following information.
Every time you push the “INFO” button,
the display toggles through this infor-
mation.
1. Outside temperature
2. Average fuel consumption
3. Instantaneous fuel consumption
4. Driving range
5. Display off
The displayed values in the cruise infor-
mation display indicate general driving
conditions. Accuracy varies with driving
habits and road conditions.
To set the unit, push the “SETUP US/M”
button until the desired unit display ap-
pears.
When the engine switch is on, the last
previously used mode displayed just be-
fore the engine switch is off will appear. 1. Outside temperature (“OUTSIDE
F”
or “OUTSIDE C”)
The outside temperature display indicates
the outside air temperature.
The displayed temperature ranges from
− 40 F ( −40 C) up to 122 F (50 C).
If an abnormality exists in the connection
of the outside air temperature sensor,
“ −−− F” (“ −−−C”) will appear on the dis-
play. If “ −−−F” (“ −−−C”) appears on the
display, contact your Toyota dealer.
There may be a case that “−−− F”
(“−−− C”) appears momentarily when the
engine switch is quickly turned to the
“ON” position. It is normal if it goes out
soon.
2. Average fuel consumption (“AVG MPG” or “AVG L/100 km”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
The displayed value is updated about ev-
ery 10 seconds.
To reset the calculation, push the
“SELECT RESET” button about 2 second.
—Outside temperature and
cruise information display

405
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
3. Instantaneous fuel consumption
(“INST MPG” or “INST L/100 km”)
The instantaneous fuel consumption is
calculated and displayed based on dis-
tance and fuel consumption at 20 revo-
lutions of the engine.
The displayed value is updated for a short
time.
An accurate figure may not be shown if
the vehicle is driving down a long slope,
and engine brake is applied. (The display
will indicate the extremely low fuel con-
sumption.)
When the vehicle is stopped with the en-
gine running, “ −−, −MPG” will be shown
on the display.
The calculation is reset when the engine
switch is turned off. 4. Driving range (“RANGE MI” or
“RANGE km”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The driving range display indicates the
approximate distance that you can drive
until the fuel gauge reaches “E”. It is
different from the actual distance traveled.
The displayed value is updated every time
the fuel equivalent for 1 mile or 1 km is
consumed.
Every time you refuel the vehicle, the cal-
culation is reset.
The actual driving range varies with driv-
ing habits and road conditions. If fuel effi-
ciency is good, the driving range will be
longer than indicated. If fuel efficiency is
poor, the driving range will be shorter than
indicated.
If the low fuel level warning light comes
on, refuel the vehicle even if the display
indicates that the vehicle can be driven
further.

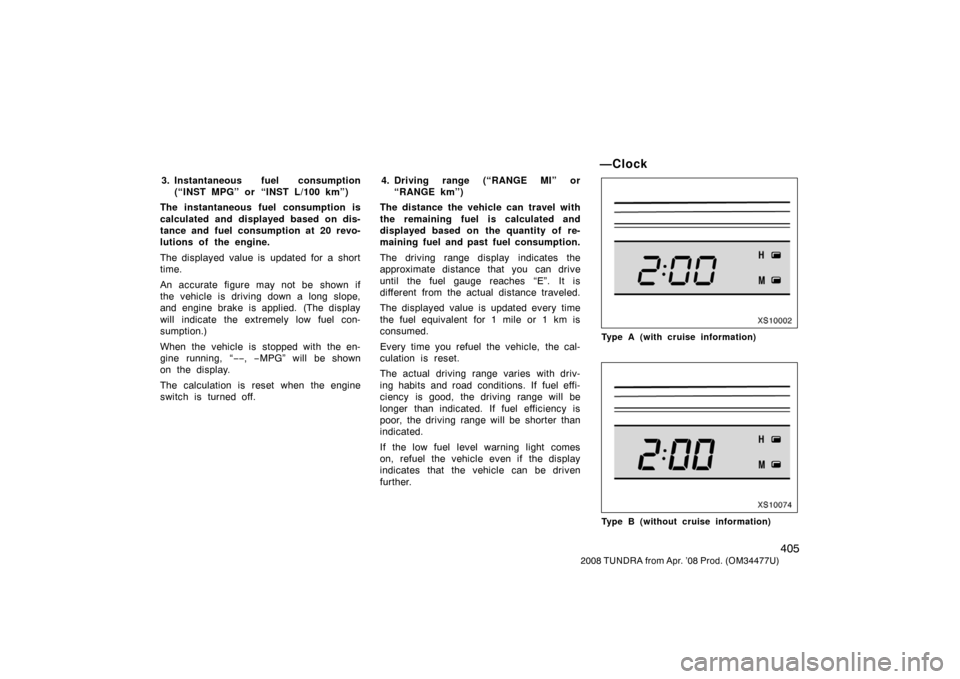

—Clock
XS10002
Type A (with cruise information)
XS10074
Type B (without cruise information)

406
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
Vehicles with cruise information only—
For quicker adjustment of the clock, hold
down “M” or “H” button continuously. This
allows faster advancement of the minutes
and hours while setting.
The engine switch must be in the “ACC”
or “ON” position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time indi-
cation will be reduced.

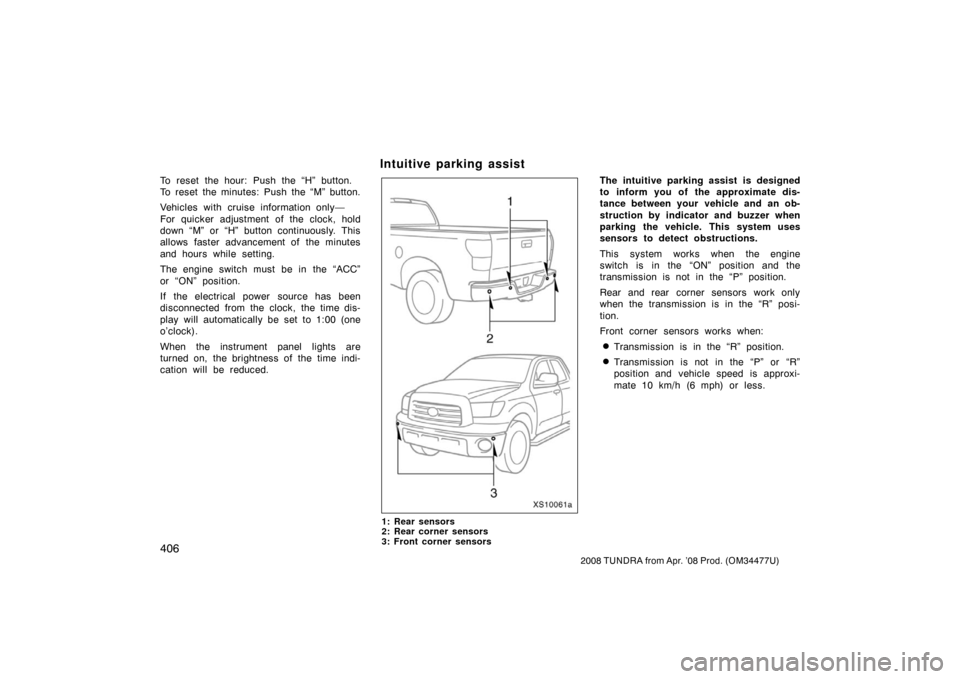

Intuitive parking assist
XS10061a
1: Rear sensors
2: Rear corner sensors
3: Front corner sensors
The intuitive parking assist is designed
to inform you of the approximate dis-
tance between your vehicle and an ob-
struction by indicator and buzzer when
parking the vehicle. This system uses
sensors to detect obstructions.
This system works when the engine
switch is in the “ON” position and the
transmission is not in the “P” position.
Rear and rear corner sensors work only
when the transmission is in the “R” posi-
tion.
Front corner sensors works when:
Transmission is in the “R” position.
Transmission is not in the “P” or “R”
position and vehicle speed is approxi-
mate 10 km/h (6 mph) or less.
