2008 TOYOTA TUNDRA Owners Manual

607
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
XS90006

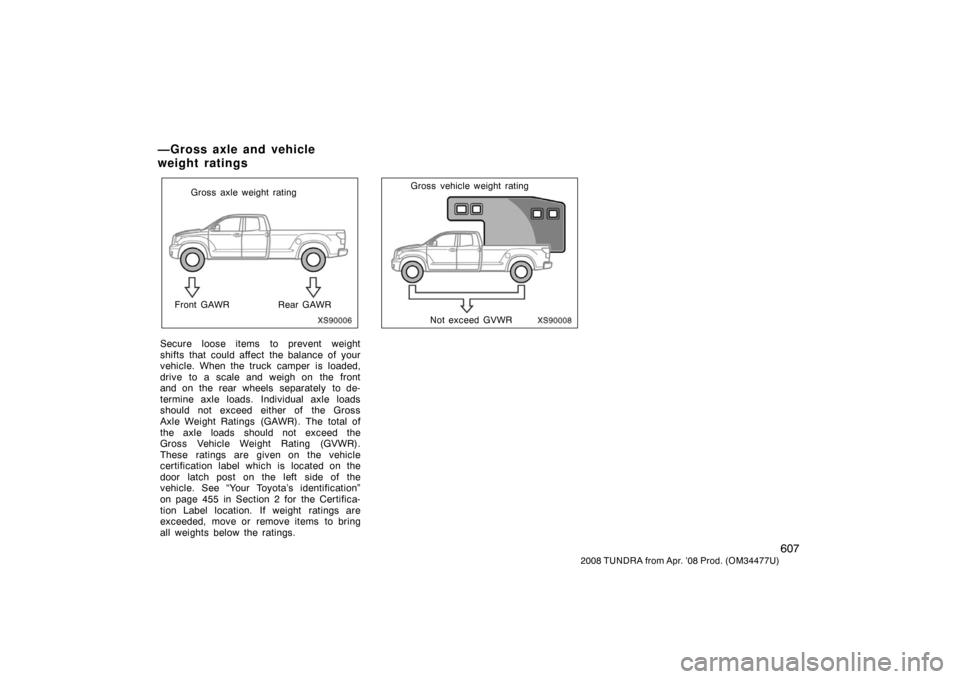

Gross axle weight rating
Front GAWR Rear GAWR
Secure loose items to prevent weight
shifts that could affect the balance of your
vehicle. When the truck camper is loaded,
drive to a scale and weigh on the front
and on the rear wheels separately to de-
termine axle loads. Individual axle loads
should not exceed either of the Gross
Axle Weight Ratings (GAWR). The total of
the axle loads should not exceed the
Gross Vehicle Weight Rating (GVWR).
These ratings are given on the vehicle
certification label which is located on the
door latch post on the left side of the
vehicle. See “Your Toyota’s identification”
on page 455 in Section 2 for the Certifica-
tion Label location. If weight ratings are
exceeded, move or remove items to bring
all weights below the ratings.
XS90008
Gross vehicle weight rating
Not exceed GVWR
—Gross axle and vehicle
weight ratings

608
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
GAWR, GVWR
kg (lb.)
Cab type
EngineDriving
systemBed typeModel code∗GAWRGVWRFrontRear
Regular
4.0 L V6
(1GR −FE)2WDStandardGSK50L− TRADKA1765 (3900)1675 (3700)2810 (6200)
LongGSK51L−THADKA1765 (3900)1720 (3800)2900 (6400)
4.7 L V8
(2UZ −FE)
2WDStandardUCK50L− TRADKA1765 (3900)1790 (3950)2990 (6600)
LongUCK51L−THADKA1765 (3900)1835 (4050)3080 (6800)
4WDStandardUCK55L−TRADKA1810 (4000)1835 (4050)3080 (6800)
LongUCK56L−THADKA1810 (4000)1880 (4150)3175 (7000)
5.7 L V8
(3UR −FE)
2WDStandardUSK50L− TRTDKA1765 (3900)1790 (3950)2990 (6600)
LongUSK51L−THTDKA1765 (3900)1880 (4150)3175 (7000)
4WDStandardUSK55L−TRTDKA1810 (4000)1835 (4050)3080 (6800)
LongUSK56L−THTDKA1810 (4000)1880 (4150)3265 (7200)
∗: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.

609
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
kg (lb.)
Cab type
EngineDriving
systemBed typeModel code∗GAWRGVWRFrontRear
Double
4.0 L V6
(1GR −FE)2WDStandardGSK51L− CRASKA1765 (3900)1720 (3800)2900 (6400)
4.7 L V8
(2UZ −FE)
2WDStandardUCK51L− CRASKA1765 (3900)1810 (4000)3035 (6700)
UCK51L−CRALKA1765 (3900)1810 (4000)3035 (6700)
LongUCK52L−CHASKA1765 (3900)1835 (4050)3080 (6800)
4WDStandardUCK56L−CRASKA1810 (4000)1855 (4100)3125 (6900)
UCK56L−CRALKA1810 (4000)1855 (4100)3125 (6900)
LongUCK57L−CHASKA1810 (4000)1880 (4150)3175 (7000)
5.7 L V8
(3UR −FE)
2WDStandardUSK51L− CRTSKA1765 (3900)1855 (4100)3125 (6900)
USK51L−CRTLKA1765 (3900)1855 (4100)3125 (6900)
LongUSK52L−CHTSKA1765 (3900)1880 (4150)3175 (7000)
4WDStandardUSK56L−CRTSKA1810 (4000)1880 (4150)3220 (7100)
USK56L−CRTLKA1810 (4000)1880 (4150)3220 (7100)
LongUSK57L−CHTSKA1810 (4000)1880 (4150)3265 (7200)
∗: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.

610
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
kg (lb.)
Cab type
EngineDriving
systemBed typeModel code∗GAWRGVWRFrontRear
Crew Max
4.7 L V8
(2UZ −FE)
2WD
Short
UCK51L− PSASKA1765 (3900)1835 (4050)3080 (6800)
UCK51L−PSALKA1765 (3900)1835 (4050)3080 (6800)
4WDUCK56L−PSASKA1810 (4000)1880 (4150)3175 (7000)
UCK56L−PSALKA1810 (4000)1880 (4150)3175 (7000)
5.7 L V8
(3UR −FE)
2WDUSK51L− PSTSKA1765 (3900)1880 (4150)3175 (7000)
USK51L−PSTLKA1765 (3900)1880 (4150)3175 (7000)
4WDUSK56L−PSTSKA1810 (4000)1880 (4150)3265 (7200)
USK56L−PSTLKA1810 (4000)1880 (4150)3265 (7200)
∗: The model code is indicated on the Certification Label. See “Your Toyota’s identification” on page 455 in Section 2 for the Ce rtifica-
tion Label location.

Publication No. OM34477U
Part No. 01999-34477
Printed in Japan 01−0802 −00
(U)
Quick index
 If a service reminder indicator or warning buzzer comes on 182 . . . . . . . .
 If your vehicle will not start 498 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
 If your engine stalls while driving 502 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 If you cannot increase engine speed 502 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 If your vehicle overheats 502 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
 If you have a flat tire 503 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
 If your vehicle needs to be towed 517 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Tips for driving during break −in period 443 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 How to start the engine 474 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
 General maintenance 535 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Gas station information
Fuel type:
UNLEADED gasoline, Octane Rating 87 (Research Octane Number 91) or
higher
See page 443 for detailed information.
Fuel tank capacity: 100 L (26.4 gal., 22.0 lmp. gal.)
Engine oil:
ILSAC multigrade engine oil is recommended.
See page 549 for detailed information.
Tire information: See pages 553 through 562.
Tire inflation pressure: See page 594.
Z
