2. Remove the insulating sheet.XS18020
USING THE CONTROLLER
To use the rear seat entertainment sys-
tem controller, direct the signal output
portion of the controller to the signal
reception portion of the rear seat enter-
tainment system display.
The controller does not operate properly
when the signal reception portion of the
display is exposed to direct sunlight.
Block the display from direct sunlight.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, stow the controller in
the seatback pocket when it is not in
use.

304
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
NOTICE
Observe the followings, otherwise the
controller may be damaged.
Do not drop or strongly knock the
controller against hard objects.
 Do not sit on or place heavy ob-
jects on the controller.
 Do not leave the controller exposed
to high temperatures (such as on
the instrument panel) for a long
time.

305
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
1. “DVD” button
This button turns on the DVD mode.
2. “VIDEO” button This button causes the display to use
the video signal from an external video
device.
3. “OFF” button
This button turns off the rear seat en-
tertainment system.
4. Joystick This joystick selects a control switch,
mode switch on the screen or the
menu for the disc.
5. “ENT” button
This button inputs the selected switch
or the selected menu for the disc.
6. “FOLDER
” button
This button selects a desired folder.
7. “FOLDER
” button
This button selects a desired folder.
8. “
” button
This button fast forwards a screen
when the DVD player is operated.
—Control buttons
 Controller
Z18004y

306
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
9. “” button
This button stops a screen when the
DVD player is operated.
10. “SET UP” button This button indicates the initial set up
screen when the DVD player is oper-
ated.
11. “MENU” button
This button indicates the menu screen
for DVD video when the DVD player is
operated.
12. “AUDIO” button
This button indicates the changing au-
dio screen when the DVD player is
operated.
13. “SUB TITLE” button This button indicates the changing sub-
title screen when the DVD player is
operated.
14. “DISPLAY” button
This button adjusts the color, tone,
contrast and brightness of the screen.
15. “SIZE” button This button changes the display mode
when the DVD player is operated or
the video mode is on. 16. “ANGLE” button
This button selects the angle of the
screen when the DVD player is oper-
ated.
17. “SEARCH” button
This button indicates the title search
screen when the DVD player is oper-
ated.
18. “TOP MENU” button This button indicates the title selection
screen for DVD video when the DVD
player is operated.
19. “
” button
This button reverse a screen when the
DVD player is operated.
20. “
” button
This button plays or pauses a screen
when the DVD player is operated.
21. “TRACK/CHAPTER
” button
This button selects track/chapter.
22. “TRACK/CHAPTER
” button
This button selects track/chapter.
23. “OPTION” button This button indicates the control
switches on the screen when the DVD
player is operated. REPLACING CONTROLLER BATTERY
For replacement, use 3 AA batteries.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed battery or components.
NOTICE

When replacing the battery, be care-
ful not to lose the components.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.

307
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Z17448

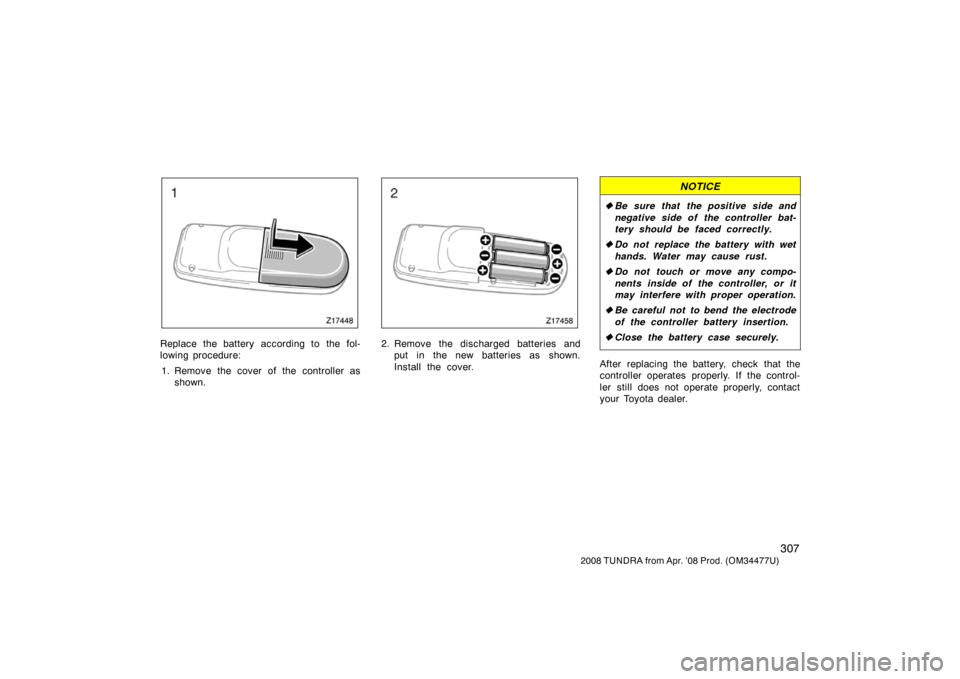

Replace the battery according to the fol-
lowing procedure:
1. Remove the cover of the controller as shown.
Z17458
2. Remove the discharged batteries andput in the new batteries as shown.
Install the cover.
NOTICE
Be sure that the positive side and
negative side of the controller bat-
tery should be faced correctly.
 Do not replace the battery with wet
hands. Water may cause rust.
 Do not touch or move any compo-
nents inside of the controller, or it
may interfere with proper operation.
 Be careful not to bend the electrode
of the controller battery insertion.
 Close the battery case securely.
After replacing the battery, check that the
controller operates properly. If the control-
ler still does not operate properly, contact
your Toyota dealer.

308
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

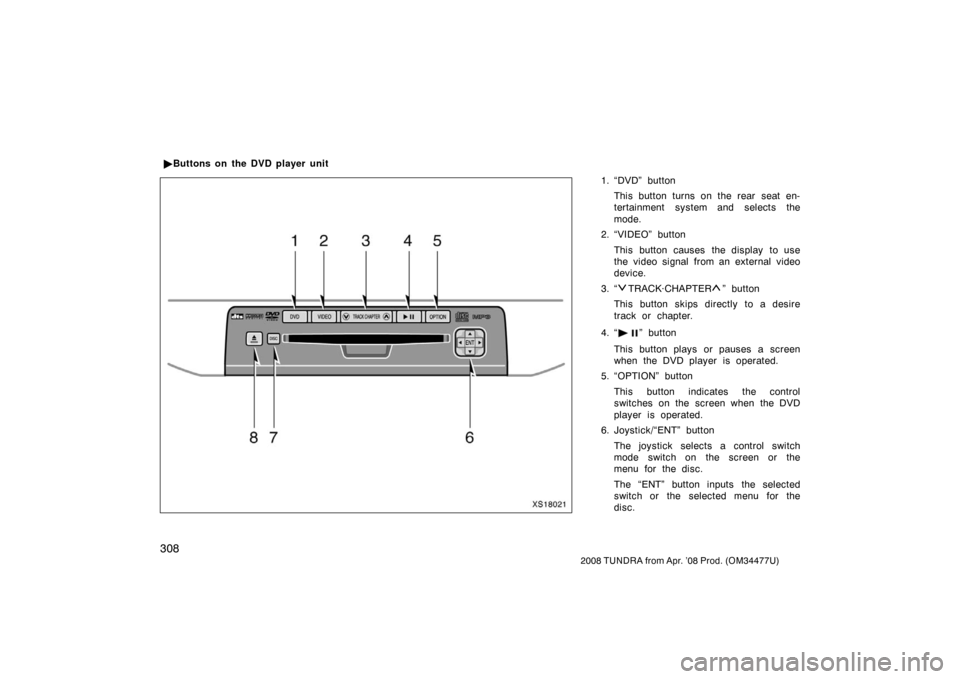

1. “DVD” button
This button turns on the rear seat en-
tertainment system and selects the
mode.
2. “VIDEO” button
This button causes the display to use
the video signal from an external video
device.
3. “
TRACK·CHAPTER” button
This button skips directly to a desire
track or chapter.
4. “
” button
This button plays or pauses a screen
when the DVD player is operated.
5. “OPTION” button
This button indicates the control
switches on the screen when the DVD
player is operated.
6. Joystick/“ENT” button
The joystick selects a control switch
mode switch on the screen or the
menu for the disc.
The “ENT” button inputs the selected
switch or the selected menu for the
disc.

Buttons on the DVD player unit
XS18021

309
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
7. “DISC” indicator light
This light indicates that the disc is
loaded.
8. “
” button
This button ejects a disc.
Z17453
Controller
XS18022
DVD player unit

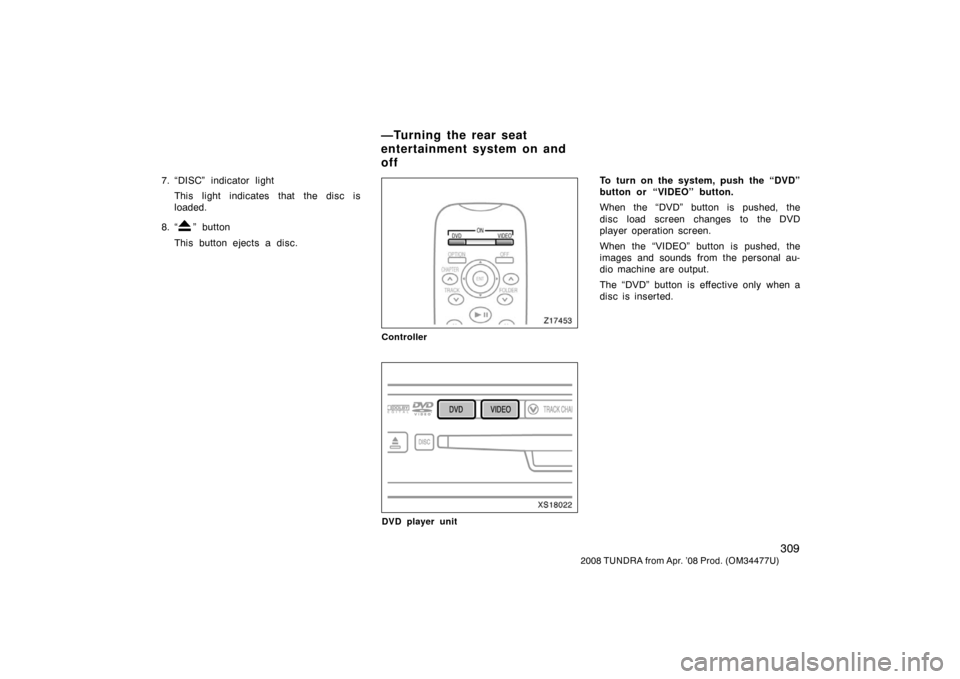

To turn on the system, push the “DVD”
button or “VIDEO” button.
When the “DVD” button is pushed, the
disc load screen changes to the DVD
player operation screen.
When the “VIDEO” button is pushed, the
images and sounds from the personal au-
dio machine are output.
The “DVD” button is effective only when a
disc is inserted.
—Turning the rear seat
entertainment system on and
off

310
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
Z17455
To turn off the system, push the “OFF”
button.
When the front audio system is turned off,
the rear audio system and the DVD player
will be turned off simultaneously.
Z18033
Vehicles with navigation system—The rear
seat entertainment system can be
switched ON and OFF by pushing the
“Rear” switch on the front audio system. The rear DVD player can be operated
through the front audio system.
—Front audio system
operation
