2008 TOYOTA TUNDRA Owners Manual

255
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

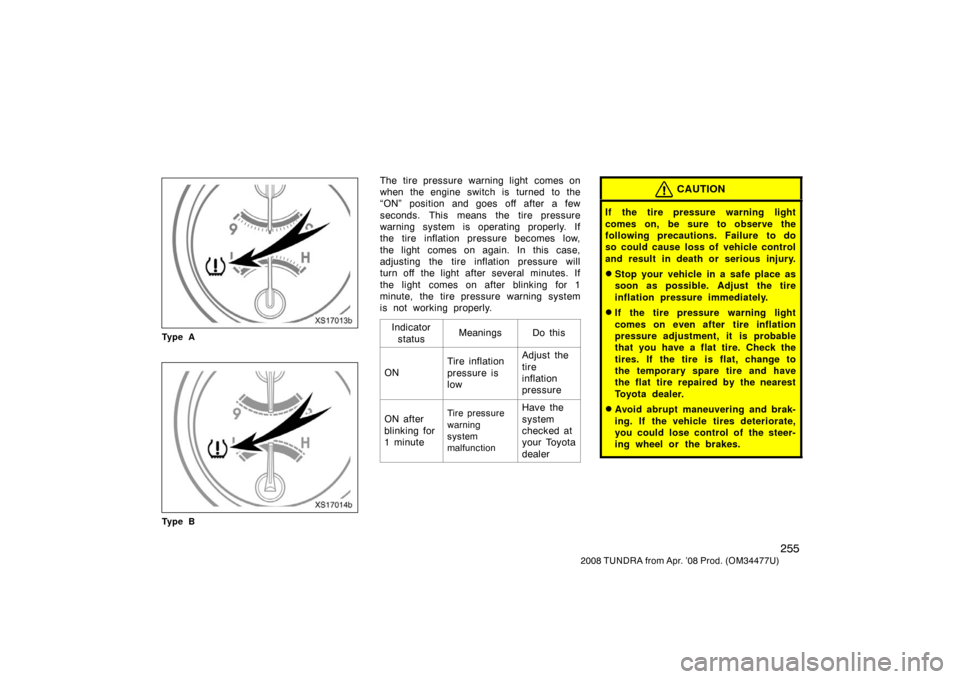

XS17013b
Ty p e A
XS17014b
Ty p e B
The tire pressure warning light comes on
when the engine switch is turned to the
“ON” position and goes off after a few
seconds. This means the tire pressure
warning system is operating properly. If
the tire inflation pressure becomes low,
the light comes on again. In this case,
adjusting the tire inflation pressure will
turn off the light after several minutes. If
the light comes on after blinking for 1
minute, the tire pressure warning system
is not working properly.
Indicatorstatus
MeaningsDo this
ON
Tire inflation
pressure is
lowAdjust the
tire
inflation
pressure
ON after
blinking for
1 minuteTire pressure
warning
system
malfunctionHave the
system
checked at
your Toyota
dealer
CAUTION
If the tire pressure warning light
comes on, be sure to observe the
following precautions. Failure to do
so could cause loss of vehicle control
and result in death or serious injury.
Stop your vehicle in a safe place as
soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure warning light
comes on even after tire inflation
pressure adjustment, it is probable
that you have a flat tire. Check the
tires. If the tire is flat, change to
the temporary spare tire and have
the flat tire repaired by the nearest
Toyota dealer.
Avoid abrupt maneuvering and brak-
ing. If the vehicle tires deteriorate,
you could lose control of the steer-
ing wheel or the brakes.

256
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
The tire pressure warning light may turn
on due to natural causes such as natural
air leaks or tire inflation pressure changes
caused by temperature. In this case, ad-
justing the tire inflation pressure will turn
off the light after several minutes.
Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light. Adjusting the tire inflation
pressure will turn off the light.
The temporary spare tire is not equipped
with the tire pressure warning valve and
transmitter. If a tire goes flat, the warning
light will not turn off even though the flat
tire is replaced with the temporary spare
tire. Replace the temporary spare tire with
the repaired tire and adjust the proper tire
inflation pressure. The tire pressure warn-

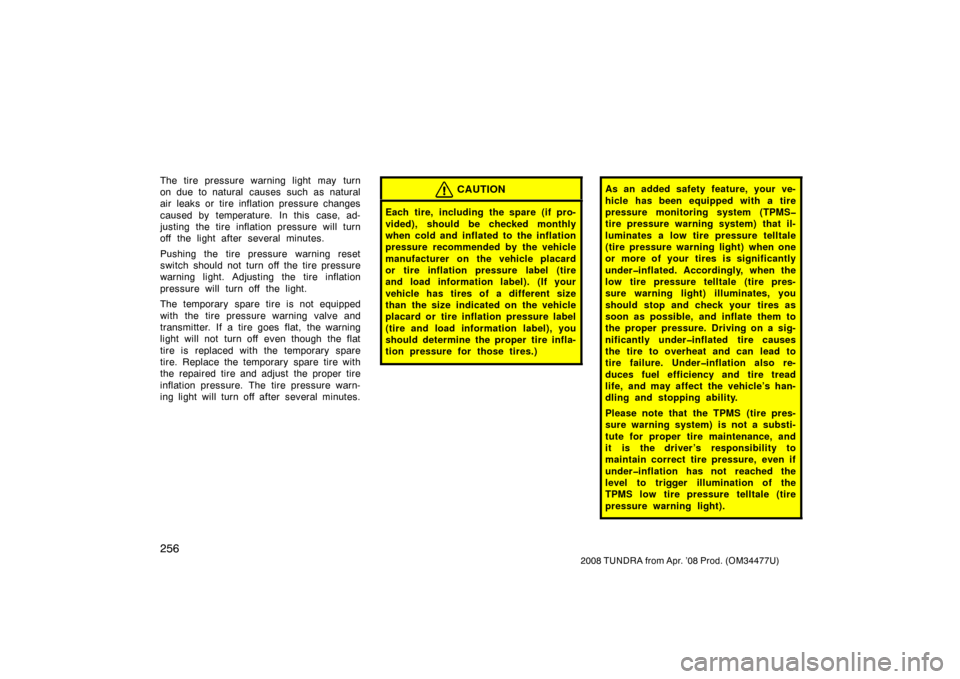

ing light will turn off after several minutes.CAUTION
Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label (tire
and load information label). (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label
(tire and load information label), you
should determine the proper tire infla-
tion pressure for those tires.)
As an added safety feature, your ve-
hicle has been equipped with a tire
pressure monitoring system (TPMS
tire pressure warning system) that il-
luminates a low tire pressure telltale
(tire pressure warning light) when one
or more of your tires is significantly
underinflated. Accordingly, when the
low tire pressure telltale (tire pres-
sure warning light) illuminates, you
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure. Driving on a sig-
nificantly underinflated tire causes
the tire to overheat and can lead to
tire failure. Underinflation also re-
duces fuel efficiency and tire tread
life, and may affect the vehicle’s han-
dling and stopping ability.
Please note that the TPMS (tire pres-
sure warning system) is not a substi-
tute for proper tire maintenance, and
it is the driver ’s responsib ility to
maintain correct tire pressure, even if
underinflation has not reached the
level to trigger illumination of the
TPMS low tire pressure telltale (tire
pressure warning light).

257
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

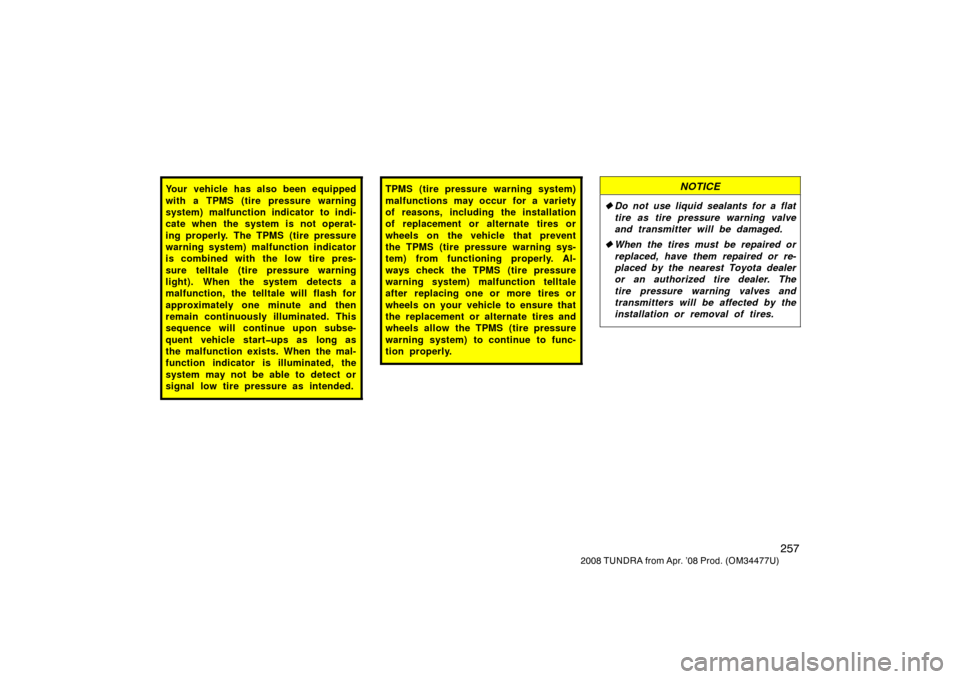

Your vehicle has also been equipped
with a TPMS (tire pressure warning
system) malfunction indicator to indi-
cate when the system is not operat-
ing properly. The TPMS (tire pressure
warning system) malfunction indicator
is combined with the low tire pres-
sure telltale (tire pressure warning
light). When the system detects a
malfunction, the telltale will flash for
approximately one minute and then
remain continuously illuminated. This
sequence will continue upon subse-
quent vehicle startups as long as
the malfunction exists. When the mal-
function indicator is illuminated, the
system may not be able to detect or
signal low tire pressure as intended.TPMS (tire pressure warning system)
malfunctions may occur for a variety
of reasons, including the installation
of replacement or alternate tires or
wheels on the vehicle that prevent
the TPMS (tire pressure warning sys-
tem) from functioning properly. Al-
ways check the TPMS (tire pressure
warning system) malfunction telltale
after replacing one or more tires or
wheels on your vehicle to ensure that
the replacement or alternate tires and
wheels allow the TPMS (tire pressure
warning system) to continue to func-
tion properly.NOTICE
Do not use liquid sealants for a flat
tire as tire pressure warning valve
and transmitter will be damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Toyota dealer
or an authorized tire dealer. The
tire pressure warning valves and
transmitters will be affected by the
installation or removal of tires.

258
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

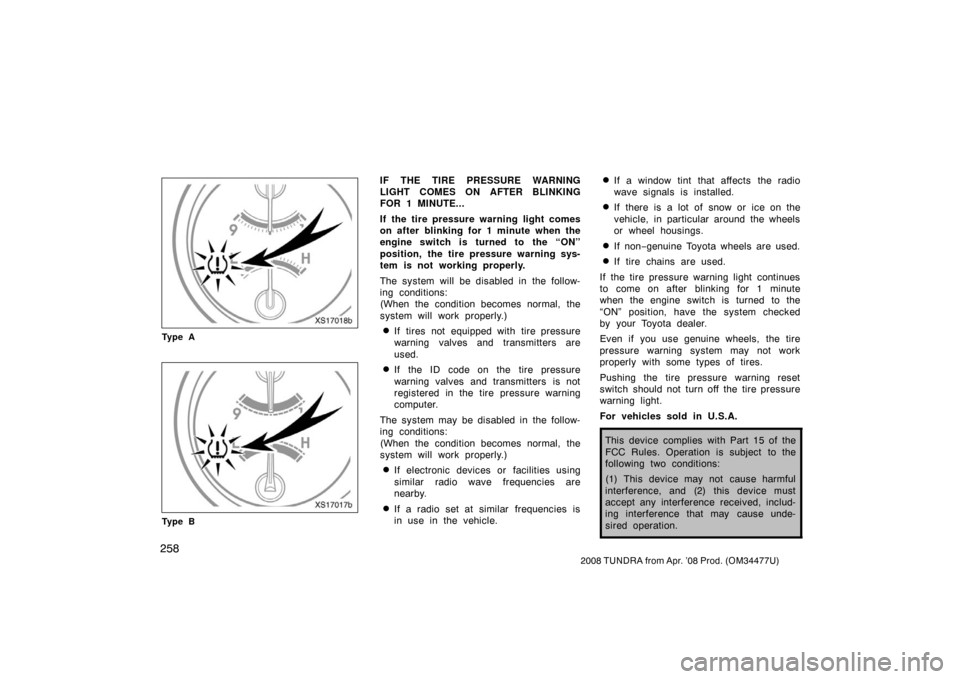

XS17018b
Ty p e A
XS17017b
Ty p e B
IF THE TIRE PRESSURE WARNING
LIGHT COMES ON AFTER BLINKING
FOR 1 MINUTE...
If the tire pressure warning light comes
on after blinking for 1 minute when the
engine switch is turned to the “ON”
position, the tire pressure warning sys-
tem is not working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure
warning valves and transmitters is not
registered in the tire pressure warning
computer.
The system may be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.
If non −genuine Toyota wheels are used.
If tire chains are used.
If the tire pressure warning light continues
to come on after blinking for 1 minute
when the engine switch is turned to the
“ON” position, have the system checked
by your Toyota dealer.
Even if you use genuine wheels, the tire
pressure warning system may not work
properly with some types of tires.
Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light.
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.

259
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

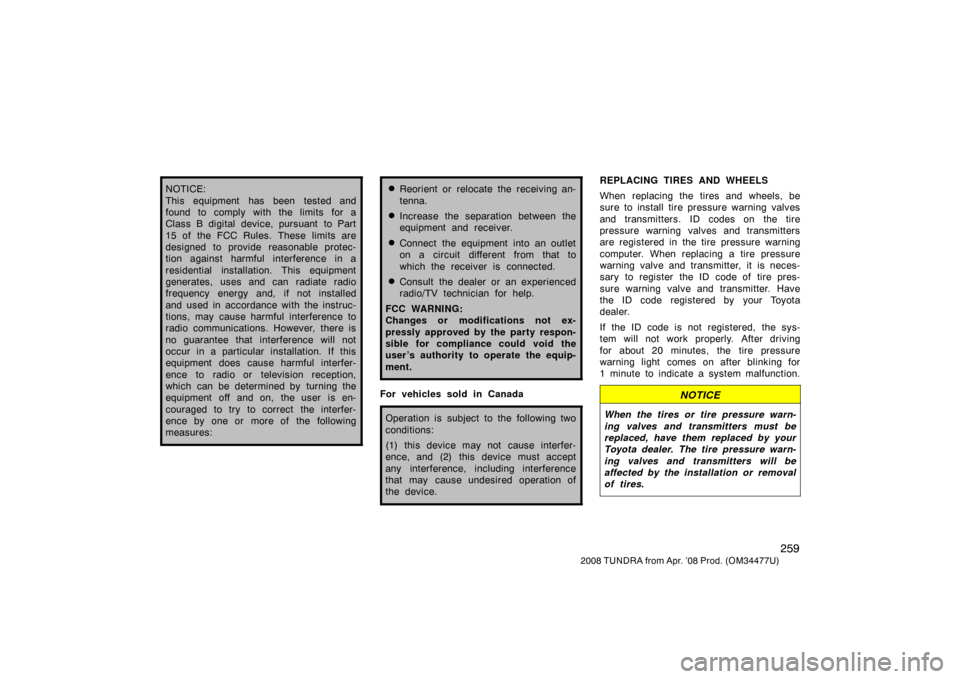

NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
REPLACING TIRES AND WHEELS
When replacing the tires and wheels, be
sure to install tire pressure warning valves
and transmitters. ID codes on the tire
pressure warning valves and transmitters
are registered in the tire pressure warning
computer. When replacing a tire pressure
warning valve and transmitter, it is neces-
sary to register the ID code of tire pres-
sure warning valve and transmitter. Have
the ID code registered by your Toyota
dealer.
If the ID code is not registered, the sys-
tem will not work properly. After driving
for about 20 minutes, the tire pressure
warning light comes on after blinking for
1 minute to indicate a system malfunction.
NOTICE
When the tires or tire pressure warn-
ing valves and transmitters must be
replaced, have them replaced by your
Toyota dealer. The tire pressure warn-
ing valves and transmitters will be
affected by the installation or removal
of tires.

260
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

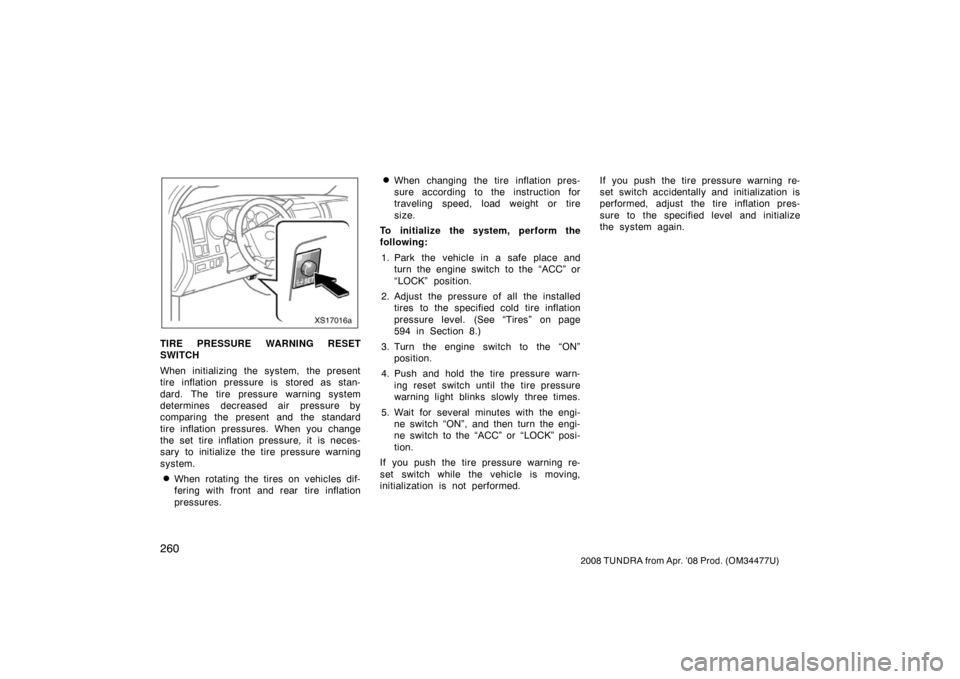

XS17016a
TIRE PRESSURE WARNING RESET
SWITCH
When initializing the system, the present
tire inflation pressure is stored as stan-
dard. The tire pressure warning system
determines decreased air pressure by
comparing the present and the standard
tire inflation pressures. When you change
the set tire inflation pressure, it is neces-
sary to initialize the tire pressure warning
system.
When rotating the tires on vehicles dif-
fering with front and rear tire inflation
pressures.
When changing the tire inflation pres-
sure according to the instruction for
traveling speed, load weight or tire
size.
To initialize the system, perform the
following:
1. Park the vehicle in a safe place and turn the engine switch to the “ACC” or
“LOCK” position.
2. Adjust the pressure of all the installed tires to the specified cold tire inflation
pressure level. (See “Tires” on page
594 in Section 8.)
3. Turn the engine switch to the “ON” position.
4. Push and hold the tire pressure warn- ing reset switch until the tire pressure
warning light blinks slowly three times.
5. Wait for several minutes with the engi- ne switch “ON”, and then turn the engi-
ne switch to the “ACC” or “LOCK” posi-
tion.
If you push the tire pressure warning re-
set switch while the vehicle is moving,
initialization is not performed. If you push the tire pressure warning re-
set switch accidentally and initialization is
performed, adjust the tire inflation pres-
sure to the specified level and initialize
the system again.

261
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)

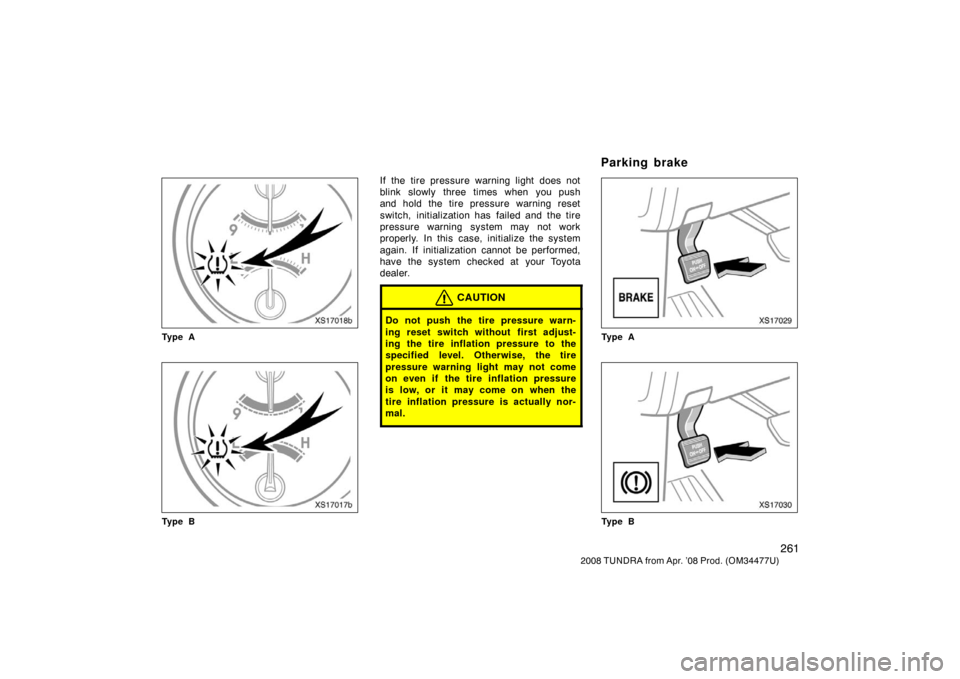

XS17018b
Ty p e A
XS17017b
Ty p e B
If the tire pressure warning light does not
blink slowly three times when you push
and hold the tire pressure warning reset
switch, initialization has failed and the tire
pressure warning system may not work
properly. In this case, initialize the system
again. If initialization cannot be performed,
have the system checked at your Toyota
dealer.
CAUTION
Do not push the tire pressure warn-
ing reset switch without first adjust-
ing the tire inflation pressure to the
specified level. Otherwise, the tire
pressure warning light may not come
on even if the tire inflation pressure
is low, or it may come on when the
tire inflation pressure is actually nor-
mal.
XS17029
Ty p e A
XS17030
Ty p e B
Parking brake

262
2008 TUNDRA from Apr. ’08 Prod. (OM 34477U)
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal once again.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.

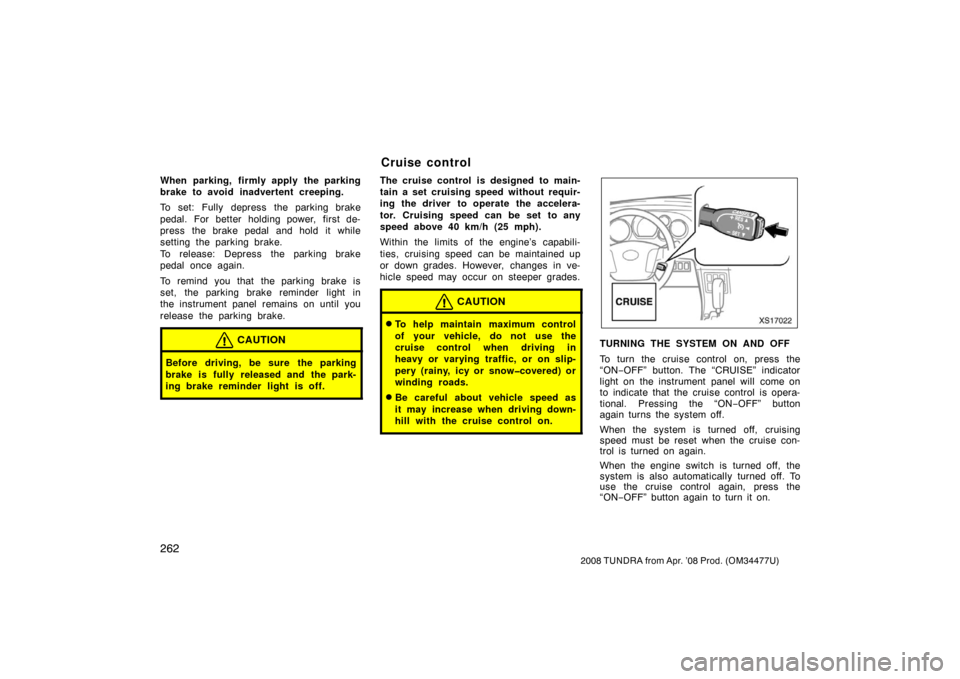

CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
The cruise control is designed to main-
tain a set cruising speed without requir-
ing the driver to operate the accelera-
tor. Cruising speed can be set to any
speed above 40 km/h (25 mph).
Within the limits of the engine’s capabili-
ties, cruising speed can be maintained up
or down grades. However, changes in ve-
hicle speed may occur on steeper grades.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Be careful about vehicle speed as
it may increase when driving down-
hill with the cruise control on.
XS17022
TURNING THE SYSTEM ON AND OFF
To turn the cruise control on, press the
“ON−OFF” button. The “CRUISE” indicator
light on the instrument panel will come on
to indicate that the cruise control is opera-
tional. Pressing the “ON −OFF” button
again turns the system off.
When the system is turned off, cruising
speed must be reset when the cruise con-
trol is turned on again.
When the engine switch is turned off, the
system is also automatically turned off. To
use the cruise control again, press the
“ON −OFF” button again to turn it on.
Cruise control
