1998 HONDA INTEGRA Workshop Manual

DTC 1-5
CAUTION: Whenever thc ignition switch i3 ON (lll, ot
has been turned OFF for less than throe minutss, bo
caretul not to bump the SRS unit; the airbsgs could
accidcntally deploy and cause damage or iniuri6.
DRIVER'S AIRBAG2P CONNECTOR
\"o""'"o'
CABI.E REEL
{cont'd}
)SRS SERVICECoNNECTOR 12 0)07TA2 - S250200
';
CABLEREEL.,2P OONNECTOF
)
ol
SRS SERVICECoNNECTOR (2 0l
07TAZ - SZSo2(xt
Try to ..produco the SRS indicator light:1. Erase the DTC memory (See page 23-289).2. Torn the ignition switch ON (ll), and chockrhattho SRS indi-cator light comes on for about six seconds and then goes
off.
Ooes ihe SRS indicator lighl slay on?
rffit
i .hooting ldt.rnittont Frilul.. on p.g. 23-289. I
Chock to. a 3hort to glound in tho drivor's airbag inflato.:
1. Turn the ignition switch OFF.2. Disconnect the battery nggative cable, then disconnect
the oositive cable, and wait forth.oe minutes.
3. Disconnect the driver's airbag 2P connoctor from the
cable reel 2P connector.CAUTION: Do not disconnsct tha pt!3onga]'t rirbrg
connoctor.4. Connect the special tool (2 0) to tho cable reel 2P connec_
tor,5. Reconnect tho battery positive cablo, then reconnoct the
negativ€ cable.6. Erase the DTC memory (see page 23-289)
7. Read the DTC (see pag623-2871.
k DTC 1-5 indicated?
YESNO
Sho.t to gtound in tha drive/s ri6ag infi.tor; ruplaco tho
drivor'3 .irbss (s.o p.g€ 23-3171.
Ch.ck tor a 3ho.t to gtound in tha cable ?ral:
1. Disconnect the battery negative cable. then disconnect
the oositive cable, and wait for three minutes.
2. oisconnect the special tool (2 0) lrom the cable reel 2P
connector,3. Remove the dashboard low€r cove., and disconnecl thg
cable reel 2P connector lrom the SRS main harn6ss,1. Connect the Special tool (2 0) to the SRS main harness
2P connoctor lcont'd).
To page 23-308
07TAZ - SZ50t1A.nd SRS INFLATORSIMULATOR{2 0 JACK}07SAZ - TB/OI lA
SRS SIMULATORLEAD C07TAZ - SZ501rAand SRS INFLATORSIMULATOR(2 0 JACKI07SM - TBi|t}l1A
23-307

Troubleshooting

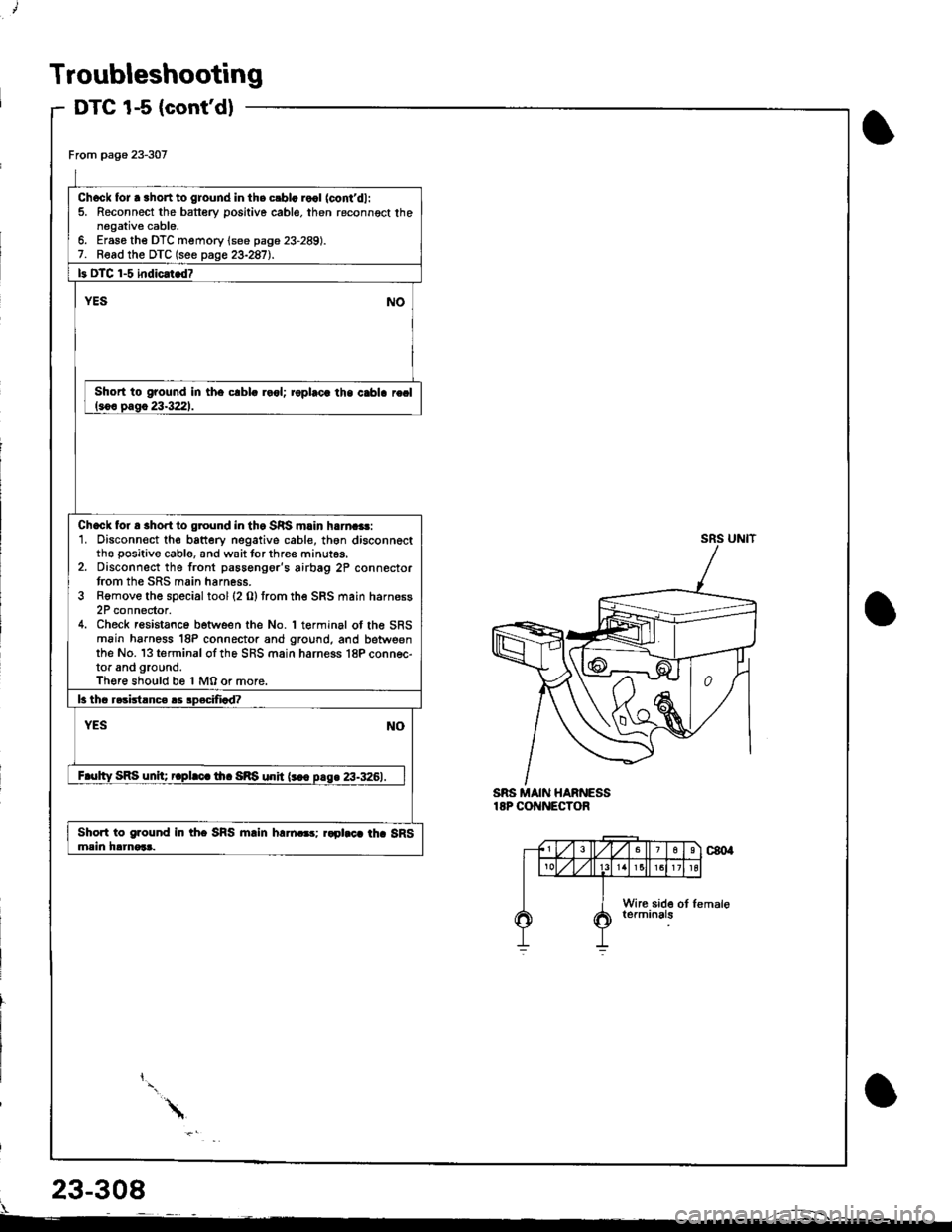

DTC 1-5 (cont'd)
From page 23-307
Ch.ck tor . rhort to ground in the c!bl. ro.l (cont'dl:5. Reconnect the battery positive cable. then reconngct thenegative cablo.6. Erase th€ DTC memory lsee page 23-289).7. Bead the DTC (see page 23-2871.
b DTC 1-5 indic.t.d?
YESNO
Short to ground in the clbla raol; roplaca tha cabla re.l(3o. pago 23-3221.
Chock tor a short lo ground in tho SRS mlin harna6s:1. Disconn€ct th€ baftery negative cable, thon disconnectthe positive cable, and wait tor three minutos,2. oisconnect the front passengor's airbag 2P connectortrom the SRS main harness.3 Remove the special tool (2 O)trom the SFS main harness2P connector.4. Check resistance between the No. 1 terminal of the SRSmain harness 18P connector and ground, and betweenthe No. l3 terminal of the SRS main harness 18P connec-tor and ground.Th€ro should be 1 MO or more.
b tha rssistrnc. .s 3pecifiad?
NOYES
F.ulty SRS unh; r.pho. th. SRS unh (3.. p.s.23-3261.
Short to ground in the SRS mrin hrrn.3t; raplaca iha SRSmein harne3a.

)

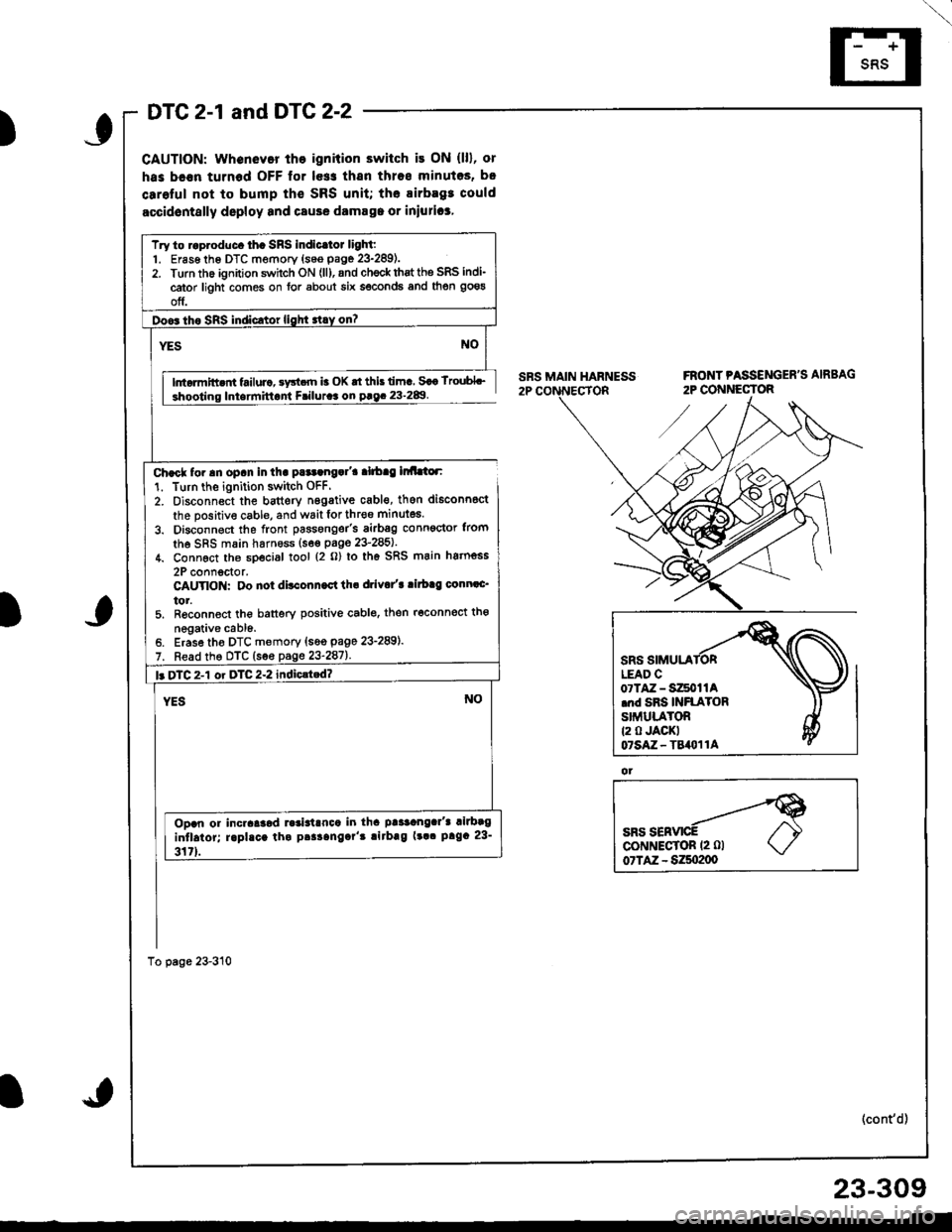

DTC 2-1 and DTG 2-2
CAUTION: whenevor tho ignition switch it ON (lll, or
has bc€n turnod OFF lor le$ thsn thros minutos, b.
carolul not to bump th€ SRS unit; the airbagt could
accidontslly deploy and csuse damsga or iniurica,
lntormitt nt failurc, sy3t.rn b OK rt this lima Saa lroubL_
Iniarmittant Friluraa on paq. 23-2&l
Char* for an opan in tha pataangal'a alrbag lr Llor:
1. Turn the ignition switch OFF.
2. Oisconnect the bauery n6gative cabl€, then di6conn6ct
the positive cable, and wait lor thr€o minutes.
3. Disconnect the front passonger's airbsg conn€ctor trom
the SRS main harness (s6€ paoe 23'285).
4. Connect th6 sDecial tool {2 o} lo th6 SRS main hatnoss
2P connoctor.CAUYIO : Oo not ditconn.ct th. drivo/t ritb.g conn.c'
tor.5. R6conned the banery positive cablo. then r6connect tho
negative cabl6.Erase tho DTC memory {s6o page 23-289).
Read the DTC (see page 23-287).
Try to raproduc. th. SRS indicltot light:1. Er6s6 th6 DTC memory {seo page 23-289).2. Turn the ignition swhch ON (ll), and ch€ck thst the SRS indi-
cator light comes on for about six seconds and then goeg
off.
l. DTC 2-1 or DTC 2-2 indiclted?
Ooan or incraaaod ].3ialrnca in tha paaaangar'a rilbag
intlaior; raphca tha paaaangar't !irbag (!a. prga 23-
317).
ot
(cont'd)
23-309

Troubleshooting

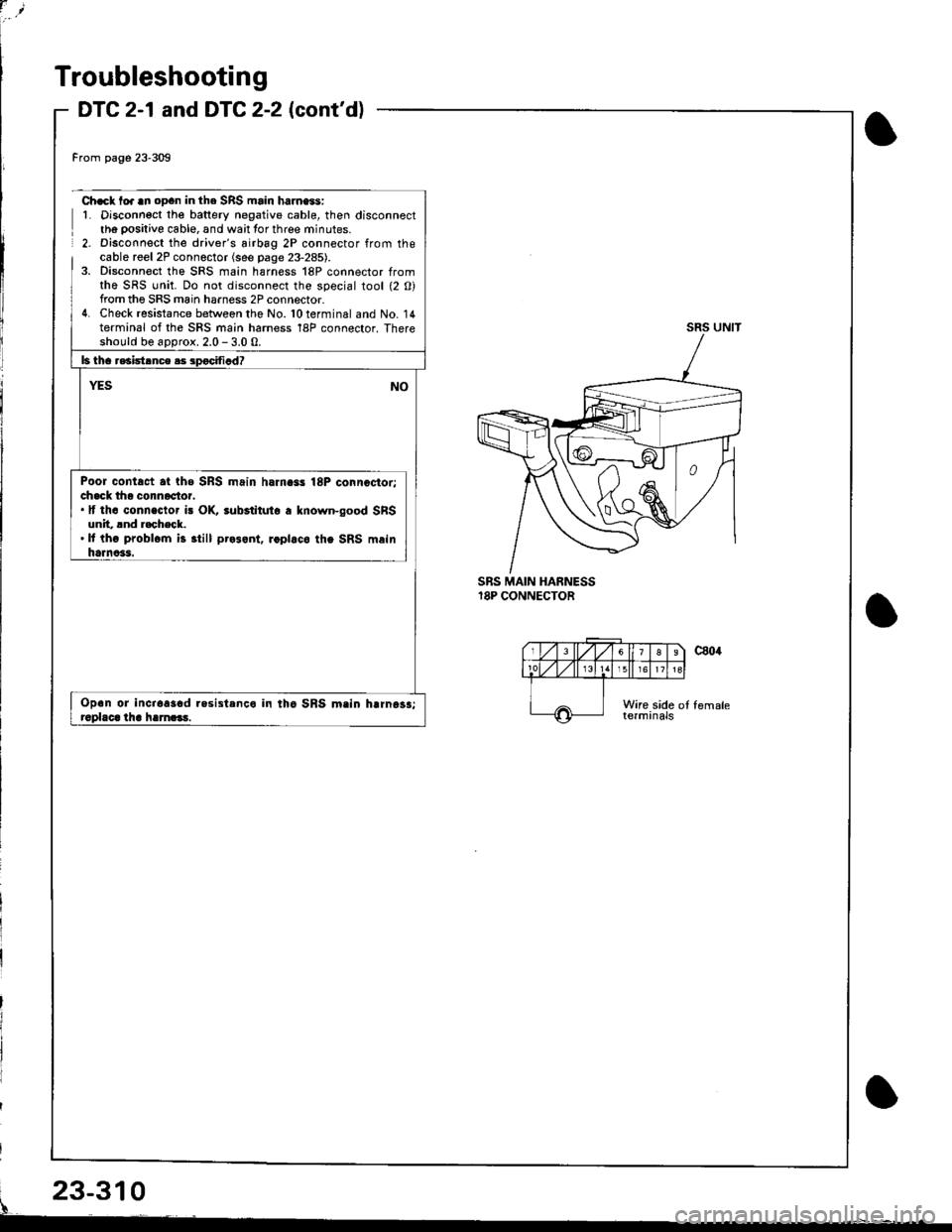

DTC 2-1 and DTC 2-2 (cont'd)
From page 23'3m
Ch.cl to. an oDan in the SRS main harness:'L Disconnect the battery negative cable, then disconnectth6 oositive cable, and wait tor three minutes.2. Disconnect the driver's airbag 2P connector from thecable reel 2P conn6ctor (see page 23-285).3. Disconnect the SRS main harness 18P connector fromth6 SRS unit- Do not disconnect the special tool (2 O)from thg SRS main harness 2P connector.4. Check resistance betweon the No. 10 terminal and No. 14terminal of the SRS main harness 18P connector. Thereshould be2.0 - 3.0 0.
Wire side ot femaletermtnals
SRS UNIT
Poor contact at tho SRS main harna3r 18P connoctor;ch.ck tho connoctor.. It th. conn.ctor ii OK 3ub3titut6 a known-good ShSunh. lnd r.check.' It tho problom i! 3till pr$ont, rcpl.co the SRS meinhtrno6s.
Opan or incroa3cd .esistenco in tho SBS m.in h!rnes3:
23-310

DTC 2-3
CAUTION: Whenever the ignition switch is ON (ll), or
has been turned OFF for less than three minutes, be
careful not to bump the SRS unit; the airbags could
accidentally deploy and cause damage or injuries.
Try to reproduce the SRS indicatol light:1. Erase the DTC memory (see page 23-289).
2. Turn the ignition switch ON (ll), and check that the SRS indi
cator light comes on for about six seconds and then goes
off.
Doos th€ SRS indicator
Chsck loa a short to anothcr wirc or dacacelod rarinanc. in
the passongGr'3 airb.g inflator:1. Turn the ignition switch OFF.2. Disconnect the baftery negative cable, then disconnect
the positive cable, and wait for three manutes
3. Disconnect the front passenger's 6irbag 2P connector
{rom the SRS main harness (see page 23 285)
4. Connect the special tool (2 0) to the SRS main harness
2P connector,CAUTION: Do not disconnect the drive/s .i.bag conn€c_
tor,5. Reconnect the batterY positive cable, then reconnect the
neoative cable.
s*i M t{ HIArfss2P @r{t*cTd
FNO'IT PASSENGER'S AIRBAG
2t @tat{ccTon
)
lntermittent failur€, svstem is OK ai this time. See Troubl6-
Intermittent Failures on page 23-289.
6. Erase the DTC memory (see page 23-289)
7. Read the DTC (see page 23'247l.
To page 23-312
|3 DTC 2-3 indicat.d?
Short to another wire or decreased resislance in the pas-
sengsr's airbag intlatot; teplace the p.$onger's aitbag
SRS SIMULATORLEAD C07TAZ - SZ50'r 1Aand SRS INFLATORSIMULATOR(2 0 JACK)07sAz-T84011A
ol
23-311

Troubleshooting

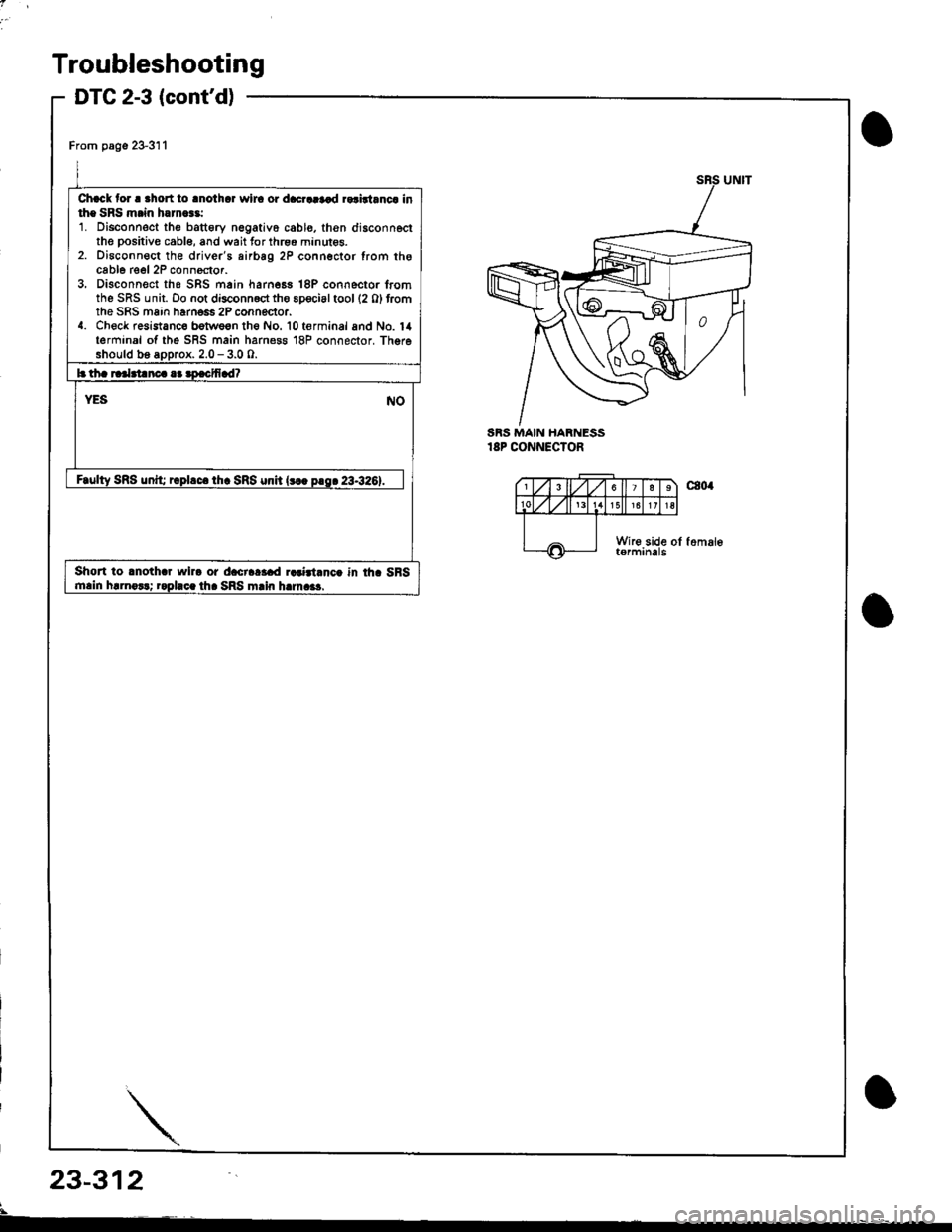

DTC 2-3 (cont'd)
23-312
i!
SRS MAIN HARNESSr8P CONNECTOR
From page 23-311
Chrck for ! ahort to anothar wira or dacraarad ralidanca inthe SRS m.in harn.$:1. Disconnect the battery negativo cable, thon disconnectthe positiv€ cable, and wait for three minutes.2. Di6conn€ct the driver's airbsg 2P connector trom thocable reel 2P conn€ctor.3, Disconnect ths SBS main harn6ss 18P connector fromthe SRS unit. Do not disconn.ct tho spscial tool (2 0) tromthe SRS msin harness 2P conngctor.4. Check resistanco between th6 No. 10 terminal and No. 14terminal of tho SRS main harn€ss 18P connector. Thgreshould bs spprox. 2.0 - 3.0 0.
b tha '.a|nanca aa rpaclfiad?
YESNO
Frulty SRS unit; r.plrc. rh. SRS unit 1... p.s.23.326).
Shon to anothrr wlra or daoraaaad raairtanca in tha SBSfilin h!]ngtt; raphca tha SRS main harnaas.
SBS UNIT

\
DTC 2-4
CAUTION: Whenevor th6 ignition switch is ON (ll), or
has been turned OFF for less than threo minutcs, be
car€ful not to bump lhe SRS unit; the airbEgs could
accidontslly dcploy and cause damag€ 01 iniuries.
SRS MAIN HABNESS2P CONNECTORFRONT PASSENGER'S AIRBAG
2P CONNECTOR
ot
SBS SERVICEcoNNECTOR {2 0l07TAZ - SZ5o200
(cont'd)
23-313
_-t
)
Try to roproduce th. SRS indicrtor lighl:1. Erase the DTC memory (see page 23-289).2. Turn the ignition switch ON (ll), and chock that the SRS indi-
cator light comes on for about six seconds and then goes
off.
Do.3 th. SRS indicator lighi stay on?
NOYES
Ini.rmitt.nt t iluro, !y*em b OK .t thb timo. Soe Ttoubl+,
shooting lmormittent Failuraa on P.ge 23.289
Ch6ck tor a 3hon to powol in tha pa3tonga/t lirbag infla_
to.:1. Turn the ignition switch OFF.2. Disconnect the battory negative cable, then disconnect
the oositive cable, and wait tor three manutes
3. Disconnect the front passenger's airbag 2P conn€ctorIrom the SRS main harnoss (see page 23-285).
4. Connect the soecial tool (2 0) to the SRS main harness
2P connector.CAUTION: Do not dilconn.ct tho driv.l'! .irb.g conn.c'
tor.5. Reconnect the battery positive cable, then reconnoct the
negative cable.6. Erase the DTC memory (see page 23-289).7. Read the DTC (see page 23-2861.
b DTC 2-4 indicatcd?
YESNO
Short to powor in th. pa$anoar'3 airbrg infldtor; tepl&t
the Dass6nqor'3 .irbaq {sco prgc 23-3171
To page 23-314
07TAZ-SZ50t1A.nd SRS INFLATORSIMULA'OR(2 0 JACKT07sAz - TB()11A

Troubleshooting
DTC 2-'l (cont'd)
From pago 23-313

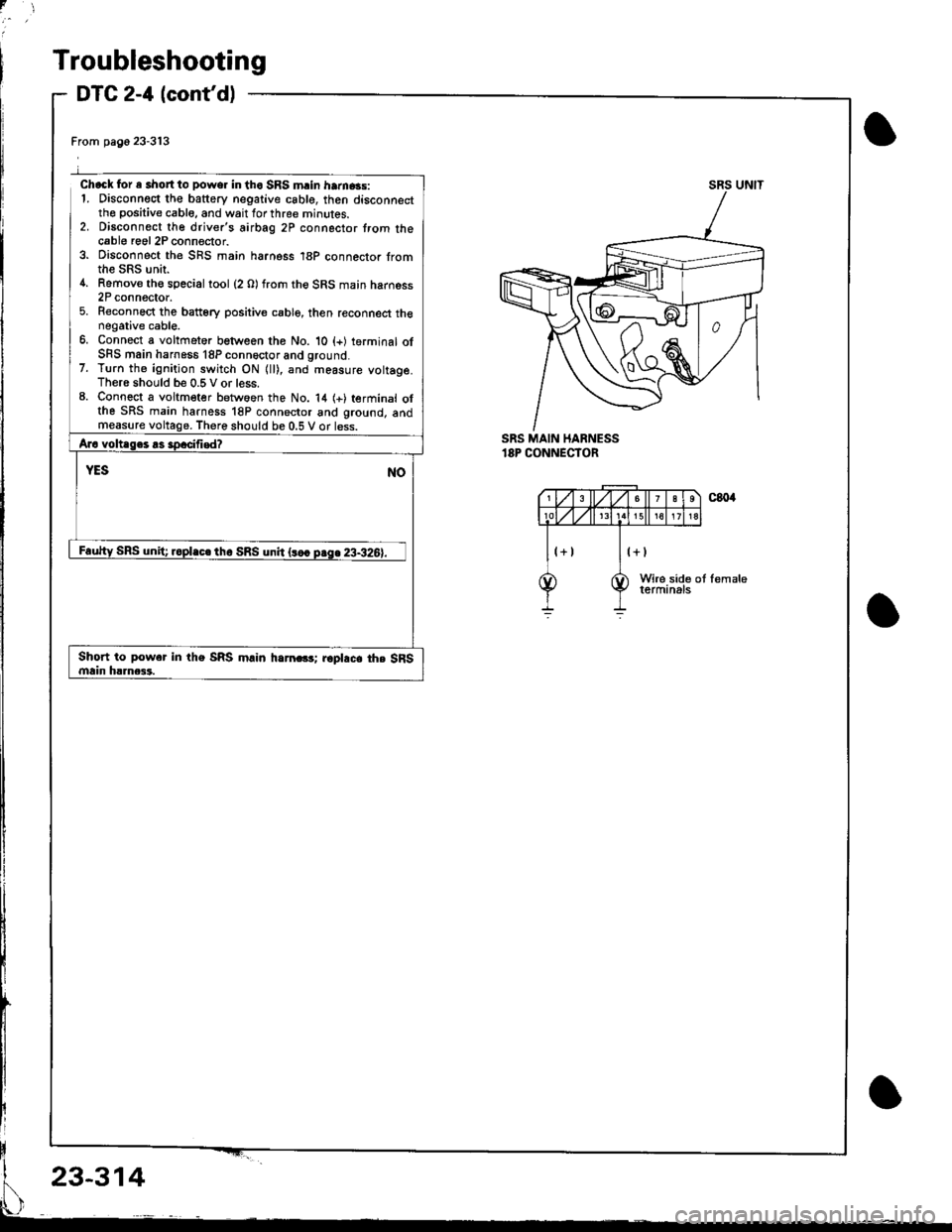

Chack for e short to power in tho SRS mrin ham.3s:1. Disconnect the battery negative csble, then disconnectthe positive cable, and wait for three minutes.2. Disconnect the driver's airbag 2P connector trom thecable roel 2P connector.3. Disconnect the SnS main harness 18P connector fromthe SRS unir.4. Remove th€ special tool (2 O) from the SRS main harness2P connector.5. Reconnect the batt6ry positive cable, then reconnect thenegative cable.6. Connect a voltfieter between the No. 10 (+) terminal ofSFS main harness 18P conn6ctor and ground.7. Turn th6 ignition switch ON {ll), and measure vottage.There should be 0.5 V or less.8. Connect a voltmeter betwoen the No. 14 (+) terminal olthe SRS main harness 18P connector and ground, andmeasurethere should be 0.5 V or less.
SRS UNIT
SRS MAIN HARNESS'8P CONNECTOR
Short to power in the SRS m.in harn.G; r6pl.c. th. SFSmain h!]nca3.
23-314
