1998 HONDA INTEGRA Workshop Manual

Shift Lever
Disassembly/Reassembly
a All SRS wire harnesses are covered with vellow insu-
lation. Befole you disconnect any part ol an SRS wileharness. disconnect the aitbag connectors.a Whensver the ignition switch is ON (ll), or has beenturned OFF for less than three minutes, be careful notto bump the SRS unit; the airbags could accidentallydeploy and cause damagg or iniuries.a For additional precautions, lefer to the SRS sub-sectionin section 23.
9.8 N.m {1.0 kgl.m,-7 .2 lbl.ltl
SHIFT LOCKSOLENOID
SHIFT LEVER KNOB
5 N.m 10.5 kgf.m,4lbl,Irl
AUTOMATIC TRANSAXLEGEAE POSITION SWITCHTesting, see Section 23
Apply non-hardeningthread lock sealant.
f, sxrrr rruorcaron- PANEL
PUSH KNOB
\
%
9.8 N.m 11.0 kgt.m. 7.2 lbl.ftl
@>.o"* r,"
-6{stLrcoNEGREASE
_GlSILICONE GREASE
' LOCK PIN ROD
3 N.m (O.3 kgt.m,2 tbt'trl
PARKINGPIN SWITCH
@6CONTROL
SHIFT LEVER
CONTROL SEAL
9.8 N.m (1.0 kgl.m,7 .2 tbl.ttl
)9.8 N.m l1.O kgf.m, 7.2 tbt.ft)12 N.m {1.2 kgf.m, 8.7 lbf.fr}
14-177

I
Shift lndicator Panel
Adjustment
CAUTION:
a All SRS wire harnesses ate covered with yellow insu-
lation. Belore you disconnect any part ol an SRS wire
harness, disconnect the airbag connectols'
a Whenever the ignition switch is ON (lll, ol has b€en
tulned OFF lo1 less than three minutes, be calgful not
to bump the SRS unit; the ailbags could accidentally
deploy and cause damage or iniulies.
a For additional precautions, lefer to the SRS sub-section
in section 23.
14-178
1.
3.
Check that the index mark on the indicator aligns
with the $ mark on the shitt indicator panel when
the transmission is in NEUTRAL
lI not aligned, remove the center console lsee sec-
tion 20).
Loosen the shift indicator panel mounting screws
and adiust by moving the Panel-
NOTE: Whenever the shift indicator panel is re-
moved, realign it as described above
INDEX MARK
a;-)\___ti_J -
@-

Throttle Control Cable
Inspection
NOTE: Before inspecting the throttle controlcable, makesure:
a Throttle cable tree play is correct (see section I 1).a ldle speed is correct (see section 1l).a To warm up the engine to normal operating tempera-
ture (the cooling fan comes on).
1 . Verify that the throttle control cable is clamped cor-rectly in three positions.
CONTROL CABLE
LOWERHOSEClamp at the end ofblue tape on the cable.
Verily that the throttle controldrum is synchronized
with the throttle linkage while depressing and releas-
ing the accelerator pedal.
ll the throttle control drum is not synchronized with
the throttle linkage, adjust rhe throttle control cable.
(cont'd)
14-179

Throttle Control Cable
lnspection (cont'd)
4. Check that there is play in the throttle control drum
while depressing the accelerator pedal to the full
throttle position.
Remove the cable end of the throttle control cable
from the throttle control drum.
Check that the throttle coritrol drum moves
smoothly.
\
14-180

Adjustment
NOTE: Before adjusting the throttle controlcable, make
sure:
a Throttle cable lree play is correct (see section 11).a ldle speed is correct (see section 11).a To warm up the engine to normal operating tempera-
ture {the cooling fan comes on)
1 . Verify that the throttle control cable is clamped correctly in three positions.
THROTTLEATF COOLERPIPE
LOWERHOSEClamp at the end ofblue tape on the cable.
Verily that the throttle linkage is in the fully-closedposttron.
Loosen the locknut of the throttle control cable at
the throttle linkage.
CONTROL CABLE
LOCKNUTS
14-181
Push in this directron.
Remove the free play of the throttle control cable
with the locknut, while pushing the throttle control
drum to the tull-closed potision as shown.
5. Tighten the locknuts.
6.After tightening the locknuts, inspect the synchroni-
zation and throttle control drum movement.

)

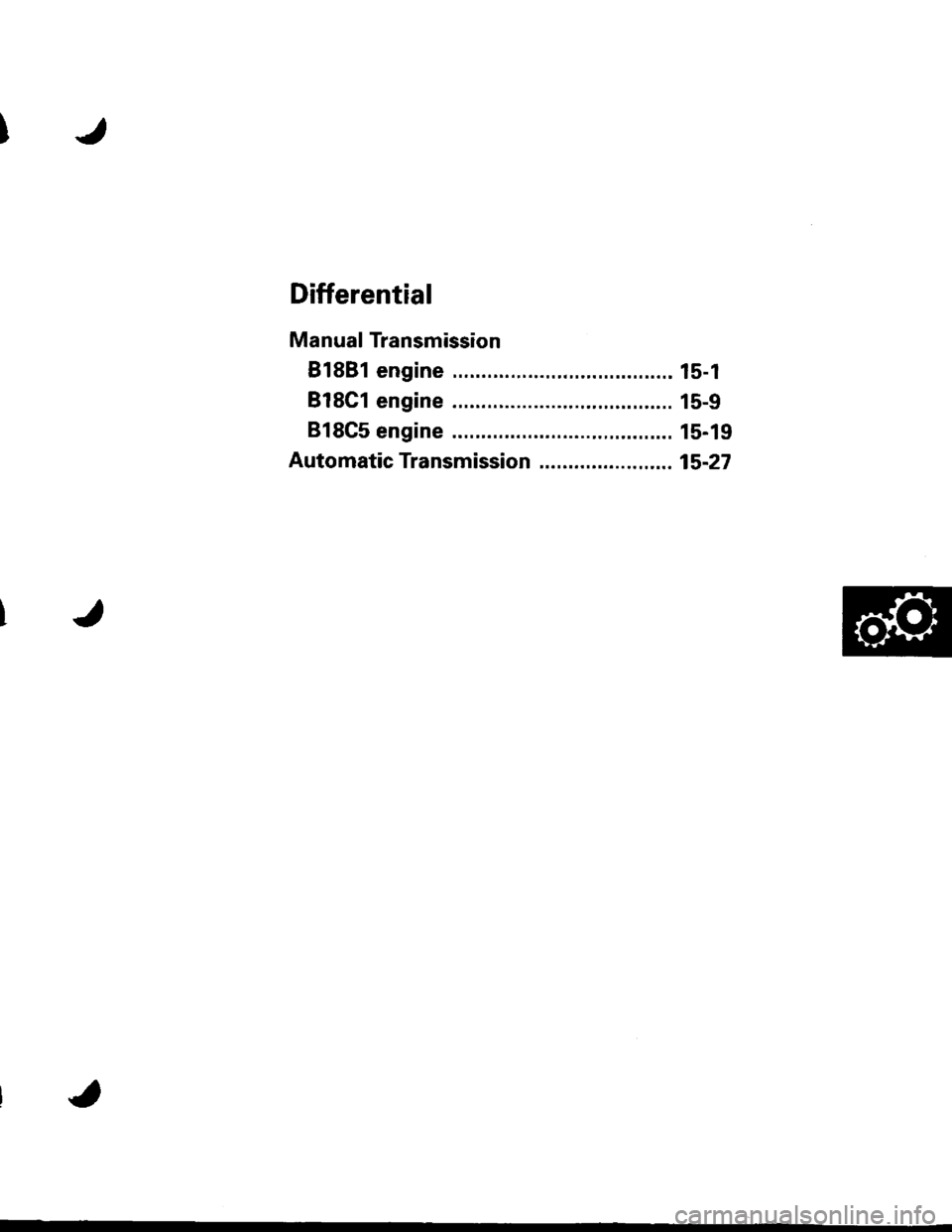

Differential
Manual Transmission
81881 engine ...................................... 15-1
818C1 engine ...................................... 15-9
818C5 engine .....,........... 15-19
Automatic Transmission .................. ..... 15-27

Differential (818B1 engine)
Special Tools ........ ........ 15-2
Differential
lllustrated Index......... . 15-3
Backfash Inspection .... 15-4
Final Driven Gear Replacement ...... 15-4
Bearing Replacement .................... 1 5-5
Oil Seal Removal ........ 15-5
Side Clearance Adjustment ........... 15-6
Oil Seal Installation .-... 15-8
t

Special Tools
\l
L
Ref. No.Tool NumbeiDescriptionotvPage ReJerence
o5\
,al
r-q)
oTJAD-PH80101
o7746-0030100
o7749-0010000
07947-SD90200
Seal Driver Attachment
Driver, 40 mm LD.
Driver
Seal Driver Attachment
15-8
15-5, 6
15-8
15-8
ot
od)
€
F=.F
\"P
15-2
