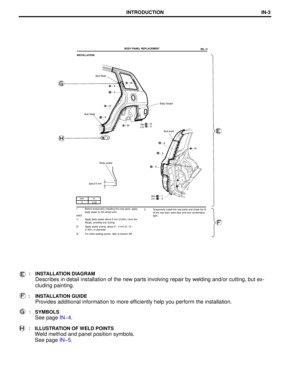

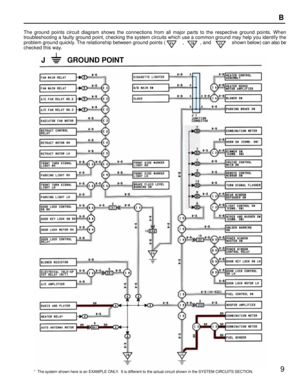

1996 TOYOTA RAV4 Service Repair Manual

Q06117
AX055−02
AT5641
Q057310.8−1.5 mm (0.031−0.059 in.) 200 mm (7.87 in.)
− AUTOMATIC TRANSAXLE (A241E)THROTTLE CABLE
AX−9
1996 RAV4 (RM447U)
THROTTLE CABLE
ON−VEHICLE REPAIR
1. DISCONNECT THROTTLE CABLE FROM ENGINE
2. REMOVE NO.2 ENGINE UNDER COVER
3. REMOVE PARK/NEUTRAL POSITION SWITCH (See
page AX−4)
4. REMOVE VALVE BODY (See page AX−5)
5. REMOVE THROTTLE CABLE
(a) Remove the retaining bolt and plate.
(b) Pull out the cable from the transaxle case.
6. INSTALL THROTTLE CABLE
If throttle cable is new, do the following operations (a) − (c).
(a) Bend the cable so there is a radius of about 200 mm (7.87
in.).
(b) Pull theinner cable lightly until a slight resistance is felt,
and hold it.
(c) Stake the stopper 0.8 − 1.5 mm (0.031 − 0.059 in.) from
the end of outer cable.
(d) Be sure to push it in all the way.
(e) Install the bolt.
7. INSTALL VALVE BODY (See page AX−5)
8. INSTALL PARK/NEUTRAL POSITION SWITCH (See
page AX−4)
9. INSTALL NO.2 ENGINE UNDER COVER
10. CONNECT THROTTLE CABLE
11. ADJUST THROTTLE CABLE (See page DI−127)
12. FILL ATF AND CHECK ATF (See page DI−127)

AX056−03
Z02840
SST
Z02841
SST LH Side
Z02842
SST
AX−10
− AUTOMATIC TRANSAXLE (A241E)DIFFERENTIAL OIL SEAL
1996 RAV4 (RM447U)
DIFFERENTIAL OIL SEAL
ON−VEHICLE REPAIR
1. DRAIN ATF
2. REMOVE ENGINE UNDER COVER
3. REMOVE LH AND RH DRIVE SHAFTS
(See page SA−20)
4. REMOVE LH AND RH SIDE OIL SEALS
Using SST, drive out the both side oil seals.
SST 09308−00010
5. INSTALL LH AND RH SIDE OIL SEALS
(a) Using SST and a hammer, drive in a new oil seal until its
surface is flush until the case surface.
SST LH side
09350−32014 (09351−32111, 09351−32130)
RH side
09350−32014 (09351−32130, 09351−32150)
Oil seal drive in depth:
LH side: 5.2 ± 0.5 mm (0.205 ± 0.020 in.)
RH side: 0 ± 0.5 mm (0 ± 0.020 in.)
(b) Coat the oil seal lip with MP grease.
6. INSTALL LH AND RH DRIVE SHAFTS
(See page SA−31)
7. FILL ATF AND CHECK ATF LEVEL (See page DI−127)
8. INSTALL ENGINE UNDER COVER

AX04X−02
Q08861
Key Interlock SolenoidStop Light Switch
Shift Lock Override Button Cover
Shift Lock Solenoid
Shift Lock Control Switch
Shift Lock Control ECU HINT:
 The shift indicator housing ordered as
supply parts does not include the cover
of the shift−lock override button.
So, if you replace the shift indicator
housing, install cover from the old
housing into the new housing.
 Install the cover with its cutout facing
toward the rear of the vehicle.
− AUTOMATIC TRANSAXLE (A241E)SHIFT LOCK SYSTEM
AX−11
1996 RAV4 (RM447U)

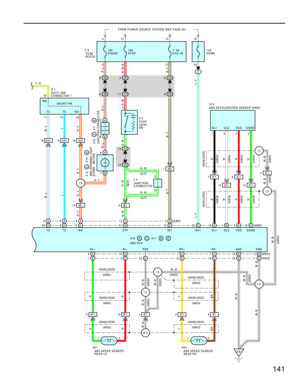

SHIFT LOCK SYSTEM
LOCATION

AX0T7−02
Z19320
STPSLS
+
P2
IG
ACC
KLS
+EP1
P
SLS−
Wire Harness Side ABC
AT5027
AT5029
Battery AX−12
− AUTOMATIC TRANSAXLE (A241E)SHIFT LOCK SYSTEM
1996 RAV4 (RM447U)
INSPECTION
1. INSPECT SHIFT LOCK CONTROL ECU
Using a voltmeter, measure the voltage at each terminal.
HINT:
Do not disconnect the ECU connector.
ConnectorTerminalMeasuring conditionVoltage (V)
A
5 − 4 (ACC − E)Ignition switch ACC10 − 14
1 − 4 (IG − E)Ignition switch ON10 − 14
2 − 4 (STP − E)Depress brake pedal10 − 14
6 − 4 (KLS+ − E)
2. Ignition switch ACC and P position0
3. Ignition switch ACC and except P position7.5 − 11
4. (After−approx. 1 second)5.5 − 10
B1 − 2 (SLS+ − SLS−)
1. Ignition switch ON and P position0
2. Depress brake pedal8.5 − 14
3. Except P position0
C
1 − 2 (P1 − P)1. Ignition switch ON, P position and depress brake pedal0
2. Shift except P position under condition above10 − 14
3 − 2 (P2 − P)1. Ignition switch ACC and P position10 − 14
2. Shift except P position under condition above0
2. INSPECT SHIFT LOCK SOLENOID
(a) Disconnect the solenoid connector.
(b) Using an ohmmeter, measure the resistance between the
terminals.
Standard resistance: 26 − 33 Ω
If resistance value is not as specified, replace the solenoid.
(c) Apply battery positive voltage between the terminals.
Check that the solenoid can be heard operating.
If solenoid operation is not as specified, replace the solenoid.

Q09052
21
Q09053
21
Z193392 (P)1 (P2)
3 (P1)
− AUTOMATIC TRANSAXLE (A241E)SHIFT LOCK SYSTEM
AX−13
1996 RAV4 (RM447U)
3. INSPECT KEY INTERLOCK SOLENOID
(a) Disconnect the solenoid connector.
(b) Using an ohmmeter, measure the resistance between the
terminals.
Standard resistance: 12.5 − 16.5 Ω
If resistance value is not as specified, replace the solenoid.
(c) Apply battery positive voltage between the terminals.
Check that the solenoid can be heard operating.
If solenoid operation is not as specified, replace the solenoid.
4. INSPECT SHIFT LOCK CONTROL SWITCH
Inspect that there is continuity between each terminal.
Shift positionTester connectionSpecified value
P position (Release button
is not pushed)2 − 3 (P − P1)Continuity
P position (Release button
is pushed)2 − 3 (P − P1)
2 − 1 (P − P2)Continuity
R, N, D, 2, L position2 − 1 (P − P2)Continuity
If continuity is not as specified, replace the switch.

AX0T8−01
Z18886
RH Drive Shaft
LH Drive Shaft  Snap Ring
64 (650, 47)
 Cotter Pin
Lock Cap
216 (2,200, 159)
 Gasket
49 (500, 36)
7.0 (75, 65 in.·lbf)
62 (630, 46)
48 (490, 35)
Front Exhaust PipeEngine Mounting
Center MemberPS Gear Assembly
Front Suspension Crossmember
Assembly with Stabilizer Bar
RH Engine Under Cover
LH Engine Under Cover
137 (1,400, 101)
206 (2,100, 152)
127 (1,300, 94)
72 (730, 53)

73 (740, 54)
N·m (kgf·cm, ft·lbf)
: Specified torque
 Non−reusable part
113 (1,150 83)
 Cotter Pin
 Gasket
35 (360, 26)
64 (650, 47)
64 (650, 47)
19 (194, 14)
25 (250, 18)
46 (470, 34)
27 (280, 20)
25 (250, 18)
9.0 (95, 78 in.·lbf)
64 (650, 47)
9.0 (95, 78 in.·lbf)
37 (380, 27)
13 (135, 10)
39 (400, 29)64 (650, 47)
 GasketStarterEngine Wire
Clamp Plug for Line
Pressure Test
Shift Control
Cable ClipRear End Plate Stiffener Platex 6 Torque Converter
ClutchEngine Coolant Reservoir TankABS RelayAir Intake Connector
Air Cleaner
Case Assembly AX−14
− AUTOMATIC TRANSAXLE (A241E)AUTOMATIC TRANSAXLE UNIT
1996 RAV4 (RM447U)
AUTOMATIC TRANSAXLE UNIT
COMPONENTS

D02186
AX127−01
Q08747
Q08761
D02187
Q08763
− AUTOMATIC TRANSAXLE (A241E)AUTOMATIC TRANSAXLE UNIT
AX−15
1996 RAV4 (RM447U)
REMOVAL
1. DISCONNECT THROTTLE CABLE
2. REMOVE ENGINE COOLANT RESERVOIR TANK
3. REMOVE AIR CLEANER ASSEMBLY
(a) Disconnect the connector and ABS relay.
(b) Remove the 3 bolts and air cleaner assembly.
4. REMOVE GROUND CABLE
Remove the bolt from the transaxle.
Torque: 19 N·m (194 kgf·cm, 14 ft·lbf)
5. REMOVE SET NUT OF ENGINE WIRE CLAMP
6. REMOVE STARTER
(a) Disconnect the connector and nut from the starter.
(b) Remove the 2 bolts and disconnect the engine wire.
Torque: 39 N·m (400 kgf·cm, 29 ft·lbf)
(c) Remove the starter.
7. REMOVE 3 UPPER SIDE TRANSAXLE MOUNTING
BOLTS
Torque: 64 N·m (650 kgf·cm, 47 ft·lbf)
8. INSTALL ENGINE SUPPORT FIXTURE

Q08764
Q08765
Q08766
Q08767
AX−16
− AUTOMATIC TRANSAXLE (A241E)AUTOMATIC TRANSAXLE UNIT
1996 RAV4 (RM447U)
9. REMOVE ENGINE LEFT MOUNTING BOLT AND NUTS
Torque:
Bolt: 64 N·m (650 kgf·cm, 47 ft·lbf)
Nut: 64 N·m (650 kgf·cm, 47 ft·lbf)
10. REMOVE LEFT AND RIGHT ENGINE UNDER COVERS
11. DRAIN ATF
12. REMOVE LEFT AND RIGHT DRIVE SHAFTS
(See page SA−20)
13. REMOVE FRONT EXHAUST PIPE
(a) Remove the 2 bolts and gasket from the exhaust pipe.
Torque: 48 N·m (490 kgf·cm, 35 ft·lbf)
HINT:
At the time of installation, please refer to the following item.
Replace used gasket with new gasket.
(b) Remove the 3 nuts, front exhaust pipe and gasket.
Torque: 62 N·m (630 kgf·cm, 46 ft·lbf)
HINT:
At the time of installation, please refer to the following item.
Replace used nuts and gasket with new nuts and gasket.
14. DISCONNECT SHIFT CONTROL CABLE
(a) Remove the nut from the control shaft lever.
Torque: 13 N·m (135 kgf·cm, 10 ft·lbf)
(b) Remove the clip and disconnect the control cable.
(c) Remove the 2 shift cable mounting bolts.
Torque: 7.0 N·m (75 kgf·cm, 65 in.·lbf)
