Page 225 of 255

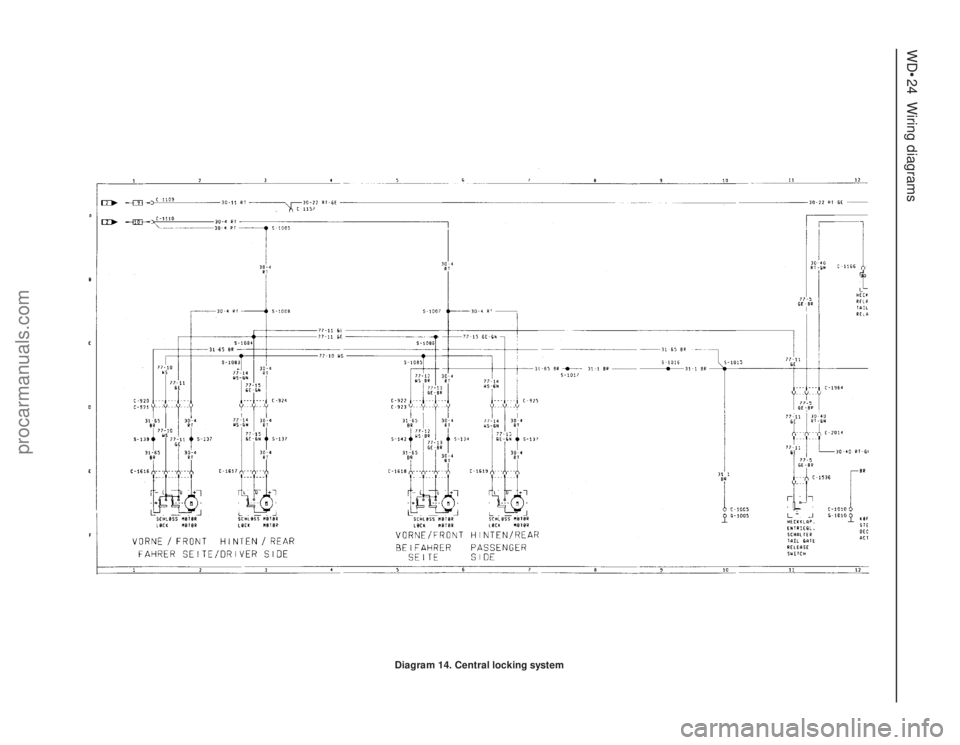

FORD GRANADA 1985 Service Repair Manual WD•24Wiring diagrams Diagram 14. Central locking system procarmanuals.com

Page 226 of 255

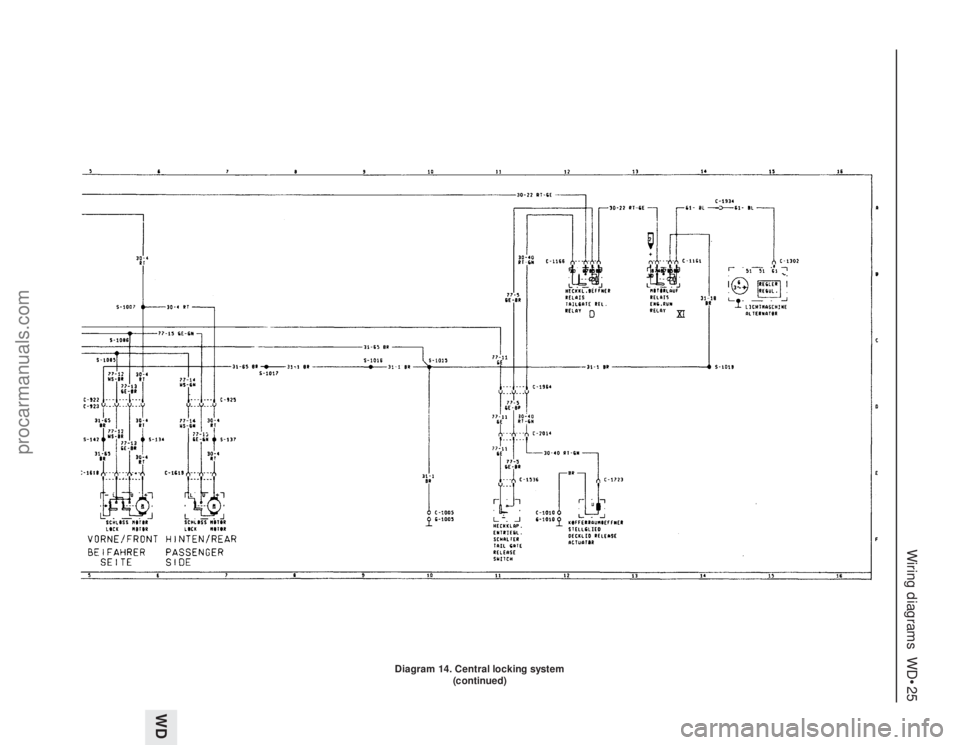

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•25 WD Diagram 14. Central locking system (continued) procarmanuals.com

Page 227 of 255

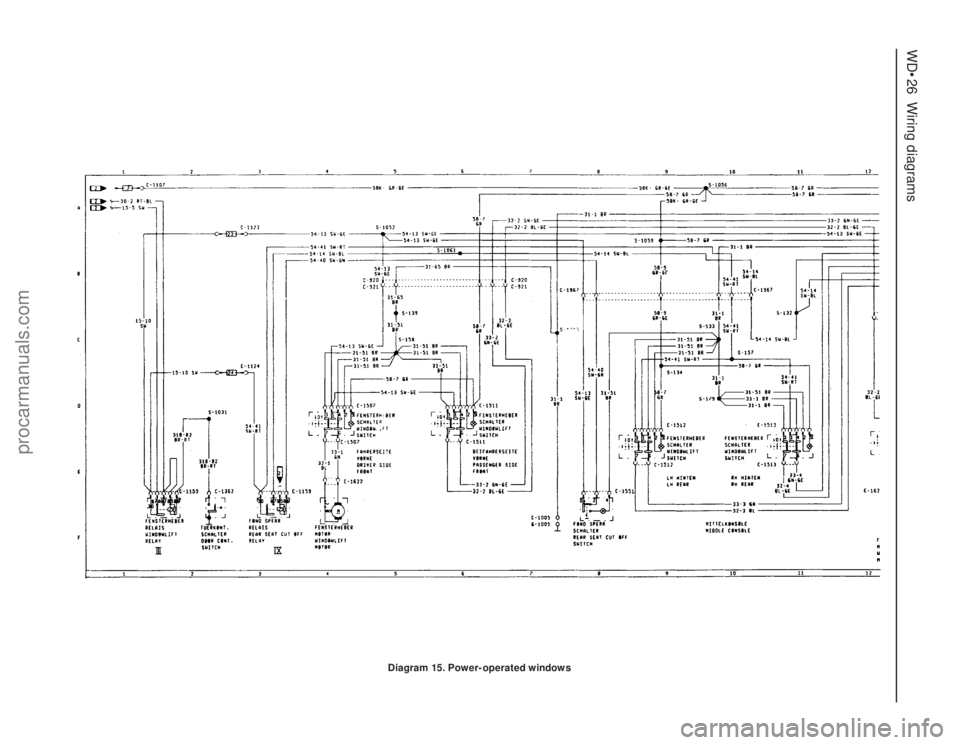

FORD GRANADA 1985 Service Repair Manual WD•26Wiring diagrams Diagram 15. Power-operated windows procarmanuals.com

Page 228 of 255

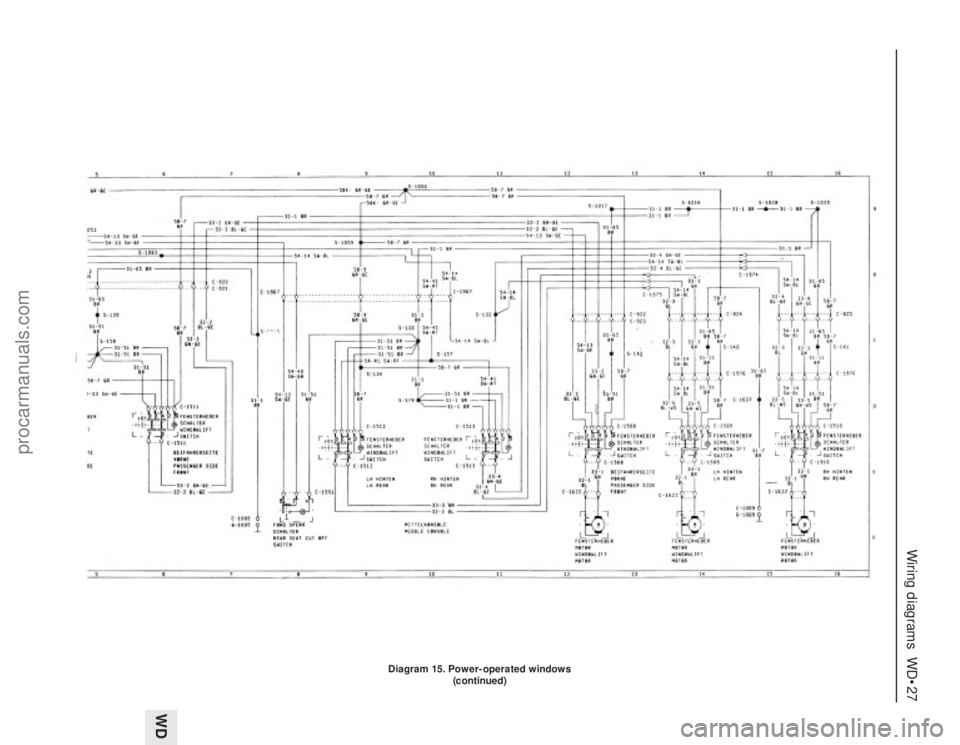

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•27 WD Diagram 15. Power-operated windows (continued) procarmanuals.com

Page 229 of 255

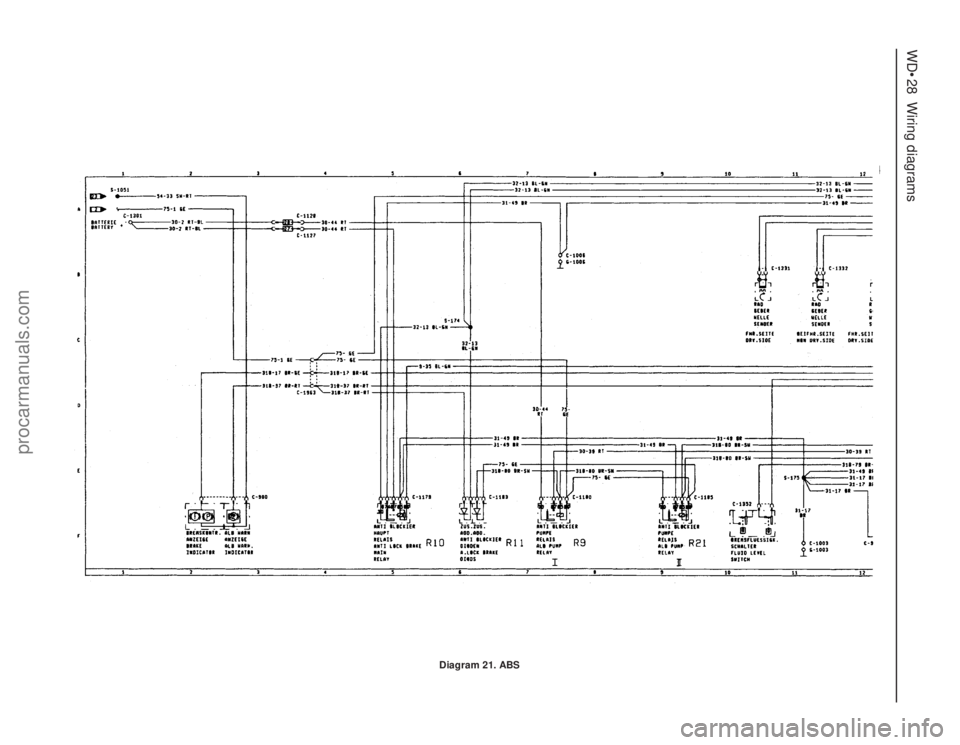

FORD GRANADA 1985 Service Repair Manual WD•28Wiring diagrams Diagram 21. ABS procarmanuals.com

Page 230 of 255

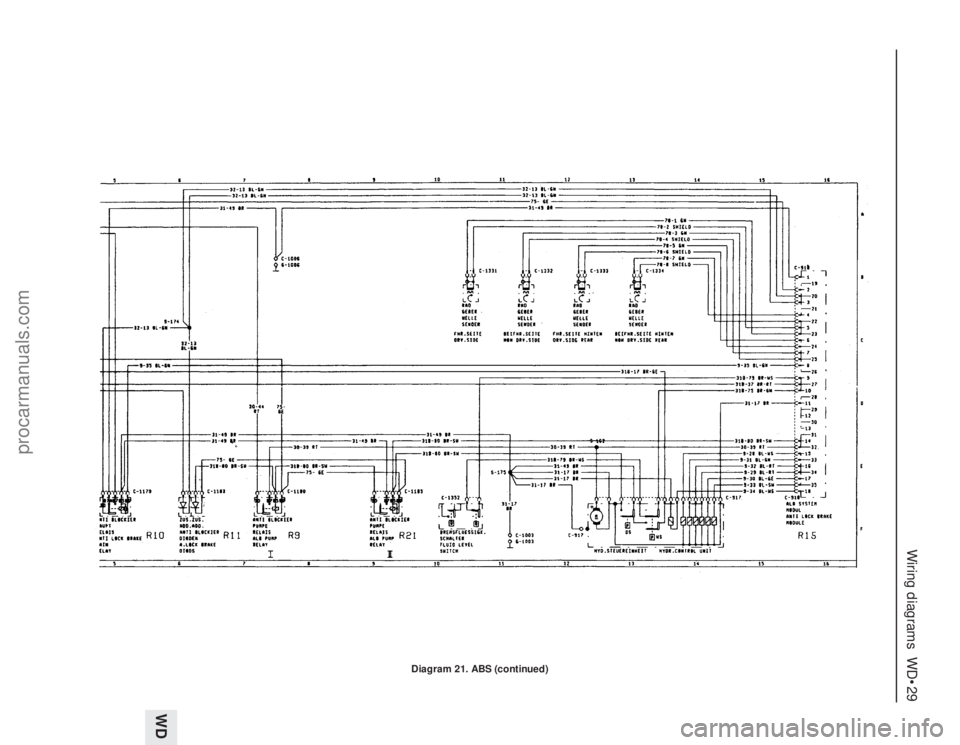

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•29 WD Diagram 21. ABS (continued) procarmanuals.com

Page 231 of 255

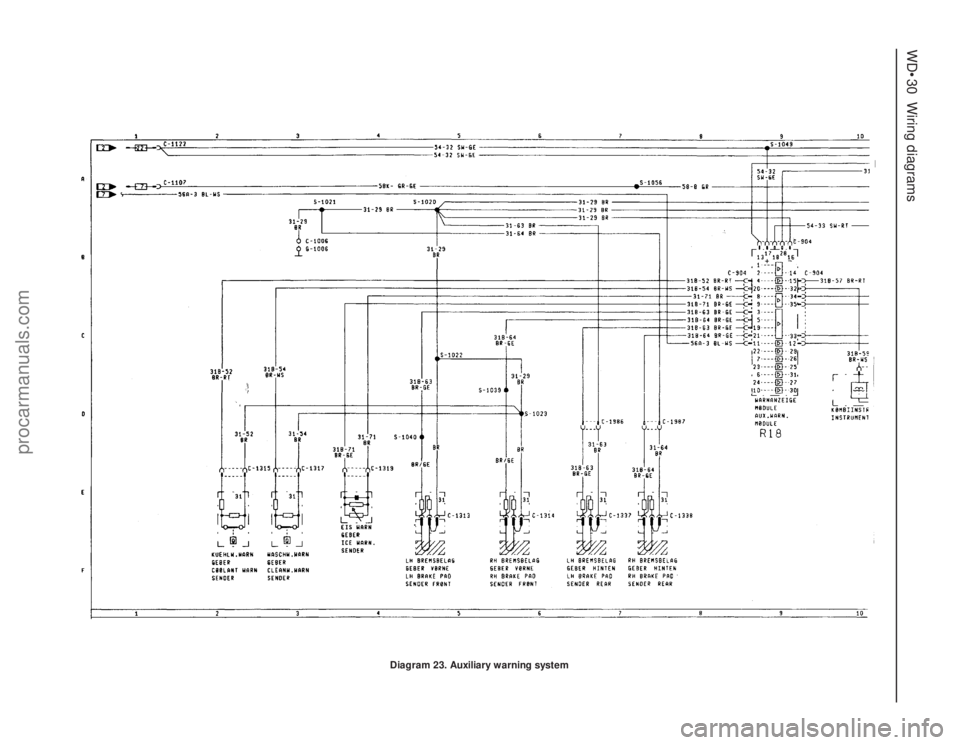

FORD GRANADA 1985 Service Repair Manual WD•30Wiring diagrams Diagram 23. Auxiliary warning system procarmanuals.com

Page 232 of 255

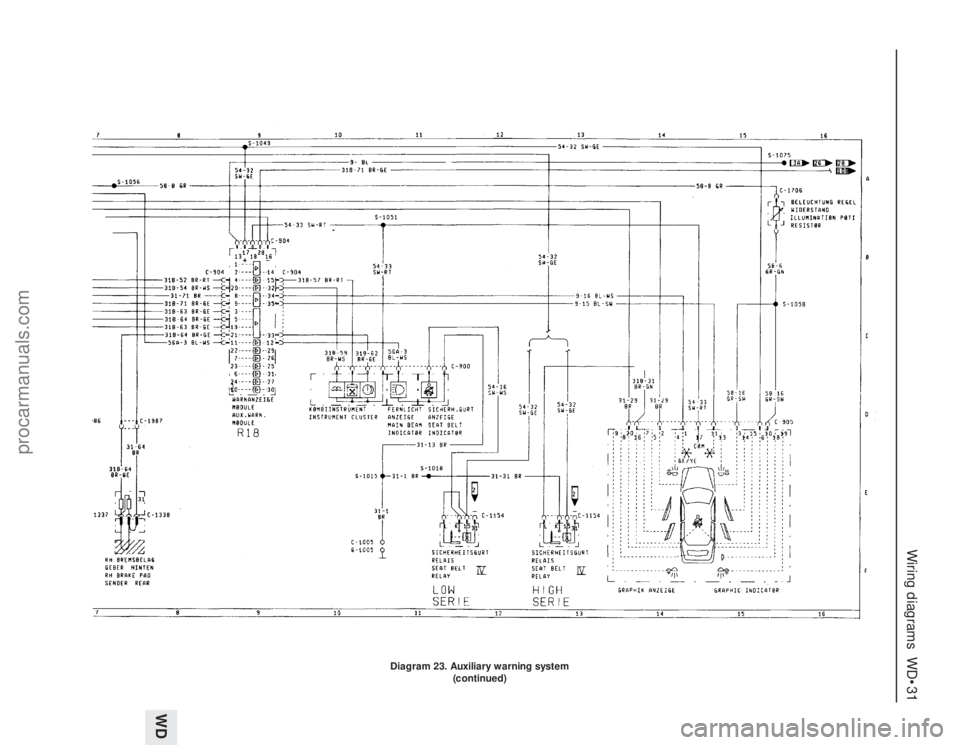

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•31 WD Diagram 23. Auxiliary warning system (continued) procarmanuals.com
