Page 209 of 255

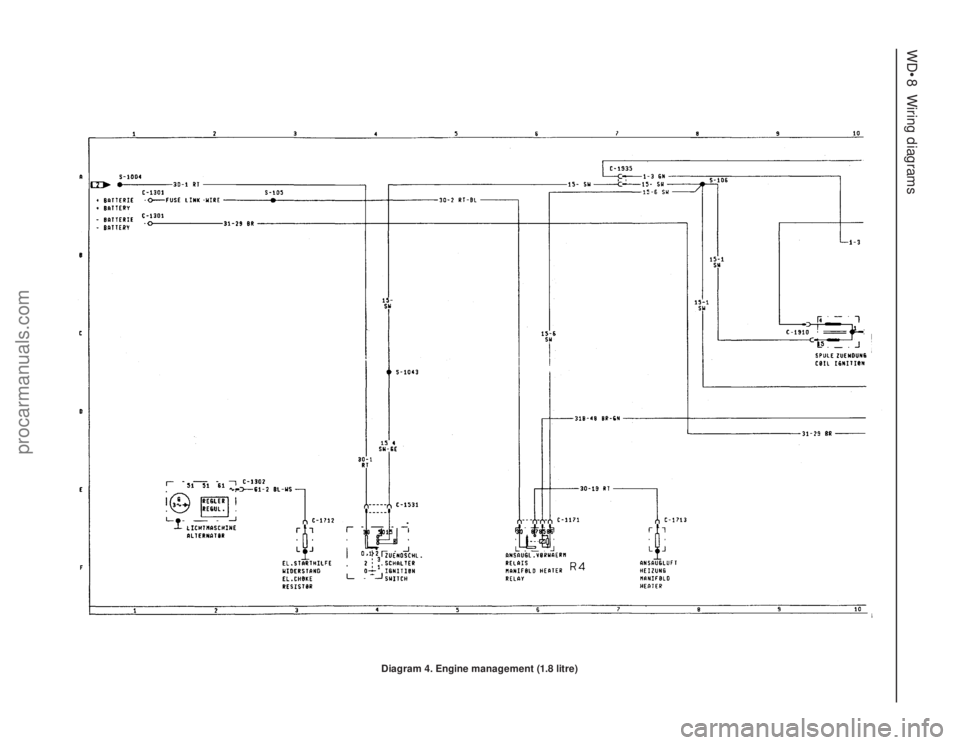

FORD GRANADA 1985 Service Repair Manual WD•8Wiring diagrams Diagram 4. Engine management (1.8 litre) procarmanuals.com

Page 210 of 255

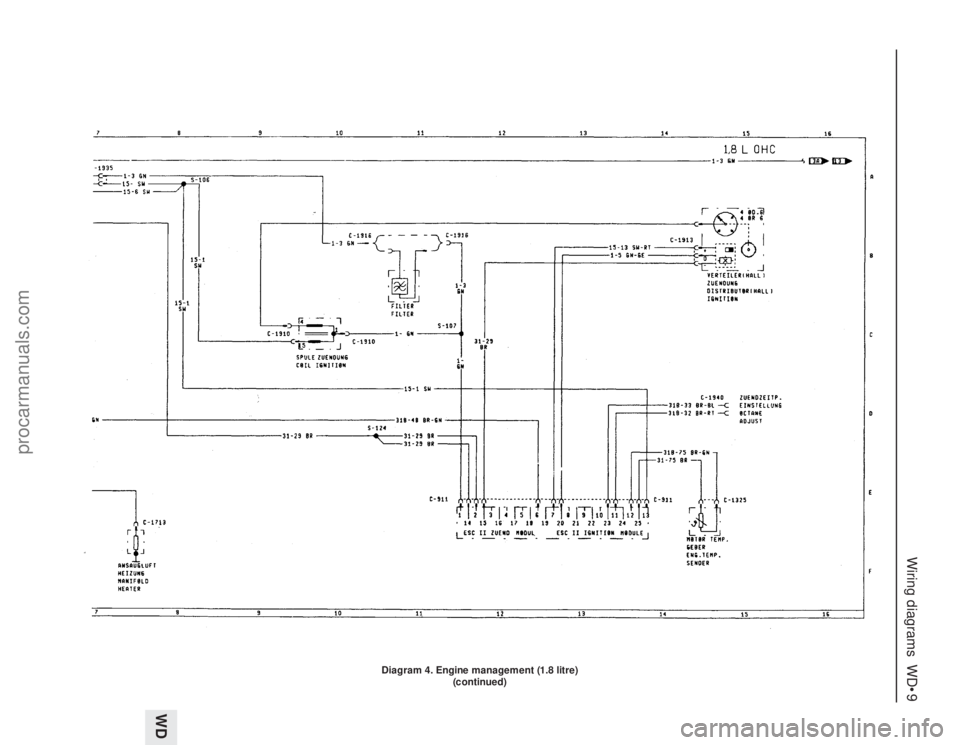

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•9 WD Diagram 4. Engine management (1.8 litre) (continued) procarmanuals.com

Page 211 of 255

FORD GRANADA 1985 Service Repair Manual WD•10Wiring diagrams Diagram 4A. Engine management (2.0 litre carburettor) procarmanuals.com

Page 212 of 255

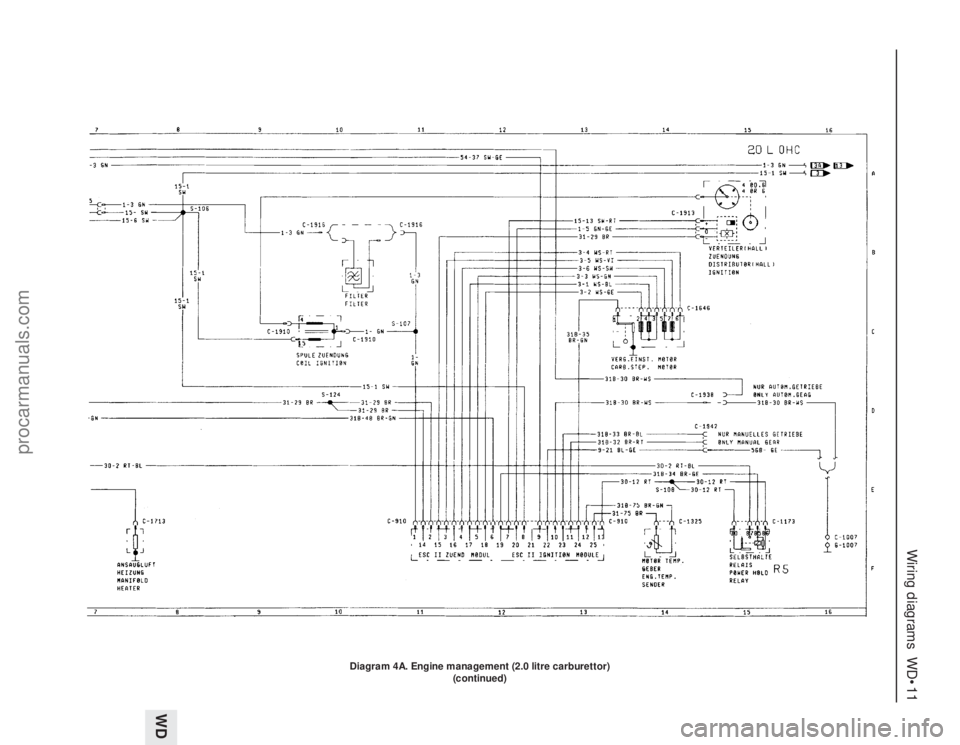

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•11 WD Diagram 4A. Engine management (2.0 litre carburettor) (continued) procarmanuals.com

Page 213 of 255

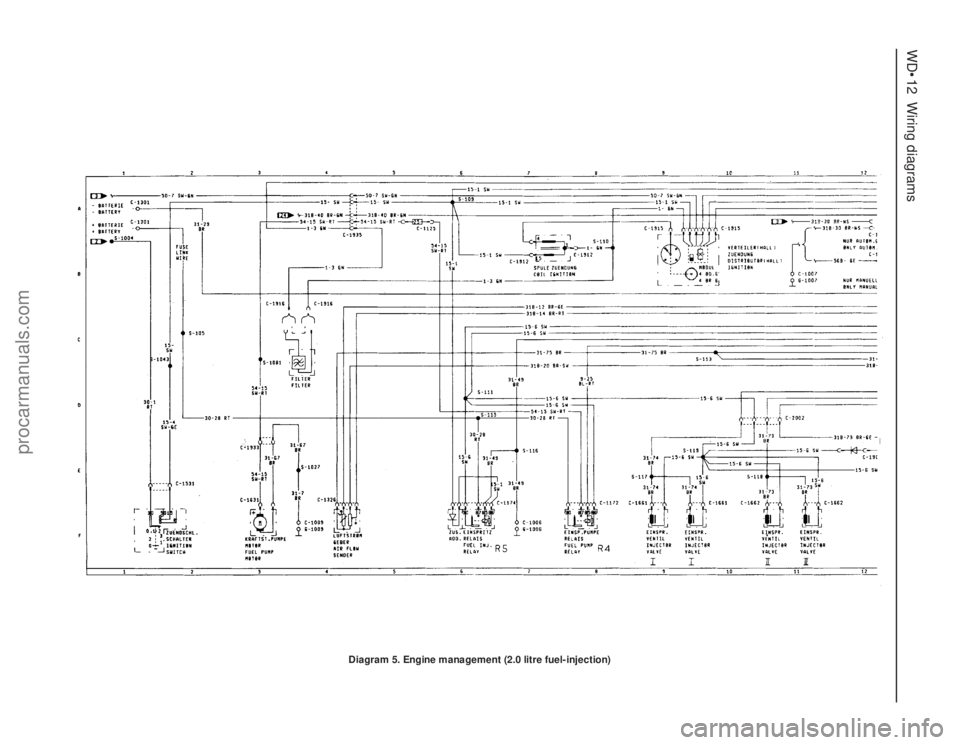

FORD GRANADA 1985 Service Repair Manual WD•12Wiring diagrams Diagram 5. Engine management (2.0 litre fuel-injection) procarmanuals.com

Page 214 of 255

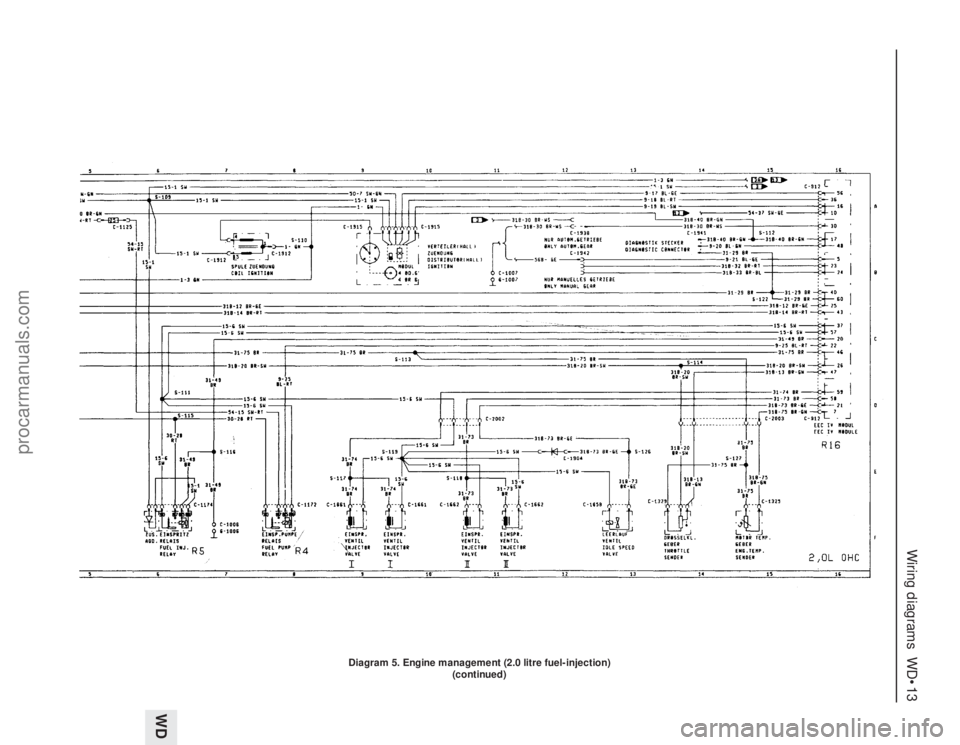

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•13 WD Diagram 5. Engine management (2.0 litre fuel-injection) (continued) procarmanuals.com

Page 215 of 255

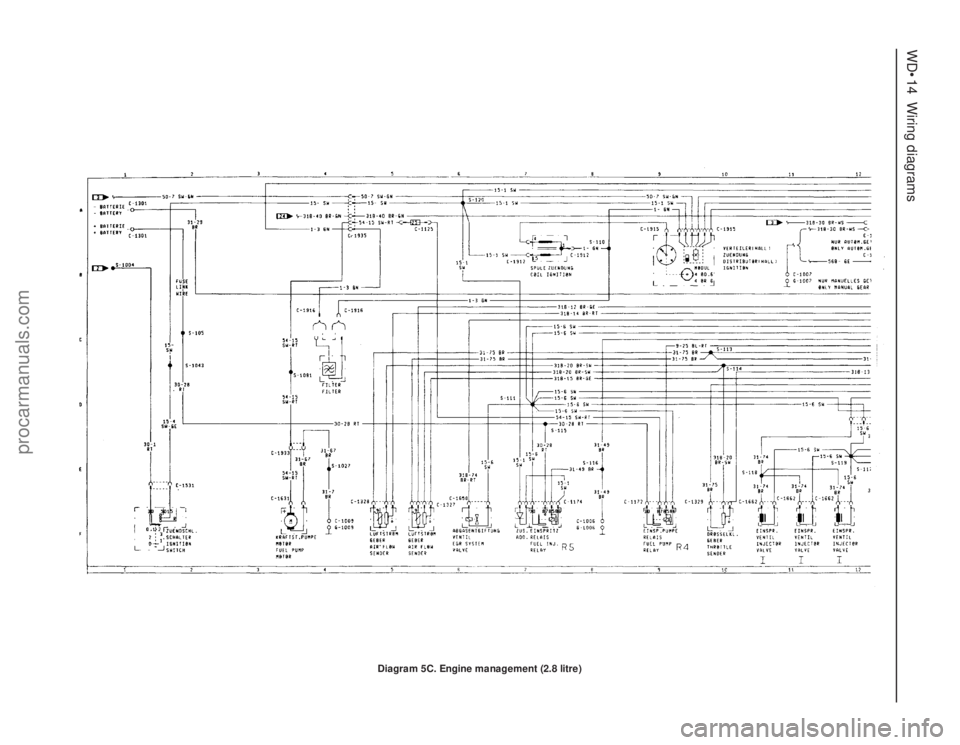

FORD GRANADA 1985 Service Repair Manual WD•14Wiring diagrams Diagram 5C. Engine management (2.8 litre) procarmanuals.com

Page 216 of 255

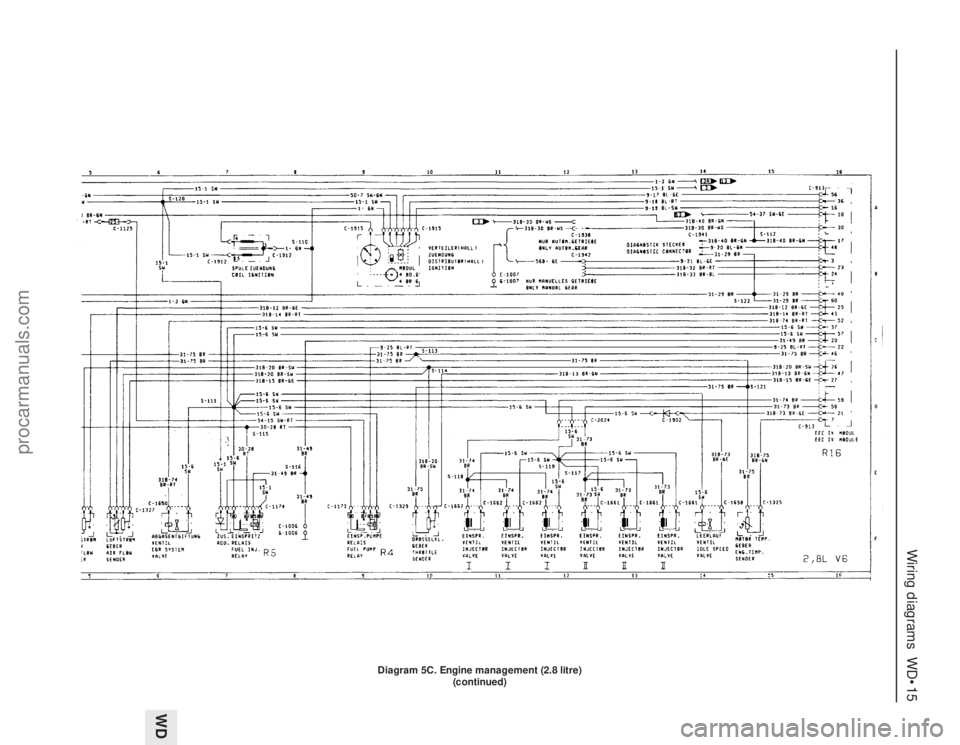

FORD GRANADA 1985 Service Repair Manual Wiring diagrams WD•15 WD Diagram 5C. Engine management (2.8 litre) (continued) procarmanuals.com
