Explanatory notes for wiring diagrams
Each wiring diagram covers a particular system of the vehicle; as indicated in each caption. When a number is shown on a diagram inside a box
with an arrow symbol, this indicates that the circuit concerned starts, or is continued, in the diagram having that number.
Space limitations mean that not all diagrams have been included. Therefore the diagram numbers are not consecutive, neither is it always
possible to follow a particular circuit to completion. Some diagrams are out of sequence; this is to ensure that the halves of the larger diagrams
appear on opposite pages.
The prefix C indicates a connector or multi-plug, S a soldered joint and G an earthing point (ground). The numbers appearing at the break in
each wire indicate the circuit number and wire colour.
Colour code
BLBlue
BRBrown
GEYellow
GRGrey
GNGreen
RSPink
RT Red
SWBlack
VIViolet
WSWhiteSubjectDiagram number
ABS21
Auxiliary warning system23
Central locking system14
Charge, start and run3
Charge, start and run3A
Engine management (1.8 litre)4
Engine management (2.0 litre carburettor)4A
Engine management (2.0 litre fuel-injection)5
Engine management (2.8 litre)5C
Exterior lighting7A
Heater blower11
Interior lighting10
Power 0perated windows15
Power distribution2
Power-operated sliding roof16
Radio/cassette player and associated circuits29
Signalling and warning systems9
Wipers and washers12
procarmanuals.com

Wiring diagrams WD•1
WD

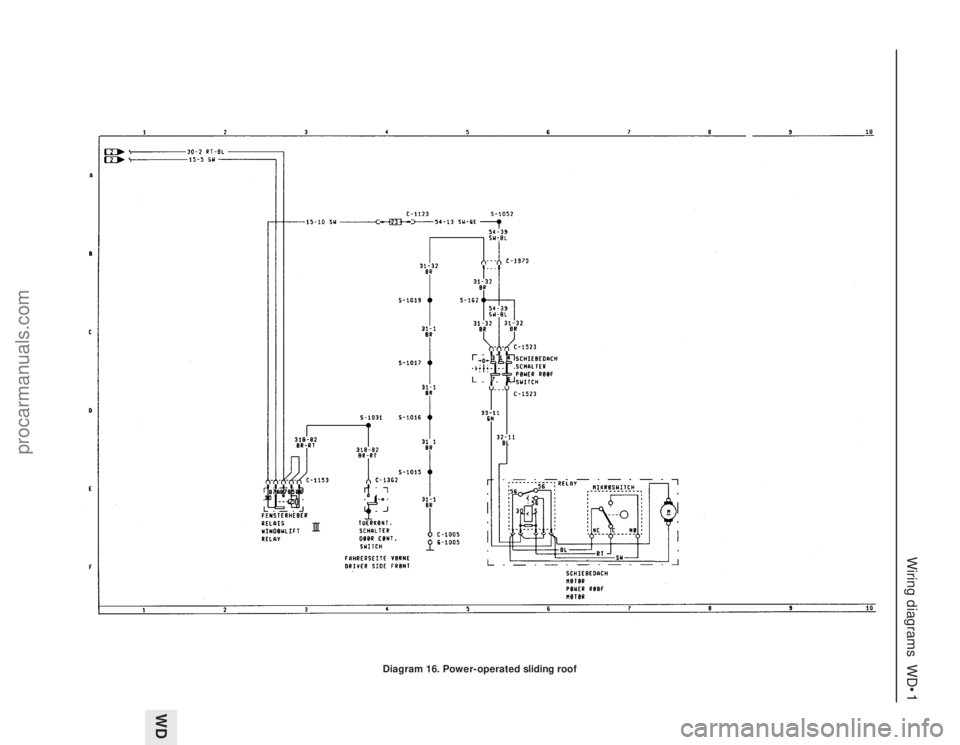

Diagram 16. Power-operated sliding roof
procarmanuals.com

WD•2Wiring diagrams

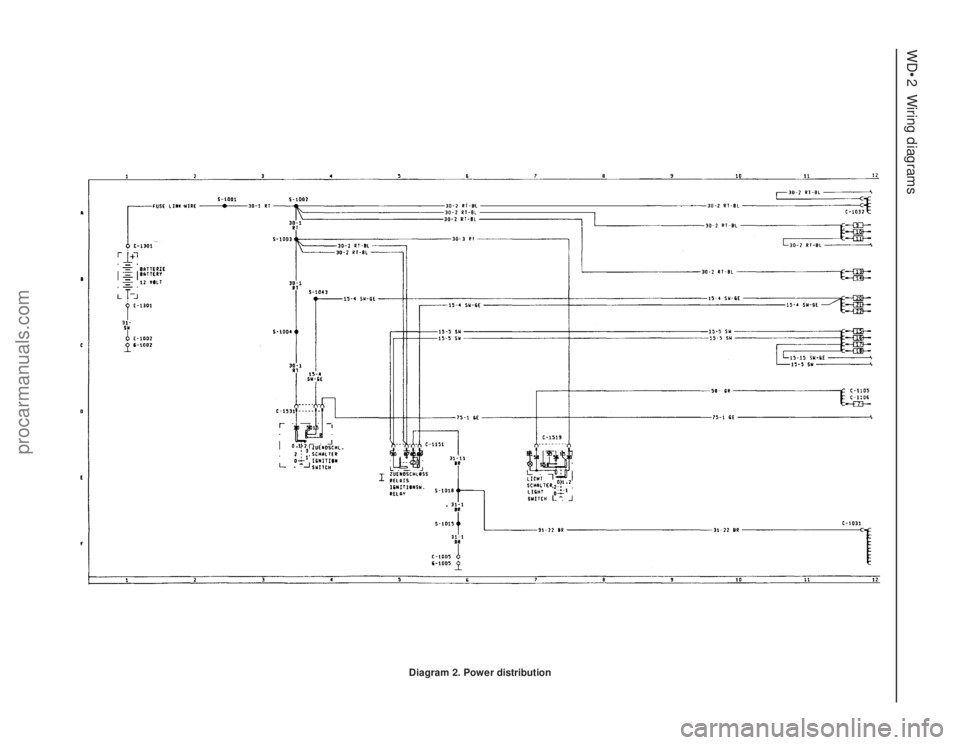

Diagram 2. Power distribution
procarmanuals.com

Wiring diagrams WD•3
WD

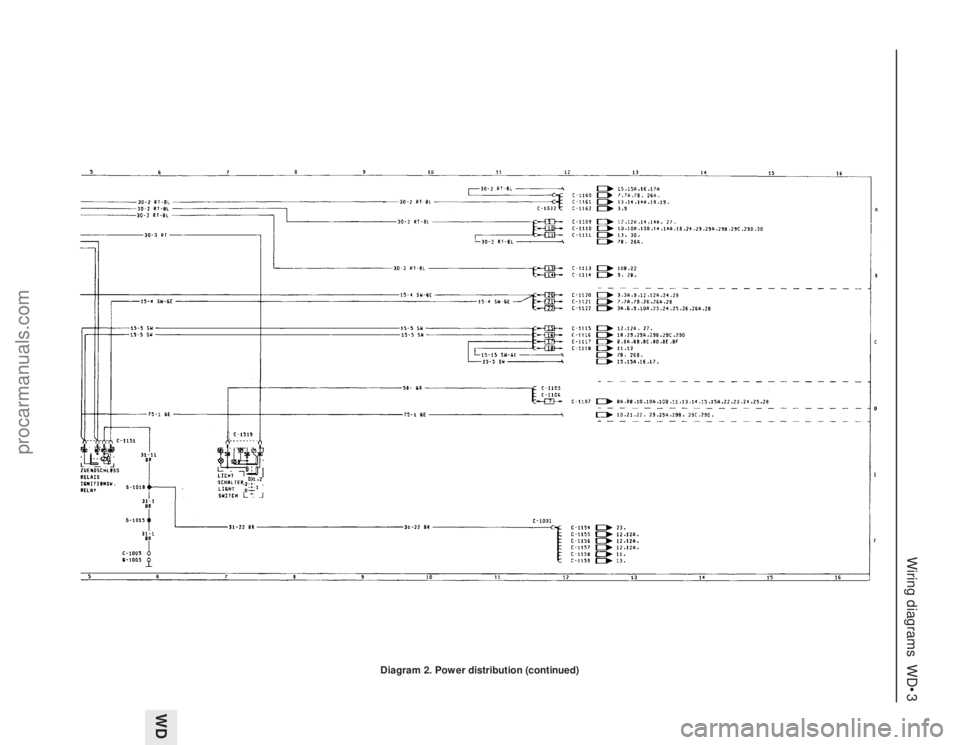

Diagram 2. Power distribution (continued)
procarmanuals.com

WD•4Wiring diagrams

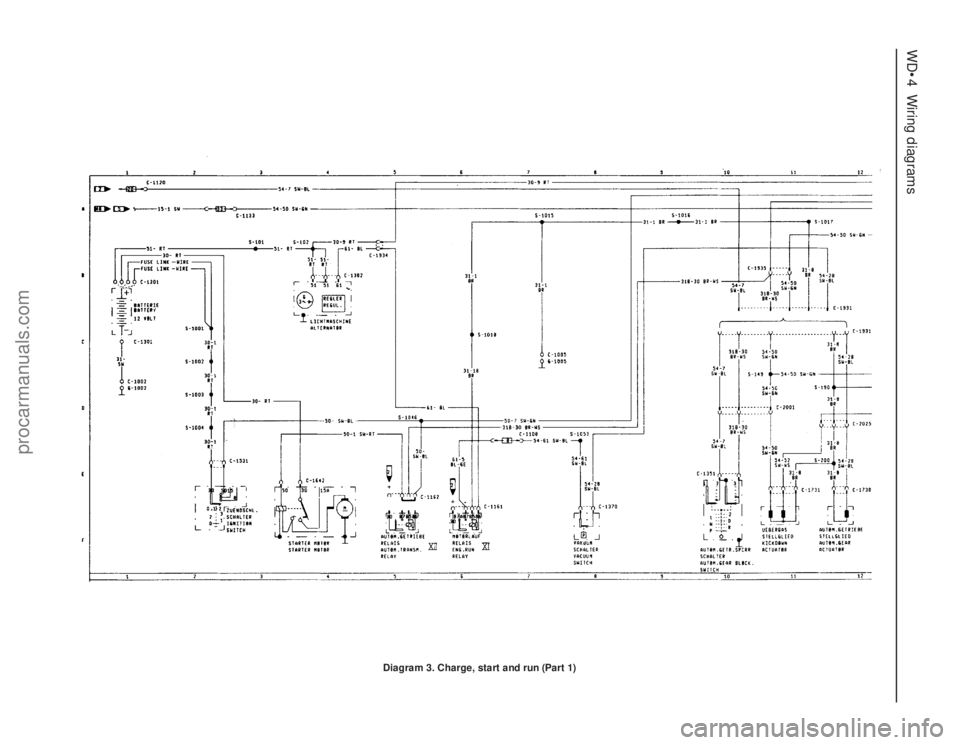

Diagram 3. Charge, start and run (Part 1)
procarmanuals.com

Wiring diagrams WD•5
WD

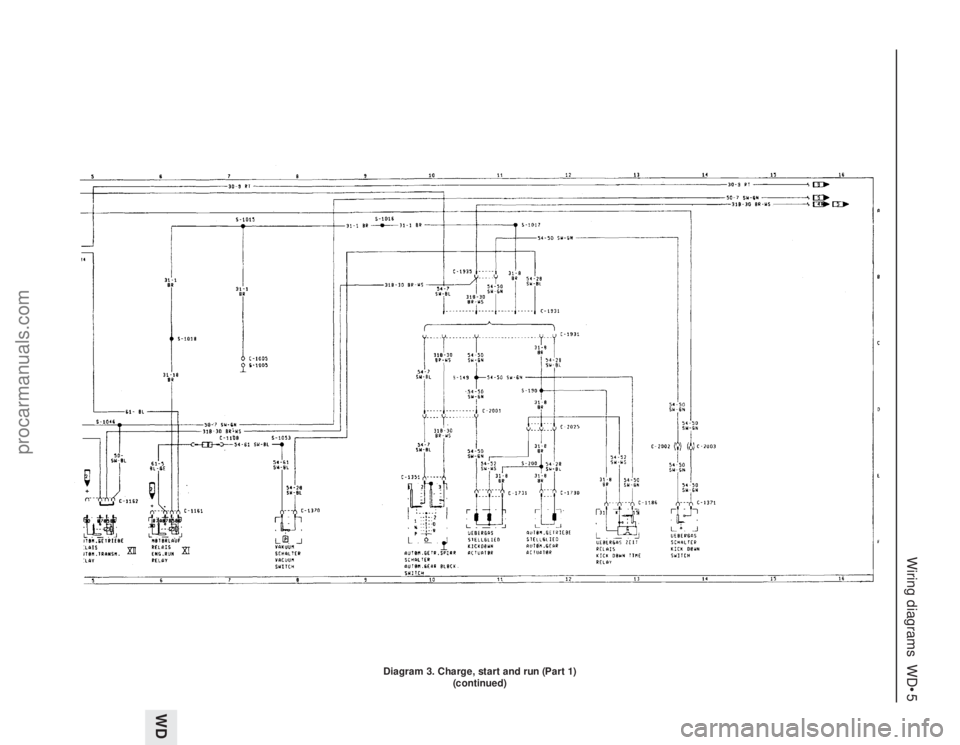

Diagram 3. Charge, start and run (Part 1)
(continued)
procarmanuals.com

WD•6Wiring diagrams

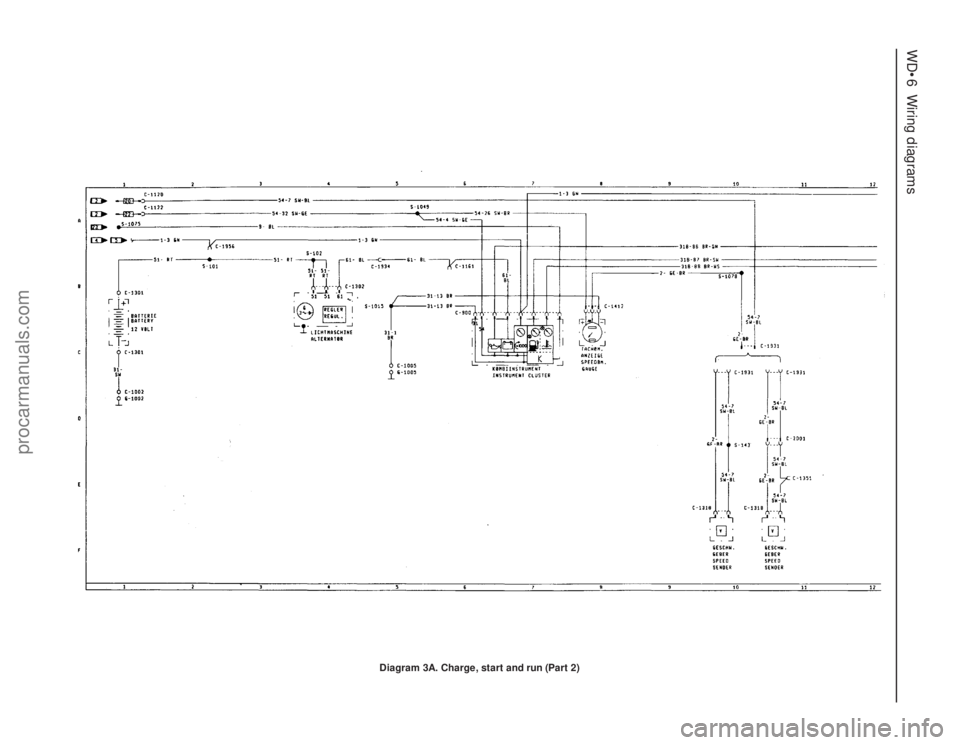

Diagram 3A. Charge, start and run (Part 2)
procarmanuals.com

Wiring diagrams WD•7
WD

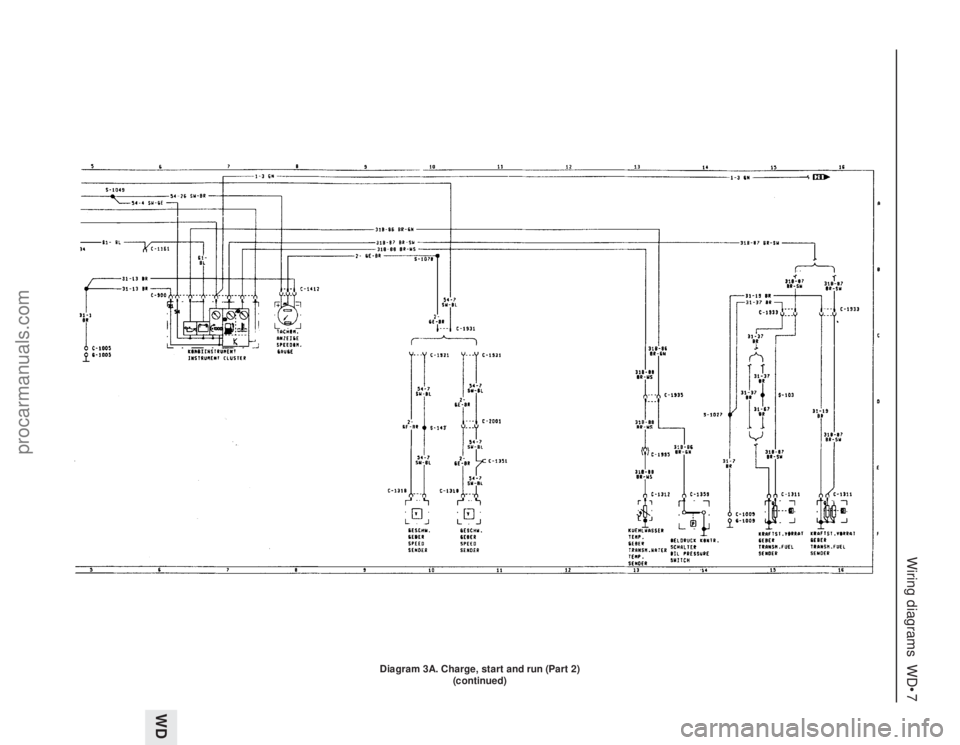

Diagram 3A. Charge, start and run (Part 2)
(continued)
procarmanuals.com
