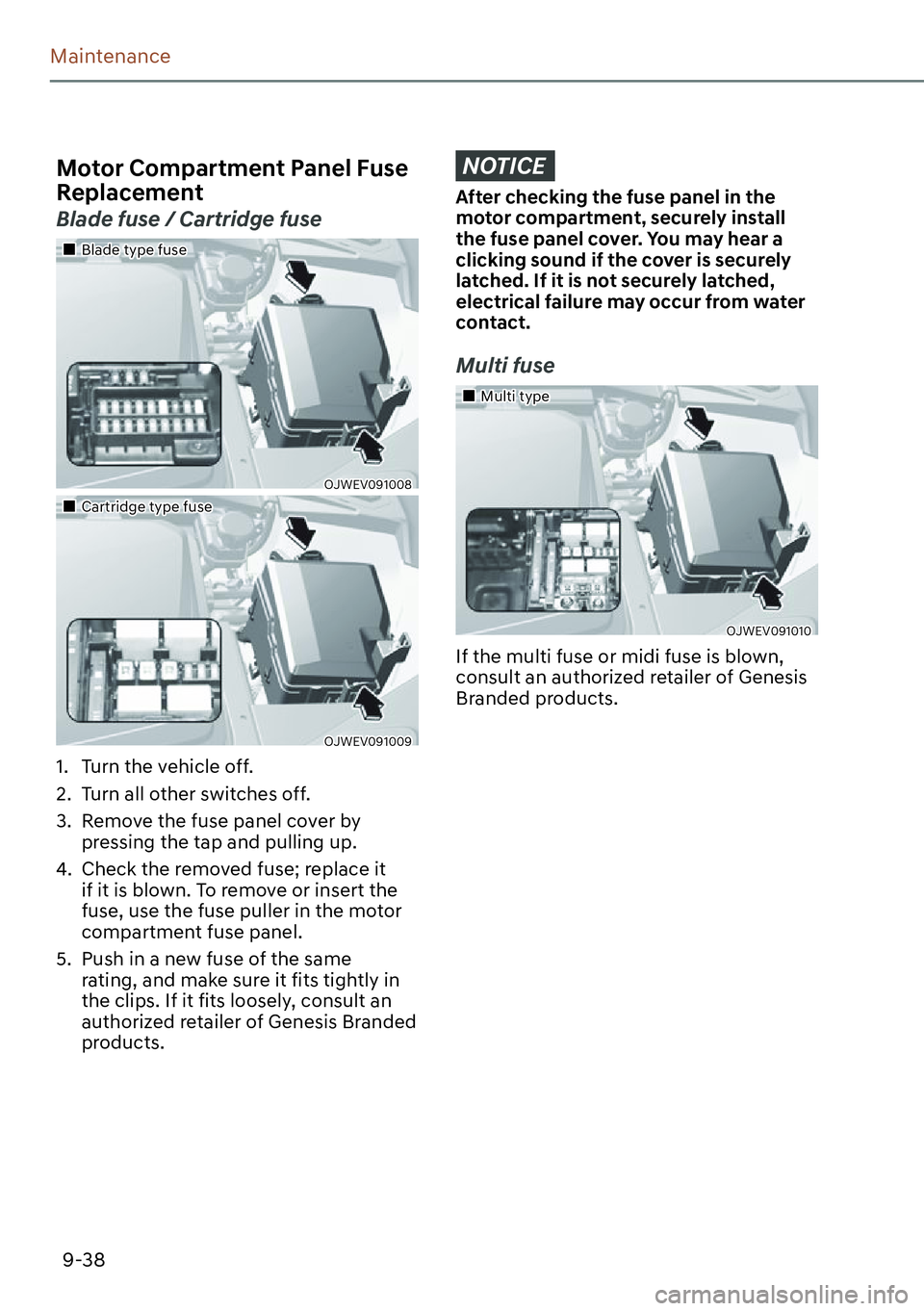

Motor Compartment Panel Fuse
Replacement
Blade fuse / Cartridge fuse
„Blade type fuse
OJWEV091008
„Cartridge type fuse
OJWEV091009
1. Turn the vehicle off.
2. Turn all other switches off.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Check the removed fuse; replace it
if it is blown. To remove or insert the
fuse, use the fuse puller in the motor
compartment fuse panel.
5. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized retailer of Genesis Branded
products.
NOTICE
After checking the fuse panel in the
motor compartment, securely install
the fuse panel cover. You may hear a
clicking sound if the cover is securely
latched. If it is not securely latched,
electrical failure may occur from water
contact.
Multi fuse
„Multi type
OJWEV091010
If the multi fuse or midi fuse is blown,
consult an authorized retailer of Genesis
Branded products.

9-39
09
Fuse/Relay Panel Description
Instrument panel fuse panel
OJWEV091013
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
OJWEV091023N

9-40
Maintenance
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
EPCU310A Rear Inverter (System)
E-SHIFTER 410A SCU
WASHER15A Washer Relay
BATTERY
MANAGEMENT10A Battery System Assembly (BMU)
POWER
HANDLE15A Steering Tilt & Telescopic Unit
MODULE 67.5A IBU, IAU
MODULE 410AELSD Unit, Rear Inverter (System), ECS Unit, Rear Corner
Radar LH/RH, Front View Camera, ADAS unit (Driving/
Parking), Crash Pad Switch, VESS Unit, Steering Tilt &
Telescopic Unit, Front Radar, Front Corner Radar LH/RH,
Front Inverter (System)
MODULE 510AData Link Connector, CCIC Head Unit, Electro Chromic
Mirror, DCU, CCIC Keyboard, Smart Phone Wireless
Charger, Console Switch, AMP, Driver/Passenger Power
Seat Module, Front Seat Warmer Control Module, Rear
Seat Warmer Control Module, Face Recognition Unit,
Front Air Ventilation Seat Control Module
MODULE 210AFace Recognition Unit, Center Control Panel, AMP, IBU,
CCIC Head Unit,P/R Junction Block (RLY. 11), Instrument
Cluster, CCU, DCU, IAU, ADAS Unit (Parking)
SPARE (B+)10A Not Used

9-41
09
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
AMP225A AMP
SAFETY P/
WINDOW RH30ARear Safety Power Window Module RH,
Passenger Safety Power Window Module
IG3 810A Rear Inverter (System), Battery System Assembly(BMU)
IBU110A IBU, IAU
CHILD LOCK15A Child Lock/Unlock Relay
USB CHARGER15A Console USB Charger Connector
AIRBAG 115ASRS Control Module, Passenger Occupant Detection
Sensor
IBU 27.5A IBU
CCU10A CCU

9-42
Maintenance
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
SAFETY P/
WINDOW LH30ARear Safety Power Window Module LH,
Driver Safety Power Window Module
E-LSD20A ELSD Unit
IG3 710AInstrument Cluster, CCU, A/C Controller, PM Sensor, CCIC
Head Unit, Incar Temperature Sensor, DCU, A/C PTC
Heater, A/C Control Module, Charger IND
MODULE 810ADriver/Passenger Door DSM Monitor, Driver/Passenger
Outside Mirror Unit
LIFTGATE
OPEN10A Liftgate Relay
MODULE 77.5A Head Lamp LH/RH, Passenger Power Seat Module
A/BAG IND7.5A Overhead Console
CLUSTER7.5A Instrument Cluster, Head-Up Display
MEMORY 110ADriver Door Mood Lamp #1/#2/#3 (Handle/Garnish/
Pocket), Passenger Door Mood Lamp #1/#2/#3 (Handle/
Garnish/Pocket), Rear Door Mood Lamp LH #1/#2 (Handle/
Garnish), Rear Door Mood Lamp RH #1/#2 (Handle/
Garnish)
A/C CONTROLLER, HUD, A/C CONTROL MODULE,
SECURITY IND , CLUSTER, MOOD LP MASTER, ADAS
UNIT(PARKING)
MODULE 110AData Link Connector, Multifunction Switch, CCIC
Keyboard, Rain Sensor, BLE Unit, Interior UBW Unit
#1/#2/#3, Front UWB Unit LH/RH, AFCU, P/R Junction
Block (RLY.9), Driver/Passenger Door Outside Handle,
Face Recognition Unit, Driver Power Window Switch,
Driver Power Outside Mirror Switch, Rear UWB Unit LH/
RH, Driver/Passenger Outside Mirror Unit, Power Liftgate
Unit, Driver Power Seat Module, Driver Power Seat Switch,
Driver Lumbar Support Motor, Passenger Power Seat
Module, Passenger Power Seat Switch
S/HEATER FRT25APassenger Power Seat Module, Front Seat Warmer Control
Module, Front Air Ventilation Seat Control Module, Driver
Power Seat Module

9-43
09
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
P/SEAT PASS30APassenger Power Seat Switch, Passenger Power Seat
Module
S/HEATER RR20A Rear Seat Warmer Control Module
DOOR LOCK20A T/Turn Unlock Relay, Door Lock/Unlock Relay
A/C 17.5A A/C Control Module, A/C Controller
E-SHIFTER 310A Electronic ATM Shift Dial
PRESAFETY
SEAT BELT 310A Preactive Seat Belt Unit
E-CALL10A DCU
BRAKE
SWITCH10A Stop Lamp Switch, IBU
AMP 125A AMP
P/SEAT DRV30A Driver Power Seat Switch, Driver Power Seat Module
ECS15A ECS Unit
VISION ROOF20A Vision Roof Unit

9-44
Maintenance
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
WIPER FRT 215A Multifunction Switch
SPEAR (IG2)10A Not Used
MODULE 37.5AStop Lamp Switch, IAU, IBU, CCU, Multifunction Switch,
Driver/Passenger Door DSM Monitor, Driver Power
Window Switch, Overhead Console
MULTIMEDIA25A CCIC Head Unit
AIRBAG 210A SRS Control Module
START7.5A VCU, IBU
A/C 210A A/C Control Module

9-45
09
Motor compartment fuse panel
OJWEV091035
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJWEV091024N
