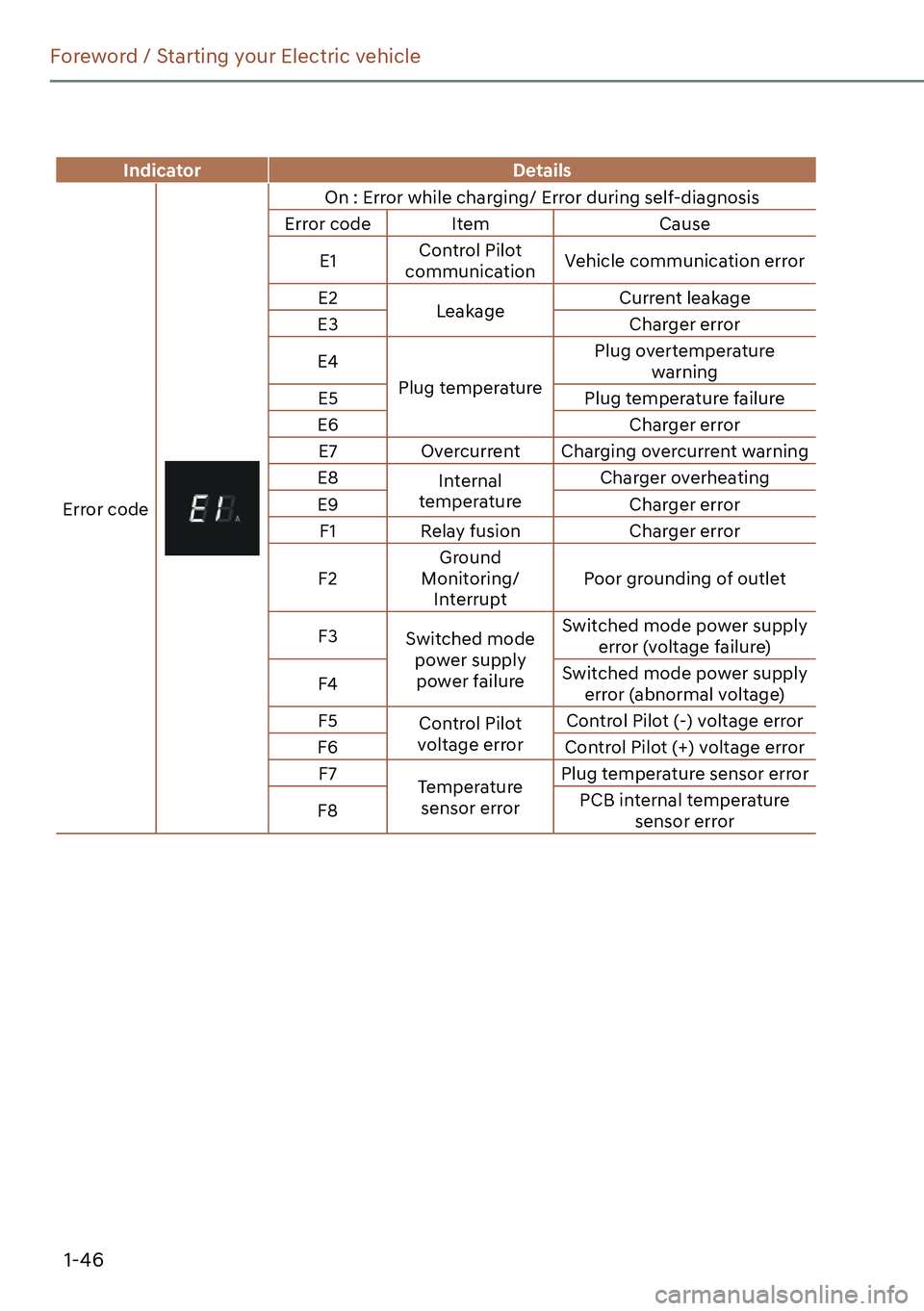

1-46
Foreword / Starting your Electric vehicle
Indicator Details
Error code
On : Error while charging/ Error during self-diagnosis
Error code Item Cause
E1Control Pilot
communicationVehicle communication error
E2
LeakageCurrent leakage
E3 Charger error
E4
Plug temperaturePlug overtemperature
warning
E5 Plug temperature failure
E6 Charger error
E7 Overcurrent Charging overcurrent warning
E8
Internal
temperatureCharger overheating
E9 Charger error
F1 Relay fusion Charger error
F2Ground
Monitoring/
InterruptPoor grounding of outlet
F3
Switched mode
power supply
power failureSwitched mode power supply
error (voltage failure)
F4Switched mode power supply
error (abnormal voltage)
F5
Control Pilot
voltage errorControl Pilot (-) voltage error
F6 Control Pilot (+) voltage error
F7
Temperature
sensor errorPlug temperature sensor error
F8PCB internal temperature
sensor error

9
Tire Sidewall Labeling ................................................................................................ 9-27
Tire Terminology and Definitions ............................................................................. 9-30
All Season Tires ...........................................................................................................9-34
Summer Tires .............................................................................................................9-34
Snow Tires...................................................................................................................9-34
Radial-Ply Tires ...........................................................................................................9-34
Low Aspect Ratio Tires ...............................................................................................9-35
Fuses ................................................................................................................ 9-36
Instrument Panel Fuse Replacement ........................................................................ 9-37
Motor Compartment Panel Fuse Replacement ...................................................... 9-38
Fuse/Relay Panel Description....................................................................................9-39
Light Bulbs .......................................................................................................9-49Headlamp, Parking Lamp, Turn Signal Lamp, Daytime Running Light (DRL)
Replacement ............................................................................................................. 9-50
Puddle Lamp Replacement ....................................................................................... 9-51
Rear Combination Lamp Replacement .................................................................... 9-51
High Mounted Stop Lamp Replacement ..................................................................9-52
License Plate Lamp Replacement .............................................................................9-52
Front Trunk Lamp Replacement ................................................................................9-53
Interior Light Replacement ........................................................................................9-53
Appearance Care ............................................................................................ 9-55Exterior Care ...............................................................................................................9-55
Interior Care ............................................................................................................... 9-60
California Perchlorate Notice ......................................................................... 9-63

9-39
09
Fuse/Relay Panel Description
Instrument panel fuse panel
OJWEV091013
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
OJWEV091023N

9-40
Maintenance
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
EPCU310A Rear Inverter (System)
E-SHIFTER 410A SCU
WASHER15A Washer Relay
BATTERY
MANAGEMENT10A Battery System Assembly (BMU)
POWER
HANDLE15A Steering Tilt & Telescopic Unit
MODULE 67.5A IBU, IAU
MODULE 410AELSD Unit, Rear Inverter (System), ECS Unit, Rear Corner
Radar LH/RH, Front View Camera, ADAS unit (Driving/
Parking), Crash Pad Switch, VESS Unit, Steering Tilt &
Telescopic Unit, Front Radar, Front Corner Radar LH/RH,
Front Inverter (System)
MODULE 510AData Link Connector, CCIC Head Unit, Electro Chromic
Mirror, DCU, CCIC Keyboard, Smart Phone Wireless
Charger, Console Switch, AMP, Driver/Passenger Power
Seat Module, Front Seat Warmer Control Module, Rear
Seat Warmer Control Module, Face Recognition Unit,
Front Air Ventilation Seat Control Module
MODULE 210AFace Recognition Unit, Center Control Panel, AMP, IBU,
CCIC Head Unit,P/R Junction Block (RLY. 11), Instrument
Cluster, CCU, DCU, IAU, ADAS Unit (Parking)
SPARE (B+)10A Not Used

9-41
09
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
AMP225A AMP
SAFETY P/
WINDOW RH30ARear Safety Power Window Module RH,
Passenger Safety Power Window Module
IG3 810A Rear Inverter (System), Battery System Assembly(BMU)
IBU110A IBU, IAU
CHILD LOCK15A Child Lock/Unlock Relay
USB CHARGER15A Console USB Charger Connector
AIRBAG 115ASRS Control Module, Passenger Occupant Detection
Sensor
IBU 27.5A IBU
CCU10A CCU

9-42
Maintenance
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
SAFETY P/
WINDOW LH30ARear Safety Power Window Module LH,
Driver Safety Power Window Module
E-LSD20A ELSD Unit
IG3 710AInstrument Cluster, CCU, A/C Controller, PM Sensor, CCIC
Head Unit, Incar Temperature Sensor, DCU, A/C PTC
Heater, A/C Control Module, Charger IND
MODULE 810ADriver/Passenger Door DSM Monitor, Driver/Passenger
Outside Mirror Unit
LIFTGATE
OPEN10A Liftgate Relay
MODULE 77.5A Head Lamp LH/RH, Passenger Power Seat Module
A/BAG IND7.5A Overhead Console
CLUSTER7.5A Instrument Cluster, Head-Up Display
MEMORY 110ADriver Door Mood Lamp #1/#2/#3 (Handle/Garnish/
Pocket), Passenger Door Mood Lamp #1/#2/#3 (Handle/
Garnish/Pocket), Rear Door Mood Lamp LH #1/#2 (Handle/
Garnish), Rear Door Mood Lamp RH #1/#2 (Handle/
Garnish)
A/C CONTROLLER, HUD, A/C CONTROL MODULE,
SECURITY IND , CLUSTER, MOOD LP MASTER, ADAS
UNIT(PARKING)
MODULE 110AData Link Connector, Multifunction Switch, CCIC
Keyboard, Rain Sensor, BLE Unit, Interior UBW Unit
#1/#2/#3, Front UWB Unit LH/RH, AFCU, P/R Junction
Block (RLY.9), Driver/Passenger Door Outside Handle,
Face Recognition Unit, Driver Power Window Switch,
Driver Power Outside Mirror Switch, Rear UWB Unit LH/
RH, Driver/Passenger Outside Mirror Unit, Power Liftgate
Unit, Driver Power Seat Module, Driver Power Seat Switch,
Driver Lumbar Support Motor, Passenger Power Seat
Module, Passenger Power Seat Switch
S/HEATER FRT25APassenger Power Seat Module, Front Seat Warmer Control
Module, Front Air Ventilation Seat Control Module, Driver
Power Seat Module

9-43
09
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
P/SEAT PASS30APassenger Power Seat Switch, Passenger Power Seat
Module
S/HEATER RR20A Rear Seat Warmer Control Module
DOOR LOCK20A T/Turn Unlock Relay, Door Lock/Unlock Relay
A/C 17.5A A/C Control Module, A/C Controller
E-SHIFTER 310A Electronic ATM Shift Dial
PRESAFETY
SEAT BELT 310A Preactive Seat Belt Unit
E-CALL10A DCU
BRAKE
SWITCH10A Stop Lamp Switch, IBU
AMP 125A AMP
P/SEAT DRV30A Driver Power Seat Switch, Driver Power Seat Module
ECS15A ECS Unit
VISION ROOF20A Vision Roof Unit

9-45
09
Motor compartment fuse panel
OJWEV091035
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OJWEV091024N
