2023 GENESIS GV60 navigation system

3-2
Safety System
You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in all
types of accidents. Air bags are designed
to supplement seat belts, not replace
them. So even though your vehicle is
equipped with air bags, ALWAYS make
sure you and your passengers wear your
seat belts, and wear them properly.
Restrain All Children
All children under age 13 should ride
in your vehicle properly restrained in a
rear seat, not the front seat. Infants and
small children should be restrained in
an appropriate Child Restraint System.
Larger children should use a booster
seat with the lap/shoulder belt until they
can use the seat belt properly without a
booster seat.
Air Bag Hazards
While air bags can save lives, they can
also cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and short adults are at
the greatest risk of being injured by an
inflating air bag. Follow all instructions
and warnings in this manual.
Driver Distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the first concern when behind the wheel
and drivers need to be aware of the wide
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using mobile phones.Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel to
focus on activities other than driving.
To reduce your risk of distraction and an
accident:

[ALWAYS set up your mobile devices
(for example, MP3 players, phones,
navigation units, etc.) when your
vehicle is parked or safely stopped.

[ONLY use your mobile device when
allowed by laws and conditions
permit safe use. NEVER text or email
while driving. Most states have laws
prohibiting drivers from texting. Some
states and cities also prohibit drivers
from using handheld phones.

[NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel
as well as your eyes and attention on
the road.
Control Your Speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed, the greater the risk, but
serious injuries can also occur at lower
speeds. Never drive faster than is safe
for current conditions, regardless of the
maximum speed posted.
Keep Your Vehicle In Safe
Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance.
IMPORTANT SAFETY PRECAUTIONS

4-29
04

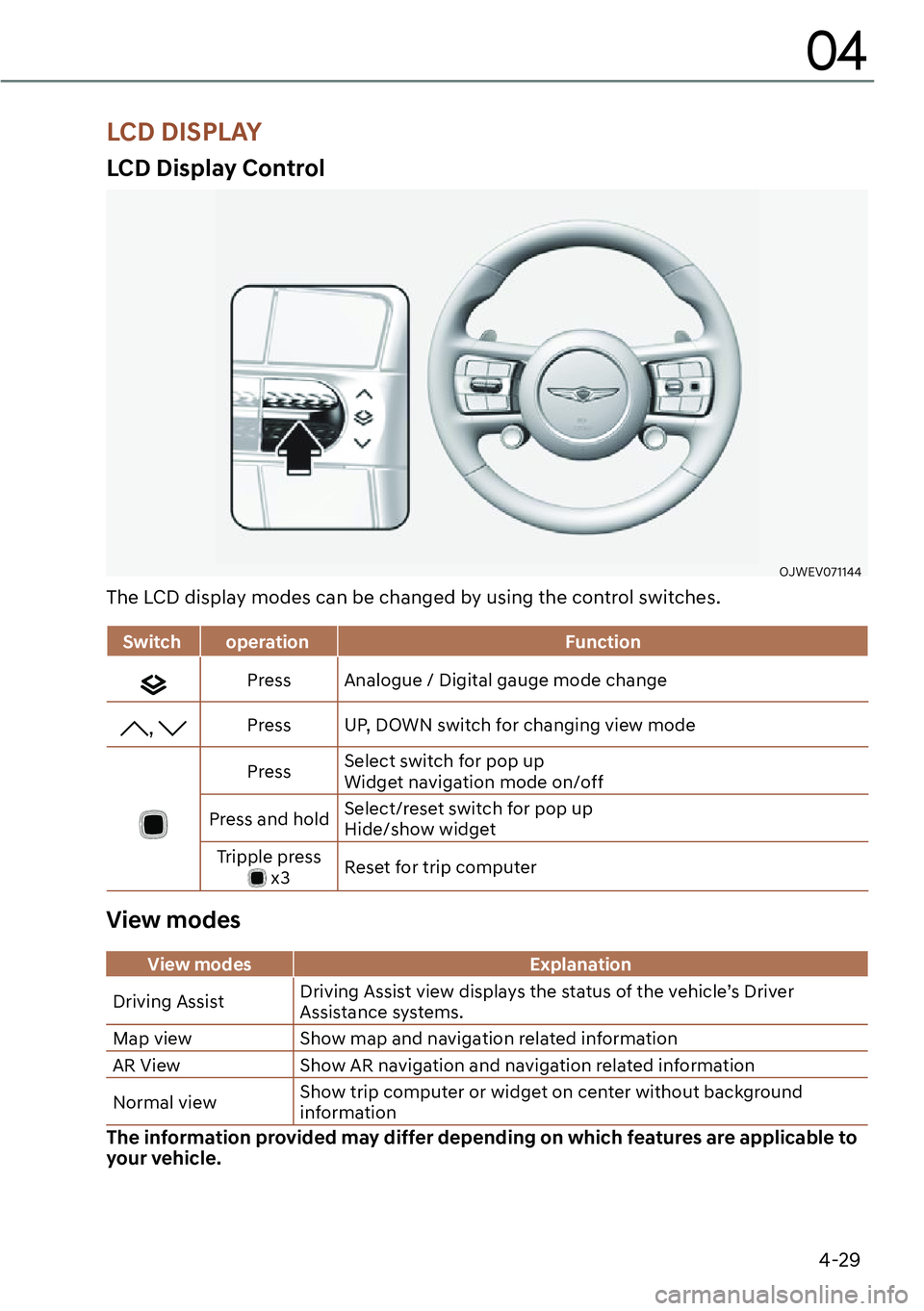

LCD Display Control
OJWEV071144
The LCD display modes can be changed by using the control switches.
Switch operation Function
Press Analogue / Digital gauge mode change
, Press UP, DOWN switch for changing view mode
PressSelect switch for pop up
Widget navigation mode on/off
Press and holdSelect/reset switch for pop up
Hide/show widget
Tripple press
x3Reset for trip computer
View modes
View modes Explanation
Driving AssistDriving Assist view displays the status of the vehicle’s Driver
Assistance systems.
Map view Show map and navigation related information
AR View Show AR navigation and navigation related information
Normal viewShow trip computer or widget on center without background
information
The information provided may differ depending on which features are applicable to
your vehicle.
LCD DISPLAY

5-24
Convenience Features
Vehicle personalization with digital key
The available personalization function in the vehicle is as follows.
System Personalization Item
USMHead Up Display (HUD)Position adjustment of image, Information
display selection
Lamp Blink number of one-touch signal lamps
ClusterInformation display on the cluster, Voice
volume, Welcome sound
Seat/Mirror/Steering
wheelSeat position, O/S mirror position, Steering
wheel position, Easy Access
Smart heating wire/ventilation On/Off
Door Automatic door lock/unlock, Two Press Unlock
Smart phone wireless
chargingWireless charging On/Off
Air conditioningSetting up temperature unit, Block air inflow/
Automatic ventilation/Window defroster On/
Off
Infotainment
menuNavigationPreferred volume of the navigation system
Recent destination
User preset My menu list settings, Radio preset
Phone connectivityBluetooth preferential connection
CarPlay/Android Auto/MirrorLink On/Off
Air conditioning Operating conditionLatest operation setup of the following
functions: Temperature (AUTO), air flow
direction, air volume, air conditioner, air intake
control, SYNC, Front windshield defroster,
OFF
For more information of personalization, refer to the infotainment system manual.
CAUTION
If you leave the digital key in the vehicle after locking or unlocking the doors or
starting the vehicle with the smart key, the doors can be locked with the central
door lock. Have the digital key with you at all times.

7
Driving SafetyForward Collision–Avoidance Assist (FCA) .............................................................. 7-2
Lane Keeping Assist (LKA) ........................................................................................7-27
Blind-Spot Collision-Avoidance Assist (BCA) ......................................................... 7-33
Safe Exit Assist (SEA) ............................................................................................... 7-46
Manual Speed Limit Assist (MSLA) ......................................................................... 7-53
Intelligent Speed Limit Assist (ISLA) ....................................................................... 7-56
Driver Attention Warning (DAW) ............................................................................. 7-62
Blind-Spot View Monitor (BVM) ..............................................................................7-68
Driving ConvenienceSmart Cruise Control (SCC)..................................................................................... 7-70
Navigation-based Smart Cruise Control (NSCC) ...................................................7-89
Lane Following Assist (LFA) ..................................................................................... 7-97
Highway Driving Assist (HDA) ................................................................................ 7-101
Parking SafetyRear View Monitor (RVM) ....................................................................................... 7-114
Surround View Monitor (SVM) ...............................................................................7-120
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) ......................................... 7-127
Forward/Reverse Parking Distance Warning (PDW) ............................................7-139
Forward/Side/Reverse Parking Distance Warning (PDW) ...................................7-146
Parking Collision-Avoidance Assist (PCA) ............................................................. 7-153
Parking Convenience
Remote Smart Parking Assist 2 (RSPA 2) ...............................................................7-163
Declaration of Conformity ............................................................................................ 7-191
7. Driver Assistance System

7-61
07
Limitations of Intelligent Speed
Limit Assist
Intelligent Speed Limit Assist may not
operate properly, or it may operate
unexpectedly under the following
circumstances:

[The road sign is contaminated or
indistinguishable
- The road sign is difficult to see due
to bad weather, such as rain, snow,
fog, etc.
- The road sign is not clear or
damaged
- The road sign is partially obscured
by surrounding objects or shadow
- A road sign near the road you are
driving is detected

[The road signs do not conform to the
standards below:
- The text or picture on the road sign
is different from the standard
- The road sign is installed between
the main line and the exit road or
between diverging roads
- There is no conditional road signs
on the road sign located on the exit
road
- A sign is attached to another vehicle

[The distance between the vehicle and
the road signs is too far

[The vehicle encounters illuminant
road signs

[Intelligent Speed Limit Assist
incorrectly recognizes numbers or
pictures in the street signs or other
signs as the speed limit

[A road sign near the road you are
driving is detected

[Multiple signs are installed close
together

[The minimum speed limit sign is
misrecognize

[The minimum speed limit sign is on
the road
[The brightness changes suddenly, for
example when entering or exiting a
tunnel or passing under a bridge

[Headlamps are not used or the
brightness of the headlamps are weak
at night or in the tunnel

[Road signs are difficult to recognize
due to the reflection of sunlight, street
lights, or oncoming vehicles

[The navigation information or GPS
information contain errors.

[The driver does not follow the guide
of the navigation.

[The driver is driving a new road that is
not in the navigation system yet.

[The field of view of the front view
camera is obstructed by sun glare

[Driving on a road that is sharply
curved or continuously curved

[Driving through speed bumps, or
driving up and down or left to right on
steep inclines

[The vehicle is shaking heavily

[Driving on a newly opened road
:$51,1*

[Intelligent Speed Limit Assist is a
supplemental function that helps the
GULYHUWRFRPSO\ZLWKWKHVSHHGOLPLW
RQWKHURDGDQGPD\QRWGLVSOD\WKH
correct speed limit or control the
GULYLQJVSHHGSURSHUO\

[$OZD\VVHWWKHYHKLFOHVSHHGWRWKH
VSHHGOLPLWLQ\RXUFRXQWU\

[,QWHOOLJHQW6SHHG/LPLW$VVLVWPD\
QRWRSHUDWHIRUVHFRQGVDIWHUWKH
YHKLFOHLVVWDUWHGRUWKHIURQWYLHZ
FDPHUDLVLQLWLDOL]HG
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in this chapter.

7-92
Driver Assistance System
Highway Curve Zone Auto Slowdown

[Depending on the curve ahead on the
highway (or motorway), the vehicle
will decelerate, and after passing the
curve, the vehicle will accelerate to
Smart Cruise Control set speed.

[Vehicle deceleration time may differ
depending on the vehicle speed
and the degree of the curve on the
road. The higher the driving speed,
deceleration will start faster.
Highway Set Speed Auto Change

[Highway Set Speed Auto Change
function will operate when Smart
Cruise Control set speed and the
highway (or motorway) speed limit is
matched.

[While Highway Set Speed Auto
Change function is operating, when
the highway (or motorway), speed
limit changes, Smart Cruise Control
set speed automatically changes to
the changed speed limit.

[If Smart Cruise Control set speed is
adjusted different from the speed
limit, Highway Set Speed Auto Change
function will be in the standby state.

[If Highway Set Speed Auto Change
function has changed to the standby
state by driving on a road other than
the highway (or motorway) main road,
Highway Set Speed Auto Change
function will operate again when you
drive on the main road again without
setting the set speed.
[If Highway Set Speed Auto Change
function has changed to the standby
state by depressing the brake pedal
or pressing the
switch on the
steering wheel, press the switch
to restart the function.

[Highway Set Speed Auto Change
function does not operate on highway
interchanges or junctions.
Information

[Highway Set Speed Auto Change
function only operates based on
the speed limits of the highway (or
motorway), it does not work with the
speed cameras.

[When Highway Set Speed Auto Change
function is operating, the vehicle
automatically accelerates or decelerates
when the highway (or motorway) speed
limit changes.

[The maximum set speed for Highway
Set Speed Auto Change function is 86
mph (140 km/h).

[If the speed limit of a new road is not
updated in the navigation, Highway Set
Speed Auto Change function may not
operate properly.

[If the speed unit is set to a unit other
than the speed unit used in your
country, Highway Set Speed Auto
Change function may not operate
properly.

7-93
07
/LPLWDWLRQVRI1DYLJDWLRQEDVHG
Smart Cruise Control
Navigation-based Smart Cruise Control
may not operate properly under the
following circumstances:

[The navigation is not working properly

[Map information is not transmitted
due to infotainment system's
abnormal operation

[Speed limit and road information in
the navigation is not updated

[The map information and the actual
road is different because of real-time
GPS data or map information error

[The navigation searches for a route
while driving

[GPS signals are blocked in areas such
as a tunnel

[A road that divides into two or more
roads and joins again
[The driver goes off course the route
set in the navigation

[The route to the destination is
changed or cancelled by resetting the
navigation

[The vehicle enters a service station or
rest area

[Android Auto or Car Play is operating

[The navigation cannot detect the
current vehicle position (for example,
elevated roads including overpass
adjacent to general roads or nearby
roads exist in a parallel way)

[The navigation is being updated while
driving

[The navigation is being restarted while
driving

[The speed limit of some sections
changes according to the road
situations

[Driving on a road under construction

[Driving on a road that is controlled

[There is bad weather, such as heavy
rain, heavy snow, etc.

[Driving on a road that is sharply
curved

7-94
Driver Assistance System
OJWEV071141L[1] : Set route, [2] : Branch line, [3] : Driving route,
[4] : Main road, [5] : Curved road section

[When there is a difference between
the navigation set route (branch line)
and the driving route (main road),
Highway Curve Zone Auto Slowdown
function may not operate until the
driving route is recognized as the
main road.

[When the vehicle's driving route
is recognized as the main road by
maintaining the main road instead
of the navigation set route, Highway
Curve Zone Auto Slowdown function
will operate. Depending on the
distance to the curve and the current
vehicle speed, vehicle deceleration
may not be sufficient or may
decelerate rapidly.
OJWEV071142L[1] : Set route, [2] : Branch line, [3] : Driving route,
[4] : Main road, [5] : Curved road section

[When there is a difference between
the navigation route (main road)
and the driving route (branch line),
Highway Curve Zone Auto Slowdown
function will operate based on the
curve information on the main road.

[When it is judged that you are driving
out of the route by entering the
highway interchange or junction,
Highway Curve Zone Auto Slowdown
function will not operate.
