4
Press START button while turning wheel ...............................................................4-20
Low washer fluid ......................................................................................................4-20
Check steering wheel lock system .........................................................................4-20
Press brake pedal to start vehicle ..........................................................................4-20
Key not in vehicle ....................................................................................................4-20
Key not detected ......................................................................................................4-20
Press START button again ......................................................................................4-20
Place the smart key in the emergency start slot and press the start button ........4-21
Check BRAKE SWITCH fuse ....................................................................................4-21
Shift to P to start vehicle ..........................................................................................4-21
Battery discharging due to external/additional electrical devices .......................4-21
Door, Hood, Liftgate open indicator ........................................................................4-21
Low tire pressure ..................................................................................................... 4-22
Lights ........................................................................................................................4-22
Wiper ........................................................................................................................ 4-22
Check haptic steering wheel system ...................................................................... 4-23
Check headlight ....................................................................................................... 4-23
Check turn signal ..................................................................................................... 4-23
Check headlamp LED .............................................................................................. 4-23
Shift to P to charge .................................................................................................. 4-23
Remaining time ........................................................................................................ 4-23
Unplug vehicle to start ............................................................................................ 4-24
Charging door open ................................................................................................. 4-24
Charging stopped. Check the charger ................................................................... 4-24
Charging stopped. Check the cable connection ................................................... 4-25
Check regenerative brakes...................................................................................... 4-25
Low EV battery ........................................................................................................ 4-25
Charge immediately. Power limited .......................................................................4-26
Power limited due to low EV battery temperature. Charge battery .....................4-26
EV Battery Overheated! Stop vehicle .................................................................... 4-27
Power limited ........................................................................................................... 4-27
Stop vehicle and check power supply ....................................................................4-28
Check virtual engine sound system........................................................................4-28
Check electric vehicle system ................................................................................4-28
LCD Display ..................................................................................................... 4-29LCD Display Control ...................................................................................................4-29
View Modes ................................................................................................................4-29
Driving Assist view .................................................................................................. 4-30
Widget ...................................................................................................................... 4-31
Option Menu ...............................................................................................................4-33
Vehicle Settings (infotainment system) ........................................................ 4-34Setting Your Vehicle ..................................................................................................4-34
Page 194 of 690
5
Lighting ............................................................................................................ 5-93Exterior Lights ............................................................................................................5-93
High Beam Assist (HBA) ................................................................................ 5-97High Beam Assist Setting .......................................................................................... 5-97
High Beam Assist Operation ..................................................................................... 5-98
High Beam Assist Malfunction and Limitations ...................................................... 5-99
Interior Lights ................................................................................................ 5-100Interior Lamp AUTO Cut........................................................................................... 5-100
Front Lamps .............................................................................................................. 5-100
Rear Lamps ................................................................................................................ 5-101
Vanity Mirror Lamp .................................................................................................... 5-101
Glove Box Lamp ........................................................................................................ 5-101
Door Mood Lamp ..................................................................................................... 5-102
Luggage Compartment Lamp ................................................................................. 5-102
Front Trunk Lamp ..................................................................................................... 5-103
Puddle Lamp ............................................................................................................. 5-103
Wipers and Washers ...................................................................................... 5-105Front Windshield Wipers ......................................................................................... 5-105
Windshield Washers ................................................................................................. 5-106
Automatic Climate Control System ..............................................................5-108Automatic Temperature Control Mode ................................................................... 5-109
Manual Temperature Control Mode ......................................................................... 5-110
System Operation ...................................................................................................... 5-118
System Maintenance ................................................................................................ 5-119
Windshield Defrosting and Defogging ......................................................... 5-122To Defog Inside Windshield ......................................................................................5-122
To Defrost Inside Windshield ....................................................................................5-123
Defogging Logic ........................................................................................................5-123
Rear Window Defroster............................................................................................ 5-124
Climate Control Additional Features ............................................................ 5-125Auto Defogging System ............................................................................................5-125
Auto Dehumidify ...................................................................................................... 5-126
Recirculating Air when Washer Fluid is Used .......................................................... 5-127
Sunroof Inside Air Recirculation ............................................................................... 5-127
Auto. Controls That Use Climate Control Settings (for driver’s seat) .................... 5-127
5. Convenience Features
Page 297 of 690
5-106
Convenience Features
WARNING
To avoid personal injury from the
windshield wipers, when the vehicle
is running and the windshield wiper
switch is placed in the AUTO mode:
[ Do not touch the upper end of the
windshield glass facing the rain
sensor.
[ Do not wipe the upper end of the
windshield glass with a damp or wet
cloth.
[ Do not put pressure on the
windshield glass.
NOTICE
[ When washing the vehicle, set the
wiper switch in the OFF (O) position
to stop the auto wiper operation. The
wiper may operate and be damaged
if the switch is set in the AUTO mode
while washing the vehicle.
[ Do not remove the sensor cover
located on the upper end of the
passenger side windshield glass.
Damage to system components
could occur and may not be covered
by your vehicle warranty.
[ Because of using a photo sensor,
temporary malfunction could occur
according to sudden ambient light
change made by stone and dust
while driving.
Windshield Washers
ORG3EV051079
In the OFF (O) position, pull the lever
gently toward you to spray washer fluid
on the windshield and to run the wipers
1-3 cycles. The spray and wiper operation
will continue until you release the lever. If
the washer does not work, you may need
to add washer fluid to the washer fluid
reservoir.
Recirculating air when washer fluid
is used
When washer fluid is used, in order to
reduce any objectionable scent of the
washer fluid from entering the cabin,
recirculation mode and air conditioning
are automatically activated depending
on the outside temperature. If you
select fresh mode while the function is
operating, the function will resume after
a certain amount of time. It may not work
in some conditions such as cold weather
or vehicle OFF.
For more details, refer to “Climate
Control Additional Features” section in
this chapter.
Page 298 of 690
5-107
05
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE
[ To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
[ To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.
[ To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.
[ To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.

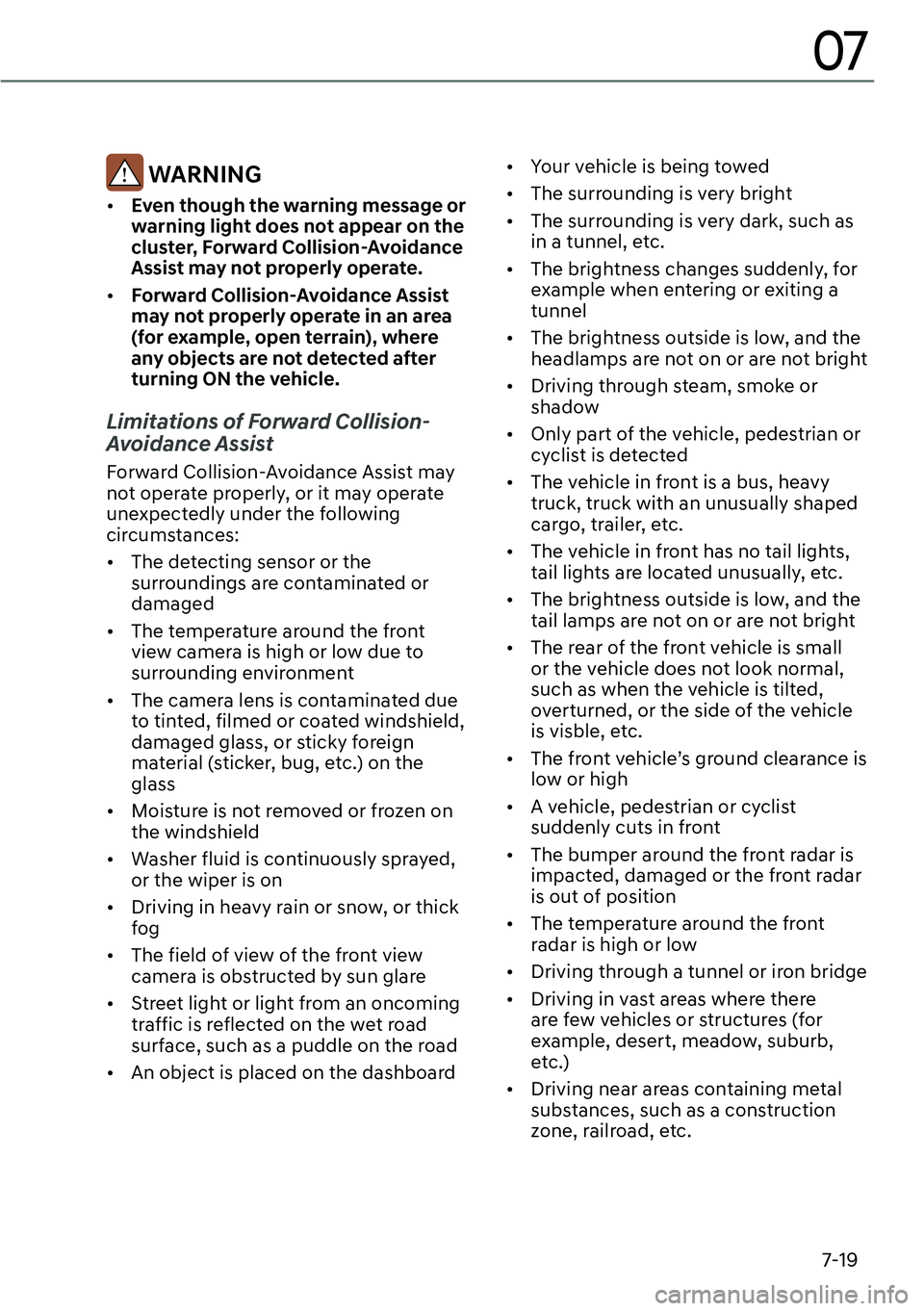

Page 433 of 690
7-19
07
: $ 5 1 , 1 *
[ ( Y H Q W K R X J K W K H Z D U Q L Q J P H V V D J H R U
warning light does not appear on the
F O X V W H U ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H
$ V V L V W P D \ Q R W S U R S H U O \ R S H U D W H
[ ) R U Z D U G & R O O L V L R Q $ Y R L G D Q F H $ V V L V W
P D \ Q R W S U R S H U O \ R S H U D W H L Q D Q D U H D
I R U H [ D P S O H R S H Q W H U U D L Q Z K H U H
D Q \ R E M H F W V D U H Q R W G H W H F W H G D I W H U
W X U Q L Q J 2 1 W K H Y H K L F O H
Limitations of Forward Collision-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or it may operate
unexpectedly under the following
circumstances:
[ The detecting sensor or the
surroundings are contaminated or
damaged
[ The temperature around the front
view camera is high or low due to
surrounding environment
[ The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass
[ Moisture is not removed or frozen on
the windshield
[ Washer fluid is continuously sprayed,
or the wiper is on
[ Driving in heavy rain or snow, or thick
fog
[ The field of view of the front view
camera is obstructed by sun glare
[ Street light or light from an oncoming
traffic is reflected on the wet road
surface, such as a puddle on the road
[ An object is placed on the dashboard[ Your vehicle is being towed
[ The surrounding is very bright
[ The surrounding is very dark, such as
in a tunnel, etc.
[ The brightness changes suddenly, for
example when entering or exiting a
tunnel
[ The brightness outside is low, and the
headlamps are not on or are not bright
[ Driving through steam, smoke or
shadow
[ Only part of the vehicle, pedestrian or
cyclist is detected
[ The vehicle in front is a bus, heavy
truck, truck with an unusually shaped
cargo, trailer, etc.
[ The vehicle in front has no tail lights,
tail lights are located unusually, etc.
[ The brightness outside is low, and the
tail lamps are not on or are not bright
[ The rear of the front vehicle is small
or the vehicle does not look normal,
such as when the vehicle is tilted,
overturned, or the side of the vehicle
is visble, etc.
[ The front vehicle’s ground clearance is
low or high
[ A vehicle, pedestrian or cyclist
suddenly cuts in front
[ The bumper around the front radar is
impacted, damaged or the front radar
is out of position
[ The temperature around the front
radar is high or low
[ Driving through a tunnel or iron bridge
[ Driving in vast areas where there
are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)
[ Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.
Page 497 of 690
7-83
07
Smart Cruise Control disabled
OTM070115N
When the front radar cover or sensor
is covered with snow, rain, or foreign
material, it can reduce the detecting
performance and temporarily limit or
disable Smart Cruise Control.
If this occurs the ‘Smart Cruise Control
disabled. Radar blocked’ warning
message will appear for a certain period
of time on the cluster.
Smart Cruise Control will operate properly
when snow, rain or foreign material is
removed.
: $ 5 1 , 1 *
( Y H Q W K R X J K W K H Z D U Q L Q J P H V V D J H G R H V
Q R W D S S H D U R Q W K H F O X V W H U 6 P D U W & U X L V H
& R Q W U R O P D \ Q R W S U R S H U O \ R S H U D W H
CAUTION
6 P D U W & U X L V H & R Q W U R O P D \ Q R W S U R S H U O \
R S H U D W H L Q D Q D U H D I R U H [ D P S O H R S H Q
W H U U D L Q Z K H U H D Q \ R E M H F W V D U H Q R W
G H W H F W H G D I W H U W X U Q L Q J 2 1 W K H Y H K L F O H
Limitations of Smart Cruise Control
Smart Cruise Control may not operate
properly, or it may operate unexpectedly
under the following circumstances:
[ The detecting sensor or the
surroundings are contaminated or
damaged
[ Washer fluid is continuously sprayed,
or the wiper is on
[ The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass
[ Moisture is not removed or frozen on
the windshield
[ The field of view of the front view
camera is obstructed by sun glare
[ Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road
[ The temperature around the front
view camera is high or low
[ An object is placed on the dashboard
[ The surrounding is very bright
[ The surrounding is very dark, such as
in a tunnel, etc.
[ The brightness changes suddenly, for
example when entering or exiting a
tunnel
[ The brightness outside is low, and the
headlamps are not on or are not bright
[ Driving in heavy rain or snow, or thick
fog
[ Driving through steam, smoke or
shadow
Page 628 of 690
9
9. Maintenance
Motor Compartment ........................................................................................ 9-3
Maintenance Services ...................................................................................... 9-4
Owner’s Responsibility ............................................................................................... 9-4
Owner Maintenance Precautions ............................................................................... 9-4
Owner Maintenance ......................................................................................... 9-5Owner Maintenance Schedule ................................................................................... 9-6
Scheduled Maintenance Services ....................................................................9-7Normal Maintenance Schedule ................................................................................. 9-8
Maintenance Under Severe Usage and Low Mileage Conditions ........................... 9-10
Explanation of Scheduled Maintenance Items ...............................................9-11
Coolant ............................................................................................................. 9-12
Brake Fluid ........................................................................................................9-14
Checking the Brake Fluid Level ................................................................................. 9-14
Reduction Gear Fluid ....................................................................................... 9-15
Washer Fluid ..................................................................................................... 9-15
Checking the Washer Fluid Level .............................................................................. 9-15
Cabin Air Filter ..................................................................................................9-16Filter Inspection.......................................................................................................... 9-16
Filter Replacement ..................................................................................................... 9-16
Wiper Blades .................................................................................................... 9-17Blade Inspection .........................................................................................................9-17
Blade Replacement .....................................................................................................9-17
Battery (12 Volt) ................................................................................................9-19For Best Battery Service ........................................................................................... 9-20
Battery Capacity Label .............................................................................................. 9-20
12V Battery Recharging .............................................................................................. 9-21
Reset Items ................................................................................................................. 9-22
Tires and Wheels ............................................................................................. 9-23Tire Care ......................................................................................................................9-23
Recommended Cold Tire Inflation Pressures ........................................................... 9-23
Check Tire Inflation Pressure .....................................................................................9-24
Tire Rotation ............................................................................................................... 9-25
Wheel Alignment and Tire Balance ........................................................................... 9-25
Tire Replacement .......................................................................................................9-26
Wheel Replacement ................................................................................................... 9-27
Tire Traction ................................................................................................................ 9-27
Tire Maintenance........................................................................................................ 9-27
Page 633 of 690
9-6
Maintenance
Owner Maintenance Schedule
When you stop for charging:
[ Check the coolant level in the coolant
reservoir.
[ Check the windshield washer fluid
level.
[ Check for low or under-inflated tires.
WARNING
Be careful when checking
your coolant level if the motor
compartment is hot. This
may result in coolant being
blown out of the opening and
cause serious burns and other
injuries.
While operating your vehicle:
[ Check for vibrations in the steering
wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.
[ Notice if your vehicle constantly turns
slightly or “pulls” to one side when
traveling on smooth, level road.
[ When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.
[ Check the shift gear P (Park) function.
[ Check the parking brake.
[ Check for fluid leaks under your
vehicle (water dripping from the air
conditioning system during or after
use is normal).
At least monthly:
[ Check coolant level in the coolant
reservoir.
[ Check the operation of all exterior
lights, including the stoplights, turn
signals and hazard warning flashers.
[ Check the inflation pressures of all
tires including the spare (if equipped)
for tires that are worn, show uneven
wear, or are damaged.
[ Check for loose wheel bolts.
At least twice a year: (for example,
every Spring and Autumn)
[ Check radiator, heater and air
conditioning hoses for leaks or
damage.
[ Check windshield washer spray and
wiper operation. Clean wiper blades
with a clean cloth dampened with
washer fluid.
[ Check headlamp alignment.
[ Check the seat belts for wear and
function.
At least once a year:
[ Clean body and door drain holes.
[ Lubricate door hinges and hood
hinges.
[ Lubricate door and hood locks and
latches.
[ Lubricate door rubber weather strips.
[ Check the air conditioning system.
[ Inspect and lubricate shift gear
linkage and controls.
[ Clean the battery (12V) and terminals.
[ Check the brake fluid level.
