2023 GENESIS GV60 Owners Manual

5-114
Convenience Features

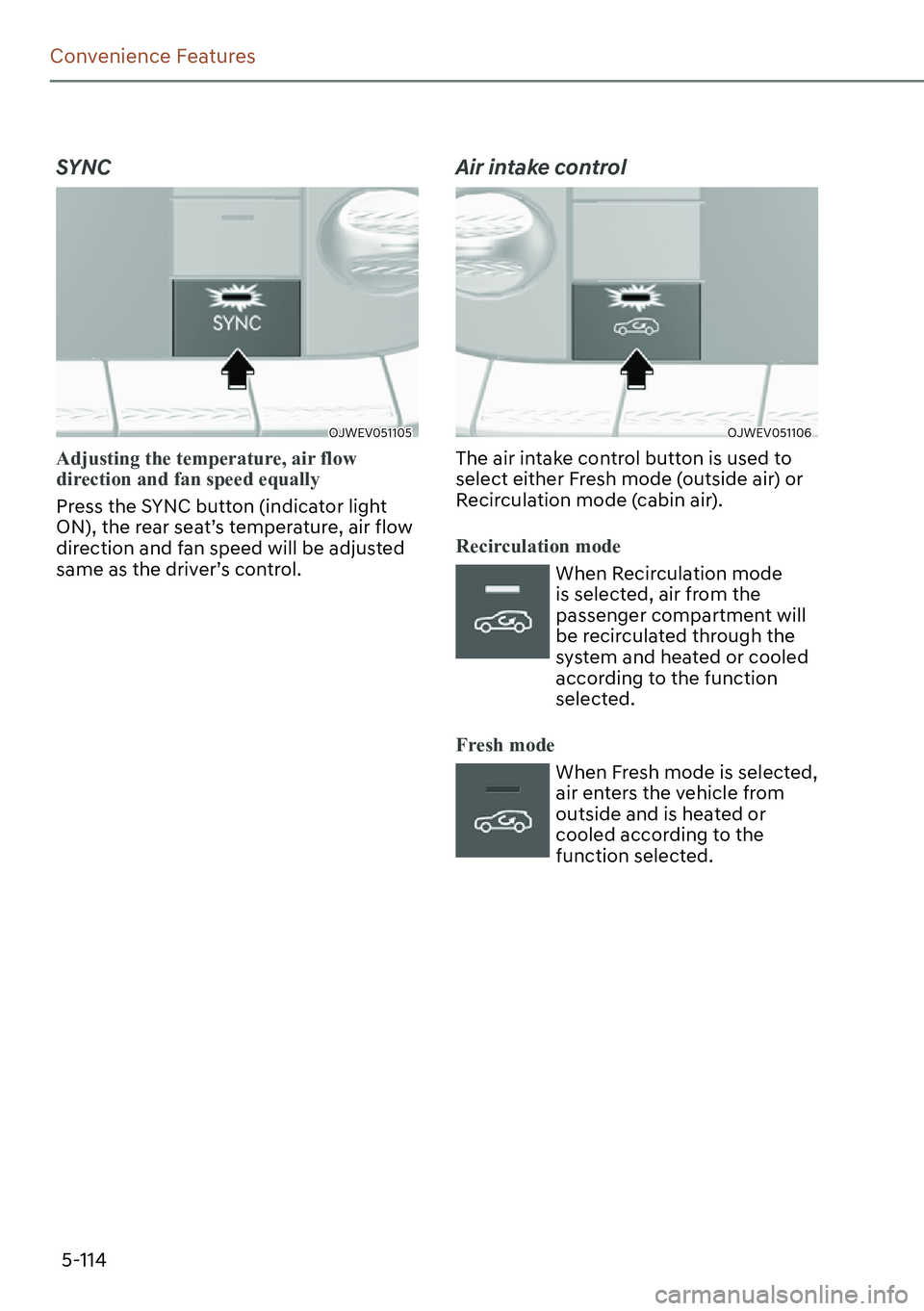

SYNC
OJWEV051105
Adjusting the temperature, air flow
direction and fan speed equally
Press the SYNC button (indicator light
ON), the rear seat’s temperature, air flow
direction and fan speed will be adjusted
same as the driver’s control.
Air intake control
OJWEV051106
The air intake control button is used to
select either Fresh mode (outside air) or
Recirculation mode (cabin air).
Recirculation mode
When Recirculation mode
is selected, air from the
passenger compartment will
be recirculated through the
system and heated or cooled
according to the function
selected.
Fresh mode
When Fresh mode is selected,
air enters the vehicle from
outside and is heated or
cooled according to the
function selected.

5-115
05
Information
Operating the system primarily in Fresh
mode is recommended. Use Recirculation
mode temporarily only when needed.
Prolonged operation of the heater in
Recirculation mode and without the air
conditioning ON can cause fogging of the
windshield. In addition, prolonged use of
the air conditioning ON in Recirculation
mode may result in excessively dry,
dehumidified air in the cabin and may
promote formation of musty vent odor due
to stagnant air.
WARNING

[Continued use of the climate control
system operation in Recirculation
mode for a prolonged period of
time may cause drowsiness to the
occupants in the cabin. This may lead
to loss of vehicle control which may
lead to an accident.

[Continued use of the climate control
system operation in Recirculation
mode with the air conditioning OFF
may allow humidity to increase
inside the cabin. This may cause
condensation to accumulate on the
windshield and obscure visibility.

[Do not sleep in your vehicle or
remain parked in your vehicle with
the windows up and either the
heater or the air conditioning ON for
prolonged periods of time. Doing so
may increase the levels of carbon
dioxide in the cabin which may lead
to serious injury or death.
Fan speed control
OJWEV051107L
The fan speed can be set to the desired
speed touching the or icon.
More air is delivered with higher fan
speeds.
Pressing the OFF button or touching
the blower down icon at the lowest fan
speed.

5-116
Convenience Features
Information
For better sound quality, fan speed may
automatically slow down for a couple
of minutes when you activate voice
recognition or hands free.
NOTICE
Operating the fan when the Start/Stop
button is in the ON position could cause
the battery to discharge. Operate the
fan when the vehicle is running.
Driver only
OJWEV051109L
If you touch the DRIVER ONLY icon
() and the indicator light
illuminates in the infotainment climate
control screen, cold air mostly blows
in the driver’s seat. However, some
of the cold air may come out of other
seating position ducts to keep indoor air
pleasant.
If you use the DRIVER ONLY with no
passenger in the front passenger seat,
energy consumption will be reduced.
DRIVER ONLY will be turned off under
the following conditions:
1) Defrost on
2) DRIVER ONLY icon re-touch
3) Passenger’s mode selection
4) SYNC
5) Passenger’s temperature control
Air conditioning
OJWEV051108L
Touch the A/C icon in the infotainment
screen to turn the air conditioning on
(indicator light ON) and off.

5-117
05
HEAT button
OJWEV051110L
Touch the HEAT icon in the infotainment
screen to turn the heater on (indicator
light will illuminate).
Touch the button again to turn the heater
off.
The air conditioner and heater uses
energy from the high voltage battery.
If you use the heater or air conditioner
for too long, distance to empty can
be reduced due to too much power
consumption.
Turn off the heater and air conditioner if
you do not need them.
Information
If the vehicle is turned off after the heating
and cooling operation, a sound may occur
temporarily as the air climate system
mode is changed.
Schedule climate
OJWEV051119L
Set target temperature.
For more details, refer to “EV mode” in
chapter 1.
OFF mode
OJWEV051112
Press the OFF button or touch the blower
down icon at the lowest fan speed to
turn the climate control system off. You
can still operate air intake button as long
as the Start/Stop button is in the ON
position.

5-118
Convenience Features

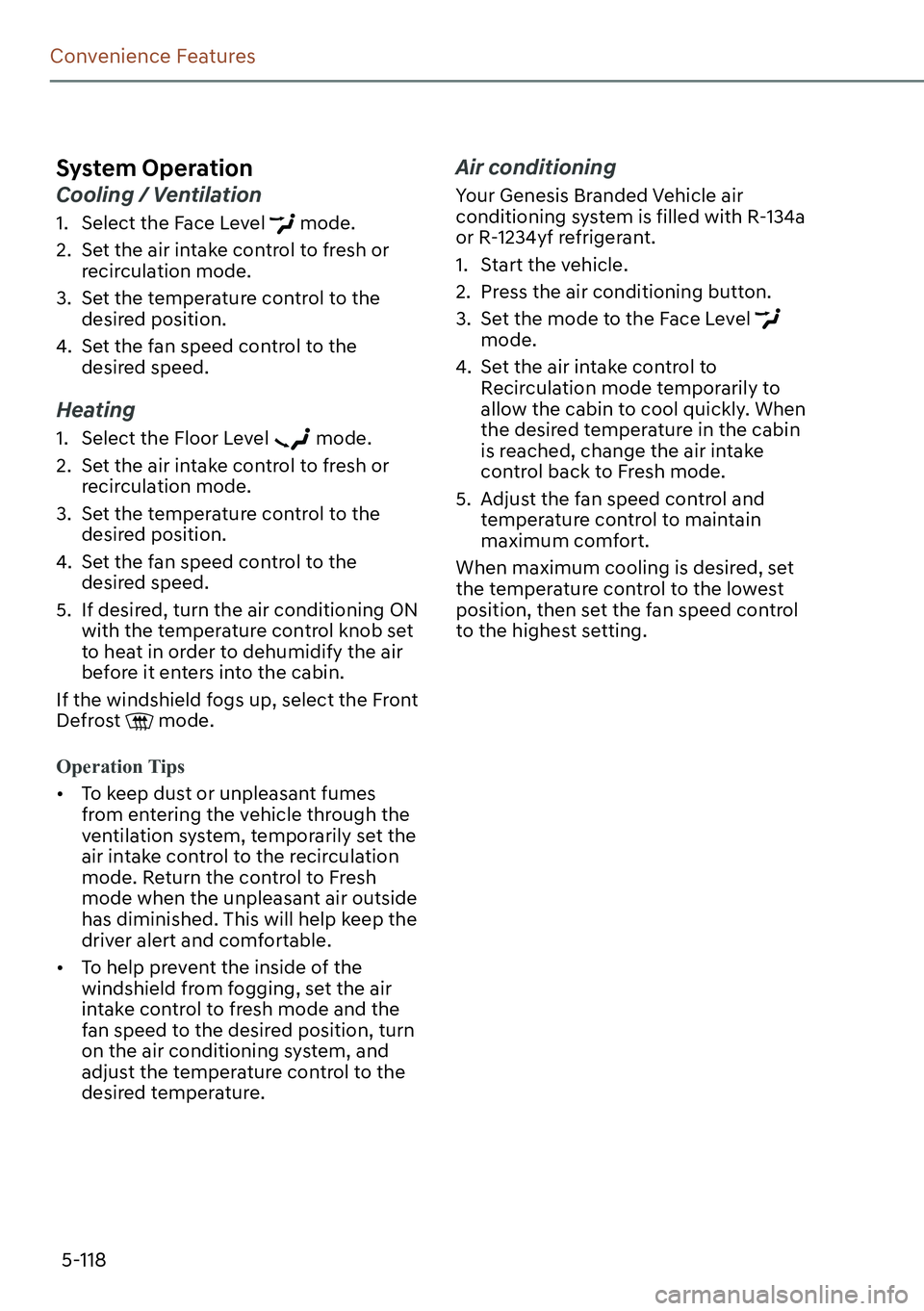

System Operation
Cooling / Ventilation
1. Select the Face Level mode.
2. Set the air intake control to fresh or
recirculation mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
Heating
1. Select the Floor Level mode.
2. Set the air intake control to fresh or
recirculation mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
5. If desired, turn the air conditioning ON
with the temperature control knob set
to heat in order to dehumidify the air
before it enters into the cabin.
If the windshield fogs up, select the Front
Defrost
mode.
Operation Tips

[To keep dust or unpleasant fumes
from entering the vehicle through the
ventilation system, temporarily set the
air intake control to the recirculation
mode. Return the control to Fresh
mode when the unpleasant air outside
has diminished. This will help keep the
driver alert and comfortable.

[To help prevent the inside of the
windshield from fogging, set the air
intake control to fresh mode and the
fan speed to the desired position, turn
on the air conditioning system, and
adjust the temperature control to the
desired temperature.
Air conditioning
Your Genesis Branded Vehicle air
conditioning system is filled with R-134a
or R-1234yf refrigerant.
1. Start the vehicle.
2. Press the air conditioning button.
3. Set the mode to the Face Level

mode.
4. Set the air intake control to
Recirculation mode temporarily to
allow the cabin to cool quickly. When
the desired temperature in the cabin
is reached, change the air intake
control back to Fresh mode.
5. Adjust the fan speed control and
temperature control to maintain
maximum comfort.
When maximum cooling is desired, set
the temperature control to the lowest
position, then set the fan speed control
to the highest setting.

5-119
05
Air conditioning system operation tips

[If the vehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.

[After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.

[To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.

[Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.

[If you operate air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield to
fog up, causing loss of visibility. In this
case, set the mode selection to the

position and fan speed control to the
lowest speed.
System Maintenance
Cabin air filter
OJWEV051269L[A] : Outside air, [B] : Recirculated air
[C] : Climate control air filter, [D] : Blower
[E] : Evaporator core, [F] : PTC & Inner condenser
The cabin air filter is installed under the
front trunk cover. It filters the dust or
other pollutants that enter the vehicle
through the heating and air conditioning
system.
Have the cabin air filter be replaced by
an authorized retailer of Genesis Branded
products according to the maintenance
schedule. If the vehicle is being driven in
severe conditions such as dusty or rough
roads, more frequent cabin air filter
inspections and changes are required.
If the air flow rate suddenly decreases,
have the system be inspected at an
authorized retailer of Genesis Branded
products.

5-120
Convenience Features
Checking the amount of air
conditioner refrigerant and
compressor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also reduces the
performance of the air conditioning
system.
Therefore, if abnormal operation is
found, have the system be inspected by
an authorized retailer of Genesis Branded
products.
NOTICE
It is important that the correct type and
amount of oil and refrigerant is used.
Otherwise, damage to the compressor
and abnormal system operation may
occur. To prevent damage, the air
conditioning system in your vehicle
should only be serviced by trained and
certified technicians.
NOTICE

[The refrigerant system should only
be serviced by trained and certified
technicians to insure proper and safe
operation.

[The refrigerant system should be
serviced in a well-ventilated place.

[The air conditioning evaporator
(cooling coil) shall never be repaired
or replaced with one removed from
a used or salvaged vehicle and new
replacement MAC evaporators shall
be certified (and labeled) as meeting
SAE Standard J2842.
WARNING
Vehicles equipped with R-1234yfSince the refrigerant is
mildly flammable and
operated at high pressure,
the air conditioning system
should only be serviced
by trained and certified
technicians. It is important
that the correct type and
amount of oil and refrigerant
are used.
All refrigerants should be reclaimed
with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individuals
and environment. Failure to heed these
warnings can lead to serious injuries.

[
Check the coolant level when
the motor compartment
is cooled. Coolant level is
influenced by temperature,
and if the coolant reservoir
cap is removed when coolant
temperature is high, hot
coolant and steam may blow
out under pressure causing
serious injury.

[Make sure the coolant cap is properly
closed after refilling coolant.
Otherwise the motor could be
overheated while driving.

5-121
05
OJWEV051065N

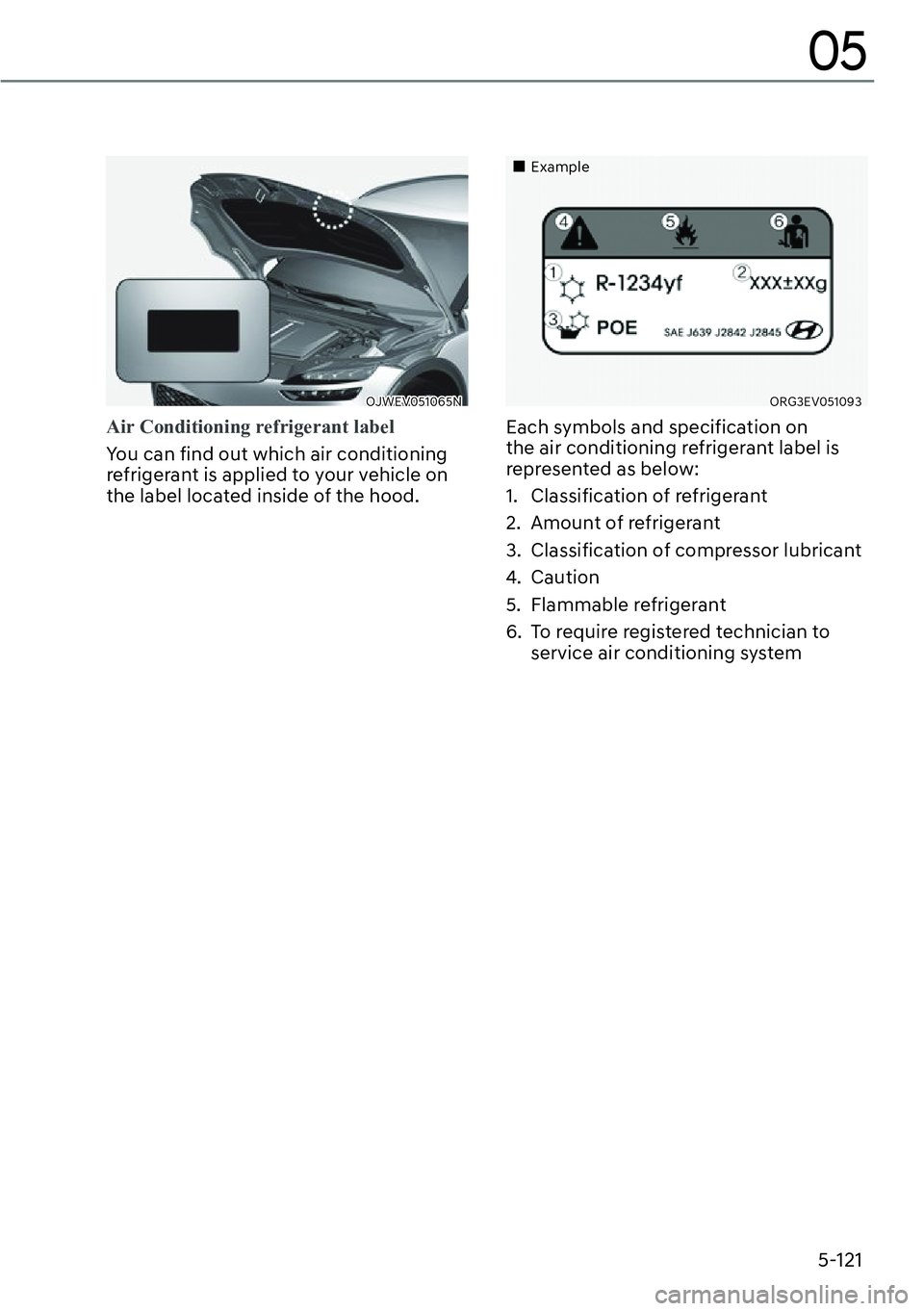

Air Conditioning refrigerant label
You can find out which air conditioning
refrigerant is applied to your vehicle on
the label located inside of the hood.
„Example
ORG3EV051093
Each symbols and specification on
the air conditioning refrigerant label is
represented as below:
1. Classification of refrigerant
2. Amount of refrigerant
3. Classification of compressor lubricant
4. Caution
5. Flammable refrigerant
6. To require registered technician to
service air conditioning system
