2023 GENESIS GV60 Owners Manual

1-44
Foreword / Starting your Electric vehicle
Information
Even though charging is possible with
the Start/Stop button in the ON/START
position, for you safety, start charging
when the Start/Stop button is in the
OFF position and the vehicle shifted to P
(Park). After charging has started, you
can use electrical components such as the
radio by pressing the Start/Stop button to
the START or ON position.
During charging, the gear cannot be
shifted from P (Park) to any other gear.
OJWEVQ011117N
10. After charging has started, the
estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the drivers door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute. When
scheduled charging or scheduled
air conditioner/heater is set, the
estimated charging time is displayed
as “--” .
Information
Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the battery
may vary.
Checking Charging Status
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.
For more details, refer to ‘Charge
Indicator Lamp for Electric Vehicle’ in
this chapter.

1-45
01

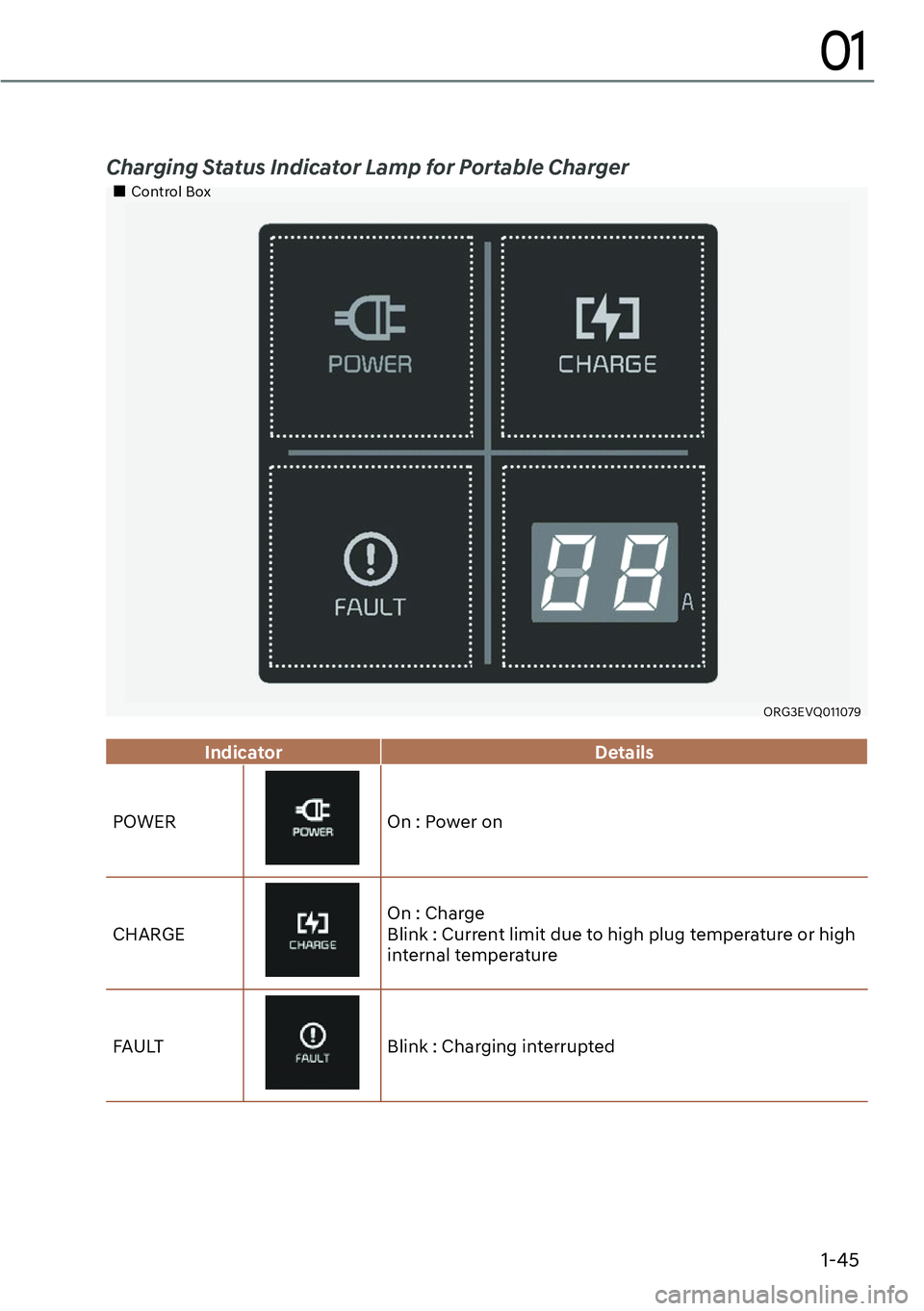

Charging Status Indicator Lamp for Portable Charger
„Control Box
ORG3EVQ011079
Indicator Details
POWEROn : Power on
CHARGE
On : Charge
Blink : Current limit due to high plug temperature or high
internal temperature
FAULT
Blink : Charging interrupted

1-46
Foreword / Starting your Electric vehicle
Indicator Details
Error code
On : Error while charging/ Error during self-diagnosis
Error code Item Cause
E1Control Pilot
communicationVehicle communication error
E2
LeakageCurrent leakage
E3 Charger error
E4
Plug temperaturePlug overtemperature
warning
E5 Plug temperature failure
E6 Charger error
E7 Overcurrent Charging overcurrent warning
E8
Internal
temperatureCharger overheating
E9 Charger error
F1 Relay fusion Charger error
F2Ground
Monitoring/
InterruptPoor grounding of outlet
F3
Switched mode
power supply
power failureSwitched mode power supply
error (voltage failure)
F4Switched mode power supply
error (abnormal voltage)
F5
Control Pilot
voltage errorControl Pilot (-) voltage error
F6 Control Pilot (+) voltage error
F7
Temperature
sensor errorPlug temperature sensor error
F8PCB internal temperature
sensor error

1-47
01
Indicator Details
CHARGE
LEVEL
12 A
10 A
8 A
6 A
The charging current changes whenever the
button (1) is pressed for less than 1 sec with
the charger plugged into an electrical outlet
but not the vehicle.* The control box
ORG3EVQ011075

1-48
Foreword / Starting your Electric vehicle

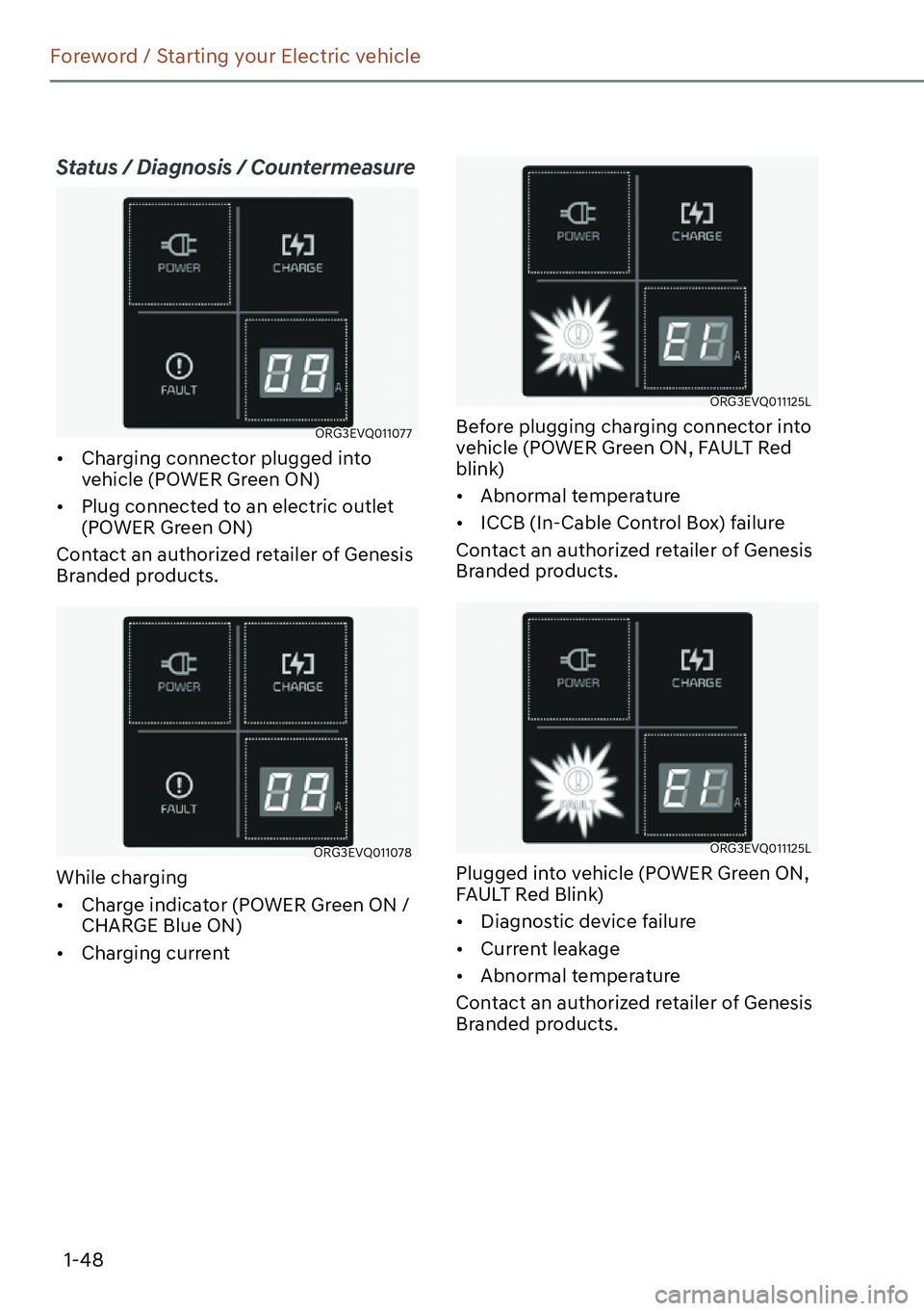

Status / Diagnosis / Countermeasure
ORG3EVQ011077

[Charging connector plugged into
vehicle (POWER Green ON)

[Plug connected to an electric outlet
(POWER Green ON)
Contact an authorized retailer of Genesis
Branded products.
ORG3EVQ011078
While charging

[Charge indicator (POWER Green ON /
CHARGE Blue ON)

[Charging current
ORG3EVQ011125L
Before plugging charging connector into
vehicle (POWER Green ON, FAULT Red
blink)

[Abnormal temperature

[ICCB (In-Cable Control Box) failure
Contact an authorized retailer of Genesis
Branded products.
ORG3EVQ011125L
Plugged into vehicle (POWER Green ON,
FAULT Red Blink)

[Diagnostic device failure

[Current leakage

[Abnormal temperature
Contact an authorized retailer of Genesis
Branded products.

1-49
01
ORG3EVQ011126L

[Leakage current failure (POWER Green
ON, FAULT Red Blink)

[After disconnecting and reconnecting
the power plug, press and release the
button for 2 seconds or longer to clear
the error.
Contact an authorized retailer of Genesis
Branded products.
ORG3EVQ011127L
Power saving mode

[7-segment display is turned off if there
is no status change for more than 1
minute.
How to Disconnect Portable Charger
(ICCB: In-Cable Control Box)
OJWEVQ011104L
1. Press release button, then remove
charging connector from vehicle inlet.
Information
To prevent charging cable theft,
the charging connector cannot be
disconnected from the inlet when the
doors are locked or the charging connector
is in the ‘Always lock’ mode. Unlock all
doors to disconnect the charging connector
from the inlet.
However, if the vehicle is in the charging
connector’Locking while charging’ mode,
the charging connector automatically
unlocks from the inlet when charging is
completed.
If the charging connector is disconnected
while the release button is not pressed, the
connector and the inlet may be damaged.
For more details, refer to “Charging
Connector ‘Always lock’/‘Locking while
charging’ Mode” in this chapter.
If the release button does not work even
after the all doors are unlocked, pull
emergency cable (located in right side of
cargo area) and press the release button
in the connector to disconnect it from the
vehicle. If the release button still does not
work, consult an authorized retailer of
Genesis Branded products.

1-50
Foreword / Starting your Electric vehicle
Information
Some connectors installed in public
charging stations stop charging by
pressing the charge release button while
charging is locked, and the connector can
be disconnected.
2. Make sure to completely close the
charging door.
OAEE046507N
3. Disconnect the plug from the
household electric outlet. Do not pull
the cable when disconnecting the
plug.
4. Close the protection caps of the
charging connector and the charging
plug to protect them from foreign
substances.
5. If the personal charging connector is
used, store the connector in the cable
compartment.
Precautions for Portable Charger
(ICCB: In-Cable Control Box)

[Use the portable charger that is certified
by Genesis Branded Vehicle.

[Do not try to repair, disassemble, or adjust
the portable charger.

[Avoid use of extension cords but if one
is necessary to reach your outlet keep as
short as possible and it must be a medium
or heavy duty cord rated 15 A or higher.

[Stop using immediately when failure
occurs.
[Do not touch the plug and charging
connector with wet hands.

[Do not touch the terminal part of the AC
charging connector and the AC charging
inlet on the vehicle.

[Do not connect the charging connector
to voltage that does not comply with
regulations.

[Do not use the portable charger if it is
worn out, exposed, or there exists any
type of damage on the portable charger.

[If the ICCB case and AC charging
connector is damaged, cracked, or the
wires are exposed in any way, do not use
the portable charger.

[Do not let children operate or touch the
portable charger.

[Keep the control box free of water.

[Keep the normal charging connector or
plug terminal free of foreign substances.

[Do not step on the cable or cord. Do not
pull the cable or cord and do not twist or
bend it.

[Do not charge when there is lightning.

[Do not drop the control box or place a
heavy object on the control box.

[Do not place an object that can generate
high temperatures near the charger when
charging.

[Charging with the worn out or damaged
household electric outlet can result in a
risk of electric shock. If you are in doubt
to the household electric outlet condition,
have it checked by a licensed electrician.

[Stop using the portable charger
immediately if the household electric
outlet or any components is overheated
or you notice burnt odors.

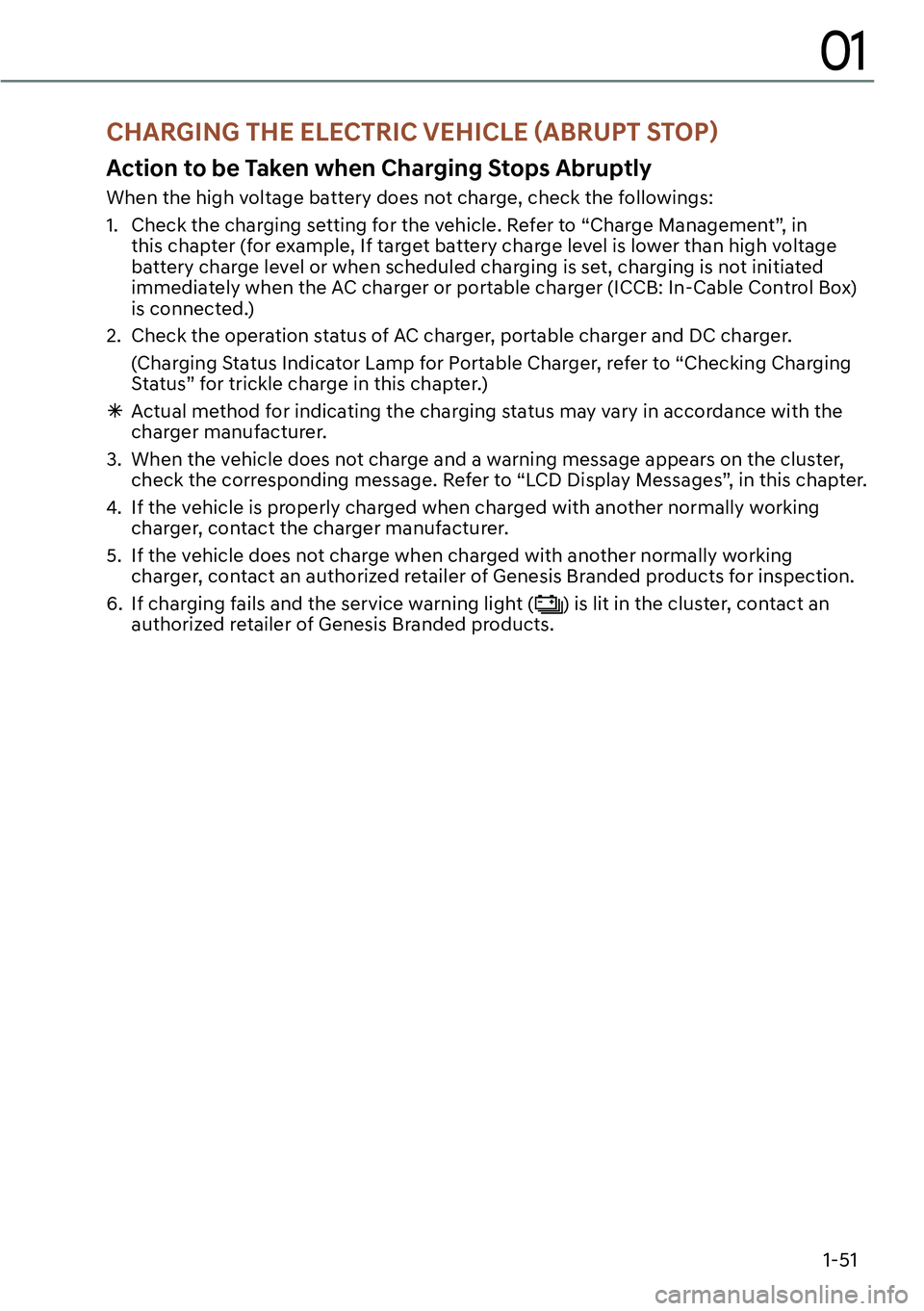

1-51
01
