2023 GENESIS GV60 Owners Manual

1-52
Foreword / Starting your Electric vehicle
How to Start the Vehicle
1. Holding the smart key, sit in the
driver’s seat.
2. Fasten the seat belt before starting
the vehicle.
3. Make sure to engage the parking
brake.
4. Turn OFF all electrical devices.
5. Depress and hold the brake pedal
while pressing the Start/Stop button.
OJWEVQ011034
6. When the ready () indicator is
ON, you can drive the vehicle.
When the ready (
) indicator is
OFF, you cannot drive the vehicle.
Start the vehicle again.
7. Depress and hold the brake pedal and
shift to the desired gear position.
Information
While the charging cable is connected, the
gear cannot be shift from P (Park) to any
other gear for safety reasons.
8. Release the parking brake and slowly
release the brake pedal. Check if the
vehicle slowly moves forward, then
depress the accelerator pedal.
How to Shut Off the Vehicle
1. Hold down the brake pedal while the
vehicle is stopped.
2. While depressing the brake pedal,
shift to P (Park).
3. While depressing the brake pedal,
engage the parking brake.
4. While depressing the brake pedal,
press the Start/Stop button and turn
off the vehicle.
OJWEVQ011035
5. Check if the ready () indicator is
turned OFF on the instrument cluster.
When the ready (
) indicator is
ON and the gear is in a position other
than P (Park), the driver can accidently
depress the accelerator pedal, causing
the vehicle to move unexpectedly.
DRIVING ELECTRIC VEHICLE

1-53
01
Virtual Engine Sound System
The Virtual Engine Sound System (VESS)
generates sound for pedestrians to hear
because there is no sound while the
Electric Vehicle (EV) is operating.

[If the vehicle is in the ready (
)
mode and any gear other than P (Park)
is selected, the VESS will be operated.

[When the gear is shifted to R
(Reverse), an additional warning
sound will be heard.
CAUTION

[The vehicle is much quieter while
driving than a conventional gasoline-
powered vehicle. Be aware of your
surroundings and always drive safely.

[After you park the vehicle or while
you are waiting at a traffic light,
check whether there are children or
obstacles around the vehicle.

[Check if there is something behind
the vehicle when driving in reverse.
Pedestrians may not hear the sound
of the vehicle.
Distance to Empty
OJWEVQ011036E
The distance to empty range displayed
will vary depending upon which
drive mode is selected in Drive Mode
Integrated Control System.
For more information, refer to “Drive
Mode Integrated Control System” in
chapter 6.
When destination is not set

[On average, a vehicle can drive about
198 miles (320 km).

[Under certain circumstances where
the air conditioner/heater is ON,
the distance to empty is impacted,
resulting in a possible distance
range from 186 miles (300 km).
When using the heater during cold
weather or driving at high speed, the
high voltage battery consumes a lot
more electricity. This may reduce the
distance to empty significantly.

[After ‘0 mile’ has been displayed,
the vehicle can drive an additional
2~5 miles (3~8 km) depending on
driving speed, heater/air conditioner,
weather, driving style, and other
factors.

1-54
Foreword / Starting your Electric vehicle

[Distance to empty that is displayed
on the instrument cluster after
completing a recharge may vary
significantly depending on previous
operating patterns.
When previous driving patterns
include high speed driving, resulting
in the high voltage battery using more
electricity than usual, the estimated
distance to empty is reduced. When
the high voltage battery uses little
electricity in ECO mode, the estimated
distance to empty increases.

[ Distance to empty may depend on
many factors such as the charge
amount of the high voltage battery,
weather, temperature, durability of
the battery, geographical features,
and driving style.

[Natural degradation may occur with
the high voltage battery depending
on the number of years the vehicle is
used. This may reduce the distance to
empty.
When destination is set
When the destination is set, the distance
to empty may change. The distance
to empty is recalculated using the
information of the destination. However,
the distance to empty may vary
significantly based on traffic conditions,
driving habits, and condition of the
vehicle.
Tips for Improving Distance to
Empty

[If you operate the air conditioner /
heater too much, the driving battery
uses too much electricity. This
may reduce the distance to empty.
Therefore, it is recommended that
you set the cabin temperature to 72°F
(22°C) AUTO. This setting that has
been certified by various assessment
tests to maintain optimal energy
consumption rates while keeping the
temperature fresh.
Turn OFF the heater and air
conditioner if you do not need them.

[When the heater or air conditioning
system is on the energy consumption
is reduced if recirculation mode is
selected instead of selecting the fresh
mode. The fresh mode requires large
amount of energy consumption as
the outside air has to be re-heated or
cooled.

[When using the heater or air
conditioning system use the DRIVER
ONLY or scheduled air conditioner/
heater function.

[Depress and hold the accelerator
pedal to maintain speed and drive
economically.

[Gradually depress and release the
accelerator pedal when accelerating
or decelerating.

[Always maintain specified tire
pressures.

[Do not use unnecessary electrical
components while driving.

[Do not load unnecessary items in the
vehicle.

[Do not mount parts that may increase
air resistance.

1-55
01

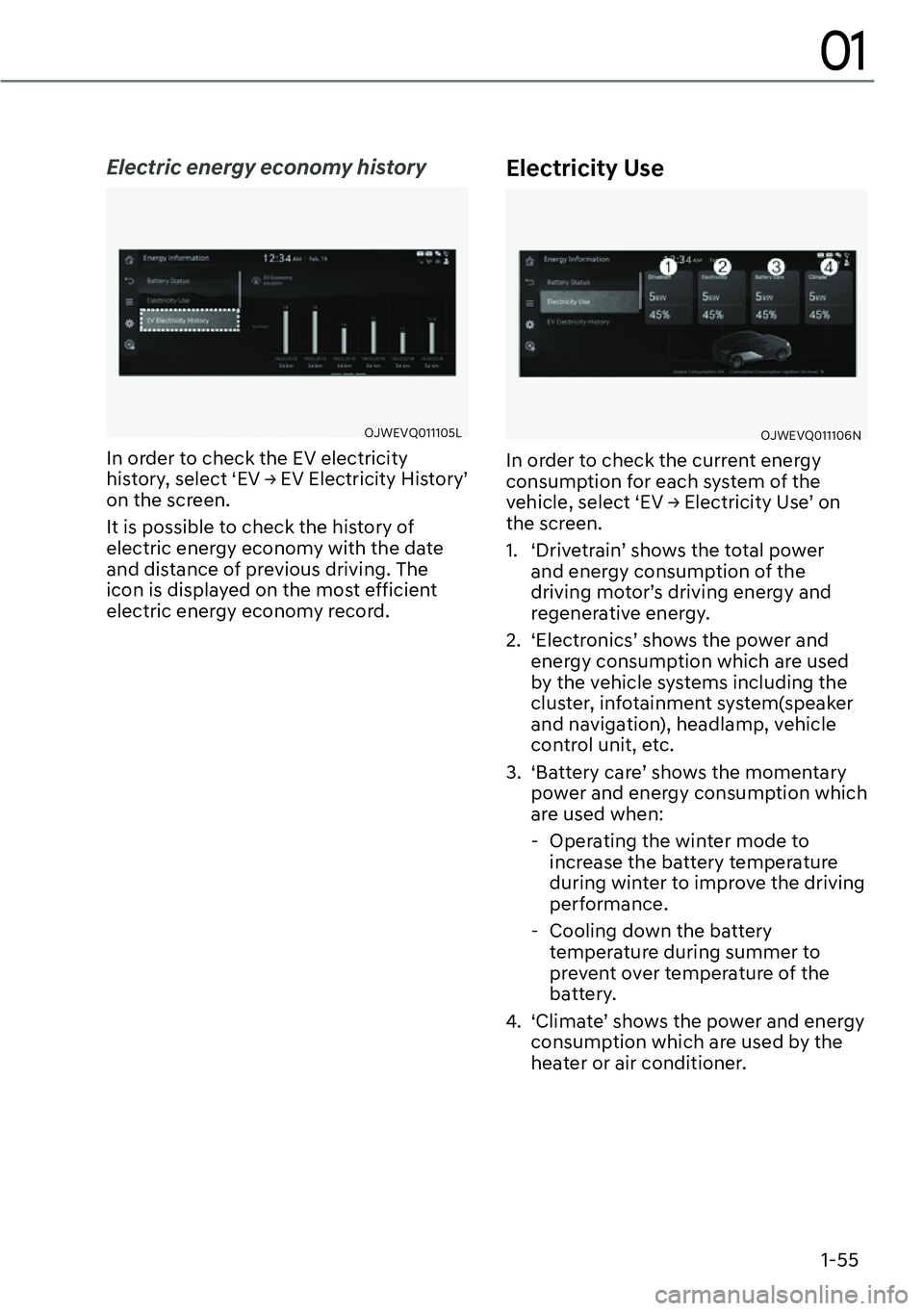

Electric energy economy history
OJWEVQ011105L
In order to check the EV electricity
KLVWRU\VHOHFW
S(9

1-56
Foreword / Starting your Electric vehicle

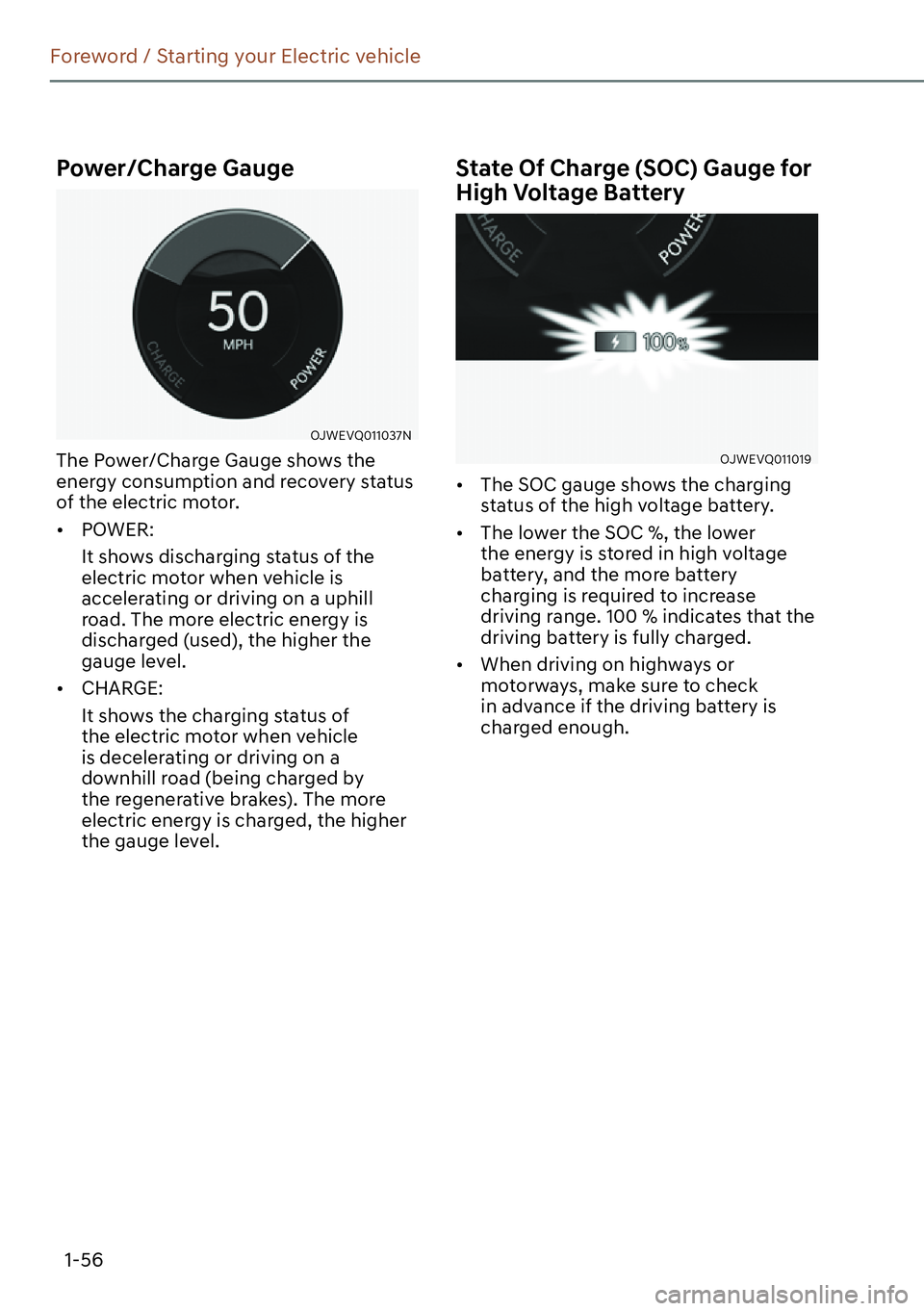

Power/Charge Gauge
OJWEVQ011037N
The Power/Charge Gauge shows the
energy consumption and recovery status
of the electric motor.

[POWER:
It shows discharging status of the
electric motor when vehicle is
accelerating or driving on a uphill
road. The more electric energy is
discharged (used), the higher the
gauge level.

[CHARGE:
It shows the charging status of
the electric motor when vehicle
is decelerating or driving on a
downhill road (being charged by
the regenerative brakes). The more
electric energy is charged, the higher
the gauge level.
State Of Charge (SOC) Gauge for
High Voltage Battery
OJWEVQ011019

[The SOC gauge shows the charging
status of the high voltage battery.

[The lower the SOC %, the lower
the energy is stored in high voltage
battery, and the more battery
charging is required to increase
driving range. 100 % indicates that the
driving battery is fully charged.

[When driving on highways or
motorways, make sure to check
in advance if the driving battery is
charged enough.

1-57
01
OJWEVQ011039
1. When the remaining battery is lower
than 10 % on the SOC gauge, the
warning light (
) turns ON to alert
you of the battery level.
2. When the warning light (
)
turns ON, the vehicle can drive an
additional 18~30 miles (30~50 km)
depending on the driving speed,
heater/air conditioner, weather,
driving style, and other factors.
Charging is required.
NOTICE
When the high voltage battery level is
low, the power down indicator light
illuminates and the vehicle power is
limited. Charge the battery immediately
since your vehicle may not be driven,
or may roll back on a slope with the
indicator light ON.
Warning and Indicator Lights
(related to electric vehicle)
Ready indicator
This indicator illuminates:
When the vehicle is ready to be driven.
- ON : Normal driving is possible.
- OFF : Normal driving is not possible,
or a problem has occurred.
- Blinking : Emergency driving.
When the ready indicator goes OFF
or blinks, there is a problem with the
system. In this case, have your vehicle
inspected by an authorized retailer of
Genesis Branded products.
Service Warning Light
This warning light illuminates:

[When the Start/Stop button is in the
ON position.
- It illuminates for approximately 3
seconds and then goes off.

[When there is a problem with related
parts of the electric vehicle control
system, such as sensors, etc.
When the warning light illuminates while
driving, or does not go OFF after starting
the vehicle, have your vehicle inspected
by an authorized retailer of Genesis
Branded products.

1-58
Foreword / Starting your Electric vehicle
Power Down Indicator Light
This indicator light illuminates:

[For the safety of high-powered
components of electric vehicles, the
power is limited due to the following
reasons. (Unless both Service Warning
Light and Power Down Indicator Light
illuminate at the same time, it is not a
failure.)
- The high voltage battery level is too
low or voltage is decreasing
- The temperature of the high voltage
battery is too high or too low
- The temperature of the motor is
high
NOTICE

[Do not accelerate or start the vehicle
suddenly when the power down
indicator light is ON.

[Your vehicle may not be driven,
or may roll back on a slope with
the indicator light ON due to the
limitation of the vehicle power.
Charging Indicator Light
This warning light illuminates:

[When the charging cable is
connected.
High Voltage Battery Level
Warning Light
This warning light illuminates:

[When the high voltage battery level
is low.

[When the warning light turns ON,
charge the battery immediately.
Regenerative Brake Warning
Light
This warning light illuminates:
When the regenerative brake does not
operate and the brake does not perform
well. This causes the Brake Warning
light (red) and Regenerative Brake
Warning Light (yellow) to illuminate
simultaneously.
In this case, drive safely and have your
vehicle inspected by an authorized
retailer of Genesis Branded products.
The operation of the brake pedal may
be more difficult than normal and the
braking distance can increase.

1-59
01
LCD Display Messages
Shift to P to charge
ORG3EVQ011117L
This message is displayed if you connect
the charging cable without the gear in
the P (Park) position.
Shift to P (Park) before connecting the
charging cable.
Remaining time
„AC charge„DC charge
OJWEVQ011117NOJWEVQ011118N
This message is displayed to notify the
remaining time to charge the battery to
the selected target battery charge level.
Unplug vehicle to start
OOSEV040498L
This message is displayed when you
start the vehicle without unplugging the
charging cable. Unplug the charging
cable, and then turn on the vehicle.
OOSEV040499L
This message is displayed when the
vehicle is driven with the charging door
opened. Close the charging door and
then start driving.
