2023 GENESIS GV60 Owners Manual

7-83
07
Smart Cruise Control disabled
OTM070115N
When the front radar cover or sensor
is covered with snow, rain, or foreign
material, it can reduce the detecting
performance and temporarily limit or
disable Smart Cruise Control.
If this occurs the ‘Smart Cruise Control
disabled. Radar blocked’ warning
message will appear for a certain period
of time on the cluster.
Smart Cruise Control will operate properly
when snow, rain or foreign material is
removed.
:$51,1*
(YHQWKRXJKWKHZDUQLQJPHVVDJHGRHV
QRWDSSHDURQWKHFOXVWHU6PDUW&UXLVH
&RQWUROPD\QRWSURSHUO\RSHUDWH
CAUTION
6PDUW&UXLVH&RQWUROPD\QRWSURSHUO\
RSHUDWHLQDQDUHDIRUH[DPSOHRSHQ
WHUUDLQZKHUHDQ\REMHFWVDUHQRW
GHWHFWHGDIWHUWXUQLQJ21WKHYHKLFOH
Limitations of Smart Cruise Control
Smart Cruise Control may not operate
properly, or it may operate unexpectedly
under the following circumstances:

[The detecting sensor or the
surroundings are contaminated or
damaged

[Washer fluid is continuously sprayed,
or the wiper is on

[The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass

[Moisture is not removed or frozen on
the windshield

[The field of view of the front view
camera is obstructed by sun glare

[Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road

[The temperature around the front
view camera is high or low

[An object is placed on the dashboard

[The surrounding is very bright

[The surrounding is very dark, such as
in a tunnel, etc.

[The brightness changes suddenly, for
example when entering or exiting a
tunnel

[The brightness outside is low, and the
headlamps are not on or are not bright

[Driving in heavy rain or snow, or thick
fog

[Driving through steam, smoke or
shadow

7-84
Driver Assistance System

[Only part of the vehicle is detected

[The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[The brightness outside is low, and the
tail lamps are not on or are not bright

[The rear of the front vehicle is small
or does not look normal (for example,
tilted, overturned, etc.)

[The front vehicle’s ground clearance is
low or high

[A vehicle suddenly cuts in front

[Your vehicle is being towed

[Driving through a tunnel or iron bridge

[Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.

[An object reflecting off the front radar
such as a guardrail, nearby vehicle,
etc.

[The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[The temperature around the front
radar is high or low

[Driving in vast areas where there
are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)

[The vehicle in front is made of
material that does not reflect on the
front radar

[Driving near a highway (or motorway)
interchange or tollgate

[Driving on a slippery surface due to
snow, water puddle, ice, etc.

[Driving on a curved road

[The vehicle in front is detected late

[The vehicle in front is suddenly
blocked by an obstacle

[The vehicle in front suddenly changes
lane or suddenly reduces speed
[The vehicle in front is bent out of
shape

[The front vehicle’s speed is fast or
slow

[With a vehicle in front, your vehicle
changes lane at low speed

[The vehicle in front is covered with
snow

[Unstable driving

[You are on a roundabout and the
vehicle in front is not detected

[You are continuously driving in a circle

[Driving in a parking lot

[Driving through a construction area,
unpaved road, partial paved road,
uneven road, speed bumps, etc.

[Driving on an incline road, curved
road, etc.

[Driving through a roadside with trees
or streetlights

[The adverse road conditions cause
excessive vehicle vibrations while
driving

[Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[Driving through a narrow road where
trees or grass are overgrown

[There is interference by
electromagnetic waves, such as
driving in an area with strong radio
waves or electrical noise

7-85
07

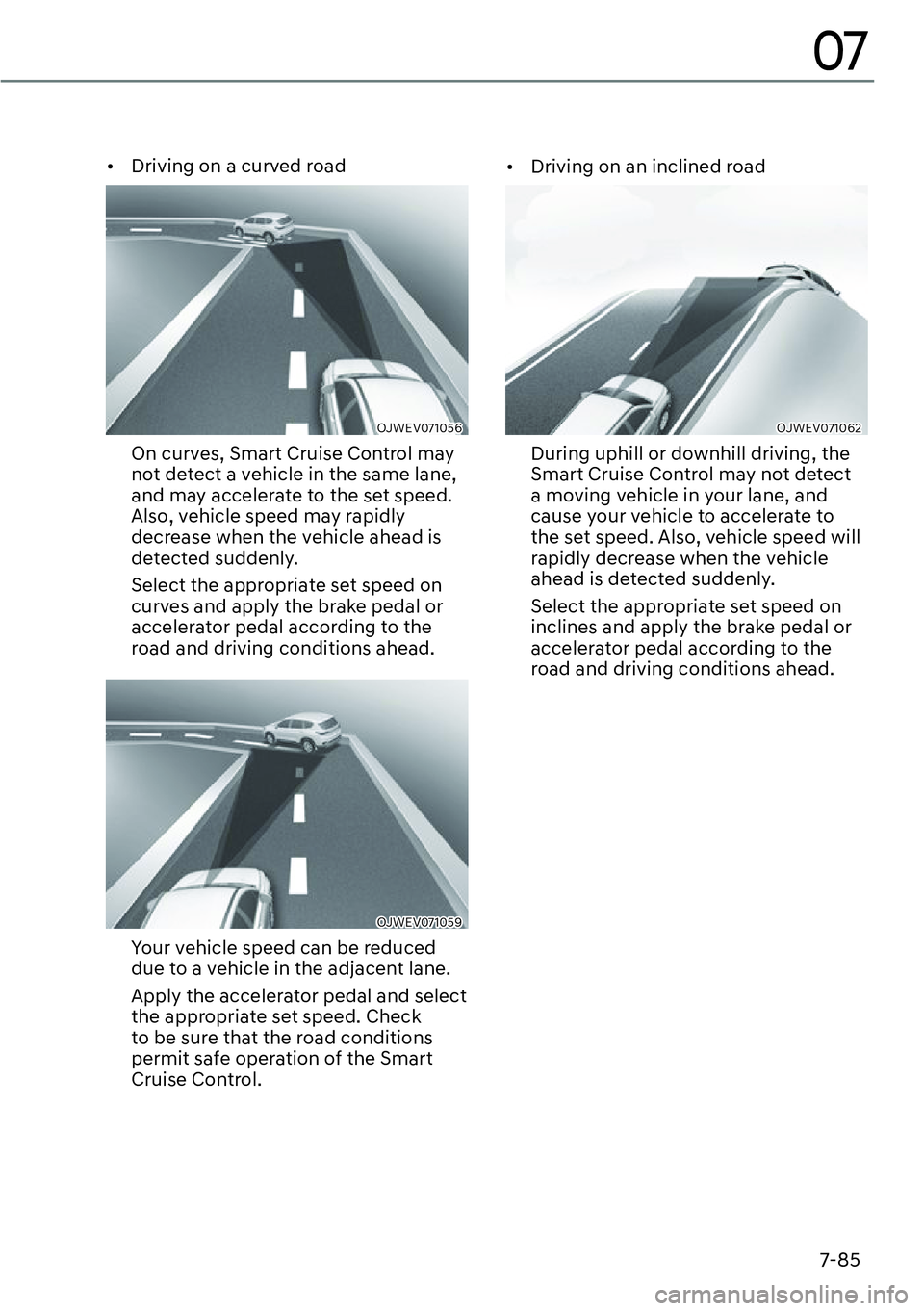

[Driving on a curved road
OJWEV071056
On curves, Smart Cruise Control may
not detect a vehicle in the same lane,
and may accelerate to the set speed.
Also, vehicle speed may rapidly
decrease when the vehicle ahead is
detected suddenly.
Select the appropriate set speed on
curves and apply the brake pedal or
accelerator pedal according to the
road and driving conditions ahead.
OJWEV071059
Your vehicle speed can be reduced
due to a vehicle in the adjacent lane.
Apply the accelerator pedal and select
the appropriate set speed. Check
to be sure that the road conditions
permit safe operation of the Smart
Cruise Control.
[Driving on an inclined road
OJWEV071062
During uphill or downhill driving, the
Smart Cruise Control may not detect
a moving vehicle in your lane, and
cause your vehicle to accelerate to
the set speed. Also, vehicle speed will
rapidly decrease when the vehicle
ahead is detected suddenly.
Select the appropriate set speed on
inclines and apply the brake pedal or
accelerator pedal according to the
road and driving conditions ahead.

7-86
Driver Assistance System

[Changing lanes
OJWEV071065 [A] : Your vehicle,
[B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot be
detected by the sensor until it is in the
sensor's detection range. Smart Cruise
Control may not immediately detect
the vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.
[Situations when detecting are limited
OJWEV071137
OJWEV071067
In the following cases, some vehicles
in your lane cannot be detected by the
sensor:
- Vehicles offset to one side
- Slow-moving vehicles or sudden-
decelerating vehicles
- Vehicles with higher ground
clearance or vehicles carrying loads
that stick out of the back of the
vehicle
- Vehicles that has the front lifted
dueto heavy loads
- Vehicles within approximately 6
feet(2 m) from your vehicle
- Oncoming vehicles
- Stopped vehicles
- Vehicles with small rear profile, such
as trailers

7-87
07
- Narrow vehicles, such as
motorcycles or bicycles
- Special vehicles
- Animals and pedestrians
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.
In the following cases, the vehicle
in front cannot be detected by the
sensor:
- You are steering your vehicle
- Driving on narrow or sharply curved
roads
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.
OJWEV071138

[When a vehicle ahead disappears
at an intersection, your vehicle may
accelerate.
Always pay attention to road and
driving conditions while driving.
OJWEV071139

[When a vehicle in front of you merges
out of the lane, Smart Cruise Control
may not immediately detect the new
vehicle that is now in front of you.
Always pay attention to road and
driving conditions while driving.
OJWEV071140

[Always look out for pedestrians when
your vehicle is maintaining a distance
with the vehicle ahead.

7-88
Driver Assistance System
Information
This device complies with Part 15 of the
FCC rules.Operation is subject to the
following three conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment. This equipment
should be installed and operated with
minimum distance of 8 in. (20 cm) between
the radiator (antenna) and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

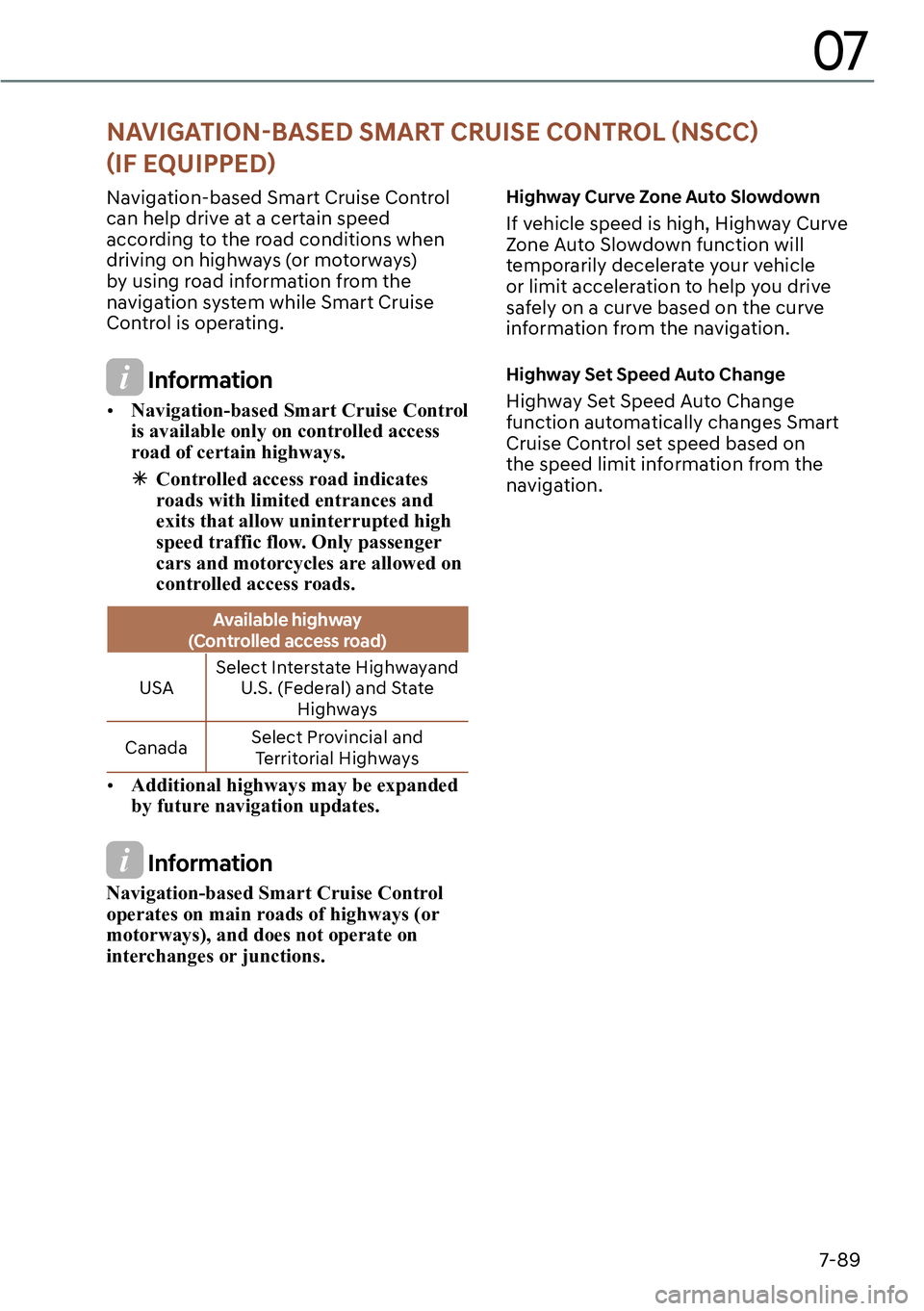

7-89
07
1$9,*$7,21

7-90
Driver Assistance System

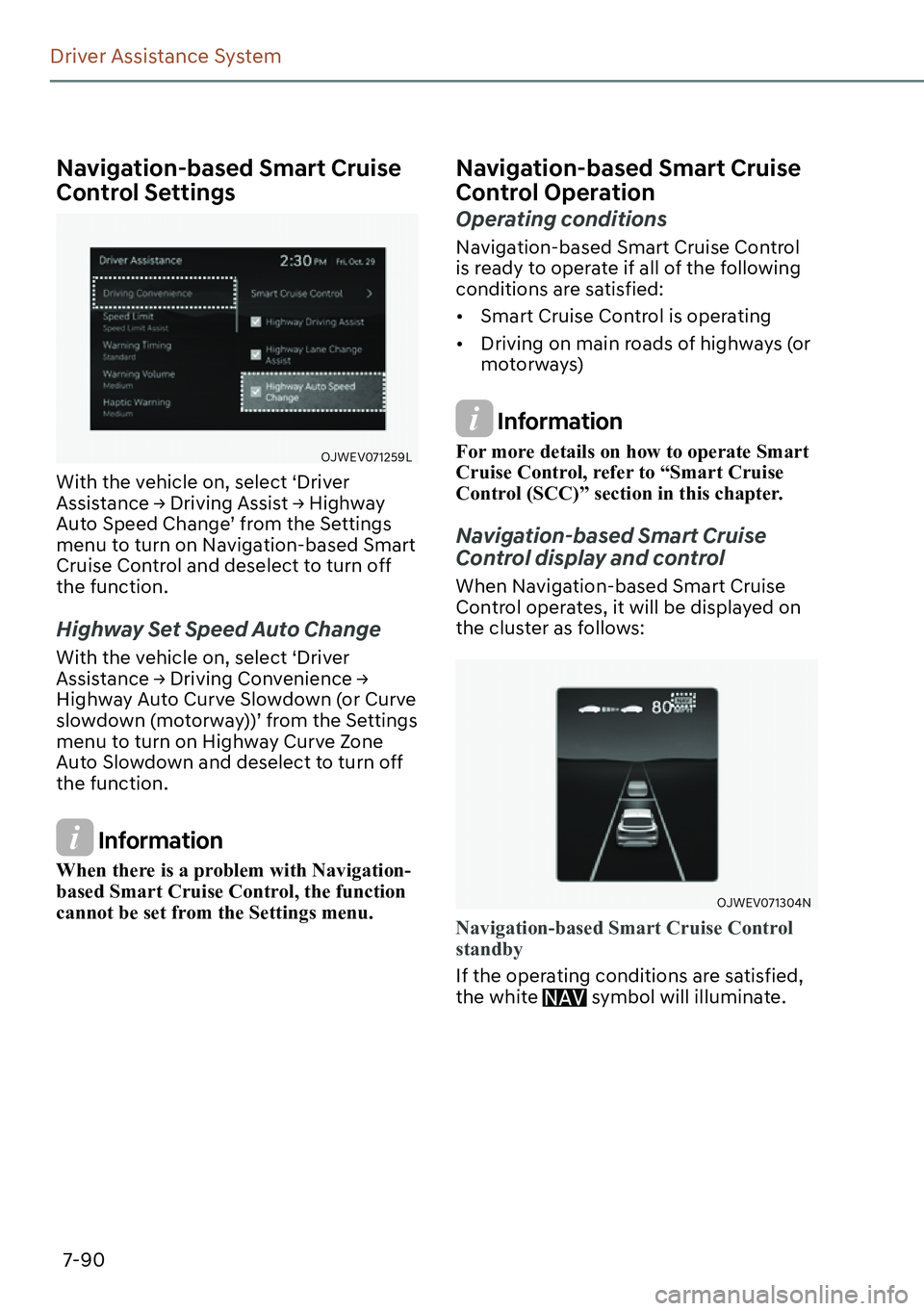

1DYLJDWLRQEDVHG6PDUW&UXLVH
Control Settings
OJWEV071259L
With the vehicle on, select ‘Driver
$VVLVWDQFH
