2023 GENESIS GV60 brake sensor

3-67
03
OJWEV031053
Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it
to “ride” under a vehicle with a higher
ground clearance. Air bags may not
inflate in this “underride” situation
because deceleration forces that are
detected by sensors may be significantly
reduced by such “underride” collisions.
OJWEV031055
Front air bags may not inflate in
rollover accidents because front air bag
deployment would not provide additional
occupant protection.
Information
The side and curtain air bags and front
center air bag may inflate in a rollover
situation, when it is detected by the
rollover sensor.
OJWEV031054N
Air bags may not inflate if the vehicle
collides with objects such as utility poles
or trees, where the point of impact is
concentrated and the collision energy is
absorbed by the vehicle structure.

5-93
05
LIGHTING
Exterior Lights
Lighting control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
OJX1059057
1. OFF position
2. AUTO headlamp position
3. Parking lamp position
4. Headlamp position
Daytime Running Light (DRL)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
lamp OFF when :

[The headlamps are ON.

[The parking brake is applied.

[The vehicle is turned off.
ORG3EV051070
AUTO headlamp position
The parking lamp and headlamp will
be turned ON or OFF automatically
depending on the amount of daylight as
measured by the ambient light sensor (1)
at the upper end of the windshield glass.
Even with the AUTO headlamp feature
in operation, it is recommended to
manually turn ON the headlamps when
driving at night or in a fog, driving in the
rain, or when you enter dark areas, such
as tunnels and parking facilities.

6
6. Driving Your Vehicle
Before Driving ................................................................................................... 6-3Before Entering the Vehicle .........................................................................................6-3
Before Starting .............................................................................................................6-3
Start/Stop Button .............................................................................................. 6-4Start/Stop Button Positions .........................................................................................6-5
Starting the Vehicle ..................................................................................................... 6-6
Turning Off the Vehicle ................................................................................................ 6-7
Remote Start ................................................................................................................ 6-8
Reduction Gear ................................................................................................. 6-9Reduction Gear Operation .......................................................................................... 6-9
Rotate the Shift Dial Manually in Case of Emergency ............................................. 6-10
LCD Display Messages (cluster) ................................................................................ 6-15
Good Driving Practices ...............................................................................................6-17
Regenerative Braking System .........................................................................6-19One Pedal Driving...................................................................................................... 6-20
Limitations of One Pedal Driving .............................................................................. 6-21
i-Pedal ......................................................................................................................... 6-22
Limitations of i-Pedal ................................................................................................. 6-22
Smart Recuperation System .......................................................................... 6-23Smart Recuperation System Setting ......................................................................... 6-23
To Activate Smart Recuperation System .................................................................. 6-23
Ready to Operate .......................................................................................................6-24
How to Operate .......................................................................................................... 6-25
Smart Recuperation System will be Temporarily Cancelled when: ........................ 6-25
To resume Smart Recuperation System ................................................................... 6-25
Vehicle-to-vehicle Distance Recognition Sensor (Front radar) ..............................6-26
System Malfunction ................................................................................................... 6-27
Limitations of the System .......................................................................................... 6-27
Braking System ............................................................................................... 6-30Power-assist Brakes .................................................................................................. 6-30
Disc Brakes Wear Indicator........................................................................................ 6-31
High Performance Brake............................................................................................ 6-31
Electronic Parking Brake (EPB) .................................................................................. 6-32
Auto Hold ................................................................................................................... 6-36
Anti-lock Brake System (ABS) ....................................................................................6-39
Electronic Stability Control (ESC) ............................................................................. 6-41
Vehicle Stability Management (VSM) ...................................................................... 6-44
Hill-Start Assist Control (HAC) .................................................................................. 6-45
Good Braking Practices ............................................................................................ 6-46
All Wheel Drive (AWD) ................................................................................... 6-47Emergency Precautions ............................................................................................ 6-49

6-27
06
System Malfunction
OOSEV040521L
Check Smart Regeneration System
The message will appear when the
system is not functioning normally. The
system will be cancelled and the word
'AUTO' on the cluster will disappear and
instead display regenerative braking
level. Check for foreign substances on
the front radar. Remove any dirt, snow, or
foreign material that could interfere with
the radar sensors. If the system still does
not operate normally, take your vehicle
to an authorized retailer of Genesis
Branded products and have the system
checked.
Limitations of the System
The Smart Recuperation System may
not operate properly in certain situations
when the driving condition is beyond the
performance of the front radar sensor.
Driver's attention is required in such
cases when the system does not react
properly or operate unintentionally.
Driving on a curved road
OJWEV061022
When coasting on the curve, the system
may not detect the vehicle in your lane
and the regenerative braking level will
reduce automatically, making you feel
that the vehicle is accelerating.
Also, if the system suddenly recognizes
the vehicle in front, the regenerative
braking level will increase automatically,
making you feel that the vehicle is
decelerating.
The driver must maintain a safe braking
distance, and if necessary, depress the
brake pedal to reduce your driving speed
in order to maintain a safe distance.

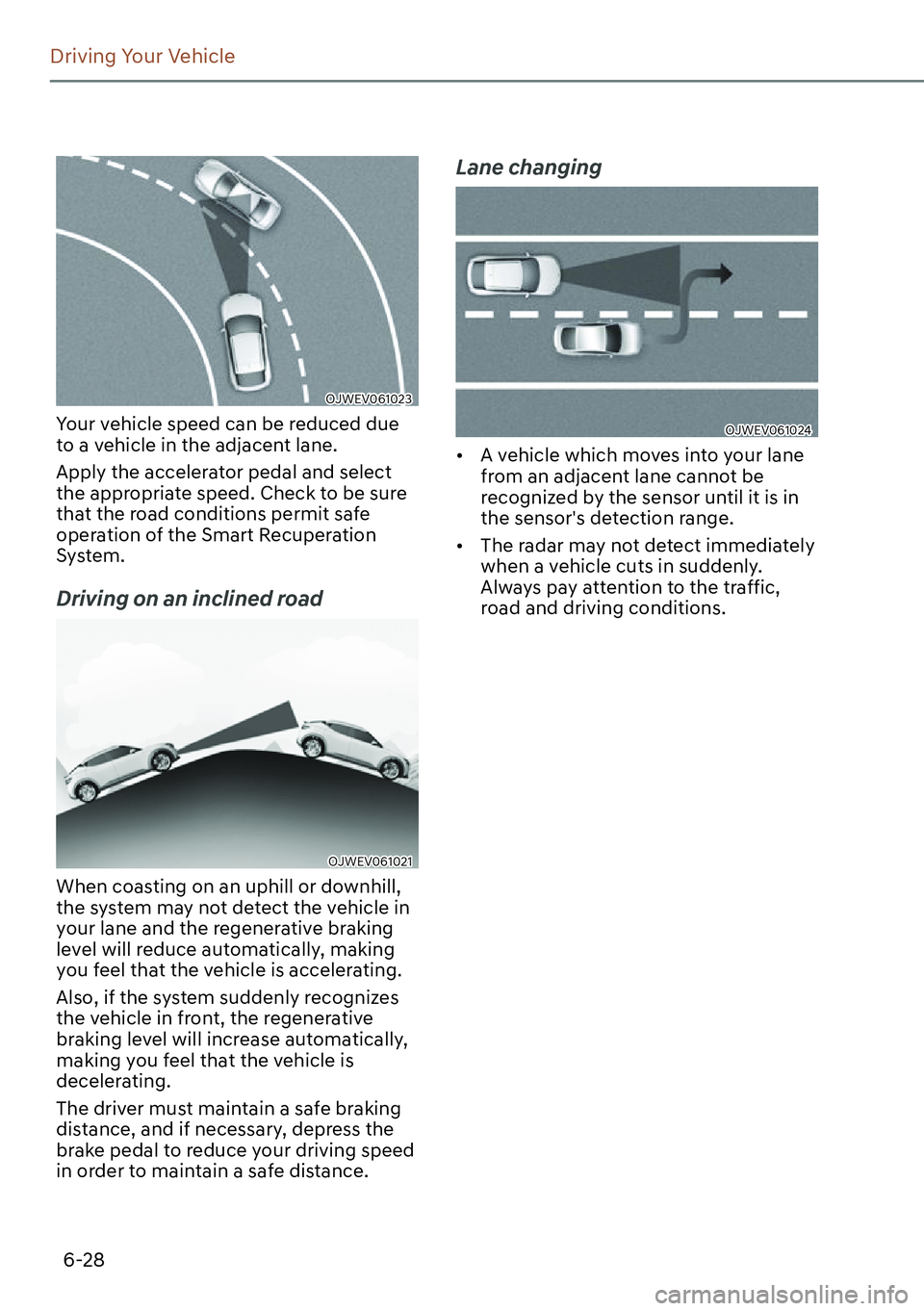

6-28
Driving Your Vehicle
OJWEV061023
Your vehicle speed can be reduced due
to a vehicle in the adjacent lane.
Apply the accelerator pedal and select
the appropriate speed. Check to be sure
that the road conditions permit safe
operation of the Smart Recuperation
System.
Driving on an inclined road
OJWEV061021
When coasting on an uphill or downhill,
the system may not detect the vehicle in
your lane and the regenerative braking
level will reduce automatically, making
you feel that the vehicle is accelerating.
Also, if the system suddenly recognizes
the vehicle in front, the regenerative
braking level will increase automatically,
making you feel that the vehicle is
decelerating.
The driver must maintain a safe braking
distance, and if necessary, depress the
brake pedal to reduce your driving speed
in order to maintain a safe distance.
Lane changing
OJWEV061024

[A vehicle which moves into your lane
from an adjacent lane cannot be
recognized by the sensor until it is in
the sensor's detection range.

[The radar may not detect immediately
when a vehicle cuts in suddenly.
Always pay attention to the traffic,
road and driving conditions.

6-29
06
Vehicle recognition
OJWEV061025
Some vehicles in your lane cannot be
recognized by the sensor:
- Narrow vehicles such as motorcycles
or bicycles
- Vehicles offset to one side
- Slow-moving vehicles or sudden-
decelerating vehicles
- Stopped vehicles (When the vehicle
ahead drives away, the system may
not detect a stopped vehicle.)
- Vehicles with small rear profile such as
trailers with no loads
A vehicle ahead cannot be recognized
correctly by the sensor if any of following
occurs:
- When the vehicle is pointing upwards
due to overloading in the luggage
compartment.
- While the steering wheel is operating.
- When driving to one side of the lane.
- When driving on narrow lanes or on
curves.
- Apply the brake or accelerator pedal if
necessary.
WARNING
When using the Smart Recuperation
System take the following precautions:

[If an emergency stop is necessary,
you must apply the brakes.

[Keep a safe distance according to
road conditions and vehicle speed. If
the vehicle to vehicle distance is too
close during a high-speed driving, a
serious collision may result.

[Always maintain sufficient braking
distance and decelerate your vehicle
by applying the brakes if necessary.

[The Smart Recuperation System
cannot recognize a stopped vehicle,
pedestrians or an oncoming vehicle.
Always look ahead cautiously to
prevent unexpected and sudden
situations from occurring.

[Vehicles moving in front of you with
a frequent lane changes may cause
a delay in the system's reaction or
may cause the system to react to a
vehicle actually in an adjacent lane.
Always drive cautiously to prevent
unexpected and sudden situations
from occurring.

[The Smart Recuperation System
may not recognize complex driving
situations so always pay attention to
driving conditions and control your
vehicle speed.
NOTICE
The Smart Recuperation System may
not operate temporarily due to:

[Electrical interference

[Modifying the suspension

[Differences of tire abrasion or tire
pressure

[Installing different type of tires

7-34
Driver Assistance System
OJWEV071072
When you are driving forward out of a
parking space, if Blind-Spot Collision-
Avoidance Assist judges that there is
a collision risk with an approaching
vehicle in the blind spot, it can help avoid
collision by applying the brake.
Detecting sensor
OJWEV051058N
OJWEV071073N[1] : Front view camera,
[2] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.

7-86
Driver Assistance System

[Changing lanes
OJWEV071065 [A] : Your vehicle,
[B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot be
detected by the sensor until it is in the
sensor's detection range. Smart Cruise
Control may not immediately detect
the vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.
[Situations when detecting are limited
OJWEV071137
OJWEV071067
In the following cases, some vehicles
in your lane cannot be detected by the
sensor:
- Vehicles offset to one side
- Slow-moving vehicles or sudden-
decelerating vehicles
- Vehicles with higher ground
clearance or vehicles carrying loads
that stick out of the back of the
vehicle
- Vehicles that has the front lifted
dueto heavy loads
- Vehicles within approximately 6
feet(2 m) from your vehicle
- Oncoming vehicles
- Stopped vehicles
- Vehicles with small rear profile, such
as trailers
