2023 GENESIS GV60 steering wheel

2-4

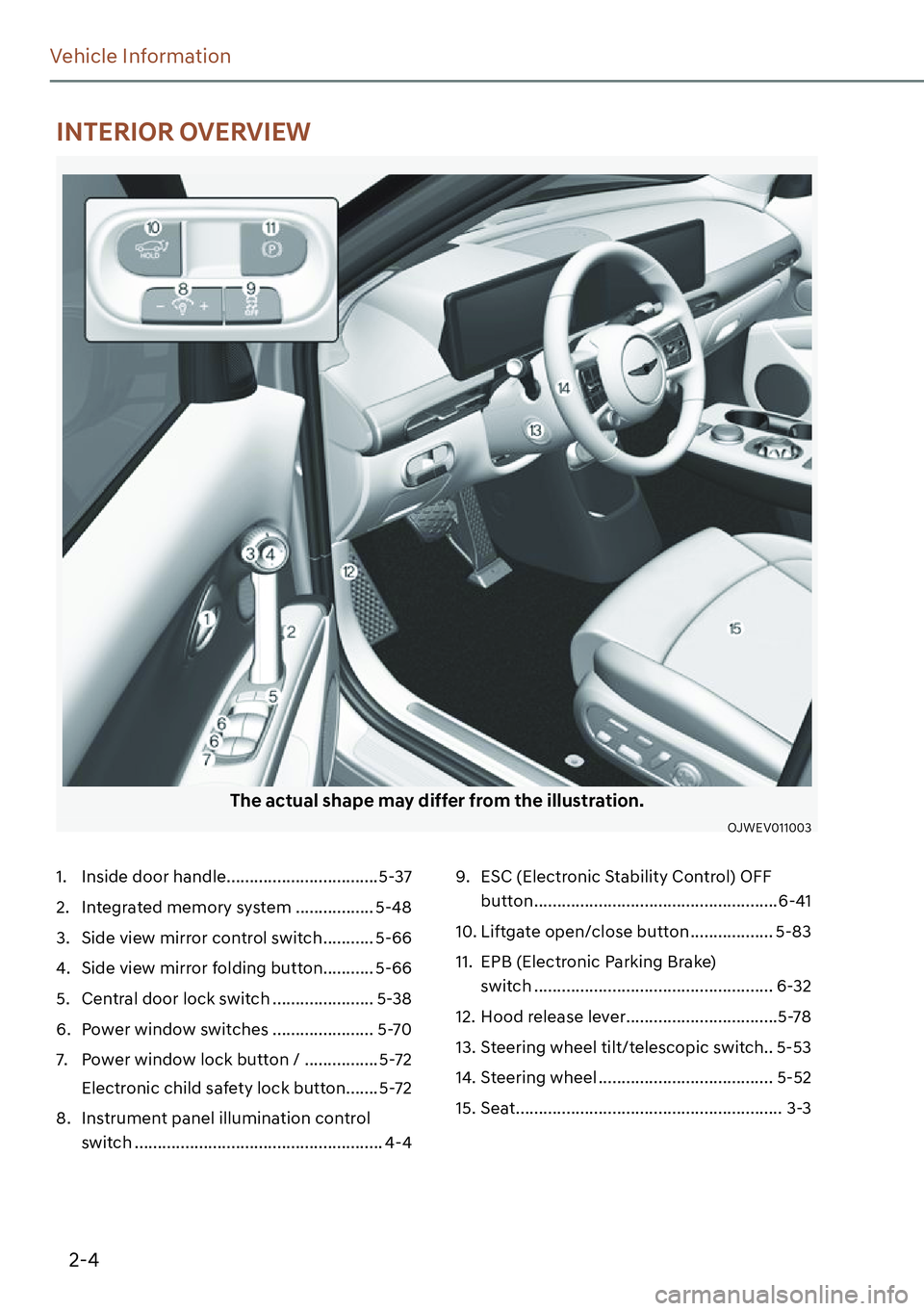

Vehicle Information
The actual shape may differ from the illustration.
OJWEV011003
1. Inside door handle .................................5-37
2. Integrated memory system ................. 5-48
3. Side view mirror control switch ........... 5-66
4. Side view mirror folding button........... 5-66
5. Central door lock switch ...................... 5-38
6. Power window switches ...................... 5-70
7. Power window lock button / ................ 5-72
Electronic child safety lock button ....... 5-72
8. Instrument panel illumination control
switch ...................................................... 4-49. ESC (Electronic Stability Control) OFF
button .....................................................6-41
10. Liftgate open/close button .................. 5-83
11. EPB (Electronic Parking Brake)
switch .................................................... 6-32
12. Hood release lever .................................5-78
13. Steering wheel tilt/telescopic switch.. 5-53
14. Steering wheel ...................................... 5-52
15. Seat .......................................................... 3-3
INTERIOR OVERVIEW

2-5
02
1. Instrument cluster .................................. 4-3
2. Horn ....................................................... 5-54
3. Driver’s front air bag ............................. 3-49
4. Start/Stop button ................................... 6-4
5. Infotainment system ............................5-141
6. Hazard warning flasher button .............. 8-2
7. Automatic climate control system .....5-108
8. Passenger’s front air bag ..................... 3-49
9. Glove box ............................................. 5-129
10. Wireless charging system indicator ... 5-134
11. Wireless charging system pad ............ 5-134
12. USB port ................................................5-14113. USB charger ......................................... 5-133
14. Power outlet ......................................... 5-132
15. Cup holder ........................................... 5-130
16. Rotary shifter (Rotary gear shift dial) .... 6-9
17. Fingerprint authentication system ...... 5-30
18. Heated steering wheel button ............. 5-55
19. Auto Hold button .................................. 6-37
20. Parking/View button ............................ 7-116
21. Parking Safety button .......................... 7-140
22. Seat Warmer/Air ventilation seat ... 3-24, 3-26
23. Rear seat USB charger ........................ 5-133
The actual shape may differ from the illustration.
OJWEV011004L
,167580(173$1(/29(59,(:

3-6
Safety System
Safety Precautions
Adjusting the seats so that you are sitting
in a safe, comfortable position plays an
important role in driver and passenger
safety, together with seat belts and air
bags, in an accident.
WARNING
Do not use a cushion that reduces
friction between the seat and the
passenger. The passenger’s hips may
slide under the lap portion of the seat
belt during an accident or a sudden
stop.
Serious or fatal internal injuries could
result because the seat belt cannot
operate properly.
Air bags
You can take steps to reduce the risk
of being injured by an inflating air bag.
Sitting too close to an air bag greatly
increases the risk of injury in the event
the air bag inflates. Move your seat as
far back as possible from front air bags,
while still maintaining control of the
vehicle.
WARNING
To reduce the risk of serious injury or
death from an inflating air bag, take the
following precautions:

[Adjust the driver’s seat as far to the
rear as possible maintaining the
ability to control the vehicle.

[Adjust the front passenger seat as far
to the rear as possible.

[Hold the steering wheel by the rim
with hands at the 9 o’clock and 3
o’clock positions to minimize the risk
of injuries to your hands and arms.

[NEVER place anything or anyone
between you and the air bag.

[Do not allow the front passenger to
place feet or legs on the dashboard
to minimize the risk of leg injuries.
Seat belts
Always fasten your seat belt before
starting any trip. At all times, passengers
should sit upright and be properly
restrained. Infants and small children
must be restrained in appropriate Child
Restraint Systems. Children who have
outgrown a booster seat and adults must
be restrained using the seat belts.
WARNING
Take the following precautions when
adjusting your seat belt:

[NEVER use one seat belt for more
than one occupant.

[Always position the seatback upright
with the lap portion of the seat belt
snug and low across the hips.

[NEVER allow children or small infants
to ride on a passenger’s lap.

[Do not route the seat belt across your
neck, across sharp edges, or reroute
the shoulder strap away from your
body.

[Do not allow the seat belt to become
caught or jammed.

3-7
03

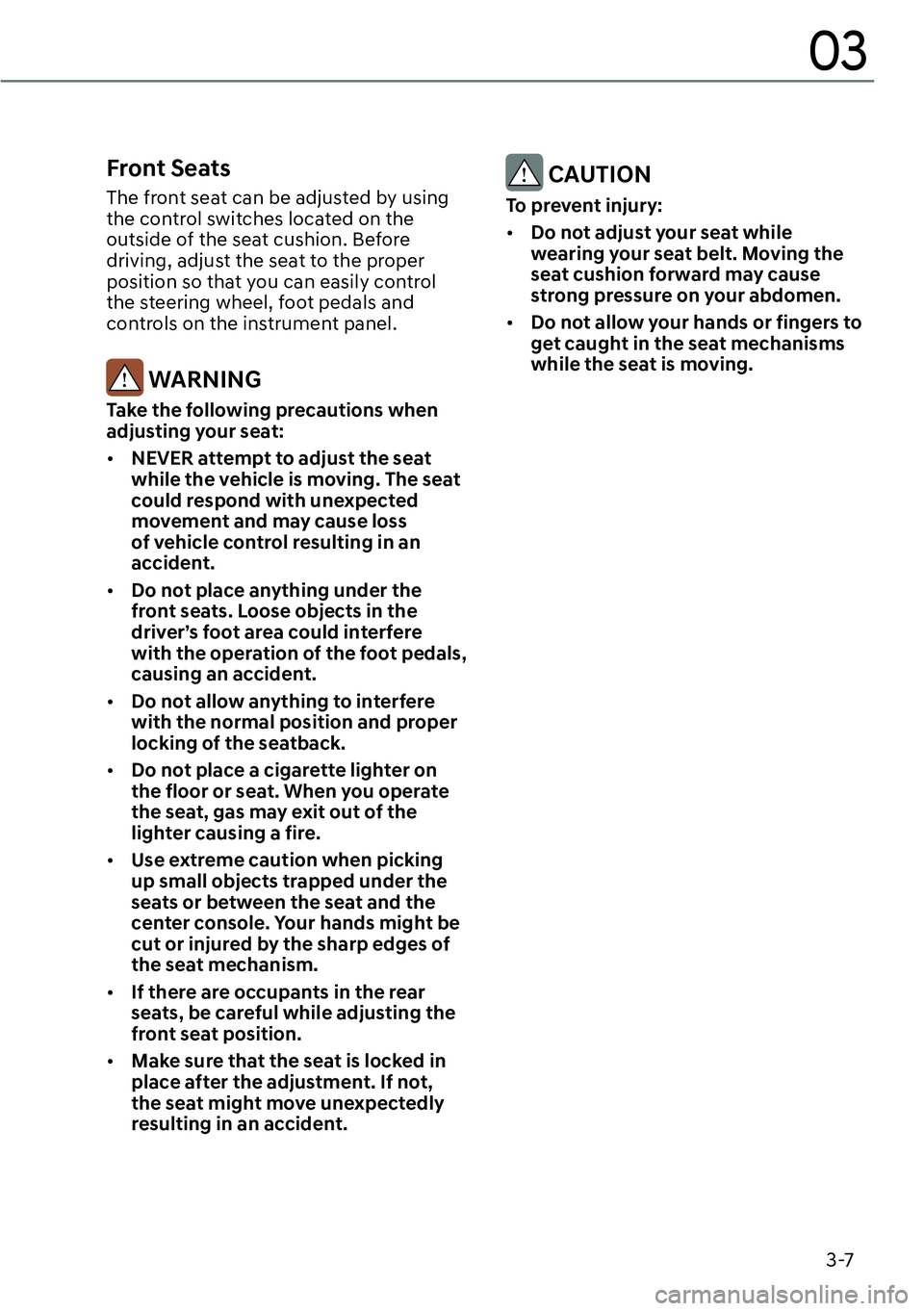

Front Seats
The front seat can be adjusted by using
the control switches located on the
outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control
the steering wheel, foot pedals and
controls on the instrument panel.
WARNING
Take the following precautions when
adjusting your seat:

[NEVER attempt to adjust the seat
while the vehicle is moving. The seat
could respond with unexpected
movement and may cause loss
of vehicle control resulting in an
accident.

[Do not place anything under the
front seats. Loose objects in the
driver’s foot area could interfere
with the operation of the foot pedals,
causing an accident.

[Do not allow anything to interfere
with the normal position and proper
locking of the seatback.

[Do not place a cigarette lighter on
the floor or seat. When you operate
the seat, gas may exit out of the
lighter causing a fire.

[Use extreme caution when picking
up small objects trapped under the
seats or between the seat and the
center console. Your hands might be
cut or injured by the sharp edges of
the seat mechanism.

[If there are occupants in the rear
seats, be careful while adjusting the
front seat position.

[Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.
CAUTION
To prevent injury:

[Do not adjust your seat while
wearing your seat belt. Moving the
seat cushion forward may cause
strong pressure on your abdomen.

[Do not allow your hands or fingers to
get caught in the seat mechanisms
while the seat is moving.

3-48
Safety System
This vehicle is equipped with a
Supplemental Air Bag System for the
driver’s seat and front passenger’s seats.
The front air bags are designed to
supplement the three-point seat belts.
For these air bags to provide protection,
the seat belts must be worn at all times
when driving.
You can be severely injured or killed
in an accident if you are not wearing
a seat belt. Air bags are designed to
supplement seat belts, but do not
replace them. Also, air bags are not
designed to deploy in every collision. In
some accidents, the seat belts are the
only restraint protecting you.
WARNING
AIR BAG SAFETY PRECAUTIONS
ALWAYS use seat belts and Child
Restraint Systems - every trip, every
time, everyone! Even with air bags, you
can be seriously injured or killed in a
collision if you are improperly belted or
not wearing your seat belt when the air
bag inflates.
NEVER place a child in any Child
Restraint System or booster seat in the
front passenger seat, unless the air bag
is deactivated.
An inflating air bag could forcefully
strike the infant or child causing serious
or fatal injuries.
ABC - Always Buckle Children under age
13 in the back seat. It is the safest place
for children of any age to ride. If a child
age 13 or older must be seated in the
front seat, he or she must be properly
belted and the seat should be moved as
far back as possible.All occupants should sit upright with
the seatback in an upright position,
centered on the seat cushion with
their seat belt on, legs comfortably
extended and their feet on the floor
until the vehicle is parked and the
vehicle is turned off. If an occupant is
out of position during an accident, the
rapidly deploying air bag may forcefully
contact the occupant causing serious or
fatal injuries.
You and your passengers should never
sit or lean unnecessarily close to the air
bags or lean against the door or center
console.
Move your seat as far back as possible
from front air bags, while still
maintaining control of the vehicle.
The U.S. National Highway Traffic Safety
Administration (NHTSA) recommends
that drivers allow at least 10 inches (25
cm) between the center of the steering
wheel and the chest.

3-49
03
Where are the Air Bags?
Driver’s and passenger’s front air
bags
„Driver’s front air bag
OJWEV031026
„Driver’s knee air bag
OJWEV031027
„Passenger’s front air bag
OJWEV031028
Your vehicle is equipped with a
Supplemental Restraint System (SRS)
and lap/shoulder belts at both the driver
and passenger seating positions.The SRS consists of air bags which are
located in the center of the steering
wheel, in the driver’s side lower crash
pad below the steering wheel, and the
passenger’s side front panel pad above
the glove box.
The air bags are labeled with the letters
“AIR BAG” embossed on the pad covers.
The purpose of the SRS is to provide the
vehicle’s driver and front passengers with
additional protection than that offered
by the seat belt system alone in case of a
frontal impact of sufficient severity.
The seat belt buckle sensors determine
if the driver and front passenger's
seat belts are fastened. These sensors
provide the ability to control the SRS
deployment based on whether or not the
seat belts are fastened, and how severe
the impact is.The advanced SRS offers
the ability to control the air bag inflation
within two levels. A first stage level is
provided for moderate-severity impacts.
A second stage level is provided for
more severe impacts.According to the
impact severity, and seat belt usage, the
SRS Control Module(SRSCM) controls
the air bag inflation. Failure to properly
wear seat belts can increase the risk or
severity of injury in an accident.

3-50
Safety System
WARNING
To reduce the risk of serious injury or
death from inflating front air bags, take
the following precautions:

[Seat belts must be worn at all times
to help keep occupants positioned
properly.

[Move your seat as far back as
possible from front air bags, while
still maintaining control of the
vehicle.

[Never lean against the door or center
console.

[Do not allow the front passenger
to place their feet or legs on the
dashboard.

[No objects (such as crash pad
cover, mobile phone holder, cup
holder, perfume or stickers) should
be placed over or near the air bag
modules on the steering wheel,
instrument panel, windshield glass,
and the front passenger’s panel
above the glove box. Such objects
could cause harm if the vehicle is in a
crash severe enough to cause the air
bags to deploy.

[Do not attach any objects on the
front windshield and inside mirror.
Side air bags and front center air
bag (if equipped)
„Side air bag
OJWEV031035
„Front center air bag (Driver’s seat)
OJWEV031037
OJWEV031038L
Your vehicle is equipped with a side air
bag in each front. Additionally, a front
center air bag is provided in the inboard
side of the driver seatback. The purpose
of the air bag is to provide the vehicle’s
additional protection than that offered by
the seat belt alone.

3-51
03
The side air bags and front center air bag
are designed to deploy during certain
side impact collisions, depending on the
crash severity.
For vehicles equipped with a rollover
sensor the front center air bag, side and/
or curtain air bags and pre-tensioners on
both sides of the vehicle may deploy if a
rollover or possible rollover is detected.
The side air bags and front center air bag
are not designed to deploy in all side
impact or rollover situations.
WARNING
To reduce the risk of serious injury or
death from an inflating side air bag and
front center air bag, take the following
precautions:

[Seat belts must be worn at all times
to help keep occupants positioned
properly.

[Do not allow passengers to lean their
heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.

[Hold the steering wheel at the 9
o’clock and 3 o’clock positions, to
minimize the risk of injuries to your
hands and arms.

[Do not use any accessory seat
covers. This could reduce or prevent
the effectiveness of the system.

[Do not hang other objects except
clothes. In an accident it may cause
vehicle damage or personal injury
especially when air bag is inflated.
[Do not place any objects over the
air bag or between the air bag and
yourself. Also, do not attach any
objects around the area the air bag
inflates such as the door, side door
glass, front and rear pillar.

[Do not place any objects between
the door and the seat. They may
become dangerous projectiles if the
side air bag inflates.

[Do not install any accessories on the
side or near the side air bags.

[Do not cause impact to the doors
when the Start/Stop button is in the
ON or START position as this may
cause the side air bags to inflate.

[If the seat or seat cover is damaged,
have the system be serviced by
an authorized retailer of Genesis
Branded products.
