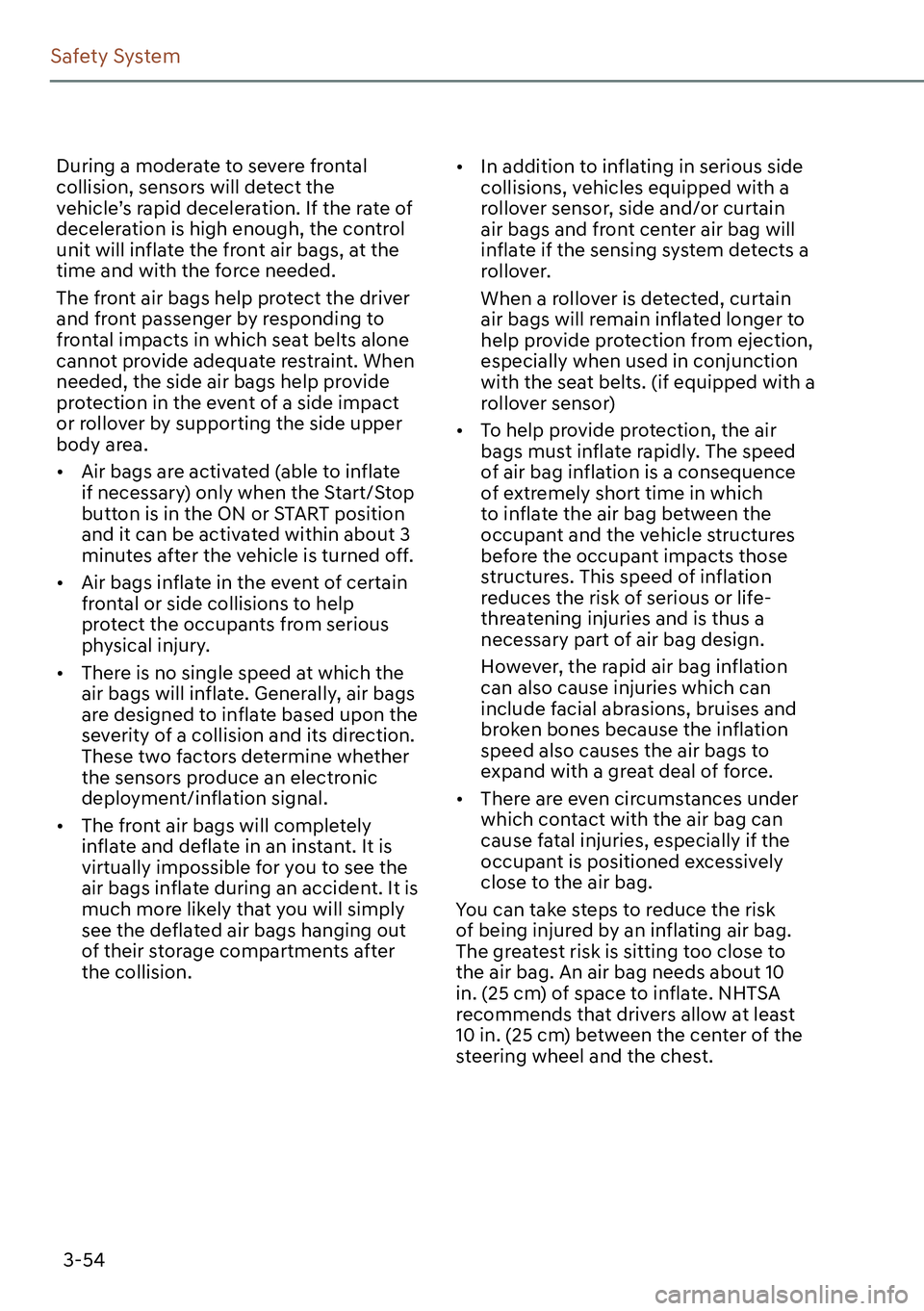

3-54
Safety System
During a moderate to severe frontal
collision, sensors will detect the
vehicle’s rapid deceleration. If the rate of
deceleration is high enough, the control
unit will inflate the front air bags, at the
time and with the force needed.
The front air bags help protect the driver
and front passenger by responding to
frontal impacts in which seat belts alone
cannot provide adequate restraint. When
needed, the side air bags help provide
protection in the event of a side impact
or rollover by supporting the side upper
body area.

[Air bags are activated (able to inflate
if necessary) only when the Start/Stop
button is in the ON or START position
and it can be activated within about 3
minutes after the vehicle is turned off.

[Air bags inflate in the event of certain
frontal or side collisions to help
protect the occupants from serious
physical injury.

[There is no single speed at which the
air bags will inflate. Generally, air bags
are designed to inflate based upon the
severity of a collision and its direction.
These two factors determine whether
the sensors produce an electronic
deployment/inflation signal.

[The front air bags will completely
inflate and deflate in an instant. It is
virtually impossible for you to see the
air bags inflate during an accident. It is
much more likely that you will simply
see the deflated air bags hanging out
of their storage compartments after
the collision.
[In addition to inflating in serious side
collisions, vehicles equipped with a
rollover sensor, side and/or curtain
air bags and front center air bag will
inflate if the sensing system detects a
rollover.
When a rollover is detected, curtain
air bags will remain inflated longer to
help provide protection from ejection,
especially when used in conjunction
with the seat belts. (if equipped with a
rollover sensor)

[To help provide protection, the air
bags must inflate rapidly. The speed
of air bag inflation is a consequence
of extremely short time in which
to inflate the air bag between the
occupant and the vehicle structures
before the occupant impacts those
structures. This speed of inflation
reduces the risk of serious or life-
threatening injuries and is thus a
necessary part of air bag design.
However, the rapid air bag inflation
can also cause injuries which can
include facial abrasions, bruises and
broken bones because the inflation
speed also causes the air bags to
expand with a great deal of force.

[There are even circumstances under
which contact with the air bag can
cause fatal injuries, especially if the
occupant is positioned excessively
close to the air bag.
You can take steps to reduce the risk
of being injured by an inflating air bag.
The greatest risk is sitting too close to
the air bag. An air bag needs about 10
in. (25 cm) of space to inflate. NHTSA
recommends that drivers allow at least
10 in. (25 cm) between the center of the
steering wheel and the chest.

3-55
03
WARNING
To reduce the risk of serious injury or
death from an inflating air bag, take the
following precautions:

[NEVER place a child restraint in
the front passenger seat. Always
properly restrain children under age
13 in the rear seats of the vehicle.

[Adjust the front passenger’s and
driver's seats as far to the rear as
possible while maintaining you to
maintain full control of the vehicle.

[Hold the steering wheel with
hands at the 9 o'clock and 3 o'clock
positions.

[Never place anything or anyone
between the air bag and the seat
occupant.

[Do not allow the front passenger
to place their feet or legs on the
dashboard.
„Driver’s front air bag (1)
OHI038171L
When the SRSCM detects a sufficiently
severe impact to the front of the vehicle,
it will automatically deploy the front air
bags.
„Driver’s front air bag (2)
OHI038172L
Upon deployment, tear seams molded
directly into the pad covers will separate
under pressure from the expansion of the
air bags. Further opening of the covers
allows full inflation of the air bags.
A fully inflated air bag, in combination
with a properly worn seat belt, slows the
driver’s or the front passenger’s forward
motion, reducing the risk of head and
chest injury.

3-68
Safety System
SRS Care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate
when the Start/Stop button is in the
ON position, or continuously remains
on, have the system be immediately
inspected by an authorized retailer of
Genesis Branded products.
Any work on the SRS system, such as
removing, installing, repairing, or any
work on the steering wheel, the front
passenger’s panel, front seats and roof
rails be performed by an authorized
retailer of Genesis Branded products.
Improper handling of the SRS system
may result in serious personal injury. WARNING
To reduce the risk of serious injury or
death take the following precautions:

[Do not attempt to modify or
disconnect the SRS components or
wiring, including the addition of any
kind of badges to the pad covers or
modifications to the body structure.

[Do not place objects over or near
the air bag modules on the steering
wheel, instrument panel, and the
front passenger’s panel above the
glove box.

[Clean the air bag pad covers with
a soft cloth moistened with plain
water. Solvents or cleaners could
adversely affect the air bag covers
and proper deployment of the
system.

[Always have inflated air bags be
replaced by an authorized retailer of
Genesis Branded products.

[If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed.
Consult an authorized retailer of
Genesis Branded products for the
necessary information. Failure to
follow these precautions could
increase the risk of personal injury.

4
Press START button while turning wheel ...............................................................4-20
Low washer fluid ......................................................................................................4-20
Check steering wheel lock system .........................................................................4-20
Press brake pedal to start vehicle ..........................................................................4-20
Key not in vehicle ....................................................................................................4-20
Key not detected ......................................................................................................4-20
Press START button again ......................................................................................4-20
Place the smart key in the emergency start slot and press the start button ........4-21
Check BRAKE SWITCH fuse ....................................................................................4-21
Shift to P to start vehicle ..........................................................................................4-21
Battery discharging due to external/additional electrical devices .......................4-21
Door, Hood, Liftgate open indicator ........................................................................4-21
Low tire pressure ..................................................................................................... 4-22
Lights ........................................................................................................................4-22
Wiper ........................................................................................................................ 4-22
Check haptic steering wheel system ...................................................................... 4-23
Check headlight ....................................................................................................... 4-23
Check turn signal ..................................................................................................... 4-23
Check headlamp LED .............................................................................................. 4-23
Shift to P to charge .................................................................................................. 4-23
Remaining time ........................................................................................................ 4-23
Unplug vehicle to start ............................................................................................ 4-24
Charging door open ................................................................................................. 4-24
Charging stopped. Check the charger ................................................................... 4-24
Charging stopped. Check the cable connection ................................................... 4-25
Check regenerative brakes...................................................................................... 4-25
Low EV battery ........................................................................................................ 4-25
Charge immediately. Power limited .......................................................................4-26
Power limited due to low EV battery temperature. Charge battery .....................4-26
EV Battery Overheated! Stop vehicle .................................................................... 4-27
Power limited ........................................................................................................... 4-27
Stop vehicle and check power supply ....................................................................4-28
Check virtual engine sound system........................................................................4-28
Check electric vehicle system ................................................................................4-28
LCD Display ..................................................................................................... 4-29LCD Display Control ...................................................................................................4-29
View Modes ................................................................................................................4-29
Driving Assist view .................................................................................................. 4-30
Widget ...................................................................................................................... 4-31
Option Menu ...............................................................................................................4-33
Vehicle Settings (infotainment system) ........................................................ 4-34Setting Your Vehicle ..................................................................................................4-34

4-20
Instrument Cluster
LCD Display Messages
Shift to P
This message is displayed if you try to
turn off the vehicle without the gear in
the P (Park) position.
If this occurs, the Start/Stop button turns
to the ACC position.
Vehicle is in N. Press START button
and shift to P (and turn vehicle off)
This message is displayed if you try to
turn off the vehicle with the gear in N
(Neutral).
To turn off the vehicle:
1. Press the Start/Stop button. The
button will change to the ON position.
2. Press the P button to shift to P (Park).
3. Press the Start/Stop button again,
then the vehicle will turn off.
Low key battery
This message is displayed if the battery
of the smart key is discharged while
changing the Start/Stop button to the
OFF position.
Press START button while turning
wheel (if equipped)
This message is displayed if the steering
wheel does not unlock normally when
the Start/Stop button is pressed.
You should press the Start/Stop button
while turning the steering wheel right
and left.
Low washer fluid (if equipped)
This message is displayed if the washer
fluid level in the reservoir is nearly empty.
Have the washer fluid reservoir refilled.
Check steering wheel lock system
(if equipped)
This message is displayed if the steering
wheel does not lock normally while the
Start/Stop button is pressed to the OFF
position.
Press brake pedal to start vehicle
This message is displayed if the Start/
Stop button changes to the ACC position
twice by pressing the button repeatedly
without depressing the brake pedal.
You can start the vehicle by depressing
the brake pedal and then pressing the
Start/Stop button.
Key not in vehicle
This message is displayed if the smart
key is not in the vehicle when you leave
the vehicle with the Start/Stop button in
the ON or Start position.
Always turn off the vehicle before leaving
your vehicle.
Key not detected
This message is displayed if the smart
key is not detected when you press the
Start/Stop button.
Press START button again
This message is displayed if you were
unable to start the vehicle when the
Start/Stop button was pressed.
If this occurs, attempt to start the vehicle
by pressing the Start/Stop button again.
If the warning message appears each
time you press the Start/Stop button,
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.

4-23
04
Check haptic steering wheel system
(if equipped)
This message is displayed if there is a
problem with the haptic steering wheel
system.
Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Check headlight
This message is displayed if the
headlights are not operating properly. A
lamp may need to be replaced.
Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Check turn signal
This message is displayed if the turn
signal lamps are not operating properly.
A lamp may need to be replaced.
Have the vehicle inspected by an
authorized retailer of Genesis Branded
products.
Check headlamp LED
This message is displayed if there is a
problem with the LED headlamp. Have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
Shift to P to charge
ORG3EVQ011117L
This message is displayed if you connect
the charging cable without the gear in
the P (Park) position.
Shift to P (Park) before connecting the
charging cable.
Remaining time
„AC charge„DC charge
OJWEVQ011117NOJWEVQ011118N
This message is displayed to notify the
remaining time to charge the battery to
the selected target battery charge level.

4-31
04
Widget
In the Widget, using the optical mouse
(), you may change through items in
the following order.
OJWEV041025E
Drive info
This display shows the trip distance, the
average energy consumption, and the
total driving time.
The information is combined for each
ignition cycle.
To manually reset the information, triple
press the (
) button when viewing the
Drive Info. The trip distance, the average
energy consumption, and total driving
time will reset simultaneously.
The driving information will continue to
be counted while the vehicle is in the
ready (
) mode (for example, when
the vehicle is in traffic or stopped at a
stop light.)
Information
The vehicle must be driven for a minimum
of 300 meters (0.19 miles) since the last
ignition key cycle before the driving
information is recalculated.
OJWEV041026E
After Recharging
Trip distance, total driving time and
average energy consumption after
the vehicle has been recharged are
displayed. To reset manually, triple press
the (
) button the steering wheel when
‘After recharging’ is displayed.

5
Theft-Alarm System ........................................................................................ 5-44
Advanced Rear Occupant Alert (ROA) ........................................................... 5-45
Advanced Rear Occupant Alert Settings .................................................................5-45
Advanced Rear Occupant Alert Operation ...............................................................5-45
Advanced Rear Occupant Alert Precautions .......................................................... 5-46
Integrated Memory System............................................................................ 5-48Storing Memory Positions ........................................................................................ 5-48
Recalling Memory Positions ..................................................................................... 5-49
Resetting the System ................................................................................................ 5-49
Seat Easy Access ....................................................................................................... 5-50
Smart Posture Care System ............................................................................ 5-51
Steering Wheel ................................................................................................ 5-52
Electric Power Steering (EPS) .................................................................................... 5-52
Tilt/Telescopic Steering .............................................................................................5-53
Horn.............................................................................................................................5-54
Heated Steering Wheel .............................................................................................. 5-55
Mirrors ............................................................................................................. 5-56Inside Rearview Mirror ...............................................................................................5-56
Side View Mirrors .......................................................................................................5-65
Reverse Parking Aid ................................................................................................... 5-67
Windows .......................................................................................................... 5-69Power Windows .......................................................................................................... 5-70
Remote Window Opening/Closing Function ........................................................... 5-73
Vision Roof .......................................................................................................5-74
Resetting the Power Sunshade ................................................................................. 5-76
Exterior Features .............................................................................................. 5-77Roof Rack .................................................................................................................... 5-7 7
Hood ............................................................................................................................ 5-78
Front Trunk .................................................................................................................. 5-7 9
Power Liftgate ............................................................................................................ 5-81
Smart Liftgate ............................................................................................................. 5-87
Charging Door ........................................................................................................... 5-89
Head-Up Display(HUD) ...................................................................................5-91Head-up Display Settings .......................................................................................... 5-91
Head-up Display Information .................................................................................... 5-91
Precautions while using the Head-up Display .........................................................5-92
