7-87
07
- Narrow vehicles, such as
motorcycles or bicycles
- Special vehicles
- Animals and pedestrians
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.
In the following cases, the vehicle
in front cannot be detected by the
sensor:
- You are steering your vehicle
- Driving on narrow or sharply curved
roads
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.
OJWEV071138

[When a vehicle ahead disappears
at an intersection, your vehicle may
accelerate.
Always pay attention to road and
driving conditions while driving.
OJWEV071139

[When a vehicle in front of you merges
out of the lane, Smart Cruise Control
may not immediately detect the new
vehicle that is now in front of you.
Always pay attention to road and
driving conditions while driving.
OJWEV071140

[Always look out for pedestrians when
your vehicle is maintaining a distance
with the vehicle ahead.

7-156
Driver Assistance System
Operating conditions
Select ‘Rear Safety’ from the ‘Parking
Safety’ menu of the infotainment system.
Parking Collision-Avoidance Assist is
enabled when the following conditions
are satisfied:
Rear Safety

[The liftgate and door are closed

[The Electronic Parking Brake (EPB) is
released

[A trailer is not connected

[The gear is shifted to R (Reverse)

[Vehicle speed is below 6 mph (10
km/h) (detecting pedestrians)

[Vehicle speed is below 2.4 mph (4
km/h) (detecting objects)

[Parking Collision-Avoidance Assist
components such as the rear view
camera and the rear ultrasonic
sensors are in normal conditions
Front/Side Safety

[The liftgate and door are closed

[The Electronic Parking Brake (EPB) is
released

[A trailer is not connected

[The gear is shifted to R (Reverse) or D
(Drive)

[Vehicle speed is below 2.4 mph (4
km/h) (for pedestrians, objects)

[Parking Collision-Avoidance Assist
components such as the wide rear
view camera and the rear ultrasonic
sensors are in normal conditionsWhen Parking Collision-Avoidance Assist
activates, a line appears behind the
vehicle image in the instrument cluster.

[Rear Safety: Behind the vehicle image

[Front/Side Safety: In front of vehicle
OJWEV071357N
Information
Parking Collision-Avoidance Assist
operates only once after shifting the gear
to R (Reverse) or D (Drive). To reactivate
Parking Collision-Avoidance Assist, shift
the gear from another gear to R (Reverse)
or D (Drive).

7-159
07
OJWEV071301L
OJWEV071302LOJWEV071350NThe ‘Camera error or blockage’ or
‘Ultrasonic sensor error or blockage’
warning message will appear on the
cluster if the following situations occur:

[The camera(s) or ultrasonic sensor(s)
is covered with foreign material, such
as snow or rain, etc.

[There is inclement weather, such as
heavy snow, heavy rain, etc.
If this occurs, Parking Collision-
Avoidance Assist may turn off or may
not operate properly. Check whether
the cameras and ultrasonic sensors are
clean.
Limitations of Parking Collision-
Avoidance Assist
Parking Collision-Avoidance Assist may
not assist braking or warn the driver even
if there are pedestrians or objects under
the following circumstances:

[Any non-factory equipment or
accessory is installed

[Your vehicle is unstable due to an
accident or other causes

[Bumper height or rear ultrasonic
sensor installation has been modified

[Wide view camera (s) or ultrasonic
sensor (s) is damaged

[Wide view camera(s) or the ultrasonic
sensor (s) is stained with foreign
material, such as snow, dirt, etc.

[Wide view camera (s) is obscured by a
light source or by inclement weather,
such as heavy rain, fog, snow, etc.

[The surrounding is very bright or very
dark

[Outside temperature is very high or
very low

[The wind is either strong (above
12 mph (20 km/h)) or blowing
perpendicular to the rear bumper

[Objects generating excessive
noise, such as vehicle horns, loud
motorcycle vehicles or truck air
brakes, are near your vehicle

[An ultrasonic sensor with similar
frequency is near your vehicle

[The road is slippery or inclined

[The pedestrians are difficult to detect

[The image of the pedestrian in the
front view camera is indistinguishable
from the background

[There is ground height difference
between the vehicle and the
pedestrian

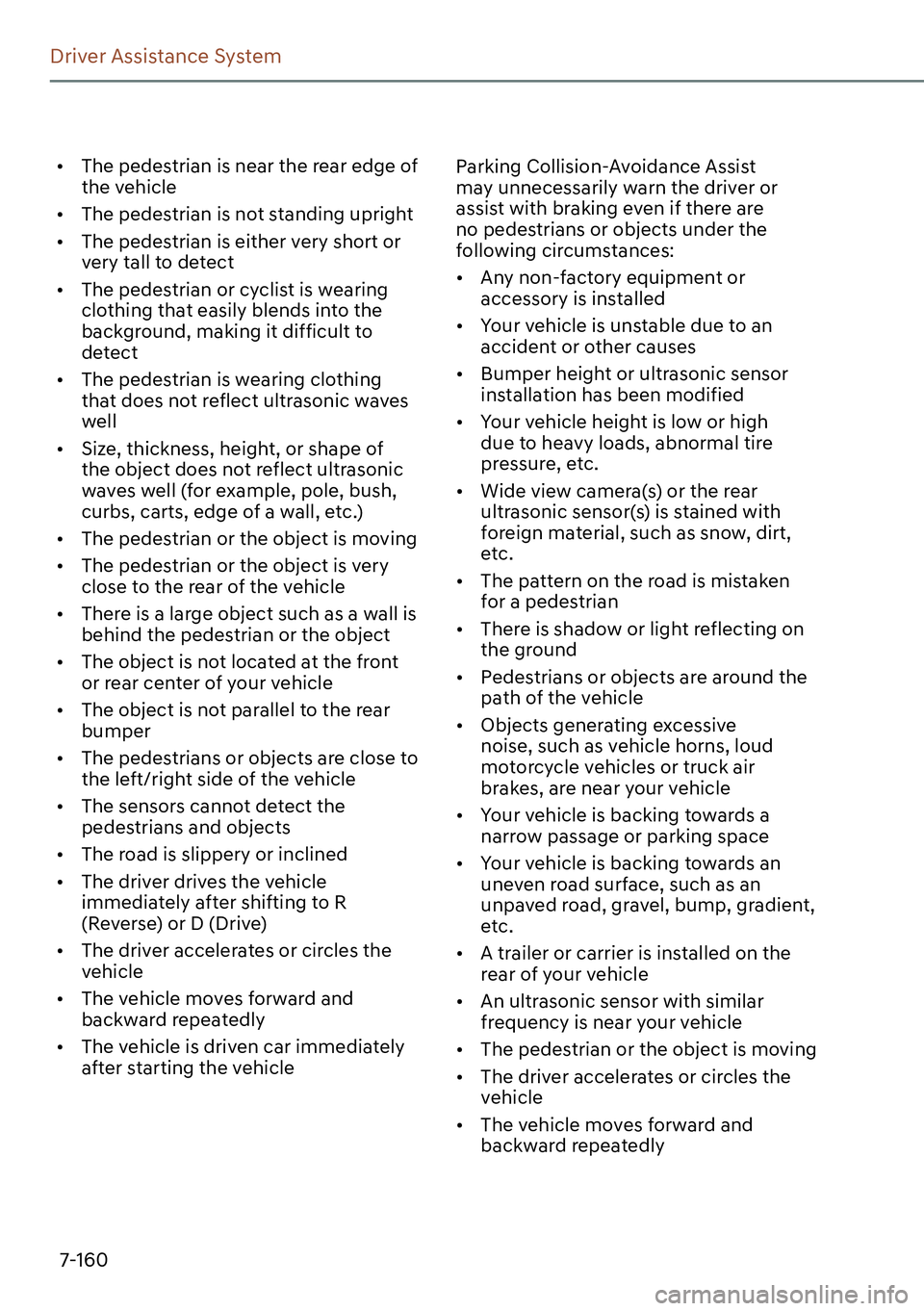

7-160
Driver Assistance System

[The pedestrian is near the rear edge of
the vehicle

[The pedestrian is not standing upright

[The pedestrian is either very short or
very tall to detect

[The pedestrian or cyclist is wearing
clothing that easily blends into the
background, making it difficult to
detect

[The pedestrian is wearing clothing
that does not reflect ultrasonic waves
well

[Size, thickness, height, or shape of
the object does not reflect ultrasonic
waves well (for example, pole, bush,
curbs, carts, edge of a wall, etc.)

[The pedestrian or the object is moving

[The pedestrian or the object is very
close to the rear of the vehicle

[There is a large object such as a wall is
behind the pedestrian or the object

[The object is not located at the front
or rear center of your vehicle

[The object is not parallel to the rear
bumper

[The pedestrians or objects are close to
the left/right side of the vehicle

[The sensors cannot detect the
pedestrians and objects

[The road is slippery or inclined

[The driver drives the vehicle
immediately after shifting to R
(Reverse) or D (Drive)

[The driver accelerates or circles the
vehicle

[The vehicle moves forward and
backward repeatedly

[The vehicle is driven car immediately
after starting the vehicleParking Collision-Avoidance Assist
may unnecessarily warn the driver or
assist with braking even if there are
no pedestrians or objects under the
following circumstances:

[Any non-factory equipment or
accessory is installed

[Your vehicle is unstable due to an
accident or other causes

[Bumper height or ultrasonic sensor
installation has been modified

[Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[Wide view camera(s) or the rear
ultrasonic sensor(s) is stained with
foreign material, such as snow, dirt,
etc.

[The pattern on the road is mistaken
for a pedestrian

[There is shadow or light reflecting on
the ground

[Pedestrians or objects are around the
path of the vehicle

[Objects generating excessive
noise, such as vehicle horns, loud
motorcycle vehicles or truck air
brakes, are near your vehicle

[Your vehicle is backing towards a
narrow passage or parking space

[Your vehicle is backing towards an
uneven road surface, such as an
unpaved road, gravel, bump, gradient,
etc.

[A trailer or carrier is installed on the
rear of your vehicle

[An ultrasonic sensor with similar
frequency is near your vehicle

[The pedestrian or the object is moving

[The driver accelerates or circles the
vehicle

[The vehicle moves forward and
backward repeatedly

7-181
07
&KHFNLQJVSDFH
OJWEV071283L
(1) When the vehicle is stopped by
depressing the brake pedal, the
vehicle sensors will detect the
distance from nearby objects and
check for space to exit.
(2) When checking for space is
complete, a message will appear
on the infotainment system screen
with an audible sound to notify the
search is complete.
:$51,1*

[:KLOHFKHFNLQJIRUVSDFHLIWKHUHLV
DULVNRIFROOLVLRQZLWKSHGHVWULDQ
DQLPDORUREMHFWLQWKHGLUHFWLRQRI
YHKLFOHH[LWIRU\RXUVDIHW\6PDUW
([LWIXQFWLRQFDQEHWXUQHGRII

[(YHQLIFKHFNIRUVSDFHLVFRPSOHWHG
REMHFWVLQWKHEOLQGVSRWDUHDFDQQRW
EHGHWHFWHGE\WKHVHQVRUV7KH
GULYHUPXVWGLUHFWO\FKHFNWKHEOLQG
spot area and continue using the
IXQFWLRQ
Information
Due to abnormal performance of the
ultrasonic sensor or the influence of the
surroundings, Parking function may not
be able to search for a parking space even
if there is a parking space, or may search
for a space that is not suitable for parking.
-The parked vehicle has objects attached
to the bumper such as bumper guard,
trailer hitch, etc.
6HOHFWH[LWGLUHFWLRQ
OJWEV071284L
(1) With the vehicle stopped by
depressing the brake pedal, the
infotainment system screen
displays the possible directions for
parallel exit.
(2) Touch the infotainment system
screen or use the central controller
to select the desired exit direction.
CAUTION

[%HIRUHVHOHFWLQJWKH([LW'LUHFWLRQ
WKHGULYHUVKRXOGFKHFNZKHWKHUWKH
VSDFHIRUH[LWLVVXLWDEOH

[,IWKHVHDUFKHGH[LWVSDFHE\5HPRWH
Smart Parking Assist is narrow or
XQVXLWDEOHVXUURXQGLQJYHKLFOHVDUH
SDUNHGYHUWLFDOO\HWFGRQRWXVH
WKH6PDUW([LWIXQFWLRQ

8-12
Emergency Situations
If the indicators do not extinguish after
a few minuates, consult an authorized
retailer of Genesis Branded products.
Each wheel is equipped with a tire
pressure sensor mounted inside the tire
behind the valve stem (except for the
spare tire). You must use TPMS specific
wheels. Have your tires serviced by an
authorized retailer of Genesis Branded
products.
You may not be able to identify a tire
with low pressure by simply looking at it.
Always use a good quality tire pressure
gauge to measure. Please note that a tire
that is hot (from being driven) will have a
higher pressure measurement than a tire
that is cold.
A cold tire means the vehicle has been
sitting for 3 hours and driven for less
than 1 mile (1.6 km) in that 3 hour period.
Allow the tire to cool before measuring
the inflation pressure. Always be sure
the tire is cold before inflating to the
recommended pressure.
WARNING

[The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors such as nails or road
debris.

[If you feel any vehicle instability,
immediately take your foot off
the accelerator, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.
WARNING
Tampering with, modifying, or disabling
the Tire Pressure Monitoring System
(TPMS) components may interfere
with the system’s ability to warn the
driver of low tire pressure conditions
and/or TPMS malfunctions. Tampering
with, modifying, or disabling the Tire
Pressure Monitoring System (TPMS)
components may void the warranty for
that portion of the vehicle.
WARNING
This device complies with Part 15 of the
FCC rules.Operation is subject to the
following three conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the device.
3. Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the device.

9-55
09
Exterior Care
NOTICE
If you park your vehicle near a stainless
steel sign or glass facade building, the
vehicle’s exterior plastic parts such
as a bumper, spoiler, garnish, lamp
or outside rearview mirror might be
damaged due to sunlight reflected from
the sign or building. To prevent damage
of the exterior plastic parts, you should
avoid parking in areas where light may
be reflected or use a car cover. (The
exterior plastic parts applied to your
vehicle may vary.)
Do not step on the side sill moldings.
Excessive load may result in vehicle
damage or personal injury.
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning and
caution statements that appear on the
label.
Finish maintenance
Washing
To help protect your vehicle’s finish from
rust and deterioration, wash it thoroughly
and frequently at least once a month
with lukewarm or cold water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges
of the doors and rocker panels are kept
clear and clean.Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, should be used.
After washing, rinse the vehicle
thoroughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
High-pressure washing

[When using high-pressure washers,
make sure to maintain sufficient
distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.

[Do not spray the camera, sensors or
its surrounding area directly with a
high pressure washer. Shock applied
from high pressure water may cause
the device to not operate normally.

[Do not bring the nozzle tip close to
boots (rubber or plastic covers) or
connectors as they may be damaged
if they come into contact with high
pressure water.
WARNING
After washing the vehicle, test the
brakes while driving slowly to see
if they have been affected by water
before getting on the road. If braking
performance is impaired, dry the
brakes by applying them lightly while
maintaining a slow forward speed.
APPEARANCE CARE
